dellonda DL12 User manual

www.dellonda.co.uk

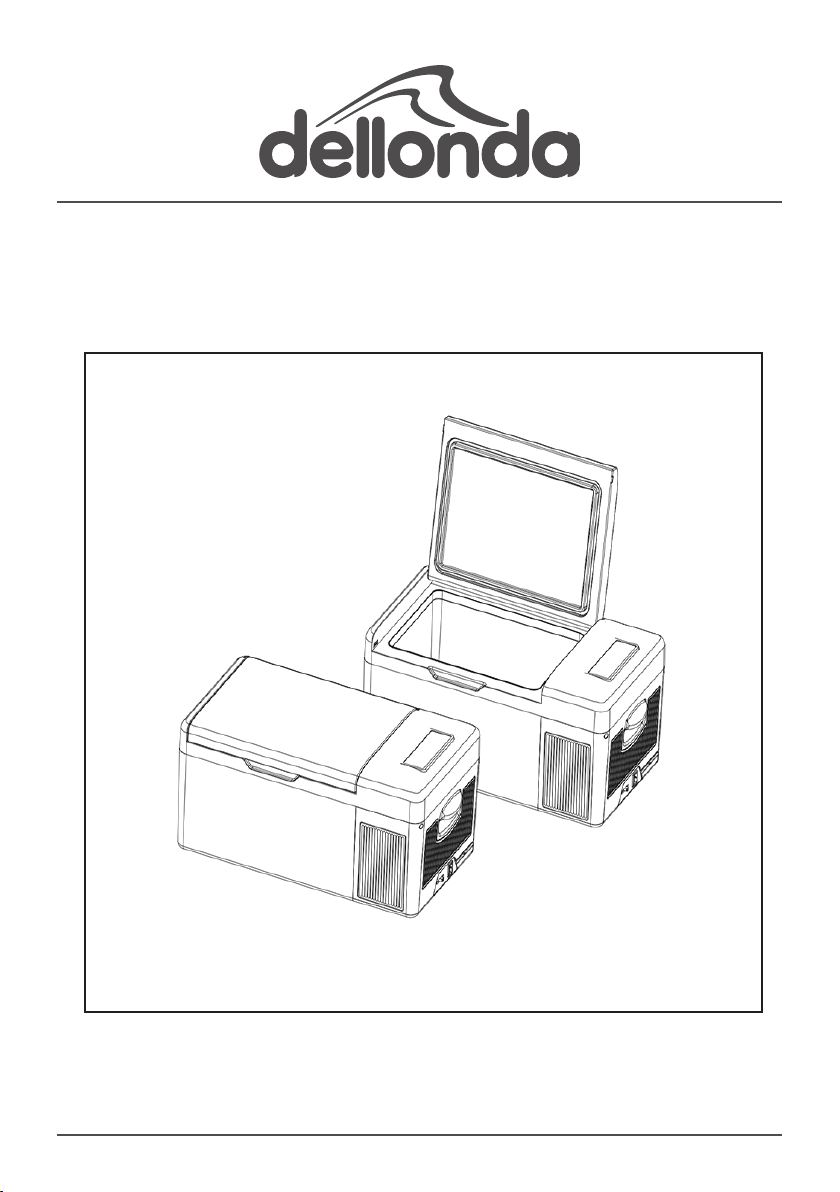

Dellonda 15L Portable Compressor
Fridge Freezer/Cool Box, Car/Camping,
12/24/230V
Model No. DL12
Thank you for purchasing a Dellonda product. Manufactured to a high standard, this product will, if used
according to these instructions, and properly maintained, give you years of trouble free performance.
DL12 Issue:1 22/04/2020

2 www.dellonda.co.uk
Important Information
Please read these instructions carefully and note any safe operational requirements, warnings &
cautions. Use the product correctly and with care for the purpose for which it is intended. Failure
to do so may cause damage and/or personal injury and will invalidate the warranty. Keep these
instructions safe for future use.
Refer to
instruction
manual
About the Product
This stylish 15L Portable compressor fridge
freezer cool box is ideal for long road trips,
camping trips and general travel use. Lightweight
and compact design allowing you the exibility
to take with you anywhere you go. Supplied
with an AC to DC adaptor and a 3.5 metre DC
power cable, giving you the option to use at
home as well as in your vehicle. Fully insulated
anti-vibration design aids performance. Features
an electronic thermostat with LED digital
temperature display making it easy to adjust
and monitor the temperature of your fridge
freezer. Highly efcient design enabling optimum
performance with minimal power consumption.
Control panel features useful USB output port for
your on-the-go charging needs (power supply to
the unit required).
Safety Instructions
• ELECTRICAL SAFETY
• WARNING! It is the user’s responsibility to
check the following:
• Check all electrical equipment and appliances
to ensure that they are safe before using.
Inspect power supply leads, plugs and all
electrical connections for wear and damage.
Dellonda recommend that an RCD (Residual
Current Device) is used with all electrical
products. You may obtain an RCD by
contacting your local domestic stockist.
If the product is used in the course of
business duties, it must be maintained in a
safe condition and should be routinely PAT
(Portable Appliance Test) tested.
• Electrical safety information: It is important
that the following information is read and
understood.
• Ensure that the insulation on all cables and on
the appliance is safe before connecting it to
the power supply.
• Regularly inspect power supply cables and
plugs for wear or damage and check all
connections to ensure that they are secure.
• Important: Ensure that the voltage rating on
the appliance suits the power supply to be
used and that the plug is tted with the correct
fuse - see fuse rating in these instructions.
• DO NOT pull or carry the appliance by the
power cable.
• DO NOT pull the plug from the socket by the
cable.
• DO NOT use worn or damaged cables, plugs or
connectors.
• Ensure that any faulty item is repaired or
replaced immediately by a qualied electrician.
• This product is tted with a BS1363/A 13 Amp
3 pin plug.
• If the cable or plug is damaged during use,
switch off the electricity supply and remove
from use.
• Replace a damaged plug with a BS1363/A
13 Amp 3 pin plug.
If in doubt contact a
qualied electrician.

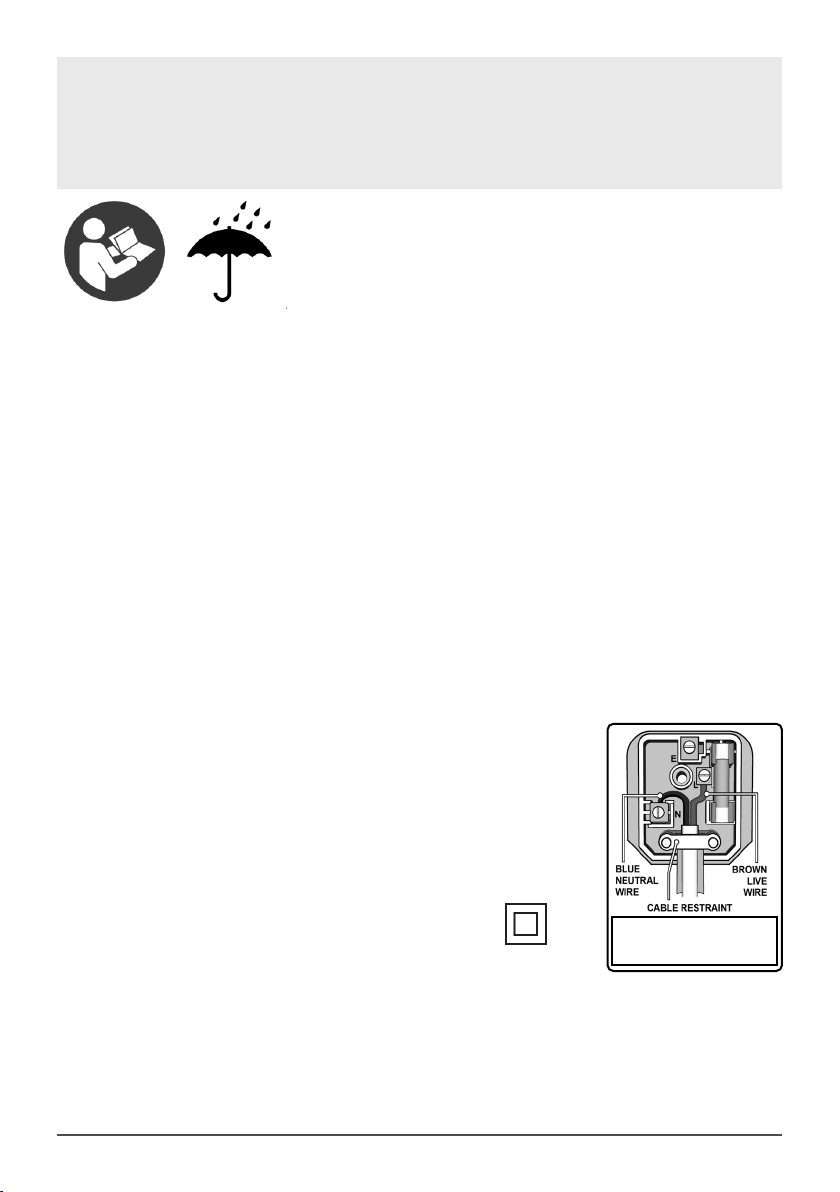

• Class II products
are wired with live
(brown) and neutral
(blue) only, and are
marked with the
Class II symbol.
A) Connect the
BROWN live wire to the live terminal ‘L’.
B) Connect the BLUE neutral wire to the
neutral terminal ‘N’.
C) After wiring, check that there are no
bare wires and ensure that all wires have
been correctly connected.
Recommended fuse rating:
13A
Keep unit dry

www.dellonda.co.uk 3
• Ensure that the cable outer sheath extends
inside the cable restraint and that the restraint
is tight.
• DO NOT connect either wire to the earth
terminal.
• Sealey recommend that repairs are carried out
by a qualied electrician.
• Modern vehicles contain extensive electronic
systems. You are required to check with
the vehicle manufacturer, for any specic
instructions regarding the use of this type of
equipment on each vehicle. No liability will
be accepted for damage/injury, where this
product is not used in accordance with all
instructions.
• GENERAL SAFETY
• Leave the unit to stand on a level surface
for 6 hours after unpacking and before rst
switch-on.
• Keep the unit horizontal while it is running.
• Allow 10cm side and 20cm rear space for
ventilation.
• Keep the unit dry and away from any heat
source.
• SPECIFICATION
• Model no.:.................................................DL12
• Capacity.......................................................15L
• Temperature range.....................-20OCto +20OC
• Refrigerant............................................R1234yf
• Power rating................................................45W
• Dimensions (w x d x h).....570 x 320 x 260mm
• Internal (w x d x h).............350 x 245 x185mm
• OPERATION

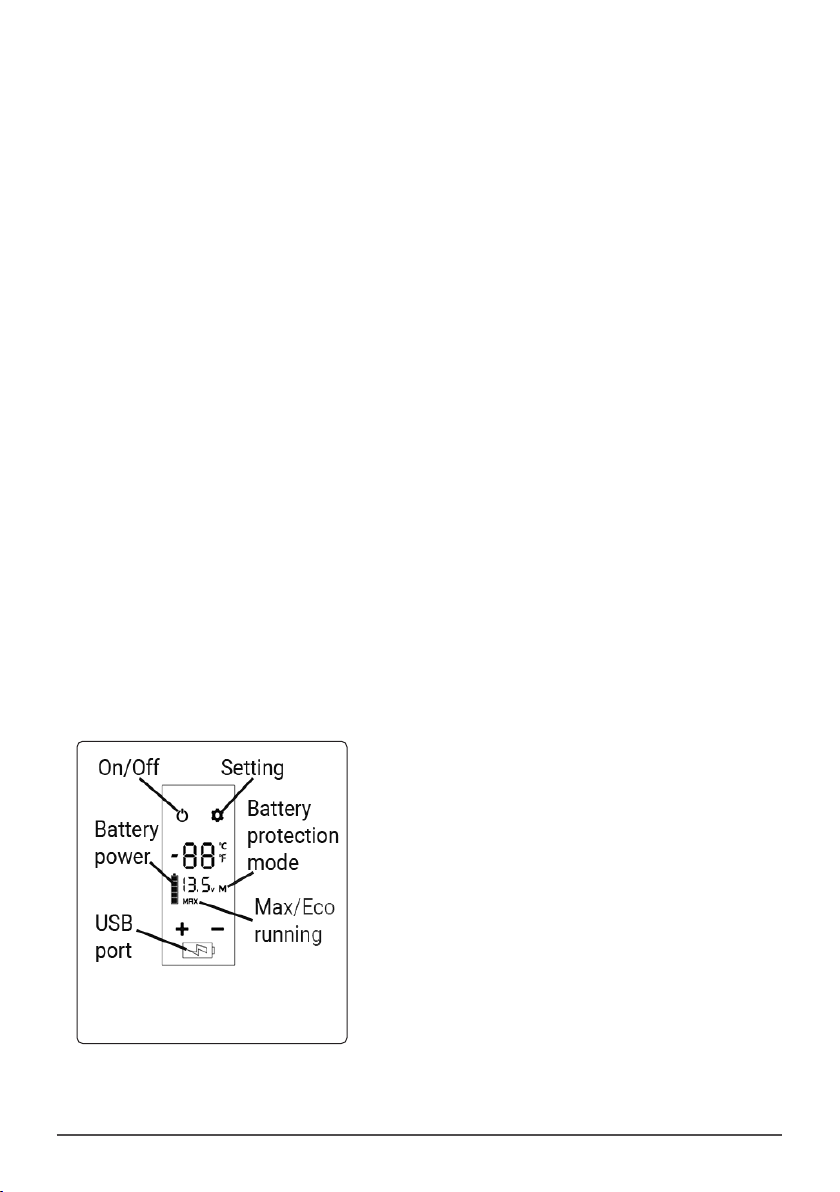

• Plug the unit in and hold the On/Off button
down for 3 seconds. Repeat to turn unit off.
• Press the +/- to adjust target temperature.
• Press the setting button to set up either MAX
(fast cooling) or ECO (energy saving) mode.
• To set battery protection mode, with the unit
turned on, press and hold the Setting button
for 3 seconds.
• The default setting for battery protection is
High (H). This value should be set when the
unit is drawing power from the car battery.
• When connected to a portable power supply
or other back-up battery, set mode to Medium
(M) or Low (L) by cycling through the Setting
button options.
• NOTE: If the battery power supply to the unit
does not switch off when the vehicle’s ignition
is off, set battery mode to ‘H’ otherwise you
may drain the vehicle battery.
• MAINTENANCE
• Remove the power plug from the unit when
performing cleaning or maintenance.
• DO NOT use abrasive or chemical cleaning
materials on any surface of the unit.
• Wipe interior and exterior surfaces with a
damp cloth and dry thoroughly with a clean
dry cloth.
• For more soiled surfaces use a neutral
detergent, wipe down with a clean damp cloth
and dry thoroughly with a clean dry cloth.
• To defrost the unit, power it off, raise the lid,
empty the contents and allow it to defrost.
Carefully use a defrosting shovel to remove
thawed ice and wipe the internals dry using a
clean, dry cloth to absorb any remaining liquid.

4 www.dellonda.co.uk
Display code Possible cause and solution
F1 Low power protection. Change Battery protection mode from ‘H’ to ‘M’ or from
‘M’ to ‘L’
F2 Fan overload. Turn o󰀨 and leave for 30 minutes.
F3Compressor protection activated. Turn o󰀨 and leave for 30 minutes.
F4 Compressor overloaded. Turn o󰀨 and restart after 30 minutes.
F5 Compressor controller protection activated. Turn o󰀨 and leave for 30 minutes.
F6 No parameter detected by controller. Restart unit.
F7/F8 Temperature sensor error. Turn o󰀨 and restart unit.
If the issue is not resolved by carrying out the above procedures please contact Dellonda.
Troubleshooting
Dellonda Limited
Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757575 [email protected] www.dellonda.co.uk
Environment Protection and Waste Protection and Electrical
Equipment Regulations (WEEE)
Recycle unwanted packaging materials. When this product is no longer required, or
has reached the end of it’s useful life, please dispose of it in an environmentally
friendly way. Drain any uids (if applicable) into approved containers, in accordance
with local waste regulations. It is our policy to continually improve products and we
reserve the right to alter data, specications and parts without prior notice.
No liability is accepted for incorrect use of this product.
Guarantee is 12 months from purchase date, proof of which is required for any claim.
