Dellonda 50L Portable Compressor
Fridge Freezer/Cool Box, Car/Camping,
12/24/230V
Model No. DL14
Thank you for purchasing a Dellonda product. Manufactured to a high standard, this product will, if used
according to these instructions, and properly maintained, give you years of trouble free performance.
DL14 Issue:1 06/04/2020

2 www.dellonda.co.uk
Important Information
Please read these instructions carefully and note any safe operational requirements, warnings &
cautions. Use the product correctly and with care for the purpose for which it is intended. Failure
to do so may cause damage and/or personal injury and will invalidate the warranty. Keep these
instructions safe for future use.
Refer to
instruction
manual
About the Product
This stylish 50L Portable compressor fridge
freezer cool box is ideal for long road
trips, camping trips and general travel use.
Lightweight and compact design allowing you
the exibility to take with you anywhere you
go. Supplied with an AC to DC adaptor and
a 3.5 metre DC power cable, giving you the
option to use at home as well in your vehicle.
Fully insulated anti-vibration design aids
performance. Features an electronic thermostat
with LED digital temperature display making
it easy to adjust and monitor the temperature
of your fridge freezer. Highly e󰀩cient design
enabling optimum performance with minimal
power consumption. Fitted with two wheels
and handle for easy manoeuvrability. Dual
zone design means you can control the
temperature of each zone individually, with
both compartments ranging from -20°C to +
20°C. Control panel features useful USB output
port for your on-the-go charging needs (power
supply to the unit required).
Safety Instructions
• ELECTRICAL SAFETY
• WARNING! It is the user’s responsibility to
check the following:
• Check all electrical equipment and appliances
to ensure that they are safe before using.
Inspect power supply leads, plugs and all
electrical connections for wear and damage.
Dellonda recommend that an RCD (Residual
Current Device) is used with all electrical
products. You may obtain an RCD by
contacting your local domestic stockist.
If the product is used in the course of
business duties, it must be maintained in a
safe condition and should be routinely PAT
(Portable Appliance Test) tested.
• Electrical safety information: It is important
that the following information is read and
understood.
• Ensure that the insulation on all cables and on
the appliance is safe before connecting it to
the power supply.
• Regularly inspect power supply cables and
plugs for wear or damage and check all
connections to ensure that they are secure.
• Important: Ensure that the voltage rating on
the appliance suits the power supply to be
used and that the plug is tted with the correct
fuse - see fuse rating in these instructions.
• DO NOT pull or carry the appliance by the
power cable.
• DO NOT pull the plug from the socket by the
cable.
• DO NOT use worn or damaged cables, plugs or
connectors.
• Ensure that any faulty item is repaired or
replaced immediately by a qualied electrician.
• This product is tted with a BS1363/A 13 Amp
3 pin plug.
• If the cable or plug
is damaged during
use, switch off the
electricity supply and
remove from use.
• Replace a damaged
plug with a BS1363/A
13 Amp 3 pin plug.
If in doubt contact a
qualied electrician.
• Class II products
are wired with live
(brown) and neutral
(blue) only, and are marked with the Class II
symbol.
A) Connect the BROWN live wire to the live
terminal ‘L’.
Recommended fuse rating:
13A
Keep unit dry

www.dellonda.co.uk 3
B) Connect the BLUE neutral wire to the
neutral terminal ‘N’.
C) Check that there are no bare wires and
ensure that all wires are correctly connected.
• Ensure that the cable outer sheath extends
inside the cable restraint and that the restraint
is tight.
• DO NOT connect either wire to the earth
terminal.
• Dellonda recommend that repairs are carried
out by a qualied electrician.
• Modern vehicles contain extensive electronic
systems. You are required to check with
the vehicle manufacturer, for any specic
instructions regarding the use of this type of
equipment on each vehicle. No liability will
be accepted for damage/injury, where this
product is not used in accordance with all
instructions.
• GENERAL SAFETY
• Leave the unit to stand on a level surface
for 6 hours after unpacking and before rst
switch-on.
• Keep the unit horizontal while it is running.
• Allow 10cm side and 20cm rear space for
ventilation.
• Keep the unit dry and away from any heat
source.
• SPECIFICATION
• Model no.:...................................................DL14
• Capacity........................................................50L
• Temperature range.....................-20OC- +20OC
• Power rating................................................60W
• Dimensions (w x d x h)......723 x 360 x 458mm
• Internal (w x d x h).............550 x 270 x 375mm
• Refrigerant.......................................... R1234yf
• OPERATION

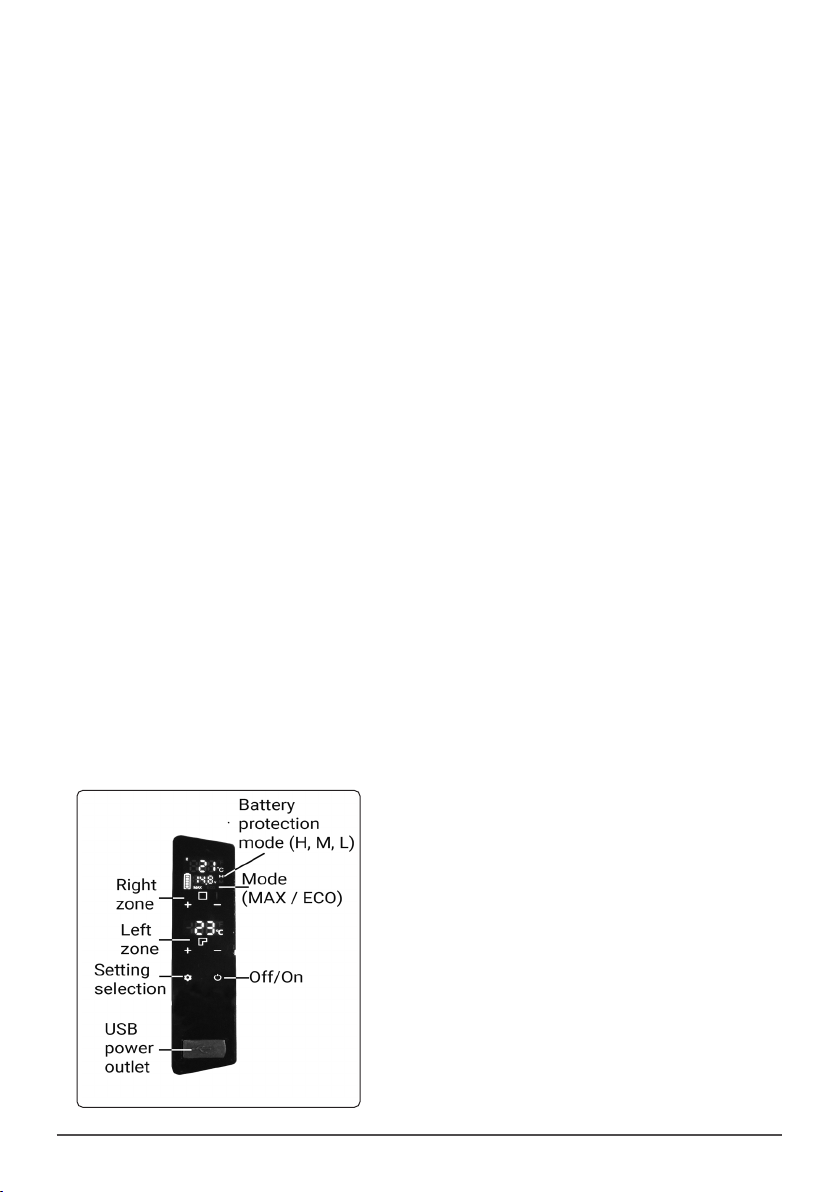

• Plug the unit in and hold the On/Off button
down for 3 seconds. Repeat to turn unit off.
• The internal temperatures will display and the
compressor will start.
• NOTE: Only one temperature will show if the
zone divider has been removed.
• Press the setting button to set up either MAX
(fast cooling) or ECO (energy saving) mode.
• Press the +/- to adjust target temperature.
• NOTE: The temperature of the left hand zone
cannot be set lower than that of the right hand
zone.
• To turn off the left hand zone (designated
by the square symbol) hold down the + and -
buttons at the same time for three seconds.
• To turn the left hand zone back on, repeat the
procedure.
• NOTE: Ensure left hand zone is on before the
partition is removed in order to run in single
zone mode. If the left hand zone is off and the
partition removed, the compressor will not
turn on.
• To set battery protection mode, with the unit
turned on, press and hold the Setting button
for 3 seconds.
• The default setting for battery protection is
High (H). This value should be set when the
unit is drawing power from the car battery.
• When connected to a portable power supply
or other back-up battery, set mode to Medium
(M) or Low (L) by cycling through the Setting
button options.
• NOTE: If the battery power supply to the unit
does not switch off when the vehicle’s ignition
is off, set battery mode to ‘H’ otherwise you
may drain the vehicle battery.
• MAINTENANCE
• Remove the power plug from the unit when
performing cleaning or maintenance.
• DO NOT use abrasive or chemical cleaning
materials on any surface of the unit.
• Wipe interior and exterior surfaces with a
damp cloth and dry thoroughly with a clean
dry cloth.
• For more soiled surfaces use a neutral
detergent, wipe down with a clean damp cloth
and dry thoroughly with a clean dry cloth.
• To defrost the unit, power it off, raise the lid,
empty the contents and allow it to defrost.
Carefully use a defrosting shovel to remove
thawed ice.

4 www.dellonda.co.uk
• Remove the drain plug and collect melt water
in suitable container. DO NOT tip the unit in
order to drain it.
• Wipe the internals dry using a clean, dry cloth
to absorb any remaining liquid.
Display code Possible cause and solution
F1 Low power protection. Change Battery protection mode from ‘H’ to ‘M’ or from
‘M’ to ‘L’
F2 Fan overload. Turn o󰀨 and leave for 30 minutes.
F3 Compressor protection activated. Turn o󰀨 and leave for 30 minutes.
F4 Compressor overloaded. Turn o󰀨 and restart after 30 minutes.
F5 Compressor controller protection activated. Turn o󰀨 and leave for 30 minutes.
F6 No parameter detected by controller. Restart unit.
F7/F8 Temperature sensor error. Turn o󰀨 and restart unit.
If the issue is not resolved by carrying out the above procedures please contact Dellonda.
