dellonda DL127 User manual
www.dellonda.co.uk
75L/95L Portable Car Fridge, Freezer, 12/24V Dual Zone
Compressor
Model No. DL127, DL128
Thank you for purchasing a Dellonda product. Manufactured to a high standard, this product will,
if used according to these instructions, and properly maintained, give you years of trouble free performance.
DL127, DL128 Issue:3 20/06/23
Important Information
Please read these instructions carefully. Note the safe operational requirements, warnings & cautions. Use the product correctly and with care
for the purpose for which it is intended. Failure to do so may cause damage and/or personal injury and will invalidate the warranty. Keep these
instructions safe for future use.
Refer to
instruction
manual
Keep Unit Dry
SAFETY INSTRUCTIONS
• ELECTRICAL SAFETY
• WARNING! It is the user’s responsibility to check the following:
• Check all electrical equipment and appliances to ensure that they are safe before using. Inspect power supply leads, plugs and all electrical
connections for wear and damage. Dellonda recommend that an RCD (Residual Current Device) is used with all electrical products. You may
obtain an RCD by contacting your local domestic stockist.
• If the product is used in the course of business duties, it must be maintained in a safe condition and should be routinely PAT (Portable
Appliance Test) tested.
• Electrical safety information: It is important that the following information is read and understood.
• Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.
• Regularly inspect power supply cables and plugs for wear or damage and check all connections to ensure that they are secure.
• Important: Ensure that the voltage rating on the appliance suits the power supply to be used and that the plug is tted with the correct fuse - see
fuse rating in these instructions.
• DO NOT pull or carry the appliance by the power cable.
• DO NOT pull the plug from the socket by the cable.
• DO NOT use worn or damaged cables, plugs or connectors.
• Ensure that any faulty item is repaired or replaced immediately by a qualied electrician.
• Dellonda recommend that repairs are carried out by a qualied electrician.
• Modern vehicles contain extensive electronic systems. You are required to check with the vehicle manufacturer, for any specic instructions
regarding the use of this type of equipment on each vehicle. No liability will be accepted for damage/injury, where this product is not used in
accordance with all instructions.
• GENERAL SAFETY
• DO NOT operate the appliance if it is visibly damaged.
• DO NOT block the gaps of the fridge with things like pin, wire, etc.
• DO NOT expose the appliance to rain or soak it in water.
• DO NOT place the appliance near naked ames or other heat sources (heaters, direct sunlight, gas ovens etc.)
• DO NOT store any explosive substances like spray cans with a ammable propellant in the product.
• Ensure the supply cord is dry and not trapped or damaged.
• Check the voltage specication on the type plate corresponds to that of the energy supply.
• The appliance is only to be used with the power supply unit provided with the appliance. Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the type recommended by the manufacturer.
• Once unpacked and before turning on, the appliance must be placed on a level surface for more than 6 hours.
• Make sure that the appliance stays horizontal when it is running. The tilt angle must be less than 5° for normal use and be less than 45°
only for a short period of time.
• Keep the ventilation openings in the unit casing or in the built-in structure free of obstacles.
• Keep the appliance stable on the ground or in the car. DO NOT drain upside down.
• Repairs may only be carried out by qualied personnel.
• Only use the power leads supplied with the product.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge if they’ve been given supervision or instruction concerning use of the device in a safe way and understand the
hazards.
• Risk of child / animal entrapment. Before you throw away your old refrigerator or freezer: take off the doors: leave the shelves in place so that
children / animals may not easily climb inside.
• Check if the cooling capacity of the appliance is suitable for storing the food or anything else placed in the product.
• Food may only be stored in its original packaging or in suitable containers.
• If the appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the
appliance.
• The appliance is intended to be used in household and similar applications such as: Staff kitchen areas in shops, ofces and other working
environments.
• Camping, Farm houses and by clients in hotels, motels and other residential environments; bed and breakfast type environments; catering and
similar non-retail applications.
• Please follow local regulations regarding disposal of the appliance for its refrigerant.
STRUCTURE
REVERSE DOOR OPENING DIRECTION
SPECIFICATION
OPERATION
• POWER SUPPLY: connect to DC12V/24V power, AC100~240V power (230V adaptor available separately, Model No. DL129).
• DISPLAY SCREEN INITIALIZATION: when connected to the power supply, the buzzer will make a long beep, and the display will be on for two
seconds then enter the standby mode.
• POWER ON/OFF: press On/Off to switch ON, long press On/Off for three seconds to switch OFF.
• TEMPERATURE SETTING: under the running state, long press + and at the same time for three seconds to switch ON/OFF the left
compartment. Long press - and at the same time for three seconds to switch ON/OFF the right compartment. Two compartments cannot
be switched o at the same time.When both left and right compartments are set in running state, press + or - to enter left compartment setting.
Press + to increase temperature, and - to decrease temperature. Press to switch left/right compartment. The setting will be saved after
stop operating for four seconds (Note: the temperature displayed is the current temperature of the compartments. It’ll take a while to reach
the set temperature).
Temperature setting range: 200C to +200C
• COOLING MODE: When the product is running, press to switch between MAX (fast cooling) and ECO (Energy saving Mode). (*Factory
setting is MAX.)
• BATTERY PROTECTION MODE: When the product is running, long press for three seconds until screen ashes, then press again to
select protection mode H (High), M (Medium) and L (Low).
• Voltage reference is as overleaf.
DL127 DL128
Capacity 75L 95L
Internal Dimensions Left (W x D x H) 325 x 385 x 355mm 355 x 420 x 355mm
Internal Dimensions Right (Max.) (W x D x H) 325 x 385 x 355mm 355 x 420 x 355mm
Power Consumption 95kWh/a 98kWh/a
Power Rating 80W 80W
Product Dimensions (W x D x H) 975 x 535 x 465mm 1005 x 570 x 465mm
Refrigerant R600a R600a
Temperature Range -200C to +200C-200C to +200C
USB Port
Current
Current
Set On/O
( + - )
Temperature
(H.M.L.) Battery
Protection Mode
(Max.Eco) Cooling
Mode
(0C 0F) Temperature Unit
Left Compartment Right Compartment
• TEMPERATURE UNIT SETTING: switch off the fridge, long press for three seconds until E1 displays, then switch to E5 by pressing
again.
• Under E5 mode press + or - to select Celsius or Fahrenheit. * (Factory setting is °C.)
• RESET: switch off the fridge, long press for three seconds until E1 displays. Under E1 mode long press +- at the same time for 3 seconds to
reset.
• RECOMMENDED TEMPERATURE FOR COMMON FOOD
MAINTENANCE
• CLEANING:
• WARNING: Switch off and unplug the device rst to avoid electric shock.
• Use wet cloth to clean the device and dry it.
• DO NOT soak the fridge in water and do not wash it directly.
• DO NOT use abrasive cleaning agents during cleaning as these can damage the device.
• STORAGE:
• If the device will not be in use for a long time, please follow the instruction:
• Switch off and unplug the device.
• Take out all the items stored in the device.
• Wipe off excess water with a soft cloth.
• Put the fridge in a cool and dry place.
• Leave the lid slightly open to prevent odours from forming.
• Recommended storage environment: ambient temperature: 25°C, ambient humidity: equal to or less than 75%.
• DEFROSTING:
• Humidity can form frost in the interior of the cooling device or on the evaporator. This reduces the cooling capacity. Defrost the device in good
time to avoid this.
• Switch off and unplug the device rst to avoid electric shock.
• Take out all the items stored in the device.
• Keep the lid open.
• Wipe off the defrosted water.
• Never use hard or pointed tools to remove ice or to loosen objects which have frozen in place.
Environment Protection and Waste Protection and Electrical Equipment Regulations (WEEE)
Recycle unwanted packaging materials. When this product is no longer required, or has reached the end of it’s useful life, please dispose of it in
an environmentally friendly way. Drain any fluids (if applicable) into approved containers, in accordance with local waste regulations. Under the
Waste Batteries and Accumulators Regulations 2009, Dellonda would like to inform the user that this product contains one or more batteries. It
is our policy to continually improve products and we reserve the right to alter data, specifications and parts without prior notice. No liability is
accepted for incorrect use of this product. Guarantee is 12 months from purchase date, proof of which is required for any claim.
Dellonda Limited
Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR

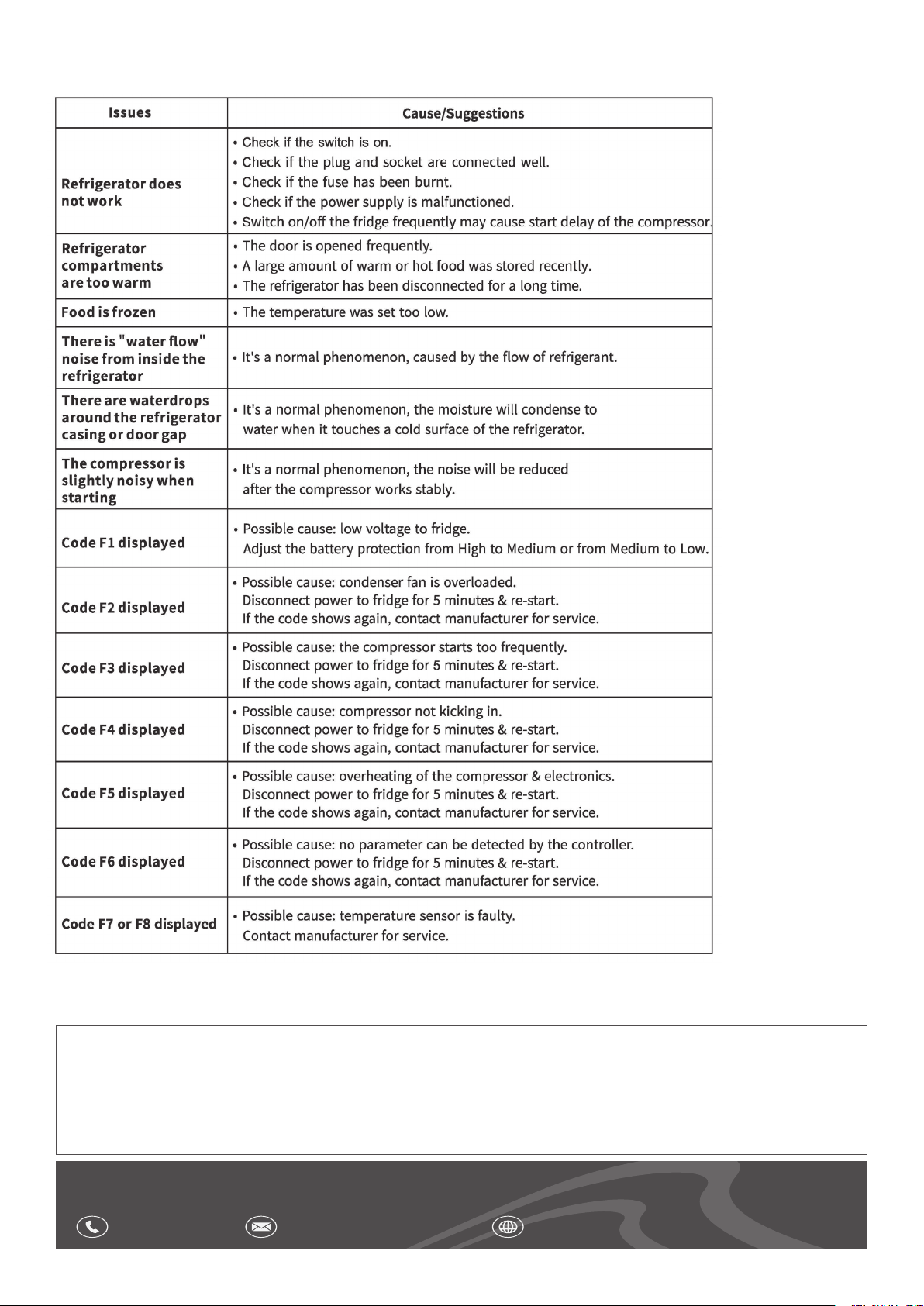

TROUBLESHOOTING
