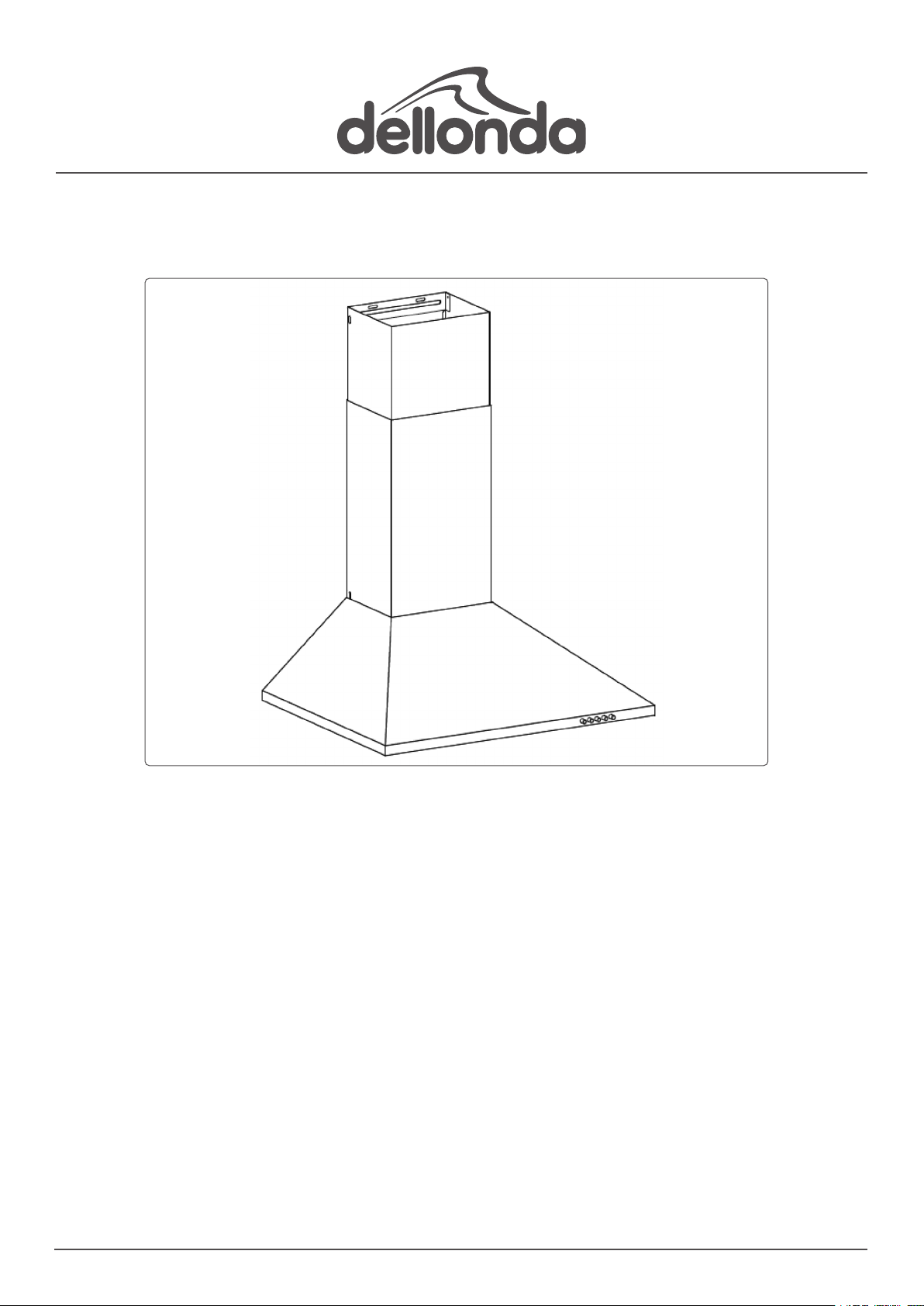

dellonda DH127 User manual

90cm Chimney Style Cooker Hood+Carbon Filters-S/Steel
Model No. DH127
Thank you for purchasing a Dellonda product. Manufactured to a high standard, this product will,
if used according to these instructions, and properly maintained, give you years of trouble free performance.
DG127 Issue:2 08/06/22
www.dellonda.co.uk

Important Information
Please read these instructions carefully. Note the safe operational requirements, warnings & cautions. Use the product correctly and with care
for the purpose for which it is intended. Failure to do so may cause damage and/or personal injury and will invalidate the warranty. Keep these
instructions safe for future use.
Refer to
instruction
manual
Warning:
Hot
Surface
Specication
Airow: 340m³/h
Cable Length: 1.5m
Colour: Stainless Steel - 430SS
Control: 3 Speed Push Button
Design: Chimney
Energy Efciency Class: B
Headroom: 90cm
Power: 65W
Product dimensions: 900 x 475 x 580/960mm
Supply: 220-240V
Type: Wall Mounted
Safety Instructions
• ELECTRICAL SAFETY
• WARNING! It is the user’s responsibility to check the following:
• Check all electrical equipment and appliances to ensure that they are safe before using. Inspect power supply leads, plugs and all electrical
connections for wear and damage. Dellonda recommend that an RCD (Residual Current Device) is used with all electrical products. You may
obtain an RCD by contacting your local domestic stockist. If the product is used in the course of business duties, it must be maintained in a
safe condition and routinely PAT (Portable Appliance Test) tested.
• Electrical safety information: It is important that the following information is read and understood.
• Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.
• Regularly inspect power supply cables and plugs for wear or damage and check all connections to ensure that they are secure.
• Important: Ensure that the voltage rating on the appliance suits the power supply to be used and that the plug is tted with the correct fuse - see
fuse rating in these instructions.
• DO NOT pull or carry the appliance by the power cable.
• DO NOT pull the plug from the socket by the cable.
• DO NOT use worn or damaged cables, plugs or connectors.
• Ensure that any faulty item is repaired or replaced immediately by a qualied electrician.

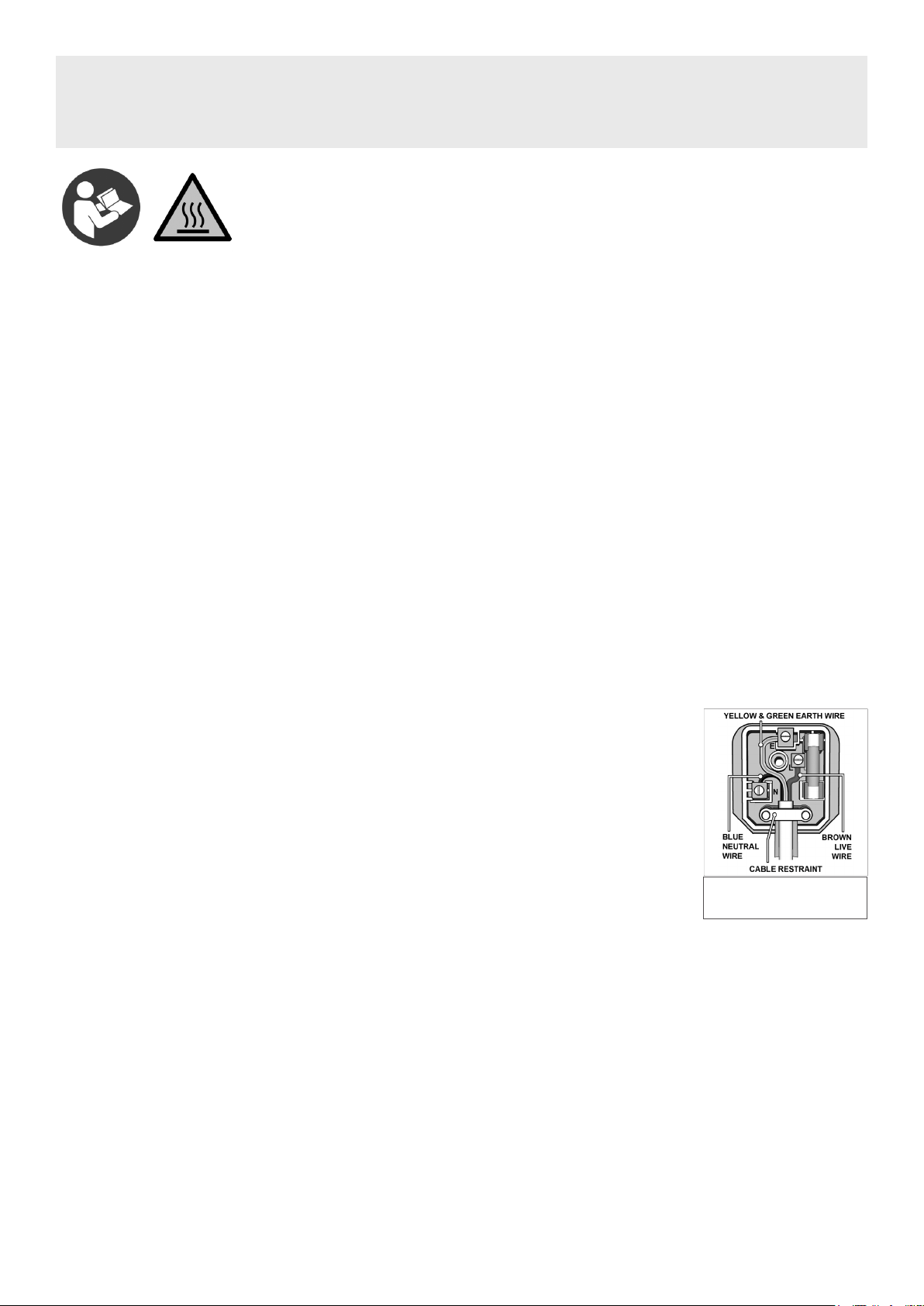

• This product is tted with a BS1363/A 13 Amp 3 pin plug. If the cable or plug is damaged
during use, switch off the electricity supply and remove from use. Ensure that repairs are
carried out by a qualied electrician.
• Replace a damaged plug with a BS1363/A 13 amp 3 pin plug. If in doubt contact a qualied electrician.
A) Connect the GREEN/YELLOW earth wire to the earth terminal ‘E’.
B) Connect the BROWN live wire to the live terminal ‘L’.
C) Connect the BLUE neutral wire to the neutral terminal ‘N’.
• Ensure that the cable outer sheath extends inside the cable restraint and that the restraint is tight.
• Dellonda recommend that installation and repairs are carried out by a qualied electrician.
• GENERAL SAFETY
• This manual explains the proper installation and use of your cooker hood, please read it carefully before using even if you are familiar with the
product. The manual should be kept in a safe place for future reference.
• DO NOT try to use the cooker hood without the grease lters or if the lters are excessively greasy!
• DO NOT install above a cooker with a high level grill.
• DO NOT leave frying pans unattended during use because overheated fats or oils might catch re.
• Never leave naked ames under the cooker hood.
• If the cooker hood is damaged, do not attempt to use.
• DO NOT ambé under the cooker hood.
• CAUTION: Accessible parts may become hot when used with cooking appliances.
• The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the cooker hood, when the
cooker hood is located above a gas appliance, shall be at least 65 cm.
• The air must not be discharged into a ue that is used for exhausting fumes from appliances burning gas or other fuels.
• ALWAYS:
• Important! Always switch off the electricity supply at the mains during installation and maintenance such as light bulb replacement.
• The cooker hood must be installed in accordance with the installation instructions and all measurements followed.
• All installation work must be carried out by a competent person or qualied electrician.
• Please dispose of the packing material carefully. Children are vulnerable to it.
• Pay attention to the sharp edges inside the cooker hood especially during installation and cleaning.
• Make sure the ducting has no bends sharper than 90 degrees as this will reduce the efciency of the cooker hood.
Replacement fuse rating:
13A

• WARNING: Failure to install the screws or xing device in accordance with these instructions may result in electrical hazards.
• WARNING: Before obtaining access to terminals, all supply circuits must be disconnected.
• Always put lids on pots and pans when cooking on a gas cooker.
• When in extraction mode, air in the room is being removed by the cooker hood. Please make sure that proper ventilation measures are being
observed.
• There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels.
• The cooker hood removes odours from room but not steam.
• Cooker hood is for domestic use only.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• WARNING: Before obtaining access to terminals, all supply circuits must be disconnected.
• CAUTION: The appliance and its accessible parts can become hot during operation. Be careful to avoid touching the heating elements. Children
younger than 8 years old should stay away unless they are under permanent supervision.
• There is a re risk if cleaning is not carried out in accordance with the instructions
• Regulations concerning the discharge of air have to be fullled.
• Clean your appliance periodically by following the method given in the chapter MAINTENANCE.
• For safety reason, please use only the same size of xing or mounting screw which are recommended in this instruction manual.
• Regarding the details about the method and frequency of cleaning, please refer to maintenance and cleaning section in the instruction manual.
• Cleaning and user maintenance shall not be made by children without supervision.
• When the cooker hood and appliances supplied with energy other than electricity are simultaneously in operation, the negative pressure in the
room must not exceed 4 Pa (4 x 10-5 bar).
• WARNING: Danger of re: do not store items on the cooking surfaces.
• A steam cleaner is not to be used.
• NEVER try to extinguish a re with water, but switch off the appliance and then cover ame e.g. with a lid or a re blanket.
• INSTALLATION (VENT OUTSIDE)

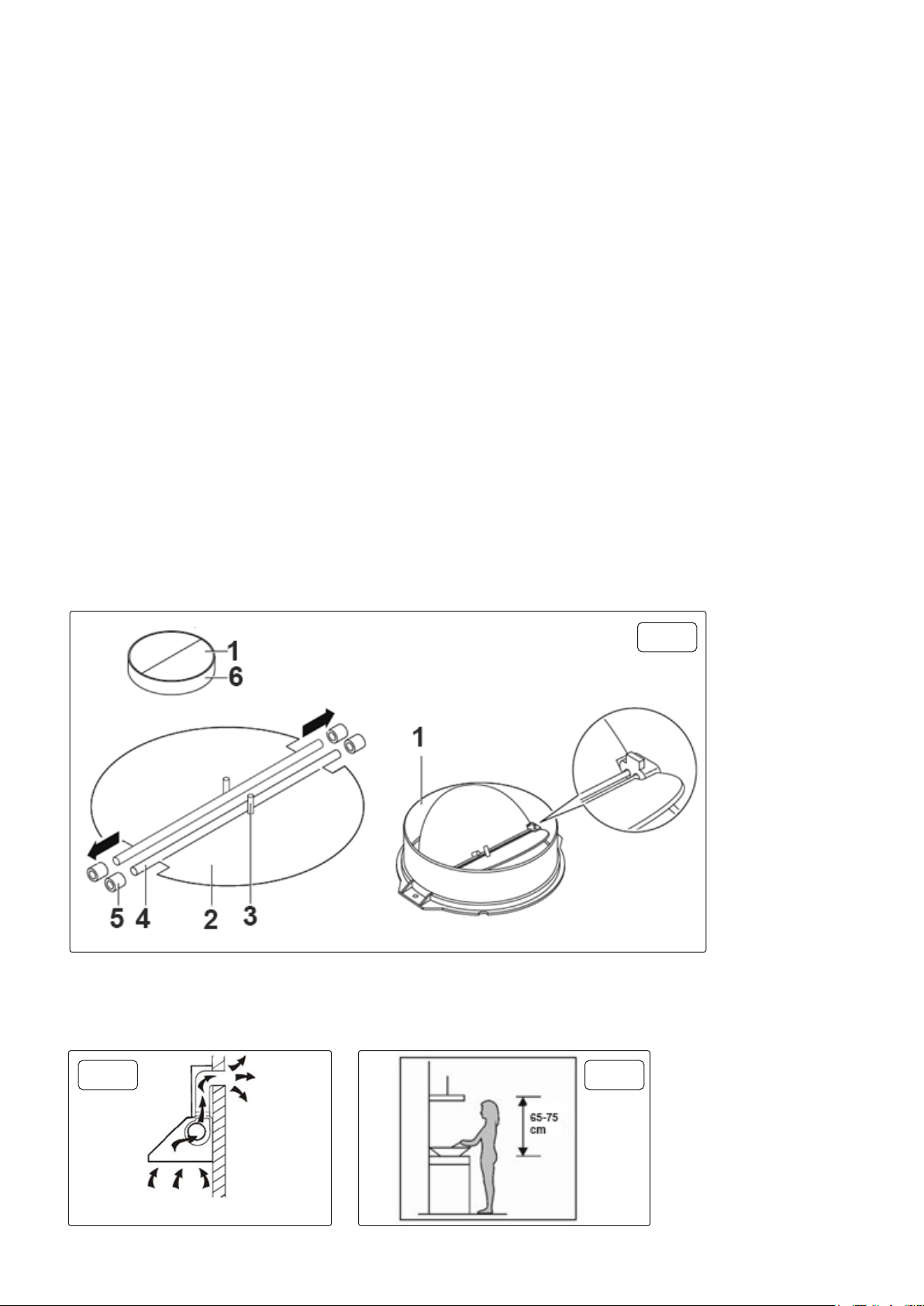

• V-FLAP MOUNTING
• If the cooker hood does not have an assembled V-flap 1, mount the half-parts to its body. The images only show an example of how to mount the
V-flap, the outlet may be various according to different models and configuration.
• To mount the V-flap 1:
• Mount two halves 2 into the body 6
• pin 3 should be on the top;
• the axle 4 should be inserted in the holes 5 on body;
• repeat all the operations for the 2nd half.
INSTALLATION
• If you have an outlet to the outside, your cooker hood can be connected as per g.2 by means of an extraction duct (enamel, aluminium, exible
pipe or non-ammable material with an interior diameter of 150mm).
• Before installation, turn the unit off and unplug it from the mains supply.
• The cooker hood should be placed at a distance of 65~75cm above the cooking surface for best performance, g.3.
fig.1
fig.2fig.3

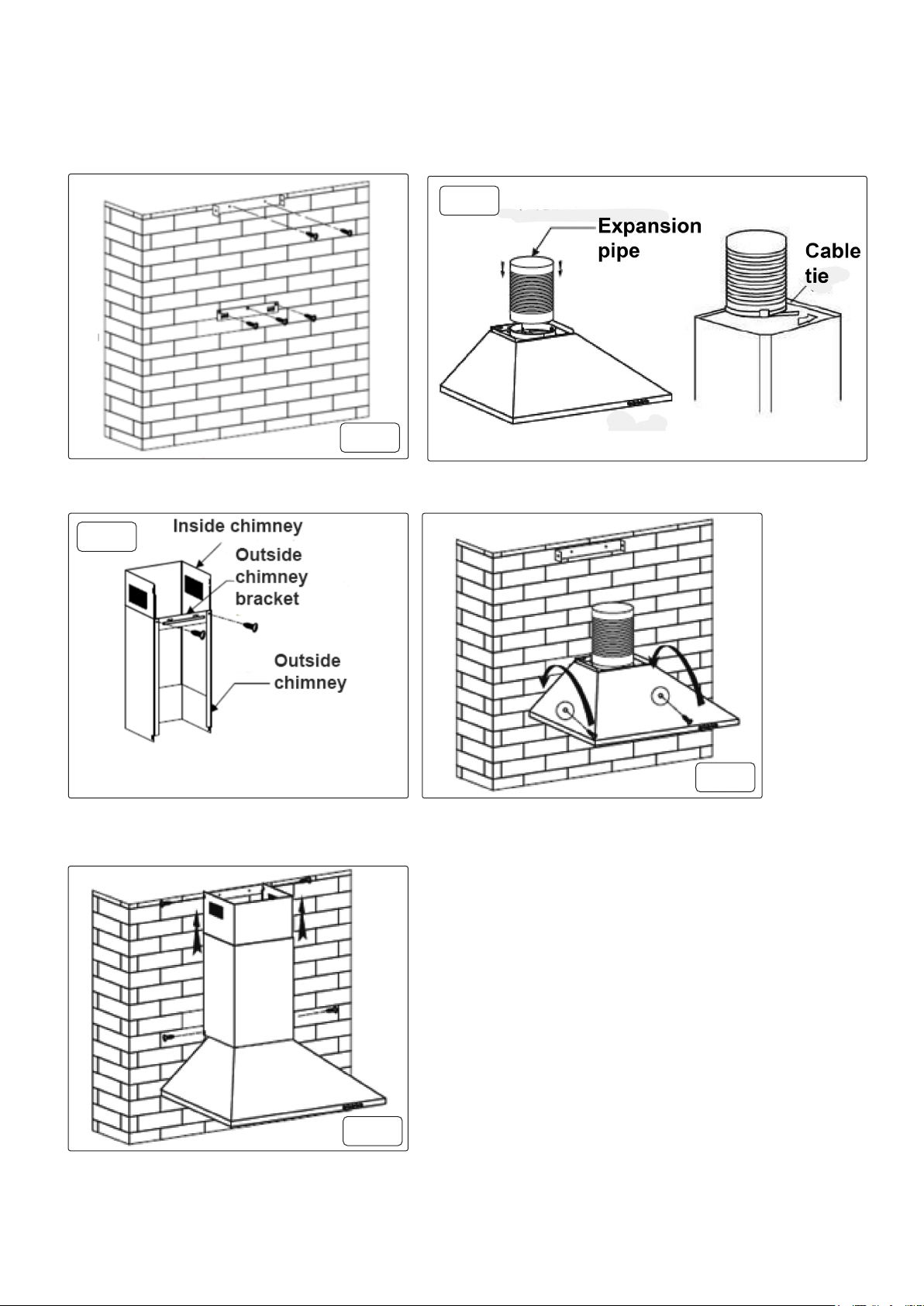

• Install the hook in a suitable place once the installation height is xed, and keep it in line. The xed position of the inside chimney bracket is the
place of the chimney.
• Drill 5 Ø8mm holes on a suitable place to accommodate the hook and inside chimney bracket once the installation height is xed, keep it in line.
The xed position of the inside chimney bracket is the place of chimney. See g.4.
• Screw and tighten the hook onto the wall with the 3pcs screws (4mm x 40 mm) and wall plugs provided. Then use 2 pcs ST4*40mm screws to x
the inside chimney bracket. See g.4.
• Install the expansion pipe to the outlet and xed by cable tie. See g.5.
• Fix the outside chimney bracket on the outside chimney, and be sure that the inside chimney can be adjusted for height. See g.6.
• Hang the appliance onto the hook and x the appliance by the 2pcs safety screws (4mm x 30mm). See g.7
• Adjust the height of the inside chimney to the position of the inside chimney bracket and x with a screw. Note: The two safety vents are
positioned on the back housing. See g.8.
• Before usage, read all the instructions and make sure that the power rating of the cooker hood matches the power rating of the supply.
EXHAUST DUCT INSTALLATION
• The following rules must be strictly followed to obtain optimal air extraction:
• Keep expansion pipe short and straight.
• DO NOT reduce the size or restrict expansion pipe.
• When using expansion pipe always install the pipe pulled taut to minimize pressure loss.
• Failure to observe these basic instructions will reduce the performance and increase noise levels of the cooker hood.
fig.4
fig.6
fig.7
fig.8
fig.5
fig.8

• Any installation work must be carried out by a qualied electrician or competent person.
• DO NOT connect the ducting system of the hood to any existing ventilation system which is being used for any other appliance, such as warmer
tube, gas tube, hot wind tube.
• The angle of the bend of the expansion pipe should not be less than 120º; you must direct the pipe horizontally, or, alternatively, the pipe should
go up from the initial point and should be led to an outer wall.

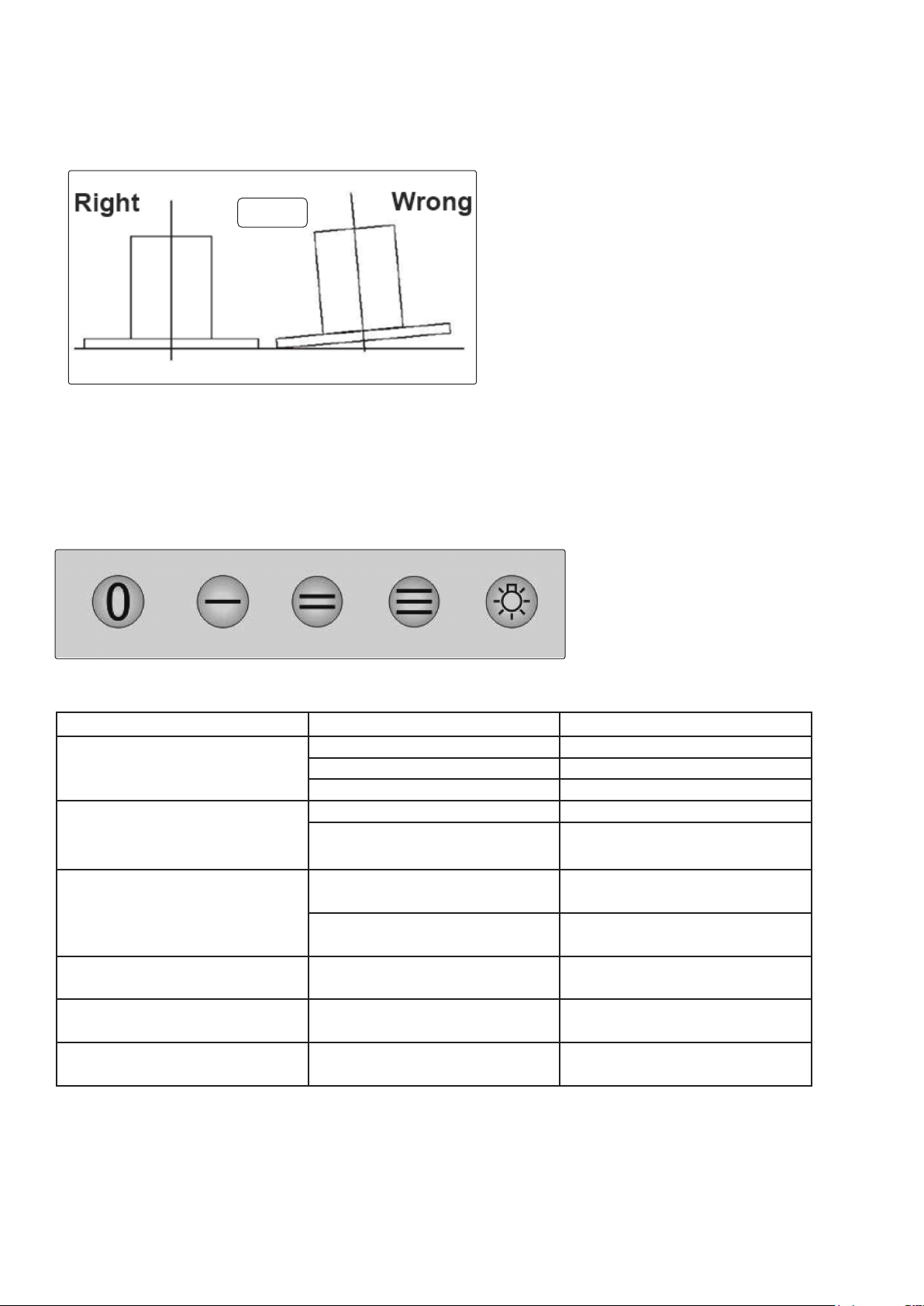

• After the installation, make sure that the cooker hood is level to avoid grease collection at on end, g.9.
• Ensure the expansion pipe selected for installation complies with relevant standards and is re retardant.
• WARNING For safety reasons, please use only the same size of xing or mounting screws which are recommended in this instruction manual.
• Failure to install the screws or xing device in accordance with these instructions may result in electrical hazards.
OPERATION
• 1) Push stop button, and the motor will stop.
• 2) Push the low button, and the motor runs at low speed.
• 3) Push the middle button, and the motor runs at mid speed.
• 4) Push the high button, and the motor runs at high speed.
• 5) Push the light button and the two lights will come on. Push it again and the light will turn off.
TROUBLESHOOTING
Any electrical repairs to this appliance must conform to your local, state and federal laws. Please contact the service centre if in any doubt
before undertaking any of the above. Always disconnect the unit from the power source when opening the unit.

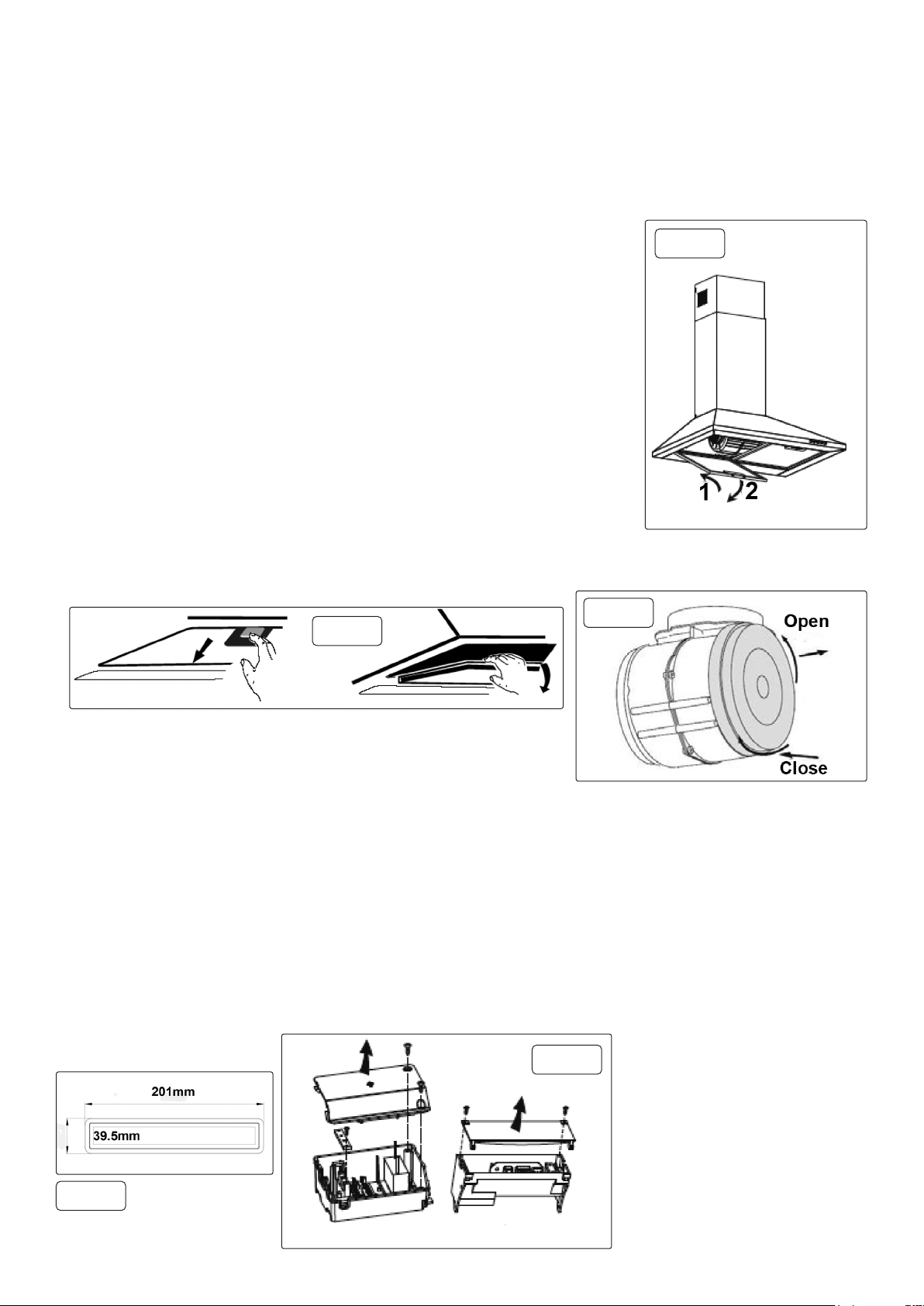

MAINTENANCE AND CLEANING
• WARNING• Before maintenance or cleaning is carried out, the cooker hood should be disconnected from the main power supply. Ensure that the
cooker hood is switched off at the wall socket and the plug removed.
• External surfaces are susceptible to scratches and abrasions, so please follow the cleaning instructions to ensure the best possible result is
achieved without damage.
Fault Cause Solution
Light on but motor does not work Fan switch turned o󰀨 Select a fan switch position
Fan switch failed Contact service centre
Motor failed Contact service centre
Light does not work, motor does not work House fuses blown Reset/replace fuses
Mains cable loose or disconnected Ret mains power cable to power outlet.
Switch power on.
Oil leakage One way valve and the outlet are not
tightly sealed
Remove one way valve and seal with
sealant
Leakage from the connection of chimney
and cover
Take chimney down and seal
Lights not working Broken or faulty bulbs Replace bulbs as per instructions in this
manual
Insu󰀩cient suction Distance between the cooker hood and
the gas hob is too great
Ret the cooker hood to the correct
distance
Cooker hood inclines Fixing screws are not tight enough Tighten the hanging screw and make
horizontal
fig.9
Stop Low Middle High Light
