Delta Heat DHPW22 Instructions for use

DELTA HEAT POWER BURNER
INSTALLATION, USE, & CARE MANUAL
P/N: 17628A 08/20
MODELS:
DHPW22

IMPORTANT SAFETY INSTRUCTIONS
WARNING! Read this manual carefully and completely before using your Power Burner to ensure
proper operation, proper installation, proper servicing and to reduce the risk of re, burn hazard and/
or other injury.
AVERTISSEMENT! Lire ce manuel avec soin et en entier avant l’utilisation de votre barbecue an
d’en assurer un fonctionnement, une installation et un entretien adéquats et réduire le risque d’in-
cendie, de brûlures et d’autres blessures.
DANGER
If you smell gas:
1. Shut o󰀨 gas to the appliance.
2. Extinguish any open ames.
3. Open lid.
4. If odor continues, keep away from the appli-
ance and immediately call your gas supplier
or re department.
DANGER
S’il y a une odeur de gaz:
1. Coupez l’admission de gaz de l’appariel.
2. Éteindre toute amme nue.
3. Ouvrir le couvercle.
4. Si l’odeur persiste, éloignez-vous de l’appa-
reil et appelez immédiatement le fournisseur
de gaz ou le srvice d’incendie.
WARNING
1. Do not store or use gasoline or other amma-
ble vapors and liquids in the vicinity of this or
any other appliance.
2. An LP cylinder not connected for use shall
not be stored in the vicinity of this or any oth-
er appliance.
AVERTISSEMENT
1. Ne pas entreposer ni utilizer de l’essence
ni d’autres vapuers ou liquids inammables
dans le voisinage de l’appareil, ni de tout
autre appareil.
2. Une bouteille de propane qui n’est pas rac-
cordée en vue de son untilisation, ne doit
pas être entrpossée dans le voisinage de cet
appareil ou de tout autre appareil.
THIS GRILL IS FOR OUTDOOR USE ONLY:
If stored indoors, detach and leave L.P. cylinder
outdoors
CE GRIL EST POUR UTILISATION à L’Ex-
TéRIEUR SEULEMENT:
Si l’appareil est entreposé à l’interieur, enlever
les bouteilles et les laisser à l’extérieur.
BEFORE LIGHTING
1. Read instructions before lighting.
2. Open lid during lighting.
3. If ignition does not occur in 5 seconds, turn
the burner control(s) o󰀨, wait 5 minutes, and
repeat the lighting procedure.
AVANT D’ALLUMER L’APPAREIL
1. Lisez les instructions avant d’allumer l’appa-
reil.
2. Ouvrez le couvercle avant d’allumer l’appar-
eil.
3. Si l’appareil ne s’allume pas en 5 secondes,
fermez le robinet du brûleur, attendez 5 min-
utes, et procédez de nouveau à l’allumage.
FOR YOUR SAFETY
Do not store or use gasoline or other ammable
vapors and any liquids in the vicinity of this or
any other appliance.
MESURE DE SECURITE
Ne pas entreposer ni utiliser d’essence ni autres
vapeurs ou liquides inammables à proximité de
cet appareil ou de tout autre appareil.

A Special Message to our Customers...
Congratulations on your purchase of Delta Heat Power Burner. Delta Heat is
committed to making outdoor cooking products you’ll be proud to own for years.
This manual gives you easy to follow instructions for installing, operating and
maintaining your Delta Heat Power Burner. We recommend reading this manual
carefully before your rst use to ensure safety, proper care and operation.
Thank you and welcome!
Delta Heat
FOR YOUR RECORDS
Please record the following information and refer to them when contacting the company or
an authorized service agent. This information is found on the data nameplate, located on the
bottom right side of the body, near the regulator. Remove the drip tray to visually access the
nameplate from the front of the Power Burner.
MODEL #:
____________________________________________
SERIAL #:
____________________________________________
DATE OF PURCHASE:
____________________________________________
PLACE OF PURCHASE:
____________________________________________
TYPE OF GAS: NG _____ LP _____
To the Installer:
Please read these instructions carefully before installation and give this manual to the owner.
To the Owner:
Keep this manual in a safe place for future reference.

GENERAL SAFETY REQUIREMENTS
• The installation of this appliance must conform with local codes or, in the absence of local codes, either
the National Fuel Gas Code, ANSI Z223.1/NFPA 54, Natural Gas and Propane Installation Code, CSA
B149.1 or Propane Storage and Handling Code, B149.2
• The utilization of an external electrical source requires that when installed, this outdoor cooking gas appli-
ance must be electrically grounded in accordance with the local codes or, in the absence of local codes,
with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1. Keep any
electrical supply cord, or the fuel supply hose away from any heated surfaces.
• This outdoor cooking gas appliance shall be used only outdoors and shall not be used in a building, ga-
rage or any other enclosed area.
• This outdoor cooking gas appliance is not intended to be installed in or on recreational vehicles and /or
boats.
• Minimum clearance of 12 inches from the back and sides of the Power Burner to adjacent com-
bustible construction must be maintained. This outdoor cooking gas appliance shall not be locat-
ed under overhead-unprotected combustible construction.
• Keep your Power Burner in an area clear and free from combustible materials, gasoline and other am-
mable vapors and liquids.
• DO NOT obstruct the ow of combustion and ventilation air to this appliance. Keep the ventilation open-
ings of the cylinder enclosure free and clear from debris.
• Check all gas connections for leaks with soapy water solution and brush. Never use an open ame.
(Reference page 6 for leak test procedure).
• Check exible hoses for cuts and wear that may a󰀨ect the safety before each use.
• Always use caution when operating the power burner in a windy area.
• Never use the Power Burner without the drip pan installed and push all the way to the back of the Power
Burner. Without the drip pan, hot liquid and debris could leak downward and produce a re hazard.
• The pressure regulator supplied with the Delta Heat Gas Power Burner must be used. Replacement pres-
sure regulators must be those specied by Delta Heat.
In Massachusetts: All gas products must be installed using a “Massachusetts” licensed plumber or
gastter. A “T” handle type manual gas valve must be installed in the gas supply line to this appliance.
This applies to permanently installed natural gas and propane installations. This does not apply to
propane portable installations using a 20 pound tank.
WARNING: CALIFORNIA PROPOSITION 65
This product can expose you to chemicals including carbon monoxide which is known to the State
of California to cause cancer and reproductive harm. To minimize exposure to the by-products of the
burning fuel or from combustion, always operate this unit according to the use and care manual and
provide good ventilation. California law requires businesses to warn customers of potential exposure
to such substances. For more information go to www.P65Warnings.ca.gov.
AVERTISSEMENT: PROPOSITION 65 DE L’ETAT DE LA CALIFORNIE
Cet appareil peut vous exposer aux produits chimiques et au gaz monoxyde de carbonne reconnue
dans l’Etat de la Californie pour causer le cancer et des problemes de fertilite. Pour minimiser l’expo-
sition de ces-sous produits combustibles ou de la combustion, utiliser toujours cet appareil en con-
formitee au manuel d’utilisation et d’entretien en s’assurant egalement d’une bonne ventilation. La loi
de la Californie exige aux fabricants d’informer leurs clients aux risques d’exposition potentielle a de
telles substances. Pour plus d’information, visiter le site www.P65Warnings.ca.gov

TABLE OF CONTENTS
GETTING STARTED 1
LOCATING THE POWER BURNER 2
GAS SAFETY REQUIREMENTS 3

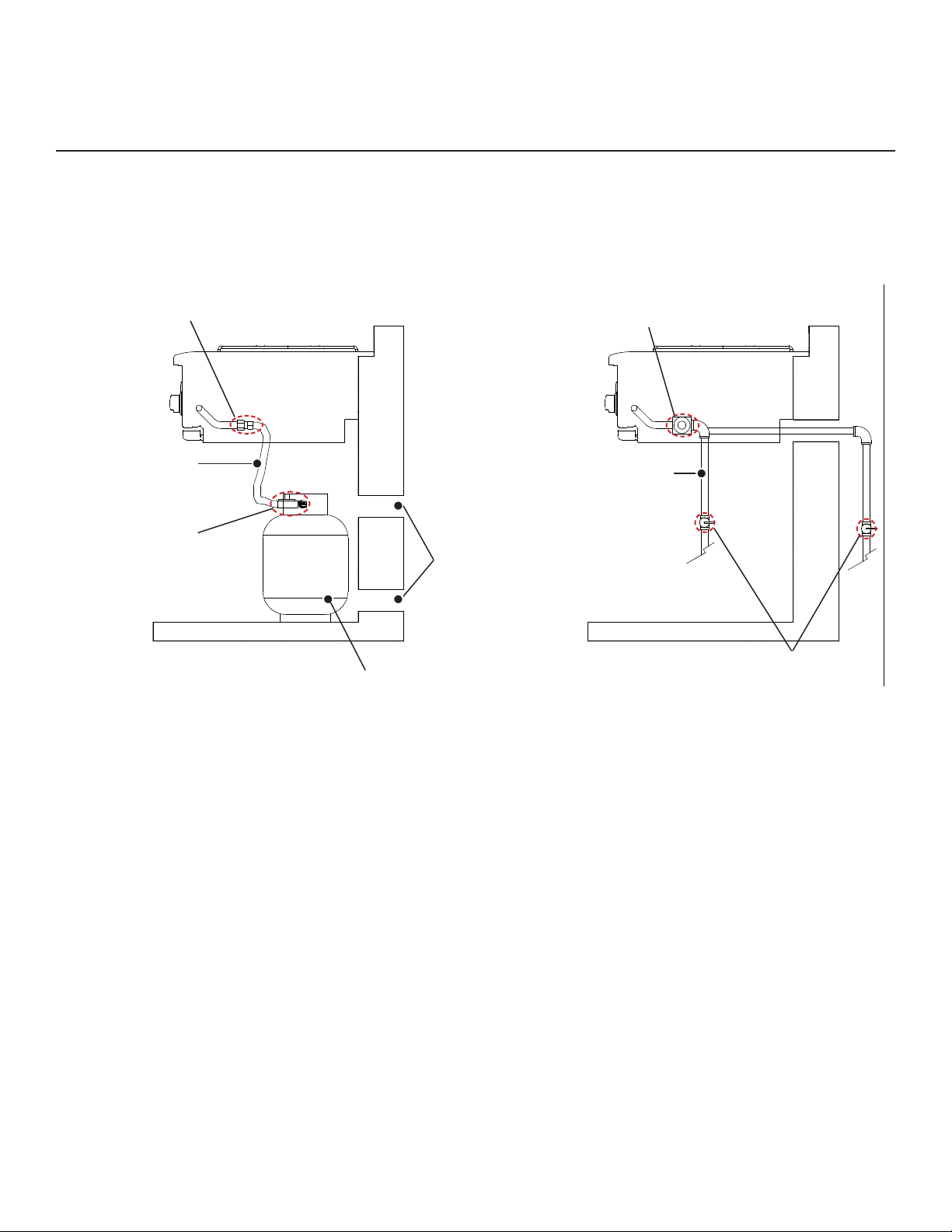

LP GAS HOOK-UP 4
NATURAL GAS INSTALLATION 5

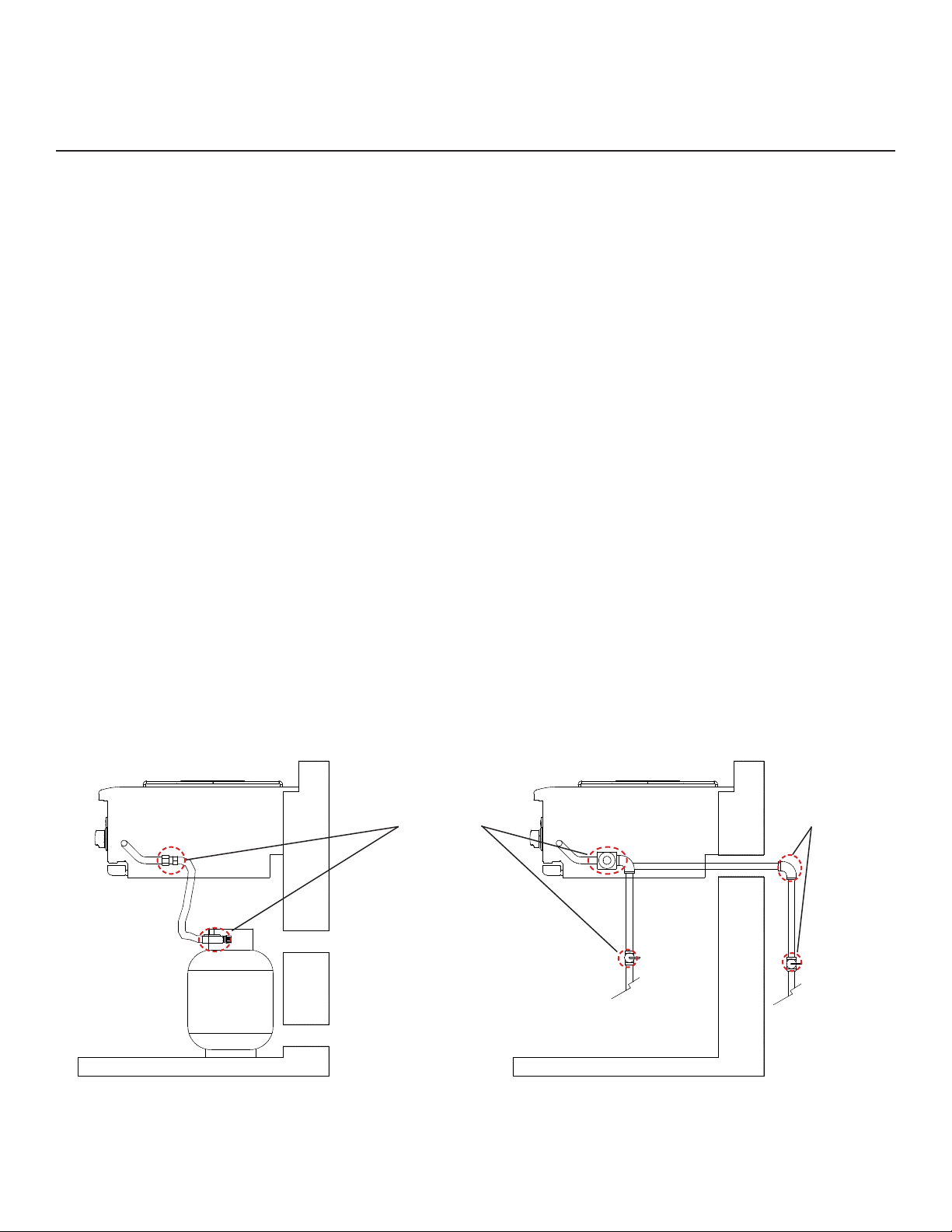

LEAK TEST 6

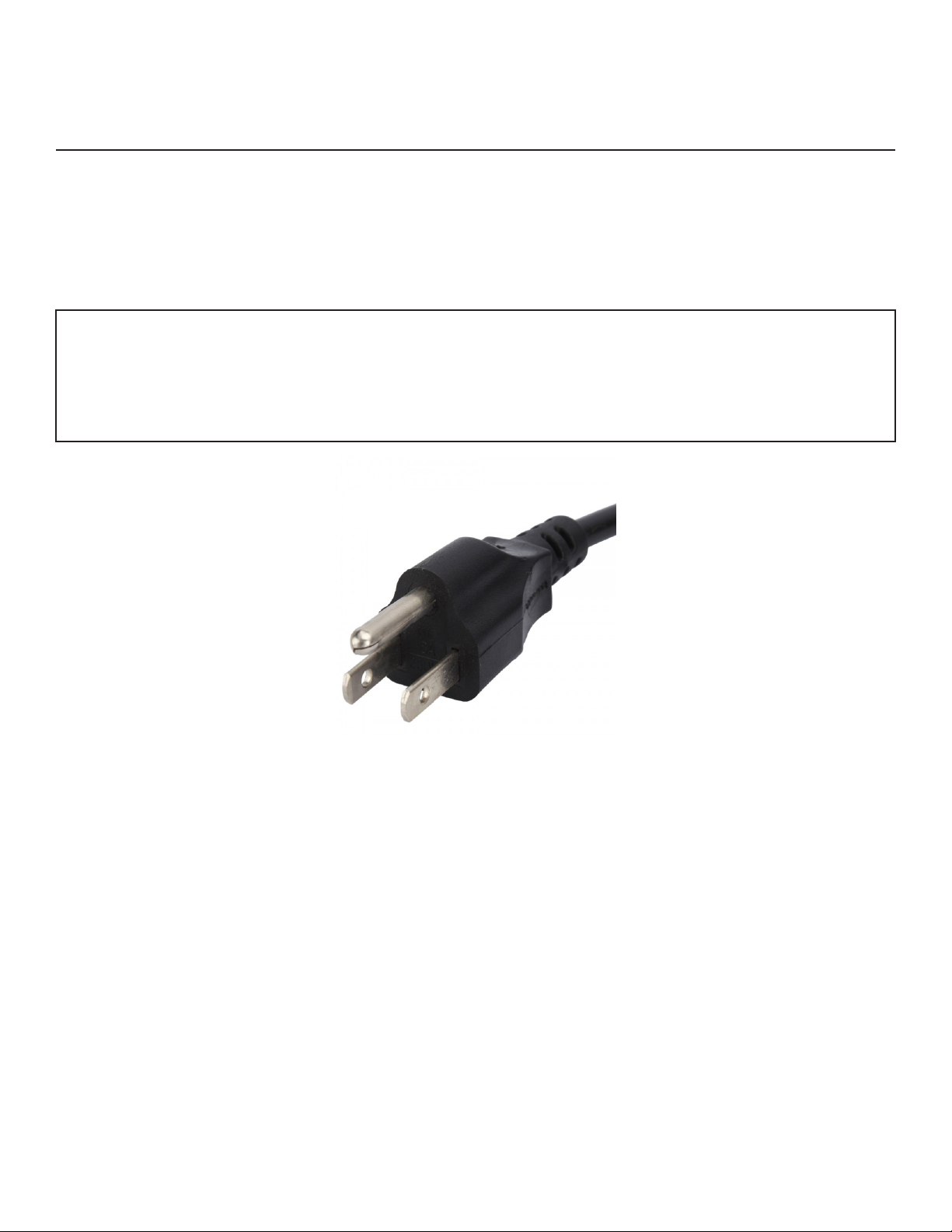

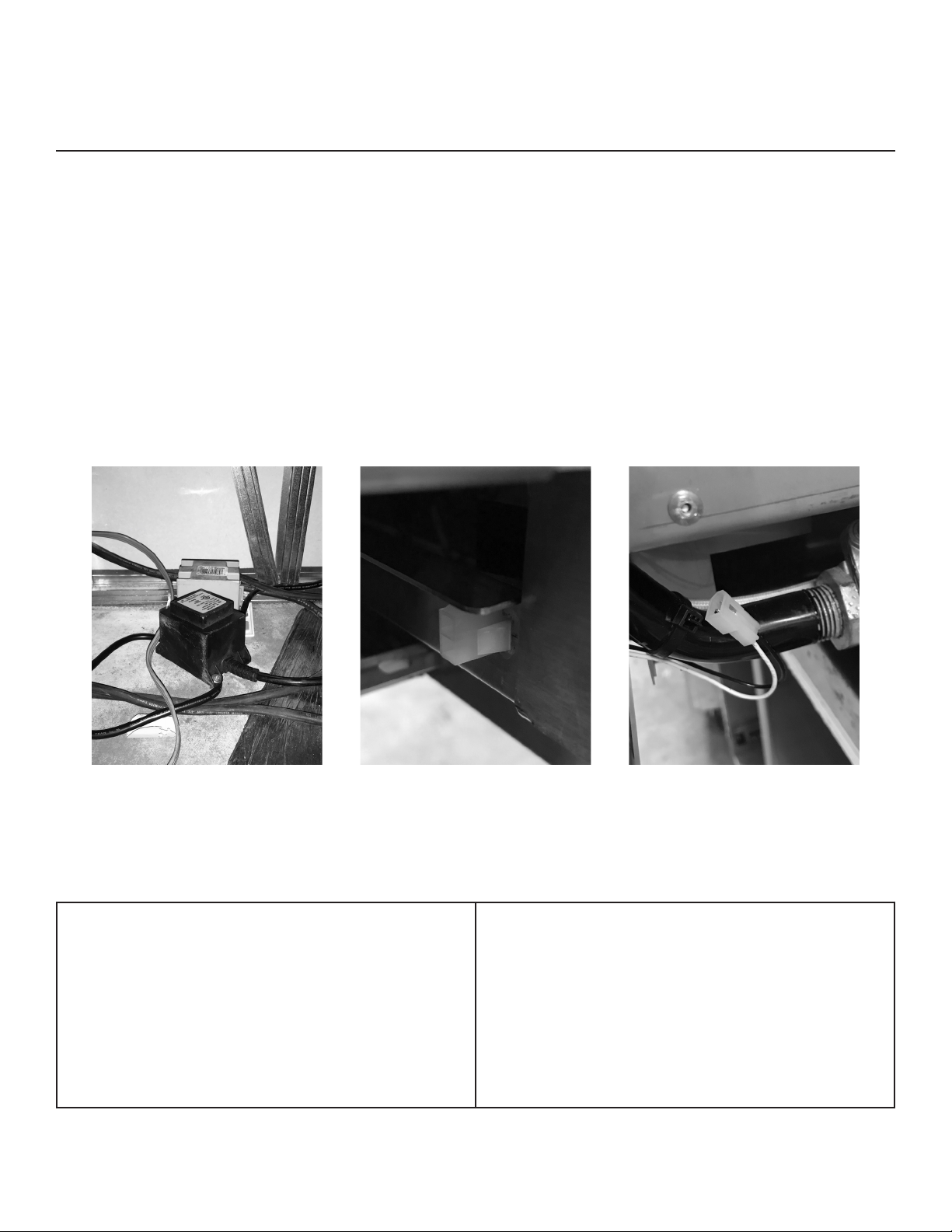

ELECTRICAL REQUIREMENT 7-8

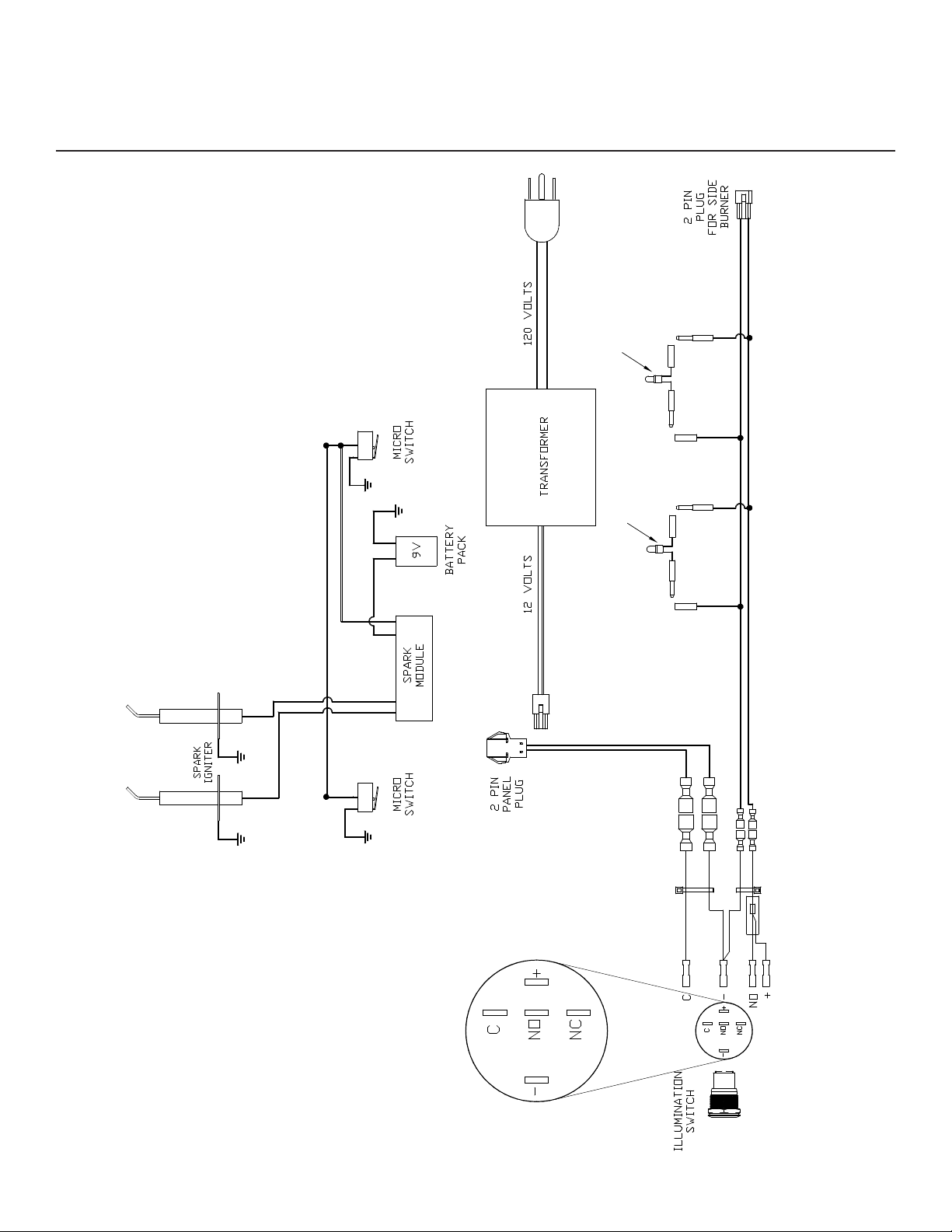

WIRING DIAGRAM 9

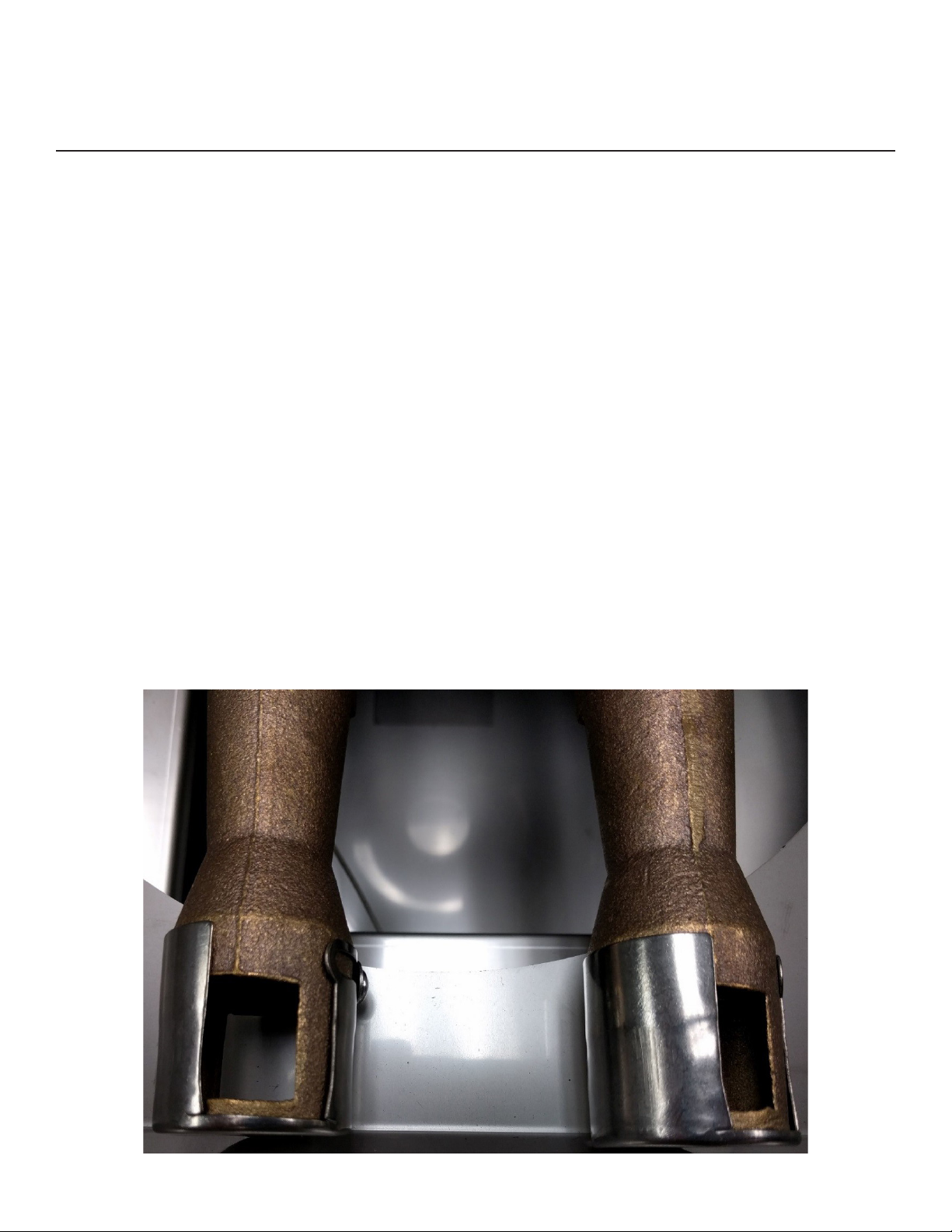

BURNER FLAME / AIR SHUTTER ADJUSTMENT 10

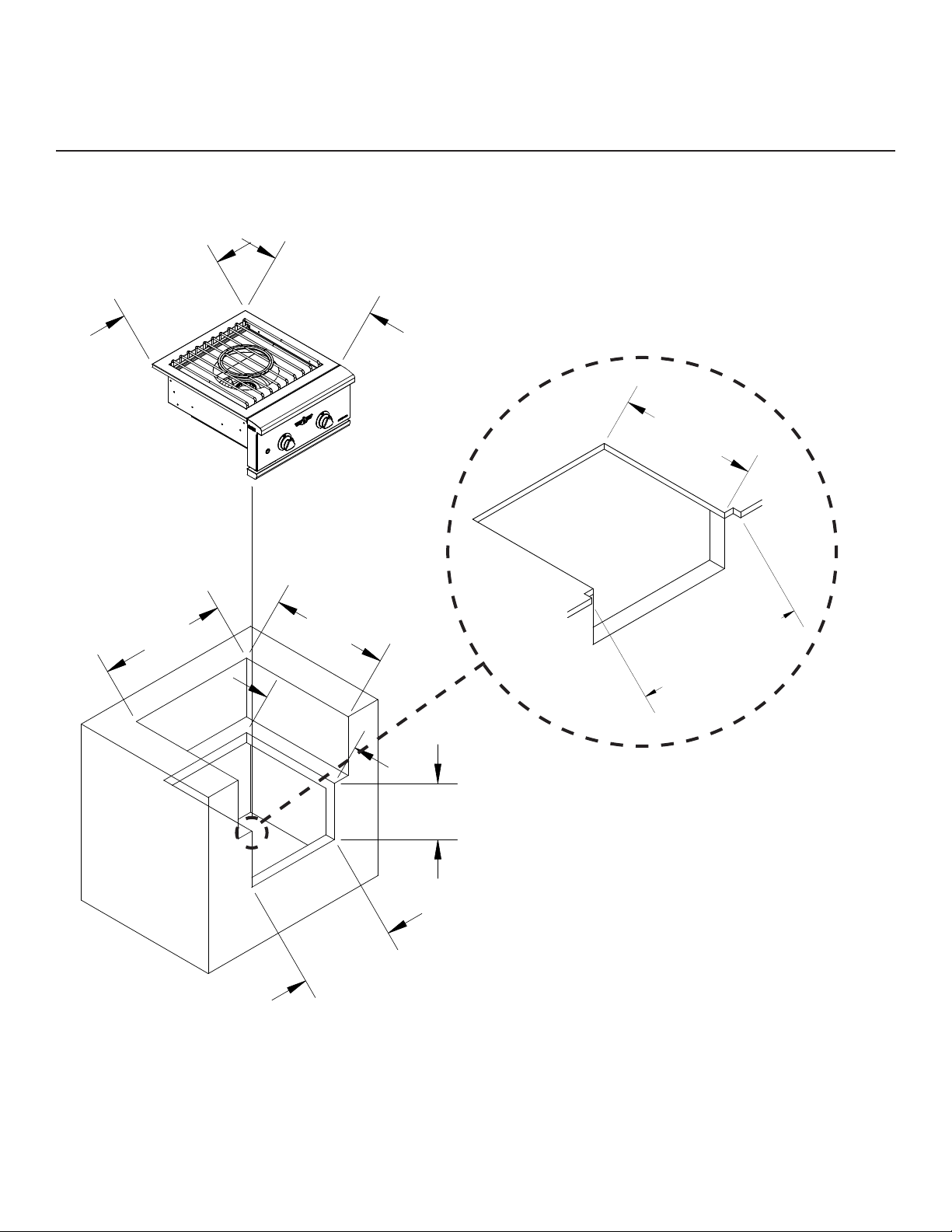

POWER BURNER CUT-OUT DIMENSIONS 11
INSULATION JACKET 12
OPERATING INSTRUCTIONS 13
CLEANING & MAINTENANCE 14-15
EXPLODED VIEW 16
REPLACEMENT PARTS LIST 17
TROUBLE SHOOTING GUIDE 18
WARRANTY 19
HOW TO OBTAIN SERVICE 21

Twin Eagles Service [phone] | 1
GETTING STARTED
1. Remove all packaging materials, labels and protective plastic lm. DO NOT LEAVE UNIT UN-
DER THE SUN WITH PROTECTIVE PLASTIC FILM ON FOR A LONG PERIOD OF TIME AS IT
WILL BE DIFFICULT TO REMOVE THE FILM.
2. Check to endure that all Power Burner accessories listed below are included.
3. Fill out the Warranty Registration Card and mail it to the indicated address.
POWER BURNER ACCESSORIES DHPW22-N DHPW22-L
GRATE, ROUND, STAINLESS STEEL 1 1
GRATE, ROUND, MIDDLE, STAINLESS STEEL 1 1
REGULATOR, NG (NG POWER BURNER ONLY) PRE-INSTALLED
REGULATOR, LP (LP POWER BURNER ONLY) PRE-INSTALLED
SPECIFICATIONS VALUE
COUNTER OPENING HEIGHT 11.50”
COUNTER OPENING WIDTH 19.50”
COUNTER OPENING DEPTH 20.75”
BTU 60,000
NG ORIFICE OUTER RING #33
NG ORIFICE INNER RING #43
LP ORIFICE OUTER RING #50
LP ORIFICE INNER RING #54

2 | www.deltaheat.com
LOCATING THE POWER BURNER
This gas appliance is designed and certied for outdoor use only. Do not locate this Power
Burner under overhead combustible surfaces. Do not operate the Power Burner inside a building,
garage, recreation vehicle or any enclosed area. CAUTION should be taken when grills are used
near glass, vinyl siding or other temperature sensitive construction materials. In some cases it may be
necessary to increase the clearance around the grill to avoid damage to vinyl siding. Check with the
manufacturer of the siding material for details. When choosing an area, consider exposure to wind,
proximity to tra󰀩c paths and length of gas supply line. Keep gas supply lines as short as possible to
reduce pressure drop. Keep the Power Burner away from windy area but keep the Power Burner in
a well-ventilated area. Do not obstruct the ow of combustion and ventilation air around the Power
Burner. The supporting edges of the Power Burner must be located level and at. The counter should
also be leveled.
CLEARANCE TO COMBUSTIBLE CONSTRUCTION
A minimum clearance of 12” from the sides and 12” from the back of the Power Burner to adja-
cent vertical combustible construction must be maintained.
DÉGAGEMENT DE TOUTE CONSTRUCTION COMBUSTIBLE
Il faut maintenir une distance minimum de 12 po (30.48 cm) sur les côtés et de 12 po (30.48 cm) sur
l’arrière du gril par rapport aux constructions combustibles verticales adjacentes.
CLEARANCE TO NONCOMBUSTIBLE CONSTRUCTION
A minimum clearance of 1” from the back of the Power Burner above cooking surface to
non-combustible construction is required.
A minimum of 1” clearance to the sides of the Power Burner above cooking surface to non-com-
bustible construction is recommended. The Power Burner can be installed directly next to non-com-
bustible construction below the cooking surface.
DÉGAGEMENT DE TOUTE CONSTRUCTION INCOMBUSTIBLE
Une distance minimum de 1 po (2.54 cm) de l’arrière du Puissant Bruleur au-dessus de toute surface
de cuisson à la construction incombustible est prescrite. Une distance minimum de 1 po (2.54 cm)
des côtés du Puissant Bruleur au-dessus de la surface de cuisson à la construction incombustible
est recommandée. Le Puissant Bruleur peut être installé directement à proximité d’une construction
incombustible en-dessous de la surface de cuisson.

Delta Heat Service [phone] | 3
GAS SAFETY REQUIREMENTS
Each appliance is set and tested at the factory for the type of gas supply to be used. Identify
the type of gas, either natural gas or LP gas and make sure that the marking on the data plate (rating
plate) matches the gas being supplied to the Power Burner. The data plate is located on the panel
behind the control panel of the Power Burner. Remove the drip pan to visually access the nameplate
label from the front of the Power Burner. A second label with model number and serial number is
located under the right side of the control panel.
All gas connections should be made by a qualied technician and in accordance with local
codes and ordinances. The installation must conform with local codes or, in the absence of local
codes, with either the National Fuel Gas Code, ANSI Z223.1/NFPA 54, Natural Gas and Propane
Installation Code, CSA B149.1 or Propane Storage and Handling Code, B149.2
WARNING:
CHECK TO ENSURE THAT THE GAS SUPPLY HOSE OR POWER SUPPLY CORD DOES NOT
COME IN CONTACT WITH ANY HOT SURFACE OF THE POWER BURNER.
NEVER CONNECT THE POWER BURNER TO AN UNREGULATED GAS SUPPLY.
L.P. GAS SAFETY REQUIREMENT
The LP-gas supply cylinder must be constructed and marked in accordance with the Specications
for LP-gas Cylinders of the U.S. Department of Transportation (D.O.T.) or the National Standards of
Canada CAN/CSA-B339, Cylinders, Spheres and Tubes for the Transportation of Dangerous Goods,
and Commission, as applicable; and
1. Provided with a listed overlling prevention device.
2. Provided with a cylinder connection device compatible with the connection for outdoor cooking
appliances.
• It must be provided with a shut-o󰀨 valve terminating in gas tank valve outlet. It must include a
collar to protect the cylinder valve. The cylinder supply system must be arranged for vapor with-
drawal.
• Do not operate the gas grill indoors or in any enclosed area. If the gas grill is not in use, the gas
must be turned o󰀨 at the supply cylinder. If the grill is to be stored indoors, disconnect the gas
supply cylinder and leave the cylinder outdoors out of reach of children and must not be stored
in a building, garage or any other enclosed area.

4 | www.deltaheat.com
LP GAS HOOK-UP
Install the factory-supplied hose and regulator assembly as shown. Connect the 3/8” are end
of the hose to the grill coupling using a 3/4” open wrench. Do not apply pipe sealant to the 3/8” are
connection. Connect the regulator to the LP cylinder hand tighten it, do not use a wrench. Check for
leaks using soapy water solution. (Reference page 6 for leak test procedure).
Note: An enclosure for an LP gas cylinder shall be ventilated by openings at both the upper and lower
levels of the enclosure. The eectiveness of the opening(s) for purposes of ventilation shall be deter-
mined with the LP cylinder in place. This shall be accomplished by one of the following:
a. one side of the enclosure shall be completely open; or
b. for a cylinder enclosure having four sides, a top and a bottom, and intended for installation in a
built-in enclosure:
i. at least one ventilation opening shall be provided on the exposed exterior side of the enclosure
located within 5 in (127 mm) of the top of the enclosure and unobstructed. The opening(s) shall
have a total free area of not less than 1 in²/lb (14.2 cm²/kg) of stored fuel capacity.
ii. at least one ventilation opening shall be provided on the exposed, exterior side of the enclo-
sure 1 in (25.4 mm) or less from the oor and shall have a total free area of not less than 1/2
in²/lb (7.1 cm²/kg) of stored fuel capacity. The upper edge shall be no more than 5 in (127 mm)
above the oor level.
iii. every opening shall have a minimum dimension so as to permit the entrance of a 1/8 in (3.2
mm) rod.
INSTALLER SUPPLIED
REGULATOR SET AT 10” WC (LP)
(MUST BE PURCHASED FROM
DELTA HEAT)
TYPICAL BOTTOM
GAS CONNECTION
INSTALLER SUPPLIED GAS
SHUTOFF VALVE (MUST BE
EASILY ACCESSIBLE)
CUSTOMER SUPPLIED
20 lb (5 GALLON) LP CYLINDER
DO NOT PLACE MORE THAN
ONE CYLINDER IN THE EN-
CLOSURE AT ANY TIME
VENTS REQUIRED ON
ENCLOSURES FOR LP
CYLINDERS (SEE NOTES)
BRASS COUPLING
1/2 NPT X 1/2 FLARE
FACTORY SUPPLIED
HI-PRESSURE LP
HOSE ASSEMBLY
FACTORY SUPPLIED
LP REGULATOR
TYPE 1
TYPICAL BOTTLE LP GAS
HOOK-UP
TYPICAL PLUMB-IN GAS
HOOK-UP

Delta Heat Service [phone] | 5
NATURAL GAS INSTALLATION
The installation must conform with local codes or, in the absence of local codes, with either the
National Fuel Gas Code, ANSI Z223.1/NFPA 54, Natural Gas and Propane Installation Code, CSA
B149.1 or Propane Storage and Handling Code, B149.2.
1. This gas appliance and its individual shuto󰀨 valve must be disconnected from the gas supply
piping system during any pressure testing of that system at the test pressures in excess of 1/2
psi (3.5 kPa).
2. This appliance must be isolated from the gas supply piping system by closing its individual
manual shuto󰀨 valve during any pressure testing of the gas supply piping system at test pres-
sures equal to or less than 1/2 psi (3.5 kPa).
If the gas grill is factory built for Natural Gas, the regulator supplied is set for 4” water column.
The regulator is convertible to 10 in wc (2.49 kPa) for plumb-in system LP application. Do not use with
a 20-lb LP cylinder. Make sure that the regulator is set for the correct gas type. To check, remove the
brass hex cap. You will nd the conversion plastic pin attached to the cap to the underside of the cap.
If the disc (1/2 in. diameter) of the pin is close to the cap, then the regulator is set for Natural Gas. If
the disc is at the tip of the pin, away from the brass cap, the regulator is set for system LP application.
To convert to Natural Gas, remove the plastic conversion pin and invert and replace it back in a man-
ner such that the disc is close to the brass cap. For both Natural and LP, the maximum inlet pressure
is 14 in wc (3.5 kPa).
A typical Natural Gas installation is shown below. Make sure that the factory-supplied regulator
is used and installed with the arrow mark on the regulator pointing towards the gas grill. Do not use
any replacement regulator other than that specied by DELTA HEAT. Use only pipe sealants that are
approved for use with Natural and LP gases. An installer-supplied gas shuto󰀨 valve must be installed
in an accessible location.
INSTALLER SUPPLIED
GAS SHUTOFF VALVE
(MUST BE EASILY
ACCESSIBLE)
TYPICAL BOTTOM
GAS CONNECTION
INSTALLER
SUPPLIED GAS
SHUTOFF VALVE
(MUST BE EASILY
ACCESSIBLE)
REGULATOR SET
AT 4” WC
(NATURAL GAS)
TYPICAL NATURAL GAS HOOK UP
CAUTION: PROVIDE ADEQUATE VENTILATION HOLES IN THE ENCLOSURE
FOR SAFETY PURPOSES IN THE EVENT OF GAS LEAK.
SET TO NG
SET TO LP

6 | www.deltaheat.com
LEAK TEST
CAUTION BEFORE TESTING
• Finding and/or xing a gas leak is NOT a “DO-IT-YOURSELF” procedure.
• NEVER USE THE GRILL WITHOUT FIRST LEAK TESTING THE GAS CONNECTIONS.
• WARNING: DO NOT USE OPEN FLAME TO CHECK FOR LEAKS. USE OF AN OPEN FLAME
COULD RESULT IN A FIRE, EXPLOSION, BODILY HARM OR DEATH.
• DO NOT SMOKE WHILE PERFORMING THE LEAK TEST!
• To prevent re or explosion hazard, DO NOT use or permit sources of ignition in the area while
performing a leak test. Perform leak test outdoors only.
• Check to ensure that exible hoses do not have any cuts and wear that may a󰀨ect the safety
before each use. Only the factory supplied hose and regulator must be used. Use only replace-
ment regulator and hose assemblies specied by DELTA HEAT.
LEAK TEST
1. Prepare a leak testing solution of sudsy water by mixing in a spray bottle with half liquid soap
and half water.
2. Conrm that all control knobs are in the OFF position.
3. Turn the main gas valve supply ON.
4. Apply leak testing solution by spraying on the pipe joints, ttings, and hose.
5. A gas leak is detected if;
f. there is a faint gas smell and/or…
g. growing bubbles appear on any of the connection points and/or hose, DO NOT attempt to
ignite the Power Burner and IMMEDIATELY turn o󰀨 the gas supply valve.
6. When there is a gas leak, call a qualied service technician. DO NOT use the Power Burner
until the leak is corrected.
LEAK TEST LEAK TEST
TYPICAL BOTTLE LP GAS
HOOK-UP
TYPICAL NATURAL GAS
HOOK-UP

Delta Heat Service [phone] | 7
ELECTRICAL REQUIREMENT
TO INSTALL AND SECURE POWER TRANSFORMER
The Power Burner is equipped with LED lights that have a power transformer with an attached
power supply cord. This transformer must be secured in a dry location and away from the grill rebox
and excessive heat area.
a. In a built-in application secure the transformer box near the GFCI 120V outlet in a dry loca-
tion and away from the Power Burner rebox and excessive heat area. (Fig. 1)
b. Make the transformer connections to the wire harness plug, located at the left rear of the
front panel, to the harness of the transformer box. (Fig. 2)
c. Plug-in the transformer’s power cord to the properly grounded GFCI 120V outlet.
d. A side burner plug to provide electrical power for side burner is located at the right rear of the
front panel. (Fig. 3)
WARNING
Electrical Grounding Instructions:
This outdoor gas cooking appliance is equipped
with a three prong (grounding) plug for your
protection against shock hazard and should be
plugged directly into a properly grounded three
prong outlet. Do not cut or remove the third
prong from this plug.
AVERTISSEMENT
Instruction pour la mise à la terre electrique:
Cet appareil est muni d’une che à trois broches
(mise à la terre) an de vous protéger des chocs
et doit être branché directement dans une prise
de courant à trois broches adéquatement mise
à la terre. Il ne faut pas couper ou enlever la
broche de mise à la terre de cette che.
FIG. 1 FIG. 2 FIG. 3

8 | www.deltaheat.com
ELECTRICAL REQUIREMENT - cont.
The appliance should only be taken apart by a qualied technician, or electrical shock may
occur. It is rated at 120VAC, 50/60Hz, and 2.2A.
REMINDER: Keep any electrical supply cord and the fuel supply hose away from any heated fea-
tures.
Electrical equipment provided with the outdoor cooking appliance shall follow these guidelines:
1. To protect against electrical shock, do not immerse cord or plugs in water or other liquid;
2. Unplug from the outlet when not in use and before cleaning. Allow to cool before putting on or
taking o󰀨 parts;
3. Do not operate any outdoor cooking gas appliance with a damaged cord, plug, or after the appli-
ance malfunctions or has been damaged in any manner. Contact the manufacturer for repair;
4. Do not let cord hang over the edge or touch hot surfaces;
5. Do not us an outdoor cooking gas appliance for purposes other than intended;
6. When connecting , rst connect plug to the outdoor cooking gas appliance then plug appliance
into outlet;
7. Use only Ground Fault Interrupter (GFI) protected circuit with this outdoor cooking gas appli-
ance;
8. Never remove the grounding plug or use with an adapter of two prongs; and
9. Use only extension cords with three prong grounding plug, rated for the power of the equipment,
and approved for outdoor use with a W-A marking.
WARNING
Electrical Grounding Instructions:
This outdoor gas cooking appliance is equipped with a three prong (grounding) plug for your pro-
tection against shock hazard and should be plugged directly into a properly grounded three prong
outlet. Do not cut or remove the third prong from this plug.

Delta Heat Service [phone] | 9
WIRING DIAGRAM
LED LIGHT LED LIGHT

10 | www.deltaheat.com
BURNER FLAME / AIR SHUTTER ADJUSTMENT
Each burner is tested and adjusted at the factory prior to shipment; however, variations in the
local gas supply may make it necessary to adjust the burners. The ames of the burner ring should be
visually checked. Flames should be blue and stable with little to no yellow tips, no excessive noise or
lifting. If any of these conditions exist, remove the burner and check to see if any air shutter or burner
ports are blocked by dirt, debris, spider webs, etc. if it is clear, the air shutter may need to be adjust-
ed.
ADJUSTING THE GRILL BURNER FLAME - The amount of air is controlled by a sheet metal cup
at the inlet of the burner called an air shutter. It is locked in place by a set screw which must be loos-
ened prior to lighting the burner for adjustment. The air shutter adjustment screws are accessible
with a phillips screwdriver. Loosen the lock screw of the air shutter. Adjust according to the following
directions. Be careful as the burner may be very hot.
• If the ame is yellow, indicating insu󰀩cient air, turn the air shutter counter-clockwise to allow
more air to the burner.
• If the ame is noisy and tends to lift away from the burner, indicating too much air, turn the air
shutter clockwise.
Remember to tighten the set screw prior to re-installing the burner.
ENSURE THAT THE BURNERS ARE SITTING PROPERLY ON THE ORIFICES BEFORE LIGHT-
ING THE BURNERS.

Delta Heat Service [phone] | 11
POWER BURNER CUT-OUT DIMENSIONS
THESE DIMENSIONS ARE FOR NON-COMBUSTIBLE CONSTRUCTION
ONLY. FOR COMBUSTIBLE CONSTRUCTION SEE NEXT PAGE.
NOTE:
It is recommended to build the enclosure
for the Power Burner 6”-12” LOWER than
the countertop.
11.50
19.50
20.75
24
26
22 22.31
20.75
WIDTH OF
UNIT

12 | www.deltaheat.com
25
12.63
22.25
24.51
30.60
13
23.41
26.60
22 22.31
INSULATION JACKET
WARNING
Do not build the Power Burner under overhead combustible construction. If the Power Burner is to be
placed into combustible enclosure, an approved insulating jacket is necessary to prevent re, proper-
ty damage and bodily injury. Use only Delta Heat (DHIJ22) insulating jacket.
IMPORTANT
If using LP gas cylinder and insulation jacket (DHIJ22), use stainless exible hose to connect LP gas
cylinder to grill regulator.

Delta Heat Service [phone] | 13
OPERATING INSTRUCTIONS
BEFORE LIGHTING THE POWER BURNER
DO NOT ATTEMPT TO LIGHT THE POWER BURNER IF YOU SMELL GAS
• WARNING! IT IS CRITICAL THAT THE GAS BURNER IS PROPERLY INSTALLED WITH
THEIR ORIFICES INSIDE THE BURNERS AIR SHUTTERS. If not properly installed, gas
may leak outside of the burner that could lead to re, potential damage to your Power
Burner and bodily injury.
• Inspect the gas supply piping or hose prior to turning the gas ON. If there is evidence of cuts,
wear, or abrasion, it must be replaced prior to use. The replacement pressure regulator and
hose assembly must be the type specied by the manufacturer. Do not use the Power Burner
if the odor of gas is present. The pressure regulator and hose assembly supplied with the units
must be used.
• If the unit is LP, screw the regulator and hand tighten to the valve of the cylinder and leak check
the hose and regulator connections with a soap and water solution before operating the Power
Burner. Reference page 6 for leak test procedure.
• Always keep your face and body as far away as possible when lighting.
• Refer to spiders and insects warning and procedure under the cleaning and maintenance page
of this manual.
TO LIGHT THE POWER BURNER’S BURNER
1. Open the gas supply shut-o󰀨 valve.
2. Push in the knob and verify that the igniter sparks. If the igniter does not spark, replace the 9V
battery. (Reference page 7 for electrical requirements).
3. Once sparking is veried, simultaneously push-in and turn the knob counter-clock-wise to the
biggest ame marking on the bezel. Hold the knob pushed in until you see or hear a ame, then
you can release the knobs.
CAUTION: If ignition does not take place within 5 seconds, turn knob to the OFF position, wait for ve
minutes and repeat step 3.
MATCH/BBQ LIGHTER LIGHTING INSTRUCTIONS:
The burner can be lit manually using a paper book match with the supplied lighting wand, lighted long
match, taper or BBQ lighter if there is no spark from the spark igniters.
1. Insert a lit match or BBQ lighter through the grates and near the top of the burner. Once you see
or hear a ame you can release the knob.
IMPORTANT: If burner fails to light within 5 seconds, turn o󰀨 gas and wait 5 minutes before repeat-
ing the process.
WARNING: If you smell gas, shuto󰀨 the gas supply and immediately check for leaks using the soapy
water technique outlined in the Leak Test section (Pg 6).

14 | www.deltaheat.com
CLEANING & MAINTENANCE
Proper care, maintenance, and cleaning will help ensure a long life of your Power Burner. Periodic
cleaning will help avoid accumulations of ammable grease, fats, and other debris.
CAUTION: Always allow the Power Burner to cool before cleaning.
STAINLESS STEEL & GENERAL PRODUCT CARE:
To keep your Power Burner free of surface corrosion and in good working order, it is important to take
additional precautions under certain conditions.
If your Power Burner is located in corrosive conditions, such as:
• A coastal environment where corrosive salty air is present
• Near a swimming pool, hot tub or water feature with exposure to corrosive pool chemicals and/or
chlorinated water
• Areas where muriatic acid (hydrochloric acid) or other corrosive cleaning solutions are used to
clean concrete and masonry
• Areas where corrosive masonry dust and debris are created by cutting stone or mixing cements
These conditions can create a highly corrosive environment that will cause the corrosions resistant
type 304 stainless steel to develop surface oxidation, corrosions or rust.
Delta Heat products have been tested in saline solutions, highly chlorinated solutions and have been
tested against exposure to highly acidic foods. The test results proved the type 304 stainless steel
can withstand exposure over prolonged periods of time. However, the conditions outlined above,
along with neglect, can lead to surface corrosion or rust.
ATTENTION:
• Do not allow food particles or grease to be left on the surfaces of the Power Burner. These can
attract rodents, which are unsanitary and are likely to cause physical damage by chewing on the
wiring, which can cause permanent damage to the electrical components.
• Specks of grease can gather on the surface of the stainless steel and get baked-on. These can
be removed by using a mild abrasive pad with a stainless steel cleaner. Use the mildest cleaner
and always scrub in the direction of the grain. Do not use steel wool to clean any surfaces on the
Power Burner.
• In the event that surface corrosion has developed on the stainless steel, it is typically not the
stainless steel that is corroding but corrosive particles that have been deposited on the surface.
WARNING:
It is recommended that your Delta Heat products be kept dry and covered when not in use. This is
even more important when long-term storage is intended.
If you are located along the coast or in the desert, wind driven sand is extremely abrasive and can pit
and scratch the stainless steel. Keep your Delta Heat products covered when not in use.
KEEP IN MIND:
Delta Heat products are made of all welded stainless steel. It is non-rusting and non-magnetic. Never
clean the stainless steel when it is hot. After the initial use, certain areas of the Power Burner may
discolor. This is a normal discoloration caused by the stainless steel being exposed to high heat.
