Delta Heat DHTG32 Instructions for use

DELTA HEAT TEPPANYAKI GRIDDLE
INSTALLATION, USE, & CARE MANUAL
P/N: 17634A 02/21
MODELS:
DHTG32

IMPORTANT SAFETY INSTRUCTIONS
WARNING! Read this manual carefully and completely before using your Teppanyaki Griddle to en-
sure proper operation, proper installation, proper servicing and to reduce the risk of re, burn hazard
and/ or other injury.
ATTENTION! Lisez attentivement et complètement ce manuel avant d’utiliser votre plaque chau󰀨ante
Teppanyaki pour assurer un fonctionnement correct, une installation correcte, un entretien approprié
et pour réduire les risques d’incendie, de brûlure et / ou d’autres blessures.
DANGER
If you smell gas:
1. Shut o󰀨 gas to the appliance.
2. Extinguish any open ames.
3. Open lid.
4. If odor continues, keep away from the appli-
ance and immediately call your gas supplier
or re department.
DANGER
S’il y a une odeur de gaz:
1. Coupez l’admission de gaz de l’appariel.
2. Éteindre toute amme nue.
3. Ouvrir le couvercle.
4. Si l’odeur persiste, éloignez-vous de l’appa-
reil et appelez immédiatement le fournisseur
de gaz ou le srvice d’incendie.
WARNING
1. Do not store or use gasoline or other amma-
ble vapors and liquids in the vicinity of this or
any other appliance.
2. An LP cylinder not connected for use shall
not be stored in the vicinity of this or any oth-
er appliance.
AVERTISSEMENT
1. Ne pas entreposer ni utilizer de l’essence
ni d’autres vapuers ou liquids inammables
dans le voisinage de l’appareil, ni de tout
autre appareil.
2. Une bouteille de propane qui n’est pas rac-
cordée en vue de son untilisation, ne doit
pas être entrpossée dans le voisinage de cet
appareil ou de tout autre appareil.
THIS GRILL IS FOR OUTDOOR USE ONLY:
If stored indoors, detach and leave L.P. cylinder
outdoors
CE GRIL EST POUR UTILISATION à L’Ex-
TéRIEUR SEULEMENT:
Si l’appareil est entreposé à l’interieur, enlever
les bouteilles et les laisser à l’extérieur.
BEFORE LIGHTING
1. Read instructions before lighting.
2. Open lid during lighting.
3. If ignition does not occur in 5 seconds, turn
the burner control(s) o󰀨, wait 5 minutes, and
repeat the lighting procedure.
AVANT D’ALLUMER L’APPAREIL
1. Lisez les instructions avant d’allumer l’appa-
reil.
2. Ouvrez le couvercle avant d’allumer l’appar-
eil.
3. Si l’appareil ne s’allume pas en 5 secondes,
fermez le robinet du brûleur, attendez 5 min-
utes, et procédez de nouveau à l’allumage.
FOR YOUR SAFETY
Do not store or use gasoline or other ammable
vapors and any liquids in the vicinity of this or
any other appliance.
MESURE DE SECURITE
Ne pas entreposer ni utiliser d’essence ni autres
vapeurs ou liquides inammables à proximité de
cet appareil ou de tout autre appareil.

A Special Message to our Customers...
Congratulations on your purchase of Delta Heat Teppanyaki Griddle. Delta
Heat is committed to making outdoor cooking products you’ll be proud to own for
years.
This manual gives you easy to follow instructions for installing, operating
and maintaining your Delta Heat Teppanyaki Griddle. We recommend reading
this manual carefully before your rst use to ensure safety, proper care and oper-
ation.
Thank you and welcome!
Delta Heat
FOR YOUR RECORDS
Please record the following information and refer to them when contacting the company
or an authorized service agent. This information is found on the rating/serial plate, located on
the inside wall of the left hand side panel. You can visually access the rating/serial plate by
looking underneath the griddle when facing the front of the appliance.
MODEL #:
____________________________________________
SERIAL #:
____________________________________________
DATE OF PURCHASE:
____________________________________________
PLACE OF PURCHASE:
____________________________________________
TYPE OF GAS: NG _____ LP _____
To the Installer:
Please read these instructions carefully before installation and give this manual to the owner.
To the Owner:
Keep this manual in a safe place for future reference.

GENERAL SAFETY REQUIREMENTS
• The installation of this appliance must conform with local codes or, in the absence of local codes, either the
National Fuel Gas Code, ANSI Z223.1/NFPA 54, Natural Gas and Propane Installation Code, CSA B149.1 or
Propane Storage and Handling Code, B149.2
• The utilization of an external electrical source requires that when installed, this outdoor cooking gas appliance
must be electrically grounded in accordance with the local codes or, in the absence of local codes, with the
National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1. Keep any electrical
supply cord and the fuel supply hose away from any heated surfaces.
• This outdoor cooking gas appliance shall be used only outdoors and shall not be used in a building, garage or
any other enclosed area.
• This outdoor cooking gas appliance is not intended to be installed in or on recreational vehicles and /or boats.
• Minimum clearance of 12 inches from the back and sides of the grill to adjacent combustible construc-
tion must be maintained. This outdoor cooking gas appliance shall not be located under overhead
combustible constructions. (Note: To minimize the possibility of discoloration on adjacent construc-
tion extending above the counter-top surface due to grease and hot vapors, it is highly recommended
that a clearance of 18 inches be maintained from sides and back of the grill.)
• Keep your Teppanyaki Griddle in an area clear and free from combustible materials, gasoline and other am-
mable vapors and liquids.
• DO NOT obstruct the ow of combustion and ventilation air to this appliance. Keep the ventilation openings of
the cylinder enclosure free and clear from debris.
• Check exible hoses for cuts and wear that may a󰀨ect the safety before each use.
• Check all gas connections for leaks with soapy water solution and brush. Never use an open ame. (Refer-
ence page 7 for leak test procedure).
• Always use caution when operating the Teppanyaki Griddle in a windy area.
• The pressure regulator and hose assembly supplied with the Delta Heat Teppanyaki Griddle must be used.
Replacement pressure regulators and hose assemblies must be those specied by DELTA HEAT.
In Massachusetts: All gas products must be installed using a “Massachusetts” licensed plumber or
gastter. A “T” handle type manual gas valve must be installed in the gas supply line to this appliance.
This applies to permanently installed natural gas and propane installations. This does not apply to
propane portable installations using a 20 pound tank.
WARNING: CALIFORNIA PROPOSITION 65
This product can expose you to chemicals including carbon monoxide which is known to the State
of California to cause cancer and reproductive harm. To minimize exposure to the by-products of the
burning fuel or from combustion, always operate this unit according to the use and care manual and
provide good ventilation. California law requires businesses to warn customers of potential exposure
to such substances. For more information go to www.P65Warnings.ca.gov.
AVERTISSEMENT: PROPOSITION 65 DE L’ETAT DE LA CALIFORNIE
Cet appareil peut vous exposer aux produits chimiques et au gaz monoxyde de carbonne reconnue
dans l’Etat de la Californie pour causer le cancer et des problemes de fertilite. Pour minimiser l’expo-
sition de ces-sous produits combustibles ou de la combustion, utiliser toujours cet appareil en con-
formitee au manuel d’utilisation et d’entretien en s’assurant egalement d’une bonne ventilation. La loi
de la Californie exige aux fabricants d’informer leurs clients aux risques d’exposition potentielle a de
telles substances. Pour plus d’information, visiter le site www.P65Warnings.ca.gov

TABLE OF CONTENTS
GETTING STARTED 1
GAS SAFETY REQUIREMENTS 2
LP GAS HOOK-UP 3
PORTABLE LP CONNECTION 4-5
NATURAL GAS INSTALLATION 6
LEAK TEST 7
ELECTRICAL REQUIREMENT 8
WIRING DIAGRAM 9
BURNER FLAME / AIR SHUTTER ADJUSTMENT 10
LOCATING THE TEPPANYAKI GRIDDLE 11
TEPPANYAKI GRIDDLE CUT-OUT DIMENSIONS 12
INSULATION JACKET 13
OPERATING INSTRUCTIONS 14
CLEANING & MAINTENANCE 15-17
EXPLODED VIEW 18
REPLACEMENT PARTS LIST 19
WARRANTY 20
HOW TO OBTAIN SERVICE 21

Twin Eagles Service [phone] | 1
GETTING STARTED
Safe and satisfactory operation of the Teppanyaki Griddle depends upon its proper installation. The
installation, adjustments and service of the Griddle must be performed only by a qualied installer and
service technician.
Proper location and proper use is essential to insure safe and continued trouble-free operation. Any
alterations made to the appliance will void the product’s warranty.
Before installing, check the rating/serial plate of the Teppanyaki Griddle. Use only the electrical power
supply and type of gas supply (natural or propane) as specied on the rating/serial plate. This infor-
mation is found on the serial plate, located on the inside wall of the left hand side panel.
Electrical Specication
The appliance should only be taken apart be a qualied technician, or electrical shock may occur. It is
rated at 120V, 60Hz.
Propane or LP
If your Teppanyaki Griddle is factory built for LP, the regulator supplied is set to 11 in wc (2.74 kPa)
and is for use with LP gas only. The factory supplied regulator and hose must be used with a 20 lb LP
cylinder. Do not use any replacement regulator other than that specied by Delta Heat.
Natural Gas or NG
If the Teppanyaki Griddle is factory built for natural gas, the regulator supplied is set for 4” water col-
umn. Do not use any replacement regulator other than that specied by Delta Heat.
Shipment
This Teppanyaki Griddle is inspected before leaving the factory. The shipping carrier assumes full
responsibility for the safe delivery of the appliance. Check for possible shipping damage immediately
after unpacking. If the Teppanyaki Griddle is found to be damaged, save the packaging material and
contact the shipping carrier immediately.
Unpacking
Remove all packaging materials, labels and protective plastic lm. DO NOT LEAVE UNIT UNDER
THE SUN WITH PROTECTIVE FILM ON FOR AN EXTENDED PERIOD OF TIME AS IT WILL BE
DIFFICULT TO REMOVE THE FILM.

2 | www.deltaheat.com
GAS SAFETY REQUIREMENTS
Each appliance is set and tested at the factory for the type of gas supply to be used. Identi-
fy the type of gas, either Natural Gas or LP gas and make sure that the marking on the rating/serial
plate matches the gas being supplied to the Teppanyaki Griddle.
All gas connections should be made by a qualied technician and in accordance with local
codes and ordinances. The installation must conform with local codes or, in the absence of local
codes, with either the National Fuel Gas Code, ANSI Z223.1/NFPA 54, Natural Gas and Propane
Installation Code, CSA B149.1 or Propane Storage and Handling Code, B149.2.
WARNING:
CHECK TO ENSURE THAT THE GAS SUPPLY HOSE OR ELECTRICAL SUPPLY CORD
DOES NOT COME IN CONTACT WITH ANY HOT SURFACE OF THE GRILL.
NEVER CONNECT THE GRILL TO AN UNREGULATED GAS SUPPLY.
L.P. GAS (LIQUIFIED PETROLEUM /PROPANE)
If your appliance is factory built for L.P., the regulator supplied is set for 11 in wc (2.74 kPa)
and is for use with L.P. gas only. The factory-supplied regulator and hose must be used with a 20 lb.
L.P. cylinder.
L.P. GAS SAFETY REQUIREMENT
The LP-gas supply cylinder must be constructed and marked in accordance with the Speci-
cations for LP-gas Cylinders of the U.S. Department of Transportation (D.O.T.) or the National Stan-
dards of Canada CAN/CSA-B339, Cylinders, Spheres and Tubes for the Transportation of Dangerous
Goods, and Commission, as applicable; and
1. Provided with a listed overlling prevention device.
2. Provided with a cylinder connection device compatible with the connection for outdoor cooking
appliances.
• It must be provided with a shut-o󰀨 valve terminating in gas tank valve outlet. It must include a
collar to protect the cylinder valve. The cylinder supply system must be arranged for vapor with-
drawal.
• Do not operate the appliance indoors or in any enclosed area. If the appliance is not in use, the
gas must be turned o󰀨 at the supply cylinder. If the appliance is to be stored indoors, disconnect
the gas supply cylinder and leave the cylinder outdoors.
Cylinders must be stored outdoors out of reach of children and must not be stored in a building,
garage or any other enclosed area.

Delta Heat Service [phone] | 3
LP GAS HOOK-UP
Install the factory-supplied hose and regulator assembly as shown. Connect the 3/8” are end
of the hose to the grill coupling using a 3/4” open wrench. Do not apply pipe sealant to the 3/8” are
connection. Connect the regulator to the LP cylinder hand tighten it, do not use a wrench. Check for
leaks using soapy water solution. (Reference page X for leak test procedure).
INSTALLER SUPPLIED
REGULATOR SET AT 10” WC (LP)
(MUST BE PURCHASED FROM
DELTA HEAT)
TYPICAL BOTTOM
GAS CONNECTION
INSTALLER SUPPLIED GAS
SHUTOFF VALVE (MUST BE
EASILY ACCESSIBLE)
CUSTOMER SUPPLIED
20 lb (5 GALLON) LP CYLINDER
DO NOT PLACE MORE THAN
ONE CYLINDER IN THE EN-
CLOSURE AT ANY TIME
VENTS REQUIRED ON
ENCLOSURES FOR LP
CYLINDERS (SEE NOTES)
BRASS COUPLING
1/2 NPT X 1/2 FLARE
FACTORY SUPPLIED
HI-PRESSURE LP
HOSE ASSEMBLY
FACTORY SUPPLIED
LP REGULATOR
TYPE 1
TYPICAL BOTTLE LP GAS
HOOK-UP
TYPICAL PLUMB-IN GAS
HOOK-UP
Note: An enclosure for an LP gas cylinder shall be ventilated by openings at both the upper and lower
levels of the enclosure. The eectiveness of the opening(s) for purposes of ventilation shall be deter-
mined with the LP cylinder in place. This shall be accomplished by one of the following:
a. one side of the enclosure shall be completely open; or
b. for a cylinder enclosure having four sides, a top and a bottom, and intended for installation in a
built-in enclosure:
i. at least one ventilation opening shall be provided on the exposed exterior side of the enclosure
located within 5 in (127 mm) of the top of the enclosure and unobstructed. The opening(s) shall
have a total free area of not less than 1 in²/lb (14.2 cm²/kg) of stored fuel capacity.
ii. at least one ventilation opening shall be provided on the exposed, exterior side of the enclo-
sure 1 in (25.4 mm) or less from the oor and shall have a total free area of not less than 1/2
in²/lb (7.1 cm²/kg) of stored fuel capacity. The upper edge shall be no more than 5 in (127 mm)
above the oor level.
iii. every opening shall have a minimum dimension so as to permit the entrance of a 1/8 in (3.2
mm) rod.
FOR BUILT-IN APPLICATIONS

4 | www.deltaheat.com
PORTABLE LP CONNECTION
An enclosure for an LP gas cylinder shall be ventilated by openings at both the upper and lower levels
of the enclosure. The eectiveness of the opening(s) for purposes of ventilation shall be determined
with the LP cylinder in place. This shall be accomplished by one of the following:
a. one side of the enclosure shall be completely open; or
b. for a cylinder enclosure having four sides, a top and a bottom:
i. at least two ventilation opening shall be provided on the exposed exterior side of the enclosure
located within 5 in (127 mm) of the top of the enclosure, equally sized, spaced a minimum of
90 degrees (1.75 rad), and unobstructed. The opening(s) shall have a total free area of not
less than 1 in²/lb (14.2 cm²/kg) of stored fuel capacity.
ii. ventilation opening(s) shall be provided at oor level of the enclosure and shall have a total
free area of not less than 1/2 in²/lb (7.1 cm²/kg) of stored fuel capacity. If ventilation opens at
the oor level are in a side wall, there shall be at least two openings. the bottom of the open-
ings shall be 1 in (25.4 mm) or less from the oor level and the upper edge no more than 5 in
(127 mm) above the oor level. the openings shall be equally sized, spaced at a minimum of
90 degrees (1.75 rad) and unobstructed.
iii. every opening shall have minimum dimensions so as to permit entrance of a 1/8 in (3.2 mm)
diameter rod.
iv. ventilation openings in side walls shall not communicate directly with other enclosures of the
outdoor cooking gas appliance.
FOR CART APPLICATIONS

Delta Heat Service [phone] | 5

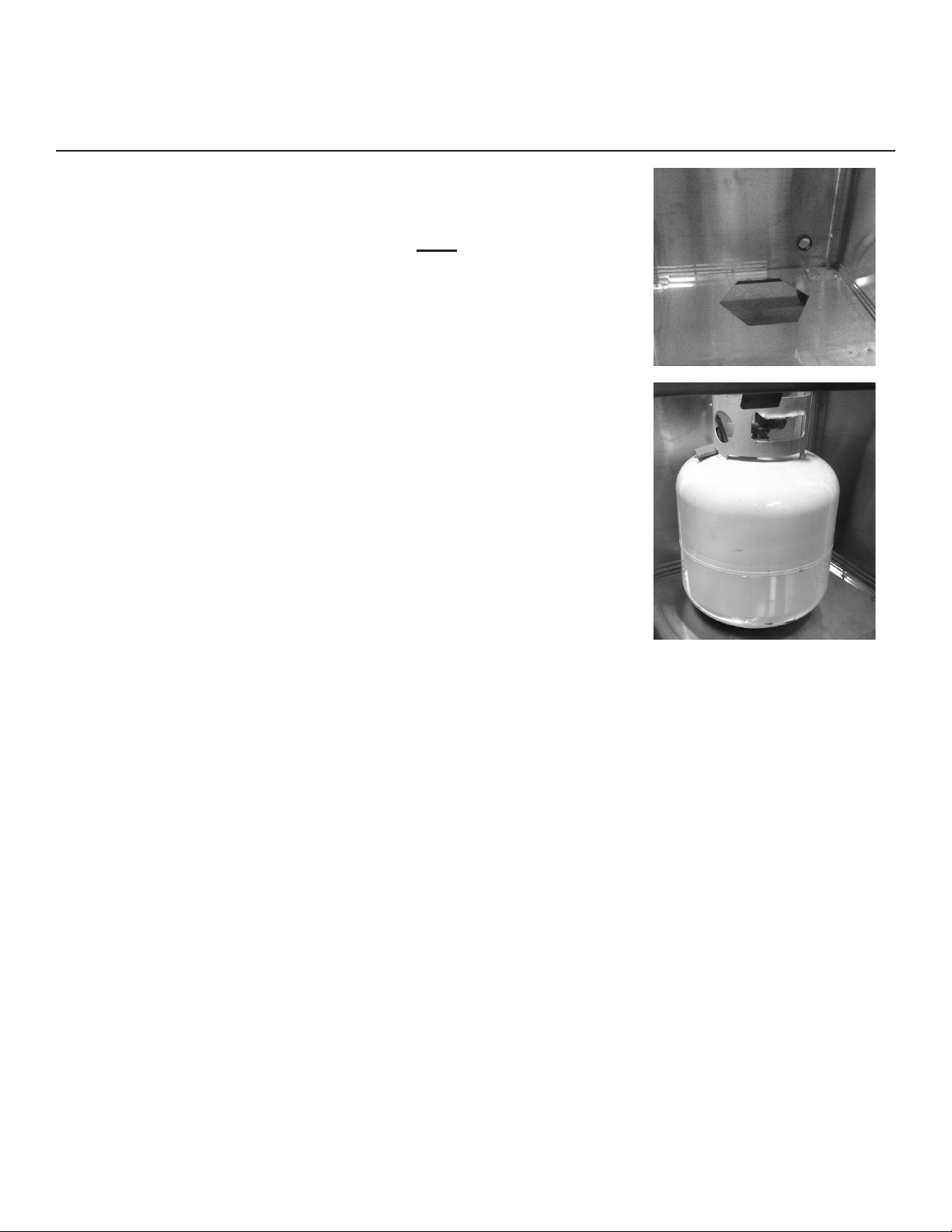

NOTE: USE ONLY A 20-LBS. (5-GALLON CAPACITY) GAS CYLIN-
DER.
WARNING: DO NOT PLACE MORE THAN ONE CYLINDER IN THE
BASE CABINET ENCLOSURE AT ANY TIME.
WARNING: DO NOT USE A DENTED OR RUSTED LP CYLINDER.
NEVER USE A CYLINDER WITH A DAMAGED VALVE.
ALWAYS CHECK FOR LEAKS AFTER CHANGING THE LP CYLIN-
DER. (Page 7)
THE LP PRESSURE REGULATOR AND HOSE SUPPLIED WITH
THIS UNIT MUST BE USED WITHOUT ALTERATION.
ALWAYS USE THE TANK SECURING DEVICE SUPPLIED WITH
GRILL BASE.
1. To install the gas cylinder, place the cylinder onto the provided cutout.
2. Check to ensure that the tank’s gas valve on top of the cylinder is closed.
3. Connect the LP regulator (included) to the cylinder and hand-tighten only. Open the tank valve
and make sure all connections are leak tight using a soapy water solution and a brush. (Refer-
ence page 7 for leak test procedure).
WARNING
DO NOT STORE SPARE LP GAS CYLINDER UNDER OR NEAR THIS APPLIANCE.
NEVER FILL THE CYLINDER BEYOND 80 PERCENT FULL.
FAILURE TO DO SO, A FIRE CAUSING DEATH OR SERIOUS INJURY MAY OCCUR
PORTABLE LP CONNECTION

6 | www.deltaheat.com
NATURAL GAS INSTALLATION
The installation must conform with local codes or, in the absence of local codes, with either the
National Fuel Gas Code, ANSI Z223.1/NFPA 54, Natural Gas and Propane Installation Code, CSA
B149.1 or Propane Storage and Handling Code, B149.2.
1. This gas appliance and its individual shuto󰀨 valve must be disconnected from the gas supply
piping system during any pressure testing of that system at the test pressures in excess of 1/2
psi (3.5 kPa).
2. This appliance must be isolated from the gas supply piping system by closing its individual
manual shuto󰀨 valve during any pressure testing of the gas supply piping system at test pres-
sures equal to or less than 1/2 psi (3.5 kPa).
If the Teppanyaki Griddle is factory built for Natural Gas, the regulator supplied is set for 4” wa-
ter column. The regulator is convertible to 10 in wc (2.49 kPa) for plumb-in system LP application. Do
not use with a 20-lb LP cylinder. Make sure that the regulator is set for the correct gas type. To check,
remove the brass hex cap. You will nd the conversion plastic pin attached to the cap to the under-
side of the cap. If the disc (1/2 in. diameter) of the pin is close to the cap, then the regulator is set for
Natural Gas. If the disc is at the tip of the pin, away from the brass cap, the regulator is set for system
LP application. To convert to Natural Gas, remove the plastic conversion pin and invert and replace it
back in a manner such that the disc is close to the brass cap. For both Natural and LP, the maximum
inlet pressure is 14 in wc (3.5 kPa).

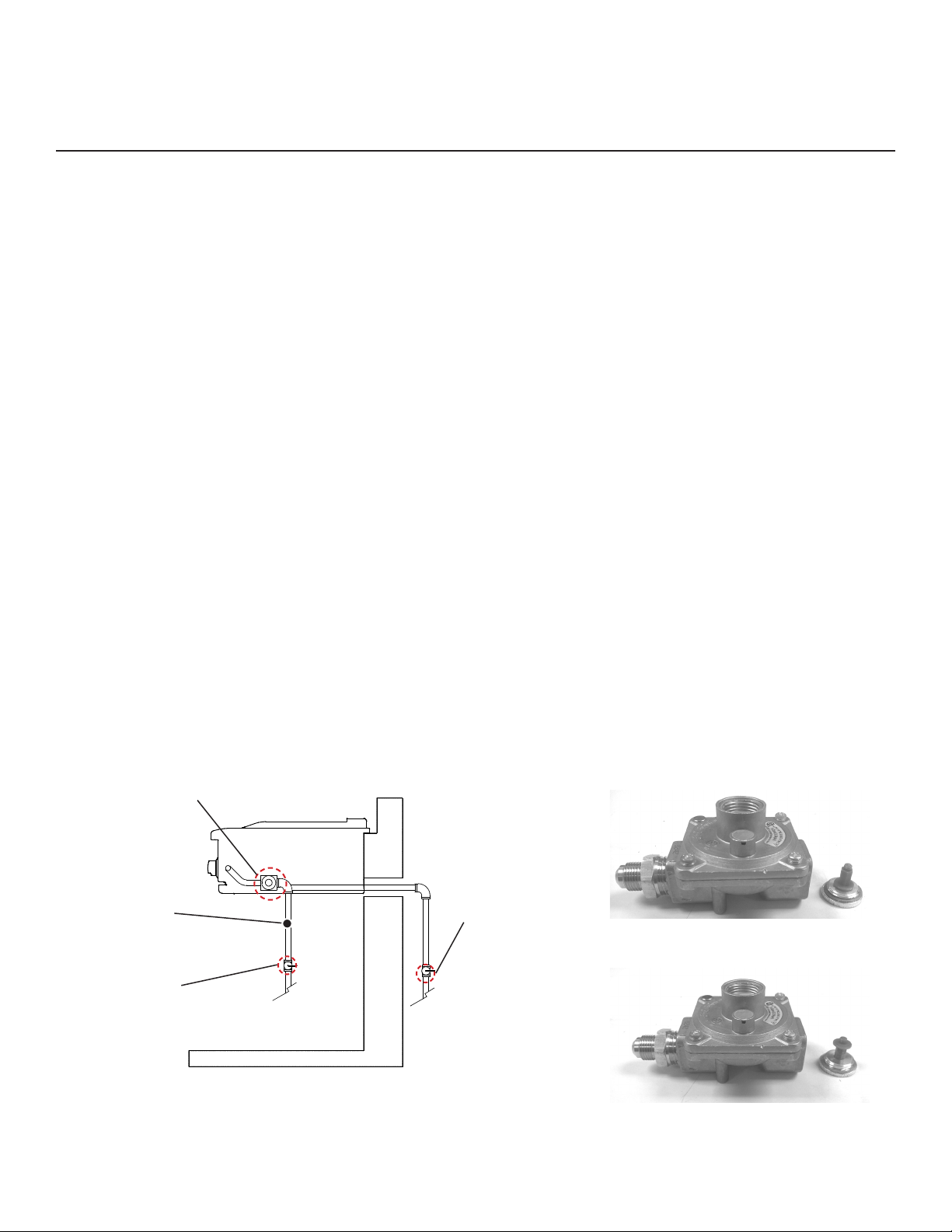

A typical Natural Gas installation is shown below. Make sure that the factory-supplied regulator
is used and installed with the arrow mark on the regulator pointing towards the appliance. Do not use
any replacement regulator other than that specied by DELTA HEAT. Use only pipe sealants that are
approved for use with Natural and LP gases. An installer-supplied gas shuto󰀨 valve must be installed
in an accessible location.
INSTALLER SUPPLIED
GAS SHUTOFF VALVE
(MUST BE EASILY
ACCESSIBLE)
TYPICAL BOTTOM
GAS CONNECTION
INSTALLER
SUPPLIED GAS
SHUTOFF VALVE
(MUST BE EASILY
ACCESSIBLE)
REGULATOR SET
AT 4” WC
(NATURAL GAS)
TYPICAL NATURAL GAS HOOK UP
CAUTION: PROVIDE ADEQUATE VENTILATION HOLES IN THE ENCLOSURE
FOR SAFETY PURPOSES IN THE EVENT OF GAS LEAK.
SET TO NG
SET TO LP

Delta Heat Service [phone] | 7
LEAK TEST
CAUTION BEFORE TESTING
• Finding and/or xing a gas leak is NOT a “DO-IT-YOURSELF” procedure.
• NEVER USE THE TEPPANYAKI GRIDDLE WITHOUT FIRST LEAK TESTING THE GAS CON-
NECTIONS.
• WARNING: DO NOT USE OPEN FLAME TO CHECK FOR LEAKS. USE OF AN OPEN FLAME
COULD RESULT IN A FIRE, EXPLOSION, BODILY HARM OR DEATH.
• DO NOT SMOKE WHILE PERFORMING THE LEAK TEST!
• To prevent re or explosion hazard, DO NOT use or permit sources of ignition in the area while
performing a leak test. Perform leak test outdoors only.
• Check to ensure that exible hoses do not have any cuts and wear that may a󰀨ect the safety
before each use. Only the factory supplied hose and regulator must be used. Use only replace-
ment regulator and hose assemblies specied by DELTA HEAT.
LEAK TEST
1. Prepare a leak testing solution of sudsy water by mixing in a spray bottle with half liquid soap
and half water.
2. Conrm that all control knobs are in the OFF position.
3. Turn the main gas valve supply ON.
4. Apply leak testing solution by spraying on the pipe joints, ttings, and hose.
5. A gas leak is detected if;
a. there is a faint gas smell and/or…
b. growing bubbles appear on any of the connection points and/or hose, DO NOT attempt to
ignite the Teppanyaki Griddle and IMMEDIATELY turn o󰀨 the gas supply valve.
6. When there is a gas leak, call a qualied service technician. DO NOT use the Teppanyaki
Griddle until the leak is corrected.
LEAK TEST
LEAK TEST
TYPICAL BOTTLE LP GAS
HOOK-UP
TYPICAL NATURAL GAS
HOOK-UP

8 | www.deltaheat.com
ELECTRICAL REQUIREMENT
TO INSTALL AND SECURE POWER TRANSFORMER
The Teppanyaki Griddle is equipped with LED lights that require the use of a power transform-
er with an attached power supply cord. This transformer must be secured in a dry location and away
from the Teppanyaki Griddle rebox and excessive heat area.
a. In a base cart application, four mounting screws with nuts are provided at the bottom left rear
corner of the cart. If not provided, drill four holes using the transformer box as a template.
Secure the transformer box as shown. (Fig. 1)
b. In a built-in application secure the transformer box near the GFCI 120V outlet in a dry loca-
tion and away from the grill rebox and excessive heat area.
c. Make the transformer connections to the wire harness plug, located at the left rear of the
front panel, to the harness of the transformer box. (Fig. 2)
d. Plug-in the transformer’s power cord to the properly grounded GFCI 120V outlet.
e. A side burner plug to provide electrical power for side burner is located at the right side of the
front panel. (Fig. 3)
WARNING
Electrical Grounding Instructions:
This outdoor gas cooking appliance is equipped
with a three prong (grounding) plug for your
protection against shock hazard and should be
plugged directly into a properly grounded three
prong outlet. Do not cut or remove the third
prong from this plug.
AVERTISSEMENT
Instruction pour la mise à la terre electrique:
Cet appareil est muni d’une che à trois broches
(mise à la terre) an de vous protéger des chocs
et doit être branché directement dans une prise
de courant à trois broches adéquatement mise
à la terre. Il ne faut pas couper ou enlever la
broche de mise à la terre de cette che.
Fig. 1 Fig. 2 Fig. 3

Delta Heat Service [phone] | 9
WIRING DIAGRAM
This Delta Heat product is provided with electrical components, proper handling and care is
needed to maintain the quality of your Delta Heat product.
1. To protect against shock, do not immerse cord or plug in water or other liquid;
2. Unplug from the outlet when not in use and before cleaning. Allow to cool before putting on or
taking o󰀨 parts;
3. Do not operate any outdoor cooking gas appliance with a damaged cord, plug, or after the appli-
ance malfunctions or has been damaged in any manner. Contact the manufacturer for repair;
4. Do not let the cord hang over edge of table or touch hot surfaces;
5. Do not use an outdoor cooking gas appliance for purposes other than intended;
6. When connecting, rst connect plug to outdoor cooking gas appliance then plug appliance into
outlet;
7. Use only a Ground Fault Interrupter (GFI) protected circuit with this outdoor cooking appliance;
8. Never remove the grounding plug or use with an adapter of two prongs; and
9. Use only extension cords with a three prong grounding plug, rated for the power of the equip-
ment, and approved for outdoor use with a W-A marking.
LED LIGHT LED LIGHT

10 | www.deltaheat.com
BURNER FLAME / AIR SHUTTER ADJUSTMENT
Each Teppanyaki Griddle burner is tested and
adjusted at the factory prior to shipment; however, vari-
ations in the local gas supply may make it necessary to
adjust the burners.
The ames of the U-burners should be visually
checked. Flames should be blue and stable with little
to no yellow tips, no excessive noise or lifting. If any of
these conditions exist, remove the burner and check to
see if the air shutter or burner ports are blocked by dirt,
debris, spider webs, etc. If it is clear, the air shutter may
need to be adjusted.
Before adjusting the air shutter, verify that the correct orice size for the gas type was in-
stalled.
ADJUSTING THE GRILL BURNER FLAME
The amount of air is controlled by a sheet metal cup at the inlet of the burner called an air shut-
ter. It is locked in place by a set screw which must be loosened prior to lighting the burner for adjust-
ment. The air shutter adjustment screws are accessible with a phillips screwdriver. Loosen the lock
screw of the air shutter. Adjust according to the following directions. Be careful as the burner and
other grill parts may be very hot!
• If the ame is yellow, indicating insu󰀩cient air, turn the air shutter counter-clockwise to allow
more air to the burner.
• If the ame is noisy and tends to lift away from the burner, indicating too much air, turn the air
shutter clockwise.
Remember to tighten the set screw prior to re-installing the burner.
ENSURE THAT THE BURNERS ARE SITTING PROPERLY ON THE ORIFICES BEFORE LIGHT-
ING THE BURNERS.
Burner set to LP Burner set to NG

Delta Heat Service [phone] | 11
LOCATING THE TEPPANYAKI GRIDDLE
This gas appliance is designed and certied for outdoor use only. Do not locate this appliance
under unprotected overhead combustible surfaces. When installed under overhead combustible sur-
faces, a certied ventilating hood wider than the appliance shall be installed with a minimum distance
of 36 inches above the cooking surface.
NOTE: Caution should be taken when the Teppanyaki Griddle is used near glass, vinyl siding
or other temperature sensitive construction materials. In some cases it may be necessary to increase
the clearance around the Teppanyaki Griddle to avoid damage to vinyl siding. Check with the manu-
facturer of the siding material for details.
Do not operate the Teppanyaki Griddle inside a building, garage, recreation vehicle or any enclosed
area. When choosing an area, consider exposure to wind, proximity to tra󰀩c paths and length of gas
supply line. Keep gas supply lines as short as possible to reduce pressure drop. Keep the Teppa-
nyaki Griddle away from windy area but keep it in a well-ventilated area. Do not obstruct the ow of
combustion and ventilation air around the Teppanyaki Griddle. The supporting edges of the Teppa-
nyaki Griddle must be located level and at. The counter should also be leveled.
CLEARANCE TO COMBUSTIBLE CONSTRUCTION
A minimum clearance of 12” from the sides and 12” from the back of the grill to adjacent verti-
cal combustible construction must be maintained.
DÉGAGEMENT DE TOUTE CONSTRUCTION COMBUSTIBLE
Il faut maintenir une distance minimum de 12 po (30.48 cm) sur les côtés et de 12 po (30.48 cm) sur
l’arrière du gril par rapport aux constructions combustibles verticales adjacentes.
NON-COMBUSTIBLE ENCLOSURE
The Teppanyaki Griddle must be installed in a NON-COMBUSTIBLE ENCLOSURE ONLY. The
determination of whether a location is combustible or non-combustible construction is made by the
local re marshal, building inspector or the local safety authority having jurisdiction. If the Teppanyaki
Griddle is to be built into a combustible enclosure, then a Delta Heat Insulation Jacket (DHIJ32) is
REQUIRED. (see page 12)

12 | www.deltaheat.com
19.75
WIDTH OF
UNIT
20.50
32
19.75
9.50
30.50

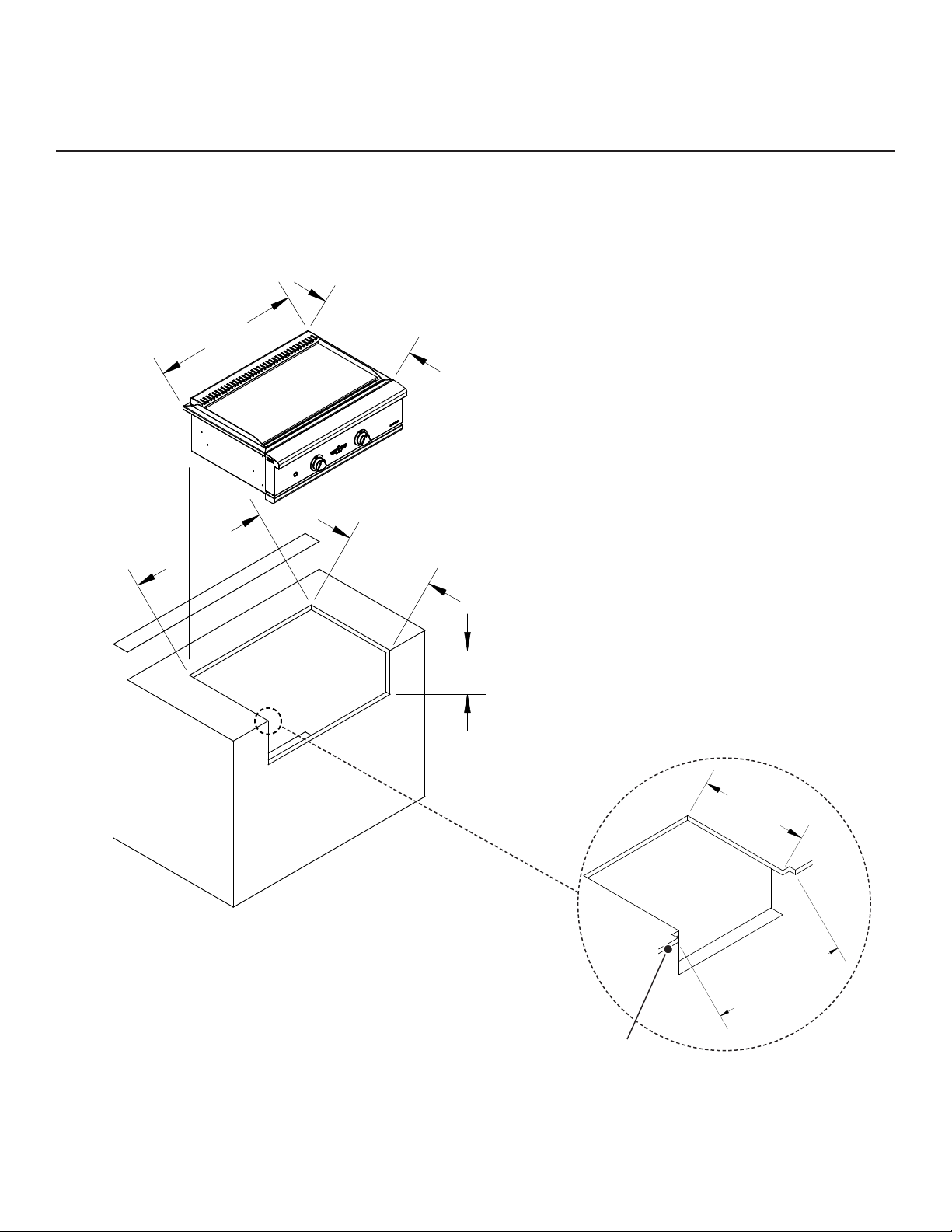

TEPPANYAKI GRIDDLE CUT-OUT DIMENSIONS
COUNTERTOP
OVERHANG
DETAIL
DHTG32
NOTE: DETAIL IS TYPICAL
TO ALL DH CUT-OUTS.
THESE DIMENSIONS ARE FOR NON-COMBUSTIBLE CONSTRUCTION
ONLY. FOR COMBUSTIBLE CONSTRUCTION SEE NEXT PAGE.

Delta Heat Service [phone] | 13
INSULATION JACKET
WARNING
Do not build the grill under overhead combustible construction. If the grill is to be placed into com-
bustible enclosure, an approved insulating jacket is necessary to prevent re, property damage and
bodily injury. Use only Delta Heat (DHIJ32) insulating jacket.
IMPORTANT
If using LP gas cylinder and insulation jacket (DHIJ), use stainless exible hose to connect LP gas
cylinder to grill regulator.
21.50
35
10.50
11.00
22.25
36.68
20.50
32

14 | www.deltaheat.com
OPERATING INSTRUCTIONS
Lighting Instructions
1. Ensure the Gas supply valve is closed and the burner knob is set to the OFF position.
2. Open the valve on the gas supply.
3. Push and turn the knob counterclockwise to the HIGH position. You will hear the spark igniter
come on. Keep the knob pushed in for a minimum of 30 seconds to ensure the burner remains
lit.
4. To shut down, turn the knob to the OFF position.
5. For complete shutdown, close the valve at the gas supply.
CAUTION: DO NOT LEAVE THE TEPPANYAKI GRIDDLE UNATTENDED WHILE IN USE.
Manual Ignition
1. Ensure the gas supply valve is closed and the burner knob is set to the OFF position.
2. Remove the grease tray to expose the manual ignition ports.
3. Insert a lit match using the supplied match holder or grill lighter through the hole close to the
burner.
4. Push in and turn the corresponding knob counterclockwise to the HIGH position to light the burn-
er.
5. Repeat steps 4 and 5 for the remaining burner.
6. To shut the unit o󰀨, turn the knob to the OFF position.
7. For complete shutdown, close the valve at the gas supply.
