Delta 1220 TRIPLE X-RANGE Manual

Delta 1220 ‘TRIPLE X-RANGE’ DIESEL STERNDRIVE RIB
6900 U1 2
Important –Please Read
This manual covers the operation and maintenance of the Delta 1220 ‘TRIPLE
X-RANGE’ RIB. Please read this manual before operating the craft. This manual is
designed as a reference guide during the service life of the craft and therefore
should be retained for future use.
This manual should be read in conjunction with the separately supplied
manufacturers manuals for such items as the engines, drives and battery charger etc.
This boat is a high performance vessel and only responsible persons having relevant
experience and training should operate this machine.
THE HELMSMAN MUST WEAR ENGINE CUT-OUT SAFETY
LANYARDS AT ALL TIMES WHEN CRAFT IS IN OPERATION
The instructions contained in this operation and maintenance manual must be
carefully observed by all those intending to use the craft to ensure a long, safe and
trouble free life. Owners are recommended, in their own interest, to entrust all
maintenance and repair work to Delta Power Services or their approved
representative. Failure to do so may invalidate any warranty.
If you require additional copies of this manual or have any technical queries
regarding its content, please contact your Delta representative or Delta Power
Services headquarters.
Delta Power Services
Newby Road Industrial Estate
Hazel Grove
Stockport
Cheshire
SK7 5DR
United Kingdom
Tel: [phone]
Fax: [phone]
Email: techn[email protected]
Contents 1. Technical Data Page 4 2.
Getting To Know Your Delta Page 5 3. Operation
3.1 Controls Page 9
3.2 Top Box Equipment Page 10
3.3 Console Equipment Page 12
3.4 Getting Started Page 12
3.5 Engine Access Page 12
3.6 Sterndrive Access Page 12
3.7 Transom Deck Drains Page 12
3.8 Batteries & Isolators Page 13
3.9 Battery System Box Page 14

Delta 1220 ‘TRIPLE X-RANGE’ DIESEL STERNDRIVE RIB
6900 U1 3
3.10 Battery Charging Page 15
3.11 Junction Boxes Page 16
3.12 Power Socket Page 16
3.13 Switches & Fuses Page 17
3.14 Fuel System Page 18
3.15 Fuel Changeover System Page 19
3.16 Fuel Monitor & Sender Page 20
3.17 Steering Page 21
3.18 Bilge Pumps Page 21
3.19 Sponsons Page 22
3.20 Life Lines Page 22
3.21 Equipment Stowage Page 23
3.22 Lifting The Boat Page 24
3.23 Pre-start Boat Check Page 25
3.24 Post-start Boat Check Page 25
4. Safety Systems
4.1 External Fire Extinguishers Page 26
4.2 Engine Compartment Fire Extinguisher Page 26 4.3
Self Righting Page 26
5. Emergency Procedures
5.1 Battery Failure Page 27
5.2 Fire Safety Precautions Page 27 5.3
In Case Of Fire Page 27
5.4 Fuel Contamination Page 27 5.5
Emergency Steering Page 27
6. Routine General Maintenance
6.1 Engine and Drive Page 28
6.2 Steering, Throttle Box and Cable Maintenance Page 28
6.3 Fuel Tanks, Lines and Filters Page 28 6.4 Manual Bilge Pumps Page 28
6.5 Other Safety Items Page 28 6.6
Inflatable Collar Page 29 6.7
GRP Hull Page 30
6.8 Engine Cooling Water Filters Page 31 6.9 Daily
Boat Maintenance Schedule Page 32 6.10 Daily
Boat Checklist Page 23
7. Trouble Shooting Page 34 8.
Wiring Diagram Page 35 9.
Notes Page 36
1. Technical Data
TECHNICAL
SPECIFICATIONS
DELTA 12.2m ‘TRIPLE X-RANGE’
TYPE
DIESEL STERNDRIVE RIB
MANUFACTURER
DELTA POWER SERVICES, UNITED KINGDOM
SPECIFICATION
DIMENSIONS
LENGTH
OVERALL
12.2m
INTERNAL
8.95m

Delta 1220 ‘TRIPLE X-RANGE’ DIESEL STERNDRIVE RIB
6900 U1 4
BEAM
OVERALL
3.30m
INTERNAL
2.23m
DRAUGHT (MAX)
WITH FUEL
0.713m
OVERALL HEIGHT (TOP OF SEARCH LIGHT)
FROM KEEL
3.09m
WEIGHT
WITH FULL FUEL
6000Kg
CAPACITY
MAXIMUM
2000kg
GENERAL
FUEL
DIESEL
900Ltr (2 x 450Ltr)
POWER (PER ENGINE)
315HP
PROPULSION
TWIN STERNDRIVE
BOLLARD PULL
N/A
CONSTRUCTION
HULL
GRP
LIFTING FRAME
N/A
NAV FRAME/ A FRAME/ BIMINI FRAME
STAINLESS STEEL
SELF RIGHTING BAG
HYPALON
WHEELHOUSE
N/A
COLLAR
TYPE
INFLATABLE
CHAMBERS
10
MATERIAL
HYPALON/FOAM
PRESSURE
2PSI
INFLATION
ALWAYS INFLATE
FROM BOW TO
STERN
DEFLATION
ALWAYS DEFLATE
FROM STERN TO
BOW
LIFTING SYSTEM
FOUR POINT LIFT
LIFTING HOOK
N/A
ENGINE
TWIN YANMAR 6LP STP
PROPELLER
26” PITCH STAINLESS STEEL
DRIVE SHAFT
N/A
DRIVE
TWIN KONRAD 540 STERNDRIVES
STEERING
SEA STAR HYDRAULIC
CRAFT ELECTRICS
12V D.C.
SHIP POWER
N/A
BATTERIES
3 x SQUADRON AGM 160 (12V/160Ah)

Delta 1220 ‘TRIPLE X-RANGE’ DIESEL STERNDRIVE RIB
6900 U1 5

Delta 1220 ‘TRIPLE X-RANGE’ DIESEL STERNDRIVE RIB
6900 U1 6

6900 U1 7
Delta 1220 ‘TRIPLE X-RANGE’ DIESEL STERNDRIVE RIB
COMPASS
ENGINE
INSTRUMENTATION /
FUEL & TRIM
GAUGES
HAND HELD
SEARCHLIGHT
HELM
ICOM
DS 100
DSC
GLOVE
BOX
ENGINE GEAR &
THROTTLE CONTROL
STORAGE COMPARTMENT
GRAB
HANDLE
FURUNO
LH-3000
LOUDHAILER
ICOM-IC
M503 VHF
TRIM
SWITCHES
RAYMARINE
C120
SWITCH
PANEL
HAND HELD
SEARCHLIGHT
CREW REMOTE
BOXES
PROTEX
CATCH
SAFETY
LANYARDS

Delta 1220 ‘TRIPLE X-RANGE’ DIESEL STERNDRIVE RIB
6900 U1 8

Delta 1220 ‘TRIPLE X-RANGE’ DIESEL STERNDRIVE RIB
6900 U1 9
4
” DIESEL
FILLER
STOWAGE LOCKER
GLANDS FOR
CRAFT
ELECTRICS
HINGE / GRAB
HANDLE
4
” DIESEL
FILLER
WINDSCREEN

Delta 1220 ‘TRIPLE X-RANGE’ DIESEL STERNDRIVE RIB
6900 U1 10
3. Operation
3.1 Controls
When seated in the helm position, the throttle levers are to the right, which control
the gear & rpm of the two engines. To the left of the helm on top of the top box, are
the power trim controls, which should be used with reference to the trim gauges.
General controls are of standard marine type for this kind of craft. Steering is
hydraulic over hydraulic to provide smooth effortless control with minimal feedback.
Engine gearbox and rpm are cable operated by the throttle unit mounted on the
right of the helm. The mid position of the lever is neutral (i.e. no drive). When the
levers are pushed forward the craft accelerates forward. To stop pull the levers back
to neutral. Push levers down to reverse. The separate trim switches allow trim
adjustment.
Due to the neutral interlock safety system the engine cannot be started when
the gearbox is in either forward or reverse gear.
WARNING:
Do not start the engine with the drive engaged. Ensure
that the throttle control is in the neutral (central) position.

Delta 1220 ‘TRIPLE X-RANGE’ DIESEL STERNDRIVE RIB
6900 U1 11
3.2 Top Box Equipment
The following instrumentation is mounted on left face of the console top box:
Yanmar engine gauges (cooling water temperature and oil pressure)
Yanmar engine warning panels
Yanmar tachometers
(See Yanmar manuals for details)
Quicksilver Trim Gauges
Wema Fuel Gauges
The centre face contains all of the electrical switches and isolators.
Engine ignition switches and emergency stop buttons are to be found here.
YANMAR INSTRUMENT PANEL

Delta 1220 ‘TRIPLE X-RANGE’ DIESEL STERNDRIVE RIB
6900 U1 12
The right face of the top box houses the Raytheon C120 display.
On top of the top box are the trim switches, handheld search lights and
compass.

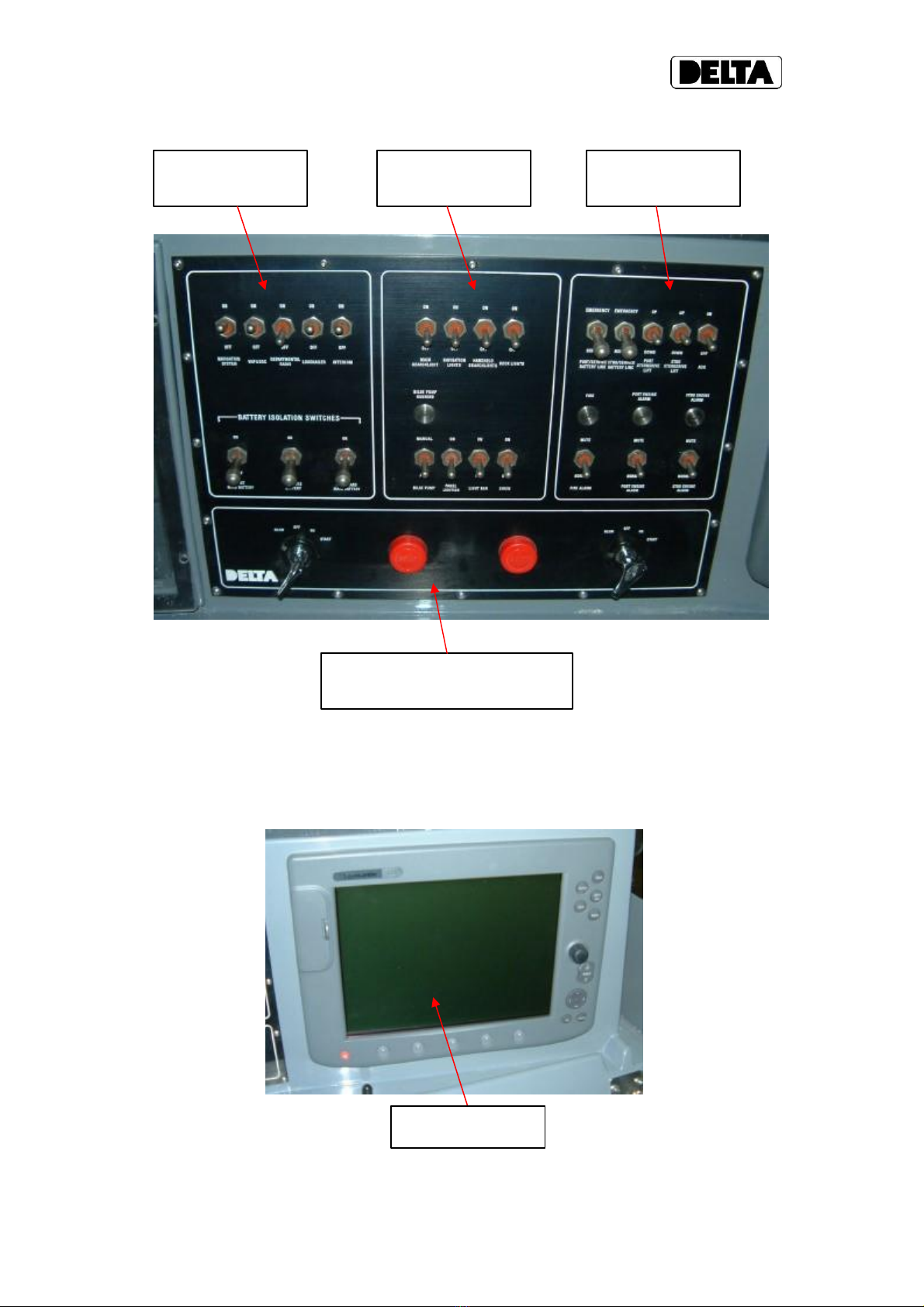

3.3 Console equipment
FREQUENT USE
SWITCHES
MODERATE USE
SWITCHES
INFREQUENT
USE SWITCHES
ENGINE IGNITION SWITHES
AND STOP BUTTONS
RAYTHEON C120

Delta 1220 ‘TRIPLE X-RANGE’ DIESEL STERNDRIVE RIB
6900 U1 13
The following equipment and controls can be found on the console: Seastar
helm
Twin lever control for the throttle & gears
Engine safety lanyards
Icom IC-M503 VHF
Icom DS100 DSC Unit
Furuno LH-3000 Loudhailer
Crew remote comms boxes
3.4 Getting Started
Firstly switch the battery isolators ON and familiarise yourself with the various
electrical equipment on board. Please consult the individual operation manuals for
each of the devices.
3.5/3.6 Engine & Sterndrive Access
Access to the engines can be gained through the engine housing at the stern
of the boat. By first releasing the catches on either side of the housing, the lid can be
hinged up (the lid is supported by gas struts). Access to the sterndrives, steering &
bilge pump is under the same lid.
Please consult the Yanmar engine manuals for engine details.
Please consult the Konrad stern drive manual for stern drive details.
3.7 Transom Deck Drains
The craft is fitted with ‘scupper’ type transom drains, which will allow the deck
to free-drain when the craft is underway. The flaps will be closed by reverse flowing
water and resist water re-entering the craft. When the craft is at rest these drains may
be below the water level and will allow water to flood onto the aft section of the
deck. This should not cause alarm, as only a limited amount of water will enter the
craft and due to the static trim of the craft only the very aft section will flood.

Delta 1220 ‘TRIPLE X-RANGE’ DIESEL STERNDRIVE RIB
6900 U1 14
3.8 Batteries and Isolators
The craft is equipped with three maintenance free Squadron AGM 160
(12V/160Ah) batteries, located in the front of the engine housing. The batteries are
secured with ratchet straps that should be checked periodically for security.
The batteries are selected for use from the main switch panel on the top box.
The “PORT MAIN BATTERY” isolator switches the Port Battery, used primarily for
powering the port engine and drive. The “SERVICES MAIN BATTERY” isolator switches
the Services Battery which powers all onboard electrics and electronics. The
“STARBOARD MAIN BATTERY” isolator switches the Starboard Battery, used primarily for
powering the starboard engine and drive.
In emergency situations where extra power is needed to either start an engine
or power onboard electrics / electronics the Services Battery can be linked to the Port
and / or Starboard batteries. This should only be used in emergency situations where
one battery does not have sufficient power and the power of another battery is
required. Please note that when a link is turned off it remains linked for ten minutes.
BATTERY ISOLATOR SWITCHES
ON THE MAIN SWITCH PANEL

Delta 1220 ‘TRIPLE X-RANGE’ DIESEL STERNDRIVE RIB
6900 U1 15
3.9 Battery System Box
Located in the front of the engine housing on the port side is the battery
system box. This houses the five battery isolator master switches. Each of these has a
red switch with three positions: OFF, AUTO, and ON. Off turns the isolator off. Auto is
the normal running setting that allows the isolators to be remote switched from the
isolator switches on the console top box switch panel (see above). On is the manual
override that will turn the isolator on independently of the console switches. If the
manual override is used the switch must be returned to the Off position before Auto
can be selected again.
EMERGENCY LINK SWITCHES
ON THE MAIN SWITCH PANEL

Delta 1220 ‘TRIPLE X-RANGE’ DIESEL STERNDRIVE RIB
6900 U1 16
Battery system box, shown above with lid off and below with lid on
3.10 Battery Charging
The batteries are maintenance free, and are normally charged from the
engine alternators. However, they can also be charged via a shore power 24V
connection using the battery charging connection on the back of the port side aft
pod. Check that the ammeter is showing current when connected to be sure the
charger is working.
WARNING:
Shore power MUST be protected by an on shore RCD.
PORT –SERVICE
LINK ISOLATOR
(
STBD –SERVICE
LINK ISOLATOR
BELOW)
PORT
ISOLATOR
STBD
ISOLATOR
SERVICES
ISOLATOR
ON
MANUAL)
(
OFF
AUTO
REMOTE)
(

Delta 1220 ‘TRIPLE X-RANGE’ DIESEL STERNDRIVE RIB
6900 U1 17
The battery charger is located inside the port side aft pod. The shore power
charging socket is on the back of the pod. The foam gasket that seals this
compartment must be checked regularly to ensure this area stays dry.
3.11 Junction Boxes
There are two junction boxes, one located on top of the console A Frame on
the port side, the other inside the front of the engine housing in the stbd front corner.
It is clearly labelled on each box to indicate which systems it covers. With the box
covers removed each terminal can checked with a multi-meter when fault finding.
BATTERY CHARGER
IN PORT AFT POD
SEALING GASKET
(
MUST BE CHECKED
REGULARLY FOR
INTEGRITY)
SHORE POWER
CONNECTER
BATTERY CHARGER
AMMETER

Delta 1220 ‘TRIPLE X-RANGE’ DIESEL STERNDRIVE RIB
6900 U1 18
3.12 Power Socket
There is a 12V power socket in the engine bay that is normally switched to
provide power to either the engine bay light or the A frame mounted “Alley Lights”.
The mater switch for this is labelled AUX on the right panel of the main switch panel.
3.13 Switches and Fuses
When a system fault occurs in an individual system, the circuit breaker will trip
for that system. With the top box open the circuit breakers for the switches on the
JUCTION BOX IN
ENGINE HOUSING

Delta 1220 ‘TRIPLE X-RANGE’ DIESEL STERNDRIVE RIB
6900 U1 19
switch panel can be seen. If a circuit breaks it can be reset by pressing the button
which will have popped up in the corresponding circuit breaker switch.
If the fault continues, the system should be isolated and the problem rectified at the
earliest opportunity.
3.14 Fuel System

Delta 1220 ‘TRIPLE X-RANGE’ DIESEL STERNDRIVE RIB
6900 U1 20
The fuel system comprises of two under-deck stainless steel fuel tanks with a
total of 900ltr capacity. These are located under the console and seating area. An
inspection hatch is located to the rear of the helm and navigator seat pods providing
access to the inspection plates on the tanks. The fuel senders have been placed in
the centre of the tank’s inspection plates, for easy access. The fuel fillers are located
on the port and starboard side of the console. The breathers are contained within the
filler mouldings. The fuel shut off valves are located across the front of the engine
housing. The tanks can be dipped through the dipping up stands, also aft of the helm
and navigator seats.
WARNING:
Check that dipping caps are closed tight when underway,
and especially when filling the tanks with fuel.
If the inspection plate is removed, great care must be taken to ensure that it is
adequately sealed on replacement.
SHOWN WITH
INSPECTION
HATCH
REMOVED
TANK
INSPECTION
PLATE WITH
SENDER
x 450LTR
2
STAINLESS
TANKS
INSPECTION
HATCH DECK
PLATE
DIPPING
PIPE
FUEL / WATER
SEPARATOR ON
ENGINE SIDE
