Future Beach WB series User manual

1
Future Beach®
www.futurebeach.com
Pedal Boat
Owner’s Manual
WB series &
EQUINOX series
Future Beach Leisure Products Corporation

Index
Features ....................................................................page 4
Product Safety Information ...............................page 5
Safety Precautions ................................................page 6
Components and features ................................page 8
A - Assembly Instructions WB Series Only ...page 9
B - Assembly Instructions
EQUINOX Series Only ..................................page 12

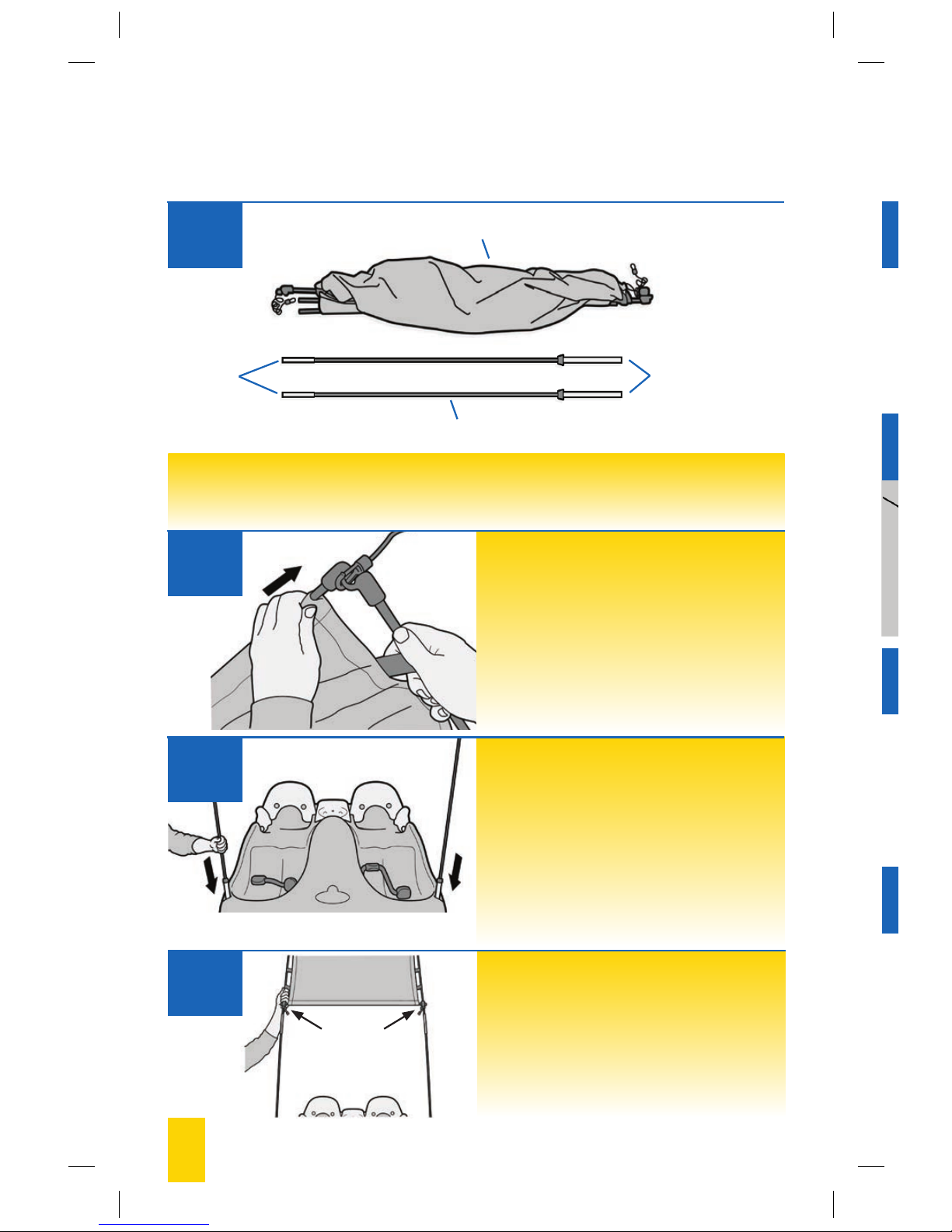

C - Assembly Instructions for Bimini Sun Shade
WB Series and EQUINOX Series ...............page 14
D - WB & EQUINOX Series Maintenance
Instructions .....................................................page 16
Warranty ................................................................page 18
Manufacturer’s Declaration of Origin ..........page 20
Notice .....................................................................page 21
In order to provide efficient and accurate service, please
have the following information available:
• Model and Serial # of your pedal boat
• Date and place of purchase
The small boat business is changing and Future Beach
Leisure Products is leading the industry with cutting edge
technology. Our boats are produced in a zero waste/zero
landll factory. We are committed to protecting the envi-
ronment.
We encourage you to read this owner’s manual carefully
and consider all the recommended safety tips. To insure
years of pleasure and safety. Review the navigation tech-
niques, maintenance procedures, care, and storage that
are well explained in this manual to better assist you.
As a valued customer, we will gladly accept any concerns
or questions you may have. Email us at :
[e-mail].
Congratulations!
You have just purchased
a Future Beach pedal boat.
«
»
We strongly
recommend that
you consider all
the information
we are offering
in this owner’s
manual. Keep this
owner’s manual
in a safe place for
future reference.
Assistance
This owner’s manual consists of:
Use & Assembly of Your New Pedal Boat
A space is provided at the end of the owner’s manual,
where you can record information regarding your new
Future Beach pedal boat. This information will be very
important should you require assistance from our cus-
tomer service department.
Warranty card and Registration
This information is provided on page 21. Please regis-
ter the warranty and registration card and return via
email at www.futurebeach.com or by mail.
Declaration of Origin
Certain states and/or provinces in North America re-
quire the declaration of origin for the pedal boat regis-
tration. This certicate is located page 20.
Tools Required for Assembly WB Series Only
• ¼” Allen key
• 3/8” Phillips screwdriver
• 3/4” Hex Socket & Ratchet
• Hammer
No tools required for EQUINOX SERIES.
Customer service
1-800-357-7837
ser[email protected]om
www.futurebeach.com
2

«
Index
Features ....................................................................page 4
Product Safety Information ...............................page 5
Safety Precautions ................................................page 6
Components and features ................................page 8
A - Assembly Instructions WB Series Only ...page 9
B - Assembly Instructions
EQUINOX Series Only ..................................page 12
C - Assembly Instructions for Bimini Sun Shade
WB Series and EQUINOX Series ...............page 14
D - WB & EQUINOX Series Maintenance
Instructions .....................................................page 16
Warranty ................................................................page 18
Manufacturer’s Declaration of Origin ..........page 20
Notice .....................................................................page 21
In order to provide efficient and accurate service, please
have the following information available:
• Model and Serial # of your pedal boat
• Date and place of purchase
The small boat business is changing and Future Beach
Leisure Products is leading the industry with cutting edge
technology. Our boats are produced in a zero waste/zero
landll factory. We are committed to protecting the envi-
ronment.
We encourage you to read this owner’s manual carefully
and consider all the recommended safety tips. To insure
years of pleasure and safety. Review the navigation tech-
niques, maintenance procedures, care, and storage that
are well explained in this manual to better assist you.
As a valued customer, we will gladly accept any concerns
or questions you may have. Email us at :
[e-mail].
Congratulations!
You have just purchased
a Future Beach pedal boat.
Assistance
This owner’s manual consists of:
Use & Assembly of Your New Pedal Boat
A space is provided at the end of the owner’s manual,
where you can record information regarding your new
Future Beach pedal boat. This information will be very
important should you require assistance from our cus-
tomer service department.
Warranty card and Registration
This information is provided on page 21. Please regis-
ter the warranty and registration card and return via
email at www.futurebeach.com or by mail.
Declaration of Origin
Certain states and/or provinces in North America re-
quire the declaration of origin for the pedal boat regis-
tration. This certicate is located page 20.
Tools Required for Assembly WB Series Only
• ¼” Allen key
• 3/8” Phillips screwdriver
• 3/4” Hex Socket & Ratchet
• Hammer
No tools required for EQUINOX SERIES.
Customer service
1-800-357-7837
[e-mail]
www.futurebeach.com
Pleasure and Responsibility
3

Features
Getting to know your new
pedal boat
The smooth, sophisticated lines of the hull design are
simple and elegant. Many of the unique and innova-
tive features set a new standard for pedal boat design.
Many features of this product are protected by one or
more U.S. patents.
Product Safety Information
Safety Information on Labels : Your pedal boat comes with the following labels
containing important safety information. These labels should be considered a per-
manent part of your pedal boat. If the labels come off or become hard to read,
please contact Future Beach® Leisure Products for replacements.
Warning Label
US Coast Guard capacity label
Bimini Sun Shades are uniquely
design to provide easy access
boarding and can be retracted
back to let sun in.
(Bimini Sun Shades are an
optional accessory) Large volume hull provides
tremendous buoyancy
5 hydrodynamic paddle blades
for increased performance and a
quieter glide
Built in bumper
Molded in handles
(front/rear)
for carrying and
tying off
Improved tracking with
multi-channel hull design
Anti corrosion crankshaft
and bearings
Seamless hull
construction
eliminates water
leakage and adds
durability.
Ergonomic
steering handle
conforms to
your hand
cup holders
Cooler/storage
compartment
self-drains
melted ice.
Seat Cushions
(Seat Cushions are
an optional
accessory)
4

Getting to know your new
pedal boat
The smooth, sophisticated lines of the hull design are
simple and elegant. Many of the unique and innova-
tive features set a new standard for pedal boat design.
Many features of this product are protected by one or
more U.S. patents.
Product Safety Information
Safety Information on Labels : Your pedal boat comes with the following labels
containing important safety information. These labels should be considered a per-
manent part of your pedal boat. If the labels come off or become hard to read,
please contact Future Beach® Leisure Products for replacements.
Warning Label
US Coast Guard capacity label
5 hydrodynamic paddle blades
for increased performance and a
quieter glide
Built in bumper
Molded in handles
(front/rear)
for carrying and
tying off
Improved tracking with
multi-channel hull design
5

Every passenger must always wear a
Coast Guard approved personal floata-
tion device (PFD) when using this boat:
Before going boating, read the PFD manufacturer’s
information pamphlet regarding the PFD and tho-
roughly familiarize yourself with how the PFD is to
be worn.
Weather and water conditions: Check the
weather and water conditions before you go boa-
ting. Never go boating in severe winds, rain, thun-
derstorms, rough water, strong currents, floodwaters,
or where the tides will seriously affect your ability to
steer the boat or return to shore.
Never use or consume alcohol, drugs
or any other substance that may affect
your coordination, judgment or ability
to safely operate any boat including this
boat.
Sound device: The Coast Guard requires boaters
to have a means of signaling other boaters of their
presence. You should always keep a sound device
such as a whistle in the boat with you at all times. If
possible, attach the sound device to your Personal
Flotation Device.
Never stand up in the boat: Standing in the
boat may cause it to capsize. If the boat should cap-
size, please note that in most cases it is far more
dangerous to attempt to swim to shore than to stay
with the boat.
Never exceed your ability: Assess your phy-
sical capability as to how far and how long you can
pedal and swim.
Slippery when wet: The surface of your boat is
slippery when wet. Always wear slip resistant shoes.
«
»
Read the
following
information
before using
your pedal
boat. Failure
to follow the
safety
precautions
below
may lead to
serious
injury or
death.
Safety Precautions Safety Precautions
Hypothermia: Boating accidents in cold water
are very dangerous. Hypothermia (the loss of body
heat due to immersion in cold water) can be deadly.
Survival time can be as short as 15 minutes in 35˚F
(2˚C) water. Dress appropriately for weather condi-
tions, wearing a wet or dry suit if necessary.
Never use this boat alone: You are advised
to always have someone with you in case of emer-
gency or accident. Also, always tell someone your
boating plans, including where you are going, how
long you will be gone and how many people you’ll
be with.
Never allow minors to use this boat wi-
thout adult supervision: Never allow any
minor to use this boat unless accompanied by an
adult.
Always familiarize yourself with the
body of water where you will be boa-
ting: Learn what hours boating are permitted,
whether there are any known hazardous conditions,
and where you can get help quickly in case of emer-
gency or accident.
Always abide by Coast Guard regula-
tions and State and local laws, regula-
tions, ordinances, and rules concerning
boating and boating safety: Check with the
Coast Guard and local authorities concerning pro-
per boat handling and the proper equipment to be
carried on board, such as lights and soundprodu-
cing devices.
Attention
!
!
Ne jamais vous tenir debout dans le
kayak
Le fait de s’y tenir pourrait le faire chavirer, aussi dans
la plupart des cas, il est beaucoup plus dangereux
de tenter de nager jusqu’à la rive que de rester avec
l’embarcation.
Mineur
Ne permettez jamais a une personne mineure d’uti-
liser l’embarcation sans qu’elle soit accompagnée
d’une personne adulte.
Vérifier la météo avant chaque sortie en kayak. Ne
jamais naviguer dans des conditions climatiques diffi-
ciles (pluie, vent fort, orage, tempête…) qui risquent
de faire chavirer votre embarcation.
Toujours respectez l’ensemble des règlements de
la garde côtière et/ou les lois des divers paliers de
gouvernement (y compris régionaux) en matière de
nautisme et de sécurité
Consultez la garde côtière
Consultez la garder côtière et/ou les autorités des
divers paliers de gouvernement au sujet du bon
maniement d’une embarcation et de l’équipement
obligatoire et/ou recommande, tel que l’éclairage et
les avertissements sonores.
Informations sur la Sécurité du Produit
ÉTIQUETTES D’INFORMATIONS DE SÉCURITÉ:
Votre embarcation est munie d’étiquettes contenant
des informations importantes sur la sécurité du
produit. Ces étiquettes doivent rester en perma-
nence sur votre embarcation. Si elles se détériorent
ou se détachent veuillez contacter La Corporation
Future Beach pour les remplacer.
Étiquette de capacité Garde Côtière Améri-
caine
No.: PKG-CLTRI-12/04
Étiquette de MISE EN GARDE
No: PKG-WTRI-12/04
6

Attention
!
!
Ne jamais vous tenir debout dans le
kayak
Le fait de s’y tenir pourrait le faire chavirer, aussi dans
la plupart des cas, il est beaucoup plus dangereux
de tenter de nager jusqu’à la rive que de rester avec
l’embarcation.
Mineur
Ne permettez jamais a une personne mineure d’uti-
liser l’embarcation sans qu’elle soit accompagnée
d’une personne adulte.
Vérifier la météo avant chaque sortie en kayak. Ne
jamais naviguer dans des conditions climatiques diffi-
ciles (pluie, vent fort, orage, tempête…) qui risquent
de faire chavirer votre embarcation.
Toujours respectez l’ensemble des règlements de
la garde côtière et/ou les lois des divers paliers de
gouvernement (y compris régionaux) en matière de
nautisme et de sécurité
Consultez la garde côtière
Consultez la garder côtière et/ou les autorités des
divers paliers de gouvernement au sujet du bon
maniement d’une embarcation et de l’équipement
obligatoire et/ou recommande, tel que l’éclairage et
les avertissements sonores.
Informations sur la Sécurité du Produit
ÉTIQUETTES D’INFORMATIONS DE SÉCURITÉ:
Votre embarcation est munie d’étiquettes contenant
des informations importantes sur la sécurité du
produit. Ces étiquettes doivent rester en perma-
nence sur votre embarcation. Si elles se détériorent
ou se détachent veuillez contacter La Corporation
Future Beach pour les remplacer.
Étiquette de capacité Garde Côtière Améri-
caine
No.: PKG-CLTRI-12/04
Étiquette de MISE EN GARDE
No: PKG-WTRI-12/04
Every passenger must always wear a
Coast Guard approved personal floata-
tion device (PFD) when using this boat:
Before going boating, read the PFD manufacturer’s
information pamphlet regarding the PFD and tho-
roughly familiarize yourself with how the PFD is to
be worn.
Weather and water conditions: Check the
weather and water conditions before you go boa-
ting. Never go boating in severe winds, rain, thun-
derstorms, rough water, strong currents, floodwaters,
or where the tides will seriously affect your ability to
steer the boat or return to shore.
Never use or consume alcohol, drugs
or any other substance that may affect
your coordination, judgment or ability
to safely operate any boat including this
boat.
Sound device: The Coast Guard requires boaters
to have a means of signaling other boaters of their
presence. You should always keep a sound device
such as a whistle in the boat with you at all times. If
possible, attach the sound device to your Personal
Flotation Device.
Never stand up in the boat: Standing in the
boat may cause it to capsize. If the boat should cap-
size, please note that in most cases it is far more
dangerous to attempt to swim to shore than to stay
with the boat.
Never exceed your ability: Assess your phy-
sical capability as to how far and how long you can
pedal and swim.
Slippery when wet: The surface of your boat is
slippery when wet. Always wear slip resistant shoes.
Safety Precautions Safety Precautions
Hypothermia: Boating accidents in cold water
are very dangerous. Hypothermia (the loss of body
heat due to immersion in cold water) can be deadly.
Survival time can be as short as 15 minutes in 35˚F
(2˚C) water. Dress appropriately for weather condi-
tions, wearing a wet or dry suit if necessary.
Never use this boat alone: You are advised
to always have someone with you in case of emer-
gency or accident. Also, always tell someone your
boating plans, including where you are going, how
long you will be gone and how many people you’ll
be with.
Never allow minors to use this boat wi-
thout adult supervision: Never allow any
minor to use this boat unless accompanied by an
adult.
Always familiarize yourself with the
body of water where you will be boa-
ting: Learn what hours boating are permitted,
whether there are any known hazardous conditions,
and where you can get help quickly in case of emer-
gency or accident.
Always abide by Coast Guard regula-
tions and State and local laws, regula-
tions, ordinances, and rules concerning
boating and boating safety: Check with the
Coast Guard and local authorities concerning pro-
per boat handling and the proper equipment to be
carried on board, such as lights and soundprodu-
cing devices.
Attention
!
!
Ne jamais vous tenir debout dans le
kayak
Le fait de s’y tenir pourrait le faire chavirer, aussi dans
la plupart des cas, il est beaucoup plus dangereux
de tenter de nager jusqu’à la rive que de rester avec
l’embarcation.
Mineur
Ne permettez jamais a une personne mineure d’uti-
liser l’embarcation sans qu’elle soit accompagnée
d’une personne adulte.
Vérifier la météo avant chaque sortie en kayak. Ne
jamais naviguer dans des conditions climatiques diffi-
ciles (pluie, vent fort, orage, tempête…) qui risquent
de faire chavirer votre embarcation.
Toujours respectez l’ensemble des règlements de
la garde côtière et/ou les lois des divers paliers de
gouvernement (y compris régionaux) en matière de
nautisme et de sécurité
Consultez la garde côtière
Consultez la garder côtière et/ou les autorités des
divers paliers de gouvernement au sujet du bon
maniement d’une embarcation et de l’équipement
obligatoire et/ou recommande, tel que l’éclairage et
les avertissements sonores.
Informations sur la Sécurité du Produit
ÉTIQUETTES D’INFORMATIONS DE SÉCURITÉ:
Votre embarcation est munie d’étiquettes contenant
des informations importantes sur la sécurité du
produit. Ces étiquettes doivent rester en perma-
nence sur votre embarcation. Si elles se détériorent
ou se détachent veuillez contacter La Corporation
Future Beach pour les remplacer.
Étiquette de capacité Garde Côtière Améri-
caine
No.: PKG-CLTRI-12/04
Étiquette de MISE EN GARDE
No: PKG-WTRI-12/04
Attention
!
!
Ne jamais vous tenir debout dans le
kayak
Le fait de s’y tenir pourrait le faire chavirer, aussi dans
la plupart des cas, il est beaucoup plus dangereux
de tenter de nager jusqu’à la rive que de rester avec
l’embarcation.
Mineur
Ne permettez jamais a une personne mineure d’uti-
liser l’embarcation sans qu’elle soit accompagnée
d’une personne adulte.
Vérifier la météo avant chaque sortie en kayak. Ne
jamais naviguer dans des conditions climatiques diffi-
ciles (pluie, vent fort, orage, tempête…) qui risquent
de faire chavirer votre embarcation.
Toujours respectez l’ensemble des règlements de
la garde côtière et/ou les lois des divers paliers de
gouvernement (y compris régionaux) en matière de
nautisme et de sécurité
Consultez la garde côtière
Consultez la garder côtière et/ou les autorités des
divers paliers de gouvernement au sujet du bon
maniement d’une embarcation et de l’équipement
obligatoire et/ou recommande, tel que l’éclairage et
les avertissements sonores.
Informations sur la Sécurité du Produit
ÉTIQUETTES D’INFORMATIONS DE SÉCURITÉ:
Votre embarcation est munie d’étiquettes contenant
des informations importantes sur la sécurité du
produit. Ces étiquettes doivent rester en perma-
nence sur votre embarcation. Si elles se détériorent
ou se détachent veuillez contacter La Corporation
Future Beach pour les remplacer.
Étiquette de capacité Garde Côtière Améri-
caine
No.: PKG-CLTRI-12/04
Étiquette de MISE EN GARDE
No: PKG-WTRI-12/04
7

«
»
Components and Features
Future Beach Corporation has invested in the best
people, equipment, and facilities. We have brou-
ght together top designers, world class production
experts and the most innovative engineers in the
industry. Our new world class manufacturing facility
is the most advanced of its kind.
Hydrodynamic Paddle Blades
The blades work like the blade on a canoe paddle.
These paddle blades provide a smooth and power-
ful pull through the water. An important feature that
is easy to appreciate when the wind and waves whip
up in the afternoon and you have to get back to
shore.
Hull Designed for Salt Water
The solid seamless hull construction eliminates water leakage. The large displa-
cement volume of the pedal boat hull provides increased buoyancy that guaran-
tees a superbly stable, safe and smooth ride. Quick access components simplify
maintenance requirements. No special tools, are required to assemble or ser-
veice your pedal boat even the paddle blades feature snap-in convenience.
Perfect Blend of Design and Function
We thought of everything. Your Future Beach® pedal boat’s graceful design co-
mes with a list of impressive standard features molded in carry handles, adjus-
table seating, cup holders and large diameter paddle wheel with hydrodynamic
paddle blades, make the Future Beach® pedal boats the best in its class.
Equinox Series Pedal Boats Only
Unique self bailing automatic drain valve that keeps both passagers and the boat
clean and dry. The large diameter paddle wheel and large paddle wheel blades
make pedaling easier and more fun.
Your
Future Beach®
pedal boat
features a
self-cleaning,
self-lubricating
paddle
mechanism
that requires
little
maintenance.
Assembly Instructions WB Series Only
A1
A2
A3
A4
8

Components and Features
Future Beach Corporation has invested in the best
people, equipment, and facilities. We have brou-
ght together top designers, world class production
experts and the most innovative engineers in the
industry. Our new world class manufacturing facility
is the most advanced of its kind.
Hydrodynamic Paddle Blades
The blades work like the blade on a canoe paddle.
These paddle blades provide a smooth and power-
ful pull through the water. An important feature that
is easy to appreciate when the wind and waves whip
up in the afternoon and you have to get back to
shore.
Hull Designed for Salt Water
The solid seamless hull construction eliminates water leakage. The large displa-
cement volume of the pedal boat hull provides increased buoyancy that guaran-
tees a superbly stable, safe and smooth ride. Quick access components simplify
maintenance requirements. No special tools, are required to assemble or ser-
veice your pedal boat even the paddle blades feature snap-in convenience.
Perfect Blend of Design and Function
We thought of everything. Your Future Beach® pedal boat’s graceful design co-
mes with a list of impressive standard features molded in carry handles, adjus-
table seating, cup holders and large diameter paddle wheel with hydrodynamic
paddle blades, make the Future Beach® pedal boats the best in its class.
Equinox Series Pedal Boats Only
Unique self bailing automatic drain valve that keeps both passagers and the boat
clean and dry. The large diameter paddle wheel and large paddle wheel blades
make pedaling easier and more fun.
Assembly Instructions WB Series Only
Carefully unwrap your Future
Beach®pedal boat and inspect for
any damage that may have occurred
in shipping. Report any damage im-
mediately to the carrier in writing.
Release and unwrap parts tied to
hull.
If you purchased a boat with a
cooler lid proceed to Step 4. Oth-
erwise insert commercial tiller (Alu-
minum tiller arm) into the boat and
proceed to Step A8.
To access the paddle hub turn the boat
on its side. The paddle hub comes al-
ready installed with one paddle blade
to show the right rotating direction
of the blades. Locate an open slot
on the paddle hub. Align the base
of each blade and push it rmly into
slot. Ensure the blade snaps into the
paddle hub. Repeat for the remain-
ing blades ensuring that all blades
are installed in the same direction as
the preinstalled blade.
Using a rubber hammer, install the
connected front and rear steering
arms onto the rudder shaft and
rudder c-clip.
A1
A2
A3
A4
9

With the cooler lid open install this
assembly into the hull.
Connect the front steering arm onto
the bolt and secure the nut. Tighten
with a ¾” socket.
Insert steering handle into the hole
on the cooler lid with the handle fa-
cing the front of the boat. Pass the
bolt provided through the handle and
cooler lid.
Remove the bolt from the rudder.
With the arm tiller facing forward,
install the rudder pointing to the rear
of the boat. Align the holes, then re-
place and tighten the bolt using a ¾”
wrench or socket. Test to ensure the
tiller and rudder turn together.
Assembly Instructions WB Series Only Assembly Instructions WB Series Only
A5
A6
A7
A8
A9
A11
A10
A12
10

With the cooler lid open install this
assembly into the hull.
Connect the front steering arm onto
the bolt and secure the nut. Tighten
with a ¾” socket.
Insert steering handle into the hole
on the cooler lid with the handle fa-
cing the front of the boat. Pass the
bolt provided through the handle and
cooler lid.
Remove the bolt from the rudder.
With the arm tiller facing forward,
install the rudder pointing to the rear
of the boat. Align the holes, then re-
place and tighten the bolt using a ¾”
wrench or socket. Test to ensure the
tiller and rudder turn together.
The WB backrest can be placed in
different locating slots to provide a
comfortable seating position depen-
ding upon the height of the user
The seat pivot bracket is a 2 piece
component that comes preassem-
bled. Remove the three screws from
the assembly and separate the 2 pie-
ces. Install the seat pivot bracket as
shown.
Install the three screws in the seat
pivot bracket and tighten.
Assembly Instructions WB Series Only Assembly Instructions WB Series Only
Position your backrest into clip slot
and align clip holes with backrest
hole. Insert the bolt through the
backrest clip, and then tighten the
nut on the bolt to complete assem-
bly. Repeat these steps to install the
remaining backrest.
A9
A11
A10
A12
11

12
Assembly Instructions Equinox Series Only
Carefully unwrap your new Equi-
nox pedal boat and inspect for any
damage that may have occurred in
shipping. Report any damage imme-
diately to the carrier in writing.
The Equinox pedal boat is equipped
with a steering linkage system loca-
ted under the center of the hull, lin-
king the rudder assembly system to
the handle. When turning to the right
direct the handle to the left, when
turning to the left direct the handle
to the right.
Remove the tape holding the kick-up
rudder in an upright position. Allow
the rudder to move up and down to
it’s lower position.
Assembly Instructions Equinox Series Only
B2 B5
B3 B6
B1 B4
12

13
Assembly Instructions Equinox Series Only
Remove the tape holding the kick-up
rudder in an upright position. Allow
the rudder to move up and down to
it’s lower position.
Assembly Instructions Equinox Series Only
Your Equinox pedalboat is equipped
a large cooler compartment with a
deluxe cooler lid.
The cooler lid provides a diving plat-
form when closed.
The backrests can be installed in a
lounging position.
B5
B4
13

Remove the Bimini Sun Shade from
the nylon bag. Unfold preassembled
Bimini Sun Shade. Attach the rod on
the back of the Bimini Sun Shade to
the molded connector on the side of
the rod. Repeat this procedure at the
other back corner.
Your Bimini Sun Shade arrives preassembled in a nylon bag.
Two separate berglass support rods are included in the bag.
Nylon Bag
Insert the fiberglass support rods
into metal tubes in the front of your
pedal boat with the hollow chrome
sleeves directed upwards. Push
these rods rmly down in the pedal
boat into the metal tubes.
Now insert the assembled Bimini
Sun Shades into the hollow chrome
sleeves of the fiberglass support
rods.
Assembly Instructions for Bimini Sun Shades
WB Series and Equinox Series Assembly Instructions for Bimini Sun Shades WB Series and Equinox Series
C1 C5
C2
C6
C3
C7
C4
C8
Fiberglass Support Rods
Hollow
chrome
sleeves
Loose aluminum
sleeves. This
end into front of
pedal boat
14
Loose aluminum sleeves
Hollow
chrome sleeves

Remove the Bimini Sun Shade from
the nylon bag. Unfold preassembled
Bimini Sun Shade. Attach the rod on
the back of the Bimini Sun Shade to
the molded connector on the side of
the rod. Repeat this procedure at the
other back corner.
Your Bimini Sun Shade arrives preassembled in a nylon bag.
Two separate berglass support rods are included in the bag.
Insert the fiberglass support rods
into metal tubes in the front of your
pedal boat with the hollow chrome
sleeves directed upwards. Push
these rods rmly down in the pedal
boat into the metal tubes.
Now insert the assembled Bimini
Sun Shades into the hollow chrome
sleeves of the fiberglass support
rods.
Now clip the tie-down cords into
place to retain the Bimini Sun Shade
in its correct position.
Hold the Bimini Sun Shade down so
that it approaches the deck of the
boat
To lock the canvas top in a particu-
lar position, extended or retracted,
squeeze and slide stoppers until
elastic cords are snug against the
side rods.
Remember to read the safety instruc-
tions.
Enjoy your ride with your new Future
Beach pedal boat.
Bimini Sun Shades and Seat
Cushions are optional acces-
sory items.
Assembly Instructions for Bimini Sun Shades
WB Series and Equinox Series Assembly Instructions for Bimini Sun Shades WB Series and Equinox Series
C5
C6
C7
C8
Loose aluminum
sleeves. This
end into front of
pedal boat
Tie-Down Cords
15

Clean the hull with mild soap and water, when necessary. Do not use industrial
solvents or abrasive cleaning products. Flush dirt and debris from the drive mecha-
nism frequently. Check and remove entangled weeds from the paddle wheel hub
and the paddle blades frequently.
Pedal Pad Replacement
Draining Water from the Pedal Boat
Cleaning Instructions
WB & Equinox seroies Maintenance Instructions
This section of the owner’s manual des-
cribes the steps involved in disassembly of
the entire unit crankshaft assembly and its
components. Please note that disassem-
bly is not required for the replacement of
pedal pads or paddle blades. To remove the
crankshaft assembley, use a ¾” socket or a
¾” wrench, to remove the nut from one side
of the crankshaft rod.
To replace the Delrin bushing assemblies
simply unscrew the back nuts located in the
paddle wheel cavity and insert new parts.
These parts are the most likely to wear and
should be inspected periodically. These
bushings should be replaced if worn, in or-
der to prevent damage to the pedal boat
hull. Inspect and replace every season as
required
Now remove the crankshaft and drive adap-
ter, which slide out together. From the other
side pull out the other crankshaft and drive
adapter along with the crankshaft rod.
To reinstall the drive adapter, reverse the
steps above, inserting the crankshaft and
crankshaft rod through the paddle hub
(make sure that paddle blades are facing
their original direction). Refer to gure D5
for correct paddle blade installation. Reins-
tall the second crankshaft. Note that the dri-
ve adapter has a single large male key that
is designed to fit into the paddle hub in one
unique location. You must locate this single
large key correctly when installing the drive
adapter in the paddle hub.
Pedal Mechanism Maintenance
Replacement
of crankshaft
Disassembly the
crankshaft
Screw type
replacement bushing
Install one way
aligne larger
drive tooth to
properly install
Delrin
bushing
D1
D2
D3
D4
D5
D6
D7
D8
16

Figure D5 shows the correct
orientation for installation of the
paddle blades.
Align the two halves of the pedal
pads together around the crankshaft
and press together.
Insert the two screws and tighten
with a Phillips screwdriver.
Small amounts of water may collect
in the hull due to condensation and
other factors. Depending on the mo-
del of WB Series or Equinox Series
the drain plugs are located at the
front (Fig.D7) or rear (Fig.D8) of the
hull. If necessary, drain water from
the pedal boat by standing the pedal
boat up against a wall to let the wa-
ter drain from the hull.
Clean the hull with mild soap and water, when necessary. Do not use industrial
solvents or abrasive cleaning products. Flush dirt and debris from the drive mecha-
nism frequently. Check and remove entangled weeds from the paddle wheel hub
and the paddle blades frequently.
Pedal Pad Replacement
Draining Water from the Pedal Boat
Cleaning Instructions
Drain Water
Drain Water
WB & Equinox seroies Maintenance Instructions
This section of the owner’s manual des-
cribes the steps involved in disassembly of
the entire unit crankshaft assembly and its
components. Please note that disassem-
bly is not required for the replacement of
pedal pads or paddle blades. To remove the
crankshaft assembley, use a ¾” socket or a
¾” wrench, to remove the nut from one side
of the crankshaft rod.
To replace the Delrin bushing assemblies
simply unscrew the back nuts located in the
paddle wheel cavity and insert new parts.
These parts are the most likely to wear and
should be inspected periodically. These
bushings should be replaced if worn, in or-
der to prevent damage to the pedal boat
hull. Inspect and replace every season as
required
Now remove the crankshaft and drive adap-
ter, which slide out together. From the other
side pull out the other crankshaft and drive
adapter along with the crankshaft rod.
To reinstall the drive adapter, reverse the
steps above, inserting the crankshaft and
crankshaft rod through the paddle hub
(make sure that paddle blades are facing
their original direction). Refer to gure D5
for correct paddle blade installation. Reins-
tall the second crankshaft. Note that the dri-
ve adapter has a single large male key that
is designed to fit into the paddle hub in one
unique location. You must locate this single
large key correctly when installing the drive
adapter in the paddle hub.
Pedal Mechanism Maintenance D5
D6
D7
D8
17
Looking
this way

Limited Consumer Warranty
Future Beach ™ Corporation warrants
your new kayak to be free from defect
in materials and workmanship, subject
to the following terms and conditions:
Future Beach ™ warrants the hull of
your new kayak to be free from defects
in materials and workmanship for a pe-
riod of 1 (one) year from the date of
retail sale.
The kayak components are covered for
a period of 1 (one) year from the date
of purchase.
The warranty is applicable to Future
Beach™ products registered and nor-
mally operated in North America. Un-
der this warranty, Future Beach ™ is
limited to the repair or replacement of
the components at the option of Future
Beach ™. This warranty is non-transfe-
rable to a subsequent owner.
The following is not covered
by this warranty:
Damage due to misuse, accident,s
collision, etc.
Future Beach Corporation shall
s
have no liability whatsoever for
any personal injury, accident or
consequential damages
Wear-and-tear deterioration, dis-
s
coloration, or fading, etc.
Commercial use or rental
s
Damage or surface corrosions
caused by the environment
Damage caused by the use of
s
aggressive chemical cleaning
solvents
All incidental or consequential
s
damages
Any damage incurred to and from
s
Future Beach ™ due to transport
Any transportation charges to and
s
from an Authorized repair facility
Labor or install new or repaired
s
components
Customers are responsible for inspec-
ting their package for any shipping da-
mage and must notify Future Beach ™
in writing within 5 (five) days of the date
of delivery.
Future Beach ™ will be responsible for
all freight and handling charges should
the purchaser find a defect in either
the hull or component parts within the
first 30 days from the date of retail pur-
chase.
After 30 days from the date of retail
purchase, transportation charges for
hulls and/or replacement components
are the responsibility of the purchaser.
This warranty is limited to the purchase
price of the product, and is non-transfe-
rable to a subsequent owner.
Limited Consumer Warranty
Future Beach®Corporation warrants
your new boat to be free from defect in
materials and workmanship, subject to
the following terms and conditions:
Future Beach® warrants the hull of your
new boat to be free from defects in ma-
terials and workmanship for a period
of 2 (two) year from the date of retail
sale.
The boat components are covered for
a period of 1 (one) year from the date
of purchase.
The warranty is applicable to Future
Beach®products registered and nor-
mally operated in North America. Un-
der this warranty, Future Beach®is li-
mited to the repair or replacement of
the components at the option of Future
Beach®. This warranty is non-transfera-
ble to a subsequent owner.
The following is not covered
by this warranty:
Damage due to misuse, accident, •
collision.
Future Beach
•®Corporation shall
have no liability whatsoever for
any personal injury, accident or
consequential damages.
Wear-and-tear deterioration,
•
discoloration, or fading.
Commercial use or rental.
•
Damage or surface corrosion•
caused by the environment.
Damage caused by the use of
•
aggressive chemical cleaning
solvents.
All incidental or consequential
•
damages.
Any damage incurred to and from
•
Future Beach® due to transport.
Any transportation charges to and
•
from an Authorized repair facility.
Labor or install new or repaired
•
components.
Damage sustaind in transport
•
must be claimed from the trans-
port company, NOT FUTURE
BEACH
Customers are responsible for inspec-
ting their package for any shipping da-
mage and must notify Future Beach®in
writing within 5 (ve) days of the date
of delivery.
Limited Consumer Warranty
Future Beach ™ Corporation warrants
your new kayak to be free from defect
in materials and workmanship, subject
to the following terms and conditions:
Future Beach ™ warrants the hull of
your new kayak to be free from defects
in materials and workmanship for a pe-
riod of 1 (one) year from the date of
retail sale.
The kayak components are covered for
a period of 1 (one) year from the date
of purchase.
The warranty is applicable to Future
Beach™ products registered and nor-
mally operated in North America. Un-
der this warranty, Future Beach ™ is
limited to the repair or replacement of
the components at the option of Future
Beach ™. This warranty is non-transfe-
rable to a subsequent owner.
The following is not covered
by this warranty:
Damage due to misuse, accident, s
collision, etc.
Future Beach Corporation shall
s
have no liability whatsoever for
any personal injury, accident or
consequential damages
Wear-and-tear deterioration, dis-
s
coloration, or fading, etc.
Commercial use or rental
s
Damage or surface corrosion s
caused by the environment
Damage caused by the use of
s
aggressive chemical cleaning
solvents
All incidental or consequential
s
damages
Any damage incurred to and from
s
Future Beach ™ due to transport
Any transportation charges to and
s
from an Authorized repair facility
Labor or install new or repaired
s
components
Customers are responsible for inspec-
ting their package for any shipping da-
mage and must notify Future Beach ™
in writing within 5 (five) days of the date
of delivery.
Future Beach ™ will be responsible for
all freight and handling charges should
the purchaser find a defect in either
the hull or component parts within the
first 30 days from the date of retail pur-
chase.
After 30 days from the date of retail
purchase, transportation charges for
hulls and/or replacement components
are the responsibility of the purchaser.
This warranty is limited to the purchase
price of the product, and is non-transfe-
rable to a subsequent owner.
Future Beach®
2 Warranty
year
Any repair or return of boats must be
accompanied by an authorization num-
ber obtained by your dealer and which
can only be issued by calling Future
Beach®customer service department
between 9am and 5pm Eastern stan-
dard time at 1-800-357-7837. The re-
turn of any boats will not be accepted
by Future Beach®without following
proper procedure for an authorization
number.
This warranty is the sole and exclusive
warranty by Future Beach®in connec-
tion with its above mentioned boats and
Future Beach®makes no warranties or
representations, expressed or implied
(including warranties of merchantability
and of tness for a particular purpose)
in such connection except as specifi-
cally set in this warranty.
All incidental and/or consequential da-
mages are excluded from this warranty.
Implied warranties are limited to the life
or this warranty. Some states do not
allow limitations on how long an im-
plied warranty lasts or the exclusion or
limitation of incidental or consequential
damages, so the above limitations or
exclusions may not apply to you. This
warranty gives you special legal rights,
and you may also have other legal rights
which may vary from state to state.
During the warranty period Future
Beach®Leisure Products is obliged only
to repair or replace, at its discretion, the
above mentioned parts, at either its ma-
nufacturing plant, or at an authorized
dealer store or service center, as deci-
ded by Future Beach®. Transportation
costs back to the appointed place or re-
pair or replacement are at the expense
of the consumer. Future Beach®is not
responsible for any damages incurred
in transport, neither for storing or trans-
portation fees, nor for inconvenience or
loss of time or money while repairs are
being made.
18

Limited Consumer Warranty
Future Beach ™ Corporation warrants
your new kayak to be free from defect
in materials and workmanship, subject
to the following terms and conditions:
Future Beach ™ warrants the hull of
your new kayak to be free from defects
in materials and workmanship for a pe-
riod of 1 (one) year from the date of
retail sale.
The kayak components are covered for
a period of 1 (one) year from the date
of purchase.
The warranty is applicable to Future
Beach™ products registered and nor-
mally operated in North America. Un-
der this warranty, Future Beach ™ is
limited to the repair or replacement of
the components at the option of Future
Beach ™. This warranty is non-transfe-
rable to a subsequent owner.
The following is not covered
by this warranty:
Damage due to misuse, accident,s
collision, etc.
Future Beach Corporation shall
s
have no liability whatsoever for
any personal injury, accident or
consequential damages
Wear-and-tear deterioration, dis-
s
coloration, or fading, etc.
Commercial use or rental
s
Damage or surface corrosions
caused by the environment
Damage caused by the use of
s
aggressive chemical cleaning
solvents
All incidental or consequential
s
damages
Any damage incurred to and from
s
Future Beach ™ due to transport
Any transportation charges to and
s
from an Authorized repair facility
Labor or install new or repaired
s
components
Customers are responsible for inspec-
ting their package for any shipping da-
mage and must notify Future Beach ™
in writing within 5 (five) days of the date
of delivery.
Future Beach ™ will be responsible for
all freight and handling charges should
the purchaser find a defect in either
the hull or component parts within the
first 30 days from the date of retail pur-
chase.
After 30 days from the date of retail
purchase, transportation charges for
hulls and/or replacement components
are the responsibility of the purchaser.
This warranty is limited to the purchase
price of the product, and is non-transfe-
rable to a subsequent owner.
Limited Consumer Warranty
Future Beach®Corporation warrants
your new boat to be free from defect in
materials and workmanship, subject to
the following terms and conditions:
Future Beach®warrants the hull of your
new boat to be free from defects in ma-
terials and workmanship for a period
of 2 (two) year from the date of retail
sale.
The boat components are covered for
a period of 1 (one) year from the date
of purchase.
The warranty is applicable to Future
Beach®products registered and nor-
mally operated in North America. Un-
der this warranty, Future Beach®is li-
mited to the repair or replacement of
the components at the option of Future
Beach®. This warranty is non-transfera-
ble to a subsequent owner.
The following is not covered
by this warranty:
Damage due to misuse, accident, •
collision.
Future Beach
• ®Corporation shall
have no liability whatsoever for
any personal injury, accident or
consequential damages.
Wear-and-tear deterioration,
•
discoloration, or fading.
Commercial use or rental.
•
Damage or surface corrosion •
caused by the environment.
Damage caused by the use of
•
aggressive chemical cleaning
solvents.
All incidental or consequential
•
damages.
Any damage incurred to and from
•
Future Beach® due to transport.
Any transportation charges to and
•
from an Authorized repair facility.
Labor or install new or repaired
•
components.
Damage sustaind in transport
•
must be claimed from the trans-
port company, NOT FUTURE
BEACH
Customers are responsible for inspec-
ting their package for any shipping da-
mage and must notify Future Beach®in
writing within 5 (ve) days of the date
of delivery.
Limited Consumer Warranty
Future Beach ™ Corporation warrants
your new kayak to be free from defect
in materials and workmanship, subject
to the following terms and conditions:
Future Beach ™ warrants the hull of
your new kayak to be free from defects
in materials and workmanship for a pe-
riod of 1 (one) year from the date of
retail sale.
The kayak components are covered for
a period of 1 (one) year from the date
of purchase.
The warranty is applicable to Future
Beach™ products registered and nor-
mally operated in North America. Un-
der this warranty, Future Beach ™ is
limited to the repair or replacement of
the components at the option of Future
Beach ™. This warranty is non-transfe-
rable to a subsequent owner.
The following is not covered
by this warranty:
Damage due to misuse, accident, s
collision, etc.
Future Beach Corporation shall
s
have no liability whatsoever for
any personal injury, accident or
consequential damages
Wear-and-tear deterioration, dis-
s
coloration, or fading, etc.
Commercial use or rental
s
Damage or surface corrosion s
caused by the environment
Damage caused by the use of
s
aggressive chemical cleaning
solvents
All incidental or consequential
s
damages
Any damage incurred to and from
s
Future Beach ™ due to transport
Any transportation charges to and
s
from an Authorized repair facility
Labor or install new or repaired
s
components
Customers are responsible for inspec-
ting their package for any shipping da-
mage and must notify Future Beach ™
in writing within 5 (five) days of the date
of delivery.
Future Beach ™ will be responsible for
all freight and handling charges should
the purchaser find a defect in either
the hull or component parts within the
first 30 days from the date of retail pur-
chase.
After 30 days from the date of retail
purchase, transportation charges for
hulls and/or replacement components
are the responsibility of the purchaser.
This warranty is limited to the purchase
price of the product, and is non-transfe-
rable to a subsequent owner.
Future Beach®
2 Warranty
year
Any repair or return of boats must be
accompanied by an authorization num-
ber obtained by your dealer and which
can only be issued by calling Future
Beach®customer service department
between 9am and 5pm Eastern stan-
dard time at 1-800-357-7837. The re-
turn of any boats will not be accepted
by Future Beach®without following
proper procedure for an authorization
number.
This warranty is the sole and exclusive
warranty by Future Beach®in connec-
tion with its above mentioned boats and
Future Beach® makes no warranties or
representations, expressed or implied
(including warranties of merchantability
and of tness for a particular purpose)
in such connection except as specifi-
cally set in this warranty.
All incidental and/or consequential da-
mages are excluded from this warranty.
Implied warranties are limited to the life
or this warranty. Some states do not
allow limitations on how long an im-
plied warranty lasts or the exclusion or
limitation of incidental or consequential
damages, so the above limitations or
exclusions may not apply to you. This
warranty gives you special legal rights,
and you may also have other legal rights
which may vary from state to state.
During the warranty period Future
Beach® Leisure Products is obliged only
to repair or replace, at its discretion, the
above mentioned parts, at either its ma-
nufacturing plant, or at an authorized
dealer store or service center, as deci-
ded by Future Beach®. Transportation
costs back to the appointed place or re-
pair or replacement are at the expense
of the consumer. Future Beach®is not
responsible for any damages incurred
in transport, neither for storing or trans-
portation fees, nor for inconvenience or
loss of time or money while repairs are
being made.
19

The corporation further certifies that this was the first transfer of such new boat in
ordinary trade or commerce.
By __________________________________, President
(Robert Farber)
160 Vanier, St-Jean, Quebec, Canada J3B 3R4
Tel: [phone] Fax: [phone]
www.futurebeach.com [email protected]
Manufacturer’s Declaration
of Origin
The undersigned corporation hereby certifies that
the new boat described below, has been transferred
this _______ day of __________,
Year ________, on invoice # __________ to___________
______________________________________________
whose address is ________________________________
______________________________________________
______________________________________________.
Type of boat: Kayak Canoe
Model: ________________________________________
Serial Number: _________________________________
Pedal Boat
NOTICE:
It is important to proceed with this registration within 30 days following the
p
roduct’s purchase date.
Registration can be done electronically at www.futurebeach.com, by fax at
514-694-9911 or by mail to: Future Beach Leisure Products,
160 Vanier, St-Jean, Quebec, Canada J3B 3R4
Warranty
Registration Card
Date of Purchase: _______________________________
Model Name: __________________________________
Serial Number: __________________________________
Dealer/Store Name:______________________________
______________________________________________
Dealer/Store Address: ____________________________
______________________________________________
______________________________________________
State/Province:___________Zip/Postal Code __________
Surname: ______________________________________
Name: ________________________________________
Address:_______________________________________
______________________________________________
______________________________________________
State/Province:___________Zip/Postal Code __________
Telephone Number: ( ) ________________________
Email:__________________________________________
20
