Delta ERD1 User manual

F
o
r
a
l
l
y
o
u
r
h
o
s
p
i
t
a
l
i
t
y
e
q
u
i
p
m
e
n
t
a
n
d
s
u
p
p
l
i
e
s
S
O
U
T
H
E
R
N
H
O
S
P
I
T
A
L
I
T
Y
LTD
Vers. 1 – 26/11/2018
USER MANUAL
MODELS:
ERD1 • ERD2 • ERD3 • ERD4 • ERD5 • ERD6
Delta Refrigeration
distributed by

除t雾
明Light Defog
溫度設定
除霜時間
Defrost
Operation
Temp
Temp. Set
SET
MADE IN TAIWAN
Hold for
3 seconds to
power on/off
POWER
ON/OFF
DOWN
DEFOG
LIGHT
UP SET

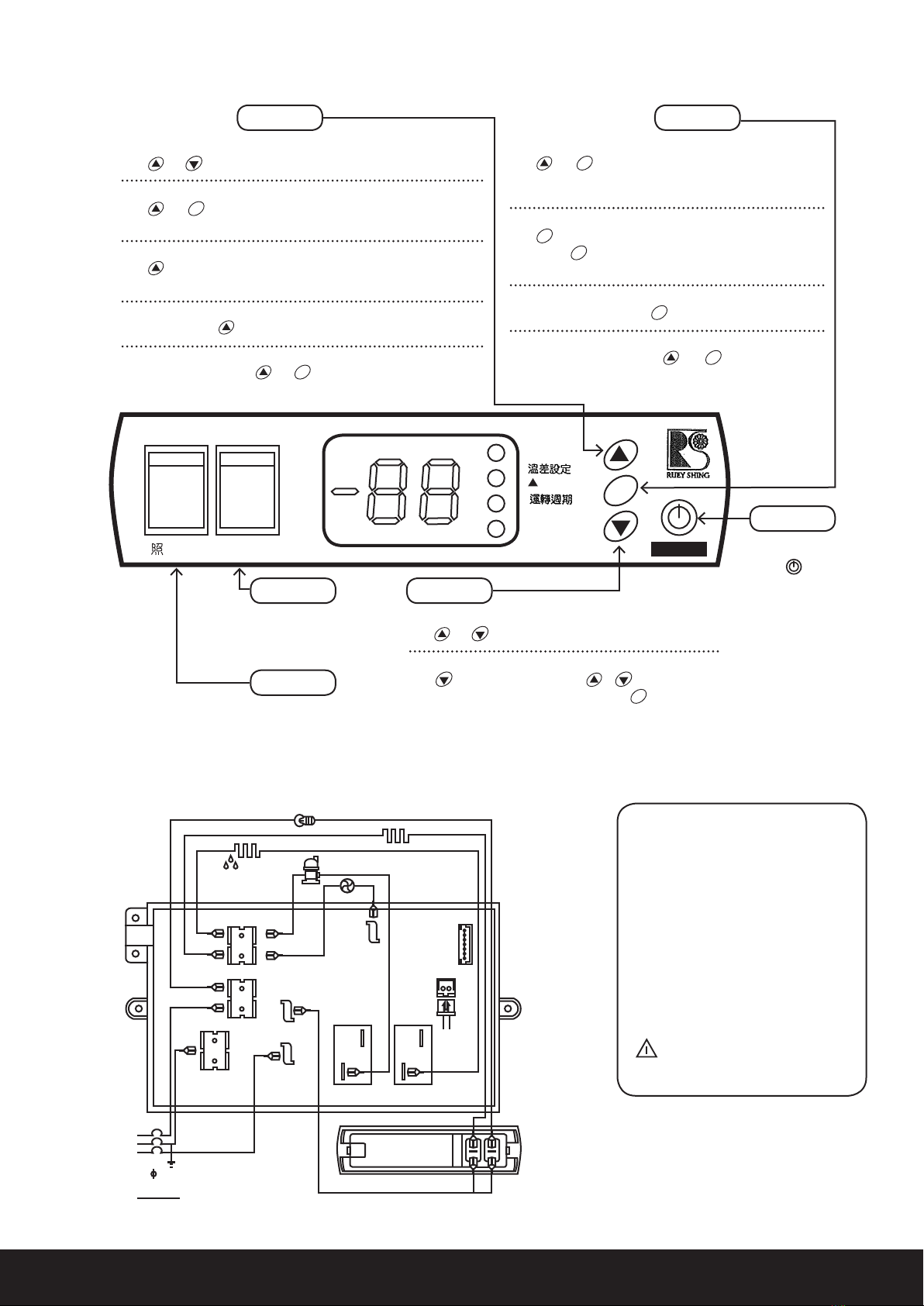

1. Manual Defrost/Stop Defrost
Hold and for 5 seconds.
2. Panel Parameter Lock
Hold and SET for 3 seconds. DIsplay “00” for lock status and “33” for
unlock status. When locked, only setpoint is able for setting.
3. Evaporator temperature
Hold for one second to display. It will switch back to indoor tempera-
ture after 3 seconds. The rest parameter setting cannot be changed.
4. Parameter Value Increase
Value increase with button pressed.
5. Default Setting Restore:
Unplug the power line, hole and SET then plug in to display rS.
1. Panel Parameter Lock
Hold and SET for 3 seconds. DIsplay “00” for lock status and
“33” for unlock status.
When locked, only setpoint is able for setting.
2. User’s Parameter Option
Hold SET for 3 seconds to enter parameter setting. “Temp. Set”
is ON. Press SET for one second, the parameter can be adjusted
accordingly.
3.Release Quick Setting Mode
In quick setting mode, press SET or any other button.
4. Default Setting Restore:
Unplug the power line, hole and SET then plug in to
display rS.
1. Manual Defrost/Stop Defrost
Hold and for 5 seconds.
2. Quick Setting
Press for one second, then press or to adjust setpoint.
If no action occurs within 5 seconds, or press SET directly to restore
parameter automatically, and indoor temperature displayed.
Up: ON
Down: OFF
Up: ON
Down: OFF
RS-617S
Button Instruction
Wiring Instruction
G
GG
G
P11
P12
AC1 AC1 AC1 AC1
P13
FAN
COMP
DEFROST
LIGHT
DEFOG
RLY5
FAN
RLY4
1.5HP/240VAC
1HP/120VAC
DEFROSTCOMP
10A
Compressor protection contact
P7 2A
1
2
AC2
P5
NEB
1 3W
AC110V-220V
User’s wiring
10A10A
P2
AC2
P9
P1
P1: Connect with operation panel.
Power supply: AC 110V-220V ± 10% single
phase 50/60Hz
Power consumption: Max. 10 Watt
(Controller only)
Reading range: —45°C - 45°C ± 1°C
The output contact capacity show in the
wiring diagram. Do not overload.
If the compressor uses 220V, but the other
devices are 110V, connect their common
line to #G instead of #AC1
Before applying power to the unit,
always check if the voltage set correctly
according to the input voltage.
0800 503 335 • [e-mail] • www.southernhospitality.co.nz
