Congratulations! By purchasing Deltec's
PowerRite Pro Uninterruptible PowerSystem
(UPS), you now own superiorquality power
protection equipment. Your sensitive electrical
equipment will be protected from problems
associated with poor quality AC power, or a
complete loss ofAC power. The PowerRite Pro
UPS protects personal and business computer
systems, workstations, file servers, small
medical equipment, and telecommunications
equipmentwhile providing outstandingperfor-
mance and reliability.
Why is the PowerRite Pro One of
the Best?
Compad and Easy to Install
The PowerRite Pro UPS is designed to be
compact and easy to install. Because of its small
size, the PowerRite Pro is easy to move and has
a small footprint. Standard plugs and recep-
tacles combined with an easy-to-understand
manual make the PowerRite Pro very easy to
install.
Advanced Battery Management
Advanced Battery Management (ABM™)
prolongs battery life and speeds up recharge
time to give youmaximum reliability. ABM™
also gives you up to 60 day's warningpriorto
the end ofuseful battery life.
Boost and Buck
The PowerRite Pro UPS uses a "Boost and
Buck" tap system for greater output regulation.
If the output voltage is too low, the system
gives it a "boost" to meet the output
requirements. If the output voltage is too high,
the system "bucks" down the voltage to meet
the output requirements.
PowerRite Pro UPS ♦ 05140136-60 ♦ E 1

w
2 Introduction
a -
Communication Capability
The PowerRite ProUPS includes an ~232 port
which allows theunit to report its operational
status to a host computer. The Power Rite Pro is
also fully compatible with Deltec'sFailSafe III and
LanSafe III UPSmonitoringsoftware.
Bi-Directional Filter
Anotheradvantage is the bi-directional filter for
superior power conditioning. Thebi-directional
filter creates filter protectionto and from the
critical load and the power line. If the load creates
electrical noise, it is filtered so that the noise is not
passed on to the line. If there is noise on the line, it
is also filtered so that the noise is not passed on to
the load.
Auto-Frequency Selection (International only)
The PowerRite ProUPS has Auto-Frequency
Selection which calculates theappropriate
operatingfrequency by analyzing the frequency
of the line. This allows the user to connect the
same equipment even when moving to different
locations.
No Line/No Load - Auto Shutdown
To prevent the batteries from discharging when
the power fails and the load is less than 5%, the.
PowerRite Pro UPS shuts down automatically.
You can disable this function by changing the
setup DIP Switches on the UPS.
Questions?
This handbook contains the information you
will need to install and operate the PowerRite
Pro UPS. Deltec is committed to excellence in
dependability and customer satisfaction. If you
have any questions or problems, please contact
the Customer Service Department at:
1-800-848-4734 or 619-291-4211.

-
IMPORTANT
SAFETY INSTRUCTIONS
• -
Preparation
It is important to become familiar with your
UPS and understand its differentparts. This
sectionbrieflydescribes some important
information you should know before using
your equipment.
Check your Equipment
Check your equipment for damage. If any
equipment has been damaged during shipment,
keep the shipping cartons and packing materi-
als for the carrier or place of purchase, and file a
claimfor shipping damage. If you discover
dam.age after acceptance, file a claim for con-
cealed damage.
To file a claimfor shipping damage orcon-
cealed damage
• File with the carrier within 15 days of
receipt of the equipment
• Send a copy of the damage claim within
15 days to:
Deltec Electronics Corporation
2727 Kurtz Street
San Diego, CA 92110
Attn: Customer Service Department
Precautions
Please read all instructions before operating the
equipment and save this manual for future
reference.
I
SAVE THESE INSTRUCTIONS. This manual
contains important instructions that should be
followed during installation and maintenance of
the UPS and batteries.
PowerRite Pro UPS • 05140136-60 ♦ E 3

Iii
WARNING I
PowerRite Pro UPS
PRA400 & PRA600
PRA400i & PRA600i
4 Section 1 • Preparation
-
Electrical Shock Hazard. The battery pock
contains HIGH VOLTAGES. To reduce the risk of
electric shock, use caution when handling and
interconnecting the units.
Overview of Equipment
There are several different models ofthe
PowerRite ProUPS with power levels ranging
from 400 to 2200 VA. Some models are designed
for North American installation and others are
designed for International use. Models with
powerlevels 400-1500 VA consist ofone piece
of equipment, the UPS. Models with power
levels 1800-2200 VA consist of two pieces of
equipment, the UPS and the PRA Battery Box.
All ofthe units are compact and easy to move.
The UPS and Battery Box canbe stacked for
easy use and convenient storage.
What the UPS Looks Like
Your equipmentshould resemble one of the
following pictures.
T
6.5"
(16.5cm}
1

llliliii
PowerRite Pro UPS
PRA1000, PRA1500,
PRA2000, PRA2200,
PRA2200b,PRA2201b,
PRA 1 OOOi, PRA 1400i,
PRA 1800i, & PRA2200i
PRA Battery
Box
-
PowerRite Pro UPS • 05140136-60 ♦ E 5
T
9"
(22.9cm}
l

lliiiii
Models: PRA400
PRA600
Models: PRA 1000
PRA1500
6 Section 1 • Preparation
-
Rear Panels:
North American Models
Although similar, the rear panels of the various
NorthAmerican models have different configu-
rations. Find the drawing of the rear panel for
yourunit and become familiar with it.
Four5-15R
receplacles
UneCord
with 5-1 SP i-----
plug
Six 5-15R
recepioc/es
Unecord
with 5-15P
plug
Input
reseloble
circuit
breaker
UPS
ON/OFF
switch
SefyP, DJP
switches
Model
numbers
and brief
specs
UPS
ON/OFF
swikh
SehlP. DJP
switch.

-
Model: PRA2000
Model: PRA2200
Foor 5-15R
receplacles
Ouf?!t
resetoble
circuit
breaker
Battery box
connection
Unecord
with5-20P
plug
Four 5-15R
receplacles
Oulput
resetcible
circuit breaker
Input resetable
circuit breaker
Batterybax
connecton
Unecord
with L5·30P
plug
PowerRite Pro UPS ♦ 05140136-60 ♦ E
Dupfex
5·20R
receplacles
UPS
ON/OFF
switch
SetuP. DIP
switches
Comm
port
Model
numbers
andbrief
specs
UPS
ON/OFF
switch
L5-30R
receplacles
SeluP, DIP
switches
7

-
Model: PRA2200b
PRA2201b
Model: PRA400i
8 Section 1 • Preparation
Six6-15R
~locles
(2201b models have
L6-15R receplode,)
Batlerybox
connection
a
Line Cad
willi 6-15P
(22011, model, 1,c,.,..
an L6-15P line cord)
Rear Panels:
International Models
-
Model
number,
ondbrief
specs
UPS
ON/OFF
swilch
SeluP. DIP
,w;khe,
Comm
port
Althoughsimilar, the rearpanels of the various
International models have different configura-
tions. Find the drawing of the rear panelfor
your unit and become familiar with it.
IEC-320
two female
receptodes
IEC-320
male rec;eptode
wilh proledion fuse
Model
numbers
and brief
specs
UPS
ON/OFF
switch
SeluP. DIP
switches

Mi

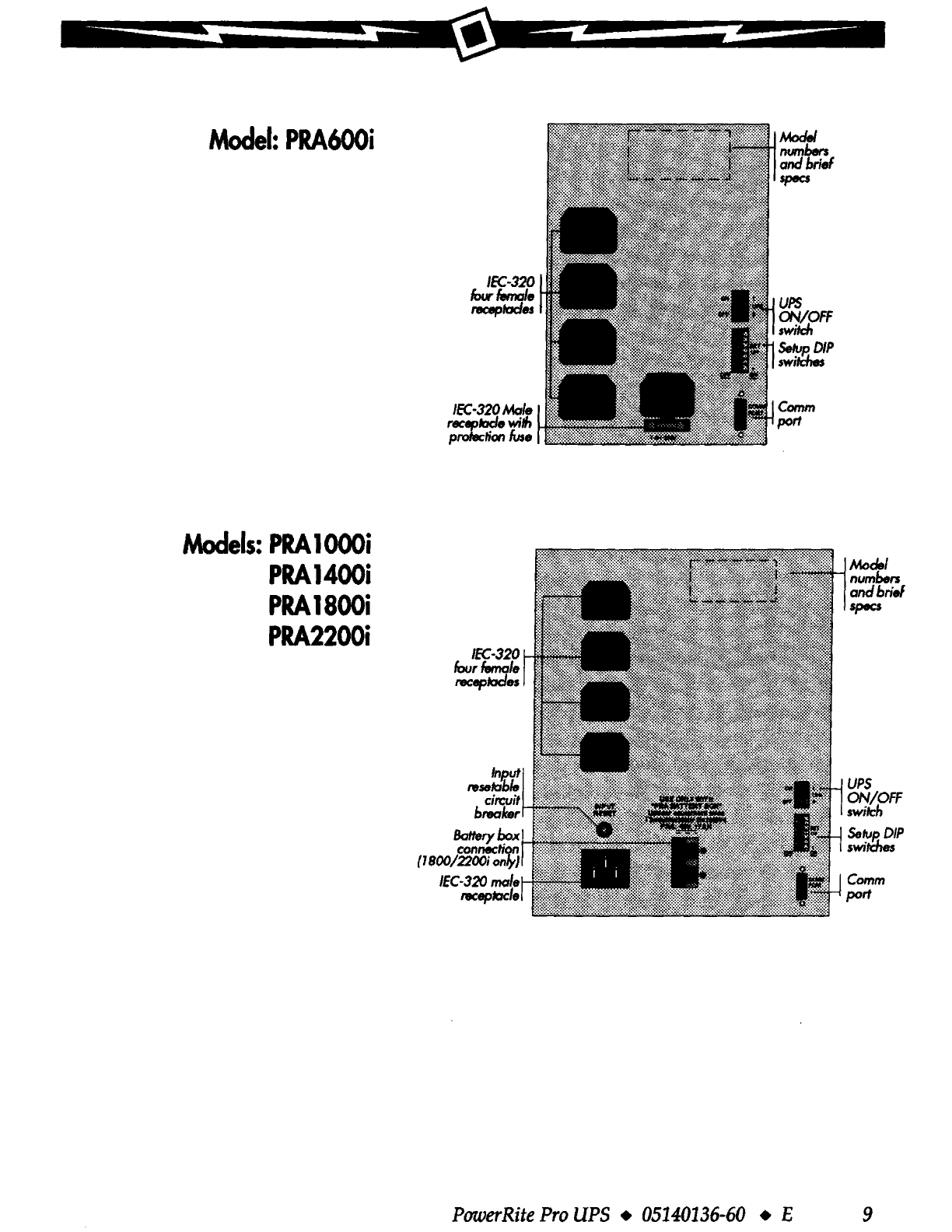

Model: PRA600i
Models: PRA 1 OOOi
PRA1400i
PRA1800i
PRA2200i
IEC-320
four female
receplodes
IEC-320
four female
receplac:Jes
Battery~)(~~~,;:;:;;.
connection
(1800/2200i only}
IEC-320 ma/el-B~$.;;i;
recep#ode
a -
Model
numbers
and brief
specs
UPS
ON/OFF
swikh
SeluP. DIP
switches
Comm
port
Model
numbers
andbriel
specs
PawerRite Pro UPS • 05140136-60 • E 9

Mi
10 Section 1 • Preparation
-
Front Panel Display
The front panel display of each unit contains
LEDs (or small lights) and associated icons that
give information and warning about the unit's
operation. The front panel display also has an
Alarm Silence/Resetbutton. The front panel
display is described in more detail in the
OperationSection.
User Controls
The user controls briefly described below are
located on the rear panelof the UPS and are
common to all models. See Section 2, Installa-
tion, and Section 3, Operation, for more detailed
descriptions.
UPS ON/OFF Switch
This switchis located on the lower right side of
the rear ofeach unit and turns the UPS onand off.
Setup DIP Switches -
All PowerRite Pro UPSs havea set of DIP
Switches located on therear panel. DIP Switches
are set by the userto configure the UPS.
Communication Port
Also located on all rear panels is the
Communication Port (DB-9 female connector).

Iii
z
0
e
w
V,
NOTE
WARNING
Installation:
-
Follow the step-by-step instructions for installa-
tion. There are separate instructions for North
American and International models.
I
Changes or modifications not expressly approved by
the party responsible for compliance could void the
user's authority to operate the equipment.
I
To reduce the risk of fire or electric shock, install in
a temperature and humidity controlled indoor
area free of conductive contaminants.
North American Models
Oset up the DIP Switches according to the North
American DIP Switch Configurations table below.
If any switches are changed while the unit is
running, the changes will not take effect until the
unit is completely powered down and then
turned back on.
Nor1h American DIP Switch Configurations* (120 and 208 V Models)
Switch Position Function
Switches
OFF & OFF
1&2 ON &OFF
OFF &ON
ON&ON
Switch 3
OFF
ON
Switch 4 OFF
ON
Switch 5
OFF
ON
Switch 6
OFF
ON
Switch 7
OFF
ON
120 V models: 120 V nominal (208 V models: 208 V nominal)
120 V models: 127 V nominal (208 V models: 217 V nominal)
120 V models: 110 V nominal
120 V models: 120 V nom. w/ extended voltage range
208 V models: 208 V nom. w/ extended voltage range
Enable site warning alarm (Disable on 208 V models)
Disable site warning alarm {Enable on 208 V models}
Approx. 2 min. backup after low battery alarm
Approx. 5 min. backup before low battery alarm
Enable <5% load auto shutdown after 5 min. on battery
Disable <5% load auto shutdown
Conditional shutdown delay 5 sec.
Conditional shutdown delay 1 80 sec.
Enable audio alarm for AC input failure
Disable audio alarm for AC input failure
Switch 8 OFF Frequency selection priority 60 Hz
ON Frequency selection priority 50 Hz**
*Default position for all DIP switches is OFF. * *Use only in conjunction with Switch
l • OFF and Switch 2 • ON (for 110 or 199 V nominal input and 50 Hz).
PawerRite Pro UPS ♦ 05140136-60 • E 11

llii
ill
NOTE I For units with PRA Battery Boxes, continue with
Step 2. For units without PRA Battery Boxes, skip
Step 2 and go to Step 3.
8 Connect the PRA Battery Box plug to the UPS
PRA Battery Box connection.
CAUTION I Arcing may occur when inserting the plug. Insert
quickly and firmly.
UPS Battery Box
CAUTION I DO NOT disconnect the PRA Battery Box from the
UPS while the UPS is ON. This can damage
equipment.
8 To establish communication between the UPS
and a computer, plug the optional UPS/Com-
puter Interface Cable into the Comm Port. For
best performance use only the optional Factory-
supplied cable and sohware. The UPS operates
normally if you do not use this port.
Comm Port
UPS/Computer Interface
Cable (optional)
12 Section 2 ♦ Installation

-a -
0 Verify that the UPS ON/OFF Switch is OFF, then
plug the UPS line cord into the wall outlet.
et
Line Cord
CAUTION I DO NOT plug laser printers into the UPS. The high
surge currents they produce con cause disruption
to any manufacturer's UPS.
C, Plug your loads (computer, monitor, etc.} into the
UPS using whichever outlets you need.
,.,...
~=··-.• .............. ,,
PowerRite Pro UPS ♦ 05140136-60 ♦ E 13

-
14 Section 2 • Installation
-
0 Move the ON/OFF Switch lo ON. Wait several
seconds while the UPS performs the initial internal
self-diagnostics.
UPS ON/OFF Switch
ON
OFF 0
0 Wait for the green ON, Line OK, and Battery
Charging LEDs to light up on the front panel of
the UPS. Push the Alarm Silence/Reset button if
any red LEDs turn on. If any red LEDs remain on,
see section 3, Operation for instructions.
ON LED
{Green}
L/NEOK
LED {Green}
You hove now completed installation.
BATTERY
Charging LEDs
{Green)
Alarm
Silence/Reset
Button
It takes approximately 2..4 hours for the UPS to fully
charge the batteries after installation or long
storage. Until fully charged, the battery indicators
and measurements will not be accurate.

IMi iiiiilll
Installation:
0 Set up the DIP Switches according to the
International DIP Switch Con6gurations loble
below. If any switches are changed while the unit
is running, the changes will not take effect until
the unit is completely powered down and then
turned back on.
International Models
International DIP Switch Configurations* (230 V models)
Switch Position Function
Switches
1&2
OFF & OFF UPS configuration 230 V nominal
ON&OFF
UPS configuration 240 V nominal
OFF & ON UPS configuration 220 V nominal
ON & ON Configuration 230 V nom. w/ extended voltage range
Switch 3 _O_F_F ____ E_n_a_b_le_s_it_e_w_a_rn_i....,ng....._a_la_rm _________ _
ON Disable site warning alarm
Switch4 _O_F_F ____ A_._.pe~~-ox_._2_m_in_._b_ac_k_u~p_a_fte_r_f_o_w_b_a_tte_ry.._a_la_r_m __ _
ON Approx. 5 min. backup before low battery alarm
Switch 5 _O_F_F ____ E_n_a_b_le_<_5_%_o_loa_d_a_u_to_s_h_u_td_ow_n_a_he_r_5_m_in_._o_n_b_ott_e...J..ry
ON Disable <5% load auto shutdown
Switch 6 _O_F_F ____ C_o_n_d_it_io_n_a_l s_h_ut_d_o_w_n_d_e_la.._y_5_s_e_c. ______ _
ON Conditional shutdown delay 180 sec.
Switch 7 _O_F_F ____ E_n_a_b_le_o_u_d_io_a_l_ar_m_fo_r_A_C_i_np._u_t_fa_i_lu_re ____ _
ON Disable audio alarm for AC input failure
Switch 8 OFF Frequency selection priority 50 Hz
ON Frequency selection priority 60 Hz
* Default position for all DIP Switches is OFF
PowerRite Pro UPS ♦ 05140136-60 • E 15

.. a -
NOTE I For units with PRA Battery Boxes, continue with
Step 2. For units without PRA Battery Boxes, skip
Step 2 and go to Step 3.
9 Connect the PRA Baffery Box plug to the UPS
PRA Battery Box Connection.
CAUTION IArcing may occur when inserting the plug. Insert
quickly and firmly.
UPS
Battery Box
,,_,_:.=.=:,;,;,;,:::::::1;,i,i,;,;j:;it:!:~r!j:
CAUTION I DO NOT disconnect the PRA Battery Box from the
UPS while the UPS is ON. This can damage
equipment.
8 To establish communication between a UPS and
a computer, plug the optional UPS/Computer
Interface Cable into the Port. For the best
performance and reliability, use only the
optional factory-supplied cable and software.
The UPS operates normally whether or not you
use the Communication Port.
Comm Port
:-:_::
~
UPS/C~ler lnletfoce
Cable (optional}
tf
16 Section 2 • Installation

-
8 Unplug the line cord from your largest load. You
do not need to unplug the cord from the wall
outlet.
Your Load
8 Plug the line cord that you removed from your
load in Step 4 into the male inlet on the UPS.
Male Inlet
.;-:=:=?:=:=:-: •• ,:=~::::::
Li
PowerRite Pro UPS ♦ 05140136-60 ♦ E 17
