PowerGuard UQ11-RM User manual

USER MANUAL
Uninterruptible Power Supply
İÇERENKÖY MAH.
ÇANKIRI SK. NO:1/1
ATAŞEHİR – İSTANBUL
TEL : [phone]
FAX: [phone]
E-MAIL : [email protected]m.tr
www.powerguard.com.tr
UQ11-RM 1~10Kva models

Contents :
1. Introduction..................................................................................................................... 1
2. Safety Instructions ......................................................................................................... 2
3. System Description ........................................................................................................ 4
3.1 Front Panel ................................................................................................................................ 4
3.2 Rear Panel…………………………………………………………………………………………...7
4. Maintenance .................................................................................................................... 9
4.1 Operation environment……………………………………………………………………………...9
4.2 Battery Application……………………………………………………………………………….....9
4.3 Troubleshooting……………………………………………………………………………………..9
5. Technical Data ...............................................................................................................12
5.1 Electrical Specifications…………………………………………………………………………...12
5.2 Communication Port………………………………………………………………………….……..12
4.4 Oprating for all models……………………………………………………………………………....11

This rack-mounting On-Line-Series is an uninterruptible power supply . It supplies power immediately
to prevent the data lost and your system damaged when the main power is abnormal. With Winpower
or Commander Pro software, the uninterruptible power supply (UPS) will safely store data and
shut down your network operating system before the battery is fully discharged, whether you’re
there or not. It provides perfect protection specifically for fileservers, minicomputers,Internet hubs,
telecommunication systems and other mission-critical applications.
The rack-mounting On-Line-Series includes: 1KR-XL, 2KR-XL, 3KR-XL, 6KR,10KR. The models
with S exten-sion allow for expanding runtime by simply plugging in additional battery packs.
1
1.INTRODUCTION

2 . SAFETY INSTRUCTIONS
Transport
Please transport the UPS system only in the original packaging (to protect against shock and
impact).
Set-up
Condensation may occur if the UPS system is moved directly from a cold to a warm environment.
The UPS system must be absolutely dry before being installed. Please allow an acclimatiza-
tion time of at least two hours.
Do not install the UPS system near water or in damp environment.
Do not install the UPS system where it would be exposed to direct sunlight or near heat.
Do not block off ventilation openings in the UPS system’s housing.
Installation
Do not connect appliances or equipment which would overload the UPS system (e.g. laser
printers) to the UPS output socket.
Place cables in such a way that no one can step on or trip over them.
Do not connect domestic appliances such as hair dryers to UPS output sockets.
The UPS can be operated by any individuals with no previous technical experience.
Following for 1KR-XL / 2KR-XL / 3KR-XL special
Assure to connect with the earth reliably.
The building wiring socket outlet (shockproof socket outlet) must be easily accessible and
close to the UPS system.
With the installation of the equipment, the sum of the leakage current of the UPS and the
connected consumer does not exceed 3.5mA
Following for 6KR special
Warning - This is a product for restricted sales distribution to informed partners. Installation
restrictions or additional measures may be needed to preventdisturbances.
A readily accessible disconnect device shall be incorporated in the building installation wiring
and the disconnect device must be easily accessible and close to the UPS system.
This is permanently connected equipment and only qualified maintenance personnel may carry
out installations.
Operation
The UPS system features its own, internal current source (batteries). The UPS output sockets
may be still exist even if the UPS system is not connected to the building wiring socket outlet.
2

In order to fully disconnect the UPS system, first press the Standby switch then disconnect the
mains lead
Ensure that no fluids or other foreign objects can enter the UPS system.
Maintenance, servicing and faults
The UPS system operates with hazardous voltage. Repair may be carried out only by qualified
maintenance personnel.
Caution- risk of electric shock. Even some the unit is disconnected with the mains power
supply (building wiring socket outlet), components inside the UPS system are still connected
to the battery and are still electrically live and dangerous.
Before carrying out any kind of servicing and/or maintenance, disconnect the batteries and
verify that no current is present and no hazardous voltage exist in the terminals of high capa-
bility capacitor such as BUS-capacitors.
Only persons adequately familiar with batteries and with the required precautionary measures
may exchange batteries and supervise operations. Unauthorized persons must be kept away
from the batteries.
Caution- risk of electric shock. The battery circuit is not isolated from the input voltage. Haz-
ardous voltages may occur between the battery terminals and the ground. Before touching
any operation, please verify that no voltage is present!
Batteries may cause electric shock and have a high short-circuit current. Please take the
precautionary measures specified below when working with batteries:
- remove wristwatches, rings and other metal objects
- use only tools with insulated grips and handles.
When exchange batteries, install the same number and type of batteries.
Do not attempt to dispose of batteries by burning them. This could cause battery explosion.
Do not open or destroy batteries. Escaping electrolyte can cause injury to the skin and eyes. It
may be toxic.
Please replace the fuse only with a fuse of the same type and amperage in order to avoid fire
hazards.
3

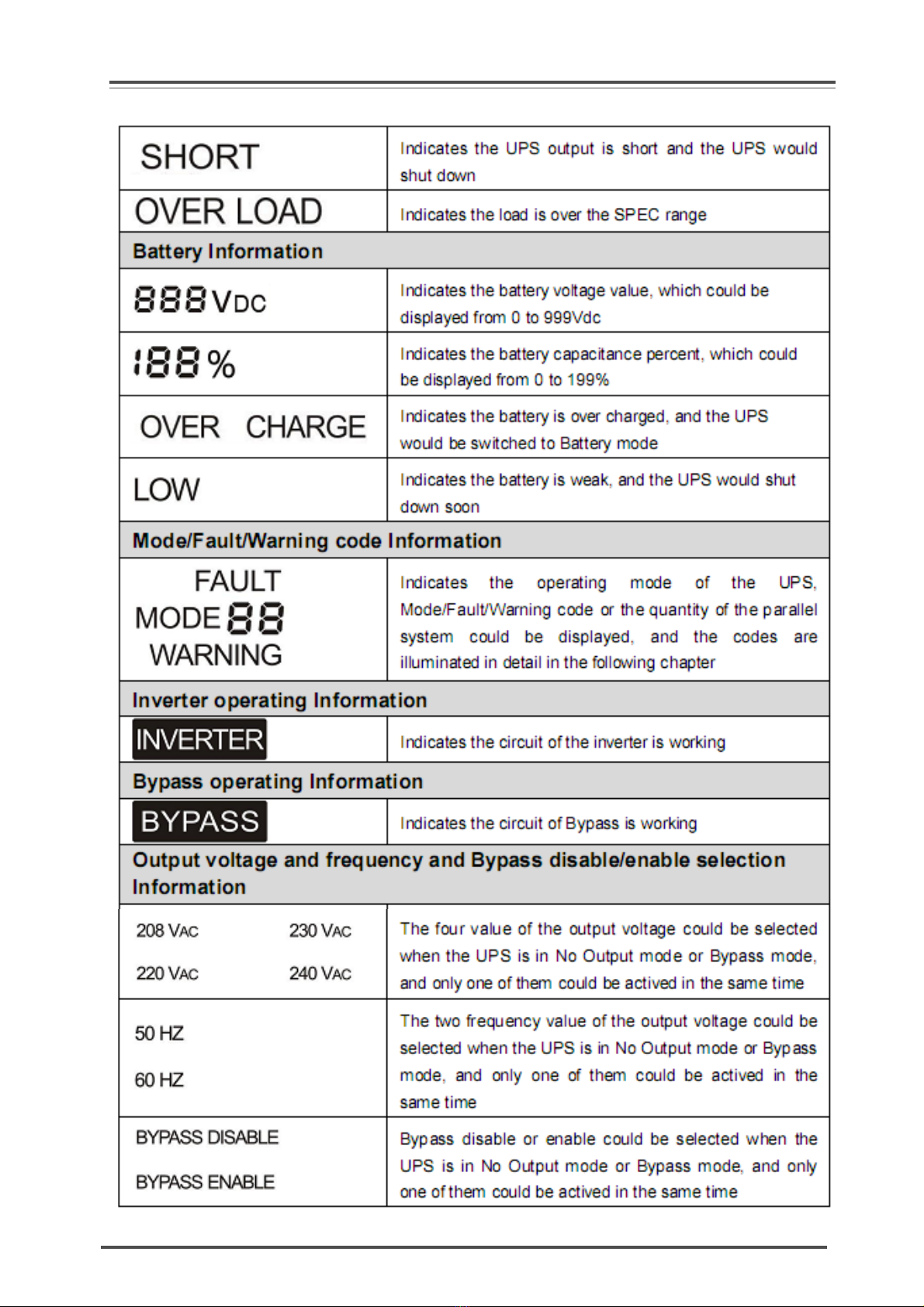

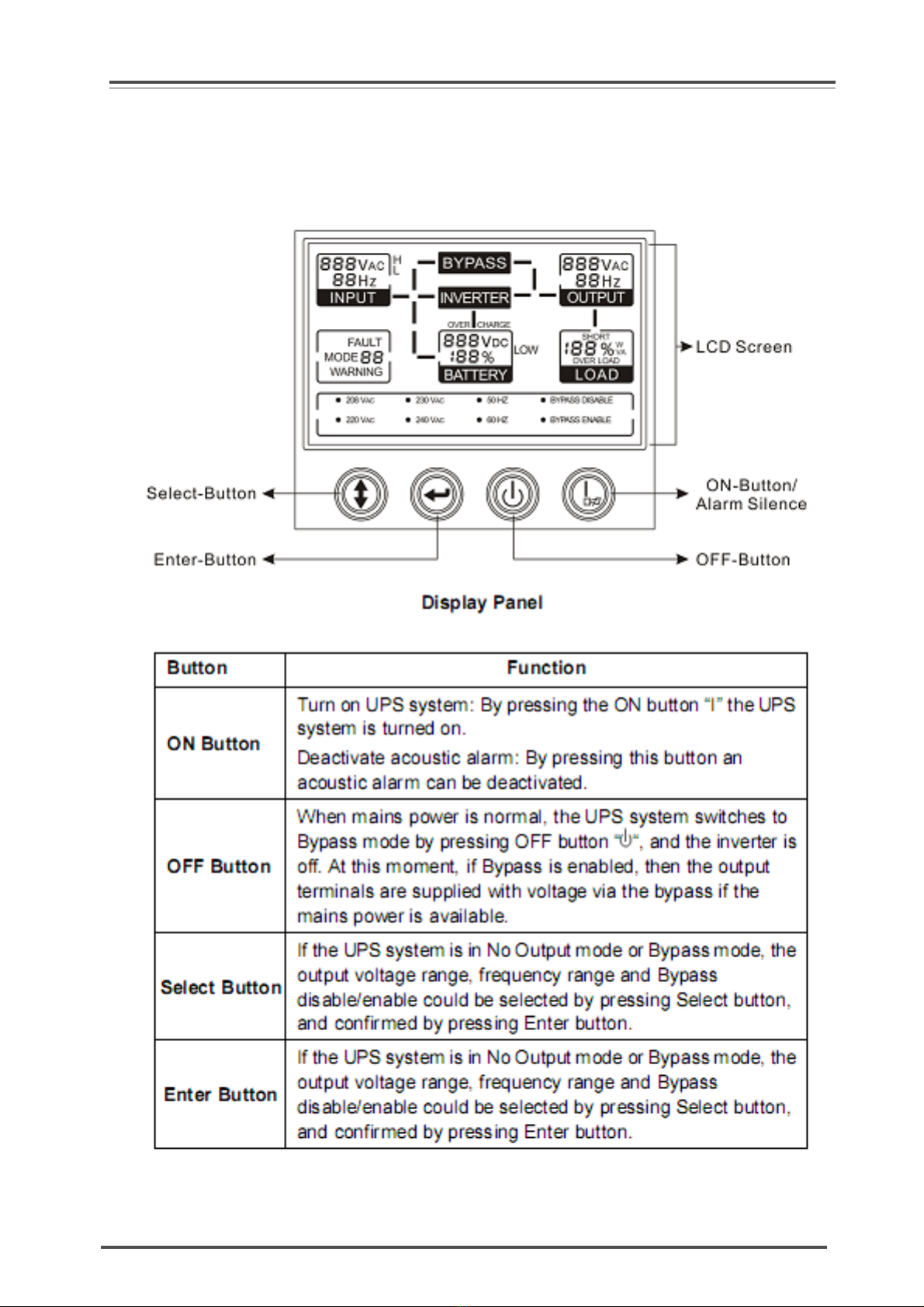

3.1 DISPLAY PANEL
3. SYSTEM DESCRIPTION
4

5

6

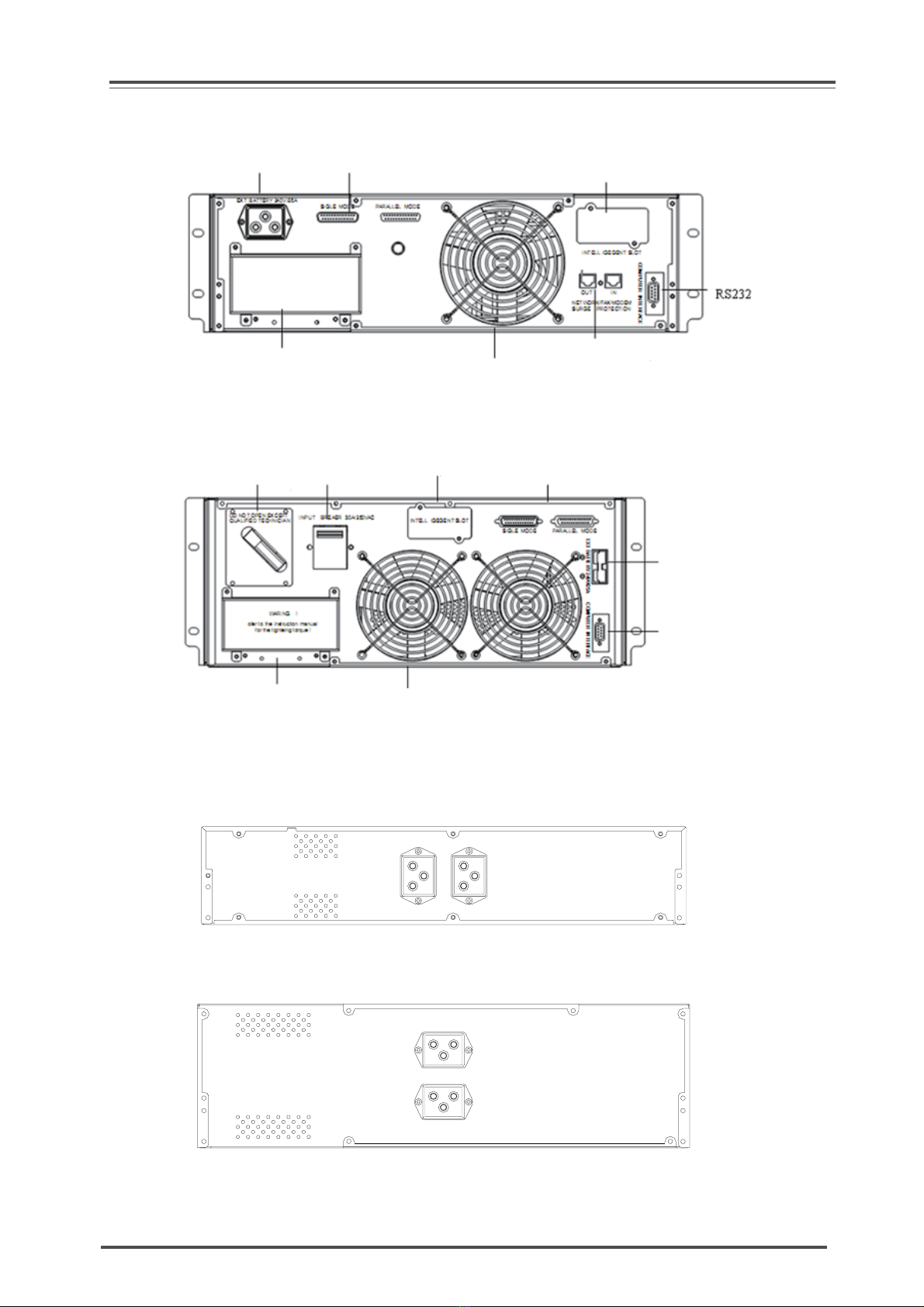

3.2 REAR PANEL
The rear panels of your UPS and battery pack can be found among below drawings. The input and
output connectors and some other useful connectors are on the rear panel.
1KR-XL
2KR
2KS/3K(S)
Intelligent
slot
Output
terminal
Surge
protection
Input
breaker
External
battery
socket
Output
socket
Communication port
Output
fuse
Input
socket
Communication port
Surge
protection
Intelligent
slot
Output
socket
External
battery
socket
Input
breaker
Input
socket
External
battery socket
(only 1KS)Output socketIntelligent slot
Surge protectionInput breakerCommunication port
Input
socket
7

Battery Pack for 1KR-XL/2KR-XL/3KR-XL
Fan
Parallel port
socket
Intelligent
slot
terminal
External battery
FanSurge
protection
Port
maintenance
Input/output
Communication
6KR
Input/output
terminal
Parallel port
Intelligent
slot
External battery
socket
breakerswitch
AC input
10KR
Battery Pack for 6/10K
8

S u r g e P r o t e c t i o n :Provide a surge protection for telephone fax and network line protectors and
so on.
Communication Port:Winpower or Commander Pro software can be used with the UPS for
power management. Standard serial interface cable is compatible with 1KR-XL/2KR-XL/3KR-XL
UPS,however, only the special cable applied with the UPS can be used on 6KR UPS.
Input /Output :If socket is available, just insert compatible cable plug. If terminal is available, wiring
can be complished by profersional electrician.
Note : Terminal cover should be put back for safety reason after wiring completed.
Inp u t B rea k e r :If the breaker pops out/off, reduce the load on the UPS by unplugging equipment
and reset the breaker.
Externa l B a t t e ry Socket : Special cable is offered for the battery pack,insert one end into the
external battery socket on the UPS, the other to the battery pack, the same packs can be paralled
with together to achieve desired back up time.
Notes:
4.1 OPERATION ENVIRONMENT
Ambient Temperature: 0°C to 40°C
Installation height < 1000m
Relative humidity: <95%
4.2 BATTERY APPLICATION
The battery can be charged to 90% capacitance within 5 hours.
If the battery service life (3 – 5) years at 25 °C ambient temperature has been exceeded, the
batteries must be exchanged. In this case please contact your dealer.
If there is not any operation to the UPS for longtime then the battery must be charged every three
month.

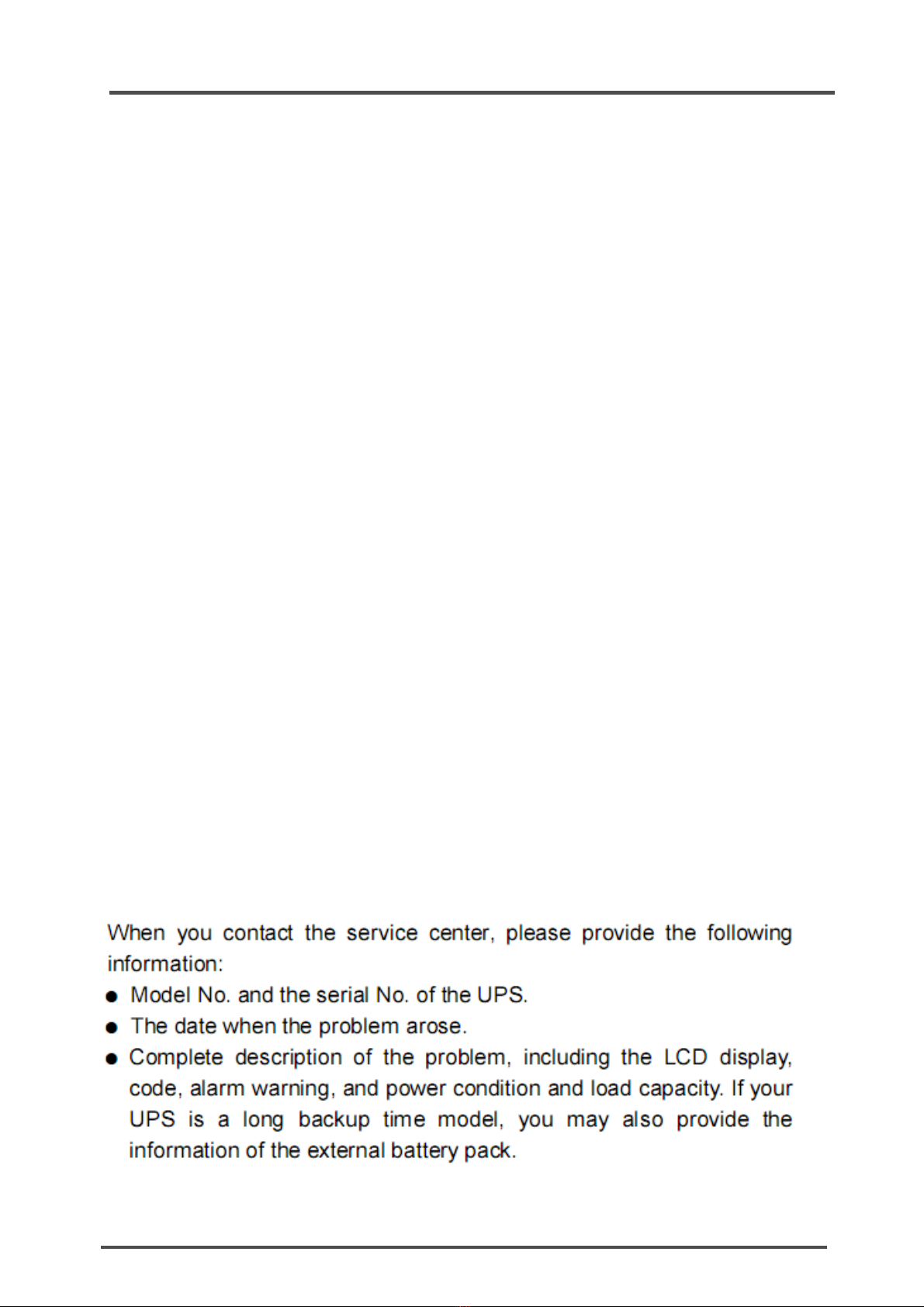

4.3 TROUBLESHOOTING
9
4. MAINTENANCE
One chain of battery packs can be connected to one UPS only.
Only the battery connectors marked with the equal voltage can be connected.

10

4.4 OPERATING MODE FOR ALL MODELS
11

5.1 ELECTRICAL SPECIFICATIONS
Model 1KR-XL 2KR-XL 3KR-XL 6KR 10KR
INPUT
CAV042/032/022egatloV
zH46~zH65/zH45~zH64ycneuqerF
Amperage
(m axim um)
5A(S mode
5A)
10A(S mode
12A)
15 A(S mode
15A) 50A32A
OUTPUT
Power rating 1kVA
0.7k W
2kVA
1.4kW
3kVA
2.1kW
10kVA
7kW
6kVA
4.2kW
CAV042/032/022egatloV
Frequency 50/60x(1±0.2% )H z(Battery M ode)
50/60x(1±
0.1% )Hz(Battery
Mode)
ladiosuniSmrofevaW
BATTERIES(STANDARD)
Number and type 3x12V7.2Ah 8x12V7.2Ah 20x12V7.2Ah

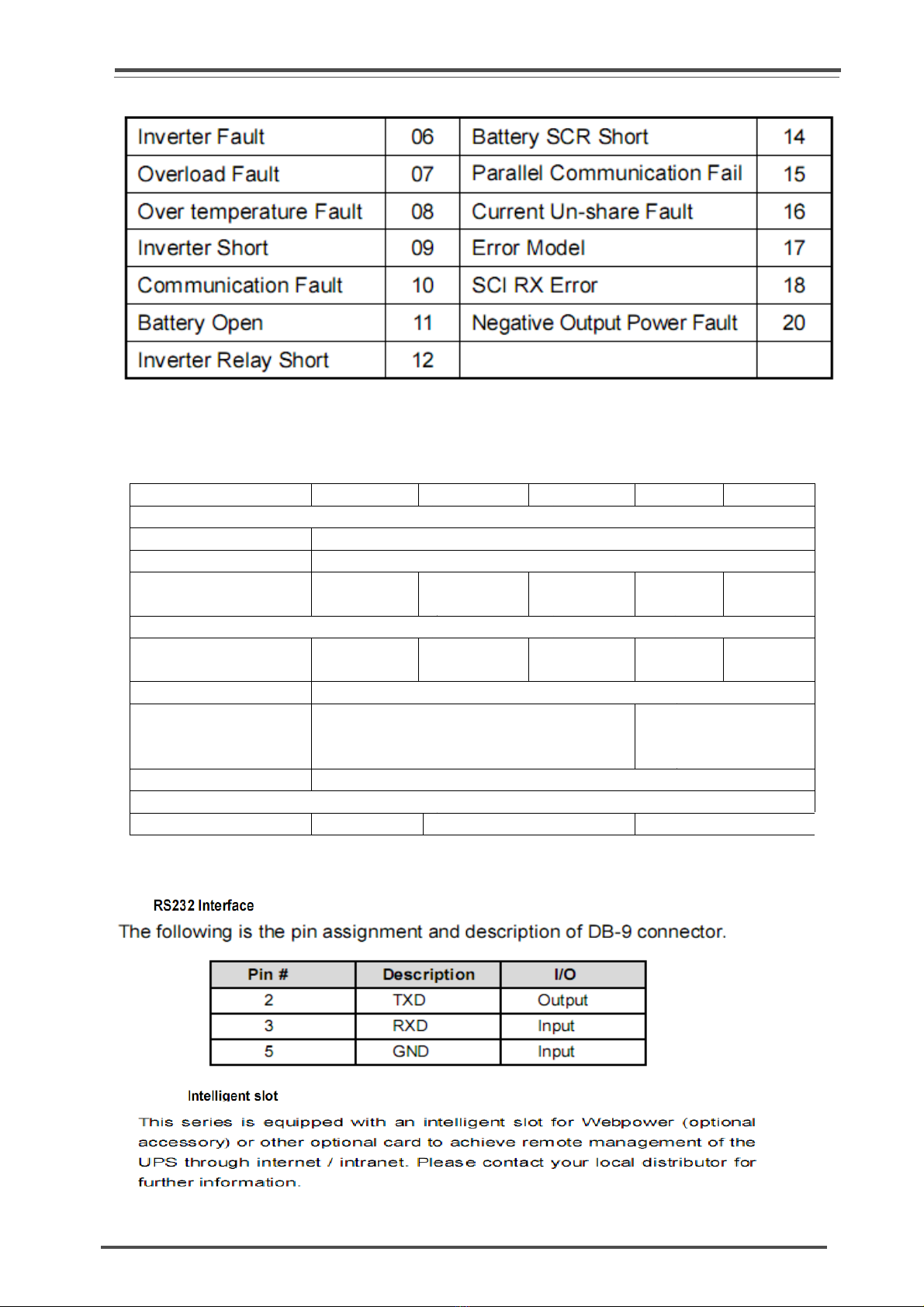

5.2 COMMUNICATION PORT
12
5. TECHNICAL DATA

13
