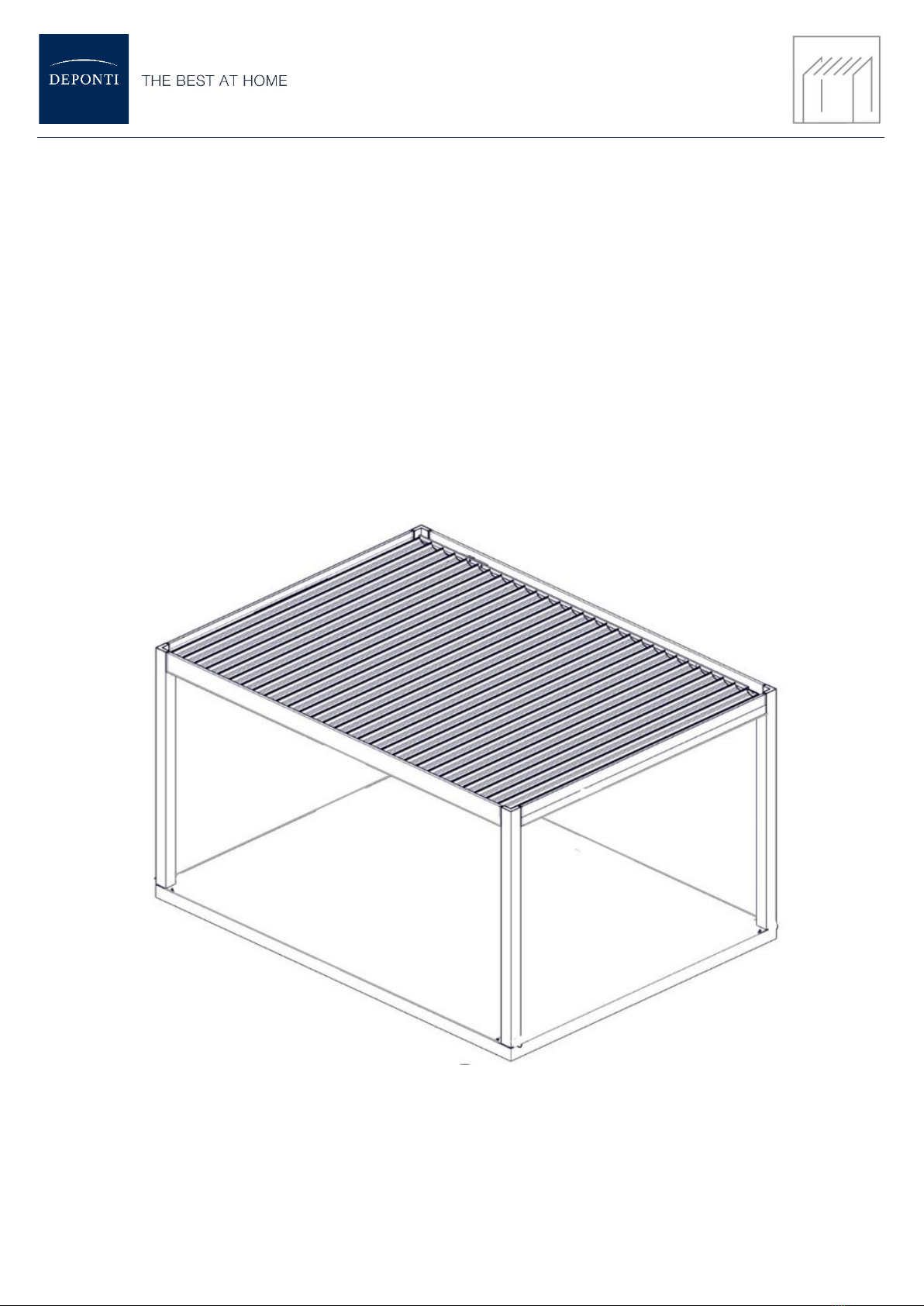

Deponti Pinela Deluxe User manual

User manual / Assembly instructions
Deponti Retractable Louvered Pergola
Type Pinela Deluxe
Version: EN –September 2020
www.deponti.com

www.deponti.com Assembly Manual –Pinela Deluxe Pergola page
2
Contents
1. Introduction 3
2. Safety precautions and warnings 3
3. Product description 5
4. Parts overview 7
4.1 Terminology 7
4.2 Hardware details 8
4.3 Exploded view 9
4.4 Delivery Inspection 10
5. Preparation for assembly 11
5.1 Conditions for assembly 11
5.2 Inspection of tools and accessories 12
6. Assembly 13
6.1 Mounting the wall profile (in case of wall installation) 13
6.2 Pillar and integrated gutter connection 15
6.3 Panel installation 17
6.4 Rear mechanism house placing 19
6.5 Place the tube-motor set 21
6.6 Rail belt installation 21
6.7 Finishing 23
6.8 Middle pillar connection (optional) 25
6.9 Perimeter lightning installation (optional) 26
7. Programming instructions 27
7.1 Remote control 27
7.2 Programming of the panels 28
7.3 Programming of the lights (optional) 29
8. FAQ 30
9. Maintenance 30
10. Disposal of waste 30
11. Warranty conditions 31
12. Contact 31
KEEP THIS MANUAL IN A SAFE PLACE FOR FUTURE USE!
For the duration and the terms and conditions of the warranty we recommend that you contact your supplier. We
also refer you to our General Terms and Conditions of Sale and Delivery which are available on request. Deponti
B.V. accepts no liability for any damage or injury resulting from a failure to carefully follow the instructions in this
manual or exercise due caution during transport, assembly, use and maintenance of the pergola. As a result of
our policy of continuous product improvement, certain product details may differ from what is described in this
manual. For this reason the instructions provided only serve as a guideline for installation of the product this
manual describes. This manual has been compiled with the utmost care, but Deponti B.V. cannot be held
responsible for any errors in this manual or the consequences thereof. Furthermore, all rights are reserved and no
part of this manual may be reproduced in any way whatsoever.

www.deponti.com Assembly Manual –Pinela Deluxe Pergola page
3
!
MANUAL
LEES
AANDACHTIG
!
1. Introduction
Congratulations on the purchase of your Deponti pergola!
Before you can start enjoying your pergola it must be assembled properly. This manual provides clear
instructions for all the steps you must complete for correct assembly of your Deponti pergola. We
recommend that you take the time to read the entire manual before you begin the assembly.
Check whether you have received all the necessary parts before you begin assembly. For your safety,
follow all the applicable instructions. This also guarantees the safety of the installed roof. If you
should have any questions, please feel free to contact your Deponti representative.
This manual should be kept in a safe, dry and shady place. In the event of damage or loss, the user
must request a new copy of the manual from the partner.
2. Safety precautions and warnings
Important:
Please read the safety precautions and warnings before assembling the pergola.
•During assembly, carefully follow the instructions and guidelines as described in this manual.
Never change the order of the steps to be performed. If any aspect of the assembly
procedure is unclear, please contact your Deponti representative. We reserve the right to
make technical changes without written notice.
•We normally recommend that the pergola must be assembled by at least two
people (qualified technicians/authorized installers) working together.
•Check the delivery immediately upon receipt. In the event of damage or an incomplete
delivery please contact your representative immediately.
•The materials must be stored in a dry, ventilated area, not exposed to direct sunlight.
•Open the packaging carefully. Make sure that you do not damage the product.
•To prevent damage to your pergola, place the parts on a smooth, clean surface. Place the
profiles on a flat surface, protected from sun and rain.
READ
CAREFULLY

www.deponti.com Assembly Manual –Pinela Deluxe Pergola page
4
2. Safety precautions and warnings (continued)
•Adding or removing parts, the use or installation of materials. other than described in this
manual, may adversely affect the safety of the pergola and is therefore strongly discouraged!
•Pay attention and be aware of moving parts. Make sure that all power supply is cut off during
the assembly.
•Cordon off the assembly location so that others are kept at a distance.
•Always wear the correct protective clothing (work gloves, dust mask, safety glasses, shoes
with non-slip soles, etc.) during installation or servicing.
•Mount the system against a firm, flat wall and on a flat and stable foundation. Ensure that
the wall and the ground are clean and dry.
•Never step or walk on the panel system.
•You must maintain and clean your pergola at least once a year. During this yearly
maintenance make sure all fasteners are properly tightened.
•Dispose the product in accordance with local laws and regulations.
•It is forbidden to tamper with the bioclimatic pergola system.
•When safety regulations and instructions are not followed correctly, Deponti B.V. will not
accept responsibility for damage(s) and injuries.

www.deponti.com Assembly Manual –Pinela Deluxe Pergola page
5
3. Product description
The Pinela Deluxe is a bioclimatic pergola system with a retractable and rotatable panel system. The
retractable Pinela Deluxe panels can be opened. When opened it can give an open roof space of %79
of the total covered area, due to the synchronized movement of the smooth designed panels.
When closed, the panels will protect you from the sun and rain. The Pinela Deluxe can also carry
limited and defined snow loads.(see below).
The pergolas have an integrated Somfy Tubular Motor and is operated by the radio control
transmitter.
Available dimensions of the Pinela Deluxe:
Width (mm): 3000 / 3500 / 4000
Projection(mm): 3014 / 3571 / 4128 / 4964 / 6078*
Panel width (mm): 315,4 (projection 27.9 cm/panel)
*Additional side pillar is added at the Pinela Deluxe with a projection of 6078mm
NOTE: All pillars have a length/height of 350cm and don’t have a foot base / base plate.
When assembled as a freestanding pergola with additional mounting bracket, the maximum gutter
height is 250cm. The extra length of the pillar is to prevent collapsing.
Optional additions:
•Perimeter lighting system
•Mounting bracket for pillar
Snow load & Wind resistance
The snow load and wind resistance is adaptable to the steel construction according to the statically
calculated profile section and connection type.
Snow load [kg/m2]:
No.
panels:
Projections
[mm]:
Width [mm]:
3000
3500
4000
10
3014
245
223
195
12
3571
229
195
173
14
4128
190
156
132
17
4964
98
78
68
21
6078
243
221
193
•Max. wind resistance for all available dimensions: 24.7 m/s (10 Beaufort / 0.38 kN/m2) in
open position.

www.deponti.com Assembly Manual –Pinela Deluxe Pergola page
6

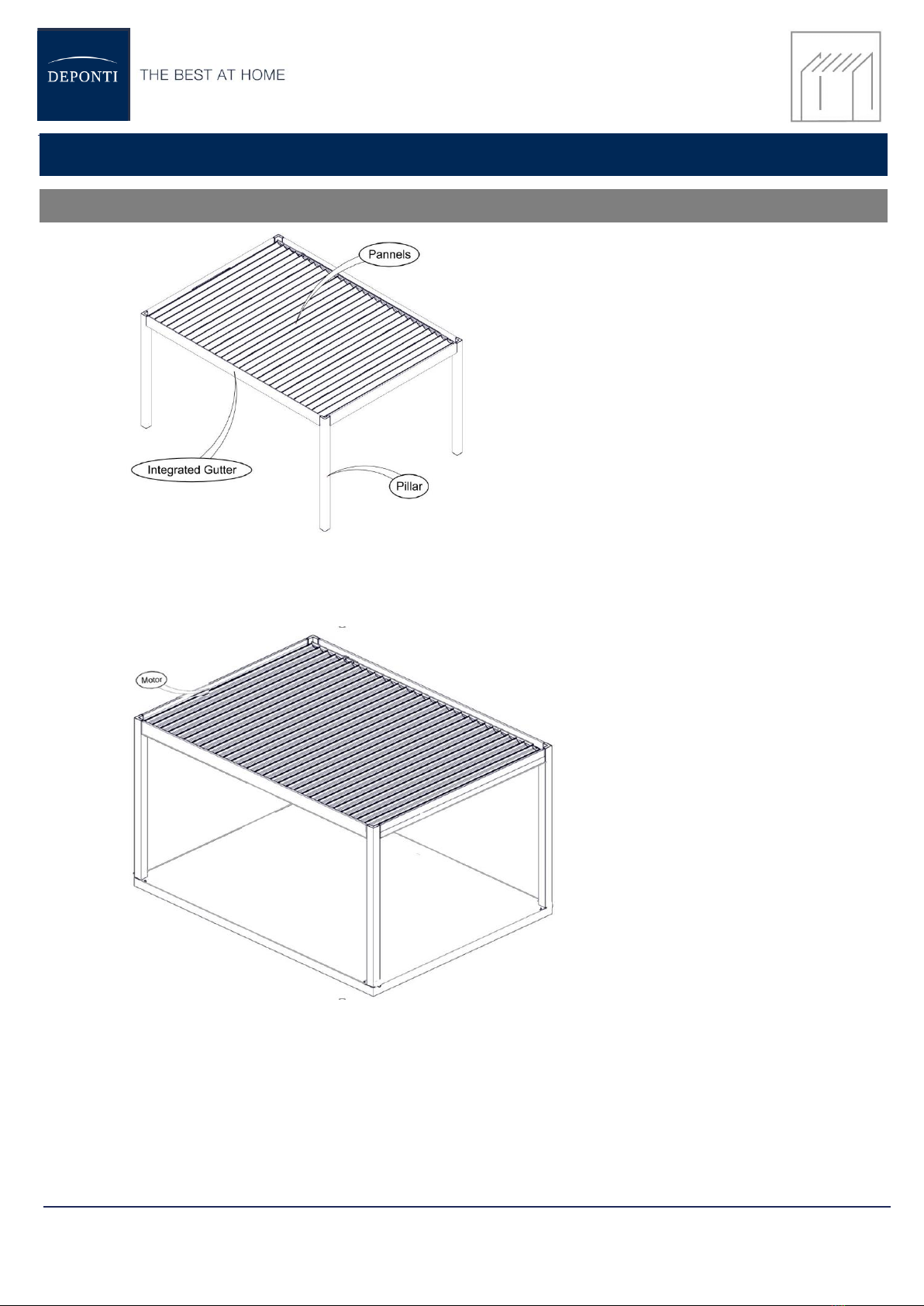

Placement options:
It is possible to place the Pinela Deluxe freestanding or mounted to a wall.

www.deponti.com Assembly Manual –Pinela Deluxe Pergola page
7
4. Parts Overview
4.1 Terminology
The motor requires 230V / 50Hz. If you have added a LED lighting strip to your Pinela Deluxe, you
must use the lighting control box. The control box requires 230V / 50-60Hz as well.

www.deponti.com Assembly Manual –Pinela Deluxe Pergola page
8

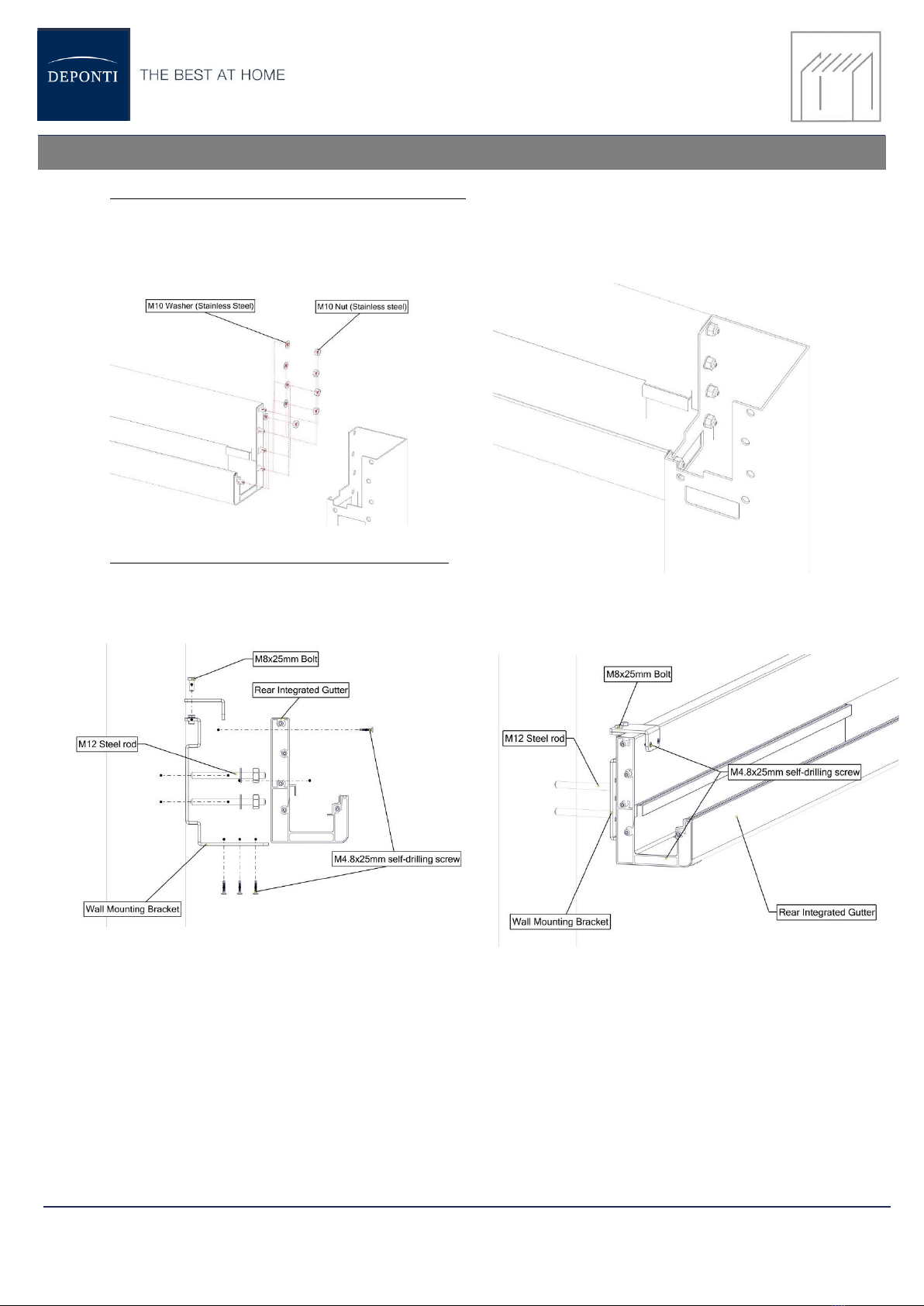

4.2 Hardware details
Integrated gutter –Pillar connection (Freestanding)
a. M10 nut Stainless Steel
b. M10 washer Stainless Steel
Integrated gutter –Wall bracket (Wall mounting)
a. M8x25mm Bolt
b. M4,8x25mm self-drilling screw

www.deponti.com Assembly Manual –Pinela Deluxe Pergola page
9

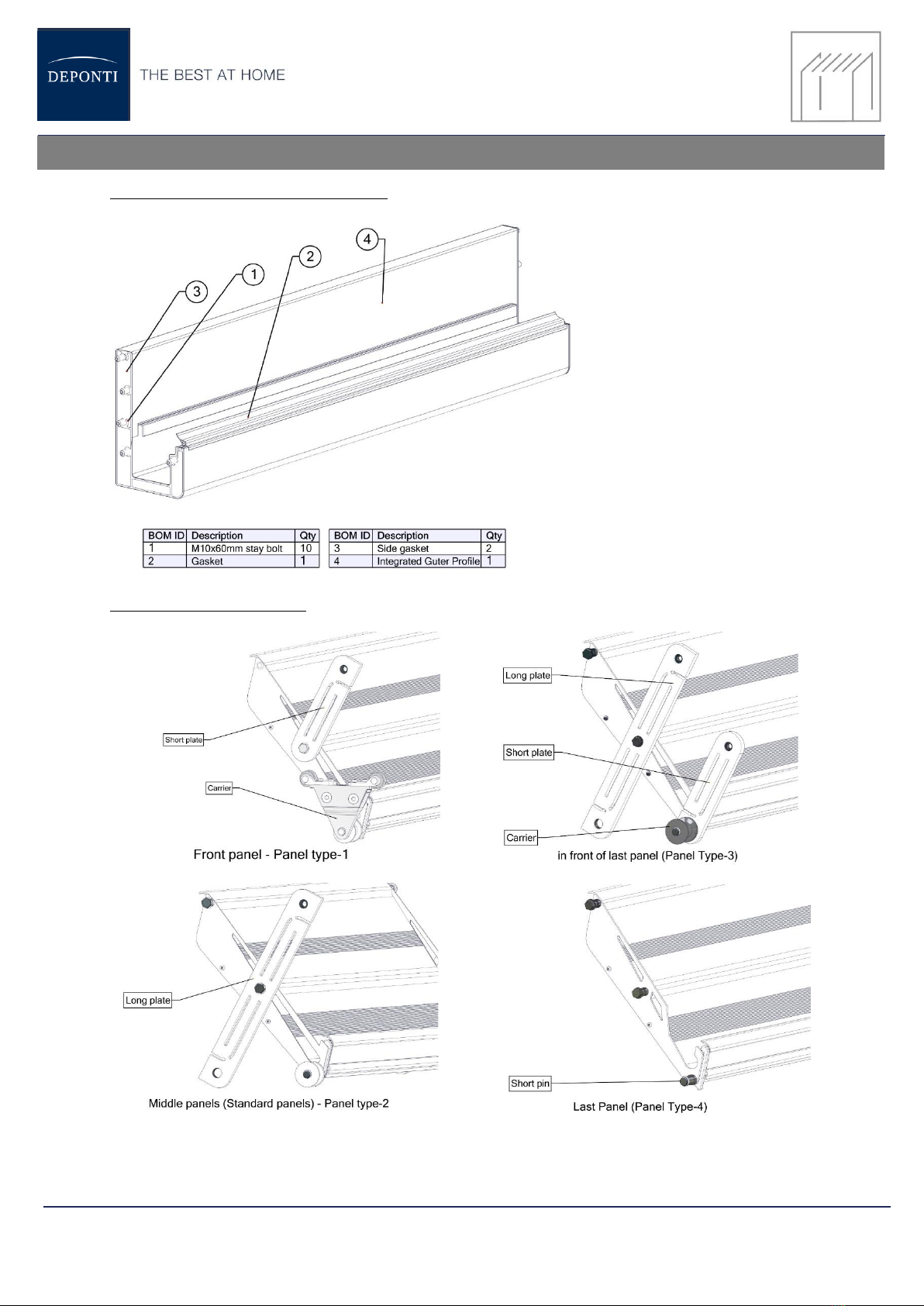

4.3 Exploded view
4.3.1. Exploded view - Integrated Gutter
4.3.2 Exploded view - Panels

www.deponti.com Assembly Manual –Pinela Deluxe Pergola page
10
4.3.3 Exploded view pillar
Two module connector.
4.4 Delivery Inspection
Note: Always carefully check the delivered items against the accompanying delivery note to ensure
that the quantity and quality are correct. Any visible defects must be reported in writing within 7
days of delivery.
Note:
• Boxes with red label: Electronic parts like Control Unit Box, Remote Controls.
• Boxes with blue label: Metal parts like U Brackets, Mounting brackets, Pillar caps

www.deponti.com Assembly Manual –Pinela Deluxe Pergola page
11
5. Preperation for assembly
5.1 Conditions for assembly
Ground & façade
•A good flat stable surface is required for construction of the pergola.
•The location where the system will be placed must be construction-ready and free of
obstacles
(garden furniture, flower boxes, etc.) so installers can perform their work without hindrance.
•Any obstacles, including utility lines (such as power cables, etc.), roots and debris, must have
been removed from the ground.
•The façade must be free of sun shades, etc.
•The area where the wall profile will be placed must be firm, even and flat.
Attachments at walls
•Due to expansion of the materials, the pergola may not be placed tightly between two walls;
there must be a gap of 1.5 mm per metre of width of the pergola.
Rubber seals
•A Deponti pergola is standard equipped with pre-assembled rubber seals.
•If the rubber seals are deformed, they can be straightened with a little heat, from a hot air
heater or hair dryer for example.
Remove protective film
•It is recommended that the protective film be removed from the aluminium parts at the last
possible moment, to prevent damage. When mounting the different parts, however, the
edges of the protective film must be pulled back a few centimetres towards the middle of the
sheet so the film does not get stuck in the profiles; otherwise it will be difficult to remove
later.
Warranty is void if the Pinela Deluxe pergola is not assembled and installed in
accordance with the instructions.

www.deponti.com Assembly Manual –Pinela Deluxe Pergola page
12

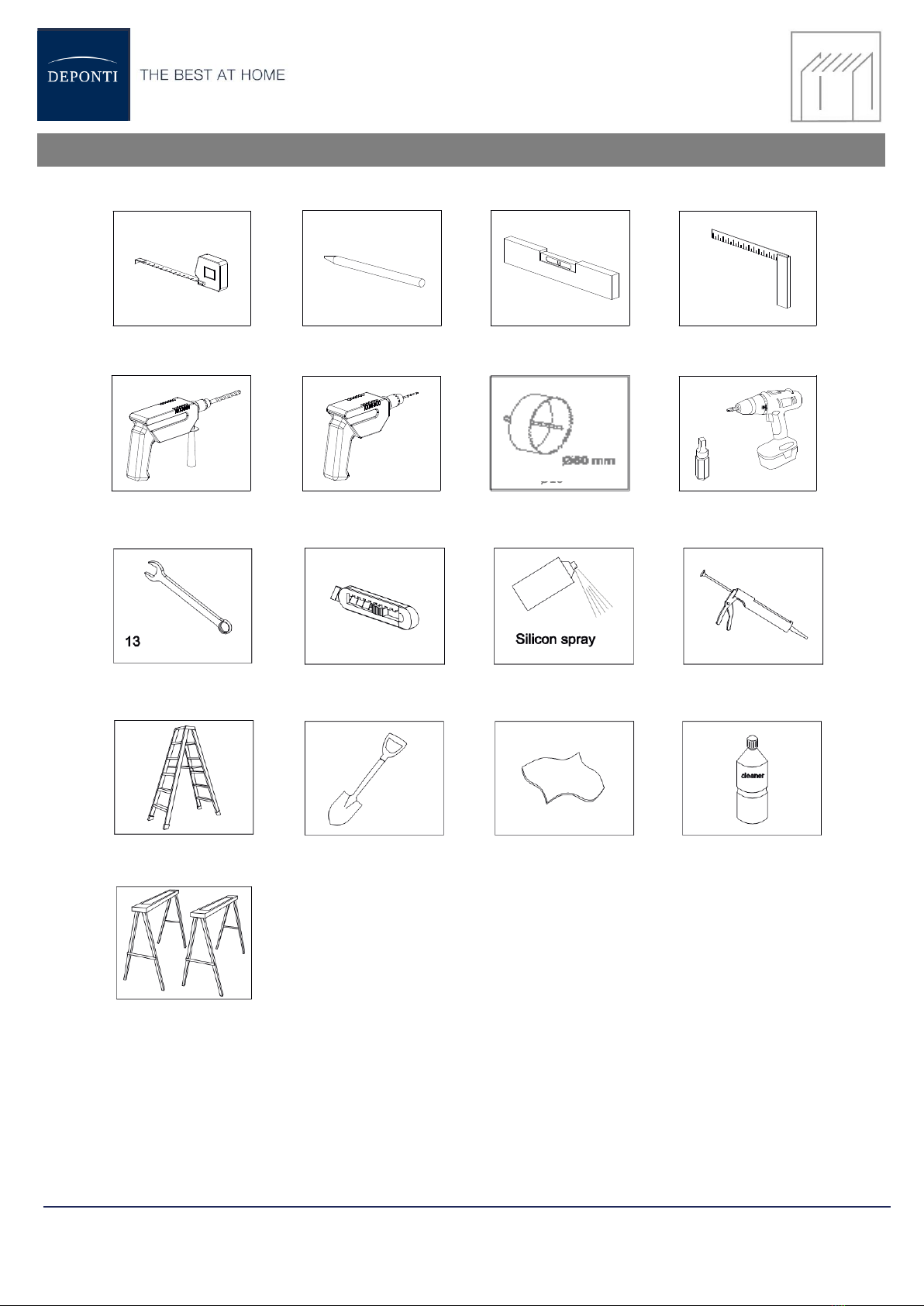

5.2 Inspection of tools and accessories
Ø16

www.deponti.com Assembly Manual –Pinela Deluxe Pergola page
13
6. Assembly
You can assemble the Pinela Deluxe by following the next steps.
NOTE: The rear integrated gutter has been escalloped CNC machine in order to place the motor tube.
6.1 Mounting the wall profile (in case of wall installation)
1. Define the wall mounting bracket position on the wall.

www.deponti.com Assembly Manual –Pinela Deluxe Pergola page
14
2. Fasten the brackets to the wall. Use the correct hardware for your situation. We suggest a
minimum size of M12.
3. Place the integrated gutter on the wall mounting bracket.
4. Fasten the wall mounting bracket cover on top and tighten it with M8x25mm bolts.

www.deponti.com Assembly Manual –Pinela Deluxe Pergola page
15
5. Fix the self-drilling screws to the integrated gutter and wall mounting bracket.
6.2 Pillar and integrated gutter connection
1. Fix the aluminium pillar and rear integrated gutter on both sides on the ground with M10 Sealed
Nuts as shown at below figure.
NOTE:
•Lift up the rear frame.
•Don’t work alone. You may need an extra hand.
•Rear frame should be lifted up and fixed to the ground.

www.deponti.com Assembly Manual –Pinela Deluxe Pergola page
16
3. Connect the integrated gutter and lateral integrated gutter in a position as shown at below figure.
4. Fix the lateral side integrated gutter to the rear integrated gutter with M10 Sealed Nuts.
5. Check if the structure is level on all sides.

www.deponti.com Assembly Manual –Pinela Deluxe Pergola page
17

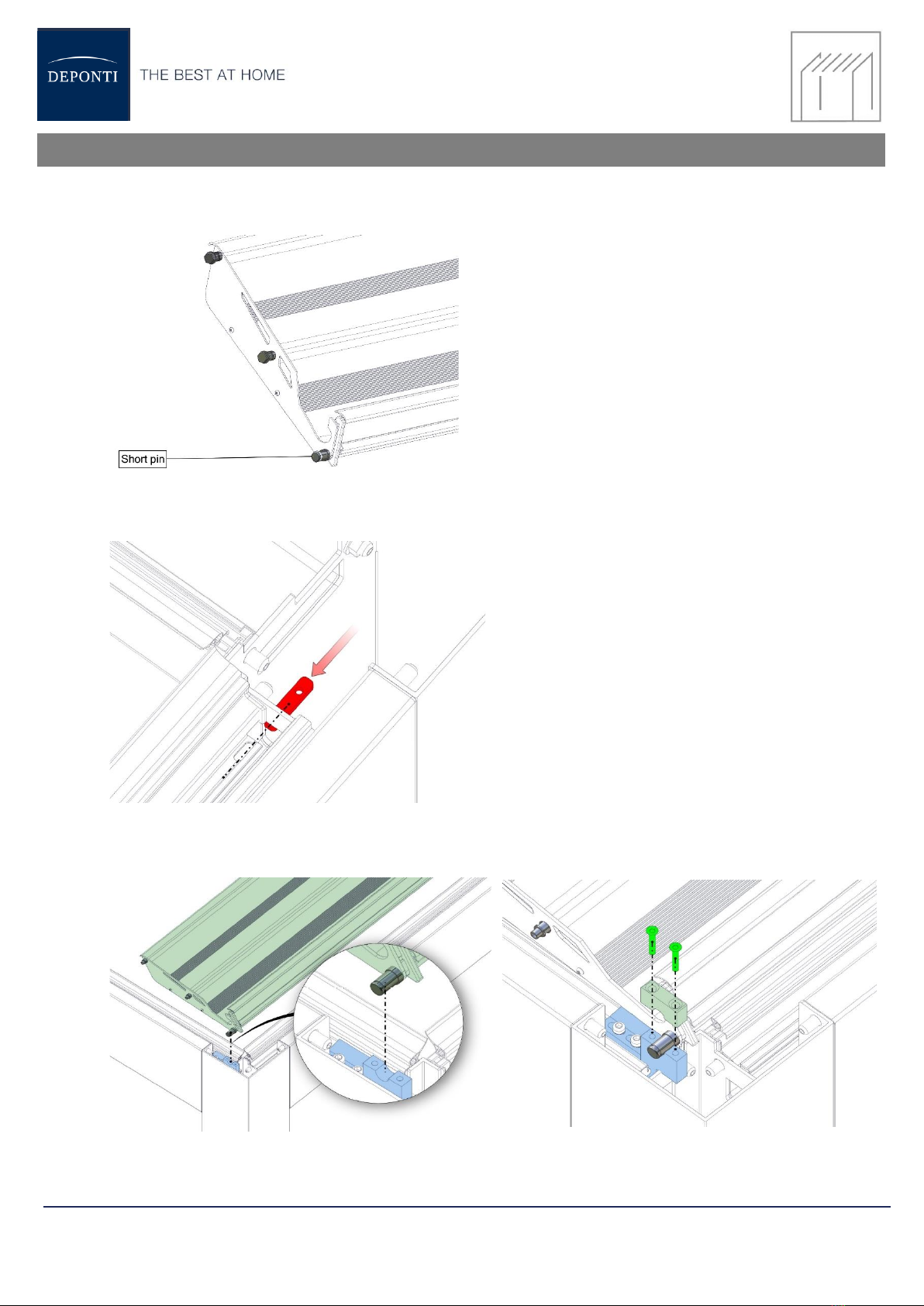

6.3 Panel installation
1. When placing the panels, start at rear(motor side). The rear panel has a short pin.
2. First the pannel should be installed into the pin housing. If it’s not pre-installed, install it
first into the gutter with the housing carrier as shown below
3. Place the short pin into the housing and fix it with the clamp and the a M5 countersunk
head bolt.

www.deponti.com Assembly Manual –Pinela Deluxe Pergola page
18
4. When you fixed the short panel, the next panel in line is a type-3 panel. There is a short
plate, a long plate and its carrier. Place the panel in front of the first panel and fasten with
the M6 special bolts.
5. In front of the panel type-3 there should be standard panels (the number of panels
depends on your projection). The standard panels are all the same.
6. The last panel is the panel with a locomotive carrier.

www.deponti.com Assembly Manual –Pinela Deluxe Pergola page
19
7. This is the front house mechanism placing; The gear housing should be on each side. The
housing has to be aligned with your projection direction.
7. The bracket’s housing will fit exactly on the pins. After that place the washer and fasten
the nuts.
6.4 Rear mechanism house placing
1. There is a suitable bracket for each side.

www.deponti.com Assembly Manual –Pinela Deluxe Pergola page
20
2. Place the front gear into the ‘front mechanism house’.
3. Turn and place the stretching bolts. The stretching bolts must be placed in the related
housing.
