Depot Quad Tube 150M User manual
QUAD TUBE 150M
PROGRAMMABLE COMBO GUITAR AMPLIFIER
OWNER’S MANUAL
Originally written by ADA SIGNAL PROCESSORS, INC. Scanned and edited by Jur at 12th of january 2003.
Original ADA logo edited and rendered by Barend Onneweer of Raamw3rk.) The version of this manual is
copyrighted and may not be sold or placed on a website without permission of the editor.
Release No.1 for http://www.adadepot.com
QUAD TUBE 150M OWNERS MANUAL
CONTENTS
Chapter 1 introduction

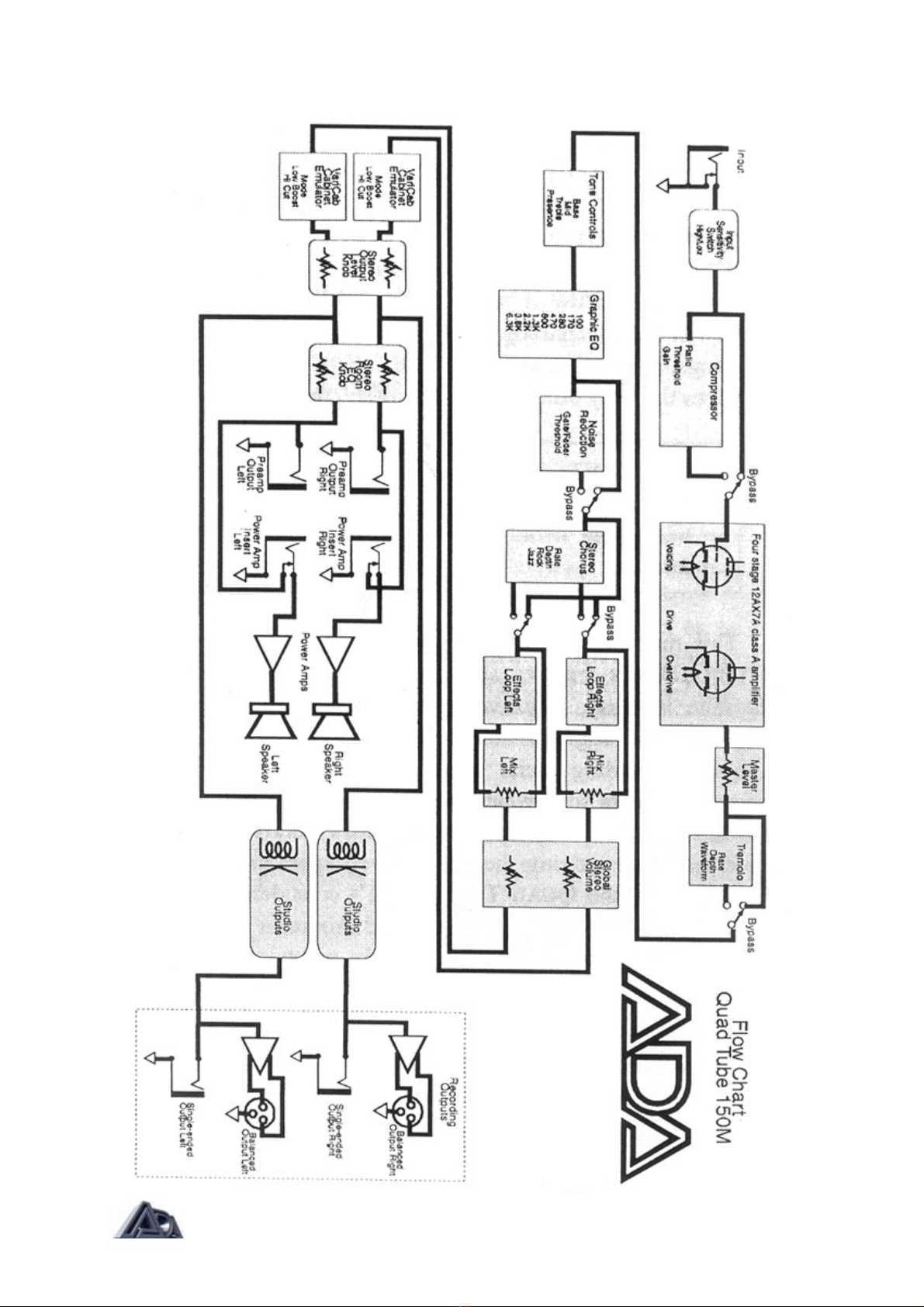

Quad Tube150m flow chart
About this manual
Quad Tube150m features
Chapter 2 quick start
Chapter 3 getting started
Controls and connectors
Connecting the Quad Tube150m
Audio
Effect loops
Midi
Using the 4x4 midi program Changer
Chapter 4 tutorial
Basics of the Quad Tube150m
Programs
Quad Tube150m modes
Quad Tube150m display
Play mode
Program edit mode
System edit mode
Powering up
Play mode
Recalling programs
To step through programs
To switch between user and preset programs
Program edit mode
Editing basics
To select a parameter for editing
To move between parameter screens
To adjust the value of the selected parameter
To edit a program in program edit mode
Selecting and editing parameters
Editing the Graphic EQ
Comparing Edited Programs
Naming User Programs
Storing Programs
To store a program in the User program shown
To select a different User program in which to store a program
To abort the store process and return to editing
To abort the store process and discard Memory Protection
Setting Input and Output Levels
Using the Stereo Effects Loop
System Edit Mode
Copying Programs
MIDI Parameters
Setting the MIDI Channel
Making a MIDI Program Change Map
The Next Step
CHAPTER 5 REFERENCE
Play Mode
Program Edit Mode
Storing, Abandoning, and Resuming Edits
Tube Voicing
Page 2 of 62
QUAD TUBE 150M OWNERS MANUAL
Drive & Master Level
Front and Rear Panel Diagram
Compressor
Tone Controls
Graphic EQ
Stereo Chorus
Tremolo
Noise Reduction
Stereo Effects Loop
VariCAB
Program Title
Real-Time MIDI (RTM)
Macros
Real-Time MIDI Preview
Making RTM Assignments in Quick Mode
General procedure for RTM Assignments
Making RTM Assignments in Expert Mode
Compare
System Edit Mode
MIDI Function Menu
About Global MIDI Parameters
Set MIDI Channel
Edit MIDI Mapping
MIDI Mismatch Warning (On/Off)
Enable MIDI Monitor
Send Library
Send Current Program
Pedal Edit Controller
Stereo Volume Controller
Tuner Mute Control
OTHER SYSTEM EDIT FUNCTIONS
Copy Presets to User
Copy Single Programs
Swap Programs
Panel Mode
Program Change Speed
Restore System Defaults
Memory Protect
Appendix A, SPECIFICATIONS
Appendix B, MIDI and the QUAD TUBE 150M
Appendix C, Troubleshooting
Appendix D, Using a MIDI Continuous Controller
Quad Tube Program Chart
Real time MIDI chart
WARRANTY
Page 3 of 62
QUAD TUBE 150M OWNERS MANUAL
PACKAGE CONTENTS
1 QUAD TUBE 150M
1 4x4 MIDI Program Changer
1 7 pin MIDI Phantom Power Cable
1 Vinyl Cover
4 Swivel Casters
1 QUAD TUBE 150M manual
1 Warranty Registration Card
1 Extended Warranty Application
1 Rack Holster
4 Rack mount screws & washers
IMPORTANT: Please check package contents to be certain that everything is included.
Report any missing items to ADA CUSTOMER SERVICE: (510) 532-1152
ADA RACK HOLSTER APPLICATION NOTES
The RACK HOLSTER is designed to hold a single space rack device not weighing more than
20 Ibs. The recommended depth of the equipment mounted in the RACK HOLSTER should
be less than 12 inches. It is not recommended that the RACK HOLSTER be mounted during
long transport of the combo amp to which it is attached.
To mount the RACK HOLSTER, position the RACK HOLSTER against the combo amp,
aligning the round plastic clamps on the combo amp to the clamps on the RACK HOLSTER.
With the palm of your hand rap the right hand side near the right edge of the RACK
HOLSTER forcing the clamps to engage. Repeat this for the left side of the RACK
HOLSTER. Once connected, the clamps are very strong and are not easily separated. There
should be a slight gap between the combo amp rear surface and the RACK HOLSTER.
To remove the RACK HOLSTER, first unmount the rack mounted unit from the RACK
HOLSTER. Pull the right side directly back (horizontally) by grabbing the RACK HOLSTER
with both hands at the top and bottom edges at the right hand edge and quickly jerking it
away from the combo amp. Be sure that the combo amp will not tip over. Repeat this for the
other side of the RACK HOLSTER.
The RACK HOLSTER kit contains:
1 each RACK HOLSTER chassis
Length 19-1/2 inches
Width 2 inches
Depth 4 inches
4 each No. 10 x 1/2" screws ADA P/N 581178
4 each No. 10 black plastic washers ADA P/N 582419
Page 4 of 62
QUAD TUBE 150M OWNERS MANUAL
Page 5 of 62
