PHOS mini LT
OPERATING INSTRUCTIONS

2Operating Instructions PHOS mini LT | V1.1 | 04. 09. 2014 Derksen Lichttechnik GmbH
TABLE OF CONTENTS
Safety Instructions...........................................................................................................................4
Electrical Safety........................................................................................................................ 4
Burns and Fire Safety...............................................................................................................5
Safe Use of Lighting Tracks.....................................................................................................5
Safety during installation and operation...............................................................................6
Lamp Safety................................................................................................................................6
Technical Overview of the projector and its components.......................................................7
Setting Up..........................................................................................................................................8
Inserting the Gobo.....................................................................................................................8
Adjusting the Projected Image............................................................................................... 9
Installation......................................................................................................................................11
Dismounting....................................................................................................................................12
Cleaning, Repair and Service......................................................................................................13
Technical Specifications.............................................................................................................14
Configuration............................................................................................................................14
Dimensions...............................................................................................................................15
Projection Size Chart..............................................................................................................15

3
Operating Instructions PHOS mini LT | V1.1 | 04. 09. 2014 Derksen Lichttechnik GmbH
OPERATING INSTRUCTIONS
Thank you for deciding to purchase this high quality product. The PHOS mini LT projector
is produced exclusively in Germany and meets the highest standards of quality and
safety. We hope you enjoy many fascinating hours with your new LED projector! To use
the device effectively and safely, please read this operating instruction carefully first!
Package Contents:
• LED Projector PHOS mini LT
• Operating instructions
These optional accessories are available:
• Glass gobos, custom made according to your specifications
WARNING!
Read the safety instructions
before operating the appliance or performing maintenance.

4Operating Instructions PHOS mini LT | V1.1 | 04. 09. 2014 Derksen Lichttechnik GmbH
SAFETY INSTRUCTIONS
ELECTRICAL SAFETY
• Disconnect the lighting track system from the mains before you install or remove the
LED projector or make modifications to the system.
• Verify that the voltage of the electricity supply system and the voltage of the device
are compatible. To this end take note of the type label on the projector.
• Operate the device only with the housing closed completely.
• The device may only be used in dry, closed rooms. Do not operate the device in a
humid environment or near dripping or splashing water.
• Do not place any containers with liquids next to the device, such as flower vases or
drinks. If the device comes into contact with any liquids it may result in electric shock
or fire.
• If, despite all precautions, liquid is spilled into the unit, it must immediately be
disconnected from the mains. Do not touch the housing - ingress of liquids may
cause an electric shock! Turn on the power again, if you are sure that the device is
thoroughly dried.
• If you hear unusual noises, see smoke or strong odor strikes, disconnect the track
from the mains immediately and contact your technical service. Continued use could
result in electric shock or fire.

5
Operating Instructions PHOS mini LT | V1.1 | 04. 09. 2014 Derksen Lichttechnik GmbH
BURNS AND FIRE SAFETY
• Do not operate the unit near easily flammable substances such as alcohol or benzine.
• Avoid touching the hot device during operation. Turn the unit off and let it cool at
least 10 minutes before servicing the unit or changing the gobo.
• The device is designed for normal room temperature. High ambient temperatures or
direct sunlight may damage the unit.
• Make sure that the device is adequately supplied with fresh air, so that it does not
overheat. Never cover the projector with objects.
• When the device is installed in a closed wall, ceiling or cabinet, ensure a sufficient
supply of fresh air.
SAFE USE OF LIGHTING TRACKS
• Lighting tracks must be installed by a qualified electrician in accordance with the
local safety regulations. Always follow the installation instructions that came with
your lighting track system!
• Never install lighting tracks in a damp or wet location.
• Disconnect the track system from the mains before you install or remove the LED
projector or make modifications to the system.
• The adapter is made from highly durable polycarbonate. Avoid contact with
lubricants, solvents or cleaning solutions, because these may decrease the durability
of the plastic.
• Cleaning:Unplug the lighting track system from the mains and use only a damp cloth.

6Operating Instructions PHOS mini LT | V1.1 | 04. 09. 2014 Derksen Lichttechnik GmbH
SAFETY DURING INSTALLATION AND OPERATION
• Ensure that the supporting structure, such as ceiling, curtain wall or truss system,
can carry at least four times the weight of the device, so at least 7 kg
(safety factor 4). Observe the local safety regulations!
• Always use the appropriate mounting accessories according to the local conditions,
such as anchors, screws, etc.
• Make sure that the lens tube and lens are attached firmly so that they can not fall
down.
• Use only genuine accessories and spare parts from Derksen Lichttechnik, which
have been specially developed for use with the device. Use only glass gobos, metal
gobos or special color slides as projection templates.
• Do not alter, disassemble, or otherwise damage the projector, since otherwise it will
no longer meet the safety requirements.
LAMP SAFETY
• Do not look directly into the light beam of the LED.

7
Operating Instructions PHOS mini LT | V1.1 | 04. 09. 2014 Derksen Lichttechnik GmbH
TECHNICAL OVERVIEW

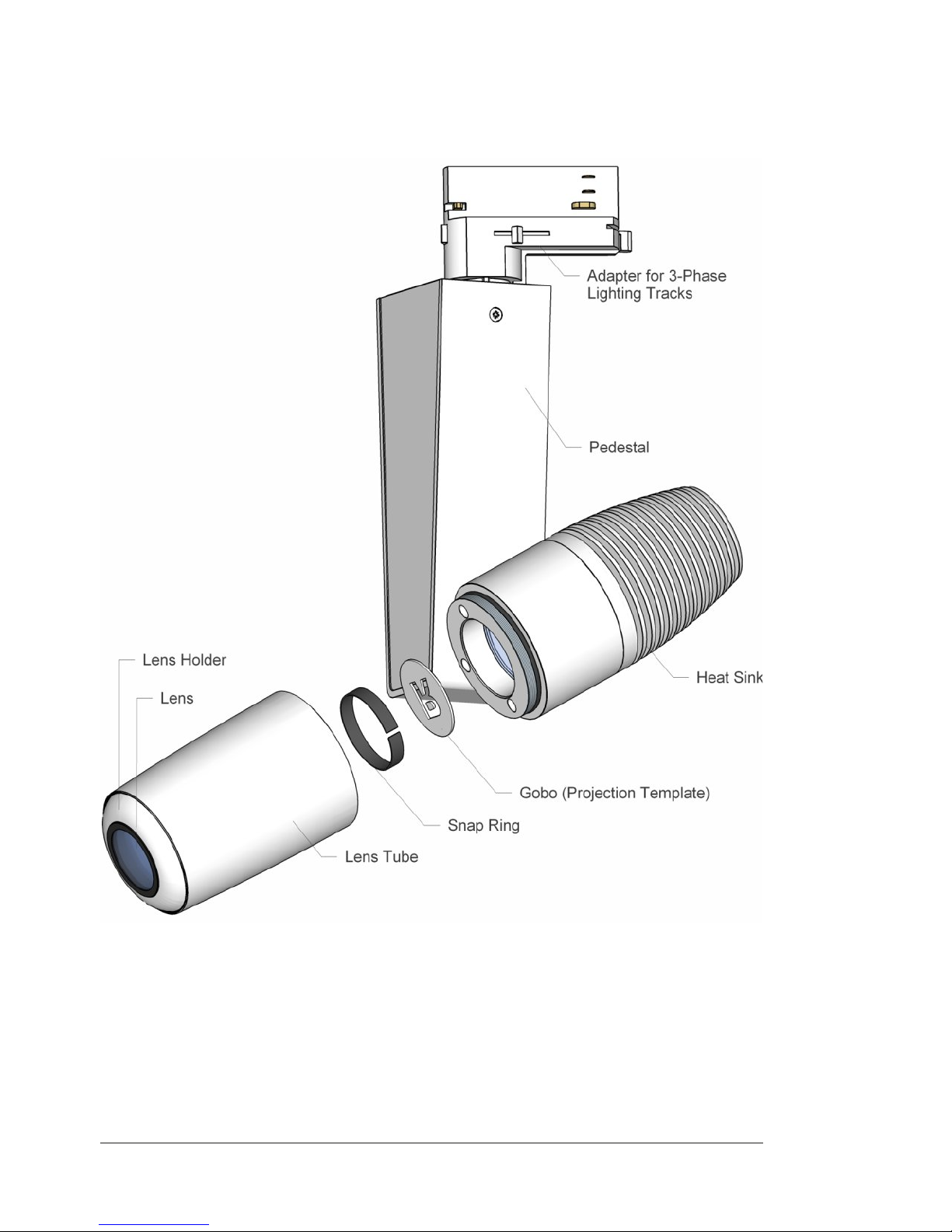

Technical overview of the projector and its components

8Operating Instructions PHOS mini LT | V1.1 | 04. 09. 2014 Derksen Lichttechnik GmbH
SETTING UP

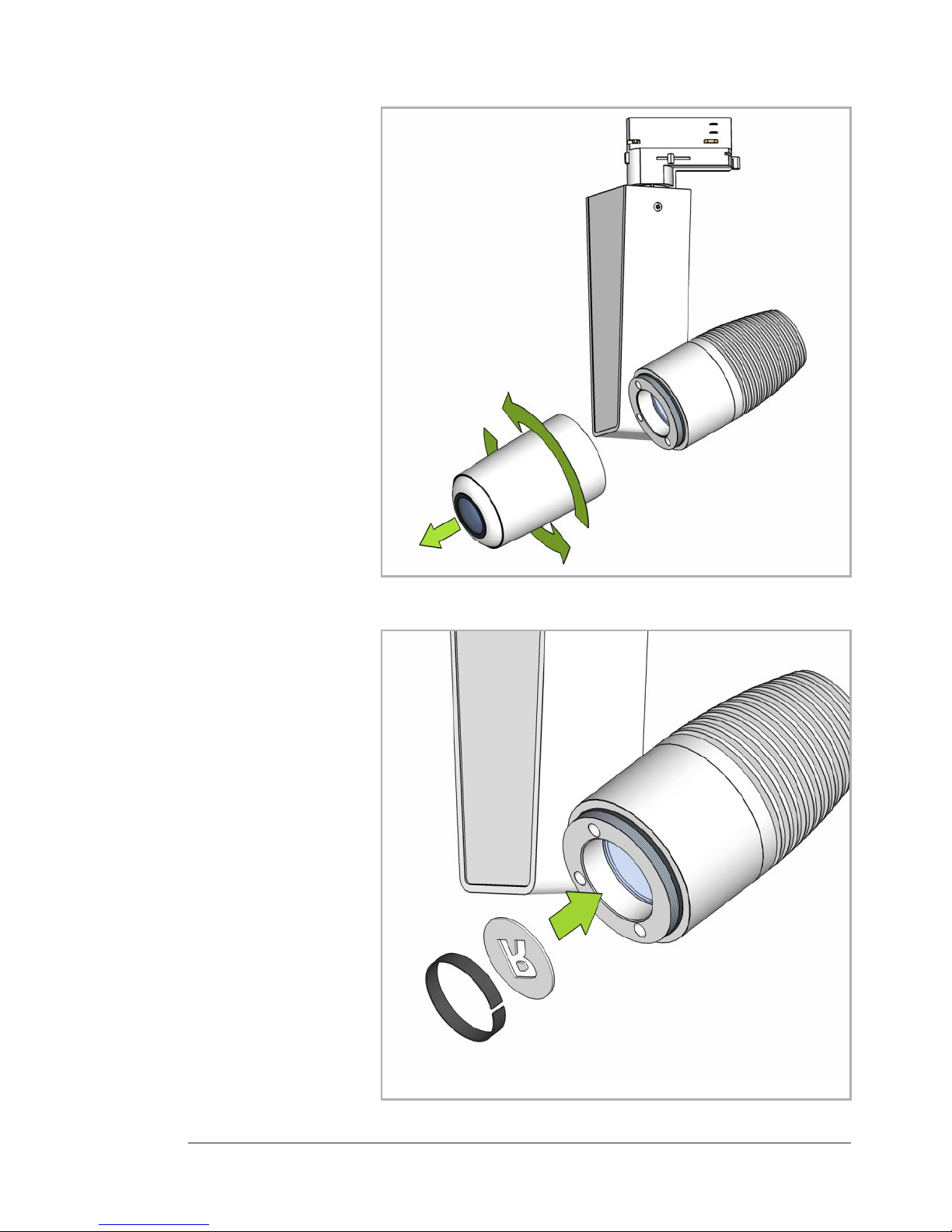

Step 1:
Turn the lens tube
counterclockwise and
remove it from the
projector.
Step 2:
Insert the gobo in the
light output of the
device.
Insert the snap ring in
the light output, while
squeezing it slightly.
Push the snap ring
inside until it fixes the
gobo.

9
Operating Instructions PHOS mini LT | V1.1 | 04. 09. 2014 Derksen Lichttechnik GmbH
How to place a gobo correctly:

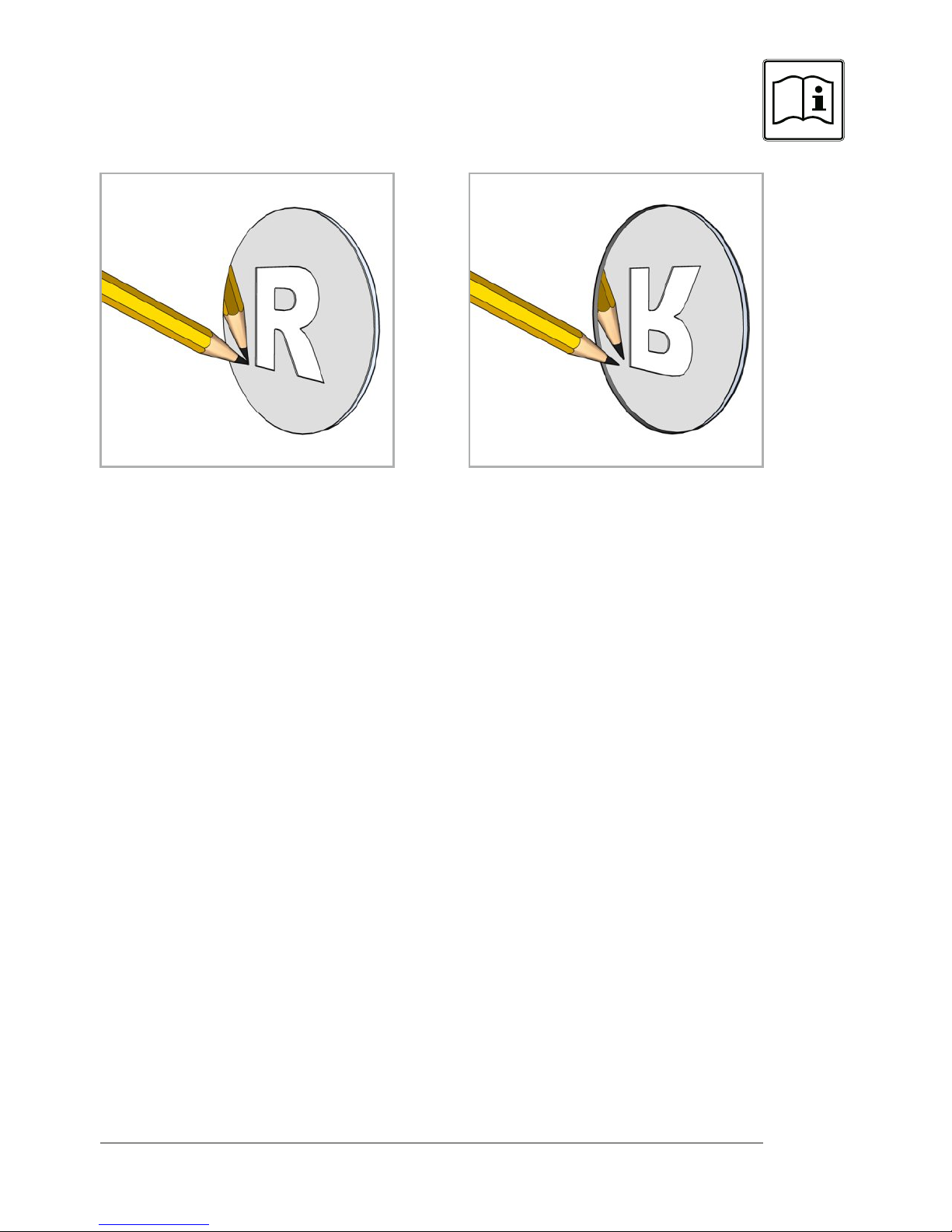

The coated side should face to the light source, the motif should be upside down.
Coated side:the object is reflected
directly and without a gap. The coated
side should face the light source.
Glass side:there is a small gap
between the object and its reflection.
The glass side should face the lens.
• Put the lens tube on the projector and turn it clockwise until it is firmly attached.
• Switch the device on and align the projected image.
• Focus the projected image by turning the lens in the lens tube forward or backward
(step 4).
• Eventually you need to align the projected image by rotating the gobo (step 3).
Therefore, the lens tube must be removed again.

10 Operating Instructions PHOS mini LT | V1.1 | 04. 09. 2014 Derksen Lichttechnik GmbH

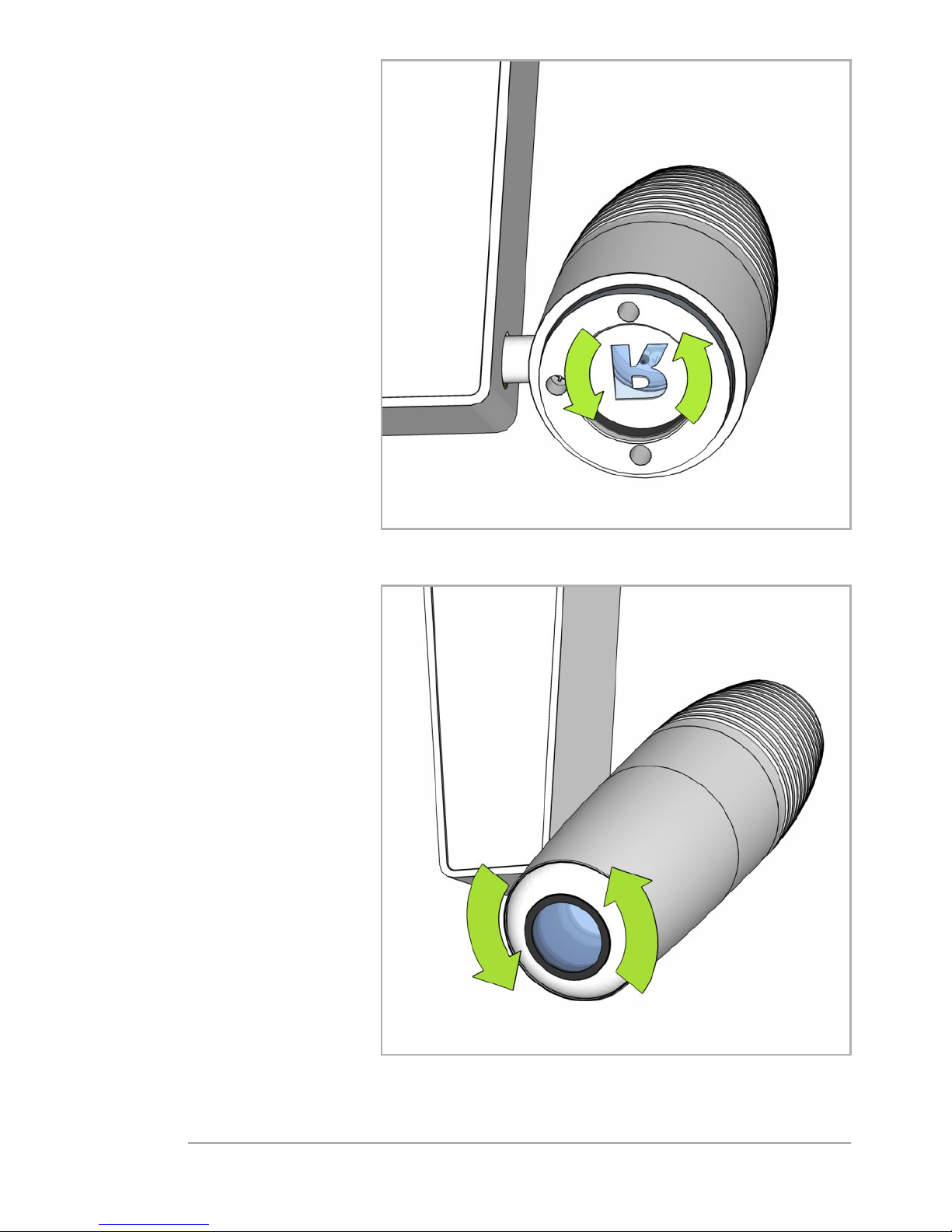

Step 3:
Rotate the gobo to
align the projected
image.
Step 4:
Focus the projected
image by turning the
lens.

11
Operating Instructions PHOS mini LT | V1.1 | 04. 09. 2014 Derksen Lichttechnik GmbH
INSTALLATION
• Do not shift the adapter in the track! To change the position of the LED projector,
remove the adapter from the track and insert it in the new position.
Fixing knob
OFF Circuit selector

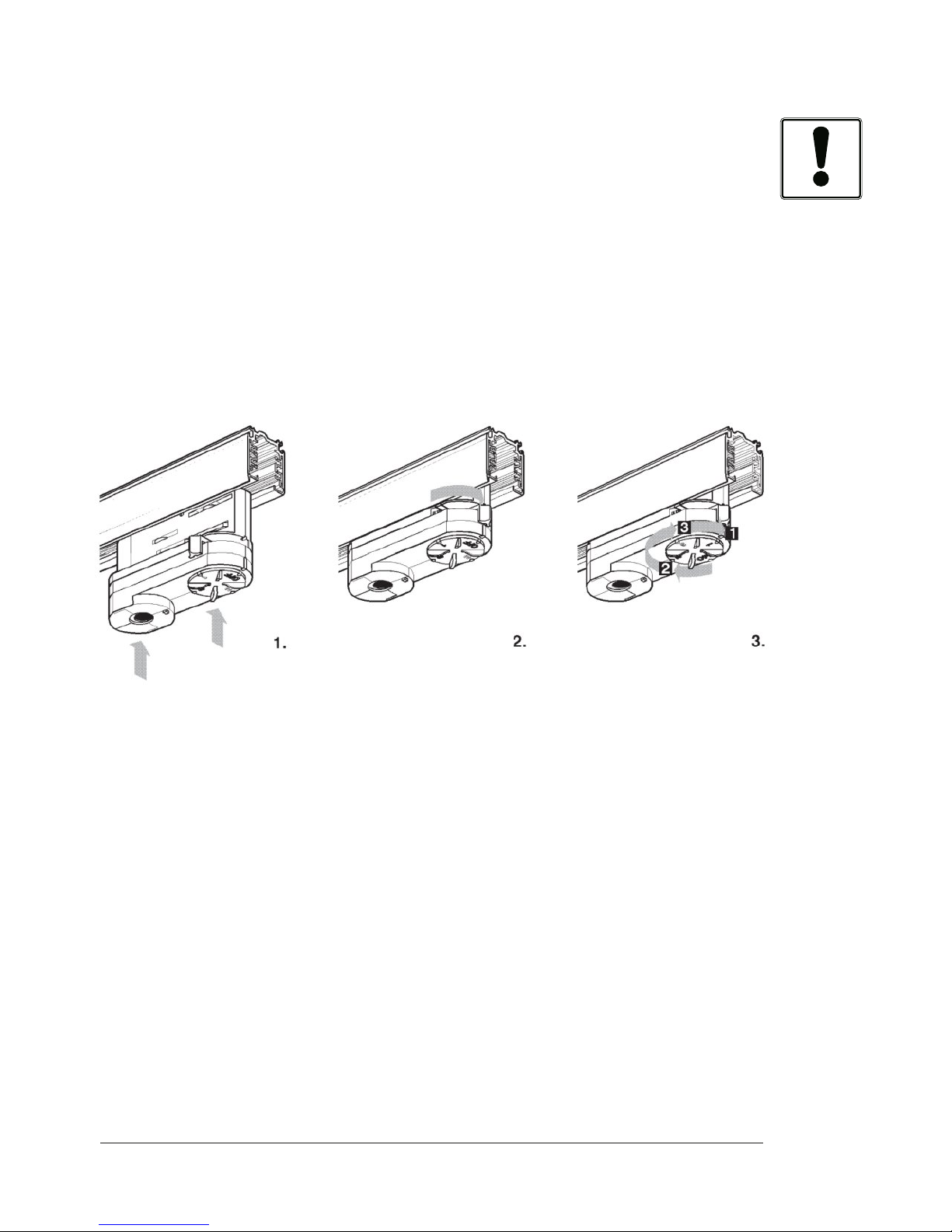

1. Push the adapter into the lighting track until it snaps into place.
2. Turn the fixing knob clockwise to lock the adapter firmly into the track.
3. Set the selector to the desired circuit (1 - 2 - 3).

12 Operating Instructions PHOS mini LT | V1.1 | 04. 09. 2014 Derksen Lichttechnik GmbH
DISMOUNTING
• Do not shift the adapter in the track! To change the position of the LED projector,
remove the adapter from the track and insert it in the new position.
Fixing knob
OFF

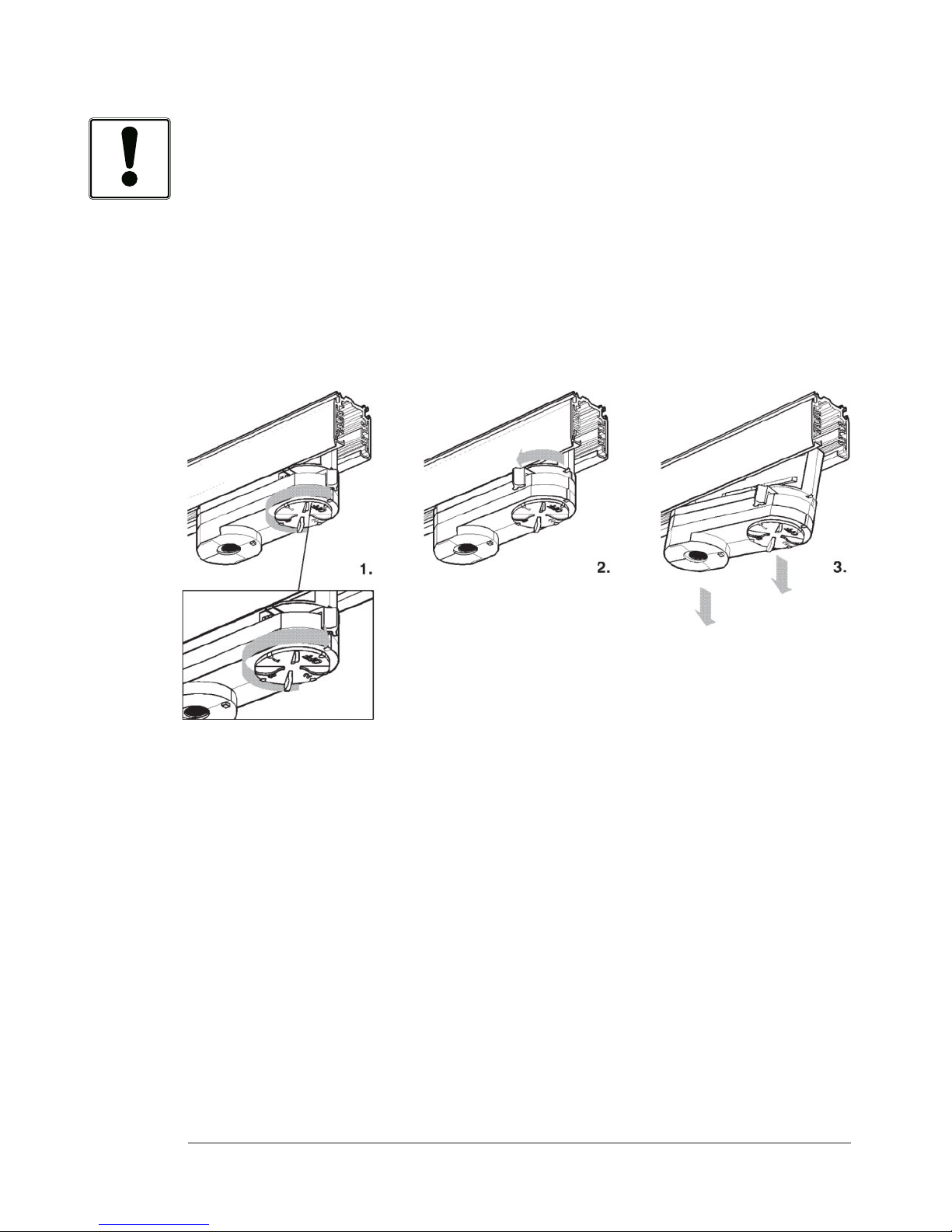

1. Turn the circuit selector to the "OFF"position.
2. Turn the fixing knob counterclockwise to unlock the adapter. Note:The adapter can
only be unlocked when the circuit selector is set to the "OFF"position.
3. Pull the adapter with the end of the locking lever first out of the track.

13
Operating Instructions PHOS mini LT | V1.1 | 04. 09. 2014 Derksen Lichttechnik GmbH
CLEANING, REPAIR AND SERVICE
• Clean the device only from the outside with a soft cloth. Do not use strong detergents
or solvents such as alcohol or benzine.
• Use only optical cleaning cloths to clean the front lens.
• Repairs and cleaning of the inside may only be performed by a qualified service
technician.
• Devices can be returned for service or repair directly to Derksen Lichttechnik GmbH.
Transport and ship the device in its original packaging. If this is not available
anymore, you can use a cardboard box with adequate padding on the inside.
• Only use genuine spare parts from Derksen Lichttechnik.

14 Operating Instructions PHOS mini LT | V1.1 | 04. 09. 2014 Derksen Lichttechnik GmbH
TECHNICAL SPECIFICATIONS
item:............................................................................................................................. PHOS mini LT
housing:.............................................................................................................................aluminium
weight:.....................................................................................................................................1.75 kg
on / off switch:.............................................................................................................not available
environmental conditions:......................................................for dry indoor environments only
pivot range:..........................................................................approx. 320° vertical, 358 horizontal
cooling:..................................................................................................................passiv, noiseless
light source:.................................................................................................10 W High-Power LED
recommended projection distance in normal room light:.....................................................3 m
recommended projection distance in darkness:....................................................................6 m
average lifetime of the LED:.....................................................................65,000 operating hours
colour temperature:....................................................................................... 6,500 - 8,000° Kelvin
luminous flux of the LED:............................................................................................... 860 Lumen
gobo size / image size:.................................................................................. 37,5 mm ø / 20 mm ø
voltage:.....................................................................................................90 - 264 V AC / 47 - 63 Hz
active power (power consumption):......................................................................................14 W
apparent power:...................................................................................................................... 36 VA
efficiency:....................................................................................................................... 0,39 cos.
electrical protection:..........................................................................................protection class I
item number:
silver.....................................................................................................................................20001230
black.....................................................................................................................................20001220
white.....................................................................................................................................20001210
Configuration
Standard series with high power LED, 85 mm standard lens, adapter to mount the
projector on a 3-phase lighting track. The machine is ready to run. Required accessories:
glass gobo with individually designed motif.

15
Operating Instructions PHOS mini LT | V1.1 | 04. 09. 2014 Derksen Lichttechnik GmbH
Projection diameter with increasing distance
We reserve the right to make technical and optical modifications.
Our general terms and conditions apply.
Dimensions

Derksen Lichttechnik GmbH
Sauerlandstraße 5
45889 Gelsenkirchen
Germany
Telefon:+49 (0) 2 09 / 9 80 70-0
Telefax:+49 (0) 2 09 / 9 80 70-60
[e-mail]
www.derksen.de
