Desisti SUPER LED F10 VW Vari-White User manual

This Manual is applicable to Revised January 18th 2017
De Sisti SUPER LED F10 Vari White
Pag 1.
SUPER LED F10 VW Vari-White
200W Vari-White from 2.750 to 6.900 °K - Enhanced CRI > 94
White ight, with Adjustab e Corre ated Co our Temperature
INSTRUCTION MANUAL
MANUFACTURER REPRESENTATIVE
ILT Italy S.r.l.
Via Cancelliera # 10a, 00041 Albano Laziale (Rome- Italy).
Tel. [phone] Fax. [phone]
U.R.L.: www.desisti.it E-mail: [e-mail]
1. INTRODUCTION
Congratulations on your purchase of a SUPER LED F10 Vari White lighting fixture.
Our commitment to Total Customer Satisfaction and our consolidated experience and leadership in design
innovation and manufacturing of lighting products for the professional Entertainment Industry means you can
depend upon the quality of this product.
The SUPER LED F10 is a compact, highly efficient Fresnel lens spotlight using a LED ARRAY combined with
the DE SISTI Patented optical system to optimize the photometric performances of LED ARRAYS when
utilized in combination with either Fresnels or Plano Convex lenses.
The Lighting Fixture is DMX Controlled and includes a number of parameters that can be set locally, it is
equipped with power supply for AC universal feed 90/240V 50/60Hz and feature variable CCT from Tungsten
to Daylight with high power and high CRI.
It utilizes Standard accessories from the DE SISTI range of equivalent Fresnel Lens size, such as Barndoor,
Colour Frame, Cones, scrims.
Manual Operated
Pole Operated

This Manual is applicable to Revised January 18th 2017
De Sisti SUPER LED F10 Vari White
Pag 2.
2. YOKE AND ACCESSORIES ASSEMBLY
3. POWER AND DMX DAISY CHAIN
The SUPER LED F10 permits both POWER and DMX DAISY
CHAIN.
In fact each Fixture is respectively equipped with:
For DMX:
•1 XLR5 pin Panel Mount Male (DMX IN)
•1 XLR5 pin Panel Mount Female (DMX OUT)
For Mains Supply
•1 20A Powercon NAC3MPA BLUE (POWER IN)
•1 20A Powercon NAC3MPB WHITE (POWER OUT)
It is recommended to Daisy Chain a Max of 10 fixtures, even if the limitations imposed by DMX Standards are
for an higher q.ty of units and even if the Powercon Connections are rated for 20A max.
SUPER LED F10
(POLE OPERATED)
(MANUAL OPERATED)
SUPER LED F10

This Manual is applicable to Revised January 18th 2017
De Sisti SUPER LED F10 Vari White
Pag 3.
4. CHARACTERISTICS AND PERFORMANCE DATA
DESCRIPTION VALUE
DESCRIPTION VALUE
 LED Power 200 W
 Protection Type
IP 22
 Power
Consumption 220W @ 230 V 230W @ 120 V
 Max Housing temperature
70 °C
 DMX Data link
USITT DMX512-A
 This product uses a 5-pin XLR for
DMX input and output.
 Use a shielded data cables.
 Do not overload the daisychain.
Up to a maximum of 32 devices
can be used on a single DMX
chain.
 Weight of Fixture
M.O. P.O.
13,5 kg. 14,8 kg.
 Weight of barndoor
4 leaf 8 leaf
1,4 kg. 1,65 kg.
 DMX
Channels:
Total 4 DMX Channels:
Dimmer / Light Intensity 16 BIT
Base : Dimmer Gross
Base +1: Dimmer Fine
Base +2: CCT Control
Base +3: CCT Control Mode
 Weight of color frame
0,6 kg.
 Size of scrims & color
frame
Seat Diameter Acc.ies Diameter
306 mm. 305 mm ( 12” )
 Size of Barndoor ring
Seat Diameter Ring Diameter
314 mm. 313 mm.( ≅12”
1/4
)
 Protection
Class
Class 1– ground connection required
 Lens diameter
250 mm.
Specifications subject to change without notice.
5. SAFETY INSTRUCTIONS
Professional use: This luminaire has been designed for professional use and must be operated by
qualified personnel only. Not for residential use.
Grounding: WARNING: THIS LUMINAIRE MUST BE GROUNDED
WARNING: Disconnect Power CORDS before
any maintenance work or opening the FUSE HOLDER.
Risk of serious injury.
Electrical connections: IMPORTANT The cores in this mains lead are colored in accordance with the
following code: Europe America
Ground Green & yellow Green or green & yellow
Neutral Blue White
Live Brown Black
In case the colors of the cores do not correspond to the colors of the connection points on your plug, please
proceed as follows:
•the green or green and yellow core must be connected to the connection point marked with the letter E or
with the symbol or colored in green or in green - yellow;
•the blue (or white) core must be connected to the connection point marked with the letter N or colored in
black;
•the brown (or black) core must be connected to the connection point marked with the letter L or colored in
red.
Working conditions
 Working Position
Lighting fixture: Max. Tilting ±90° from horizontal
 Ambient Temperature, t
a
at the place of installation and Storage
Minimum 10°C, maximum +40°C
 Humidity
at the place of installation and Storage
25-80% (not condensing)
 Minimum distances from
inflammable surfaces Top Back Sides Front
0,3 m. 0,15 m. 0,15 m. 1 m.
The luminaire should never be OPERATED close to inflammable materials. The ones indicated in the above
table are the minimum distances recommended. Other requirements for safe use are:
A. Do not cover the apertures of the luminaire housing. They are essential for correct ventilation.
B. Use only original accessories and spares from De Sisti Lighting.

This Manual is applicable to Revised January 18th 2017
De Sisti SUPER LED F10 Vari White
Pag 4.
C. Before hanging the luminaire ensure that the suspension point (or the stand) is properly rated to accept
the luminaire weight.
D. In case of pole operated use, fit only a P.O. stirrup from De Sisti Lighting.
E. A suitable secondary safety suspension device (safety cable, chain or equivalent) must be fitted between
the suspension point and the eyelet at the front of the body .
WARNING : DO NOT MOUNT THE LUMINAIRE ON A NORMALLY FLAMMABLE SURFACE .
6. INSTALLATION INSTRUCTIONS
The following procedure should be adopted:
Before connecting the luminaire to the electrical mains ensure that:
A. Earth line is present on the power socket.
B. The mains voltage is within the rated range of the luminaire (see technical data on the rating label)
C. The front safety shield is present and in good condition.
It consists of a fresnel lens made by borosilicate untoughened glass,
with a Diamater = 250 mm , thickness = 7 mm typ ( 4 min ).
WARNINGS :
•Do not operate the product if the ambient temperature exceeds 40° C
•Provide a minimum clearance of 0,1m (4 in.) around fans and air vents.
•SHIELDS, LENSES SAFETY OR DICHROIC GLASSES SHALL BE CHANGED IF THEY HAVE
BECOME VISIBLY DAMAGED TO SUCH AN EXTENT THAT THEIR EFFECTIVENESS IS
IMPAIRED, FOR EXAMPLE BY CRACKS OR DEEP SCRATCHES.
•THE LUMINAIRE SHALL ONLY BE USED COMPLETE WITH ITS PROTECTIVE SHIELD
D. Applying power:
Never connect to dimmer power. Install a power plug on the power cable using the following pin assigment:
1 : Neutral 2 : Live Green/Yellow : Ground - This fixture must be connected to ground.
Make sure the local power voltage is within the range specified. If so; connect the power cable and turn the
power on.
E. Stand Alone operation:
Using the navigation buttons and display readout ( refer to the “Local Menu” chapter )
navigate to Manual and set the desired intensity (for additional operations see “Local Menu” chapter)
F. DMX operation:
Connect a DMX cable
Navigate to Address mode (Addr) and set the desired address, (refer to the “Local Menu” chapter).
Connect to DMX controller (refer to the “Channel Setting” in the “Local Menu” chapter) and Use it.

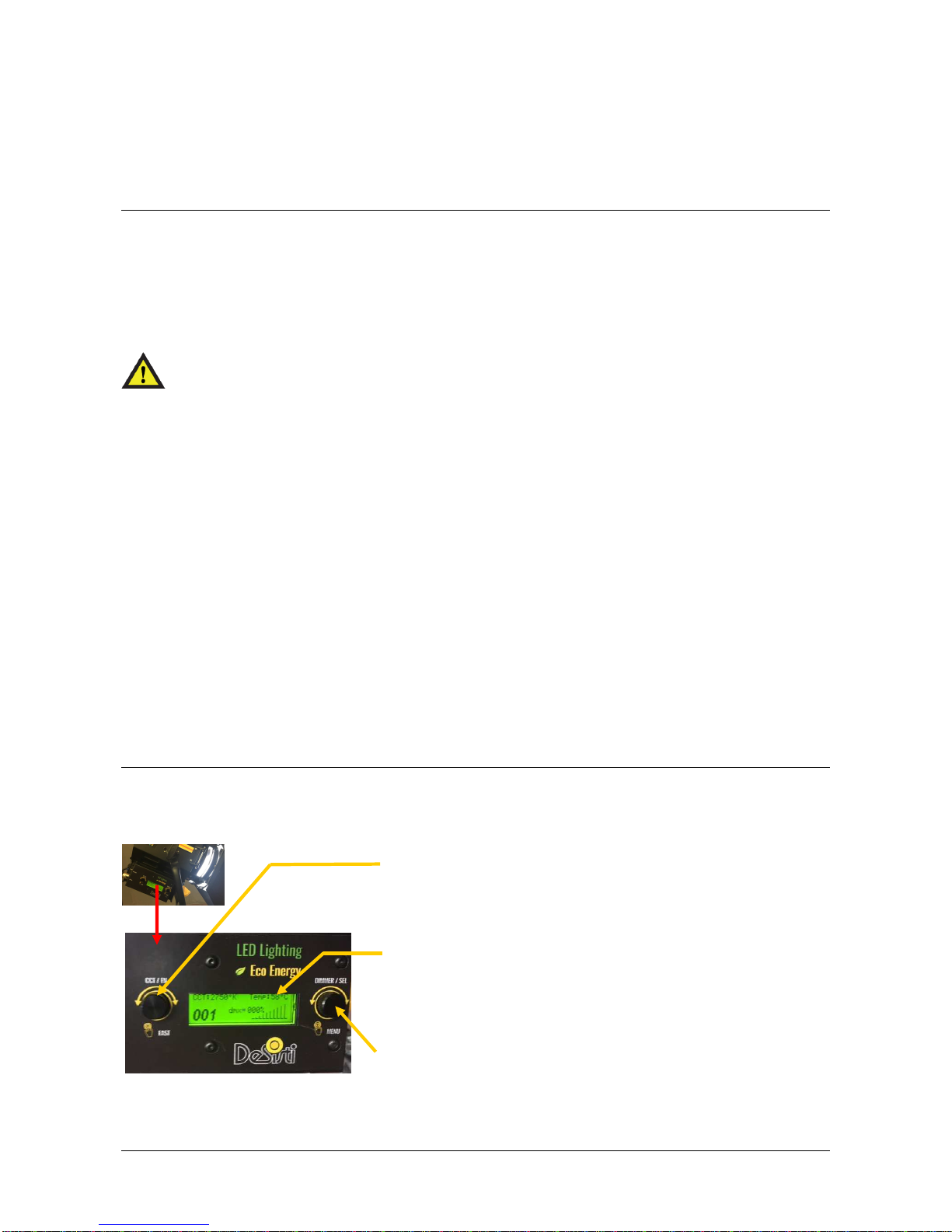

7. LOCAL MENU
The SUPER LED F10 VW has a GRAPHIC DISPLAY backlit, with two local knobs, each one having a
push/click function in addition to the rotation:
KNOB 1
It is as a DEFAULT the CCT Variation Knob,
By rotating it clockwise the CCT Changes from
2.750°K up to 6.900 °K.
If such a knob is kept pushed, it provides a FAST ACTION
on the KNOB 2 which is normally the DIMMING
Display It is a Graphic, backlit LCD Display. It contains all the relevant
information for the product setup and performances, such as CCT,
DMX Address, DMX Level, LED Temperature and local dimming.
When the local knobs are not used for more than 5 seconds the
display back illumination will go OFF and the display itself will go in
STAND BY Mode. It will go ON again anytime a KNOB is activated.
KNOB 2 It is as a DEFAULT the DIMMING Variation Knob,
By rotating it clockwise the Dimming of the Light Changes from
0up to Full Light Output.
If such a knob is pushed, it has the selection or enter function to, for
instance, enter into a Menu.

This Manual is applicable to Revised January 18th 2017
De Sisti SUPER LED F10 Vari White
Pag 5.

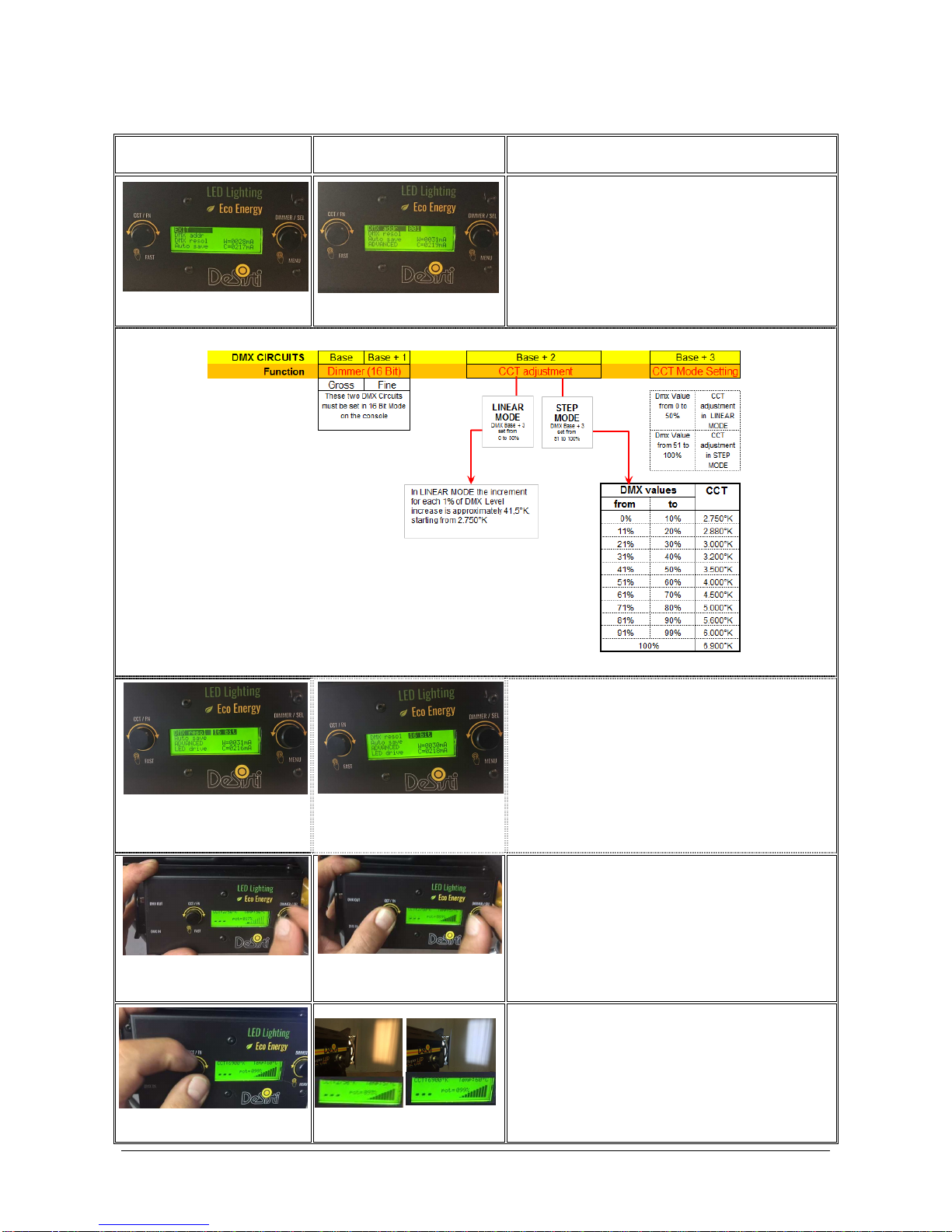

DEFAULT SETTINGS ARE INDICATED IN BOLD LETTERS ON THE FOLLOWING TABLE:
The following are the BASIC FUNCTIONS and COMMANDS that are provided on the LOCAL MENU of the LED
FRESNEL. The unit is provided with a USER MENU accessible instantly on the product.

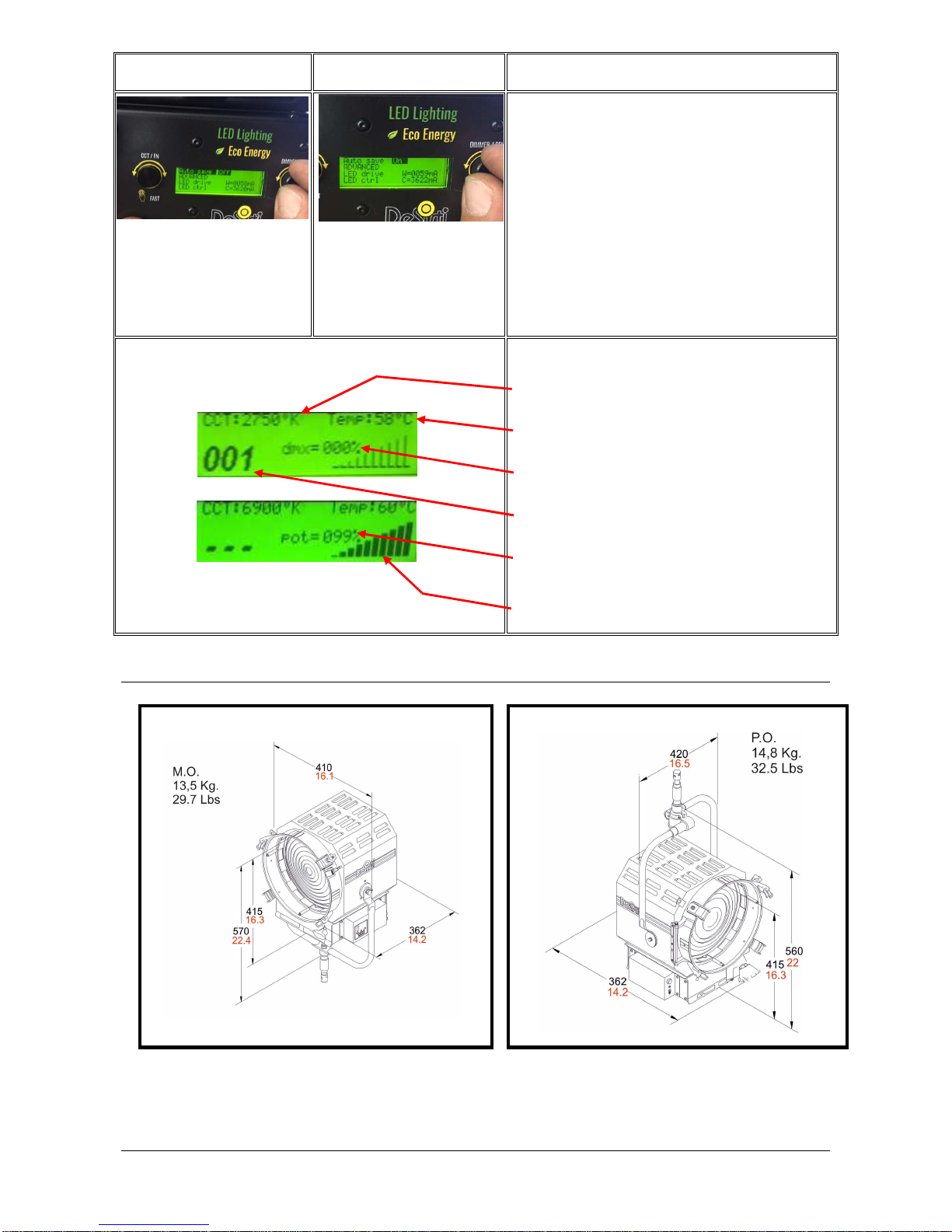

1st MENU
Displayed
2nd MENU
Displayed
Explanation of Each MENU FUNCTION
When the DISPLAY is in STAND BY Mode, please
press KNOB 2 (Sel) to access this MENU….then rotate
KNOB 2 and press it when the DMX addr is selected
Rotate KNOB 2 to decide the DMX address and then
push to select it.
DMX ADDRESS
This Function is to SET the DMX address from 1to 512
The Product is delivered with a default setting of the DMX address at 1.
As indicated next to each picture, it is required to reach the DMX addr Menu, select the
preferred base DMX Address and Select it.
Once the DMX Address is SET, in order to return to the MAIN MENU, it is necessary to
rotate KNOB 2 counter-clock-wise to return to the EXIT item and then select it by
pressing KNOB 2 itself.
CHANNEL SETTING (RESOLUTION & FUNCTION)
This Function is to set the DIMMING RESOLUTION either at 8 bits or at 16 bits.
Select DMX resol by rotating and pushing KNOB 2, the following choises are available:
• 8 bits resolution (the display will show 8 bit).
The Fixture utilises 1 DMX Circuit for the Light Dimming, which is the
BASE CIRCUIT set in the ADDRESS,
• 16 bits: 16 bits resolution (the display will show 16 bit and this is the default setting).
The Fixture utilises 2 DMX Circuits,
the BASE CIRCUIT set in the ADDRESS is the Coarse Dimming,
the second Circuit (BASE +1) is the Fine Dimming.
Of course to benefit of the 16 bits function the corresponding circuits on the DMX
LIGHTING BOARD shall also be set at 16 bits.
• The DMX channels BASE +2 and BASE +3 are dedicated to the CCT Variation
Control as described previously
When the DISPLAY is in STAND BY Mode, please
rotate KNOB 2 to act on the LIGHT INTENSITY
Dimming…Clock Wise to increase the level and
Counter Clock Wise to decrease it. Fine control:
1 full TURN of the KNOB 2 = 5% Dimming Variation
For faster Dimming Control keep KNOB 1 pressed
and rotate KNOB 2:
1 full TURN of the KNOB 2 = 40% Dimming Variation
LOCAL DIMMING CONTROL
This Function is to LOCALLY DIM the LED INTENSITY from 0 to 100% (Product is delivered
with default setting of the DIMMER at 0).
The right knob is doing the dimming action and it goes with a fine tuning in normal condition, or
a fast dimming when rotating KNOB 2 while keeping KNOB 1 pressed in.
When the DISPLAY is in STAND BY Mode, please
rotate KNOB 1 to act on the CCT variation from
2.750°K to 6.900°K…Clock Wise to increase the CCT
and Counter Clock Wise to decrease it.
The CCT value is shown on the DISPLAY.
LOCAL CORRELATED COLOUR TEMPERATURE
CONTROL
This Function is to LOCALLY ADJUST the CORRELATED COLOUR TEMPERATURE from
2.750°K to 6.900°K (Product is delivered with default setting of the CCT at 2.750°K).
The rotation of KNOB 1 will determine CCT increments according to the following table (STEP
MODE).
If a continuous CCT adjustment is required (LINEAR MODE) it is necessary to operate through
a DMX Console: please see DMX parameters above.

This Manual is applicable to Revised January 18th 2017
De Sisti SUPER LED F10 Vari White
Pag 6.
1st MENU
Displayed
2nd MENU
Displayed
Explanation of Each MENU FUNCTION
LOCAL OR REMOTE CONTROL SETTINGS
The LED Fresnel has the facility to block the LOCAL DIMMING and CCT
SETTING and maintain it when the POWER is turned first OFF and than ON
again.
This allows for the LIGHT to be TUNED and FOCUSED locally and its dimming
plus CCT level can be blocked, so that for instance a system lighting a SET can
be operated by a remote switch or simple brakers by TURNING POWER ON.
The machine is set to Auto save OFF as default: in this condition the Fixture
can be controlled locally until a DMX device is connected to it…..once the
Console will be acting it will take priority over any local control.
To turn the Auto save ONplease follow these instructions:
•rotate KNOB 2 and select Auto save Off
•press KNOB 2 to highlight the status of Auto Save, in this case Off
•rotate KNOB 2 to turn the status of Auto save to ON and press it
•Leave the setting in this condition: the light will ignore any DMX control.
In this mode any local dimming setting will be maintained and will be
automatically recalled after power off, when turning the power on again.
INFORMATION PROVIDED ON THE DISPLAY
•Display of Correlated Colour Temperature
•Display of LED Case TEMPERATURE
•Display of DMX LEVEL
•DMX Address
•Display of local POTENTIOMETER LEVEL
(when in local control or turned off DMX controller)
•Graphic Scale of Dimming
8. DIMENSIONS
Dimensions: Black=mm. Red=inches Dimensions: Black=mm. Red=inches

This Manual is applicable to Revised January 18th 2017
De Sisti SUPER LED F10 Vari White
Pag 7.
9. PERIODIC INSPECTION & MAINTENANCE
This product requires very little routine maintenance, if any, but has special cleaning instructions:
Disconnect fixture from power and allow it to cool for 10 min.
1. Vacuum or gently blow away any dust from fan blades and grills
2. Very gently clean the LED with Isopropyl alcohol.
3. Clean the lenses with a soft damp cloth.
4. Check the condition of the safety shield (see chapter: Installation Instructions) before every use.
5. Check Power supply cable and DMX control cable proper conditions
10.SAFETY STANDARDS
Europe: The product conforms the Applicable European Directives & Standards
Low Voltage Directive: 73/23/EEC (as amended by 93/68/EEC)
EMC Directive: 89/336/EEC (as amended by 92/31/EEC & by 93/68/EEC)
Europen Standards:: EN 60598-2-17, EN 60598-1 , EN 55015 , EN 61547
Disposing of this product:
Help preserve the environment! Ensure that this product is recycled at the end of its life.
This product is in compliance with the RoHS and WEEE directives.
