Desoutter EAD20-1300 User manual

www.desouttertools.com
Part no 6159920510
Issue no 04
Date 04/2017
Page 1 / 68
Barcode reader and headlight accessories
Model Part number
Barcode reader for EAD/EID tools 6158121380
Headlight for EAD/EID tools 6158121390
Barcode reader for EABC-eLINK tools 6158130380

20
22
24
26
28
30
32
34

36
38
40
42
44
46
48
50

52
54
56
58
60
62
64

6159920510_04
2 / 68 04/2017
Find more information and your Desoutter contacts on:
Software and documentation available at:
www.desouttertools.com
http://resource-center.desouttertools.com

6159920510_04
3 / 6804/2017

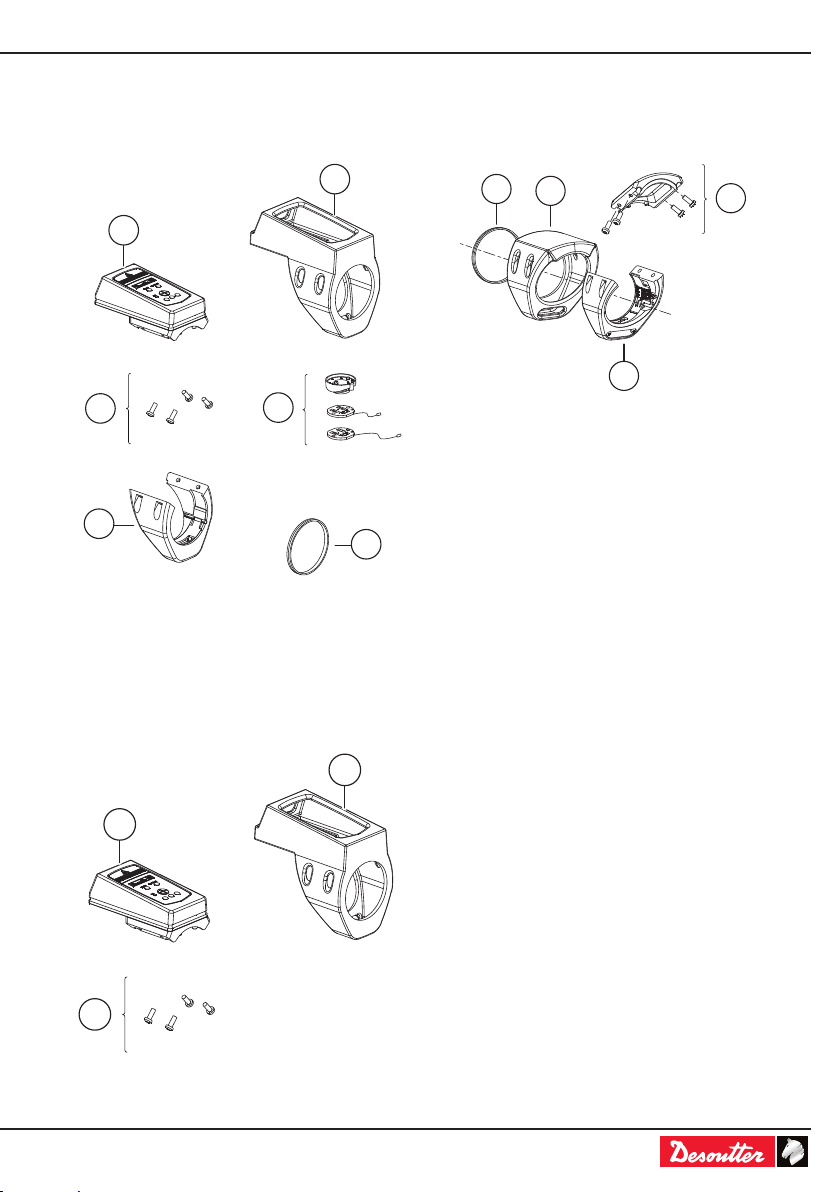

OVERVIEW
BARCODE READER for EAD/EID tools
BARCODE READER for EABC-eLINK tools
HEADLIGHT for EAD/EID tools
1
2
5
4
6
3


12
4
3
1
2
3

6159920510_04
4 / 68 04/2017
TECHNICAL DATA
Tool model Part number
Tool
compatible
from serial
number
Tool total weight
with barcode
reader with headlight
kg lb kg lb
EAD20-1300 6151656060 G 1.68 3.23 1.60 3.54
EAD32-900 6151656070 G 1.68 3.23 1.60 3.54
EAD50-900 6151656090 G 2.08 4.03 2.00 4.42
EAD50-900-HAD 6151658770 D 1.93 3.73 1.85 4.09
EAD70-700-HAD 6151658780 D 2.13 4.13 2.05 4.53
EAD70-800 6151656110 G 2.28 4.43 2.20 4.86
EAD70-800 Sq. 1/2 6151658820 B 2.28 4.43 2.20 4.86
EAD80-650 6151656120 H 2.68 5.23 2.60 5.74
EAD105-500 6151656130 H 2.68 5.23 2.60 5.74
EAD105-500-HAD 6151658790 H 2.53 4.93 2.45 5.41
EAD12-1300-CE10-L47-H10-W22 6151658280 E 2.23 4.33 2.15 4.75
EAD15-1300-OE12-L44-H12-W32 6151658300 E 2.23 4.33 2.15 4.75
EAD18-900-CE10-L47-H15-W22 6151658290 E 2.23 4.33 2.15 4.75
EAD18-1300-OE13-L51-H11-W38 6151658310 E 2.33 4.53 2.25 4.97
EAD28-900-CE13-L62-H15-W30 6151658320 E 2.63 5.13 2.55 5.63
EAD44-670-CE14-L71-H18-W31 6151658330 D 2.73 5.33 2.65 5.85
EAD65-660-CE17-L78-H24-W30 6151658340 D 3.13 6.13 3.05 6.73
EID20-1200 4Q 6151659920 B 1.33 2.53 1.25 2.76
EID25-1200 6151656140 G 1.33 2.53 1.25 2.76
EID32-900 6151656150 G 1.33 2.53 1.25 2.76
EID44-1200 6151656160 G 2.08 4.03 2.00 4.42
EID65-900 6151656170 G 2.08 4.03 2.00 4.42
EID75-800 6151656180 G 2.08 4.03 2.00 4.42
EID20-900-OE12-L31-H14-W38 6151658350 E 2.03 3.93 1.95 4.31
EID28-500-CE13-L45-H15-W30 6151658370 E 2.03 3.93 1.95 4.31
EID32-800-OE14-L34-H18-W40 6151658360 E 2.03 3.93 1.95 4.31

6159920510_04
5 / 6804/2017
Tool model Part number
Tool
compatible
from serial
number
Tool total
weight
with barcode
reader
kg lb
EABC15-900-eLINK 6151660500 B 1.84 4.06
EABC26-560-eLINK 6151660510 B 1.90 4.19
EABC32-410-eLINK 6151660520 B 1.90 4.19
EABC45-330-eLINK 6151660530 B 2.00 4.41
EABC50-450-eLINK 6151660540 B 2.47. 5.45
EABC60-370-eLINK 6151660550 B 2.60 5.73
EABC75-300-eLINK 6151660560 B 3.18 7.01
EABC95-240-eLINK 6151660570 B 3.22 7.10

6159920510_04
6 / 68 04/2017

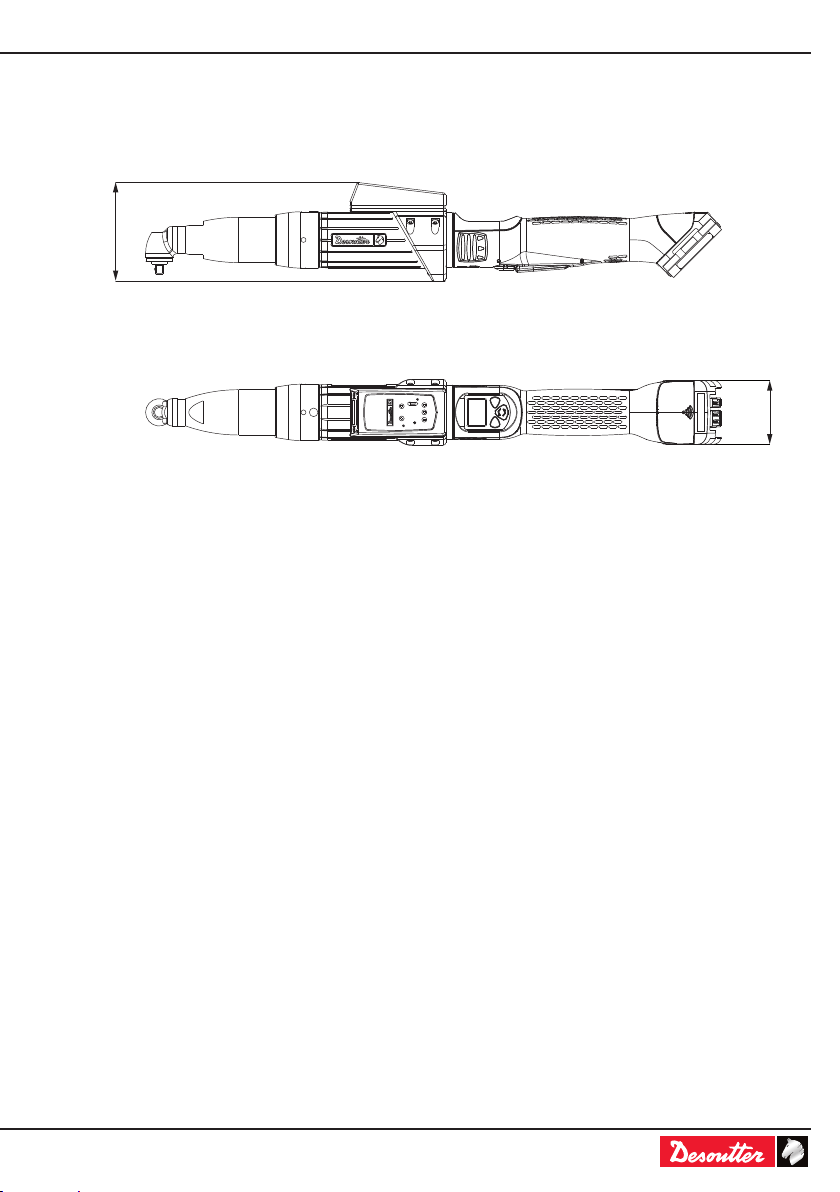

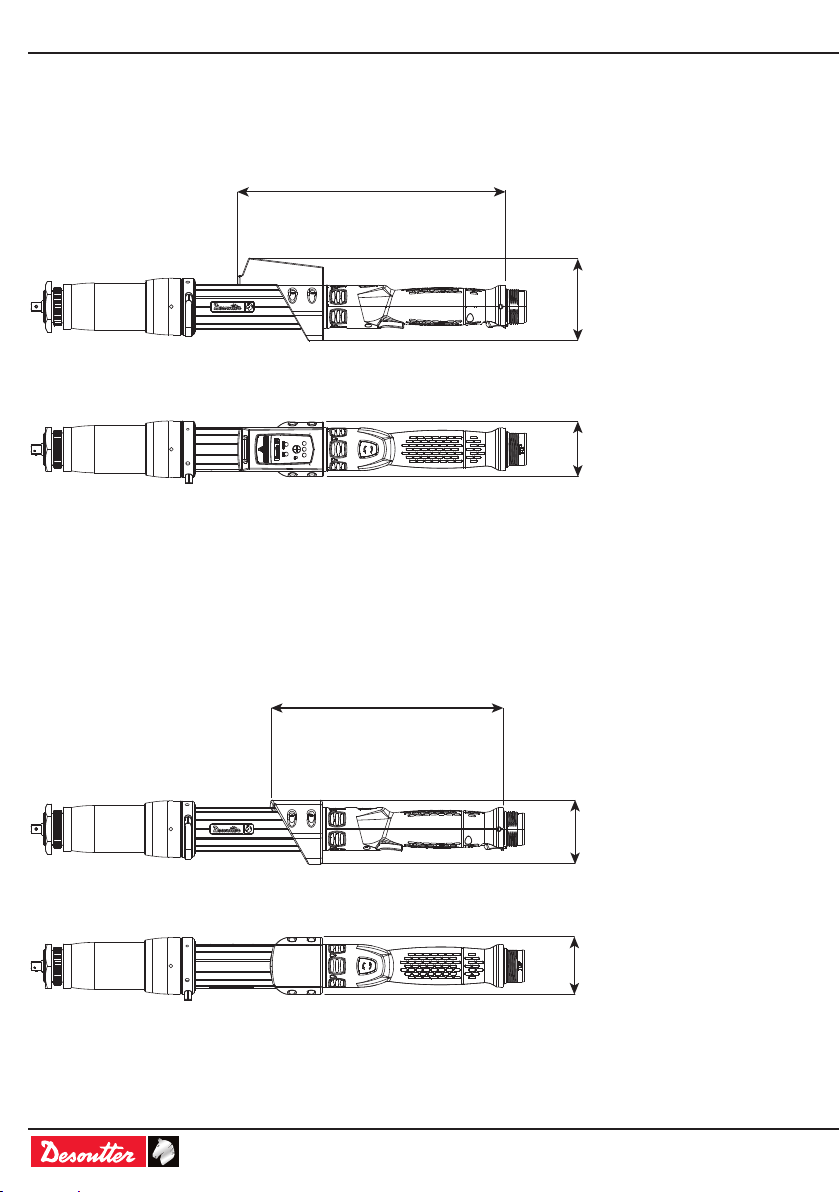

DIMENSIONING (mm)
BARCODE READER for EAD/EID tools
HEADLIGHT for EAD/EID tools
275
85
59
66
59
240

6159920510_04
7 / 6804/2017
BARCODE READER for EABC-eLINK tools
54
81

6159920510_04
8 / 68 04/2017
INSTALLATION
ABARCODE READER for EAD/EID tools
2
1
4
3

6159920510_04
9 / 6804/2017

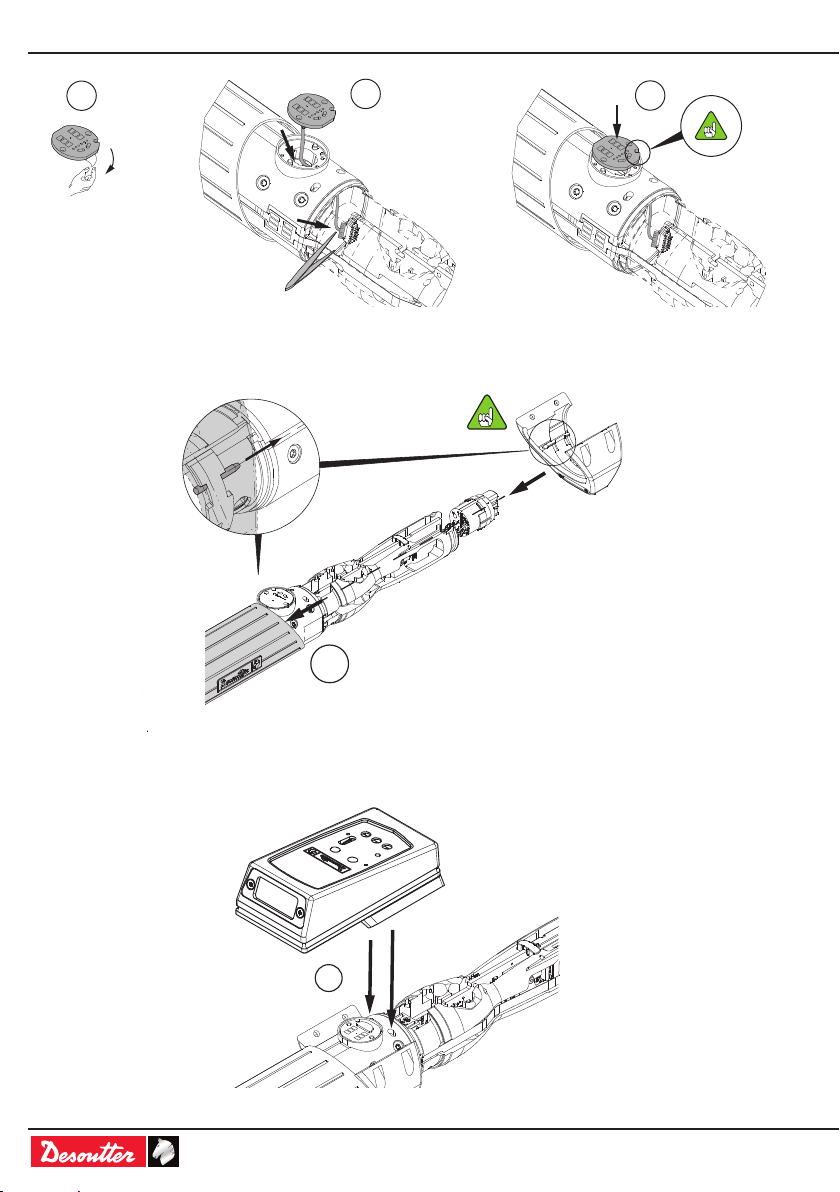

6a
5
6b
7
8

6159920510_04
10 / 68 04/2017
9b 9c
9a
11
10

6159920510_04
11 / 6804/2017

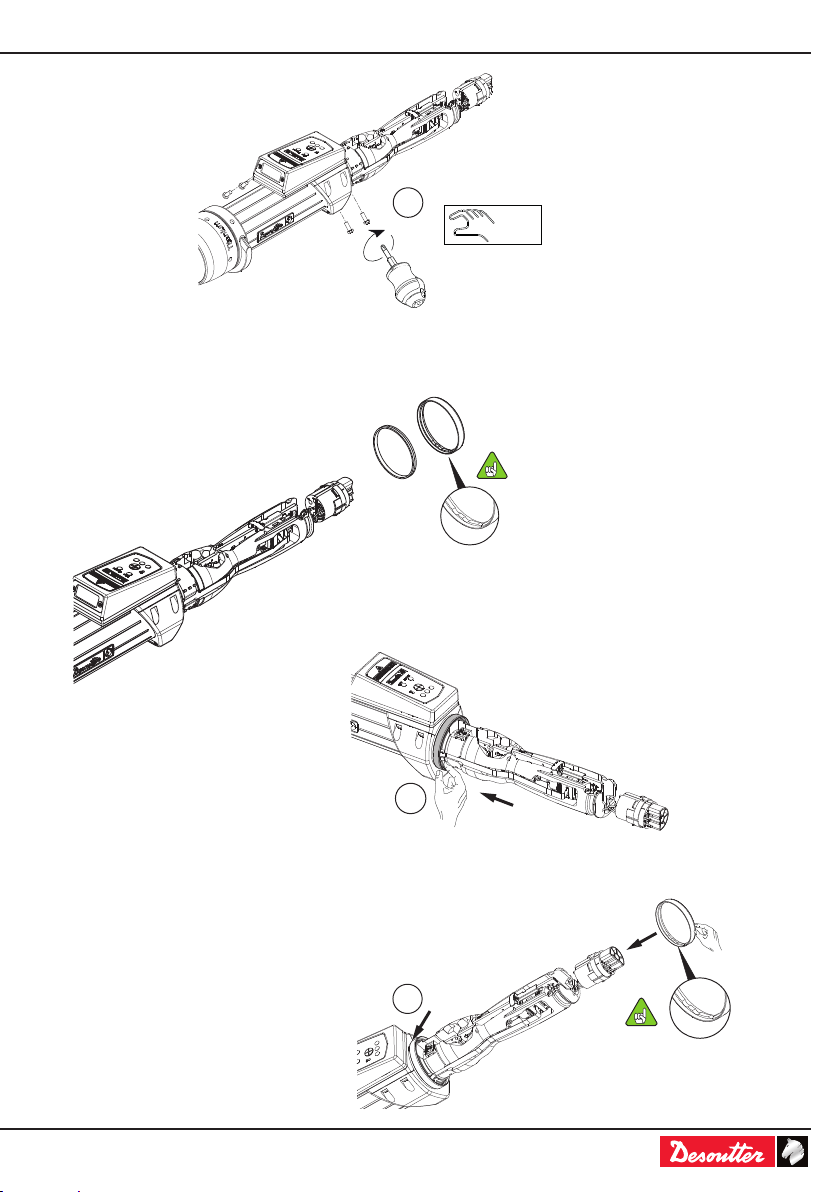

12 Assy
by Hand
13
14

6159920510_04
12 / 68 04/2017

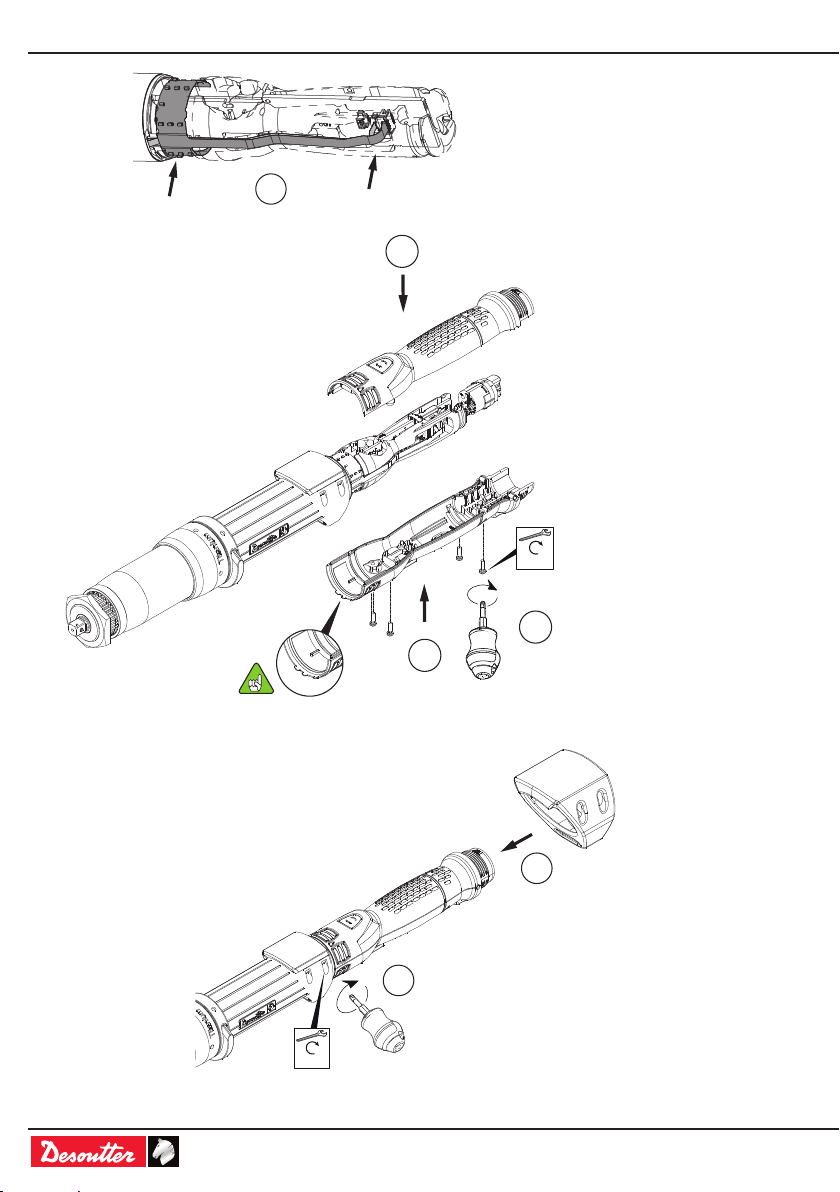

15
17
18
1.2 Nm
16b
16c
16a
0.7 Nm

6159920510_04
13 / 6804/2017

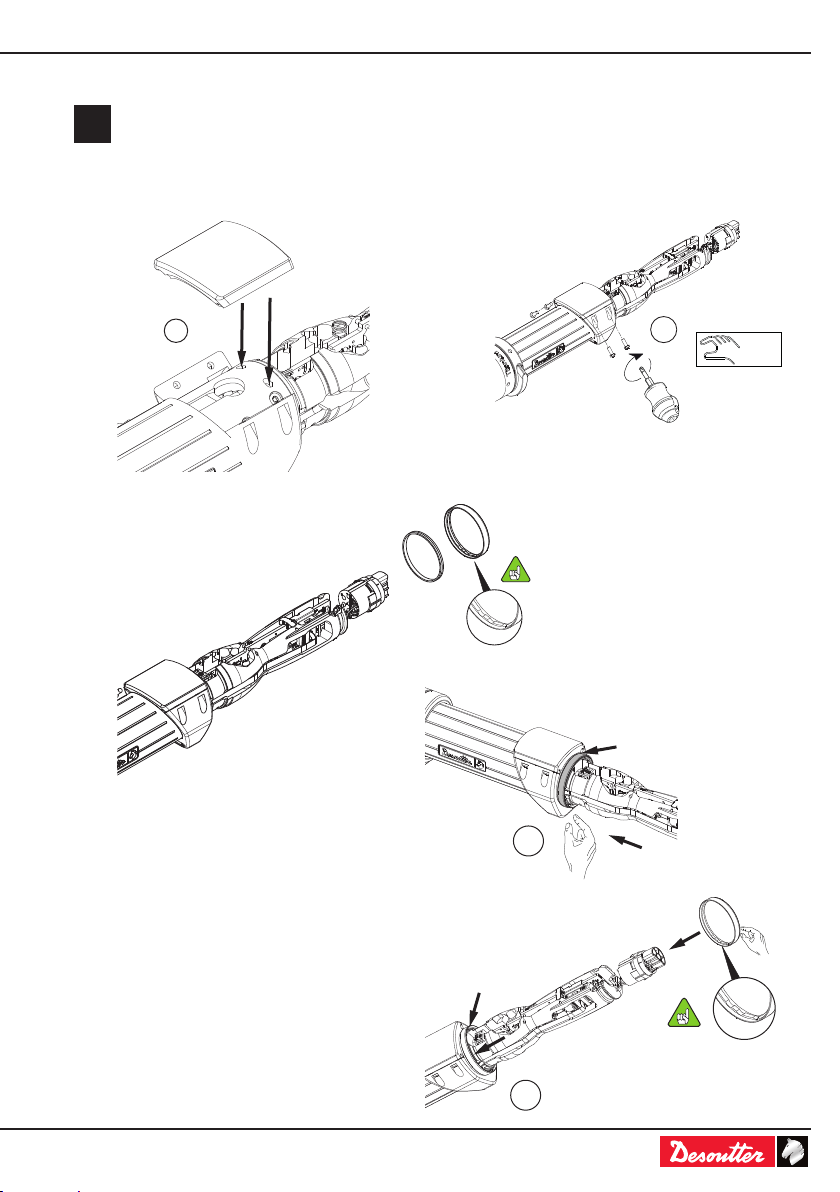

BHEADLIGHT for EAD/EID tools
INSTALLATION
●For steps 1 to 10, refer to the installation of
the barcode reader for EAD/EID tools.
11 12 Assy
by Hand
13
14

6159920510_04
14 / 68 04/2017
17
18
1.2 Nm
15
16b
16c
16a
0.7 Nm

6159920510_04
15 / 6804/2017
CBARCODE READER for EABC-eLINK tools
INSTALLATION
1
2
4
3
1.2 Nm

6159920510_04
16 / 68 04/2017
OPERATING MODE
ALEDS COLOR CODE
BARCODE READER for EAD/EID and EABC-eLINK tools
HEADLIGHT for EAD/EID tools
2
1
3
4
5

6159920510_04
17 / 6804/2017

6159920510_04
18 / 68 04/2017

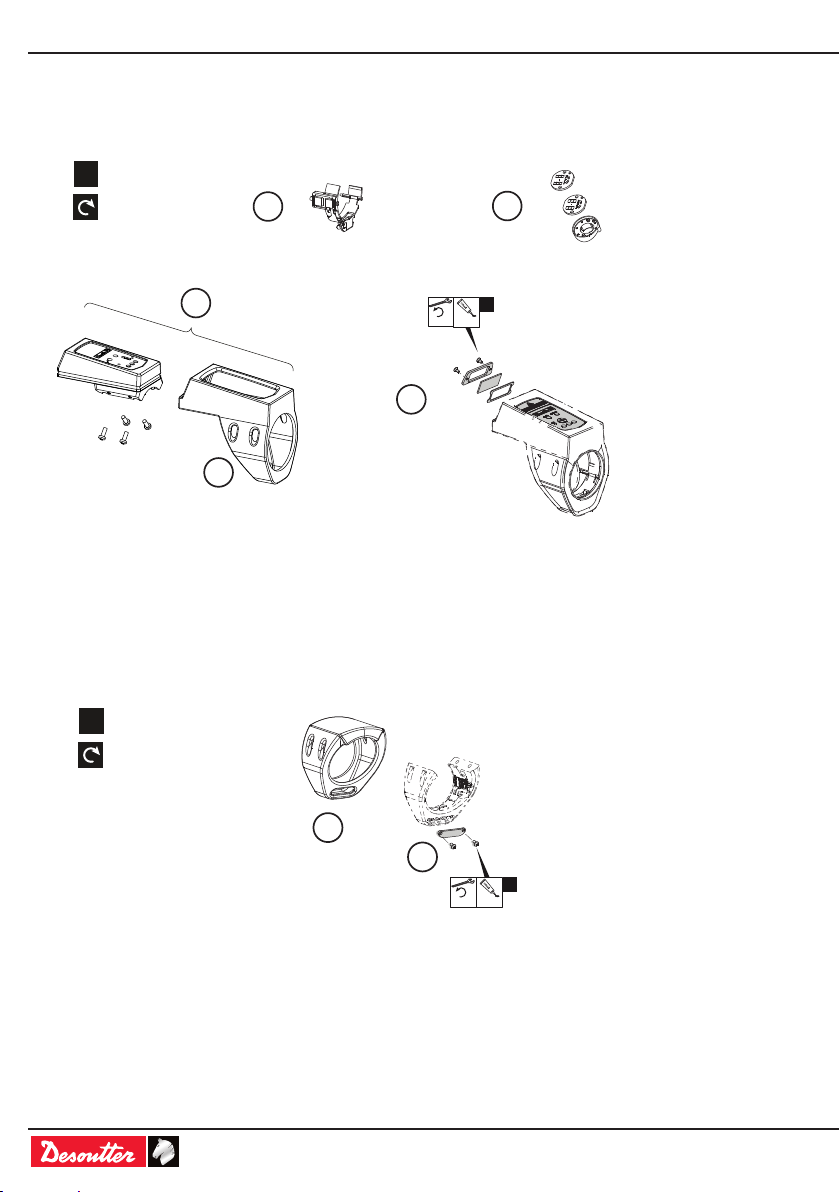

SPARE PARTS - EXPLODED VIEW
AB
C
D
G
Loctite 243
A
+/- 15%
50 Nm
A
3 mm³
BARCODE READER for EAD/EID and EABC-eLINK
HEADLIGHT for EAD/EID
50 Nm
A
3 mm³
E
F
Loctite 243
A
+/- 15%

6159920510_04
19 / 6804/2017
SPARE PARTS - LIST
Barcode reader Headlight High Medium Low
Item Description Part number Qty Service
level
AKit reporting light exboard 6153988435 1 1 x
Holder light ex 1 1
Flex front light 1 1
Foam adhesive 2 2
B Kit PCB SIM connector 6153988475 1 x
PCB SIM connector for EAD 1
PCB SIM connector for EAB 1
PCB tool housing 1
C Kit barcode reader module 6158130380 1 x
D Kit barcode reader glass 6153988455 1 1 x
Window glass holder 1 1
Protection glass 1 1
Window gasket 1 1
6-p sock screw A2-MFT M2x4 Black 2 2
E Kit reporting light glass 6153988445 1 1 x
LED glass protection 1 1
6-p sock screw A2-MFT M2x4 Black 2 2
F Kit Headlight protection cover 6152110545 1 x
G Kit barcode/headlight protection cover 6152110555 1 x

6159920510_04
20 / 68 04/2017
English
Original instructions.
© Copyright 2017, Ets Georges Renault 44818
St Herblain, FR
All rights reserved. Any unauthorized use
or copying of the contents or part thereof
is prohibited. This applies in particular to
trademarks, model denominations, part numbers
and drawings. Use only authorized parts. Any
damage or malfunction caused by the use of
unauthorised parts is not covered by Warranty or
Product Liability.
STATEMENT OF USE
These accessories are designed for being
installed on Desoutter EAD and EID low torque
nutrunners.
No other use is permitted.
For professional use only.
OVERVIEW
●See page 3.
Barcode reader
1 Barcode reader module
2 Protection cover (BCR)
36-p sock screw MRT M3x8 Black Tuoc
4 PCB SIM connector for EAD and EAB
5 Headlight module
6 Compression ring
Headlight
1 Compression ring
2 Top cover
36-p sock screw MRT M3x8 Black Tuoc
4 Headlight module
TECHNICAL DATA
●See page 4.
●Contact your local Desoutter
representative for more information.
INSTALLATION
Caution!
●Before mounting the accessories,
check that the tool, the controller
and the sofware releases are
compatible.
Tool sofware version ≥ 2.3.1
CVI3 controller ≥ 1.6.3.X
CVI3 Suite ≥ 1.1.4.X
●Mount the accessories as described from
page 8.
Barcode reader
●Connect the tool to the controller, the green
LED "Power on" is blinking (see page 16).
●Launch "CVI MONITOR".
● In the tab "Tool identication", click "Barcode
reader" to declare the accessory. Click "Write
to tool" to update the tool memory.
From that moment, the LED "Power on" turns
steady. If not, check the mounting of the
accessories.
The tool is ready to run.
Other settings possible with CVI CONFIG
●Launch "CVI CONFIG" and go to the "Tool"
tab.
● Extend or shorten the scan time from 1 to 9
seconds.
●Use the trigger to scan the barcode. In that
case, the tool must be locked before pressing
the trigger and the "Stop" icon displayed on
the controller display.
●To prevent the operator from using the "Scan
button", untick the box "Scan button".
●Refer to the CVI CONFIG user
manual at http://resource-center.
desouttertools.com
Headlight
●For steps 1 to 10, refer to the installation of
the barcode reader.
