DEVOLA DVCO60P User manual

USER MANUAL
Powerful Evaporative Air Cooler
Model: DVCO60P

WARNINGS & SAFETY RULES
WARNING：This appliance is intended for indoor use only. It is suitable for
domestic, office or commercial environment. Any other use is not recommended
by the manufacturer and may cause fire, electrical shocks or other injury to
person or property.
When using electrical appliances, basic safety precautions should always be
followed:
1. Extreme care should be taken when using the product near children, and
whenever the product is left unattended.
2. Before operating the product remove the unit from its packaging and check
it is in good condition.
3. Do not let children play with the packaging, for example plastic bags.
4. If the supply cord is damaged it must be replaced by the Manufacturer or an
authorized service centre in order to avoid a hazard.
5. Do not attempt to repair or adjust any electrical or mechanical functions on
this unit as this may void warranty.
6. Check the household voltage to ensure it matches the units rating plate
specification before operating.
7. Do not cover, or block any of the air outlets.
8. Always switch off and unplug the product before refilling the water tank.
9. Always unplug the product when not in use. To disconnect the power supply,
grip the plug and pull from the power socket. Never pull by the cord.
10. This product is not intended for use in wet or damp locations. Never locate
the product where it may fall into a bathtub or other water container.
11. Do not use in bathrooms or outdoors. When not in use always store in a dry
area.
12. Do not run power cord under carpeting, or cover with rugs or runners.
Arrange the cord away form areas where it may tripped over.
13. Avoid the use of an extension cable as this may overheat and cause a fire.
14. Do not insert or allow objects to enter any ventilation or exhaust opening as
this may damage the product and could cause an electrical shock or fire.
15. Do not use the product in areas where gasoline, paint, or other inflammable
goods and objects are present.
16. This appliance is not intended for use by persons (including children or
elderly) with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their
safety.
17. Children should be supervised to ensure that they do not play with the
appliance, if the supply cord are damaged, it shall be replaced by the
manufacturer or agent.
SAVE AND READ THESE IMPORTANT SAFETY INSTRUCTIONS
1

IMPORTANT PRODUCT INFORMATION
This product combines a room cooler, a humidifier and air cleaner, which means
that it can be used all year round.To obtain the best cooling effect from your
product please read these instructions carefully.
Your cooler requires a fresh air supply
1. Locate the cooler near an open window or leave the door to the room open.
Then open another outside window or door on the opposite side of the room, so
that you create ”flow through” ventilation. The cooler will not work properly in a
closed room.
2. Start your cooler before the air temperature in the room reach unacceptable
levels. Due to the low running costs of the unit, it is more effective to leave the
unit running during periods of occupation.
3. Add cold water to the tank. Ice may be added if available.Turn on the cool
switch and the filter pad will become damp. The air is drawn in through the rear
panel and over the filter pad to release cool clean air. It may take a few minutes
for the pad to become saturated.
If the air become too humid you may use the cooler as a simple fan. This
is achieved by turning the cooler on, but not using the cool button.
2

PARTS DESCRIPTION
1) Top Panel
2) Right Panel
3) Lever For Horizontal Louvers
4) Horizontal Louvers
5) Water Tank
6) Castors
7) Water Level Indicator
8) Control Panel
9) Handle
10) Left Panel
11) Continuous Water Inlet
12) Drain Plug
13) Water Inlet
14) Back Panel
CONTROL PANEL
3

OPERATING INSTRUCTIONS
OPERATING INSTRUCTIONS
1. Choose a suitable location for your Air Cooler. Please refer to the Important
Product Information for details.
2. Your product may be operated by the manual controls located on the unit.
3. Fill water into the unit. Pour clean water in tank and if required, add some ice.
4. Connect to the power supply
FOR ROOM COOLING
 Turn the Speed knob to change the speed from 1 for Low to 2 for Medium
to 3 for High.
 Turn the Cool knob to ON to start the cooling. It takes a few minutes to
obtain the full effect from this mode.
 When the water tank is low turn the unit OFF and add more water and ice.
 To switch OFF the unit turn the Speed knob to 0. If you do not intend to
use the product for some time empty the water tank.
 To empty the water tank turn your product off an the SPEED button, move
the unit to a suitable location and remove the drain plug to allow water to
flow out.
4

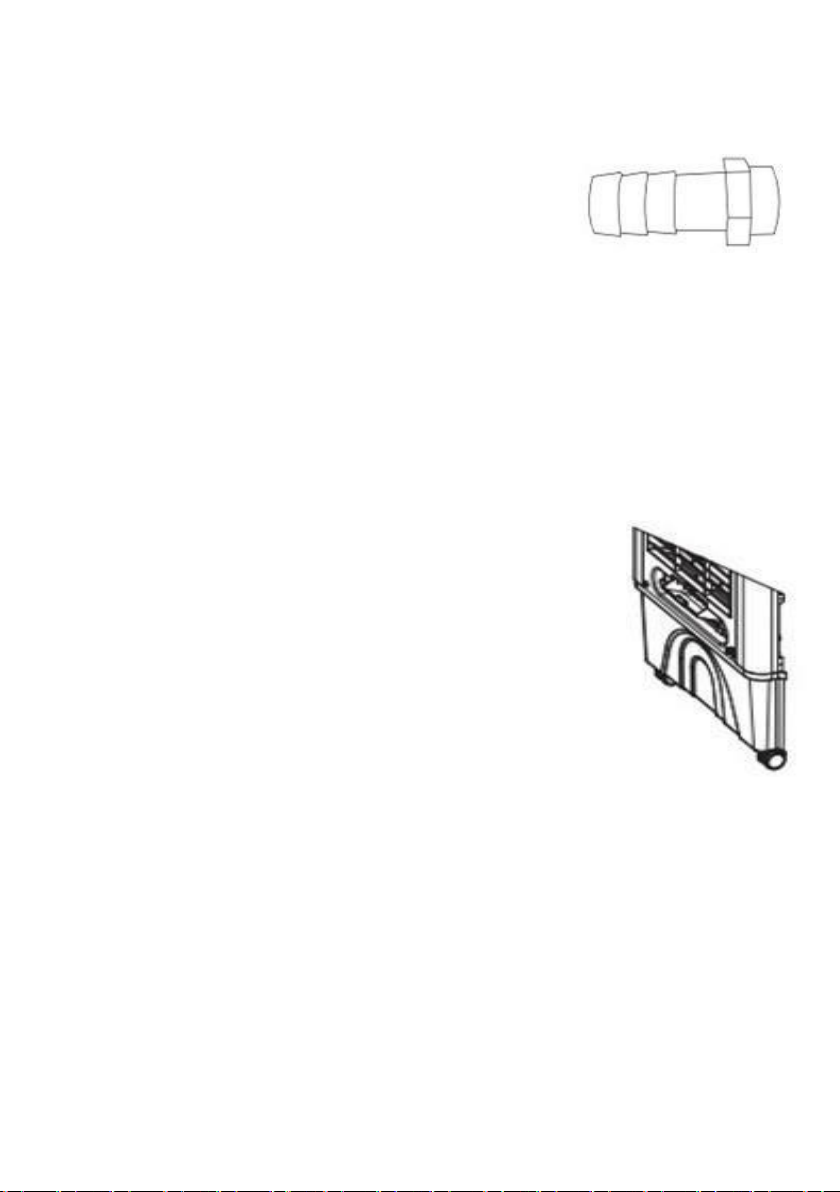

INSTALLING HOSE ADAPTER
 To attach a hose screw on the Hose connector
supplier with the unit to the continuous water inlet.
 Verify that the Hose connector is screwed tight.
 Connect a 1/2” water hose (not supplied with
the unit) to the Hose connector.
 Verify water tight connector by visually examining Hose connector
the connection.
 The maximal water inlet pressure is not more than 0.6 Mpa.
FILLING WATER
Water can be filled into the air cooler by
Continuous water supply
Connect a garden hose to the continuous water supply inlet
Manual operation
Water can be poured into the unit from the back
LOUVERES OPERATION
 Turn the SWING knob to ON or Press SWING button for moving the
louver from side to side. This will improve the distribution of the cooler air
in the room. To stop the louvers turn the SWING knob to OFF or Press
SWING button.
 You can change the air direction(up or down) by manually adjusting the
horizontal louvers.
5

SPECIFICATIONS
Model: DVCO60P
Voltage: 220-240V
Frequency: 50Hz
Wattage: 220W

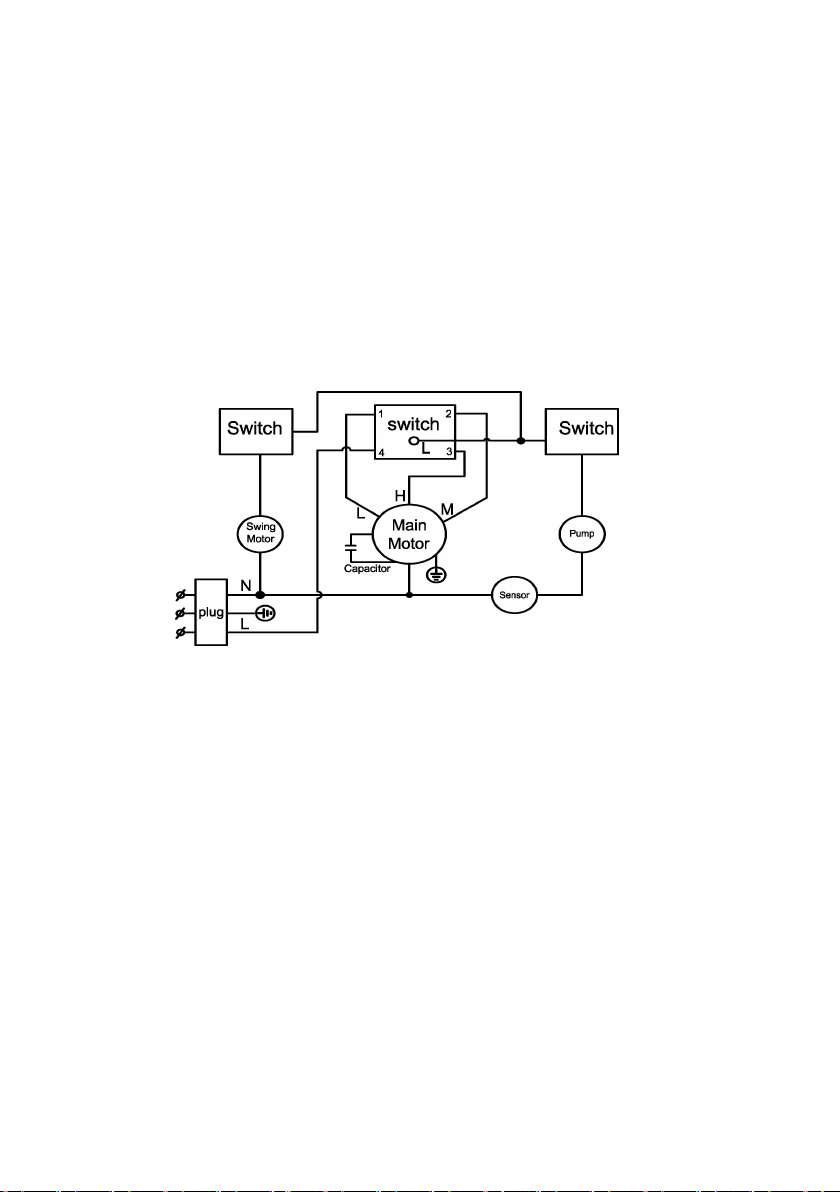

CIRCUIT DIAGRAM
MAINTENANCE
 Before you clean the appliance, switch the product off, remove the plug
for the power socket.
 Use a dam cloth to clean the product housing.
 Do not use water, detergents, abrasive cleaning liquids or chemical
agents (Alcohol, Gasoline etc…) to clean the appliance.
 When not used for a long period of time store in the original packaging in
a dry, dust free area during off season usage.
