1Preface
Thank you for placing your trust in this product.
devolo dLAN business solutions are a favourably
priced option for using the power grid infrastructure
in a building to establish a broadband IP network.
The advantage this brings is obvious: no new cables
have to be laid – expenditure and costs remain low.
dLAN can be used as an easily scalable, primary net-
work as well as to supplement an existing infrastruc-
ture.
The dLAN pro 1200+ PoE allows you to set up your
own home network with almost no effort. Because
the clever dLAN technology transmits the data over
the electrical wiring, you do not have to lay any new
cables.
1.1 About this manual
Carefully read all instructions before setting up the de-
vice and store the manual and/or installation guide for
later reference.
After a brief introduction to "dLAN" basics and a pre-
sentation of the dLAN pro 1200+ PoE in Chapter 2,
Chapter 3 will cover successfully setting up your
dLAN pro 1200+ PoE. Chapter 4 explains how to
configure your dLAN pro network. Tips for bandwidth
optimization, information of environmental compatibi-
lity of the device and our warranty conditions can be
found in Chapter 5 and conclude the manual.
You can find the technical data for the
dLAN pro 1200+ PoE on the Internet under
www.devolo.com/en/business-solutions.
Description of the symbols
Here we briefly describe the meaning of the symbols
used in this manual.
Very important note. Failure to ob-
serve this note may result in damage.
Important note that should be obser-
ved.
Additional information, background mate-
rial and configuration tips for your device.

6 Preface
devolo dLAN pro 1200+ PoE
1.1.1 Intended use
Use the adapter as described in these instructions to
prevent damage and injuries.
1.1.2 CE conformity
This product complies with the technical requirements
of the directive 2014/30/EU and the other relevant pro-
visions of the FTEG.
This product is designed for use in
the EU, Switzerland and Norway.
The product is class B equipment.
You can find the CE declaration of this product on the
Internet under
www.devolo.com/en/business-solutions.
1.1.3 Safety notes
It is essential to have read and understood all safety
and operating instructions before the devolo device is
used for the first time; keep them safe for future refe-
rence.
DANGER due to electricity
Users should never open devolo devices. Opening
the device poses a risk of electric shock!
Users do not need to carry out any maintenance on de-
volo devices. In the event of damage, disconnect the
devolo device from the mains supply by pulling it or its
plug out of the power outlet. Then contact qualified
specialist personnel (after-sales service) exclusively.
Damage is deemed to have occurred, for example,
쎲if the power plug is damaged
쎲if the devolo device has been showered with
liquid (e.g. rain or water).
쎲if the devolo device is inoperable.
쎲if the housing of the devolo device is damaged.
devolo devices may only be operated using a mains
power supply, as described on the nameplate.
To disconnect devolo devices from the mains supply,
pull the device itself or its mains plug from the power
outlet. The power outlet and all connected net-
work devices should be easily accessible so that
you can pull the mains plug quickly if needed.
Only use devolo devices at a dry location.
Disconnect devolo devices from the mains sup-
ply to clean! Avoid solvent cleaning agents since they
can cause damage to the housing. Only use a dry towel
for cleaning.

Preface 7
devolo dLAN pro 1200+ PoE
DANGER due to overheating
Multiple devolo devices must not be interlocked.
devolo devices should only be installed at locations
that guarantee adequate ventilation. Slots and ope-
nings on the housing are used for ventilation:
쎲Do not cover devolo devices when operating.
쎲Do not place any objects on devolo devices.
쎲Do not insert any objects into the openings of
devolo devices.
쎲devolo devices must not be placed directly next
to an open flame (such as fire or candles).
쎲devolo devices must not be exposed to direct
heat radiation (e.g. radiator, direct sunlight).
1.2 devolo on the Internet
For detailed information on our products, visit
www.devolo.com/en/business-solutions.
The devolo business area not only contains product
descriptions and documentation, but also updates of
devolo software and your device's firmware.
If you have any further ideas or suggestions related to
our products, please don't hesitate to contact us at
[e-mail]!

8 Preface
devolo dLAN pro 1200+ PoE

Introduction 9
devolo dLAN pro 1200+ PoE
2Introduction
dLAN is an intelligent, secure technology that lets you
set up a home network easily, quickly and economical-
ly via your household electrical wiring, without the
need for complex and expensive dedicated cabling.
The available performance and effort required for the
installation also compares favourably to traditional
methods.
2.1 What exactly is dLAN?
dLAN (direct Local Area Network) uses the household
power grid to transfer data between computers
equipped with suitable adapters and other network
components. As a result, any power outlet can be used
as a network access point. The data is modulated prior
to transfer and sent as a signal via household power
lines. State-of-the-art technology ensures that the
power and data networks do not interfere with one an-
other. Networking via dLAN is fast and secure. The
data is encrypted using a key to prevent interception by
third parties.
2.2 The dLAN pro 1200+ PoE
쎲Developed for professional use in small networks
with high demands on reliability and performance
쎲devolo Green IT—intelligent PowerSave technol-
ogy provides energy savings of 90 percent—all
automatically. devolo's patented energy saving
mode detects whether the computer connected to
the HomePlug device is switched on or off and
adapts the operating status of the device accord-
ingly.
쎲dLAN technology from the world's market leader,
developed for professional use

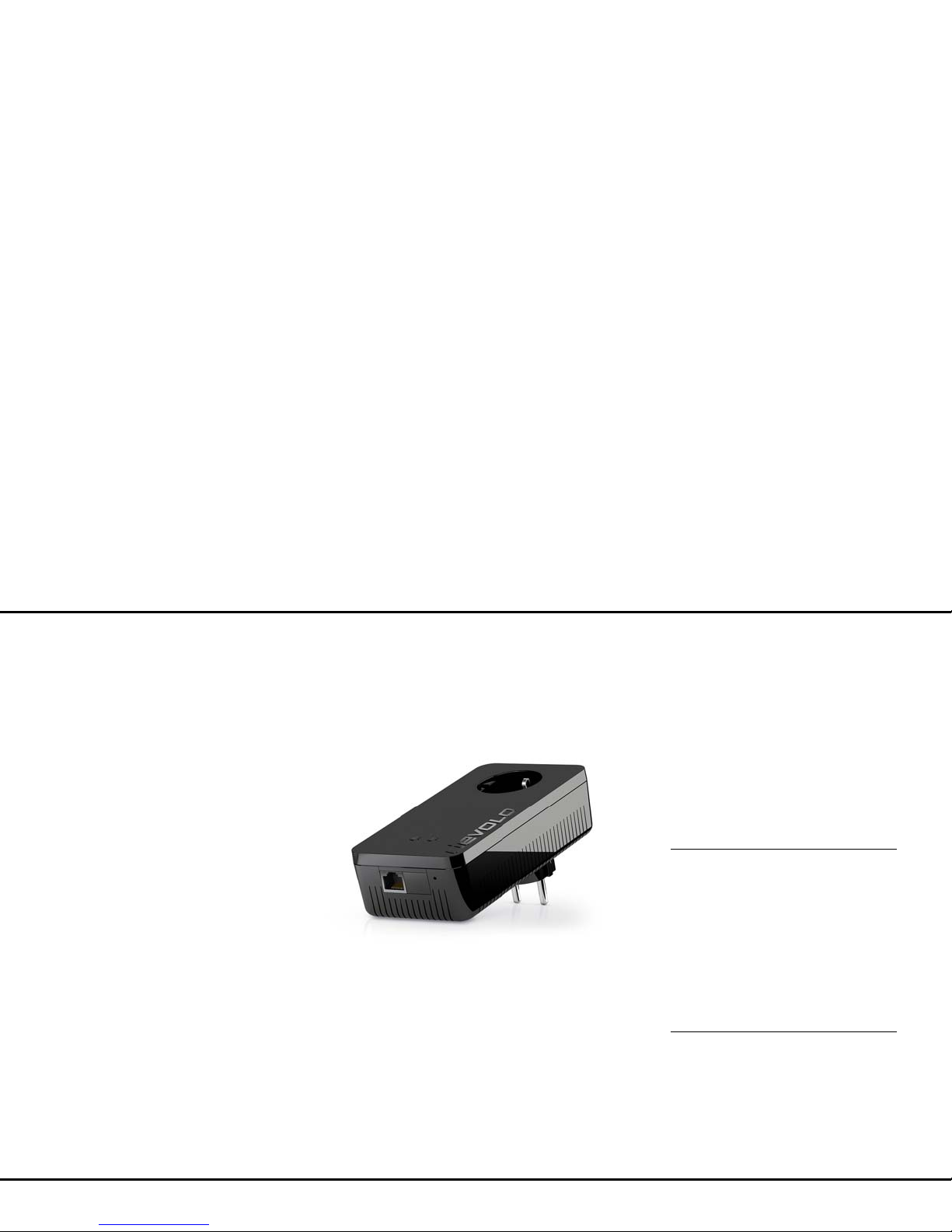

Fig. 1

10 Introduction
devolo dLAN pro 1200+ PoE
쎲Professional remote management using the
dLAN AVpro manager software with comprehen-
sive configuration options
쎲Reliable security in public areas: LED status dis-
play and encryption button can be switched off by
remote management
쎲You can experience top-level data transfer rates at
speeds up to 1200 Mbps. The range+ technology
provides an even more stable Internet connection
with significantly longer range.
쎲Gigabit Ethernet port with PoE functionality (in
accordance with IEEE 802.3af, 15.4-watt output
power).
쎲Optimal dLAN security with 128-bit AES encryp-
tion
쎲Supports Quality of Service (QoS) for automatic
data prioritisation
쎲Long range of up to 400 metres with a connection
over the electrical wiring
쎲The dLAN AVpro manager enables reliable, fast
and convenient integration of the
dLAN pro 1200+ PoE into dLAN pro networks
with different architectures (peer-to-peer or
MDU).

Introduction 11
devolo dLAN pro 1200+ PoE
2.3 All about the network
This chapter provides an overview of the various dLAN
pro networks possible with the dLAN pro 1200+ PoE.
2.3.1 Easy Internet extension over the
mains

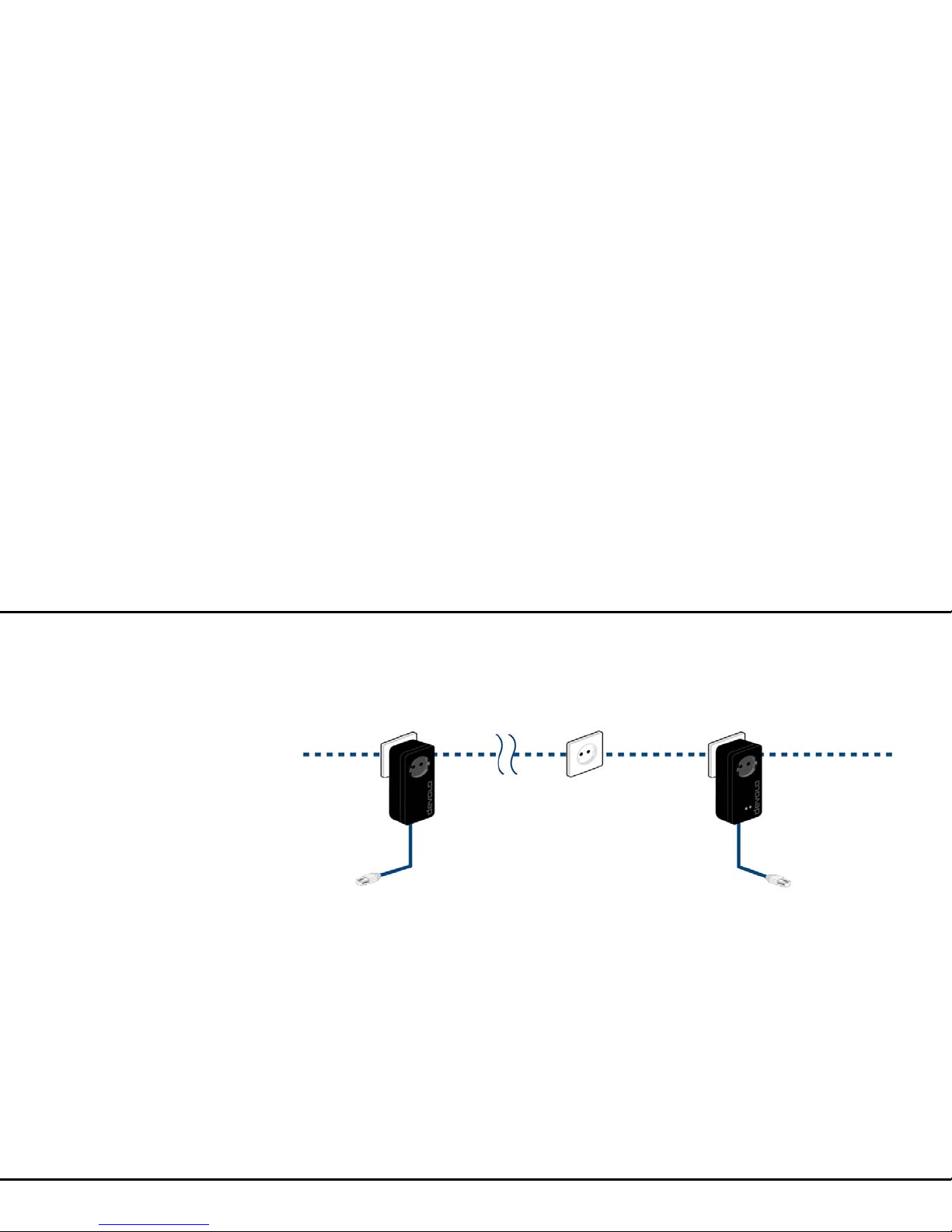

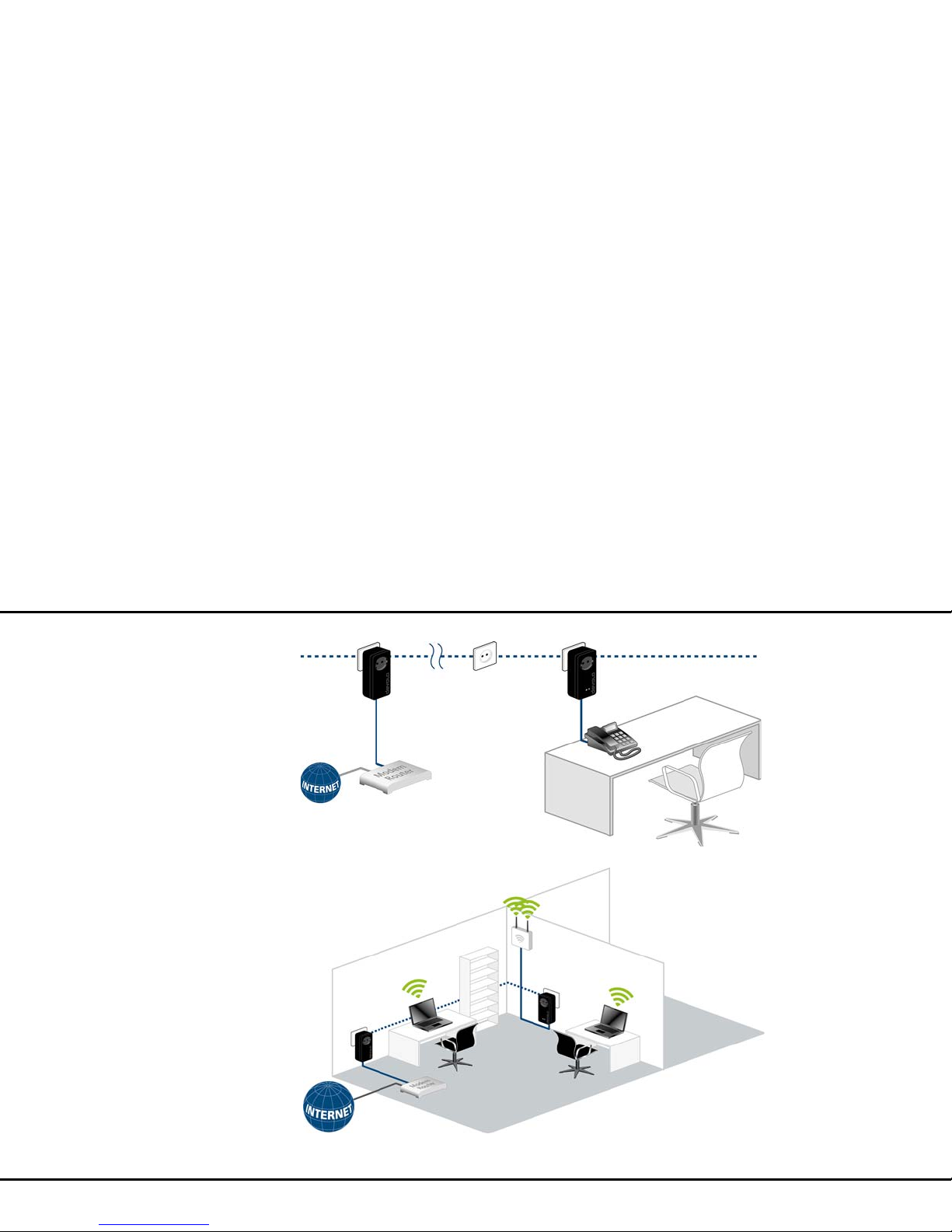

Fig. 2

12 Introduction
devolo dLAN pro 1200+ PoE
2.3.2 dLAN Peer-to-Peer
All dLAN pro devices in a peer-to-peer network (P2P)
are equal to each other. The connected network nodes
can communicate with one another freely and directly.
The dLAN pro device which is most easily accessible
from all dLAN pro devices in the network is automati-
cally designated by these as the Central Coordinator
(CCo) and from then on co-ordinates the communica-
tion between the nodes. By default, the dLAN pro de-
vices are configured for a peer-to-peer network.

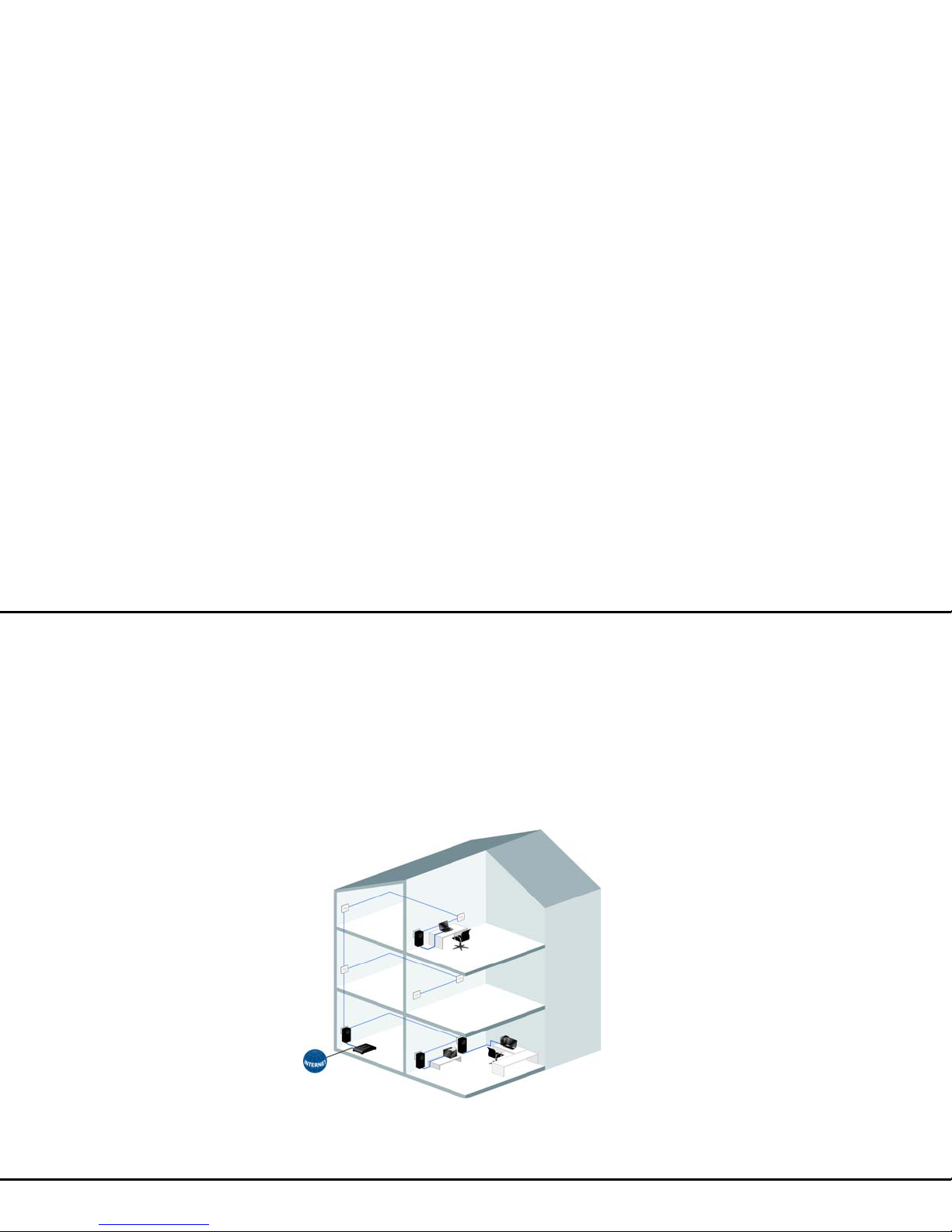

Fig. 3

Introduction 13
devolo dLAN pro 1200+ PoE
2.3.3 dLAN MDU
In an MDU network (MDU: Multiple Dwelling Unit), the
connected network nodes are linked as slaves to a
master and, together with the master, form a logical
dLAN pro network segment. Each slave sends data
only to its master. At the technical level, communica-
tion between the slaves of the MDU dLAN is not possi-
ble. The masters of the MDU dLANs are interconnected
via Ethernet switches. Thus MDU dLANs are ideally
suited for floor-by-floor networking (such as in hotels).
Room 1 Room 2 Room 3 Room 4
Fig. 4

14 Introduction
devolo dLAN pro 1200+ PoE
2.3.4 PoE operation
The Ethernet port on the dLAN pro 1200+ PoE can
provide power to a connected device in accordance
with IEEE 802.3af class '0'.
By default, PoE functionality of the
dLAN pro 1200+ PoE is enabled.
You can disable the PoE functionality of the
dLAN pro 1200+ PoE for 10 seconds to briefly dis-
connect the connected device from the mains supply
and restart it.
There are two methods of disabling PoE functionality
for the dLAN pro 1200+ PoE:
Using the PoE button
햲Press the PoE button with the lightning symbol on
the front panel of the device.
햳PoE functionality is re-enabled automatically after
10 seconds.
Using dLAN AVpro manager
햲Select the network with the dLAN pro 1200+ PoE
in the dLAN networks window.
햳In the dLAN network view, click the device in
question with the right mouse button to open the
context menu of the device.
햴Click the menu item called Reset PoE to disable
the PoE functionality of the Ethernet port for 10
seconds. This interrupts the power supply to the
connected device, which in turn switches off for
10 seconds.
If the device in question is part of the
network, disabling PoE functionality
can have effects on the accessibility,
for example, of terminal devices.

Introduction 15
devolo dLAN pro 1200+ PoE
Fig. 5
Fig. 6

16 Introduction
devolo dLAN pro 1200+ PoE

Initial use 17
devolo dLAN pro 1200+ PoE
3Initialuse
This chapter covers everything you need to know to set
up your dLAN pro 1200+ PoE. It will explain connect-
ing the dLAN pro 1200+ PoE and its functions. We will
now briefly introduce the devolo software.
3.1 Package contents
Please ensure that the delivery is complete before be-
ginning with the installation of your
dLAN pro 1200+ PoE:
쎲Single Kit:
쑗dLAN pro 1200+ PoE
쑗Network cable
쑗Hard copy of installation guide
쑗Documentation at
www.devolo.com/en/business-solutions
or
쎲Starter Kit:
쑗dLAN pro 1200+ PoE
쑗dLAN pro 1200+
쑗Two network cables
쑗Hard copy of installation guide
쑗Documentation at
www.devolo.com/en/business-solutions
devolo AG reserves the right to change the package
contents without prior notice.
Fig. 7 is country-specific

18 Initial use
devolo dLAN pro 1200+ PoE
3.2 System requirements
쎲Operating systems: Windows 7 (x86/x64), Win-
dows 8 (x86/x64), Windows 10 (x86/x64), Linux
(Ubuntu 12.4) and all operating systems with net-
work support
쎲Network connection
Please note that your computer or other de-
vice must have a network adapter with a
network port.
To set up a dLAN pro network, you
need at least two dLAN pro devices
(200 Mbps, 500 Mbps, or
1200 Mbps).
3.3 Functions
The dLAN pro 1200+ PoE is equipped with:
쎲2 indicator lights (LEDs)
쎲1 encryption button
쎲1 PoE button
쎲1 reset button
쎲1 Ethernet port with PoE functionality
쎲1 integrated electrical socket
3.3.1 Encryption button
This button controls the following functions:
Encrypting the dLAN pro network
쎲To encrypt your dLAN pro network individually,
press each encryption button on the connected
devices for approximately 1 second—within 2
minutes.
쎲To remove a dLAN pro device from your network,
press the encryption button on the correspond-
ing device for at least 10 seconds.
For security reasons, the function of
the encryption button can be disa-
bled in dLAN AVpro manager.
For more information on dLAN encryption, refer
to Chapter 4 dLAN pro network.
Indicator light
The indicator light (LED) shows all of the statuses for
the dLAN pro 1200+ PoE by illuminating and/or flash-
ing in different ways:
쎲The LED flashes red quickly at regular intervals
if the dLAN pro 1200+ PoE is connected to the
mains supply but there is no dLAN connec-
tion.

Initial use 19
devolo dLAN pro 1200+ PoE
Check whether the device is connected to the
mains supply correctly and whether the encryp-
tion process has been carried out successfully.
For more information about this, refer to 3.4
Connecting the dLAN pro 1200+ PoE.
쎲The LED lights up white if the
dLAN pro 1200+ PoE is ready to operate and a
dLAN connection exists.
쎲The LED flashes white quickly at regular inter-
vals if the encryption process (pairing) is being
performed in the dLAN pro network.
쎲The LED flashes white at irregular intervals if
the dLAN pro 1200+ PoE is in PowerSave
mode.
쎲The LED flashes red at regular intervals if the
transmission rate of the dLAN pro 1200+ PoE is
not in the optimum range. For information on
improving the transmission rate, refer to Chapter
5.1 Bandwidth optimization.
The function of the LED status display
can be disabled in
dLAN AVpro manager.
3.3.2 PoE button
This button controls the PoE functionality as
follows:
By default, PoE functionality of the
dLAN pro 1200+ PoE is enabled.
You can disable the PoE functionality of the
dLAN pro 1200+ PoE for 10 seconds to briefly dis-
connect the connected device from the mains supply
and restart it.
For more information on PoE functionality, re-
fer to Chapter 2.3.4 PoE operation.
Indicator light
The indicator light (LED) shows the status of PoE by il-
luminating and/or flashing in different ways:
쎲The LED lights up white when PoE is enabled.
쎲The LED is off during the 10-second deactivation
of PoE.
3.3.3 Reset button
The Reset button (next to the Ethernet jack) has the
following function:
쎲To change the configuration of the
dLAN pro 1200+ PoE back to the factory
defaults, press the Reset button for more than
10 seconds. Keep in mind that all settings that
have already been configured will be lost!
