DeWalt XR DCD996 User manual

English (original instructions) 3
Pусский (перевод с оригинала инструкции) 14
Українська (переклад з оригінальної інструкції)
33

Copyright
DeWALT

B

1

2

English
3
BRUSHLESS CORDLESS 13 mm DRILL/DRIVER, DCD991
BRUSHLESS CORDLESS 13 mm
DRILL/DRIVER/HAMMERDRILL, DCD996
Congratulations!
You have chosen a DeWALT tool. Years of experience,
thorough product development and innovation make
DeWALT one of the most reliable partners for
professional power tool users.
Technical Data
DCD991 DCD996
Voltage
VDC
18
18
Type
1/10
1/10
Battery type
Li-Ion
Li-Ion
Power output
W
820
820
No load speed
Drill,
Driver/Hammer
1st gear
min-1
0–450
0–450/500
2nd gear
0–1300
0–1300/1500
3rd gear
0–2000
0–2000/2250
Impact
rate 1st
gear
min-1
–
0–8600
2nd gear
–
0–25500
3rd gear
–
0–38250
Max. torque
(hard/soft) hard
Nm
95
95
soft
Nm
66
66
Chuck capacity
mm
1.5–13
1.5–13
Maximum drilling capcity
Wood
mm
55
55
Metal
15
15
Masonry
–
13
Weight (without battery
pack)
kg
1.5
1.6
Noise values and vibration values (triax vector sum)
according to EN62841:
LPA (emission sound
pressure level)
dB(A)
75
97
LWA (sound power level)
dB(A)
86
108
K ( uncertainty for the
given sound level)
dB(A)
3
3
Drilling into metal
Vibration emission
value ah,D =
m/s2
<2.5
<2.5
Uncertainty K =
m/s2
1.5
1.5
Impact drilling
Vibration emission
value ah,ID =
m/s2
–
15.0
Uncertainty K =
m/s2
–
3.9
Screwdriving
Vibration emission value
ah=
m/s2
<2.5
<2.5
Uncertainty K =
m/s2
1.5
1.5
The vibration and/or noise emission level given in this
information sheet has been measured in accordance
with a standardised test given in EN62841 and may be
used to compare one tool with another. It may be used
for a preliminary assessment of exposure.
level represents the main applications of the tool.
However WARNING: The declared vibration and/or
noise emission
if the tool is used for different applications, with
different accessories or poorly maintained, the
vibration and/or noise emission may differ. This may
significantly increase the exposure level over the total
working period.
An estimation of the level of exposure to vibration
and/or noise should also take into account the
times when the tool is switched off or when it is

4
running but not actually doing the job. This may
significantly reduce the exposure level over the
total working period.
Identify additional safety measures to protect the
operator from the effects of vibration and/or
noise such as: maintain the tool and the
accessories, keep the hands warm (relevant for
vibration), organisation of work patterns.
EC‑Declaration of Conformity
Machinery Directive
Hammerdrill DCD991, DCD996
DeWALT declares that these products described under
Technical Data are in compliance with:
2006/42/EC, EN62841‑1:2009+A11:2010,
EN62841‑2‑1:2010, EN62841‑2‑2.
These products also comply with Directive 2014/30/EU
and 2011/65/EU. For more information, please contact
DeWALT at the following address or refer to the back of
the manual.
The undersigned is responsible for compilation of the
technical file and makes this declaration on behalf of
DeWALT.
Markus Rompel
Vice‑President Engineering, PTE‑Europe
DeWALT, Richard‑Klinger‑Straße 11,
D‑65510, Idstein, Germany
22.05.2020
WARNING: To reduce the risk of injury, read the
instruction manual.
a

English
5
Batteries
Chargers/Charge Times (Minutes)
Cat #
VDC Ah
Weight
(kg)
DCB104
DCB107
DCB112
DCB113DCB115DCB116 DCB117
DCB546
18/54
6.0/2.0
1.05
60
270
170
80
40
DCB547
18/54
9.0/3.0
1.46
75*
420
270
110*
60
DCB548
1.44
120
540
350
DCB181
0.35
22
70
45
60/45**
60/40**
DCB182
18
4.0
0.61
60/40**
185
120
100
DCB183/B/G
18
2.0
0.40
30
90
60
DCB184/B/G
18
5.0
0.62
75/50**
240
150
75
DCB185
18
1.3
0.35
22
60
40
22
22
22
DCB187
18
3.0
0.54
45
140
90
45
45
45
DCB189
18
4.0
0.54
60
185
120
60
60
60
*Date code 201811475B or later
**Date code 201536 or later
Definitions: Safety Guidelines c ) Keep children and bystanders away while operating
a power tool. Distractions can cause you to lose control.
The definitions below describe the level of severity for each
signal word. Please read the manual and pay attention to 2) Electrical Safety
these symbols.
DANGER: Indicates an imminently hazardous
situation which, if not avoided, will result in
death or serious injury.
WARNING: Indicates a potentially hazardous
situation which, if not avoided, could result in
death or serious injury.
CAUTION: Indicates a potentially hazardous situation
which, if not avoided, may result in minor or moderate
injury.
NOTICE: Indicates a practice not related to
personal injury which, if not avoided, may result in
property damage.
Denotes risk of electric
shock. Denotes risk of
fire.
GENERAL POWER TOOL
SAFETY WARNINGS
WARNING: Read all safety warnings, instructions,
illustrations and specifications provided with this
power tool. Failure to follow all instructions listed
below
may result in electric shock, fire and/or serious
injury.
SAVE ALL WARNINGS AND INSTRUCTIONS
a) Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce
risk of electric shock.
b) Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet
conditions. Water entering a power tool will increase
the risk of electric shock.
d) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving
parts. Damaged or entangled cords increase the risk
of electric shock.

English
6
e) When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of
electric shock.
f) If operating a power tool in a damp
location is unavoidable, use a residual current
device (RCD) protected supply. Use of an RCD
reduces the risk of electric shock.
c) Prevent unintentional starting. Ensure the
switch is in the off ‑ position before connecting to
power source and/or battery pack, picking up or
carrying the tool. Carrying power tools with your
finger on the switch or energising power tools
that have the switch on invites accidents.
d) Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personal injury.
e) Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing
or
jewellery. Keep your hair and clothing away
from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.
g) If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust ‑ related hazards.
h) Do not let familiarity gained from frequent use
of tools allow you to become complacent and
ignore tool safety principles. A careless action
can cause severe injury within a fraction of a
second.
4) Power Tool Use and Care
a) Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
b) Do not use the power tool if the switch does not
turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must
be repaired.
c) Disconnect the plug from the power source
and/ or remove the battery pack, if detachable,
from the power tool before making any
adjustments, changing accessories, or storing
power tools. Such preventive safety measures
reduce the risk of starting the power tool
accidentally.
d) Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions to
operate the power tool.
Power tools are dangerous in the hands of untrained
users.
e) Maintain power tools and accessories. Check
for misalignment or binding of moving parts,
breakage of parts and any other condition that
may affect the power tool’s operation. If
damaged, have the power tool repaired before
use. Many accidents are caused by poorly
maintained power tools.
f) Keep cutting tools sharp and clean.
Properly maintained cutting tools with sharp
cutting edges are less likely to bind and are easier
to control. g ) Use the power tool, accessories
and tool bits etc. in accordance with these
instructions, taking into account the working
FOR FUTURE REFERENCE 3) Personal Safety
The term “power tool” in the warnings refers to your a ) Stay alert, watch what you are doing and use
mains ‑ operated (corded) power tool or battery ‑ operated (cordless) common sense when operating a power
tool. Do not power tool. use a power tool while you are tired or under the 1) Work Area Safety
influence of drugs, alcohol or medication. A moment
of inattention while operating power tools may
result in a ) Keep work area clean and well lit. Cluttered or dark serious personal injury. areas invite
accidents.
b ) Use personal protective equipment. Always wear eye
b ) Do not operate power tools in explosive protection. Protective equipment such as a dust mask,
atmospheres, such as in the presence of flammable non
‑ skid safety shoes, hard hat or hearing protection
used liquids, gases or dust. Power tools create sparks which for appropriate conditions will reduce
personal injuries. may ignite the dust or fumes.

English
7
conditions and the work to be performed. Use of
the power tool for operations different from those
intended could result in a hazardous situation.
h ) Keep handles and grasping surfaces dry, clean
and free from oil and grease. Slippery handles
and grasping surfaces do not allow for safe
handling and control of the tool in unexpected
situations.
5) Battery Tool Use and Care
a) Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one
type of battery pack may create a risk of fire when
used with another battery pack.
b) Use power tools only with specifically
designated battery packs. Use of any other
battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away
from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects,
that can make a connection from one terminal to
another.
Shorting the battery terminals together may
cause burns or a fire.
d) Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid
contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause
irritation or burns.
e) Do not use a battery pack or tool that is
damaged or modified. Damaged or modified
batteries may exhibit unpredictable behaviour
resulting in fire, explosion or risk of injury.
f) Do not expose a battery pack or tool to fire
or excessive temperature. Exposure to fire or
temperature above 130 °C may cause explosion.
g) Follow all charging instructions and do not
charge
the battery pack or tool outside the
temperature range specified in the
instructions. Charging improperly or at
temperatures outside the specified range may
damage the battery and increase the risk of
fire.
6) Service
a) Have your power tool serviced by a qualified
repair person using only identical replacement
parts. This will ensure that the safety of the
power tool is maintained.
b) Never service damaged battery packs.
Service of battery packs should only be
performed by the manufacturer or authorized
service providers.
Additional Specific Safety Rules for
Drills/ Drivers/Hammerdrills
•Wear ear protectors when impact drilling.
Exposure to noise can cause hearing loss.
•Use the auxiliary handles, if supplied with the
tool. Loss of control can cause personal injury.
•Brace the tool properly before use. This tool
produces a high output torque and without
properly bracing the tool during operation, loss of
control may occur resulting in personal injury.
•Hold the power tool by insulated gripping surfaces
when performing an operation where the cutting
accessory may contact hidden wiring. Cutting
accessory or fasteners contacting a “live” wire may
make exposed metal parts of the power tool “live”
and could give the operator an electric shock.
Safety Instructions When Using
Long Drill Bits
•Never operate at higher speed than the maximum
speed rating of the drill bit. At higher speeds, the
bit is likely to bend if allowed to rotate freely
without contacting the workpiece, resulting in
personal injury.
•Always start drilling at low speed and with the bit
tip in contact with the workpiece. At higher
speeds, the bit is likely to bend if allowed to rotate
freely without contacting the workpiece, resulting
in personal injury.
•Apply pressure only in direct line with the bit and
do not apply excessive pressure. Bits can bend
causing breakage or loss of control, resulting in
personal injury.
•Use clamps or other practical way to secure and
support the workpiece to a stable platform.
Holding the work by hand or against your body is
unstable and may lead to loss of control.
•Wear ear protectors when hammering for
extended
periods of time. Prolonged exposure to high
intensity noise can cause hearing loss. Temporary
hearing loss or serious ear drum damage may
result from high sound levels generated by
hammerdrilling.

English
8
•Wear safety goggles or other eye protection.
Hammering and drilling operations cause chips to
fly. Flying particles can cause permanent eye
damage.
•Hammer bits and tools get hot during operation.
Wear gloves when touching them.
Residual Risks
In spite of the application of the relevant safety
regulations and the implementation of safety
devices, certain residual risks cannot be avoided.
These are:
•Impairment of hearing.
•Risk of personal injury due to flying particles.
•Risk of burns due to accessories becoming hot
during operation.
•Risk of personal injury due to prolonged use.
SAVE THESE INSTRUCTIONS
Chargers
DeWALT chargers require no adjustment and are
designed to be as easy as possible to operate.
Electrical Safety
The electric motor has been designed for one
voltage only. Always check that the battery pack
voltage corresponds to the voltage on the
rating plate. Also make sure that the
voltage of your charger corresponds to
that of your mains. Your DeWALT charger
is double insulated in accordance with
EN60335; therefore no earth wire is
required.
If the supply cord is damaged, it must be replaced only
by DeWALT or an authorised service organisation.
Mains Plug Replacement
(U.K. & Ireland Only)
If a new mains plug needs to be fitted:
•Safely dispose of the old plug.
•Connect the brown lead to the live terminal in the
plug.
•Connect the blue lead to the neutral terminal.
WARNING: No connection is to be made to the
earth terminal.
Follow the fitting instructions supplied with good
quality plugs. Recommended fuse: 3 A.
Using an Extension Cable
An extension cord should not be used unless
absolutely necessary. Use an approved extension
cable suitable for the power input of your charger
(see Technical Data). The minimum conductor
size is 1 mm2; the maximum length is 30 m.
When using a cable reel, always unwind the cable
completely.
Important Safety Instructions for All
Battery Chargers
SAVE THESE INSTRUCTIONS: This manual contains
important safety and operating instructions for
compatible battery chargers (refer to Technical Data).
• Before using charger, read all instructions
and cautionary markings on charger, battery pack, and
product using battery pack.
WARNING: Shock hazard. Do not allow any liquid to
get inside charger. Electric shock may result.
WARNING: We recommend the use of a residual
current device with a residual current rating of 30mA
or less.
CAUTION: Burn hazard. To reduce the risk of
injury, charge only DeWALT rechargeable
batteries. Other types of batteries may burst
causing personal injury and damage.
CAUTION: Children should be supervised to ensure
that they do not play with the appliance.
NOTICE: Under certain conditions, with the charger
plugged into the power supply, the exposed charging
contacts inside the charger can be shorted by foreign
material. Foreign materials of a conductive nature
such as, but not limited to, steel wool, aluminum foil
or any buildup of metallic particles should be kept
away from charger cavities. Always unplug the
charger from the power supply when there is no
battery pack in the cavity. Unplug charger before
attempting to clean.
•DO NOT attempt to charge the battery pack with
any chargers other than the ones in this manual.
The charger and battery pack are specifically
designed to work together.
•These chargers are not intended for any uses
other than charging DeWALT rechargeable
batteries. Any other uses may result in risk of fire,
electric shock or electrocution.
•Do not expose charger to rain or snow.
•Pull by plug rather than cord when disconnecting
charger. This will reduce risk of damage to electric
plug and cord.

English
9
•Make sure that cord is located so that it will not
be stepped on, tripped over, or otherwise
subjected to damage or stress.
•Do not use an extension cord unless it is
absolutely necessary. Use of improper extension
cord could result in risk of fire,electric shock, or
electrocution.
•Do not place any object on top of charger or place
the charger on a soft surface that might block the
ventilation slots and result in excessive internal
heat. Place the charger in a position away from any
heat source. The charger is ventilated through slots
in the top and the bottom of the housing.
•Do not operate charger with damaged cord or
plug—have them replaced immediately.
•Do not operate charger if it has received a sharp
blow, been dropped, or otherwise damaged in any
way. Take it to an authorised service centre.
•Do not disassemble charger; take it to an
authorised service centre when service or repair is
required. Incorrect reassembly may result in a risk
of electric shock, electrocution or fire.
•In case of damaged power supply cord, the supply
cord must be replaced immediately by the
manufacturer, its service agent or similar qualified
person to prevent any hazard.
•Disconnect the charger from the outlet before
attempting any cleaning. This will reduce the risk
of electric shock. Removing the battery pack will
not reduce this risk.
•NEVER attempt to connect two chargers together.
•The charger is designed to operate on standard
230V household electrical power. Do not attempt
to use it on any other voltage. This does not apply
to the vehicular charger.

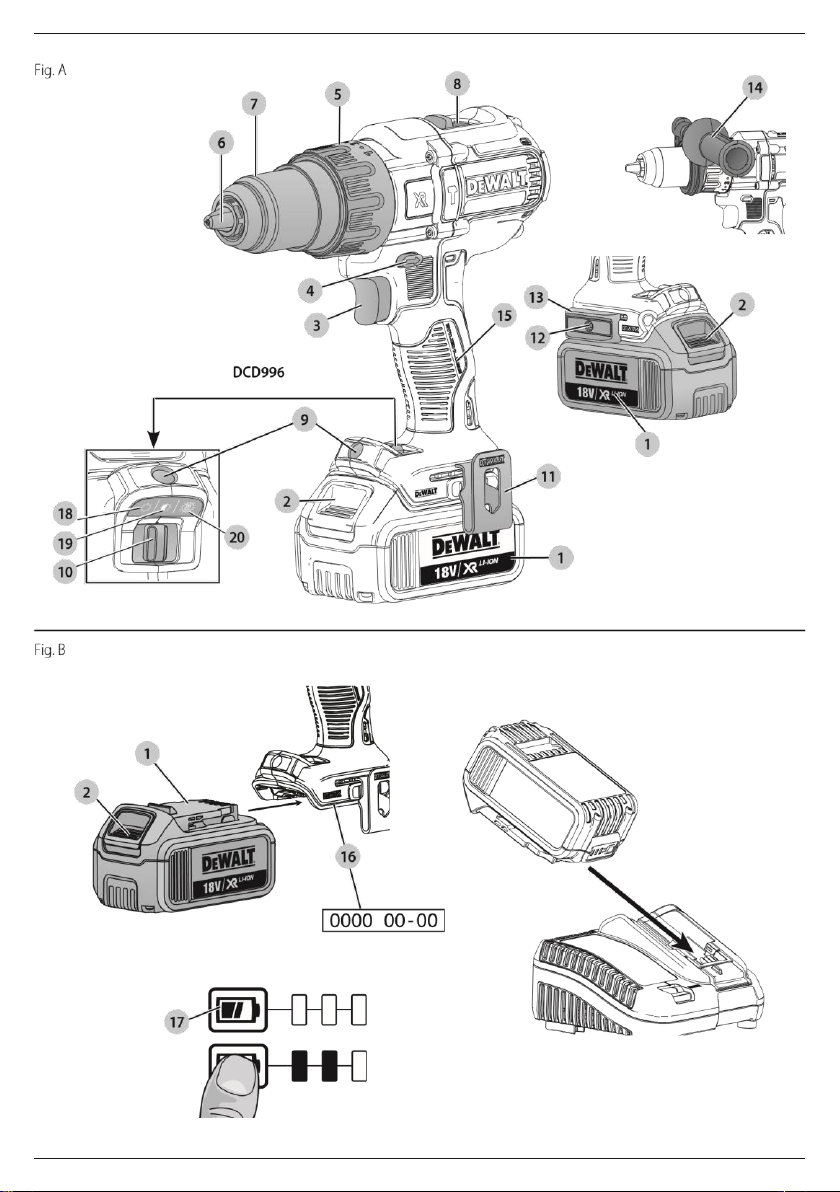

Charging a Battery (Fig. B)
1. Plug the charger into an appropriate outlet before
inserting battery pack.
2. Insert the battery pack 1 into the charger, making
sure the battery pack is fully seated in the charger.
The red (charging) light will blink repeatedly
indicating that the charging process has started.
3. The completion of charge will be indicated by the
red light remaining ON continuously. The battery
pack is fully charged and may be used at this time
or left in the charger. To remove the battery pack
from the charger, push the battery release button
2 on the battery pack.
nOTE: To ensure maximum performance and life of
lithium‑ion battery packs, charge the battery pack
fully before first use.
Charger Operation
Refer to the indicators below for the charge status of
the battery pack.
* The red light will continue to blink, but a yellow
indicator light will be illuminated during this
operation. Once the battery pack has reached an
appropriate temperature, the yellow light will turn off
and the charger will resume the charging procedure.
The compatible charger(s) will not charge a faulty
battery pack. The charger will indicate faulty battery
by refusing to light. nOTE: This could also mean a
problem with a charger.
If the charger indicates a problem, take the charger
and battery pack to be tested at an authorised service
centre.
hot/Cold Pack Delay
When the charger detects a battery pack that is too
hot or too cold, it automatically starts a Hot/Cold Pack
Delay, suspending charging until the battery pack has
reached an appropriate temperature. The charger
then automatically switches to the pack charging
mode. This feature ensures maximum battery pack
life.
A cold battery pack will charge at a slower rate than a
warm battery pack. The battery pack will charge at
that slower rate throughout the entire charging cycle
and will not return to maximum charge rate even if
the battery pack warms.
The DCB118 charger is equipped with an internal fan
designed to cool the battery pack. The fan will turn on
automatically when the battery pack needs to be
cooled. Never operate the charger if the fan does not
operate properly or if ventilation slots are blocked. Do
not permit foreign objects to enter the interior of the
charger.
Electronic Protection system

English
10
XR Li‑Ion tools are designed with an Electronic
Protection System that will protect the battery pack
against overloading, overheating or deep discharge.
The tool will automatically turn off if the Electronic
Protection System engages. If this occurs, place the
lithium‑ion battery pack on the charger until it is fully
charged.
Wall Mounting
These chargers are designed to be wall mountable or
to sit upright on a table or work surface. If wall
mounting, locate the charger within reach of an
electrical outlet, and away from a corner or other
obstructions which may impede air flow. Use the back
of the charger as a template for the location of the
mounting screws on the wall. Mount the charger
securely using drywall screws (purchased separately)
at least 25.4 mm long with a screw head diameter of
7–9 mm, screwed into wood to an optimal depth
leaving approximately 5.5 mm of the screw exposed.
Align the slots on the back of the charger with the
exposed screws and fully engage them in the slots.
Charger Cleaning Instructions
WARNING: Shock hazard. Disconnect the charger
from the AC outlet before cleaning. Dirt and grease
may be removed from the exterior of the charger
using a cloth or soft non ‑ metallic brush. Do not use
water or any cleaning solutions. Never let any liquid
get inside the tool; never immerse any part of the tool
into a liquid.
Battery Packs
Important Safety Instructions for All
Battery Packs
When ordering replacement battery packs, be sure to
include catalogue number and voltage.
The battery pack is not fully charged out of the carton.
Before using the battery pack and charger, read the
safety instructions below. Then follow charging
procedures outlined.
READ ALL INSTRUCTIONS
•Do not charge or use battery in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Inserting or
removing the battery from the charger may ignite
the dust or fumes.
•Never force battery pack into charger. Do not
modify battery pack in any way to fit into a
non ‑ compatible charger as battery pack may
rupture causing serious personal injury.
•Charge the battery packs only in DeWALT chargers.
•DO NOT splash or immerse in water or other
liquids.
•Do not store or use the tool and battery pack in
locations where the temperature may fall below 4
˚C (39.2 ˚F) (such as outside sheds or metal
buildings in winter), or reach or exceed 40 ˚C (104
˚F) (such as outside sheds or metal buildings in
summer).
•Do not incinerate the battery pack even if it is
severely damaged or is completely worn out. The
battery pack can explode in a fire. Toxic fumes and
materials are created when lithium ‑ ion battery
packs are burned.
•If battery contents come into contact with the
skin, immediately wash area with mild soap and
water. If battery liquid gets into the eye, rinse
water over the open eye for 15 minutes or until
irritation ceases. If medical attention is needed, the
battery electrolyte is composed of a mixture of
liquid organic carbonates and lithium salts.
•Contents of opened battery cells may cause
respiratory irritation. Provide fresh air. If
symptoms persists, seek medical attention.
WARNING: Burn hazard. Battery liquid may be
flammable if exposed to spark or flame.
WARNING: Never attempt to open the battery pack
for any reason. If battery pack case is cracked or
damaged, do not insert into charger. Do not crush,
drop or damage battery pack. Do not use a battery
pack or charger that has received a sharp blow, been
dropped, run over or damaged in any way (i.e.,
pierced with a nail, hit with a hammer, stepped on).
Electric shock or electrocution
may result. Damaged battery packs should be returned
to
service centre for recycling.
WARNING: Fire hazard. Do not store or carry the
battery pack so that metal objects can contact
exposed battery terminals. For example, do not
place the battery pack in aprons, pockets, tool boxes,
product kit
boxes, drawers, etc., with loose nails, screws, keys,
etc.

English
11
CAUTION: When not in use, place tool on its side
on a stable surface where it will not cause a
tripping or falling hazard. Some tools with large
battery packs will stand upright on the battery pack
but may be easily knocked over.
Transportation
WARNING: Fire hazard. Transporting batteries can
possibly cause fire if the battery terminals
inadvertently come in contact with conductive
materials. When transporting batteries, make sure
that the battery terminals are protected and well
insulated from materials that could contact them and
cause a short circuit. NOTE: Lithium ‑ ion batteries
should not be put in checked baggage.
DeWALT batteries comply with all applicable shipping
regulations as prescribed by industry and legal
standards which include UN Recommendations on the
Transport of Dangerous Goods; International Air
Transport Association (IATA) Dangerous
Goods Regulations, International Maritime Dangerous
Goods
(IMDG) Regulations, and the European Agreement
Concerning
The International Carriage of Dangerous Goods by
Road (ADR). Lithium‑ion cells and batteries have been
tested to section 38.3 of the UN Recommendations on
the Transport of Dangerous Goods Manual of Tests
and Criteria. In most instances, shipping a DeWALT
battery pack will be excepted from being classified as a
fully regulated Class 9 Hazardous Material. In general,
only shipments containing a lithium‑ion battery with
an energy rating greater than 100 Watt Hours (Wh)
will require being shipped as fully regulated Class 9. All
lithium‑ion batteries have the Watt Hour rating
marked on the pack. Furthermore, due to regulation
complexities, DeWALT does not recommend air
shipping lithium‑ion battery packs alone regardless of
Watt Hour rating. Shipments of tools with batteries
(combo kits) can be air shipped as excepted if the
Watt Hour rating of the battery pack is no greater than
100 Wh.
Regardless of whether a shipment is considered
excepted or fully regulated, it is the shipper's
responsibility to consult the latest regulations for
packaging, labeling/marking and documentation
requirements.
The information provided in this section of the manual
is provided in good faith and believed to be accurate
at the time the document was created. However, no
warranty, expressed or implied, is given. It is the
buyer’s responsibility to ensure that its activities
comply with the applicable regulations.
Transporting the FlEXVOlTTM Battery
The DeWALT FLEXVOLTTM battery has two modes:
Use and Transport.
Use Mode: When the FLEXVOLTTM battery stands alone
or is in a DeWALT 18V product, it will operate as an
18V battery. When the FLEXVOLTTM battery is in a 54V
or a 108V (two 54V batteries) product, it will operate
as a 54V battery.
Transport Mode: When the cap is attached to the
FLEXVOLTTM battery, the battery is in Transport mode.
Keep the cap for shipping.
When in Transport mode,
strings of cells are electrically
disconnected within the pack
resulting in 3 batteries with a
lower Watt hour (Wh) rating as compared to 1
battery with a higher Watt hour rating. This
increased quantity of 3 batteries with the lower Watt
hour rating can exempt the pack from certain
shipping regulations that are imposed upon the
higher Watt hour batteries.
For example, the Transport Example of Use and
Transport Label Marking
Wh rating might
indicate 3 x 36 Wh,
meaning 3 batteries of
36 Wh each. The Use Wh
rating might indicate 108 Wh
(1 battery implied).
Storage Recommendations
1. The best storage place is one that is cool and dry
away from direct sunlight and excess heat or cold.
For optimum battery performance and life, store
battery packs at room temperature when not in
use.
2. For long storage, it is recommended to store a fully
charged battery pack in a cool, dry place out of the
charger for optimal results.
nOTE: Battery packs should not be stored completely
depleted of charge. The battery pack will need to be
recharged before use.

English
12
Labels on Charger and Battery Pack
In addition to the pictographs used in this
manual, the labels on the charger and the
battery pack may show the L Read
instruction manual before use. following
pictographs: p See Technical Data for
charging time. q Do not probe with
conductive objects. r Do not charge
damaged battery packs. s Do not expose to
water. t Have defective cords replaced
immediately u Charge only between 4 ˚C
and 40 ˚C. v Only for indoor use.
Discard the battery pack with due care
for the environment.
Charge DeWALT battery packs only with
designated
DeWALT chargers. Charging battery packs
other than the designated DeWALT batteries with a
DeWALT charger may make them burst or lead to
other dangerous situations. z Do not incinerate
the battery pack. B USE (without transport
cap). Example: Wh rating indicates 108 Wh (1
battery with 108 Wh).
A TRANSPORT (with built‑in transport cap).
Example: Wh rating indicates 3 x 36 Wh (3
batteries of 36 Wh).
Battery Type
The following tools operate on a 18 volt battery pack:
DCD991, DCD996
These battery packs may be used: DCB181, DCB182,
DCB183,
DCB183B, DCB183G, DCB184, DCB184B, DCB184G,
DCB185, DCB187, DCB189, DCB546, DCB547, DCB548.
Refer to Technical Data for more information.
Package Contents
The package contains:
1 Brushless cordless hammerdrill
1 Kitbox
1 Charger
1 Side handle
1 Magnetic bit holder (Optional accessory)
1 Belt hook (Optional accessory)
1L i‑Ion battery pack (C1, D1, L1, M1, P1, S1, T1, X1,
Y1 models)
2L i‑Ion battery packs (C2, D2, L2, M2, P2, S2, T2, X2,
Y2 models)
3L i‑Ion battery packs (C3, D3, L3, M3, P3, S3, T3, X3,
Y3 models)
1 I nstruction manual
nOTE: Battery packs, chargers and kitboxes are not
included with N models. Battery packs and chargers
are not included with NT models. B models include
Bluetooth® battery packs. nOTE: The Bluetooth® word
x
y

English
13
mark and logos are registered trademarks owned by
the Bluetooth®, SIG, Inc. and any use of such marks by
DeWALT is under license. Other trademarks and trade
names are those of their respective owners.
•Check for damage to the tool, parts or accessories
which may have occurred during transport.
•Take the time to thoroughly read and understand
this manual prior to operation.
Markings on Tool
The following pictograms are shown on the tool:
a Read instruction manual before use.
n Visible radiation. Do not stare into
light.
Date Code Position (Fig. B)
The date code 16 , which also includes the year of
manufacture, is printed into the housing.
Example:
2021 XX XX
Year and Week of Manufacture
Description (Fig. A)
WARNING: Never modify the power tool or any
part of it.
Damage or personal injury could result.
Components
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Intended Use
These hammerdrills are designed for professional
drilling, percussion drilling and screwdriving
applications.
DO nOT use under wet conditions or in the presence
of flammable liquids or gases.
These drills/drivers/hammerdrills are professional
power tools.
DO nOT let children come into contact with the tool.
Supervision is required when inexperienced
operators use this tool.
•Young children and the infirm. This appliance is
not intended for use by young children or infirm
persons without supervision.
Battery pack
Battery release button
Variable speed trigger switch
Forward/reverse control button
Torque adjustment collar
Keyless chuck
Chuck sleeve
Speed selector
Worklight
Worklight switch
Belt hook (Optional accessory)
Mounting screw
Bit holder (Optional accessory)
Side handle
Main handle

English
14
•This product is not intended for use by persons
(including children) suffering from diminished
physical, sensory or mental abilities; lack of
experience, knowledge or skills unless they are
supervised by a person responsible for their safety.
Children should never be left alone with this
product.
ASSEMBLY AND ADJUSTMENTS
WARNING: To reduce the risk of serious personal
injury, turn tool off and disconnect battery pack
before making any adjustments or removing/
installing attachments or accessories. An accidental
start ‑ up can cause injury.
WARNING: Use only DeWALT battery packs and
chargers.
Inserting and Removing the Battery
Pack from the Tool (Fig. B)
nOTE: Make sure your battery pack 1 is fully
charged. To Install the Battery Pack into the
Tool Handle
1. Align the battery pack 1 with the rails inside the
tool’s handle (Fig. B).
2. Slide it into the handle until the battery pack is
firmly seated in the tool and ensure that you hear
the lock snap into place.
To Remove the Battery Pack from the Tool
1. Press the release button 2 and firmly pull the
battery pack out of the tool handle.
2. Insert battery pack into the charger as described in
the charger section of this manual.
Fuel Gauge Battery Packs (Fig. B)
Some DeWALT battery packs include a fuel gauge
which consists of three green LED lights that indicate
the level of charge remaining in the battery pack.
To actuate the fuel gauge, press and hold the fuel
gauge button 17 . A combination of the three green
LED lights will illuminate designating the level of
charge left. When the level of charge in the battery is
below the usable limit, the fuel gauge will not
illuminate and the battery will need to be recharged.
nOTE: The fuel gauge is only an indication of the
charge left on the battery pack. It does not indicate
tool functionality and is subject to variation based on
product components, temperature and end‑user
application.
Belt Hook and Magnetic Bit Holder
(Fig. A)
Optional Accessories
WARNING: To reduce the risk of serious personal
injury, ONLY use the tool's belt hook to hang the
tool from a work belt. DO NOT use the belt hook for
tethering or securing the tool to a person or object
during use. DO NOT suspend tool overhead or suspend
objects from the belt hook.
WARNING: To reduce the risk of serious personal
injury, ensure the screw holding the belt hook is
secure.
CAUTION: To reduce the risk of personal injury or
damage, DO NOT use the belt hook to hang the drill
while using as a spotlight.
iMPORTAnT: When attaching or replacing the belt
hook 11 or magnetic bit holder 13 , use only the
mounting screw 12 that is provided. Be sure to
securely tighten the screw.
The belt hook and magnetic bit holder can be be
attached to either side of the tool using only the screw
provided, to accommodate left‑or right‑handed
users. If the hook or magnetic bit holder is not desired
at all, it can be removed from the tool.
Variable Speed Trigger Switch (Fig.
A)
To turn the tool on, squeeze the variable speed trigger
switch 3 . To turn the tool off, release the trigger
switch. Your tool is equipped with a brake. The chuck
will stop as soon as the trigger switch is fully released.
nOTE: Continuous use in variable speed range is
not recommended. It may damage the switch
and should be avoided.

English
15
Side Handle (Fig. A, I)
WARNING: To reduce the risk of personal injury,
ALWAYS operate the tool with the side handle
properly installed.
Failure to do so may result in the side handle slipping
during tool operation and subsequent loss of control.
Hold tool with both hands to maximize control. The
side handle 14 clamps to the front of the gear case
and may be rotated 360˚ to permit right‑or left‑hand
use. Side handle must be tightened sufficiently to
resist the twisting action of the tool if the accessory
binds or stalls. Be sure to grip the side handle at the
far end to control the tool during a stall. If model is not
equipped with side handle, grip drill with one hand on
the handle and one hand on the battery pack. nOTE:
Side handle comes equipped on all models.
Forward/Reverse Control Button
(Fig. A)
A forward/reverse control button 4 determines the
direction of the tool and also serves as a lock‑off
button.
To select forward rotation, release the trigger switch
and depress the for ward/re verse control button on
the right side of the tool.
To select reverse, release the trigger switch and
depress the forward/reverse control button on the left
side of the tool.
The centre position of the control button locks the tool
in the off position. When changing the position of the
control button, be sure the trigger is released.
nOTE: The first time the tool is run after changing the
direction of rotation, you may hear a click on start up.
This is normal and does not indicate a problem.
Torque Adjustment
Collar/Electronic Clutch (Fig. A)
Your tool has an electronic adjustable torque
screwdriver mechanism for driving and
removing a wide array of fasteners. Circling
the torque adjustment collar 5 are numbers.
These numbers are used to set the clutch to deliver a
torque range. The higher the number on the collar, the
higher the torque and the larger the fastener which
can be driven. To select any of the numbers, rotate
until the desired number aligns with the arrow.
WARNING: When the torque adjustment collar is in
the drill or hammerdrill positions, the drill will not
clutch. The drill may stall if overloaded, causing a
sudden twist.
Three‑Speed Gearing (Fig. A)
The three‑speed feature of your tool allows you to
shift gears for greater versatility. To select speed 1
(highest torque setting), turn the tool off and permit it
to stop. Slide the gear shifter 8 all the way forward.
Speed 2 (middle torque and speed setting) is in the
middle position. Speed 3 (highest speed setting) is to
the rear.
nOTE: Do not change gears when the tool is running.
Always allow the drill to come to a complete stop
before changing gears. If you have trouble changing
gears, make sure that the gear shifter is engaged in
one of the three speed settings.
If the speed shifter becomes stuck or is difficult to
select the desired gear, pull the variable speed trigger
switch 3 to rotate the motor, then select the gear.
LED Worklight (Fig. A)
The LED worklight 9 and its worklight switch 10 are
located on the foot of the tool. The worklight is
activated when the trigger switch is depressed. The
low, medium, and spotlight modes can be changed by
moving the switch on the foot of the tool. If the trigger
switch remains depressed, the worklight will remain
on in all modes.
When on low and medium settings, the beam will
automatically turn off 20 seconds after the trigger
switch is released.
Spotlight Mode
The high setting is the spotlight mode. The spotlight
will run for 20 minutes after the trigger switch is
released. Two minutes before the spotlight will shut
off, it will flash twice and then dim. To avoid
the spotlight shutting off, lightly tap the
trigger switch. WARNING: While using the
worklight in medium or spotlight mode, do not
stare at the light or place the drill in a position which

English
16
may cause anyone to stare into the light. Serious eye
injury could result.
CAUTION: When using the tool as a spotlight, be
sure it is secured on a stable surface where it will
not cause a tripping or falling hazard.
CAUTION: Remove all accessories from the
chuck before using the drill as a spotlight.
Personal injury or property damage could
result.
Low Battery Warning
When in spotlight mode and the battery is nearing
complete discharge, the spotlight will flash twice and
then dim. After two minutes, the battery will be
completely discharged and the drill will immediately
shut down. At this point, replace with a
charged battery.
WARNING: To reduce the risk of injury, always
have a back ‑ up battery or secondary lighting
available if the situation warrants it.
Keyless Single Sleeve Chuck (Fig. C)
WARNING: Do not attempt to tighten drill bits
(or any other accessory) by gripping the front
part of the chuck and turning the tool on.
Damage to the chuck and personal injury may
result. Always lock off trigger switch and remove
the battery from the tool when
changing acces sories.
WARNING: Always ensure the bit is secure before
starting the tool. A loose bit may eject from tool
causing possible personal injury.
Your tool features a keyless chuck 6 with one
rotating chuck sleeve 7 for one‑handed operation of
the chuck. To insert a drill bit or other accessory,
follow these steps.
1. Turn tool off and disconnect tool from power
source.
2. Grasp the black sleeve of the chuck with one hand
and use the other hand to secure the tool. Rotate
the sleeve anticlockwise (as viewed from the front)
far enough to accept the desired accessory.
3. Insert the accessory about 19 mm into the chuck
and
tighten securely by rotating the chuck sleeve
clockwise with one hand while holding the tool
with the other hand. Continue to rotate the
chuck sleeve until several ratchet clicks are heard
to ensure full gripping power. nOTE: Be sure to
tighten chuck with one hand on the chuck sleeve
and one hand holding the tool for maximum
tightness.
To release the accessory, repeat steps 1 and 2 above.
OPERATION Instructions for Use
WARNING: Always observe the safety instructions
and applicable regulations.
WARNING: To reduce the risk of serious personal
injury, turn tool off and disconnect battery pack
before making any adjustments or removing/
installing attachments or accessories. An
accidental start ‑ up can cause injury.
Proper Hand Position (Fig. I)
WARNING: To reduce the risk of serious
personal injury, ALWAYS use proper hand
position as shown.
WARNING: To reduce the risk of serious
personal injury, ALWAYS hold securely in anticipation
of a sudden reaction. Proper hand position requires
one hand on the main handle 15 , with the other hand
on the side handle 14 to control the twisting action
of the drill.
Screwdriver Operation (Fig. A)
1. Select the desired speed/torque range using the
three‑speed gear shifter 8 on the top of the tool.
If using the torque adjustment collar 5 , initially set
the three‑speed gear shifter to speed 2 or 3. This
ensures effective control over the fastener allowing
the screw to be seated correctly and set to
specification. Speed 1 will provide the same
clutching torque as speeds 2 and 3. However, for
optimum performance of the electronic clutch,
speeds 2 and 3 are preferred.
nOTE: Use the lowest torque setting (1) first and
increase the number through to the highest setting
(11) to seat the fastener at the desired depth. The
lower the number, the lower the torque output.
