Dewalt Dxpw series User manual

English

Denitions: Safety Guidelines

The definitions below describe the level of severity for each

signal word. Please read the manual and pay attention to these

symbols.

DANGER: Indicates an imminently hazardous situation which,

if not avoided, will result in death or serious injury.

WARNING: Indicates a potentially hazardous situation which,

if not avoided, could result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation which,

if not avoided, may result in minor or moderate injury.

NOTICE: Indicates a practice not related to personal injury

which, if not avoided, may result in property damage.

IF YOU HAVE ANY QUESTIONS OR COMMENTS ABOUT THIS

(1-877-362-4271)

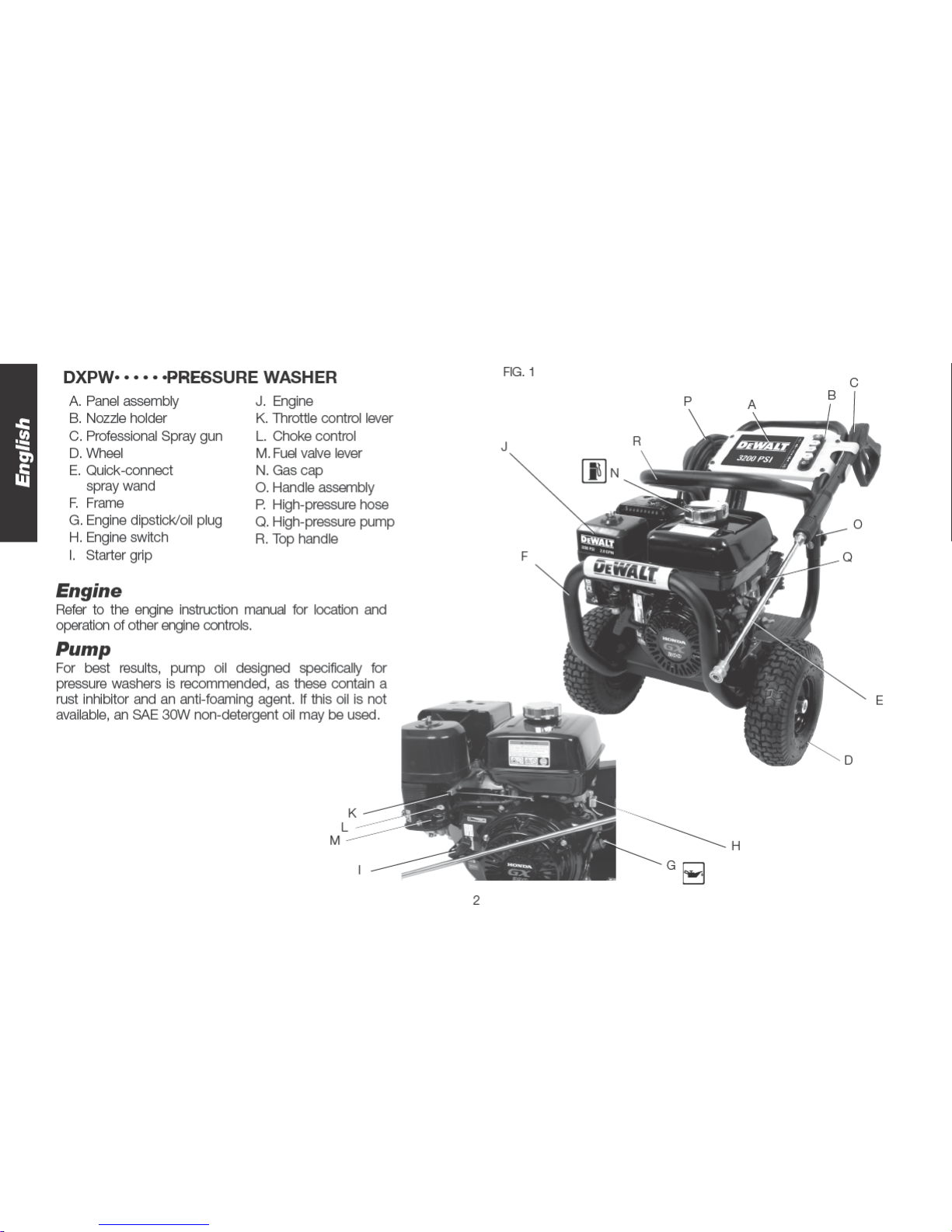

Specications

MODEL WEIGHT HEIGHT WIDTH LENGTH PSI** GPM** ENGINE

DXPW90 lbs

(40.8 kg) 22"

(55.9 cm)

21"

(53.3 cm)

34"

(86.4 cm)

3200

(22063 kPa) 2,8

(10,6 L/min)) HONDA GX200***

196 cc

** PSI and GPM ratings determined in accordance with the Pressure Washers Manufacturers Association (PWMA)

standard PW101.

*** HONDA™ is a registered trademarks of the HONDA MOTOR CO., LTD used under license from AMERICAN HONDA MOTOR CO. INC.

Important Safety Instructions

DANGER: Carbon Monoxide. Using an engine indoors can kill

you in minutes. Engine exhaust contains high levels of carbon

monoxide (CO), a poisonous gas you cannot see or smell. You

may be breathing CO even if you do not smell engine exhaust.

WARNING: This product and its exhaust contain chemicals

known to the State of California to cause cancer, and birth

defects and other reproductive harm.

• NEVER use an engine inside homes, garages, crawlspaces or

other partly enclosed areas. Deadly levels of carbon monoxide can

build up in these areas. Using a fan or opening windows and doors

does NOT supply enough fresh air.

• ONLY use outdoors and far away from open windows, doors and

vents. These openings can pull in engine exhaust.

• Even when the engine is used correctly, CO may leak into your

home. ALWAYS use a battery-powered or battery backup CO

alarm in your house. Read and follow all directions for CO

alarm before using. If you feel sick, dizzy or weak at anytime,

move to fresh air immediately. See a doctor. You could have

carbon monoxide poisoning.

English

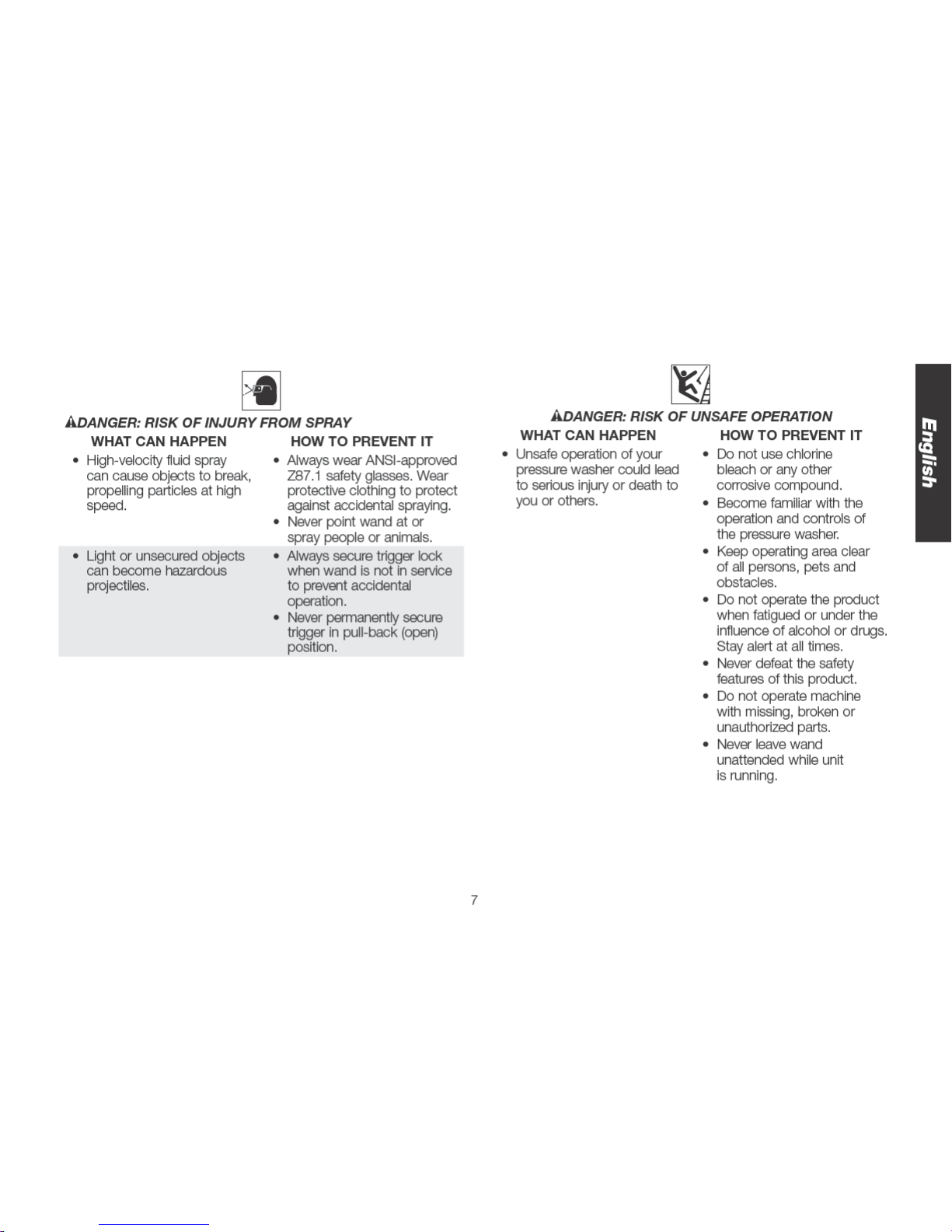

WARNING: RISK OF BURSTING

WHAT CAN HAPPEN HOW TO PREVENT IT

 • Over inflation of tires could

result in serious injury and

property damage.

 • Useatirepressuregauge

to check the tires pressure

before each use and while

inflating tires; see the tire

sidewall for the correct tire

pressure.

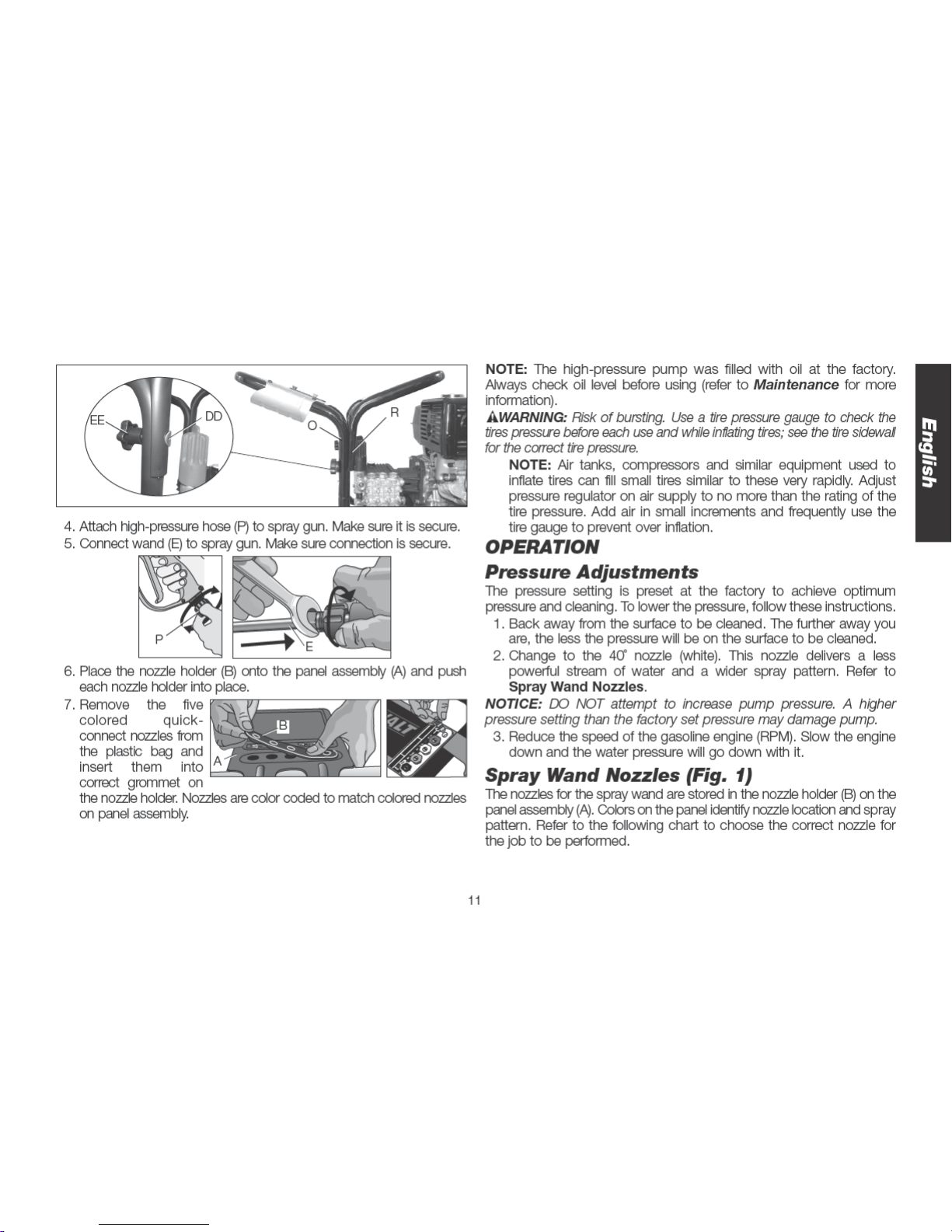

NOTE: Air tanks,

compressors and similar

equipmentusedtoinflate

tires can fill small tires similar

to these very rapidly. Adjust

pressure regulator on air

supply to no more than the

rating of the tire pressure.

Add air in small increments

andfrequentlyusethe

tire gauge to prevent over

inflation.

 • High-velocityfluidspray

directed at pneumatic tire

sidewalls (such as found

on automobiles, trailers and

the like) could damage the

sidewall resulting in serious

injury.

 • Onpressurewashersrated

above 1600 psi (11032kPa)

use the widest fan spray

(40º nozzle) and keep the

spray a minimum of 8"

(20 cm) from the pneumatic

tire sidewall. Do not aim

spray directly at the joint

between the tire and rim.

WARNING: RISK OF HOT SURFACES

WHAT CAN HAPPEN HOW TO PREVENT IT

 • Contactwithhotsurfaces,

such as engines exhaust

components, could result in

serious burn.

 • Duringoperation,touch

only the control surfaces

of the pressure washer.

Keep children away from

the pressure washer at all

times. They may not be able

to recognize the hazards of

this product.

English

3. Connect length of garden hose to water inlet of pump.

4. Add RV antifreeze to hose as shown.

5. Pull engine starter rope slowly several times until antifreeze

comes out of high-pressure hose connection of pump.

6. Remove garden hose from water inlet of pump.

7. Reconnect spark plug wire.

Pressure Washer

1. Drain all water from high-pressure hose, coil it and store it in

cradle of the pressure washer handle.

2. With nozzle pointed down and the spray gun and wand in a

verticalposition,squeezetriggertodrainallwaterfromspraygun

and wand. Store in gun holder.

3. Store chemical hose so it is protected from damage.

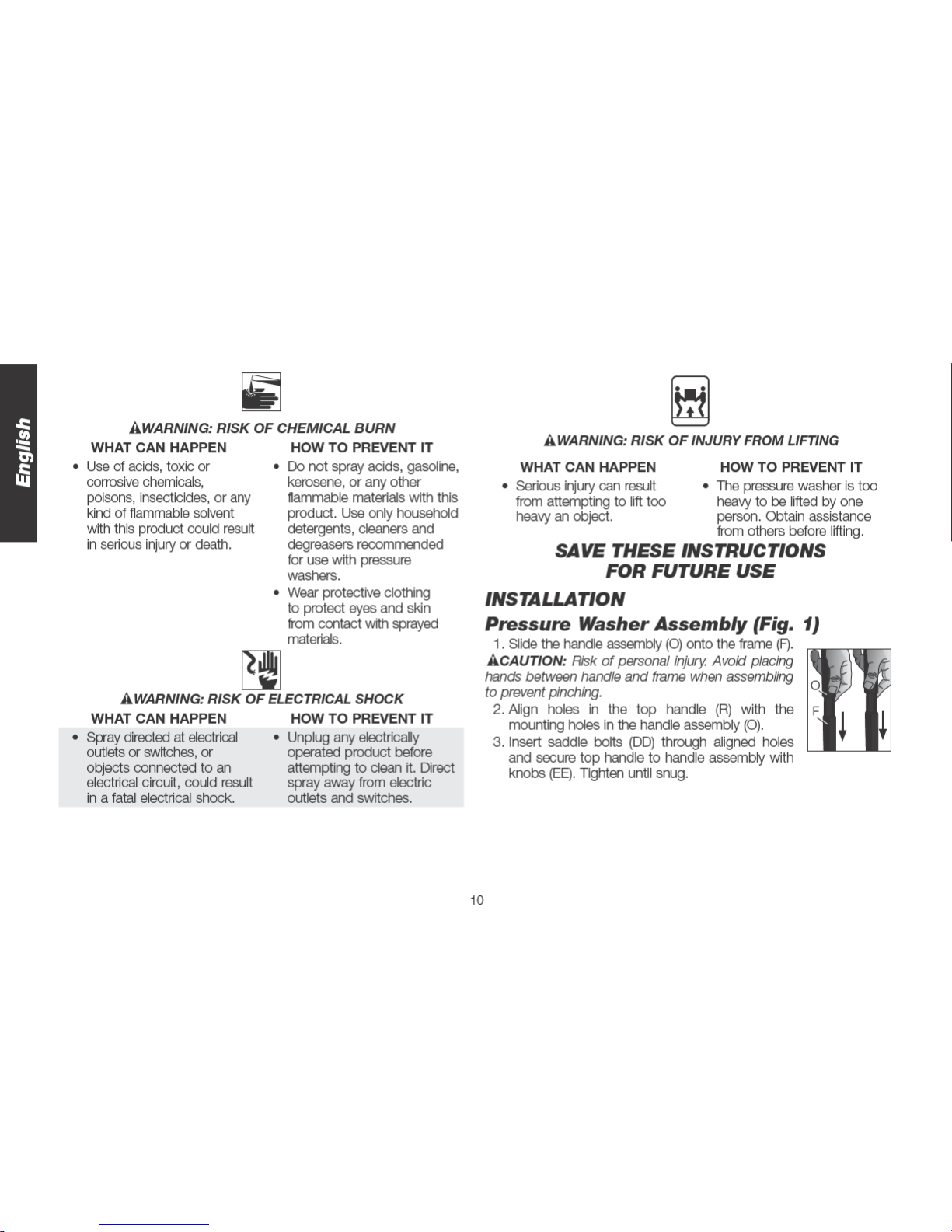

CAUTION: Risk of personal injury. Avoid placing hands between

handle and frame when assembling to prevent pinching.

NOTICE: Risk of property damage. Always store and transport unit

in an upright position.

ACCESSORIES

Recommended accessories for use with your tool are available for

purchase from your local dealer or authorized service center. If you

need assistance in locating any accessory for your tool, please contact

the FNA Group at www.dewaltpw.com, 1825 Greenleaf Avenue, Elk

Grove Village, Il 60007, or call (877) FNA-GAS1.

DANGER: Risk of fluid injection. When using replacement lances

or guns with this pressure washer, DO NOT use a lance and/or lance/

gun combination that is shorter in length than what was provided with

this pressure washer as measured from the nozzle end of the lance to

the gun trigger.

WARNING: The use of any other accessory not recommended

for use with this tool could be hazardous. Use only accessories rated

equal to or higher than the rating of the pressure washer.

SERVICE INFORMATION

Please have the following information available for all service calls:

Model Number ____________ Serial Number ___________

Date and Place of Purchase ___________________________________

Repairs

To assure product SAFETY and RELIABILITY, repairs, maintenance

and adjustment should be performed by a FNA factory service center,

aFNAauthorizedservicecenterorotherqualifiedservicepersonnel.

Always use identical replacement parts.

English

Limited Warranty

The manufacturer of this product agrees to repair or replace designated

parts that prove defective within the warranty period listed below at the

manufacturer’s sole discretion. Specific limitations/extensions and

exclusions apply.

This warranty covers defects in material and workmanship and not

parts failure due to normal wear, depreciation, abuse, accidental

damage, negligence, improper use, maintenance, or storage. To make

a claim under the terms of the warranty, all parts said to be defective

mustberetainedandavailableforreturnuponrequesttoadesignated

Warranty Service Center for warranty inspection. The judgments and

decisions of the manufacturer concerning the validity of warranty

claims are final.

These warranties pass through to the end user and are non-

transferable. As a factory authorized and trained Warranty Service

Center, the factory will honor the terms of all component warranties

and satisfy claims of the appropriate warranty provisions.

Normal wear items include, but are not limited to, valves and seals,

which are not covered by this warranty.

This warranty replaces all other warranties, express or implied,

including without limitation any warranties of merchantability or fitness

for a particular purpose and all such warranties are hereby disclaimed

and excluded by the manufacturer. The manufacturer’s warranty

obligation is limited to repair and replacement of defective products as

provided herein and the manufacturer shall not be liable for any further

loss, damages, or expenses – including damages from shipping,

accident, abuse, acts of God, misuse, or neglect. Neither is damage

from repairs using parts not purchased from the manufacturer or

alterations performed by non-factory authorized personnel. Failure to

installandoperateequipmentaccordingtotheguidelinesputforthin

the instruction manual shall void warranty.

This warranty does not cover the following: machines used for

rental purposes, damage resulting from shipping (claims must be

filed with freighter), accident, abuse, act of God, misuse, or neglect.

Neither is damage from repairs or alterations performed by non-

factoryauthorizedpersonnelorfailuretoinstallandoperateequipment

according to the guidelines put forth in the instruction manual.

Themanufacturerwillnotbeliabletoanypersonsforconsequential

damage, for personal injury, or for commercial loss.

ENGINE

Covered by engine manufacturer warranty. See engine manual.

HIGH PRESSURE PUMP (DEFECTS IN MATERIAL AND

WORKMANSHIP)

Two (2) years from date of purchase.

WARRANTY DOES NOT APPLY TO FAILURES DUE TO:

 • Freightdamage

 • Freezedamage

 • Damage caused by parts or accessories not obtained from an

authorized dealer or not approved by the manufacturer.

 • Normalwearofmovingpartsorcomponentsaffectedbymoving

parts.

FRAME (DEFECTS IN MATERIAL AND WORKMANSHIP)

One (1) year from date of purchase.

ACCESSORIES (DEFECTS IN MATERIAL AND

WORKMANSHIP)

Includes nozzles, hoses, spray guns, wands

Ninety (90) days from date of purchase.

English

Glossary

Bypass mode: Allows water to re-circulate within pump when the gun trigger is not pulled.

Chemical hose: Feeds cleaning agents into the pump to mix with the water. Refer to Chemicals and Cleaning Solvents.

Chemical injection system: Mixes cleaners or cleaning solvents with water to improve cleaning effectiveness.

Choke control: Opens and closes carburetor choke valve.

CU: Cleaning Units. GPM multiplied by psi. (GPM x PSI = CU)

Fuel valve lever: Opens/closes connection between fuel tank and carburetor.

GPM: Gallons Per Minute. The unit of measure for the flow rate of water.

PSI:PoundsperSquareInch.Theunitofmeasureforwaterpressure.Alsousedforairpressure,hydraulicpressure,etc.

kPa (kilopascal): Metricpressuremeasurement.1kilopascalequal1000pascals.

Quick-connect spray wand: Allowstheusertoquicklychangeouthigh-pressurenozzles.RefertoSpray Wand Nozzles.

Thermal relief valve: When the temperature inside the pump rises too high the valve will open and release a gush of water in an effort to lower

the temperature inside the pump. The valve will then close.

Water supply: Allpressurewashersmusthaveasourceofwater.Theminimumrequirementsforawatersupplyare20psi(138kPa)and

5gallons per minute.

English

Troubleshooting Guide

This section provides a list of the more frequently encountered malfunctions, their causes and corrective actions. The

operatorormaintenancepersonnelcanperformsomecorrectiveactions,andothersmayrequiretheassistanceofaqualifiedFNAtechnician

or your dealer.

Problem Code

Engine will not start ........................................................................................................1, 2, 3, 4, 5, 6, 7, 8, 36

(refer to the engine's instruction manual for further engine troubleshooting)

No or low pressure (initial use) ........................................................................................9, 10, 11, 12, 13, 14, 15, 16

Will not draw chemicals ..................................................................................................16, 17, 18, 19, 20, 21

No or low pressure (after period of normal use)..............................................................22, 23, 24

Water leaking at gun/spray wand connection.................................................................25, 26

Water leaking at pump....................................................................................................25, 26, 27, 28

Oil leaking at pump.........................................................................................................29, 30, 31, 32, 33, 34, 35
