Nilfisk-Advance C 120.4 User manual

Nilfisk C 120.4
User Manual

3
Index
1 Safety precautions and warnings .............................................3
2 Description ...............................................................................4
3 Before you start using your pressure washer...........................5
4 Operating your pressure washer ..............................................6
5 Fields of Application and working methods ..............................9
6 After using your pressure washer...........................................11
7 Maintenance...........................................................................12
8 Trouble Shooting ....................................................................14
9 Further information.................................................................15
10 EC Declaration of Conformity.................................................17
1 Safety Precautions and Warnings
Symbols used to mark in-
structions
Before starting up
your high-pres-
sure washer for
the first time, this
instruction manual
must be read through carefully.
Save the instructions for later
use.
Safety instructions
marked with this
symbol must be
observed to pre-
vent danger to persons.
This symbol is
used to mark safety
instructions that
must be observed
to prevent damage
to the machine and its per-
formance.
This symbol
indicates tips
and instructions
to simplify work and to ensure a
safe operation.
Do not let children or people
who have not read the instruc-
tion manual operate the ma-
chine.
Before starting up your machine
please check it carefully for any
defects. If you find any, do not
start up your machine and con-
tact your Nilfisk distributor.
Especially check:
zThe insulation of the electric
cable should be faultless
and without any cracks. If the
electric cable is damaged, an
authorized Nilfisk distributor
should replace it.
WARNING!
zHigh pressure jets can be
dangerous. Never direct the
water jet at persons, pets,
live electrical equipment or
the machine itself.
zNever try to clean clothes or
footwear on yourself or other
persons.
zHold the spray lance firmly
with both hands. The spray
lance is affected by a thrust
of up to 16.4 N during ope–
ration.
zThe operator and anyone in
the immediate vicinity of the
site of cleaning should take
action to protect themselves
from being struck by debris
dislodged during operation.
Wear goggles during opera-
tion.
zNever use the machine in
an environment where there
could be a danger of explo-
sion. If any doubt arises,
please contact the local
authorities.
zIt is not allowed to clean as-
bestos-containing surfaces
with high pressure.
zThis high pressure washer
must not be used at tempera-
tures below 0°C.
zNever let any persons stay
under the product when
stored on the wall.
WARNING!
Inadequate extension cables
can be dangerous. Cables on
drums should always be com-
pletely unwinded to prevent the
cable from overheating.
,

4
Extension cables should be of
a watertight construction and
comply with the below-men-
tioned requirements for length
and cable dimensions.
1.0 mm² max. 12.5 m
1.5 mm² max. 20 m
2.5 mm² max. 30 m
zCable connections should be
kept dry and off the ground.
Mains power connection
The following should be ob-
served when connecting the
high pressure washer to the
electric installation:
zOnly connect the machine to
an installation with earth con-
nection.
zThe electric installation shall
be made by a certified elec-
trician.
zIt is strongly recommended
that the electric supply to this
machine should include a re-
sidual current device (GFCI).
Water connection
Connection to
the public mains
according to regu-
lations.
This high pres-
sure washer is only allowed to
be connected with the drinking
water mains, when an appro-
priate backflow preventer has
been installed, Type BA accord-
ing to EN 1717. The backflow
preventer can be ordered under
number 106411177. The length
of the hose between the back-
flow preventer and the high
pressure washer must be at
least 10 metres to absorb pos-
sible pressure peaks (min diam-
eter ½ inch).
Operation by suction (for ex-
ample from a rainwater vessel)
is carried out without backflow
preventer. Recommended suc-
tion set: 126411387.
As soon as water has flown
through the BA valve, this water
is not considered to be drinking
water any more.
IMPORTANT! Only use wa-
ter without any impurities. If
there is a risk of running sands
in the inlet water (i.e. from your
own well), an additional filter
should be mounted.
Repair and maintenance
WARNING! Always remove the
electric plug from the socket be-
fore carrying out maintenance
work on the machine.
Safety devices
Locking device on spray gun
(7a) (see foldout at the end of
this manual):
The spray gun features a lock-
ing device. When the pawl is
activated, the spray gun cannot
be operated.
Thermal sensor:
A thermal sensor protects the
motor against overloading. The
machine will restart after a few
minutes when the thermal sen-
sor has cooled.
Pressure safety device
An integrated hydraulic safety
valve protects the system from
excessive pressure.
2 Description
2.1 Application This high-pressure washer has
been developed for domestic
use within:
- Car, motorbike, boat, cara-
van, trailer, patio/drive/flag-
stones, woodwork, brickwork,
barbecue, garden furniture,
lawn mower
Section 5 describes the use of
the high-pressure washer for
vaious cleaning jobs.
Only use the high-pressure
washer for purposes described
in this manual.
The safety precautions must be
observed to prevent damage
to the machine, the surface to
be cleaned or severe personal
injuries.

5
2.2 Operation elements
and model survey

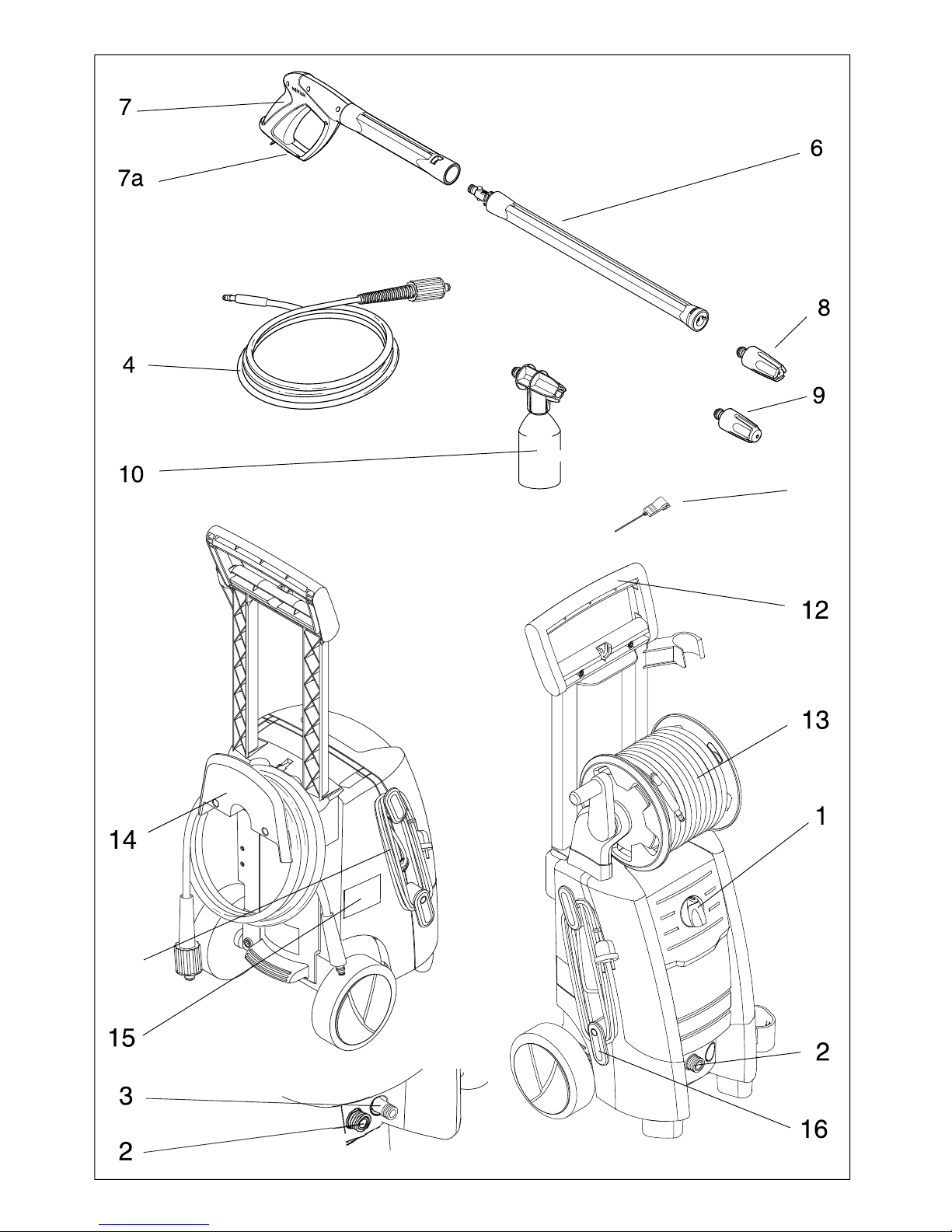

See illustration at the end of
this manual.
1 Start/stop switch
2 Water inlet (with filter)
3 High pressure connection
4 High pressure hose
5 Electric cable
6 Click & Clean spray lance
7 Spray gun with lock
8 Click & Clean Tornado®PR
nozzle
9 Click & Clean Powerspeed®
nozzle
10 Click & Clean foam sprayer
11 Nozzle cleaning tool
12 Trolley Handle
13 Hose reel (not standard)
14 Hose hook
15 Model tag
16 Turnable cable hook
Specifications: See model tag
(15) of machine.
Sound pressure level measured
in accordance with ISO 3744,
EEC Directive 2000/14/EEC: LpA
= 71.3 dB(A), LWA = 86 dB(A).
We reserve the right to alter the
specifications.
3 Before you start using your
pressure washer
3.1 Mounting of trolley
handle and hose hook
1. Mount the trolley handle (12)
on the machine. Secure the
handle by tightening the 4
screws.
2. Mount the hose hook (14)
on the machine (2 screws).
Note: the hose hook can be
mounted on the front as well
as on the back. Front position
is to be used if the product is
used together with a special
wall hook for wall storage
(not standard).
3.2 Mounting of hose reel
handle (models with
hose reel)
1. Click the hose reel handle
on to the trolley handle (no
screws) (not standard).

6
3.3 Mounting of quick
coupling
1. Screw the quick coupling
tight on to the water inlet (2).
Note: The inlet filter must al-
ways be fitted in the water inlet
pipe to filter out sand, limestone
and other impurities as these
will damage the pump valves.
Caution: Failure
to fit the filter will
invalidate the
guarantee.
,
4 Operating your pressure washer
4.1 Connection of high pres-
sure hose

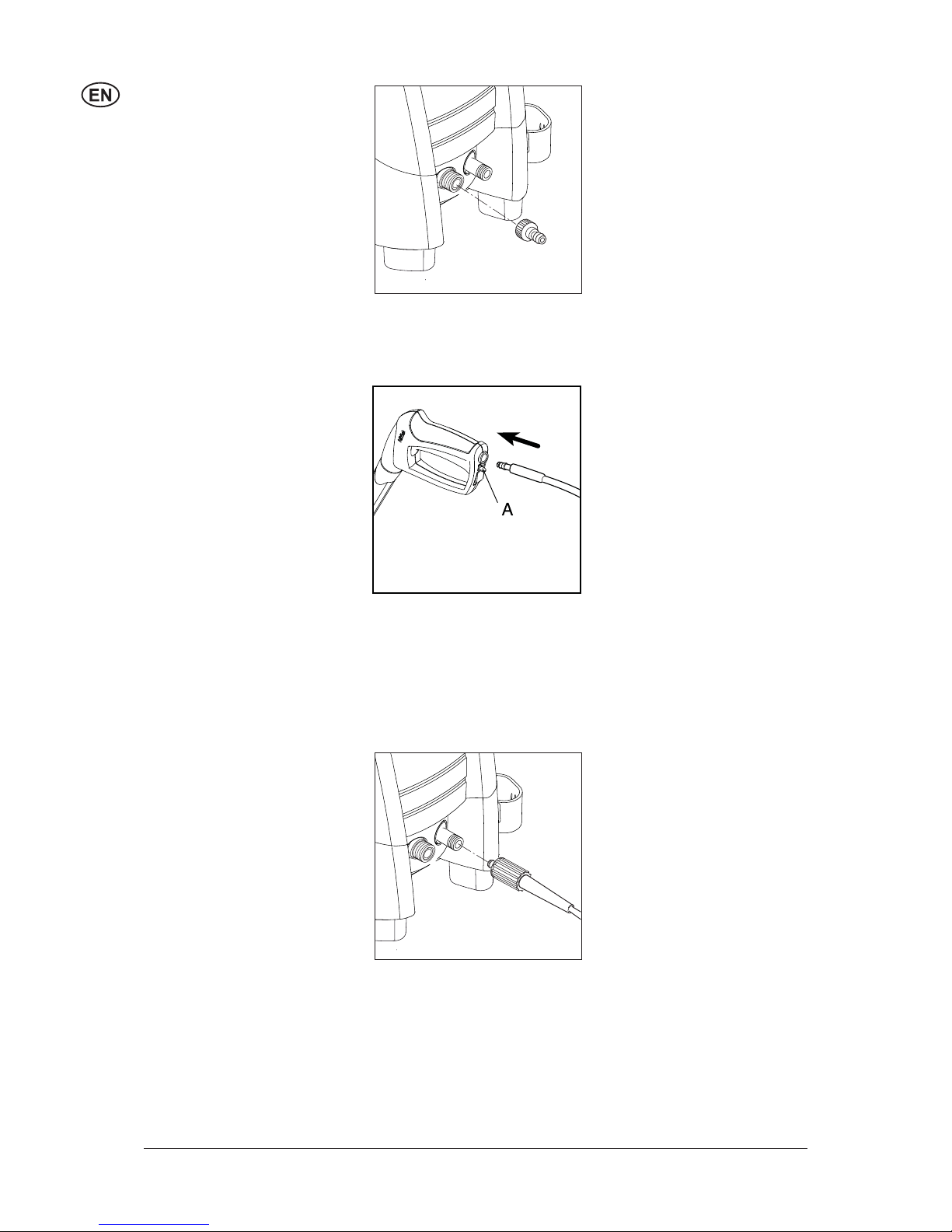

1. Mount the high pressure
hose on the outlet (3).
3.4 Mounting of high pres-
sure hose
Attach the high pressure hose
(4) to the spray gun (7).
Detach the high pressure hose
by pressing the pawl (A).

7

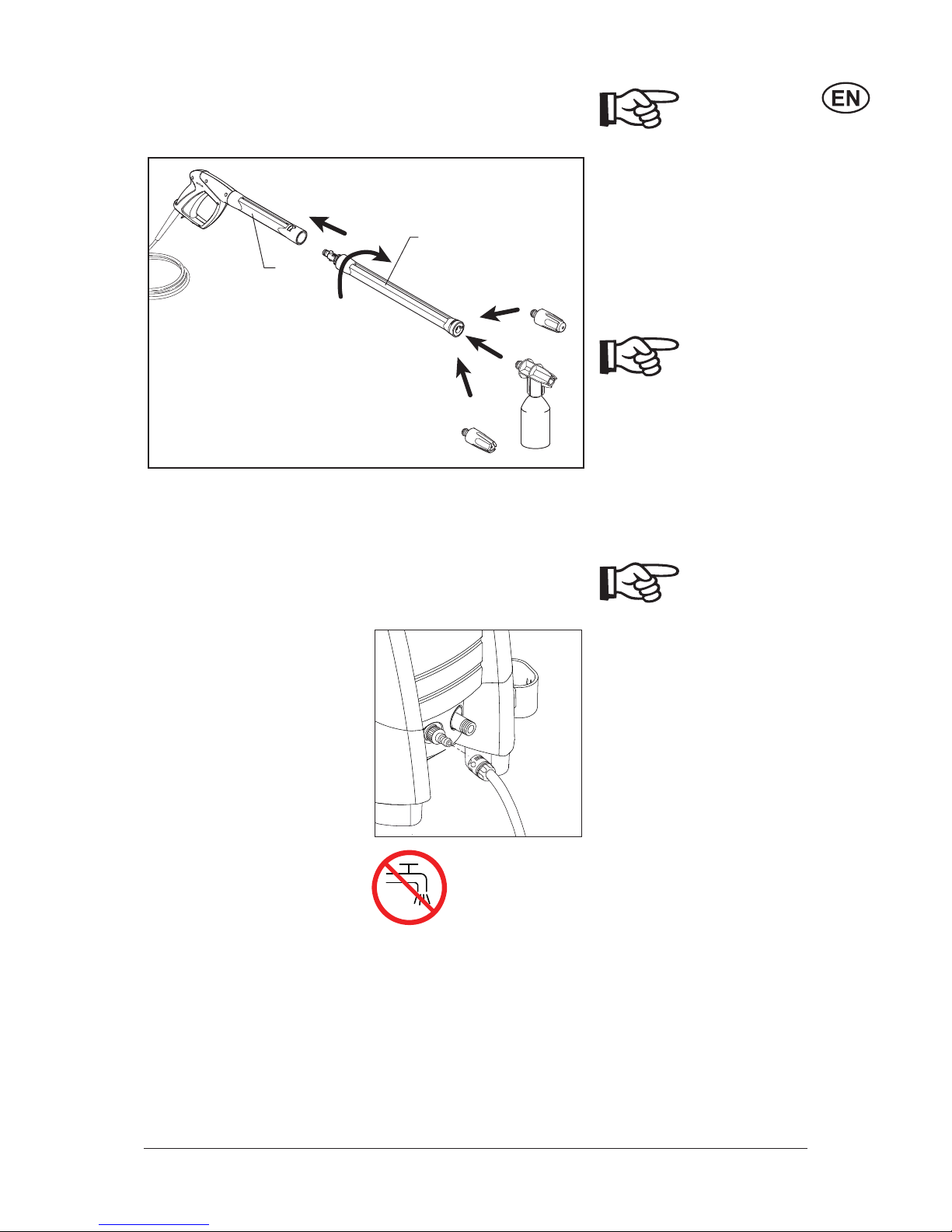

4.2 Mounting of spray
lance and Click & Clean
nozzles
,
Note: The
spray lance (6)
has a built-in low
pressure nozzle that can be
used for flushing away dirt.
2. Attach the nozzle.
Warning: When
attaching the Click
& Clean nozzles,
the pawl on the
side of the spray
lance should come out again.
Note: The Tor-
nado® PR noz-
zle and the foam
sprayer feature a swivel lock,
which must be positioned in the
hole in the Click & Clean spray
lance.
Press the pawl to detach the
Click & Clean nozzle.
6
7
1. Push the spray lance (6) into
the spray gun (7) and screw
it on.
4.3 Water connection An ordinary 1/2" garden hose of
min. 10 m and max. 25 m will
be suitable.
NOTE: Connec-
tion to the public
mains according
to regulations.
IMPORTANT!
Only use water
without any
impurities. If there is a risk
of running sands in the inlet
water (i.e. from your own well),
an additional filter should be
mounted.
1. Let the water run through the
water hose before connecting
it to the machine to prevent
sand and dirt from penetrat-
ing the machine.
Note: Check that the filter is
fitted in the water inlet pipe
and that it is not clogged up.
2. Connect the water hose to
the water supply by means
of the quick connector (inlet
water, max. pressure: 10 bar,
max. temperature: 40°C).
3. Turn on the water.

8
4.4 Start and stop of the
machine (when con-
nected to a water supply)
The spray lance is affected
by a thrust during operation -
therefore always hold it firmly
with both hands. IMPORTANT:
Point the nozzle at the
ground.
1. Check that the machine is in
upright position.
NOTE: Do not place the
machine in high grass!
2. Release the trigger lock.
3. Activate the trigger of the
spray gun and let the water
run until all air has escaped
from the water hose.
4. Turn the start/stop switch (1)
to position"I".
5. Activate the trigger of the
spray gun.
Always adjust the distance and
thus the pressure of the nozzle
to the surface, which is to be
cleaned.
Do not cover the machine
during operation.
Note: If the ma-
chine is left or not
used for 5 min-
utes, it must be switched off on
the start/stop switch "O" (1):
1. Turn the start/stop switch (1)
to position"O".
2. Disconnect the electrical plug
from the socket.
3. Shut off the water supply and
activate the trigger to relieve
the machine of pressure.
4. Lock the spray gun.
When releasing the trigger of
the spray gun, the machine
automatically stops. The ma-
chine will start again when you
re-activate the spray gun.
4.5 Start the machine (when
connected to open con-
tainers (suction mode))
The washer can take in water
from a rain water tank as an
example. The hose for the wa-
ter supply must not be too long,
approx. 5 m.
Make sure that the water tank
is not placed on a lower level
than the machine.
1. Place the other end of the
water hose in the water tank.
Use an external filter if the
water contains impurities.
2. Turn the start/stop switch (1)
to position"I".
3. Activate the trigger of the
spray gun and let the water
run, until the air has escaped
from the water hose and the
pump.
4. Mount spray lance and
nozzle.
4.6 Pressure regulation on
the TORNADO®PR-
nozzle
The pressure can be regulated
on the TORNADO®PR nozzle.
Lavtryk
Højtryk
High pressure
Low pressure

9
5 Fields of application and working
methods
5.1 General Efficient high presure cleaning is achieved by following a few guide-
lines, combined with your own personal experience of specific
cleaning tasks. Accessories and detergents, when correctly cho-
sen, can increase the efficiency of your pressure washer. Here is
some basic information about cleaning.
5.1.1 Detergent and foam Foam or detergent should be applied onto dry surfaces so that the
chemical product is in direct contact with the dirt. Detergents are
applied from bottom to top, for example on a car bodywork, in order
to avoid "super clean" areas, where the detergent collects in higher
concentration and streams downwards. Let the detergent work for
several minutes before rinsing but never let it dry on the surface be-
ing cleaned. Note: It is important that the detergents do not dry up.
Otherwise the surfac that has to be cleaned can be damaged.
5.1.2 Mechanical effect In order to break down tough layers of dirt, additional mechanical
effect may be required. Special wash brushes offer this supplemen-
tary effect that cuts through dirt (especially by car washing).

10
5.2 Typical fields of application
Below you will find a description of a lot of cleaning tasks which can be solved by a pressure washer
from Nilfisk in association with accessories and detergents.
Task Accessories ‘Click
& Clean’
Cleaning method
Car Car nozzle,
auto brush,
underchassis
nozzle,
Foam sprayer,
Car Combi Cleaner
1. Apply Car Combi Cleaner with the foam sprayer. Always
start from the bottom and work upwards. Let Car Combi
Cleaner act for at least 5 min.
2. Wash the car with the car nozzle, which has been optimized for
quick and gentle cleaning of enamelled surfaces (the jet is wider
and not so sharp). Start at the front of the car and work back-
wards to avoid water from penetrating by the door mouldings.
3. Use the brush for removal of traffic film which is not removed by the
nozzle. If the car is very dirty, apply Car Combi Cleaner again.
4. Attach the undercarriage nozzle and clean undercarriage and
wheel arches.
5. Remove water from the surface of the car with the scraper
on the car brush. Make sure that all grains of sand etc. have
been removed before using the scraper. Wipe with a wash lea-
ther where the scraper cannot reach.
Rims, alu-
minium
Rim brush,
auto nozzle,
atomizer,
Alu Cleaner
Apply Alu Cleaner with an automizer. Let it act for approx.
5 min. and wash with the rim brush. For steel rims, use Car Com-
bi Cleaner. Use the foam sprayer and wash with rim brush.
Be careful! The high pressure jet may damage the tyres.
Flagstones,
concrete
floors and
other hard
surfaces
Powerspeed®
nozzle,
Stone & Wood
Cleaner,
Patio Cleaner
Wash towards outlets or the like. On surfaces with moss or
algae you may start by applying Stone & Wood Cleaner with
the foam sprayer. Wash before the soap dries. Another
more effective and quicker method is to use the Patio
Cleaner. Thus you will also avoid splashes.
Garden
furniture,
wood
Wood Cleaner
Garden brush
Apply Wood Cleaner and wash before the soap dries.
NOTE: Use the garden brush to clean off the dirt.
Brickwork,
Wood work
Powerspeed®
nozzle,
Stone & Wood
Cleaner,
Patio Cleaner
Same method as for flagstones, but be careful - bad joints and
wood may be damaged by high pressure. You may choose only
to use the Tornado®nozzle. Adjust the distance (pressure) to
the quality of the joints and the wood. Patio Cleaner can also be
used on vertical surfaces.
Gutter Underchassis spray
lance
Wash the gutter with the nozzle. Always wash towards
downpipes. Beware not to spray under the roofing.
Cleaning
of drain
pipes, out-
lets, down
pipes etc.
Tube cleaner Push the tube cleaner approx. ½ m (to mark) into a tube or drain
and activate the trigger of the spray handle. The nozzle opening
turning backwards will pull the cleaner through the tube. The
nozzle will break down the „plug“ and flush the dirt backwards.
Rust, paint Water/sandblasting
equipment
Mount the water/sand blasting equipment and rust and paint
is efficiently and quickly removed. Beware not to damage the
surface to be sandblasted.
Green-
house
Tornado®PR nozzle
brush, Stone &
Wood Cleaner
Wash with high pressure and maybe a brush. You may use Stone
& Wood Cleaner to remove moss and algae.
Garden
tools, lawn
mover
Tornado®PR noz-
zle, Powerspeed®
nozzle, multiangle
adaptor, Metal
Cleaner
Rinse the worst dirt off with the nozzle. Apply Metal Cleaner with
the foam sprayer and let it act for approx. 5 min. Wash with the
nozzle.You may use the multiangle adaptor for hard to get at
areas to avoid splashing.

11
,
6 After using your pressure washer
6.2 Winding up of electric
cable and high pressure
hose
carefully up.

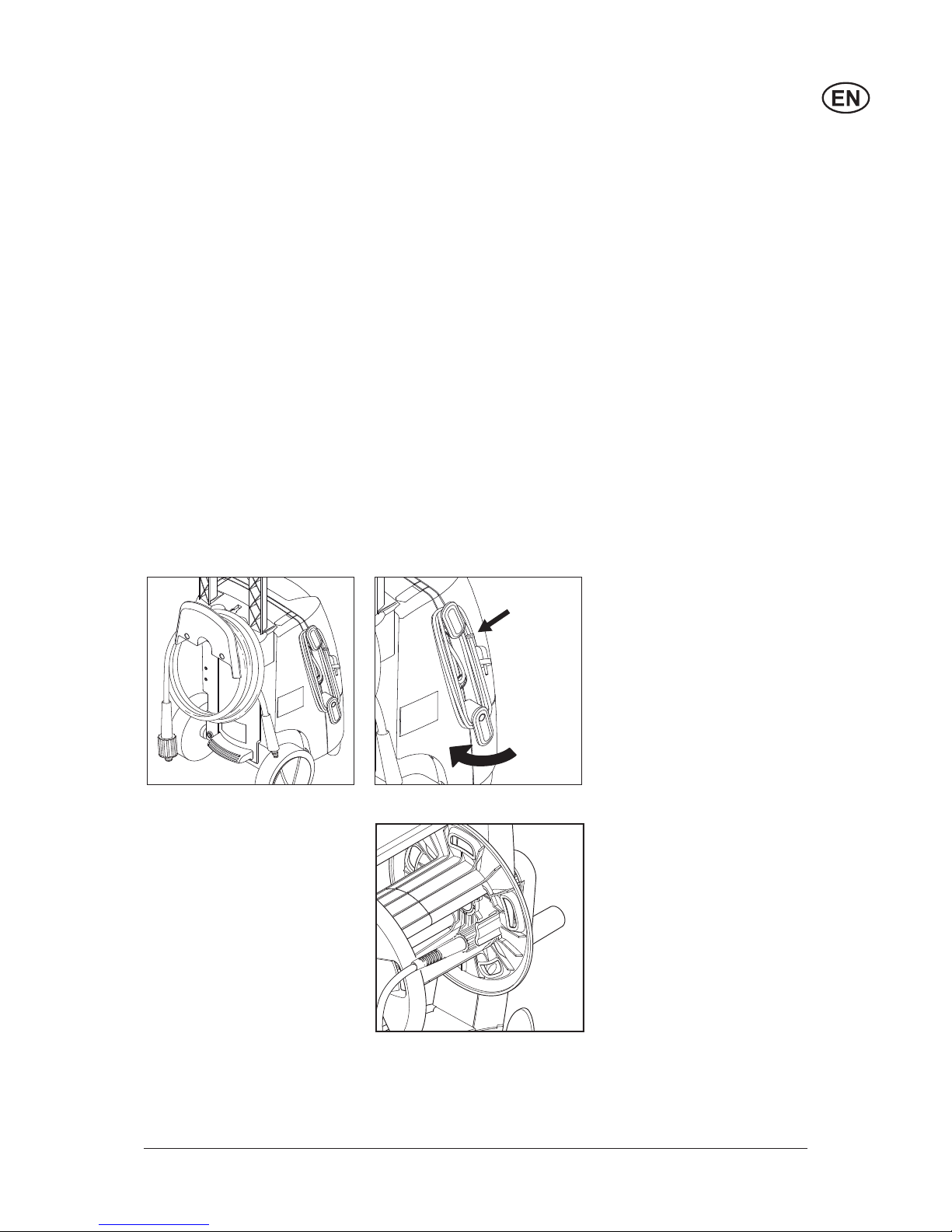

Wind up the electric cable on
the appropriate hooks. Built-in
clip for good holding.
The lower hook can be turned
to release the electric cable.
6.1 Storing the washer The machine should be sto-
red in a frost-free room!
Pump, hose and accessories
should always be emptied of
water prior to storing as follows:
1. Stop the machine (turn
the start/stop switch (1) to
position"O") and detach wa-
ter hose and accessory.
2. Restart the machine and
activate the trigger. Let the
machine run until no more
water runs through the spray
gun.
3. Stop the machine, unplug
and wind up hose and cable.
4. Place spray handle, nozzles
and other accessories in the
holders of the machine.
Should the machine by mistake
be frozen, it will be necessary
to check it for damage.
NEVER START-UP A FROZEN
MACHINE.
Frost damages are not
covered by the guarantee!
To avoid accidents, the electric
cable and the high pressure
hose should always be winded
The high pressure washer
comes in two models: A) with
hook for storage of high pres-
sure hose (14) - B) with a hose
reel (13) , where the hose is
pushed into the reel and after-
wards winded up.

12
WARNING! Always disconnect
the electrical plug from the
socket prior to maintenance or
cleaning.
To ensure a long and problem
free working life, please take
the following advice:
zWash out water hose, high
pressure hose, spray lance
and accessories before
mounting.
zClean the connectors of dust
and sand.

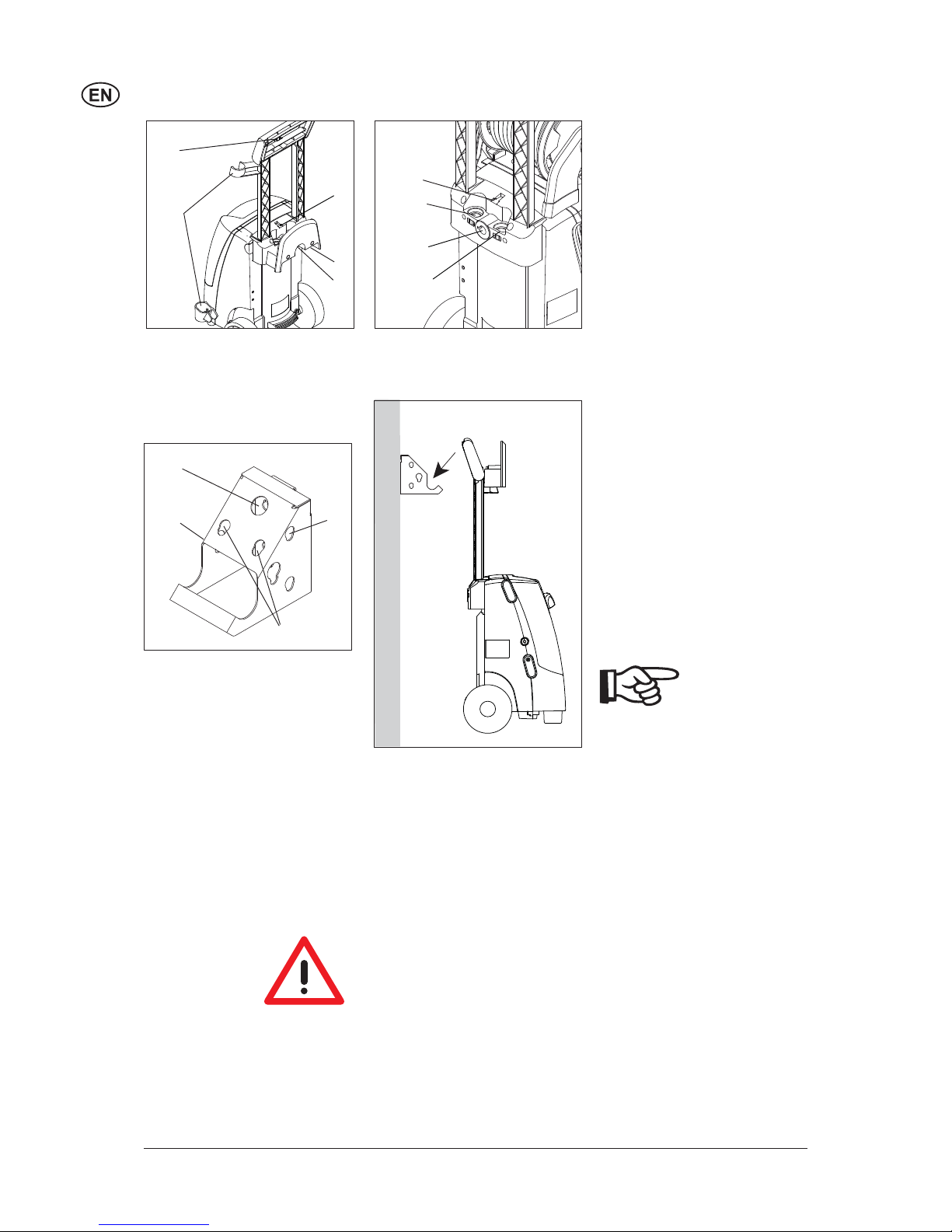

6.4 Wall storage
7 Maintenance
The pressure washer can be
stored on a wall on a special
wall hook (not standard).
Only mount the wall hook on a
sturdy wall. Adjust the length
of the screws and size of rawl-
plugs to the type of wall.
On the wall hook garden/rim
brush (a) foam sprayer (b),
Click & Clean brush (c) and
Click & Clean nozzles (d) can
be stored.
Note: For this
product the wall
hook can only be
used as storage.
Important: The
bearing capacity
of the wall hook
is max. 30 kg.
,
A
CB
D
6.3 Storage of accessories
a
e
d
c
b
b
c
d
b
The standard accessories
(spray gun and spray lance (a),
nozzles (b) foam sprayer (c))
can be stored on the pressure
washer.
The nozzle cleaning tool (d) can
also be stored on the product.

13
7.1 Cleaning of water inlet
fi lter
Clean the water inlet filter
regularly once a month or more
frequently according to use.
Carefully loosen the filter with a
screwdriver and clean it. Check
that it is intact before re-mount-
ing it.
The inlet filter must always be
fitted inside the water inlet pipe
to filter out sand, limestone and
other impurities, as they will
damage the pump valves.
CAUTION: Failure to fit the filter
will invalidate the guarantee.
7.2 Cleaning of nozzle A clogging up in the nozzle
causes a pump pressure which
is too high. This is why cleaning
is required immediately.
1. Stop the machine and dis-
connect the nozzle.
2. Clean the nozzle. IMPOR-
TANT: The cleaning tool (11)
should only be used when
the nozzle is detached!
3. Flush the nozzle backwards
with water.
7.3 Cleaning of machine
vents
The machine should be kept
clean so as to let cooling air
pass freely through the ma-
chine vents.
7.4 Greasing of couplings To ensure an easy connec-
tion and that o-rings do not dry
up, the couplings should be
greased regularly.
zMake sure that no sand or
dirt is blocking the movement
of the pawl on the Click &
Clean spray lance. Rinse ac-
cording to requirement.
zRinse the detergent spraying
attachment after use.
zClean the nozzles.
Any repair should always be
made in an authorized work-
shop with original spare parts.

14
8 Trouble-shooting
To avoid unnecessary disappointments, you should check the following before contacting the Nilfisk
service organization:
Symptom Cause Recommended action
Machine refuses to start Machine not plugged in Plug in machine.
Defective socket Try another socket.
Fuse has blown Replace fuse. Switch off other machines.
Defective extension cable Try without the extension cable.
Fluctuating pressure Pump sucking air Check that hoses and connections are air-
tight.
Valves dirty, worn out Clean and replace or refer to local Nilfisk
or stuck distributor
Pump seals worn out Clean and replace or refer to local Nilfisk
distributor.
Motor busses Low voltage or Activate the trigger of the spray gun.
low temperature
Machine stops Fuse has blown Replace fuse. Switch off other machines.
Incorrect mains voltage Check that the mains voltage corresponds
to specification on the model tag.
Thermal sensor activated Leave the washer for 5 minutes to cool
down.
Nozzle partially blocked Clean the nozzle (see section 7.2)
Fuse blows Fuse too small Change to an installation higher than the
amp. consumption of the machine.
You may try without the extension cable.
Machine pulsating Air in inlet hose/pump Allow machine to run with open trigger until
regular working pressure resumes.
Inadequate supply of Check that the water supply corresponds to
mains water specifications required (see model tag)
NB! Avoid using long, thin hoses (min. 1/2")
Nozzle partially blocked Clean the nozzle (see section 7.2)
Water filter blocked Clean the filter (see section 7.1)
Hose kinked Straighten out hose.
Machine often starts Pump/spray gun is Contact your nearest Nilfisk Service
and stops by itself leaking Centre.
Machine starts, but Pump/hoses or accessory Wait for pump/hoses or accessory to thaw.
no water comes out frozen
No water supply Connect inlet water.
Water filter blocked Clean the filter (see section 7.1)
Nozzle blocked Clean the nozzle (see section 7.2)
In case problems other than the above occur, please contact your local Nilfisk distributor.

15
9 Further information
9.1 Recycling the washer Make the old cleaner unusable
immediately.
1. Unplug the cleaner and cut
the electric cable.
Do not discard electrical appli-
ances with household waste.
As specified in European Direc-
tive 2002/96/EC on old electri-
cal and electronic appliances,
used electrical goods must
be collected separately and
recycled ecologically.
Contact your local authorities or
your nearest dealer for further
information.
9.2 Warranty conditions Nilfisk guarantees high pres-
sure washers for domestic use
for 2 years. If your high pres-
sure washer or accessories are
handed in for repair, a copy of
the receipt must be enclosed.
Guarantee repairs are being
made on the following condi-
tions:
zthat defects are attributable
to flaws or defects in materi-
als or workmanship. (wear
and tear as well as misuse
are not covered by the guar-
antee).
zthat the directions of this
instruction manual have been
thoroughly observed.
zthat repair has not been car-
ried out or attempted by oth-
er than Nilfisk-trained service
staff.
zthat only original accessories
have been applied.
zthat the product has not been
exposed to abuse such as
knocks, bumps or frost.
zthat only water without any
impurities has been used.
zthat the high pressure wash-
er has not been used for
rental nor used commercially
in any other way.
Repairs under this guarantee
include replacement of defec-
tive parts, exclusive of packing
and postage/carriage. Besides,
we refer to your national law of
sale.
The machine should be for-
warded to one of the service
centres of the Nilfisk organisa-
tion with description/specifi ca-
tion of the fault.
Repairs not covered by the
guarantee conditions will be
invoiced. (I.e. malfunctions due
to Causes mentioned in section
Troubleshooting Chart of the
instruction manual).
In order that Nilfisk can render
you optimum service, you
should register your product on
our web site www.nilfisk-alto.
com under “PRODUCT REGIS-
TRATION”.

16
9.3 Accessories
Only use original accessories.
Click & Clean
Car nozzle
Special nozzle for enameled surfaces. Optimal distance: 30
- 50 cm.
Click & Clean
Undershassis
nozzle
90° angled special nozzle for undercarriage and wheel arches.
Integrated guide shoes.
Click & Clean
Multiangle
adaptor
Adjusted in angles from 0° - 90° for better working posture and
cleaning of hard to get at places as for instance barrels or the
underside of the lawn mower. Fits all nozzles.
Click & Clean
Brushes
For cars and other surfaces. Available in more shapes.
Extension hose 7 m extension hose increasing the working range.
Underchassis
spray lance
Special spray lance for washing your car underneath.
Drain & Tube
cleaner
15 m long tube cleaner for the cleaning of tubes and drains.
Water-sand-
blasting equip-
ment
For removal of paint and rust. Sand available from do-it-your-
self shops.
Patio Plus Equipment for quick cleaning of patio/drive/flagstones.
Garden brush Rotary brush for cleaning of wooden surfaces.
Rim brush Rotary brush for cleaning of wheel rims.
Wall hook For suspension of your high pressure washer on the wall.
Rotary brush For cleaning vehicles and other surfaces.
Water suction
kit
For removal of large amounts of water from e.g. garden
pounds.

17
EU Declaration of Conformity
Product: High Pressure Washer
Type: Nilfisk C 120.4
Description: 230 V 1~, 50 Hz - IP X5
The design of the unit
corresponds to the following
pertinent regulations:
EC Machine Directive 98/37/EC
EC Low-voltage Directive 73/23/EEC
EC EMV Directive 2004/108/EC
Applied harmonised standards: EN 60335-2-79
Applied national standards and
technical specifications:
IEC 60335-2-79
Anton Sørensen
V.P. Technical Operations Europe
Nilfisk
Division of Nilfisk-Advance A/S
Industrivej 1
DK-9560 Hadsund
Hadsund, 01.01.2008
Detergents
Stone & Wood Cleaner For flagstones, brick- and woodwork. Suitable for moss and algae.
Plastic Cleaner For plastic and synthetic materials such as garden furniture.
Metal Cleaner For cleaning of metal such as garden tools.
Car Combi Cleaner For cars etc. With rinsing wax.
Alu Cleaner For surfaces of aluminium. Applied with an atomizer.
Oil & Grease Cleaner For cleaning of grease and oil on motors for instance. Applied with
an atomizer.
Wood Cleaner For cleaning of wooden surfaces incl. of wooden garden furniture.
10 EU Declaration of Conformity

11
5

128303202 a (01.2008)
Nilfisk, Division of Nilfisk-Advance A/S, Industrivej 1, DK - 9560 Hadsund, tel.: [phone]
