DH electronics 96Boards Avenger96 User manual

96Boards Avenger96 - Getting Started
DH electronics GmbH ▪Am Anger 8 ▪83346 Bergen ▪Germany
YOUR DIGITAL HEROES.

Avenger96 –Getting Started
DH electronics GmbH
R05
DOC_Getting-Started-588-100.docx
Page 2 / 14
History
Revision
Date
Description / Change
Name
R01
21.02.2019
First release
MH, AG
R02
25.02.2019
Some corrections
KH
R03
05.03.2019
Replaced wrong minus character at chapter 1.2.4.2
MH
R04
29.03.2019
Add new demo image version v1.1
Add GPU demo information
AG
R05
31.03.2019
Add new demo image version v1.2
AG

Avenger96 –Getting Started
DH electronics GmbH
R05
DOC_Getting-Started-588-100.docx
Page 3 / 14
Summary
1Getting Started with the 96Boards Avenger96 ......................................................................................................4
1.1 Overview...........................................................................................................................................................5
1.1.1 Product Features .....................................................................................................................................5
1.1.2 Block diagram ..........................................................................................................................................6
1.1.3 Key components.......................................................................................................................................7
1.1.4 Expansion Connectors.............................................................................................................................9

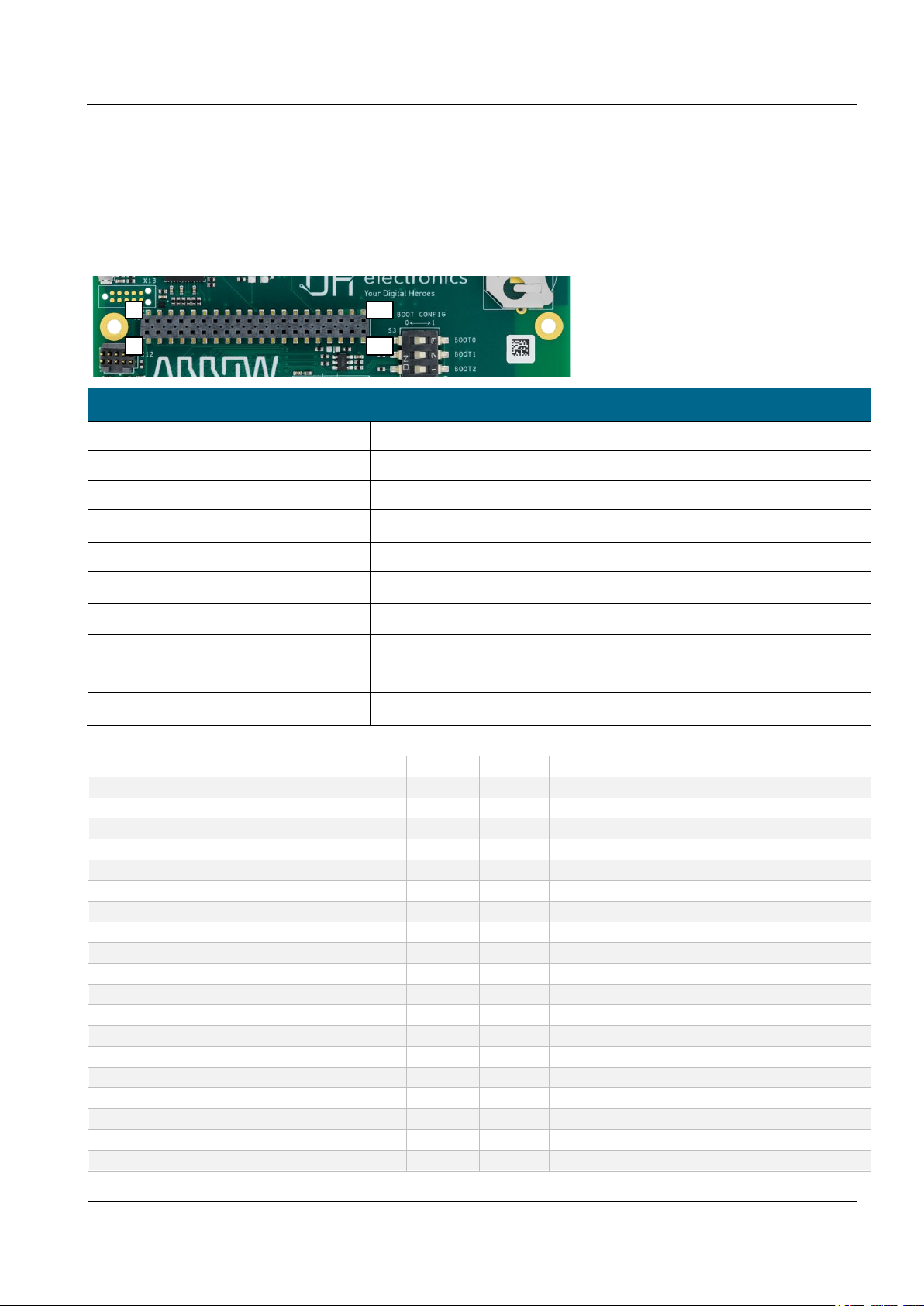

1.1.5 Low Speed Expansion Connector............................................................................................................9

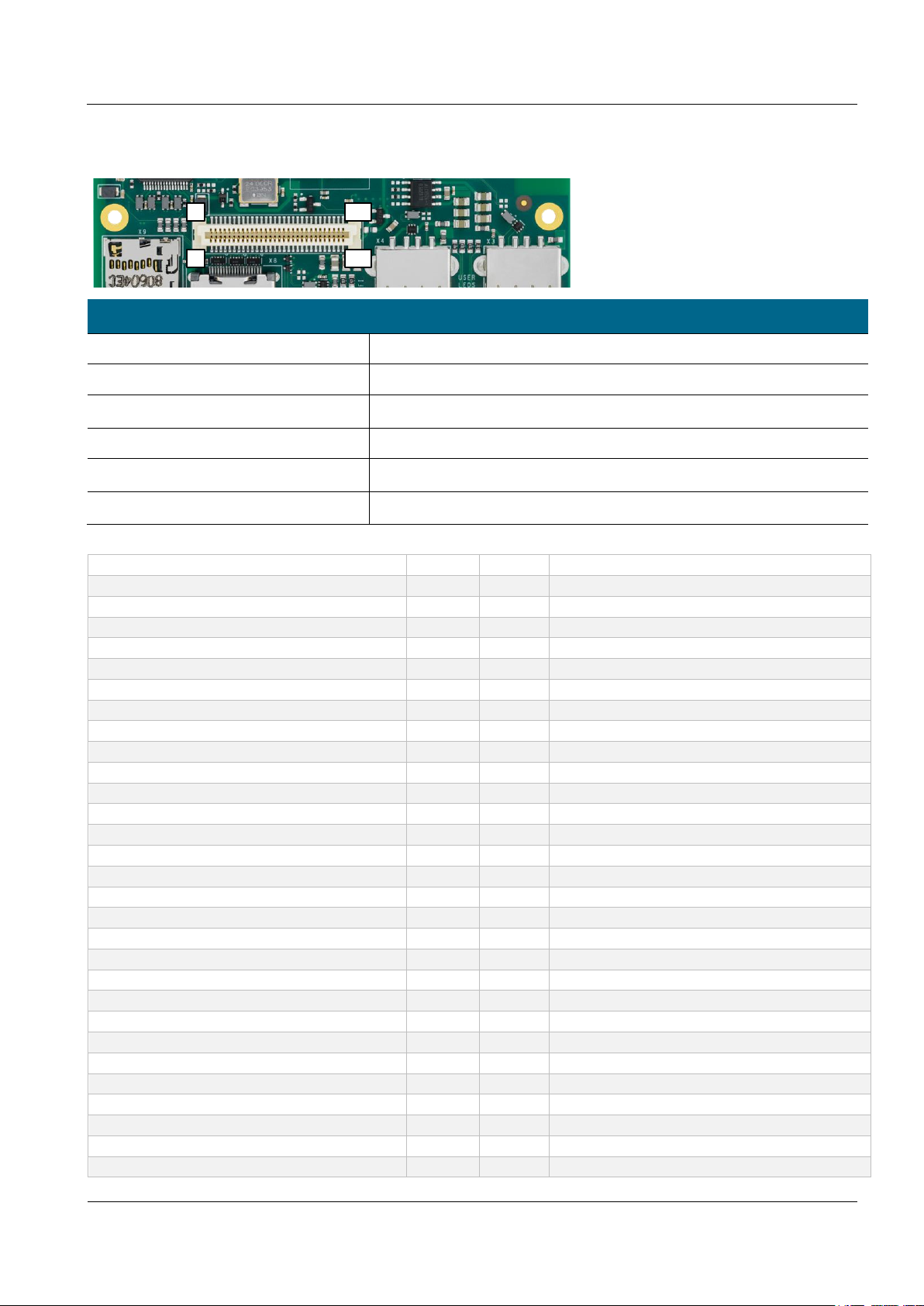

1.1.6 High Speed Expansion Connector.........................................................................................................10
1.2 Set Up Guide ..................................................................................................................................................11
1.2.1 Easy step by step guide .........................................................................................................................11
1.2.2 Boot Mode ..............................................................................................................................................11
1.2.3 Power Supply .........................................................................................................................................12
1.2.4 Software .................................................................................................................................................12
1.2.4.1 Configuring ethernet......................................................................................................................13

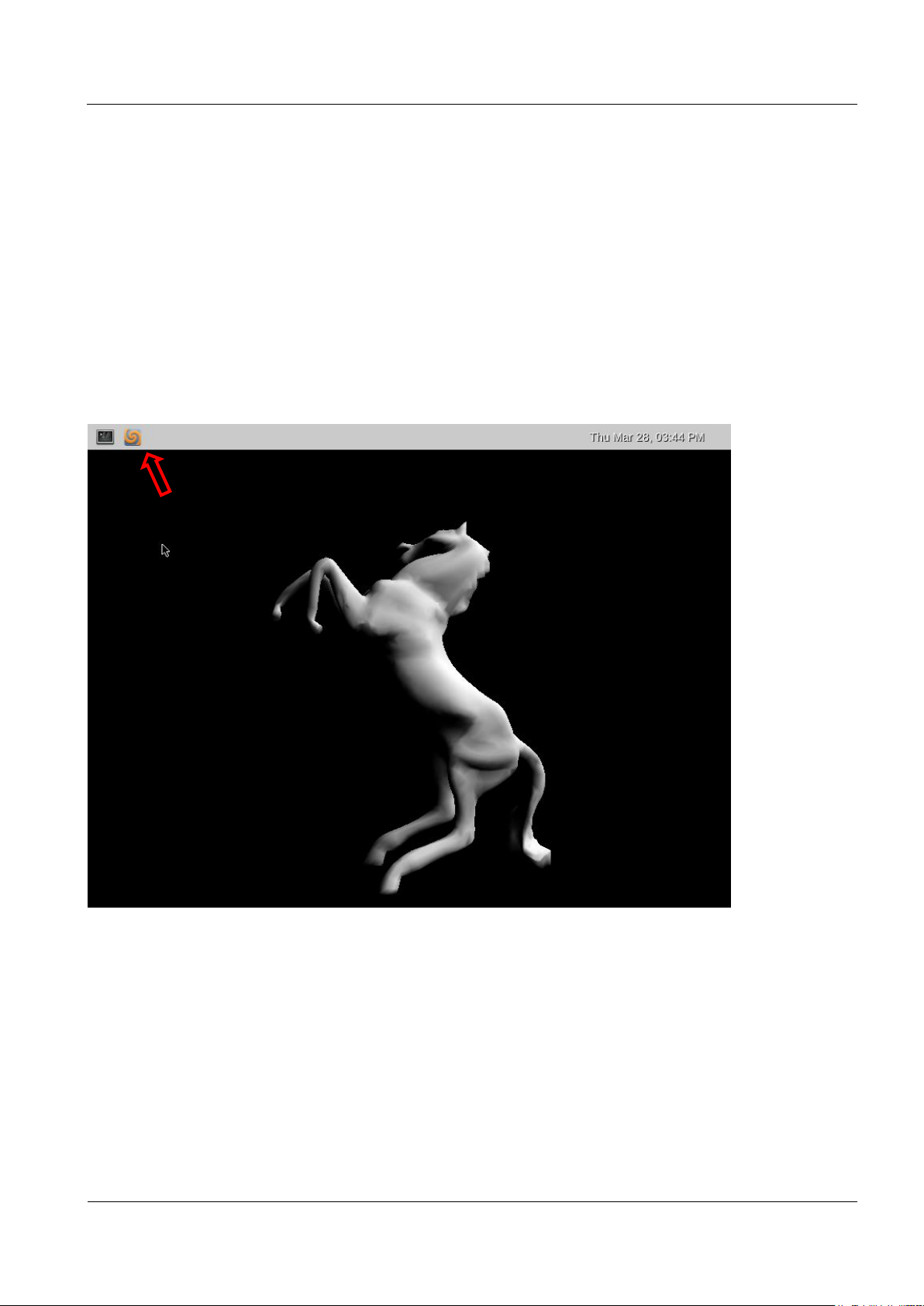

1.2.4.2 Starting GPU Demo ........................................................................................................................13
1.2.4.3 Configuring WiFi.............................................................................................................................13
1.2.4.4 SSH server ......................................................................................................................................14
1.2.4.5 Debug UART....................................................................................................................................14
1.2.4.6 Debug UART....................................................................................................................................14

Avenger96 –Getting Started
DH electronics GmbH
R05
DOC_Getting-Started-588-100.docx
Page 4 / 14
1Getting Started with the 96Boards Avenger96
CAUTION!
THIS DOCUMENT IS DESIGNED FOR THE 96Boards Avenger96 FS00009 (PCB number 588-100) ONLY!
The PCB number of the board can be found on the top right corner of the board next to the power jack.
This is a pre-series product, which means that the hardware has some known limitations:
Ethernet port has no unique MAC address. Linux works with random generated MAC address.
Ethernet is currently limited to 100 Mbit/s.
Note: With image version v1.1, ethernet can be used in Gbit mode.
Pull-ups are missing on I2C0 and I2C1 (low speed expansion connector).

Avenger96 –Getting Started
DH electronics GmbH
R05
DOC_Getting-Started-588-100.docx
Page 5 / 14
1.1 Overview
This chapter describes all features and key components of the Avenger96 board.
1.1.1 Product Features
TECHNICAL DETAILS
Processors
STM32MP157AAC
2x ARM®Cortex-A7 up to 650 MHz
1x ARM®Cortex-M4 up to 200 MHz
GPU
1x 3D GPU Vivante®@ 533 MHz - OpenGL®ES 2.0
PMIC
STPMIC1A
DDR3 DRAM
1024 Mbyte @ 533 MHz
eMMC Flash
8 Gbyte, v4.51 interface
NOR Flash
2 Mbyte, Quad SPI interface
E²Prom
128 byte
microSD Socket
UHS-I speed grade, v3.01
USB Host
2x type A, 2.0 high-speed
USB OTG
1x type micro-AB, 2.0 high-speed
HDMI
WXGA (1366x768) @ 60 fps, HDMI 1.4
WiFi / Bluetooth
WiFi 5 GHz & 2.4GHz IEEE 802.11a / b / g / n / ac
Bluetooth®v4.2 (BR/EDR/BLE)
PCB antenna
Ethernet
10 / 100 / 1000 Mbit/s, IEEE 802.3-compliant
Push-Buttons
Power and reset
Battery Socket
CR1216, CR1220 and CR1225
LEDs
4x green user controlled LEDs,
1x blue Bluetooth enabled, 1x yellow WiFi enabled, 1x red power supply
okay
Boot Mode
3 bit boot mode switch
Debug Interface
JTAG interface via tag-connect
Supply (SYS_DCIN)
8 - 18 VDC
Temperature Range
0 - 40 °C
Dimensions
100 x 85 mm
