DH Lifelabs Sciaire Pro H100 User manual

Sciaire Pro H110
INSTRUCTION MANUAL | H110240GR
Need Help?
1-877-548-9722
9 AM–6 PM, CST, Monday–Friday
EPA EST. NO. 99117-CHN-1
MADE IN CHINA
*The Sciaire Pro Air Ion Generator uses
PlasmaShield™ Technology.
**Dispose used products according to local
regulations.
Dernier & Hamlyn Inc.
720 Northgate Parkway
Wheeling, IL 60090

Your safety is important to us.
Read all safety instructions before you
use the device.
WARNING! TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK OR INJURY PLEASE
ADHERE TO THE FOLLOWING:
!DO NOT connect to power before
installation is complete.
!Always disconnect power to the
ionizer before handling.
!All eld wiring needs to be
in accordance with NEC and
Authorities Having Jurisdiction
(AHJ).
!It is recommended that surge
protection be installed with this
ionizer at the equipment level,
building level, or circuit breaker
panel feeding the product.
!If a step-down transformer is used
to feed the ionizer, the transformer
must be grounded.
!Do not install the ionizer on the
same circuit as a UV Lamp or
connect to the same transformer
as a UV Lamp.
!Connect power to the ionizer
using appropriate voltage.
!The installer shall provide a power
source that is properly grounded
per the local AHJ.
!For best results interlock ionizer
with fan power.
!Apply power to unit. Conrm that
green indicator light illuminates
showing that the ionizer is on and
functioning properly.
!These servicing instructions are for
use by qualied personnel only. To
reduce the risk of electric shock,
do not perform any servicing
other than that contained in the
operating instructions unless you
are qualied to do so.
RISK OF ELECTRIC SHOCK
Read all safety
instructions in the
instruction manual,
and on device.
Product Description
Sciaire Pro H110 is a carbon ber brush output ionizer
producing positive and negative ions. This ionization equipment
is effective in reducing harmful pathogens, pollutants, and
odors by introducing positive and negative ions into the system
airow. Sciaire Pro H110 is self-contained in a potted enclosure
which has molded anges with mounting holes. These models
are able to accept 100-240V AC without the use of an external
power supply.
1 2
Copyright © 2023 Dernier & Hamlyn Inc. All rights reserved.
Product Overview
12

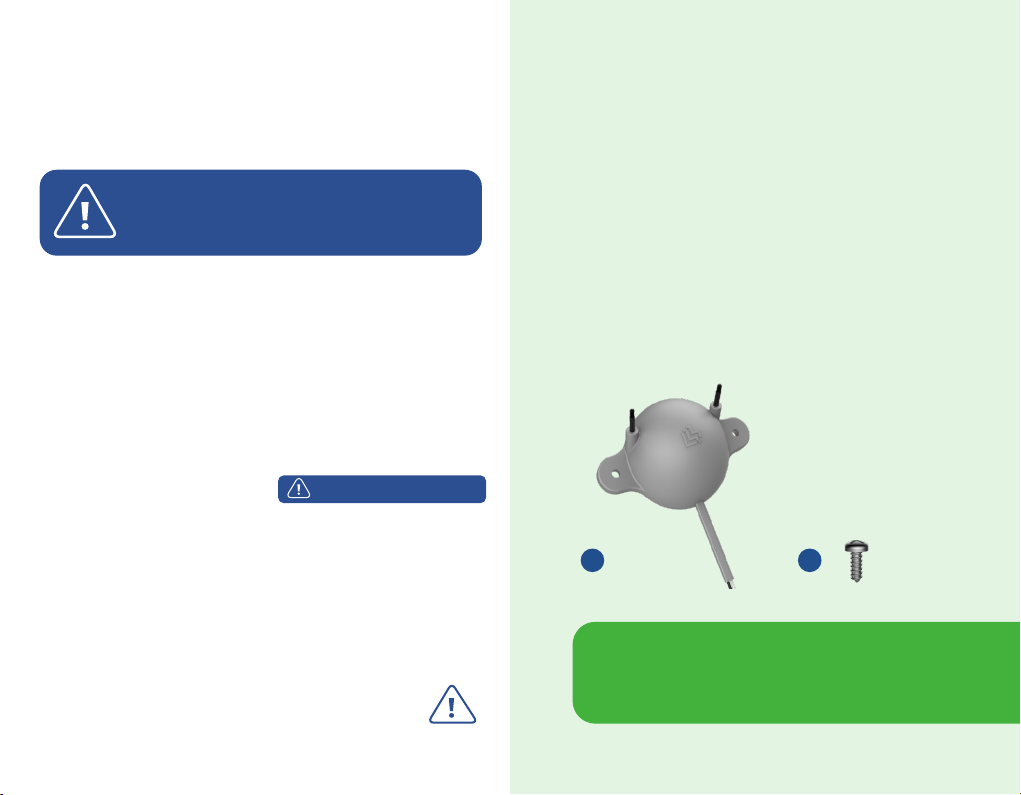

1. Plasma Generator
2. ST4.2 Screw (x2)

3 4
Copyright © 2023 Dernier & Hamlyn Inc. All rights reserved.
Installation
WARNING: DO NOT CONNECT TO POWER
BEFORE MECHANICAL INSTALLATION
IS COMPLETE. ALWAYS DISCONNECT
POWER BEFORE HANDLING.
Electrical Installation
1. All eld wiring to be in accordance with NEC and Authorities Having
Jurisdiction (AHJ).
2. It is recommended that surge protection be installed with this
ionizer at the equipment level, building level, or circuit breaker
panel feeding the product.
3. If a step-down transformer is used to feed the ionizer, the
transformer must be grounded (recommended 20 VA minimum).
4. Do not install the ionizer on the same circuit as a UV Lamp or
connect to the same transformer as a UV Lamp.
5. Connect power to the ionizer using appropriate voltage.
6. The installer shall provide a power source that is properly grounded
per the local AHJ.
7. For best results interlock ionizer with fan power.
8. Apply power to unit. Conrm that green indicator light illuminates
indicating that the ionizer is functioning properly.
Operation
1. When power is supplied to the ionizer, the ionizer will be activated,
and the green ion indicator LED will illuminate.
2. The ionization unit is self-balancing and does not require any type
of adjustment.
Sequence of Operation
For units that are interlocked with the supply fan control, the
BAS controls the start/stop of the air conditioning unit supply
fan.
1. Mount Sciaire Pro H100 in a location with general maintenance
access. Ensure the brush tips are not within ¾" of any metallic
surface to prevent arcing.
2. Mount the unit at or near the fan inlet using the holes in the

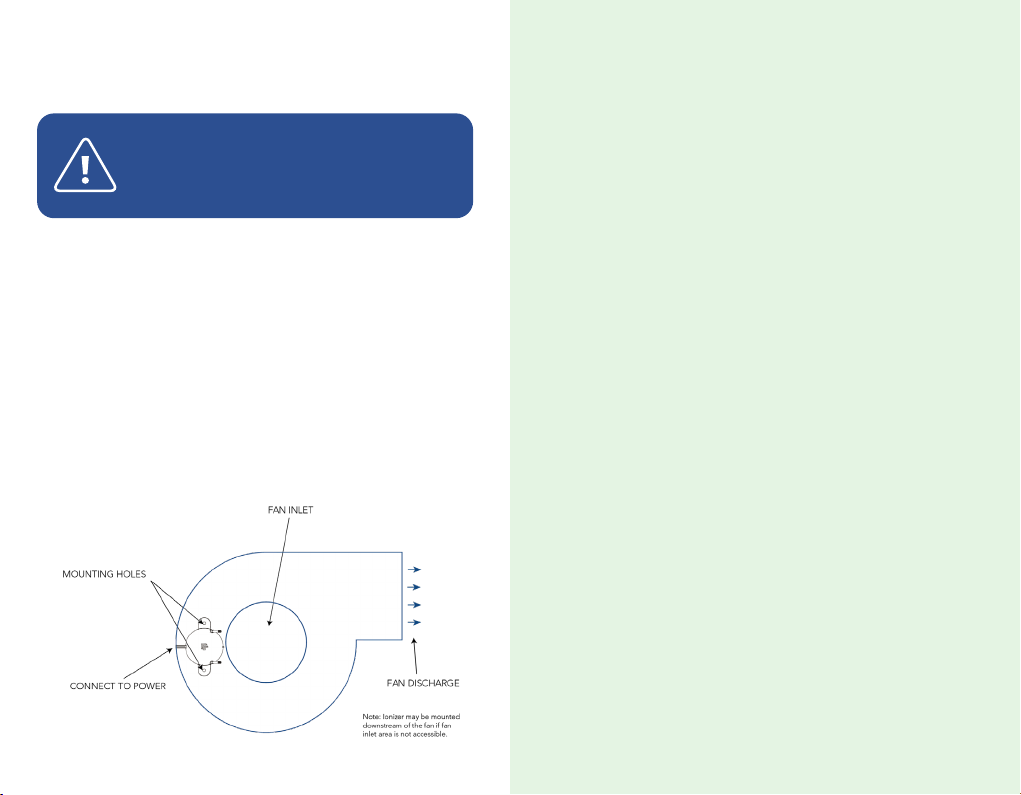

mounting anges, ensuring that the air stream ows over the 2
brush tips simultaneously. See graphic below for reference.
3. The unit should be mounted downstream of the lter.
4. Avoid locations directly after a cooling coil or humidier.
5. Exit ducts are recommended to install a group of plasma generators
every 20 meters to ensure ion concentration.
6. Add a group of plasma generators in the middle near the outlet
with a 1-2 meters distance to ensure the concentration of ions in the
room.

5 6
Copyright © 2023 Dernier & Hamlyn Inc. All rights reserved.
Device Specifications
Model H110-240GR
Voltage Input 100-240V AC
Humidity Range 0%~85%
Unit Dimensions 3.7 x 2.4 x 1.2 in (94 x 60 x 30 mm)
Power Consumption 2.2W
Weight 0.27lbs (121g)
Temperature Range -4˚F–140˚F (-20˚C–60˚C)
Compliance &
Certications
UL 867
CSA C22.2# 187
UL 2998
CARB
Troubleshooting
If the unit is not working, check the following:
1. The supply fan is running and the green LED illuminates.
2. Verify all power input connections to Sciaire Pro H110 are correct
and tightened. Reconnect any loose wires as necessary.
Product Registration
Maintenance
1. The Sciaire Pro H110 was designed for low maintenance. Inspect
the ionizer brushes for dirt at least every six months. If the carbon
ber brushes are dirty, follow the cleaning instructions below:
2. Inspect the LED light for dirt which can make the light hard to see.
If dirt is present, wipe the LED with a small alcohol towelette.
• Disconnect power.
• Use compressed air or a small brush to remove any
accumulated dust on the bristles of the brushes. Avoid brushes
with metal bristles as these could damage the device.
• Reconnect power.
To register your product visit
https://dhlifelabs.com/product-registration/.
