Dickinson NEWPORT User manual

Natural Draft Solid Fuel Heater
Operating and Installation
Instruction Manual
Newport Solid Fuel Heater
** Please read from beginning to end before installing and
operating.
Quality Controlled by- Doug & Don
Form#7.2-230 Issue#1 April 23, 2010

2
Table of Contents
Table of Contents… Pg. 2
Warnings… Pg. 3
1. About a Natural Draft Solid Fuel Heater… Pg. 3
2. Important Notes... Pg. 3
3. Ventilation… Pg. 4
4. How does the Chimney affect the Heater… Pg. 4
-Testing your Draft… Pg. 6
-Downdraft… Pg. 6
5. Installing your Heater… Pg. 6
-Location… Pg. 6
-Safety Clearances… Pg. 6
-Mounting… Pg. 6
-Location Diagrams… Pg. 7
-Chimney Pipe… Pg. 7
-Chimney Pipe Diameter… Pg. 7
-Barometric Damper… Pg. 8
-Deck Fitting… Pg. 9
-Deck Fitting Diagram… Pg. 9
-Exhaust Cap… Pg. 9

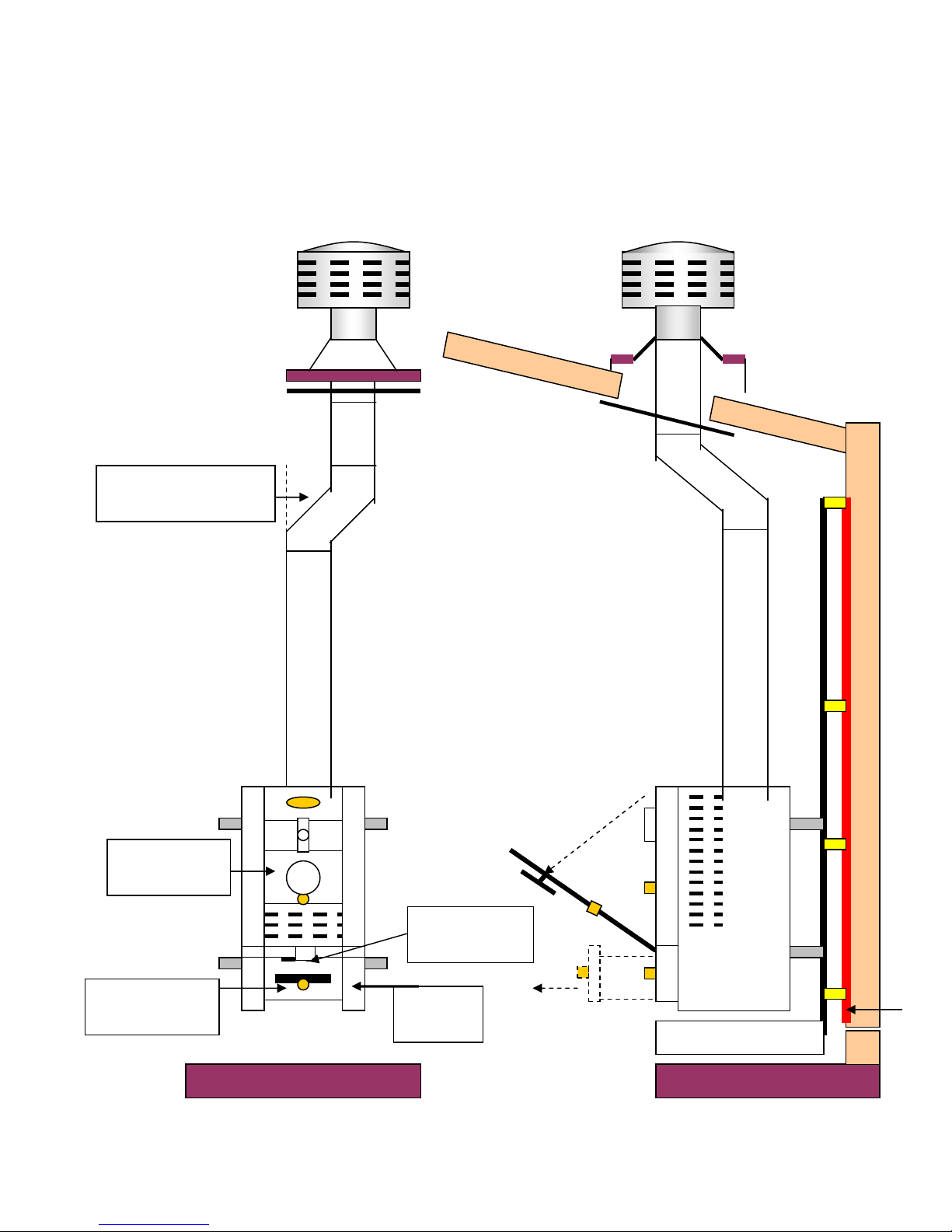

-Heater Installation Diagram… Pg. 10
6. Heater Operation… Pg. 11
- Fuel… Pg. 11
-Lighting Procedure… Pg. 11
-Exterior Surface… Pg. 11
7. Warranty… Pg. 12
8. Registering your Warranty… Pg. 15

3
WARNINGS
- Do not operate this heater unattended.
- When operating the heater there MUST be an open fresh air vent.
- Do not attempt to burn oil or gas fuels in this heater.
- Do not overfill the combustion chamber.
- Install a CO alarm.
- Do not operate this heater if you are experiencing downdrafts.
- WARNING: This heater and exhaust pipe gets very hot during operation,
use hand protection and caution.
- Follow ALL installation and operation procedures.
1. About a Natural Draft Solid Fuel Heater
This bulkhead mounted solid fuel heater is a reliable yet beautiful source of
heat. The maximum output of this heater is meant for 8000 btu’s. This heater
is designed to heat a small area or as an esthetic feature of your boat.
Combustion options include a 1” piece of wood, a handful of charcoal
briquettes, peat, coal or presto log. Over filling of the combustion chamber
can cause damage to the heater. Built-in manual damper and ash drawer lock
included.
To obtain a clean and efficient combustion, 3 factors must be in a balanced
proportion.
1. Draft- the volume of air rising through the exhaust chimney.
2. Oxygen- replacement supply of fresh air.
3. Fuel- Input in proportion to the supply of draft and oxygen.
2. Important Notes
Here are some important notes to remember when planning and/or installing
a Dickinson Marine solid fuel heater:
•Mounting & location, minimum 4ft and a maximum 10ft of chimney,
and the location of hole for the chimney.

4
•Unrestricted permanent fresh air inlet required to draw in outside
air needed for correct operation.
•A barometric damper must be installed to help regulate the draft. A
barometric gives you more control in the “fuel to air” mixture needed
for correct combustion. (See Pg. 8).
3. Ventilation
You MUST replace the air inside your boat at the same rate that the heater is
removing it. The higher the heater’s burning rate, the more air the heater will
require. If the air flow is blocked or restricted, the heater will burn inefficiently,
create soot, blow out and can be a health hazard.
A permanently open fresh air inlet MUST be installed or dedicated to the heater.
This inlet must be at least 3" in diameter. Ducting fresh air to the heater is also
an option. It is important to create and maintain a positive pressure inside the
boat. High winds can draw air out from the boat and thus create a negative
pressure. This condition can result in down drafts. Ensure that when you do
have windows open that they do not create a suction effect in the cabin due to
the window’s position and the wind direction. In a similar way, it is possible for
the air intake on your engine to suck the air out of a cabin if it is not properly
vented.
Your heater is a natural draft appliance and it creates its draft pressure like a
chimney in a wood stove. The rising, heated air in the chimney pulls fresh
air into the heater as it rises up the chimney and exits the flue cap. The
greater the draft pressure, the more able the heater will be to resist strong
winds, overcome flue elbows that inhibit draft and the hotter you will be
able to get your heater without sooting. A CO alarm should be installed in
the boat.
4. How Does the Chimney affect the Heater?
The heater does not create the draft for a natural draft appliance to operate; it
is the chimney that creates the draft for operation. The purpose of a chimney
is to take the combustion products (smoke and gasses) from the appliance to
the atmosphere outside your boat, and at the same time, to draw air in for

5
combustion into the appliance. This movement of combustion air and
exhaust is called draft.
In essence, it is the difference in pressure between the air inside the chimney
flue and the outside air that creates this movement. Warmer, lighter gasses in
the flue tend to move upward.
To keep the pressure conditions favorable, we need a tall column of warm
air inside the chimney, and cooler air outside. The warm air will tend to rise,
drawing the exhaust from the appliance out. As air exits the chimney, fresh
air for combustion is drawn into the appliance. The stronger the upward draft
in the chimney the more likely you won’t experience downdraft.
Important Factors of the Chimney
Since draft is a measure of pressure, chimney draft is affected by pressure
conditions in the boat. Several factors come into play:
1. Adequate air. First, there must be adequate air movement into the
boat to make up for the air exiting through the chimney. If the boat is
very tightly insulated, the volume of air drawn up the flue will exceed
the volume of air entering the boat, and the boat will gradually
become depressurized. With lower pressure in the boat than outside,
there will be a tendency for air to be drawn into the boat from all
available openings including down the chimney.
2. Air movement in the boat. Second, air movement in the boat must
not interfere with the chimney. The entire boat then becomes like a
big chimney. As air flows out through the one window, air is drawn
from another to replace it. This is called the stack effect, since the
boat acts like a stack, or chimney. If the stack effect is powerful
enough, it will overcome the chimney's upward draft and pull
replacement air (and smoke) into the boat through the chimney.
3. Competition for available air. Third, there must not be too much
competition from other devices in the boat, such as exhaust fans, a
large engine or air-exchange systems. If something else is sucking the
air out of the boat, the chimney might not be powerful enough to
overcome it, and exhaust might be drawn into the boat from the
chimney.
4. Proper chimney design. And finally, a chimney must be designed to
accommodate the volume and type of exhaust being emitted by the

6
appliances it serves. This involves correct sizing, adequate height, and
proper construction. See the “Chimney Pipe” section on pg. 7.
Since the chimney draft is affected by so many factors, draft problems
can be complicated to find.
Testing the Draft
To find where the air is being drawn, twist a paper towel into a wick, light it
and blow it out to create smoke. Placing the smoking wick near the open
hatches, windows or vents will lead you to the location. Installing or opening
opposing vents will allow the air to come in from a path of least resistance
and not disturb the draft in the chimney.
Downdraft
A common reason for downdraft is burning the heater too low (too much air
in the combustion chamber and not enough fuel). If the flames are weak then
it is burning inefficiently causing the draft to be too weak going up the
chimney allowing downdraft down the chimney. When the flames are
burning strong then the natural draft is at its strongest so it can fight against
downdraft.
5. Installing your Heater

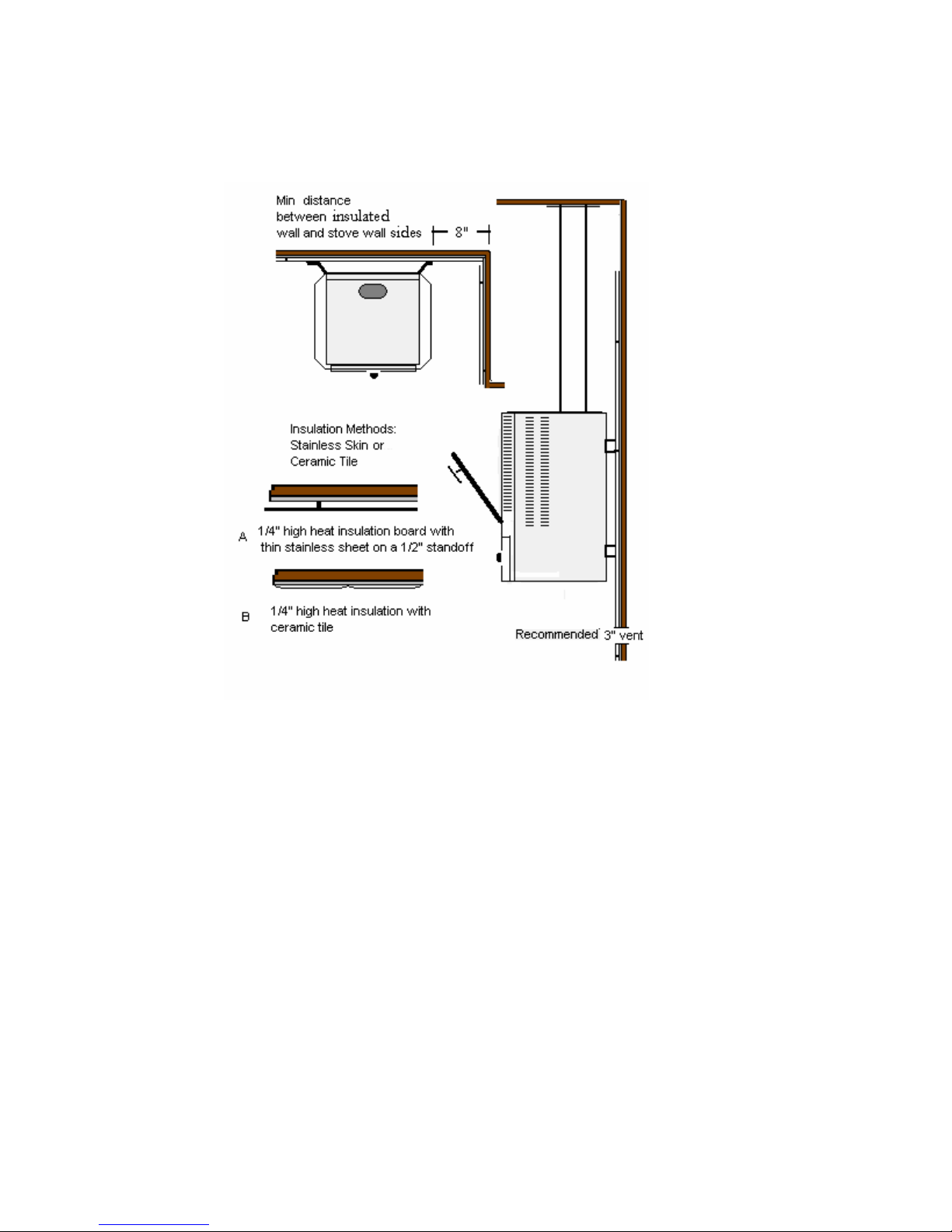

Location
Plan your heaters location prior to installing to ensure the location chosen
will fit the specifications and safety clearances. Combustible material closer
to the heater then the specified safety clearances must be lined with
insulation or millboard and a metal liner with a .5” standoff for air
movement behind. Another alternative is using insulation or millboard and
ceramic tile. The back of the heater and the first length of chimney pipe
should also be lined with such material. See diagram below.
Safety Clearances
All sides- 8”
Mounting
The heater has the appropriate brackets attached to secure the heater to the
bulkhead. Locate the heater as close to the floor as possible for maximum
stack length and to provide good heat convection. The location must also

7
take into consideration stack configuration and insure that the chimney
above deck is clear of any obstruction.
Chimney Pipe
The location and configuration of the chimney stack is very important to the
operation of the heater. A long, straight chimney stack will ensure a strong
draft for correct operation. The diameter of the chimney must be what is
specified. We recommend that the length of your chimney is a straight 5-6ft
run with a minimum of 4ft long and a maximum of 10ft. Avoid using elbows
and if necessary, use 45 degree elbows and allow for as much straight pipe
as possible with a minimum of 12” (28 cm) from the top of the heater. There
is no connector to connect the chimney pipe to the heater. There is a flue
collar already attached to the top of the heater and the pipe can attach by
squeezing the pipe into an oval shape and fitting it over the flue collar.
Chimney Pipe Diameter
3” diameter chimney (7.5cm)

8

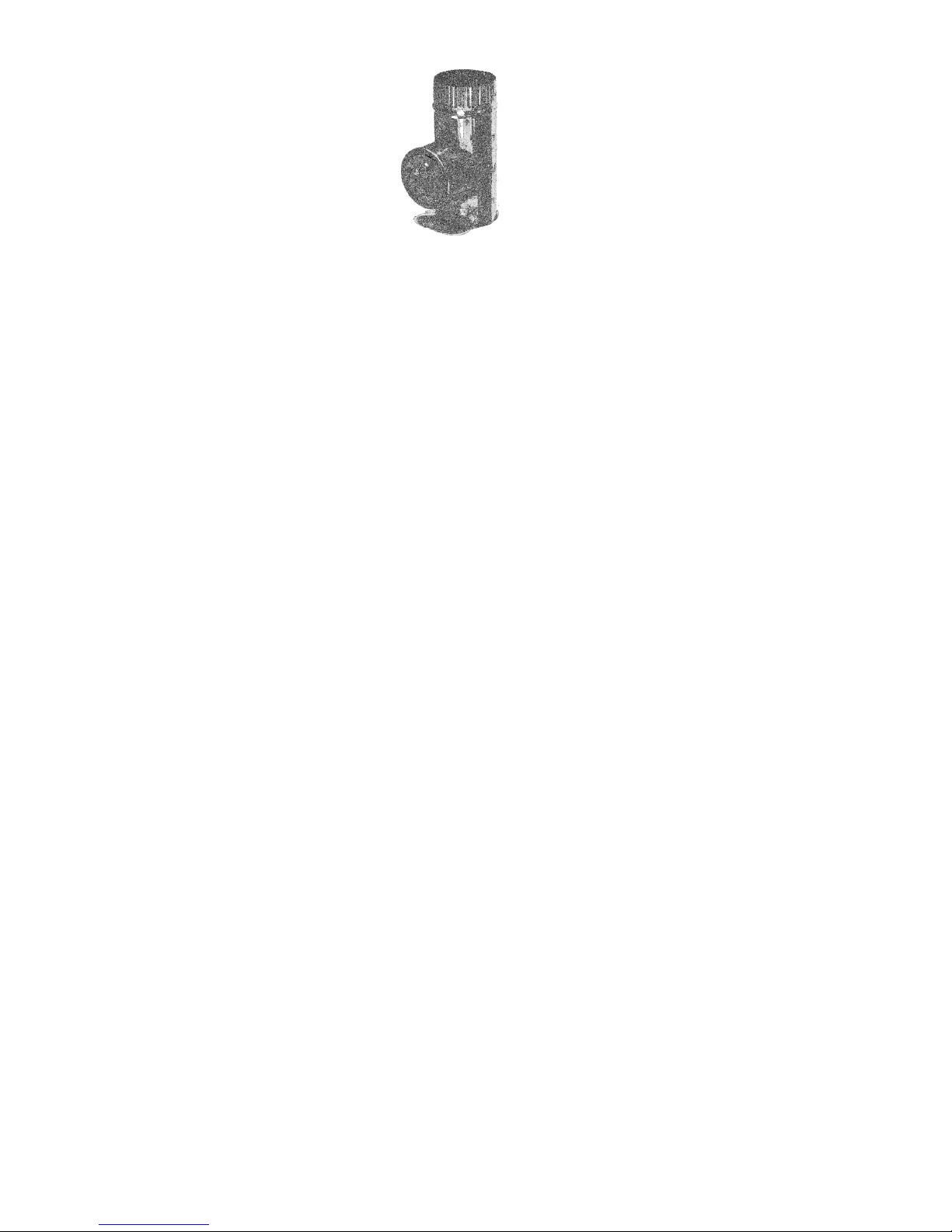

Barometric Damper
Install the barometric tee pipe with the front flap facing fore and aft. In order
for the barometric to work efficiently it must be installed between 12” and
24” from the top of the heater.
We have 2 options for installing the barometric damper into your chimney.
You can either have the barometric attached to a 22” stainless pipe to be the
first piece of pipe of your chimney off the top of the heater or you can use a
7” piece of pipe that you can fit into your chimney 12” to 24” from the top
of the heater.
Part# 16-001: 3” x 22” stainless pipe with barometric
Part# 16-010: 3” x 7” stainless pipe with barometric
The barometric damper should be installed in oil and solid fuel heaters and
stoves. The purpose is to maintain a strong draft without causing too much
air to the “fuel to air” mixture. When the damper is adjusted, the draft is
altered by allowing air to be pulled into the chimney by the air inlet on the
damper and not pulled into the burner. This gives you more control. Having
a barometric allows you to burn your heater at lower temperatures giving
you the control to adjust the draft once the fuel is adjusted to ensure a clean
burn.
To adjust the flap on the barometric, back off the jam nut and turn the
counterweight so the flap is standing closed. Once the heater has been
burning for some time and the room temperature is starting to rise, it is a
good time to do the adjustment. Adjust the counterweight so the flap starts to
open (aprox 6mm or ¼”). This will allow air to enter the barometric tee and
reduce the air entering the combustion chamber.

9
Deck Fitting
To install the thru deck fitting, a hole must be cut in your deck. There should be
a 1” clearance all around the chimney pipe. The 3” diameter exhaust pipe would
require a 5” hole drilled in the deck. Once a hole is cut, you can line the raw
hole with epoxy, caulking or a metal liner to finish it off. Just ensure there is a
1” air gap between the hole and the chimney pipe.
The thru-deck fitting includes a stainless steel dress ring for the interior of
the cabin and a neoprene rubber gasket to better seal the fitting. Depending
on the contour or the angle of the cabin top, you may need to make a
hardwood spacer block. One surface of the block would be a level plane to
mate to the deck cap. The other would match the angle or contour of the
cabin top. A hole through the center of the block would also be 2 inches
greater then the diameter of the flue pipe.
Exhaust Cap
The Dickinson DP or H style exhaust caps are most recommended. The
exhaust cap will fit over the crimp on the deck fitting or flue pipe. The
location of the exhaust cap above deck must be clear of any immediate
obstruction that may cause unusual air movement or turbulence.
CAUTION: The Exhaust Cap gets hot when the stove is operating.

10
Heater Install Diagram
Ash
Drawer
Damper
Adjustment
45 Degree Elbows
Maximum
Ash Drawer
Safety Clip
Sliding Door
Panel
Fresh
Air Inlet

11
6. Heater Operation
Fuel
Combustion options for this appliance are wood, charcoal briquettes or
similar solid fuels that can be burned. Slow burning fuels are
recommended. Care must be taken not to overfill the combustion chamber as
this can damage the heater. The heater is rated for approximately 8000 btu’s.
This will be equal to a small handful of briquettes, 1 or 2 slices of presto
logs at 1” thick or equivalent sizing for wood or other solid fuels.
Certain brands of engineered firewood can burn with an enhanced level of
heat so caution must be used. Refrain from burning any manufactured wood
with an artificially increased btu rating. When using engineered firewood,
cleaning of the firebox and exhaust chimney may be required.
Lighting
1) Open the damper control on the front of the ash drawer by
sliding the brass knob to the right.
2) Close the sliding panel on the front door of the heater.
3) The fire can be lit using any fire lighter or starter. IT IS
IMPORTANT NOT TO OVERFILL THE COMBUSTION
CHAMBER.
4) Once the fuel has ignited the sliding panel may be opened and
the damper control adjusted to provide extended burning.
WARNING: Both the knob of the sliding door and the damper
are hot and hand protection must be worn to make any
adjustment when the heater is burning.
5) Lift off the ash drawer clip lock to remove the tray for
emptying.
Exterior Surface
Little maintenance is needed for stainless steel. There are many stainless
steel cleaners available and these may be applies as needed. An abrasive
scotch bright pad can be used to remove burn discoloration or surface
scratches by rubbing parallel to the grain of the brushed metal.

12
7. Warranty Policy
We at Dickinson Marine wish to maintain a reasonable and easy system for
returns, warranty, returns and exchanges. To accomplish this, we would like
to inform you of some helpful guidelines and procedures to use and follow
when sending back product to the Dickinson Marine. All correspondence
regarding returns, warranties and exchanges will go through the factory of
Dickinson Marine in Coquitlam, BC, Canada and the product MUST be
returned to this location.
Warranty
Dickinson Marine warranties all of its products for a period of one year
dated from the purchase of the product by the end user with proof of
purchase or a registered warranty. We warrant our barbeque burners for a
period of 3 years dated from the purchase of the product by the end user.
The warranty card should be copied for your records and returned to
Dickinson Marine to activate your warranty within 90 days of your
purchase. You can also activate it online at www.dickinsonmarine.com
A copy of the warranty card must have been received or a proof of purchase
must be presented to receive the warranty.
1. The customer can contact us directly to settle any warranty issues. We
are pleased to help. Call us toll free 1-800-659-9768 or email:
[email protected]
2. If the customer is returning a complete product they see as defective,
be sure the product has been assembled correctly and is being used
correctly. If you are not sure please call our Technical Help
Department @ 1-800-659-9768. Dickinson Marine will not provide
credit for used products that are not defective. In these cases, it is best
to call the factory to determine if the product is being used correctly,
has been assembled correctly or is in fact defective.
3. All products being sent back to Dickinson Marine must have a Return
Authorization Number. Contact us at Dickinson Marine toll free 1-
800-659-9768 or e-mail [email protected] to obtain a Return

13
Authorization Number. This allows us to track and process your
return. Once you have received an RA# from us, include your proof of
purchase and ship to the address below. We recommend you ship
using the mail service insured and retain a tracking number.
Customers are responsible for the shipping costs for all returns and
exchanges.
Dickinson Marine Returns
Unit# 407-204 Cayer Street
Coquitlam, BC
V3K 5B1 Canada
4. Products that are older than the warranty period or those that have
obviously been misused will not be returned, exchanged, or repaired.
Non-defective Returns & Exchanges
Sig Marine reserves the right to apply a 20% restocking fee for returned
product sent back. An RA # will be needed from the factory to facilitate any
return. Credits will be made at the last purchased price for that part number.
Limited Warranty
WARRANTY PROVISIONS: Dickinson Marine warrants this product to be free of
defects in workmanship and materials for a period of one year. This warranty is limited
to claims submitted in writing within a one-year period following the date of purchase. If
any part of your new product fails because of a manufacturing defect within the warranty
period Dickinson Marine offers to replace said parts free of charge, provided, however,
that such parts have not been improperly repaired, altered or tampered with or subjected
to misuse, abuse or exposed to corrosive conditions. This warranty, however, is limited
by certain exclusions, time limits and exceptions as listed below. Read these limitations
and exclusions carefully.
TIME LIMIT: This warranty is given too and covers only the original purchaser.
Coverage terminates one year from the date of purchase for parts replacement.
EXCLUSIONS : This warranty does not cover or include : (a) Any normal deterioration
of the product and appearance of items, due to wear and/or exposure; (b) any guarantees,
promises, representations, warranties or service agreements given or made by an
authorized distributor or other person selling this product, other than those specifically
stated herein; (c) any damage or defect due to accident, improper repair, alteration,
unreasonable use including failure to provide reasonable and necessary maintenance,
misuse or abuse of the equipment, or exposure to corrosive conditions. This warranty is
conditioned upon normal use, reasonable and necessary maintenance and service of your

14
product, and written notice being given promptly upon Buyer's discovery of a warranty
claim, pursuant to paragraph 6 below. Reasonable and necessary maintenance is
maintenance which you are expected to do yourself or have done for you. It is
maintenance, which is necessary to keep your product performing its intended function
and operating at a reasonable level of performance.
DAMAGE LIMITATION WARNING : IN NO EVENT SHALL Dickinson BE LIABLE
FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING (BUT
NOT LIMITED TO) LOSS OF USE OF THE PRODUCT, LOSS OF TIME,
INCONVENIENCE, EXPENSES FOR TRAVEL, LODGING TRANSPORTATION
CHARGES, LOSS BY DAMAGE TO PERSONAL PROPERTY OR LOSS OF
INCOME, PROFITS OR REVENUE.
ORAL OR IMPLIED WARRANTY LIMITATIONS: The foregoing warranty is
exclusive and in lieu of all other warranties, written or oral, expressed or implied,
including but not limited to any warranty or merchantability or fitness for a particular
purpose.
TRANSFER LIMITATIONS: This warranty is not assignable or transferable. It covers
only the original purchaser.
CLAIM PROCEDURE: In the event of a defect, problem or that a breach of this
warranty is discovered, in order to protect any warranty rights you must promptly notify
Dickinson Marine. Give name, address, and model name, location of unit, description of
problem and where you can be reached during business hours.
RESERVED RIGHT TO CHANGE: Dickinson Marine reserves the right to make
changes or improvements to products it produces in the future without imposing on itself
any obligations to install the same improvements in the products it has previously
manufactured.
SECOND OR SUBSEQUENT OWNER: Dickinson Marine does not give any warranty
to secondary or subsequent purchasers, and it disclaims all implied warranties to such
owners.
INSPECTION: To assist you in avoiding problems with your product and to validate this
warranty you are required to do the following: (a) read the warranty; (b) inspect the
product. Do not accept delivery until you have examined the product with your supplier;
(c) ask questions about anything you do not understand concerning the product.
OWNER REGISTRATION: Fill out the WARRANTY CARD within 30 days from the
date of delivery. WARRANTY: RETURN OF THE CARD IS CONDITION
PRECEDENT TO WARRANTY COVERAGE AND PERFORMANCE. IF YOU DO
NOT FILL OUT AND MAIL THE CARD AS DIRECTED, YOU WILL NOT HAVE A
WARRANTY.

15
8. Register your Warranty…..
Please register your warranty with Dickinson Marine. Fill out and send back
the warranty registration below.
No warranty will be extended for improper installations. Use of any
unapproved materials, equipment, or installation procedures will result in a
voided warranty. Do not use any substitutes of the heaters valve, burner or
fan other then the ones supplied by Dickinson Marine. Dickinson Marine
accepts no liability for any damage or loss of service resulting from
unapproved modifications.
Warranty Form
I have read and understand the Limited Warranty and the entire Instruction
Manual and agree to the terms and conditions. (PLEASE PRINT)
Name: ______________________________________________________
Address: ____________________________________________________
Phone: ______________________________________________________
Heater Model Name: ___________________________________________
Heater Serial #: N/A____________________________________________
Date of Purchase: _____________________________________________
Seller’s Name: _______________________________________________
Seller’s Location: _____________________________________________
Signature: ___________________________________________________
This warranty form can also be filled out online. www.dickinsonmarine.com

16
Dickinson Marine
#101-17728 66
th
AVE
SURREY, BC V3S7X1 Canada
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
Website: www.dickinsonmarine.com
All rights reserved. No part of this manual may be reproduced without permission
in writing from Dickinson Marine. Dickinson also reserves the right to modify or
change without notice, any materials, applications, equipment, accessories, and/or
prices. All measurements and weights are approximate.
