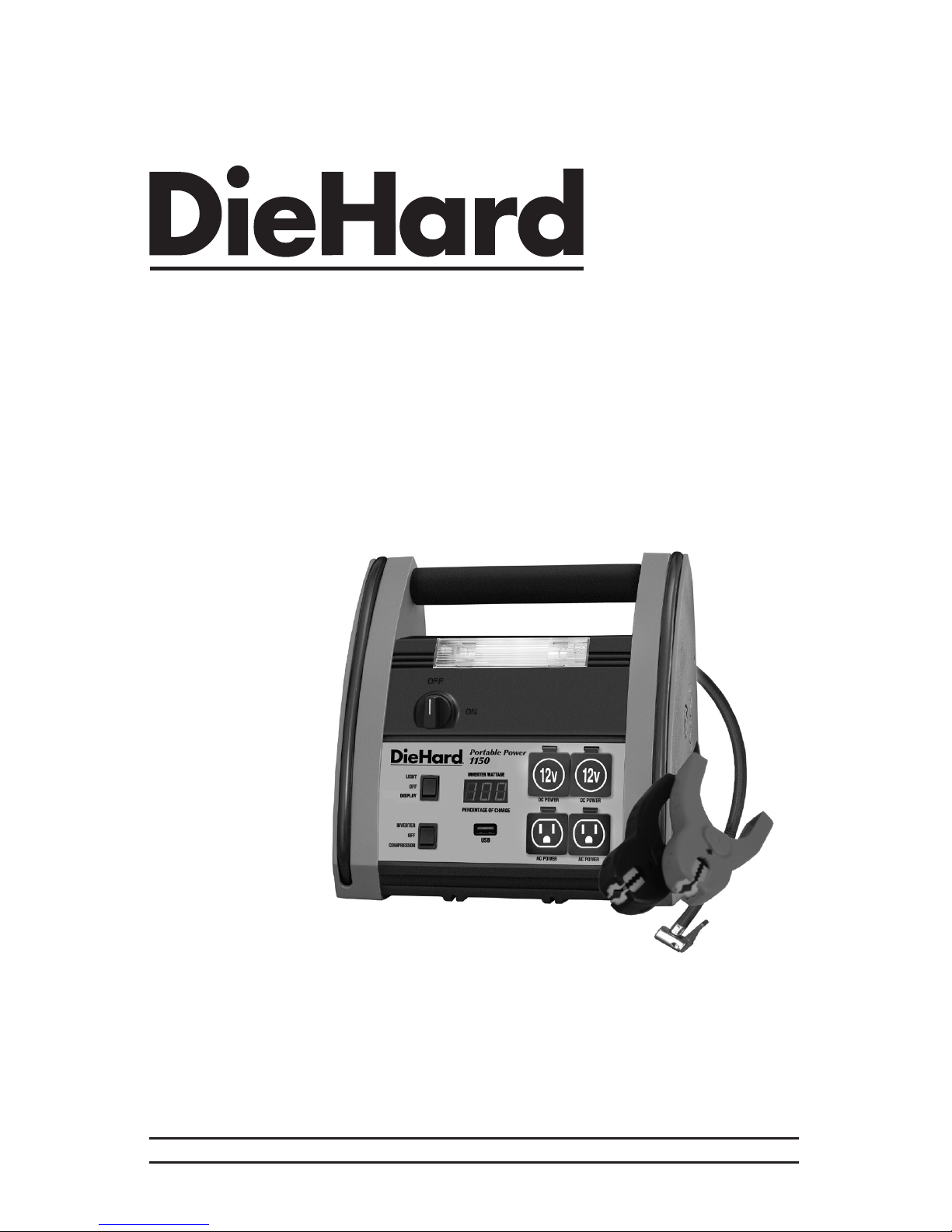

DieHard 200.71988 User manual

CAUTION:
Read all Safety Rules and Operating Instructions,
and follow them with each use of this product.
00-99-000865/0808
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
OPERATOR’S MANUAL
Model No.
200.71988
®
Portable Power 1150
Jump Starter/DC Power Source
Air Compressor, Inator and AC Power

TABLE OF CONTENTS
SECTION PAGE
1. IMPORTANT SAFETY INSTRUCTIONS 1
2. PRODUCT FEATURES 2
3. CHARGING THE INTERNAL BATTERY 3
4. JUMP-STARTING A VEHICLE ENGINE 4
5. DIGITAL DISPLAY FUNCTIONS 5
6. POWERING A 12V DC DEVICE 5
7. USING THE USB PORT 6
8. USING THE BUILT-IN LIGHT 6
9. INTERNAL BATTERY REPLACEMENT 7
10. USING THE AIR COMPRESSOR 7
11. USING THE INFLATOR 8
12. ESTIMATED TIME FOR INFLATING 8
13. USING THE DEFLATOR 8
14. BEFORE USING THE INVERTER 9
15. USING THE INVERTER 9
16. POWERING THE 110V AC DEVICE 10
17. EXAMPLE RUN-TIME CHART 10
18. STORAGE AND MAINTENANCE 11
19. SPECIFICATIONS 12
20. AC POWER SPECIFICATIONS 12
21. REPLACEMENT PARTS 12
DieHard One-year Full Warranty
When operated and maintained according to all supplied instructions, if this DieHard
product fails due to a defect in material or workmanship within one year from the
date of purchase, return it to any Sears store or other DieHard outlet in the United
States for free replacement.
This warranty does not include light bulbs, or the inator hose and adapters, which
are expendable parts. This warranty gives you specic legal rights, and you may
also have other rights which vary from state to state.
Sears, Roebuck and Co., Hoffman Estates, IL 60179
FOR CUSTOMER ASSISTANCE OR REPLACEMENT PARTS,
CALL TOLL-FREE BETWEEN 7 AM TO 4:30 PM CT
MONDAY THROUGH FRIDAY: 1-800-SEARS-64 (1-800-732-7764)
CONTAINS SEALED NON-SPILLABLE LEAD-ACID
BATTERY. MUST BE DISPOSED OF PROPERLY.
WARNING: Possible explosion hazard. Contact with
battery acid may cause severe burns and blindness.
Keep out of reach of children.

•1 •
IMPORTANT: CHARGE IMMEDIATELY AFTER PURCHASE
IMPORTANT: READ AND SAVE THIS SAFETY AND INSTRUCTION MANUAL.
IMPORTANT SAFETY INSTRUCTIONS1.
Charge the 1150’s internal battery immediately upon purchase, every 301.1
days and after every use.
Use in a well ventilated space.1.2
Contains a sealed, non-spillable lead-acid battery. Must be disposed of1.3
properly.
WARNING:1.4 Possible explosion hazard. Contact with battery acid may
cause severe burns and blindness. Keep out of reach of children.
WARNING:1.5 Pursuant to California Proposition 65, this product contains
chemicals known to the State of California to cause cancer and birth de-
fects or other reproductive harm.
WARNING1.6 : Failure to follow instructions may cause damage or an explo-
sion. Read entire instruction manual before use. Always wear safety glass-
es to protect your eyes during use.

•2 •
DIEHARD PORTABLE POWER 11502.
JUMP-STARTER/DC POWER SOURCE
1. JUMP START ON/OFF Switch.
Turn on to activate clamps and
USB.
2. Inverter/Compressor switch. This
switch turns the inverter or air
compressor on and off.
3. Digital Display – indicates internal
and vehicle’s battery percentage of
charge and displays a code when
improperly connected to battery.
The display also shows power out
when using the inverter.
4. Plastic lens cover
5. Two, light bulbs
6. Two, 12V DC power outlets
7. Two, 110V AC household power
outlets.
8. USB port
9. Power Switch (Light/Display). This
switch turns on the light or the in-
ternal battery status digital display.
10. Air compressor gauge
11. Air compressor hose
12. Air compressor accessory bag
13. Aircompressorballination
adapter
14. Two, air compressor miscella-
neousinationadapters
15. ON/OFFinator/deatorswitch
16. High-owinatoroutlet
17. Inator/deatorhoseendadapter
18. High-owdeatoroutlet
19. Inator/deatorhose
20. Two cables with clamps
21. Male-to-male accessory 12V
charging connector
22. Threeinator/deatorhosedevice
adapters.
23. Wall Charger
1
9
387
6
5
4
1
2
3
4
5
6
7
8
9
22
10
18
16 17
21 15
19 13 14 12
11
20
23

•3 •
CHARGING THE INTERNAL BATTERY3.
IMPORTANT:
CHARGE IMMEDIATELY AFTER PURCHASE•
KEEP FULLY CHARGED.•
This Portable Power 1150 comes with a sealed, non-spillable DieHard
maintenance-freelead-acidbattery.Thisinternalbatteryisspecically
designed to deliver high power jump-starting as well as repetitive deep
cycling performance.
To charge the Portable Power 1150’s internal battery:
Check the internal battery’s charge level by pressing the switch marked3.1
DISPLAY. The Digital Display will show the battery’s percentage. Charge if
under 100%
NOTE: Internal battery’s percentage is most accurate when the Portable
Power 1150 has been disconnected from all devices and charging sources
for 1 - 24 hours.
To charge, plug the (external) wall charger cord into the socket on the3.2
back of the 1150. Then, plug the wall charger into a 120V AC source.
CAUTION: Operating the Portable Power 1150 while the internal battery is
being charged may cause permanent damage to the unit.
While the 1150 is charging, the battery’s percentage of charge will be3.3
displayed. When the internal battery is fully charged, the display will show
100. Complete charging may take up to 48 hours. The 1150 is then ready
to use.
Once the battery is fully charged, the internal charging circuitry automati-3.4
callyswitchestooat-modemonitoring,whichkeepsthebatteryfully
charged without overcharging.
The internal battery may also be charged while you drive using the male-
to-male accessory cable (available separately, see “Accessories and Re-
placement Parts” section of this manual). Insert one end of the accessory
cable into the 12V DC power outlet and the other end into the vehicle’s
accessory outlet (lighter socket). Completely disconnect the accessory
cable when the engine is not running.

•4 •
JUMP-STARTING A VEHICLE ENGINE4.
Use in a well-ventilated area. Keep hands, hair, clothing and jewelry clear
of fan blades, belts, pulleys and other parts that may cause injury.
Turn ignition off before making cable connections.4.1
Placethe1150onaat,stablesurfacenearthevehiclebatteryandaway4.2
from moving engine parts.
Connect the red clamp to the positive (+) terminal of the vehicle battery.4.3
NOTE: In the rare case of jump-starting a vehicle that has a positive-
grounded vehicle electrical system, connect the black clamp to the
negative terminal of the vehicle battery. Then connect the red clamp to
an unpainted and unmoving part of the vehicle chassis or engine block. If
you are unsure of the nature of the vehicle’s electrical grounding system,
check the owner’s manual of the vehicle or call the Customer Technical
Assistance number: 1-800-SEARS-64.
Connect the black clamp to an unpainted and unmoving part of the vehicle4.4
chassis or engine block. Do not connect to the carburetor, fuel lines or
sheet-metal body parts. The Digital Display displays the vehicle’s voltage.
CAUTION: If you have connected the clamps backwards, an audio alarm
will sound. DO NOT turn the ON/OFF switch to the ON position. This could
cause serious damage. Reverse the connections and the audio alarm will
stop.
Turn ON the4.5 JUMP START ON/OFF switch and then turn key and crank
the engine. If the engine does not start within 5-8 seconds, stop cranking
and wait at least one minute before attempting to start the vehicle again.
This permits the battery to cool down.
After the engine starts, make sure to turn OFF the Jump Start switch.4.6
Then disconnect the black clamp (-) and then the red clamp (+) in that
order.
Recharge the 1150 as soon as possible after use.4.7
CAUTION: To prevent sparking while the 1150 jump-start switch is in the
ON position, NEVER allow the clamps to touch together or to contact the
same piece of metal. Never attempt to charge a frozen battery.

•5 •
DIGITAL DISPLAY FUNCTIONS5.
To check the 1150’s internal battery’s status, push the power switch on5.1
the front of the 1150 to the DISPLAY position. The display will show the
charge percentage of the internal battery.
When connected to the vehicle, the display shows the vehicle’s battery5.2
voltage. When connected and in the ON position, the display shows the
equalized voltage between the vehicle’s battery and internal battery. If
the display button is pressed, the battery percentage is shown (instead of
voltage).
When the inverter is turned on and being used, the display will show the5.3
total wattage used by the device being powered by the inverter.
POWERING A 12V DC DEVICE6.
The Portable Power 1150 is a power source for all 12 volt DC accessories
that are equipped with a 12V accessory plug. The DC accessory outlet
has a 15-amp automatic overload protection circuit breaker. The breaker
will automatically reset after an overload occurs.
To Operate a 12V DC Device:6.1
Open the protective cover of the DC power outlet on the front panel of the•
Portable Power 1150.
Plug the 12V DC device into the DC power outlet, and turn the 12V DC•
device “ON” (if required).
If the 12V DC device draws more than 15A, the internal circuit breaker•
of the Portable Power 1150 will momentarily disconnect power to the
device. If this occurs, unplug the device and the circuit breaker will auto-
matically reset after several seconds.
The DC power outlet is internally wired directly to the internal battery.•
Extended operation of a 12V DC device may result in excessive battery
drain. Recharge immediately after unplugging the device.

•6 •
12V DC Electrical Device Example Run-Time Chart6.2
Appliance Type Estimated Power Estimated
Time*
Fluorescent Lights, Cellular Phones 4 Watts 50 Hours
Radios, Depth Finders, Fans 9 Watts 25 Hours
Camcorders, DVD Players, Spotlights 15 Watts 13 Hours
Electrical Tools, Bilge Pumps 24 Watts 7.3 Hours
Electric Coolers 48 Watts 4.5 Hours
Air Compressors, Car Vacuums 80 Watts 2 Hour
*NOTE: Estimated run-times. Actual time may vary. Times are based on
the internal battery being new, fully charged and operating at room tem-
perature.
USING THE USB PORT7.
The USB port on the 1150 provides up to 500mA at 5VDC.
Turn the JUMP START ON/OFF switch to the ON position.7.1
Plug the device into the USB port on the front panel of the 1150.7.2
Turn USB device ON.7.3
ReversethesestepswhennishedusingtheUSBport.7.4
USING THE BUILT-IN LIGHT8.
Positionthe1150onaat,stablesurfaceneartheintendedworkarea.8.1
Push the power switch to the LIGHT position. The light will turn on and8.2
illuminate your work area.
NOTE: With a fully charged internal battery, the built-in light should pro-
vide 18 to 30 hours of continuous, useful light.
Push power switch to the OFF position when work is completed.8.3
Charge the 1150 as soon as possible after using the built-in light.8.4
NOTE: With a fully charged internal battery, the built-in light should
provide 18 to 26 hours of continuous useful light, depending on ambient
conditions.

•7 •
INTERNAL BATTERY REPLACEMENT9.
The 1150 is equipped with a built in door, located on the back of the unit,
tomakereplacingtheinternalbatteryeasyandefcient.
To order a replacement battery, call: 1-800-SEARS-64.
Be sure that all switches are in the OFF position.9.1
Remove clamps from storage pegs on the back of the 1150.9.2
Remove eight screws from the door.9.3
Slide door out.9.4
Removethenegative(rst)andpositivenutsandboltssecuringthecable9.5
to the battery.
Push cables to the side and carefully slide battery out of the 1150.9.6
Reverse steps for assembly. Make sure that the nuts and bolts securing9.7
the cables are tight.
USING THE AIR COMPRESSOR10.
CAUTION:Readinstructionsoftheproductbeinginatedbeforeusing
thecompressor.Avoidoverination,donotexceedthemanufacturer’s
recommended pressures. Do not leave the air compressor unattended
during use.
Remove the air compressor hose from the storage compartment in the10.1
back of the Portable Power 1150. Install adapters as necessary.
Attachtheaircompressorhosetotheproductoraccessorytobeinated10.2
byippingdownthelever.
Place the Inverter/Compressor Switch in the compressor position and10.3
inateproduct.
Whentheproductisinatedtotheproperairpressure(usingtheaircom-10.4
pressor gauge) place the Inverter/Compressor Switch in the OFF position
and remove the hose.
Do not run for more than 10 minutes maximum at a time. Allow the 1150 to10.5
cool down for 10 minutes before using again.
NOTE: If the compressor overheats, the built-in thermal protection will turn
the unit off. Wait a few minutes and it will automatically restart.
NOTE: The air compressor is rated for 150 PSI.
Estimated Time for Inating10.6
Vehicle Tires 13” to 16” 6 to 24 minutes
Bike Tire 1 to 3 minutes
Sports Balls 30 seconds
Use the air compressor gauge to ensure the proper pressure has been
reached.Donotoverinate.

•8 •
USING THE INFLATOR11.
CAUTION:Readinstructionsoftheproductbeinginatedbeforeusing
theinator.Avoidoverination,donotexceedthemanufacturer’srecom-
mendedpressures.Donotleavetheinatorunattendedduringuse.
Attachthecorrugatedhosewithendadaptertothehigh-owinatoroutlet11.1
locateddirectlyabovetheinatorON/OFFswitchonthebackof
the 1150.
The main accessory adapter attached to the corrugated hose accommo-11.2
dates up to 4 sizes. If another size is needed an additional adapter can be
attached to the end of the main accessory adapter.
Inserttheadapterintotheproducttobeinated.11.3
PushtheinatorswitchtotheONpositionandinateproduct.11.4
Whenproductisinatedtothedesiredlevel,pushtheinatorswitchtothe11.5
OFF position and remove the adapter.
ESTIMATED TIME FOR INFLATING12.
24” Beach Ball 1 to 3 minutes
Pool Raft 4 to 6 minutes
Queen-size Air Mattress 4 to 8 minutes
2 Person Boat 8 to 10 minutes
*Times may vary depending on size and product features.
USING THE DEFLATOR13.
Attachthecorrugatedhosewiththeendadaptertothehigh-owdeator13.1
outlet which is located on the right side of the 1150.
The main accessory adapter attached to the corrugated hose accommo-13.2
dates up to 4 sizes. If another size is needed, an additional adapter can be
attached to the end of the main accessory adapter.
Inserttheadapterintotheitemtobedeated.13.3
PushtheinatorswitchtotheONpositionanddeateitem.13.4
Whenproductisdeatedtothedesiredlevel,pushtheinatorswitchto13.5
the OFF position and remove the adapter.

•9 •
BEFORE USING THE INVERTER14.
Important Safety Instructions:
Keep the 1150 well ventilated in order to properly disperse heat generated14.1
while it is in use. Make sure there are several inches of clearance around
the top and sides and do not block the vents on the back of the 1150.
Makesurethe1150isnotclosetoanypotentialsourceofammable14.2
fumes, gases or clothing.
Keep the 1150 dry.14.3
DO NOT allow the 1150 to come into contact with rain or moisture.14.4
DO NOT operate the 1150 if you, the 1150, the device being operated or14.5
any other surfaces that may come in contact with any power source are
wet. Water and many other liquids can conduct electricity, which may lead
to serious injury.
Do not place the 1150 on or near heating vents, radiators or other sources14.6
of heat.
Do not place the 1150 in direct sunlight. The ideal air temperature for14.7
operation is between 50° and 80°F.
Do not use inverter near open engine compartment where fumes or gases14.8
may accumulate.
Do not modify the AC receptacles in any way.14.9
USING THE INVERTER15.
It is important to know the continuous wattage of the device you plan to
use with the inverter. The Portable Power 1150 must be used with devices
drawing 400 watts or less. If the wattage is not marked on the device, use
only devices that draw less than 4 Amps of AC.
Devices like TVs, fans or electric motors require additional power to start
(commonly known as the “starting or peak power”). The Portable Power
1150 can supply a momentary surge in wattage; however even devices
rated less than the maximum 400 watts can exceed the inverters surge
capability and cause an automatic overload shutdown.
Makesurethedeviceyouareusingiscompatiblewithamodiedsine
wave inverter.
CAUTION: Always run a test to establish whether the inverter will operate
a particular piece of equipment or device.
NOTE: In the event of a power overload, the inverter is designed to auto-
matically shut down. This safety feature prevents damaging the inverter
while testing devices and equipment with the 400-watt range.
Note: If powering more than one device, start one device at a time to
avoid a power surge and/or inverter overload. The surge load of each de-
vice should not exceed the inverter’s Continuous Operation wattage rate.

•10 •
POWERING A 110V AC DEVICE16.
To operate a 110V AC device:
Open the protective cover of the AC power outlet on the front panel of the16.1
Portable Power 1150.
Plug the 110V AC device into the AC power outlet, and place the Inverter/16.2
Compressor Switch in the INVERTER position.
Ifthedevicedoesnotoperateproperlywhenrstconnectedtothein-16.3
verter, push the inverter rocker switch ON (I), OFF (0), and ON (I) again
in quick succession. If this procedure is not successful, it is likely that the
1150 inverter does not have the required capacity to operate the device
intended.
Charge the Portable Power 1150 as soon as possible after each use.16.4
CAUTION: Incorrect operation of your inverter may result in damage and
personal injury. The inverter output is 110V AC and can shock or electro-
cute the same as any ordinary household AC wall outlet.
110V AC ELECTRICAL DEVICE EXAMPLE RUN-TIME CHART17.
Appliance Type Estimated
Power
Estimated
Time*
Spotlights, Sump Pumps, DVD Players 100 Watts 1.5 Hours
Faxes, TVs, Small Power Tools 150 Watts 1.25 Hours
Computer Printer, Medium Power Tools, Blenders 200 Watts 55 Minutes
The maximum continuous load is 400 watts.
*NOTE: Estimated run-times. Actual time may vary. Times are based on
the internal battery being new, fully charged and operated at room tem-
perature.

•11 •
STORAGE AND MAINTENANCE18.
IMPORTANT:
CHARGE IMMEDIATELY AFTER PURCHASE•
KEEP FULLY CHARGED.•
Charge the 1150 internal battery immediately upon purchase, every 30
days and after every use.
All batteries are affected by temperature. The ideal storage temperature is
between 40 and 70 degrees Fahrenheit. The internal battery will gradually
self-discharge (lose power) over time and more quickly in warm environ-
ments. Leaving the battery in a discharged state may result in permanent
battery damage. To ensure satisfactory performance and avoid permanent
damage, charge the internal battery every month.
When the JUMP START ON/OFF switch is ON, the clamps are live and
will produce arcing or sparking if they come in contact with each other. To
prevent accidental arcing, always keep the clamps on the storage holders
and the JUMP START ON/OFF switch in the OFF position when not using
it to jump start a vehicle.
Replacing the built-in light18.1
To replace the built-in light bulb:
Turn the light off.1.
Insertastandard(atblade)screwdriverintooneofthetwoslotsalong2.
the bottom of the plastic lens and GENTLY pop the lens out. Repeat for
the other side.
Gently grasp the bulb and twist counter-clockwise one quarter-turn to3.
unscrew the bulb.
Insert a replacement bulb of the same type and rating, and twist clock-4.
wise one quarter-turn to screw in the new bulb.
Replace the lens cover.5.
Test the light by switching the light on and off.6.
Customer Technical Assistance18.2
Customer technical assistance is available Monday-Friday, 7 am to 4:30
pm Central Time by phoning 1-800-SEARS-64.

•12 •
SPECIFICATIONS19.
Internal Battery Type DieHard Maintenance-free AGM Lead-acid
Nominal Voltage 12v DC
Capacity 22 Ah
DC Power Outlet (Max. Continuous Load) 15A per outlet
Built-in Light Bulb (Replaceable) 5w/12v DC (Base type BA9S)
Jumper Cables 4-gauge AWG, 24 Inches
Dimensions (H x W x D) 12 H x 11.5 x 10.5 Inches
Product Weight 24.5 lbs.
AC POWER SPECIFICATIONS20.
Maximum Continuous Power 400 Watts
Surge Capacity (Peak Power) 800 Watts
No Load Current Draw <0.4 Amps
Wave Form ModiedSineWave
Input Voltage Range 10.5 - 15.5V DC
AC Outlets Two, 110V AC 3-Prong Grounded
REPLACEMENT PARTS21.
Parts and customer technical assistance are available Monday-Friday, 7
am to 4:30 pm Central Time at 1-800-SEARS-64.
Air Compressor Accessory Kit: (3 Hose Adaptors)
00-99-000599
Inator Accessory Kit:(Inator/DeatorHose,UnitEnd
and 3 Hose Adaptors) 00-99-000598
Male-to-Male Accessory Cable: 38-99-000834
Replacement Light Bulb: 00-00-000722
Lens Cover: 37-99-00382-0
Wall Charger: 93026681
Replacement Battery Kit: 2299001766

•13 •
