The Livemix CS-DUO is simple
to use and full of professional
features. The LCD touchscreen
with custom naming makes
creating a mix easy.
Dedicated knobs provide
quick access to essential
features.
The Livemix CS-DUO is two personal
mixers in one. With two mixers per unit, you can
reduce your overall per node cost without sacricing quality or
functionality.
The CS-DUO provides 24 channels plus accessory channels,
each with EQ and compression. The master output features EQ,
compression and reverb. MirrorMix®remote setup and mixing,
mute and solo options and channel grouping make the Livemix
system deep enough for professionals, but simple enough for
volunteers.
Designed with both volunteer
and professional users in mind
Two discrete personal
monitor mixes per unit
24 channels with DSP and
also DSP on master output
Rugged frame with clearly
labeled functions
LCD touchscreen, tactile knobs
and channel select buttons
CS-DUO DUAL MIX
PERSONAL MIXER
OVERVIEW
FEATURE
Filter Q
High pass &
Low pass .707
Peak/Dip 1.2
Filter Cut/Boost Amount ± 6 dB
Ambient Mic Gain 25 dB
Dimensions
8.2” (208mm) W
6” (152mm) D
1.594” (49mm) H
Weight 1.9 lbs (0.86kg)
FOR ORDERS CONTACT:
[email protected]
Phone: [phone]
Fax: [phone]
CS-DUO
Output Power &
THD+N
@22Ω 200mW @ 1% THD+N
100mW @ .03% THD +N
@32Ω 250mW @ 1% THD+N
100mW @ .014% THD +N
@64Ω 250mW @ 1% THD+N
100mW @ .005% THD +N
@300Ω 130mW @ 1% THD+N
100mW @ .003% THD +N
Frequency Response 20 Hz - 22 kHz ± 3 dB
S/N Ratio 103 dB
Input Impedance
(Aux In) 7.5kΩ
Crosstalk
(Left to Right) -103 dB
Max Cable length
from MIX-16/MIX-32
100m CAT5e
(recommended)

DIGITAL AUDIO LABS
1266 PARK RD CHANHASSEN, MN 55317
WWW.DIGITALAUDIO.COM
™ & ® 2014-2015 DIGITAL AUDIO LABS. © 2016 DIGITAL AUDIO LABS.
Subject to change without notice.
LIVEMIX
DATA AD-24
24VDC
3.75A
MIX-16/32 LIVEMIX
DATA IN
LIVEMIX
DATA OUT 1
LIVEMIX
DATA OUT 2
12VDC
3.33A
LIVEMIX
DATA OUT
AD-24
SHIELDED
CAT5e
GIGABIT NETWORK SWITCH
DANTE ENABLED MIXER/SNAKE/INTERFACE
CAT5e/CAT6
CAT5e/CAT6
24VDC
3.75A
MIX-16/32 LIVEMIX
DATA IN
LIVEMIX
DATA OUT 1
LIVEMIX
DATA OUT 2
LM-DANTE-EXP
Dante™ is a trademark of Audinate Pty Ltd.
DANTE
NETWORK
LINK/ACT 1G
12VDC
3.33A
LIVEMIX
DATA OUT
AD-24
ANALOG MIXER/SNAKE/INTERFACE
TRS CABLE
DB25 CABLE
(TASCAM PINOUT)
DANTE ENABLED MIXER/SNAKE/INTERFACE
CAT5e/CAT6
LIVEMIX
DATA IN
24VDC
3.75A
LIVEMIX
DATA OUT 1
LIVEMIX
DATA OUT 2
MIX-16/32
LM-DANTE-EXP
Dante™ is a trademark of Audinate Pty Ltd.
DANTE
NETWORK
LINK/ACT 1G
12345678
MIX-16
|
INTERCOM
ME
PUSHFOR GROUP SETUP
ADJUST
VOL & PAN
PUSHFOR MASTER SETUP
MASTER
VOLUME
CS-SOLO
|
INTERCOM
ME
PUSHFOR GROUP SETUP
ADJUST
VOL & PAN
PUSHFOR MASTER SETUP
MASTER
VOLUME
CS-SOLO
|
INTERCOM
ME
PUSHFOR GROUP SETUP
ADJUST
VOL & PAN
PUSHFOR MASTER SETUP
MASTER
VOLUME
CS-SOLO
|
INTERCOM
ME
PUSHFOR GROUP SETUP
ADJUST
VOL & PAN
PUSHFOR MASTER SETUP
MASTER
VOLUME
CS-SOLO
Each MIX-16/32 Control Surface Port supports a maximum combined CAT5e (shielded recommended) cable distance of 100 meters.
12345678
MIX-32
9 10 11 12 13 14 15 16
|
INTERCOM
ME
PUSHFOR GROUP SETUP
ADJUST
VOL & PAN
PUSHFOR MASTER SETUP
MASTER
VOLUME
CS-SOLO
|
INTERCOM
ME
PUSHFOR GROUP SETUP
ADJUST
VOL & PAN
PUSHFOR MASTER SETUP
MASTER
VOLUME
CS-SOLO
|
INTERCOM
ME
PUSHFOR GROUP SETUP
ADJUST
VOL & PAN
PUSHFOR MASTER SETUP
MASTER
VOLUME
CS-SOLO
|
INTERCOM
ME
PUSHFOR GROUP SETUP
ADJUST
VOL & PAN
PUSHFOR MASTER SETUP
MASTER
VOLUME
CS-SOLO

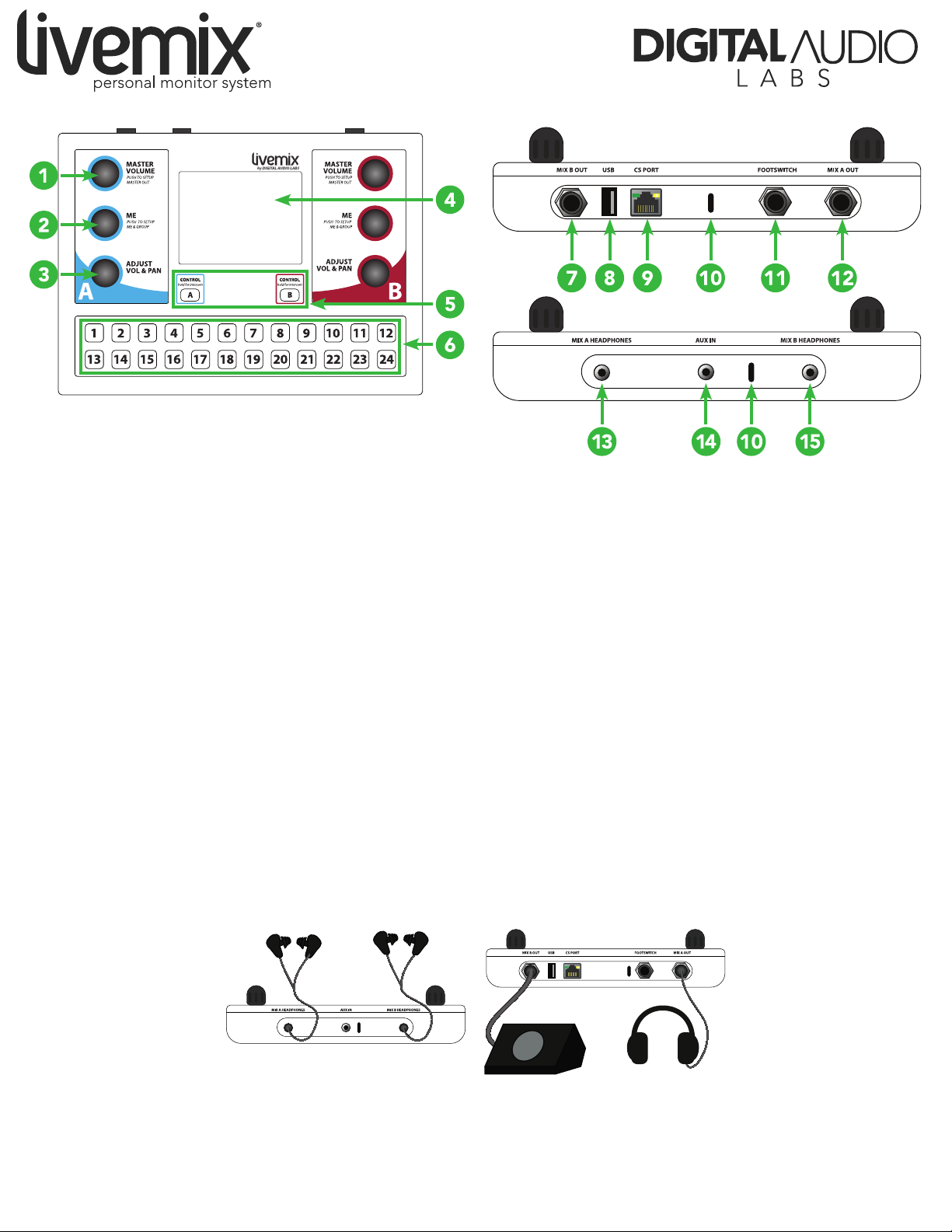

CONNECTING THE CS-DUO TO OUTPUT DEVICES
1. MASTER VOLUME KNOB
2. ME KNOB: Adjust the volume of the assigned
ME group.
3. ADJUST VOLUME & PAN KNOB
4. COLOR TOUCHSCREEN
5. CONTROL BUTTON: Selects A or B MIX for
adjusting. Press and hold to activate intercom.
6. CHANNEL SELECT BUTTONS
7. MIX B OUT: ¼” jack output for B MIX.
Congurable for stereo headphone or
balanced mono operation.
8. USB PORT: Load/Save personal mixes and
global templates. Use for rmware updates.
9. CS PORT: Port for connecting to MIX-16 or
MIX-32.
10. AMBIENT MICROPHONES
11. FOOTSWITCH CONNECTOR: Connect
optional FP-2 foot pedal for hands-free mixing.
12. MIX A OUT: ¼” jack output for A MIX.
Congurable for stereo headphone or
balanced mono operation.
13. MIX A HEADPHONES: 1⁄8” headphone output
for A MIX.
14. AUXILIARY INPUT: Connect a media device
for sharing audio in rehearsals or performances.
15. MIX B HEADPHONES: 1⁄8” headphone output
for B MIX.
|
INTERCOM
ME
PUSH FOR GROUP SETUP
ADJUST
VOL & PAN
PUSH FOR MASTER SETUP
MASTER
VOLUME
CS-SOLO
|
INTERCOM
ME
PUSH FOR GROUP SETUP
ADJUST
VOL & PAN
PUSH FOR MASTER SETUP
MASTER
VOLUME
CS-SOLO
|
INTERCOM
ME
PUSH FOR GROUP SETUP
ADJUST
VOL & PAN
PUSH FOR MASTER SETUP
MASTER
VOLUME
CS-SOLO

DIGITAL AUDIO LABS
1266 PARK RD CHANHASSEN, MN 55317
WWW.DIGITALAUDIO.COM
™ & ® 2014-2015 DIGITAL AUDIO LABS. © 2016 DIGITAL AUDIO LABS.
Subject to change without notice.
CS-DUO DUAL MIX PERSONAL MIXER FEATURES
FEATURE BENEFIT
12-Channel overview on LCD touchscreen Quick and easy identication of channels
Color LCD Touch Screen Informative displays with direct interaction
Illuminated channel and buttons Quick identication of currently selected channel
Custom channel naming Select instrument or singer by custom name
Continuous rotary/push switch knobs (3 per mix) Quick and easy adjustment of different settings
ME Group plus 4 additional channel groups Allows for quick volume adjustments of logical groups
such as drums, background vocals, etc.
Two discreet mixes per unit Allows the personal monitor mixer to be shared by two
users, saving money, cabling and stage space
Built-in stereo ambient microphones Allows the ambient sound of the stage and audience to be
included in each personal mix
Built-in Intercom Easy communication with other band members on the
stage or in the studio
Auxiliary Input Connect a media device for sharing audio in rehearsals or
performances
Built-in metronome Provides tempo and timing reference for all users
Power and audio over single network cable Reduces stage clutter and simplies setup
24 Channels of input audio Less sub-grouping is required, allowing for greater mix
customization
EQ & Dynamics presets on every channel Sweepable EQ, High Pass Filtering and Compression
Settings allow you to craft the channel’s sound
EQ, Dynamics & Reverb on the master output Fine tune the overall sound of your mix
MirrorMix®Remote Mixing Experienced users can connect to a remote mixer, hear
and adjust mixes and push out mix settings
Save/Load individual mixes to/from USB Allows users to bring previously perfected mixes to
rehearsals or the next venue
High gain headphone amplier Provides clean, great-sounding audio quality
Mute and Solo on each channel Check the sound of an individual instrument, as well as
mute the channel in a mix
Optional foot pedal for hands-free mixing Adjust volume and select channels while keeping your
hands on your instrument
Option to link A and B mixes Allows both sets of knobs to control the same mix, when a
CS-DUO is used for a single performer
¼” Balanced mono output option Allows output to powered oor monitors
