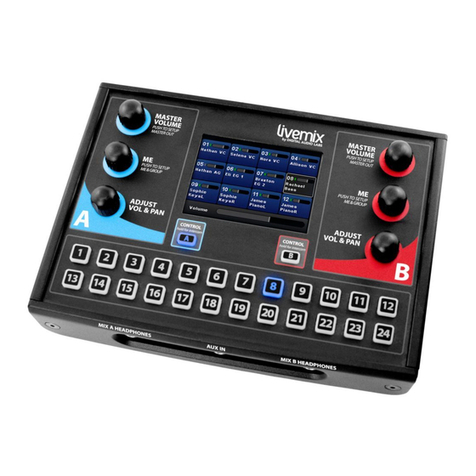

Digital Audio Labs LIVEMIX CS-DUO User manual

USER GUIDES AVAILABLE AT
WWW.DIGITALAUDIO.COM
Most mixing occurs
on the Channel
Overview which
shows the names
and levels of 12
channels at a time.
On the CS-DUO,
press the A or B control button to select the
A mix (blue) or the B mix (red).
1CHANNEL OVERVIEW
Stereo Groups will link the volumes of two
channels into a group. Stereo Groups are
paired odd and even.
1. PRESS the ME KNOB to access Group
Setup.
2. PRESS Show Next Group to cycle through
the groups (last group is Stereo Groups).
3. SELECT one of the channels to group.
(you can create multiple Stereo Groups)
4. PRESS X to exit.
5 STEREO GROUPS
Saving a mix makes for an easy starting
point for your next performance.
1. PRESS Mix Tools from the Channel
Overview.
2. PRESS Load/Save Personal Mix.
3. SELECT an available save slot.
4. PRESS Save Selected Personal Mix.
5. PRESS Yes and enter Mix Name.
6. PRESS Done.
Loading a mix follows the same pattern as
Saving a mix (steps 1 and 2).
1. SELECT a mix to load.
2. PRESS Load Selected Personal Mix.
6SAVE/LOAD YOUR MIX
® and ™ 2014 - 2016 Digital Audio Labs. © 2018 Digital Audio Labs.
4ME KNOB
The ME Knob allows you to quickly adjust
the volume of your own “group”. If you are
singing and playing guitar, you may want to
assign these channels to the ME Knob.
PRESS the ME Knob to access Group Setup.
1. SELECT your channel(s).
2. PRESS X to exit.
ME
PUSH FOR GROUP SETUP
To ADJUST Volume and Pan:
SELECT a channel to adjust.
1. ROTATE the ADJUST KNOB to
increase or decrease volume.
2. PRESS ADJUST for pan.
3. ROTATE to pan left or right.
The mixer returns to volume
mode after 5 seconds.
3 VOLUME & PAN
ADJUST
VOL & PAN
ADJUST
VOL & PAN
7 PRESS THE X
The Livemix system has many advanced
features. If you nd yourself somewhere you
don’t want to be, PRESS X to return to the
Channel Overview.
QUICK START v1.3 LIVEMIX BASICS
The MASTER VOLUME Knob sets the overall
volume level of the mix. We recommend a
MASTER VOLUME of 75% to start.
2MASTER VOLUME

QUICK START v1.3 PERSONAL MONITOR MIX TIPS
THE ESSENTIALS
Don’t be tempted to mix
in every available channel.
Start with “you” so you
hear your own channels
well. With Livemix you can
assign your channels to
the dedicated ME knob for
quick access to your
own volume.
PITCH REFERENCE
Add a pitch reference to
your mix by identifying the
one or two tracks that help
you stay in the right key, or
know when you are off.
TIMING REFERENCE
This will often be the kick/
snare or metronome. It
won’t be every drum in the
kit, but enough to keep
timing true. Use the built
in metronome or auxiliary
input on Livemix to save
precious channel space.
PAN PAN PAN!
Add space to your mix by
panning most channels off
center. Keep the kick, bass,
and you in the center, but
all other channels should
be panned to the left or
right to various degrees.
It may help to pan based
on stage location when
possible.
KICK
SNARE
BASS
HI HATS
YOU
RHYTHM GUITAR
LEAD VOCAL
BG VOCAL 1
KEYS - PADS
50% LEFT 50% RIGHT
TOM 1
TOM 2
TOM 3
VOLUME VOLUME
PIANO
LEAD GUITAR
ACOUSTIC
