RRD42DiscDrive
Owner’sManual
Order Number EK-RRD42-OM-003
Digital Equipment Corporation

First Edition, February 1991
The information in this document is subject to change without notice and
should not be construed as a commitment by Digital Equipment Corporation.
Digital Equipment Corporation assumes no responsibility for any errors that
may appear in this document.
Restricted Rights: Use, duplication, or disclosure by the U. S. Government is
subject to restrictions as set forth in subparagraph (c) (1) (ii) of the Rights
in Technical Data and Computer Software clause at DFARS 252.227–7013.
Copyright © Digital Equipment Corporation 1991
All Rights Reserved.
Printed in U.S.A.
The postpaid Reader’s Comment Card included in this document requests the
user’s critical evaluation to assist in preparing future documentation.
FCC NOTICE: The equipment described in this manual has been certified to
comply with the limits for a Class B computing device, pursuant to Subpart
J of Part 15 of FCC Rules. Only peripherals (computer input/output devices,
terminals, printers, etcetera) certified to comply with the Class B limits
may be attached to this computer. Operation with noncertified peripherals
may result in interference to radio and television reception. This equipment
generates and uses radio frequency energy and if not installed and used
properly, that is, in strict accordance with the manufacturer’s instructions,
may cause interference to radio and television reception. It has been type
tested and found to comply with the limits for a Class B computing device
in accordance with the specifications in Subpart J of Part 15 of FCC Rules,
which are designed to provide reasonable protection against such interference
in a residential installation. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
– Reorient the receiving antenna.
– Move the computer away from the receiver.
– Plug the computer into a different outlet so that computer and receiver
are on different branch circuits.
If necessary, the user should consult the dealer or an experienced
radio/television technician for additional suggestions. The user may find
the following booklet prepared by the Federal Communications Commission
helpful: How to Identify and Resolve Radio-TV Interference Problems. This
booklet is available from the US Government Printing Office, Washington, DC
20402, Stock No. 004–000–00398–5
The shielded interface cable recommended in this manual must be used with
this equipment to comply with the limits for a computing device pursuant to
subpart J of Part 15 of FCC rules.
DOC CANADA/CSA 108.8 class/classe B

The following are trademarks of Digital Equipment Corporation.
BASIC, DEC, DECdirect, DECmailer, DECservice, MicroVAX, SERVICenter,
Q–bus, RRD42, ULTRIX, VAX, VMS, and the DIGITAL logo.
MS–DOS is a registered trademark of Microsoft Corporation.
SCO is a trademark of Santa Cruz Operations, Incorporated.
UNIX is a registered trademark of AT&T Bell Laboratories.
This document was prepared and published by Educational Services
Development and Publishing, Digital Equipment Corporation.
This RRD42 drive is classified as a Class 1 laser product. The Class 1 laser
product label is on the bottom of the drive.
• CLASS 1 LASER PRODUCT
• LASER KLASSE 1
• APPAREIL À LASER DE CLASSE 1
• LUOKAN 1 LASERLAITE
• PRODUCTO LÁSER DE CLASE 1

NOTICE
THIS NOTICE IS APPLICABLE TO USA AND CANADA ONLY.
If shipped to USA, use the UL LISTED power cord specified below for
100–120 V operation.
If shipped to CANADA, use the CSA CERTIFIED power cord specified below
for 100–120 V operation.
USE POWER CORD 17-03040-01. DO NOT USE ANY OTHER POWER
CORD.
Plug Cap Parallel blade with ground pin
(NEMA 5-15P Configuration)
Cord Type SVT or SJT, three 16 or 18 AWG wires (shielded )
Length Maximum 15 feet
Rating Minimum 10 A, 125 V
ATTENTION
LIRE LA REMARQUE DANS LE MODE D’EMPLOI
REMARQUE
CETTE REMARQUE NE CONCERNE QUE LES ETATS-UNIS ET LE
CANADA.
En cas d’envoi aux Etats-Unis, n’utiliser que le cordon d’alimentation inscrit
sur LISTE UL et spécifié ci-dessous pour utilisation sur 100–120 V.
En cas de’envoi au CANADA, n’utiliser que le cordon d’alimentation
CERTIFIE Par CSA et spécifié ci-dessous pour utilisation sur 100–120
V.
UTILISER CORDON D’ALIMENTATION 17-03040-01. N’UTILISER AUCUN
AUTRE CORDON D’ALIMENTATION.
Fiche Lame parallé avec une broche de mise à la terre
(Configuration NEMA 5-15P)
Cordon Type SVT ou SJT, trois fils 16 ou 18 AWG (blindé)
Longeur Maximum 15 pieds
Capacité Minimum 10 A, 125 V

Für Bundesrepublik Deutschland For Federal Republic of Germany Pour la
République féderale d’Allemagne
Bescheinigung des Herstellers/Importeurs
Hiermit wird bescheinigt, daß die Einrichtung in Übereinstimmung mit den
Bestimmungen der DBP-Verfügung 1046/84, Amtsblatt Nr. 163/1984, und
Grenzwertklasse "B" der VDE0871, funkentstört ist.
Der Deutschen Bundespost (DBP) wurde das Inverkehrbringen dieses Gerätes
angezeigt und die Berechtigung zur Überprüfung der Serie auf Einhaltung
der Bestimmungen eingeräumt.
Betreiberhinweis
Wir sind verpflichtet, Sie auf folgende Fakten hinzuweisen (DBP-Verfügung
1046/84, §2, Abschnitt 5):
Das Gerät wurde funktechnisch sorgfältig entstört und geprüft. Beim
Zusammenschalten mit anderen EDV- Geräten können im ungünstigsten
Fall Funkstörungen entstehen, die dann im Einzelnen zusätzliche
Funkentstörungs- Maßnahmen durch den Benutzer erfordern.
Externe Datenkabel
Sollte ein Austausch der von Digital spezifizierten Datenkabel nötig werden,
muß der Betreiber für eine einwandfreie Funkentstörung sicherstellen,
daß das Austauschkabel im Aufbau und Abschirmqualität dem Digital
Originalkabel entsprechen
Laser
• Typ: Halbleiterlaser GaAlAs
• Wellenlänge: 780 nm
• Ausgangsleistung: 0,6 mW
• Strahldivergenz: 53,4°±1,5°

ZU IHRER SICHERHEIT
Vorsicht
Um Feuergefahr und die Gefahr eines elektrischen Schlages zu vermeiden,
darf das Gerät weder Regen noch Feuchtigkeit ausgesetzt werden.
Um einen elektrischen Schlag zu vermeiden, darf das Gehäuse nicht geöffnet
werden. Überlassen Sie Wartungsarbeiten stets nur einem Fachmann.
Überlassen Sie Wartungsarbeiten dem von Sony zugelassenen Fachmann.
Achtung
Da der interne Laserstrahl in lhre Augen eindringen und Verletzugen
verursachen kann, darf das Gehäuse nicht selbst geöffnet werden. Überlassen
Sie Wartungsarbeiten stets nur einem Fachmann.
Die Verwendung von Brillen, Kontaktlinsen usw. vergrößert die Gefahr.
Zur besonderen Beachtung
Zur Sicherheit
Sollte ein fester Gegenstand oder Flüssigkeit in das Geräteinnere gelangen,
trennen Sie das Gerät von der Wandsteckdose ab und lassen Sie es von einem
Fachmann überprüfen, bevor Sie es weiter verwenden.
Zum Abziehen des Kabels fassen Sie stets am Stecker und niemals am Kabel
selbst an.
Zur Aufstellung
Stellen Sie das Gerät weder auf einer weichen Unterlage (z.B. Decke,
Teppich) noch in der Nähe von Vorhängen, Tapeten usw. auf, da hierdurch
die Ventilationsöffnungen blockiert werden können.
Zur Reiningung
Verwenden Sie zur Reinigung des Gehäuses, des Bedienungspultes und der
Bedienungselemente ein trockenes, weiches Tuch oder ein weiches, leicht
mit mildem Haushaltsreiniger angefeuchtetes Tuch. Lösemittel wie Alkohol
oder Benzin dürfen nicht verwendet werden, da diese die Gehäuseoberfläche
angreifen.

Contents
About This Manual ix
1 RRD42 Disc Drive Product Description
Overview ................................................... 1–1
2 Generic Installation
Familiarizing Yourself with the Drive ............................. 2–1
Connecting the Cables . . . ..................................... 2–6
Installing the RRD42 Tabletop Drive ............................. 2–11
Installing the RRD42 Embedded Drive ............................ 2–12
Verifying the RRD42 Drive Installation ........................... 2–14
3 Using the RRD42 Disc Drive
How the RRD42 Drive Operates ................................. 3–1
Operating the RRD42 Drive .................................... 3–11
4 Problem Solving and Preventive Maintenance
Problem Solving ............................................. 4–2
Preventive Maintenance . . ..................................... 4–3
Generic, System-Based Diagnostics . . ............................. 4–4
Repair Services . ............................................. 4–4
iii

iv Contents
A RRD42 Disc Drive Specification
Specification . . . ............................................. A–1
Index
Figures
1–1 RRD42 Drive — Tabletop and Embedded . .................... 1–3
2–1 Front Panel of the RRD42 Drive ............................ 2–2

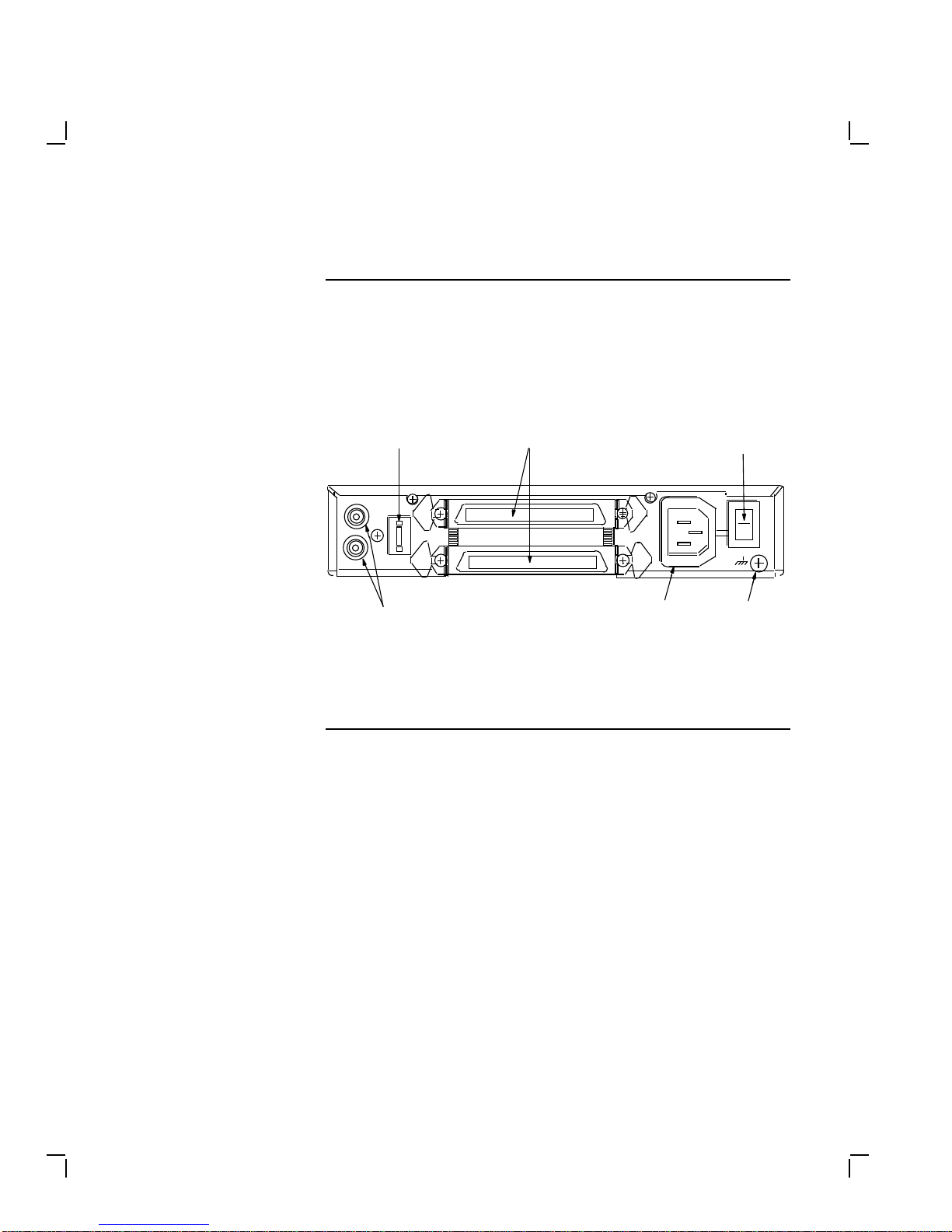

2–2 Rear Panel of the Tabletop Drive (–DA Version) ................ 2–3

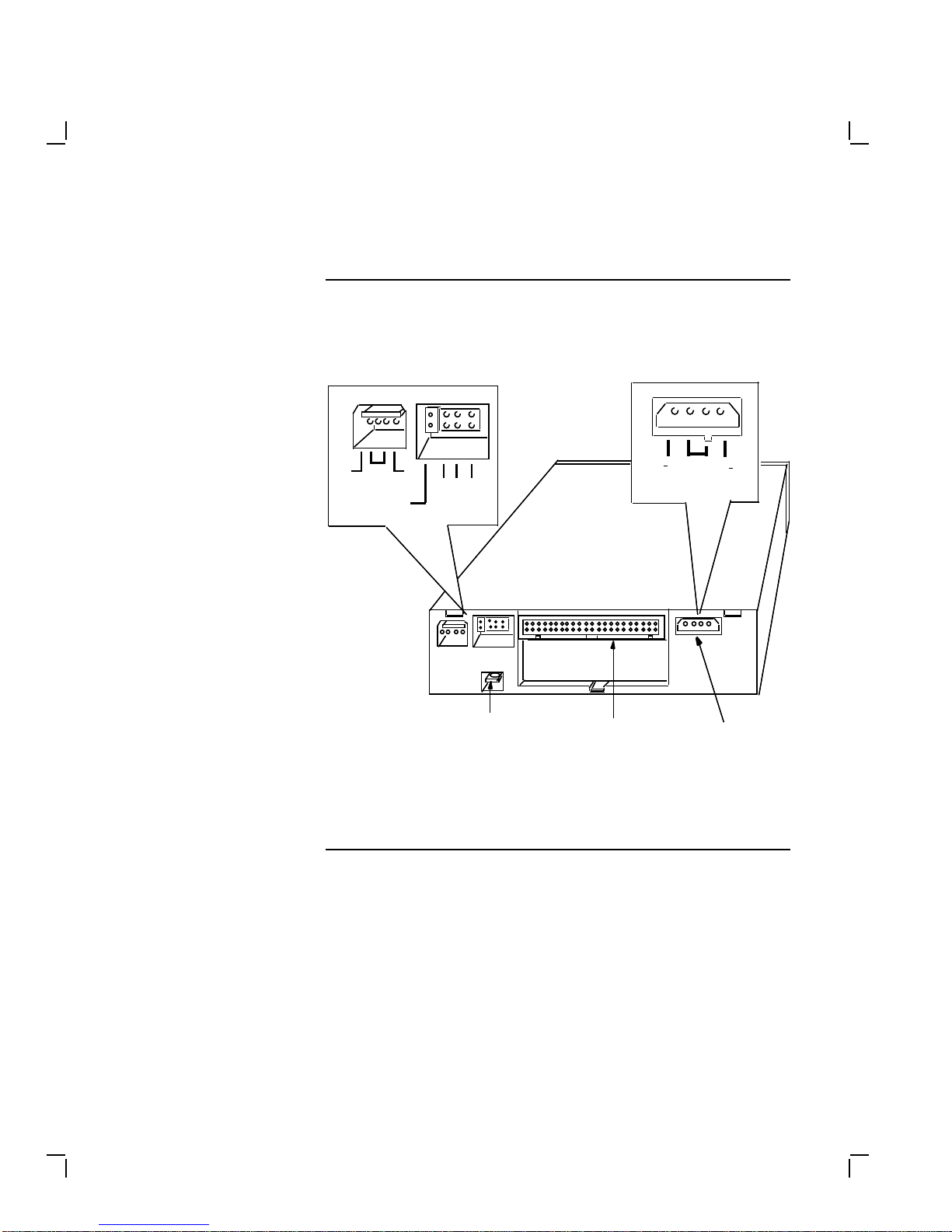

2–3 Rear Panel of the Embedded Drive (–AA Version) . . ............ 2–5
2–4 Connecting a SCSI Signal Cable — Drive to System ............ 2–7
2–5 Connecting the 50-Pin SCSI Signal Cable — Drive to Drive . . . .... 2–9
2–6 Connecting a Power Cable to the RRD42 Drive Power Connector . . . 2–10
3–1 Front Panel of the RRD42 Drive ............................ 3–3
3–2 Rear Panel of the Tabletop Drive (–DA Version) ................ 3–5
3–3 Rear Panel of the Embedded Drive (–AA Version) . . ............ 3–7
3–4 Opening the Caddy . ..................................... 3–9
3–5 Loading a Disc into the Caddy ............................. 3–10
3–6 Loading the Drive . . ..................................... 3–12
3–7 Ejecting the Caddy from the Drive .......................... 3–13
4–1 Manually Ejecting the Caddy . ............................. 4–2
Tables
2–1 ID Jumpers 0–2 . . . ..................................... 2–13

About This Manual
Introduction
Purpose This manual describes the RRD42 disc drive, the drive’s
installation, and the drive’s specifications.
Intended
Audience This manual is intended for the owner of the RRD42 disc drive.
No prerequisites are necessary to use this manual.
Manual Structure Chapter 1 describes the RRD42 disc drive.
Chapter 2 shows how to install the RRD42 disc drive.
Chapter 3 shows how to use the RRD42 disc drive.
Chapter 4 shows how to maintain the RRD42 disc drive and
how to solve drive problems.
Appendix A provides RRD42 disc drive specifications.
ix

1 RRD42DiscDrive ProductDescription
Overview
Description The RRD42 disc drive is a half-height, 5¼-inch, 600-megabyte,
compact disc, storage device compatible with Digital systems.
The drive, capable of audio playback, has audio line outputs
and a headphone jack.
NOTE
The audio capability is included in the hardware and is
operating system dependent. Operating system support
will be added when it becomes available.
The device uses the SCSI-2 (small computer system
interconnect) bus, and can be used on low-end, desktop, and
Digital workstation systems.
Two Drive
Versions The RRD42 drive is the primary load device for operating
system software and layered products. Two versions of the
drive are available: the tabletop version and the embedded
version. Although the installation of the drives differ, they

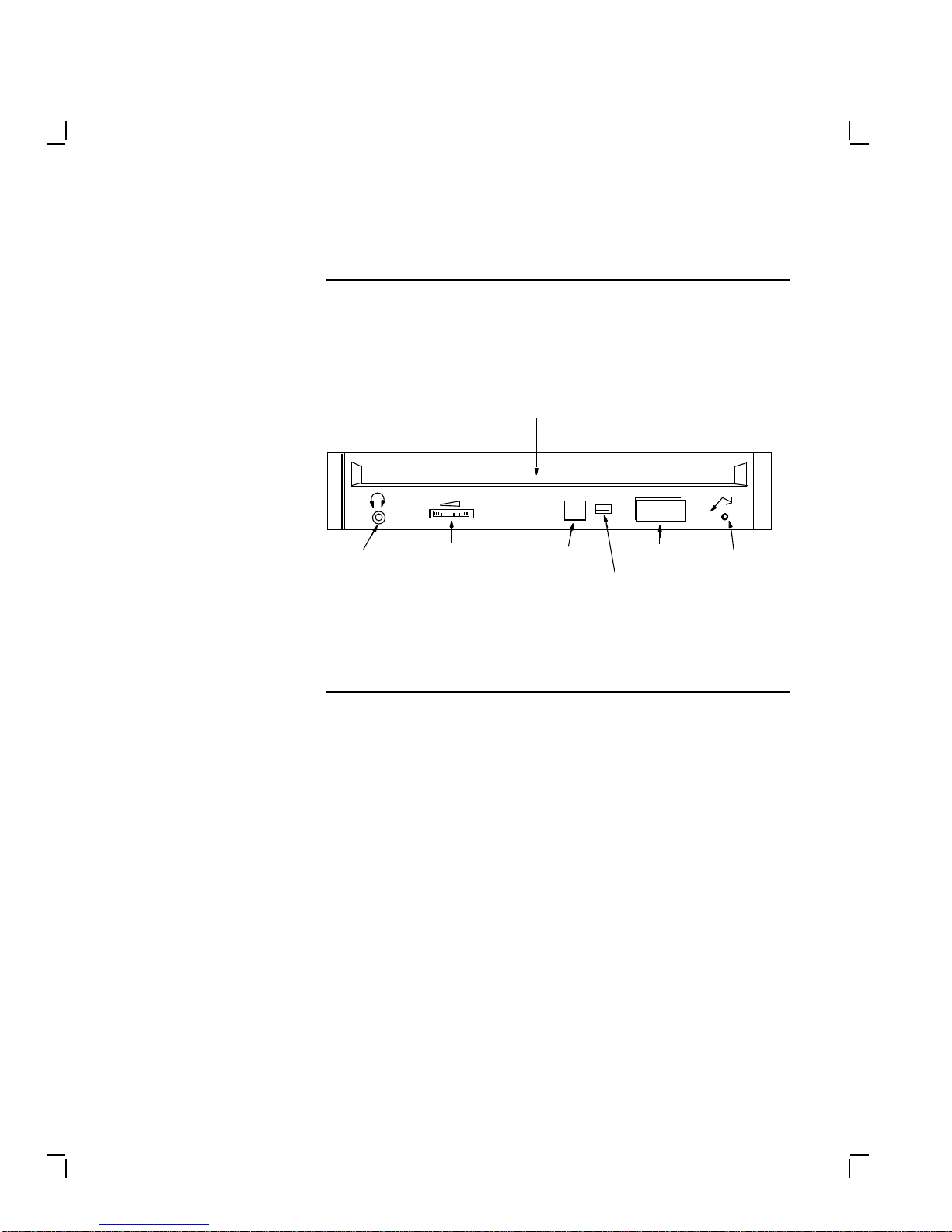

function the same. Figure 1–1 shows the RRD42 front panel.
1–1

1–2 RRD42 Disc Drive Product Description
Tabletop Drive The RRD42 tabletop drive is a standalone unit and contains
industry-standard SCSI connectors on the rear panel. An
address selection switch, 3-pin ac connector, and audio output
jacks are also on the rear panel.
Embedded Drive The RRD42 embedded drive is designed to be installed in a host
system. The embedded drive can be used in a horizontal or
vertical position.

RRD42 Disc Drive Product Description 1–3
RRD42 Drive Figure 1–1 shows the RRD42 disc drive.
JACK
HEADPHONE
LEVEL
CONTROL
DIMPLE FOR
ID NUMBER
BUSY
INDICATOR
EJECT
BUTTON EMERGENCY
EJECT
HOLE
CADDY INSERTION
SLOT
SHR−XR0062−90
LABEL
HEADPHONE
Figure 1–1 RRD42 Drive — Tabletop and Embedded

1–4 RRD42 Disc Drive Product Description
System Support The RRD42 drive subsystem is supported under VMS, ULTRIX,
MS–DOS, and SCO UNIX operating systems.
To determine the correct operating system level, consult your
Digital sales representative.
Ordering
Additional Disc
Caddies
To order additional disc caddies, contact your Digital sales
representative or DECdirect ordering service. Refer to part
number 30-34512-01.

2 Generic Installation
Familiarizing Yourself with the Drive
In this Chapter This chapter describes:
• Becoming familiar with the drive
• Connecting the cables
• Installing the RRD42 tabletop drive
• Installing the RRD42 embedded drive
• Setting the SCSI ID address
• Verifying installation with power-on self-test (POST)
This chapter provides general installation procedures. This
chapter does not give specific, host system installation
instructions.
Part Locations To familiarize yourself with the tabletop and embedded drives’
buttons, switches, and connectors, see Figure 2–1. The tabletop
and embedded drives have the same front panel.
See Figure 2–2 for a rear view of the RRD42 tabletop drive and
Figure 2–3 for a rear view of the RRD42 embedded drive.
2–1

2–2 Generic Installation
RRD42 Drive
Front Panel Figure 2–1 shows the front panel of the RRD42 drive.
JACK
HEADPHONE
LEVEL
CONTROL
DIMPLE FOR
ID NUMBER
BUSY
INDICATOR
EJECT
BUTTON EMERGENCY
EJECT
HOLE
CADDY INSERTION
SLOT
SHR−XR0062−90
LABEL
HEADPHONE
Figure 2–1 Front Panel of the RRD42 Drive

Generic Installation 2–3
RRD42 Drive
Rear Panel —
Tabletop
Figure 2–2 shows the rear panel of the RRD42 tabletop drive.
ID SELECT
SWITCH SCSI BUS
CONNECTORS POWER
SWITCH
AUDIO
OUTPUT
JACKS
GROUND
TERMINAL
AC IN
CONNECTOR
(3 PIN)
R
L1
0
SHR−XR0063−90
Figure 2–2 Rear Panel of the Tabletop Drive (–DA Version)

2–4 Generic Installation
Mode Select
Jumper IMPORTANT
The mode select jumper is a USER-SELECTABLE feature
for the embedded drive only. If you do not select the
correct mode, the drive does not operate properly.
The mode select jumper has two modes:
Mode 0 — Jumper Out. In this mode the drive block size
is 2 kilobytes. Use Mode 0 under MS–DOS and SCO UNIX
operating systems.
Mode 1 — Jumper In. When the jumper is installed, the
drive operates with a block size of 512 bytes. Use Mode 1
under VMS and ULTRIX operating systems.
The mode select jumper does not affect other operations.
NOTE
The microcode revision reported by the RRD42 disc
drive depends on the mode selected.

Generic Installation 2–5
RRD42 Drive
Rear Panel —
Embedded
Figure 2–3 shows the rear panel of the RRD42 embedded drive
with the jumper installed (Mode 1).
SHR−XR0064−90
L R
GND
AUDIO OUT 0 1 2
ID SELECT
FRAME
GROUND
TAB
SCSI BUS
INTERFACE
CONNECTOR POWER−IN
CONNECTOR
DC INPUT
5V+5% GND 12V+10%
SHR−XR0064−90
L R
GND
AUDIO OUT 0 1 2
ID SELECT
FRAME
GROUND
TAB
SCSI BUS
INTERFACE
CONNECTOR POWER−IN
CONNECTOR
DC INPUT
5V+5% GND 12V+10%
MODE
Figure 2–3 Rear Panel of the Embedded Drive (–AA Version)

2–6 Generic Installation
Connecting the Cables
Connecting
Tabletop Drive to
System
WARNING
To prevent fire or shock hazard, do not expose the unit
to rain or moisture.
To avoid electrical shock, do not open the cabinet. Refer
servicing to qualified personnel only.
If you are connecting an RRD42 tabletop drive directly
to your system, use the SCSI signal cable supplied in
your system installation kit..
If you do not have this cable, contact your Digital sales
representative. Use a cable supplied by Digital Equipment
Corporation. Failure to do so may result in degraded
performance of your RRD42 drive.
To connect a SCSI cable — drive to system — perform the
following steps:
1. See Figure 2–4.
2. Connect one end of the cable to the host system SCSI port.
3. Connect the other end of the SCSI signal cable to the top
SCSI connector on the rear of the RRD42 drive.
4. Snap the wire cable clamps into place to secure the SCSI
cable.
5. Connect the SCSI terminator to the bottom SCSI connector
on the rear of the RRD42 drive, if this device is to be the
last unit on the bus.
6. Snap the wire cable clamps into place to secure the
terminator.
