FILE NO. SM-CTV-O-158
COLOR TELEVISION
SERVICE MANUAL
MODEL NO. 14BM18
CHASSIS NO. EX-1A3
Please read this manual carefully before service

TABLE OF CONTENTS
SPECIFICATIONS··················································································································1
SAFETY INSTRUCTIONS AND MAINTENANCE········································2
X-RAY RADIATION PRECAUTION ···································································································2
SAFETY PRECAUTION ····················································································································2
PRODUCT SAFETY NOTICE ···········································································································3
SAFETY SYMBOL DESCRIPTION ···································································································3
MAINTENANCE·································································································································4
ADJUSTMENTS······················································································································5
SET-UP ADJUSTMENTS ··················································································································5
CIRCUIT ADJUSTMENTS·················································································································8
STRUCTURE AND CHASSIS FUNCTION DESCRIPTION···············
15
STRUCTURE BLOCK DIAGRAM···································································································
15
BLOCK DIAGRAM FOR SUPPLY VOLTAGE SYSTEM·································································
16
CHASSIS DESCRIPTION···············································································································
17
SERVICE DATA····················································································································
18
TECHNICAL DATAOF KEY ICS ····································································································
18
WAVEFORMS OF KEY POINTS ···································································································· 31
SERVICE DATA OF KEY ICS········································································································· 33
REPLACEMENT OF PARTS ··········································································································
36
APPENDIX
1. CIRCUIT DIAGRAM
2. PRINTED CIRCUIT BOARD DIAGRAMS
3. FINAL WIRING DIAGRAM
4. FINAL ASSEMBLY DIAGRAM

SERVICE MANUAL
1
SPECIFICATIONS
Model Number 14BM18
Color system PAL4.43, NTSC3.58, NTSC4.43, SECAM
RF system
Sound system B/G, I, M, D/K
VHF C1 C12 (49.75-85.25MHz, 168.25-216.25MHz)
UHF C13 C57 (471.25-863.25MHz)
Receiving
channel CATV Z1 Z7 (111-167MHz)
Z8 Z35 (223-447MHz)
Programs preset 236(0-235)
Antenna input 75 (unbalanced)
Picture tube (Approx.)
Effective screen dimensions 280 210mm
Audio output (THD 7%) 2W 2
Power source 110-240V ~, 50/60Hz
Weight (Approx.) 10.5kg
Dimensions
(W HD) (Approx.) 416 332 390mm
Rated power consumption 69W
Note: Designs and specifications are subject to change without notice.

SERVICE MANUAL
2
INSTRUCTIONS FOR SERVICE SAFETY AND MAINTENANCE
WARNING: BEFORE SERVICING THIS CHASSIS, READ THE X-RAY RADIATION PRECAUTION ,
SAFETY PRECAUTION AND PRODUCT SAFETY NOTICE INSTRUCTION BELOW.
X-RAY RADIATION PRECAUTION
1. The EHT must be checked every time the TV is serviced to ensure that the CRT does not emit
X-ray radiation as result of excessive EHT voltage. The maximum EHT voltage permissible in any
operating circumstances must not exceed the rated value. When checking the EHT, use the High
Voltage Check procedure in this manual using an accurate EHT voltmeter.
2. The only source of X-RAY radiation in this TV is the CRT. The TV minimizes X-RAY radiation, which
ensures safety during normal operation. To prevent X-ray radiation, the replacement CRT must be
identical to the original fitted as specified in the parts list.
3. Some components used in this TV have safety related characteristics preventing the CRT from
emitting X-ray radiation. For continued safety, replacement component should be made after
referring the PRODUCT SAFETY NOTICE below.
4. Service and adjustment of the TV may result in changes in the nominal EHT voltage of the CRT
anode. So ensure that the maximum EHT voltage does not exceed the rated value after service
and adjustment.
SAFETY PRECAUTION
WARNING: REFER SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY.
1. The TV has a nominal working EHT voltage. Extreme caution should be exercised when working
on the TV with the back removed.
1.1 Do not attempt to service this TV if you are not conversant with the precautions and procedures for
working on high voltage equipment.
1.2 When handling or working on the CRT, always discharge the anode to the TV chassis before
removing the anode cap in case of electric shock.
1.3 The CRT, if broken, will violently expel glass fragments. Use shatterproof goggles and take extreme
care while handling.
1.4 Do not hold the CRT by the neck as this is a very dangerous practice.
2. It is essential that to maintain the safety of the customer all power cord forms be replaced exactly
as supplied from factory.
3. Voltage exists between the hot and cold ground when the TV is in operation. Install a suitable
isolating transformer of beyond rated overall power when servicing or connecting any test
equipment for the sake of safety.
4. When replacing ICs, use specific tools or a static-proof electric iron with small power (below 35W).

SERVICE MANUAL
3
5. Do not use a magnetized screwdriver when tightening or loosing the deflection yoke assembly to
avoid electronic gun magnetized and decrement in convergence of the CRT.
6. When remounting the TV chassis, ensure that all guard devices, such as nonmetal control buttons,
switch, insulating sleeve, shielding cover, isolating resistors and capacitors, are installed on the
original place.
7. Replace blown fuses within the TV with the fuse specified in the parts list.
8. When replacing wires or components to terminals or tags, wind the leads around the terminal
before soldering. When replacing safety components identified by the international hazard symbols
on the circuit diagram and parts list, it must be the company-approved type and must be mounted
as the original.
9. Keep wires away from high temperature components.
PRODUCT SAFETY NOTICE
CAUTION: FOR YOU PROTECTION, THE FOLLOWING PRODUCT SAFETY NOTICE SHOULD BE
READ CAREFULLY BEFORE OPERATING AND SERVICING THIS TV SET.
1. Many electrical and mechanical components in this chassis have special safety-related
characteristics. These characteristics are often passed unnoticed by a visual inspection and the
X-ray radiation protection afforded by them cannot necessarily be obtained by using replacements
rated at higher voltages or wattage, etc. Components which have these special safety
characteristics in this manual and its supplements are identified by the international hazard
symbols on the circuit diagram and parts list. Before replacing any of these components read the
parts list in this manual carefully. Substitute replacement components which do not have the same
safety characteristics as specified in the parts list may create X-ray radiation.
2. Do not slap or beat the cabinet or CRT, since this may result in fire or explosion.
3. Never allow the TV sharing a plug or socket with other large-power equipment. Doing so may result
in too large load, causing fire.
4. Do not allow anything to rest on or roll over the power cord. Protect the power cord from being
walked on, modified, cut or pinched, particularly at plugs.
5. Do not place any objects, especially heavy objects and lightings, on top of the TV set. Do not install
the TV near any heat sources such as radiators, heat registers, stove, or other apparatus that
produce heat.
6. Service personnel should observe the SAFETY INSTRUCTIONS in this manual during use and
servicing of this TV set. Otherwise, the resulted damage is not protected by the manufacturer.
SAFETY SYMBOL DESCRIPTION
The lightning symbol in the triangle tells you that the voltage inside this product may be
strong enough to cause an electric shock. Extreme caution should be exercised when

SERVICE MANUAL
4
working on the TV with the back removed.
This is an international hazard symbol, telling you that the components identified by the
symbol have special safety-related characteristics.
FDA This symbol tells you that the critical components identified by the FDA marking have
special safety-related characteristics.
UL This symbol tells you that the critical components identified by the UL marking have
special safety-related characteristics.
C UL This symbol tells you that the critical components identified by the C-UL marking have
been evaluated to the UL and C-UL standards and have special safety-related
characteristics.
VDE
This symbol tells you that the critical components identified by the VDE marking have
special safety-related characteristics.
MAINTENANCE
1. Install the TV set on a stable and level surface. Do not place the set near or over a radiator or heat
register, or where it is exposed to direct sunlight.
2. Do not install the TV set in a place exposed to rain, water, excessive dust, mechanical vibrations or
impacts.
3. Allow enough space (at least 10cm) between the TV and wall or enclosures for proper ventilation.
4. Slots and openings in the cabinet should never be blocked by clothes or other objects.
5. Please power off the TV set and disconnect it from the wall immediately if any abnormal condition
are met, such as bad smell, belching smoke, sparkling, abnormal sound, no picture/sound/raster.
Hold the plug firmly when disconnecting the power cord.
6. Unplug the TV set from the wall outlet before cleaning or polishing it. Use a dry soft cloth for
cleaning the exterior of the TV set or CRT screen. Do not use liquid cleaners or aerosol cleaners.

SERVICE MANUAL
5
ADJUSTMENTS
SET-UP ADJUSTMENTS
The following adjustments should be made when a complete realignment is required or a new picture
tube is installed.
Perform the adjustments in the following order:
1. Color purity
2. Convergence
3. White balance
Notes:
The purity/convergence magnet assembly and rubber wedges need mechanical positioning.
For some picture tubes, purity/ convergence adjustments are not required.
1. Color Purity Adjustment
Preparation:
Before starting this adjustment, adjust the vertical sync, horizontal sync, vertical amplitude and
focus.
1.1 Face the TV set north or south.
1.2 Connect the power plug into the wall outlet and turn on the main power switch of the TV set.
1.3 Operate the TV for at least 15 minutes.
1.4 Degauss the TV set using a specific degaussing coil.
1.5 Set the brightness and contrast to maximum.
1.6 Counter clockwise rotate the R/B low brightness potentiometers to the end and rotate the green low
brightness potentiometer to center.
1.7 Receive green raster pattern signals.
1.8 Loosen the clamp screw holding the deflection yoke assembly and slide it forward or backward to
display a vertical green zone on the screen. Rotate and spread the tabs of the purity magnet
around the neck of the CRT until the green zone is located vertically at the center of the screen.
1.9 Slowly move the deflection yoke assembly forward or backward until a uniform green screen is
obtained.
1.10 Tighten the clamp screw of the assembly temporarily. Check purity of the red raster and blue raster
until purities of the three rasters meet the requirement.

SERVICE MANUAL
6
Fig. 1
2. Convergence Adjustment
Preparation:
Before attempting any convergence adjustment, the TV should be operated for at least 15 minutes.
2.1 Center convergence adjustment
2.1.1 Receive dot pattern.
2.1.2 Adjust the brightness/contrast controls to obtain a sharp picture.
2.1.3 Adjust two tabs of the 4-pole magnet to change the angle between them and red and blue
vertical lines are superimposed each other on the center of the screen.
2.1.4 Turn both tabs at the same time keeping the angle constant to superimpose red and blue
horizontal on the center of the screen.
2.1.5 Adjust two tabs of the 6-pole magnet to superimpose red/blue line and green line.
2.1.6 Remember red and blue movement. Repeat steps2.1.3-2..1.5 until optimal convergence is
Deflection Coil
Dummy Wedge
Rubber Wedge
Adhesive
Deflection Yoke
Purity/Convergence
Ma
g
net Module
Glass Cloth Tapes
6-pole Magnet
A
d
j
ust the An
g
le
(
Vertical Lines
)
Fixed
Rotate Two Tabs At the
Same Time
(
Horizontal Lines
)
Adjustment of Magnets
Purity Magnet
Conver
g
ence Ma
g
net Assembl
y
4-pole Magnet
Fig. 2

SERVICE MANUAL
7

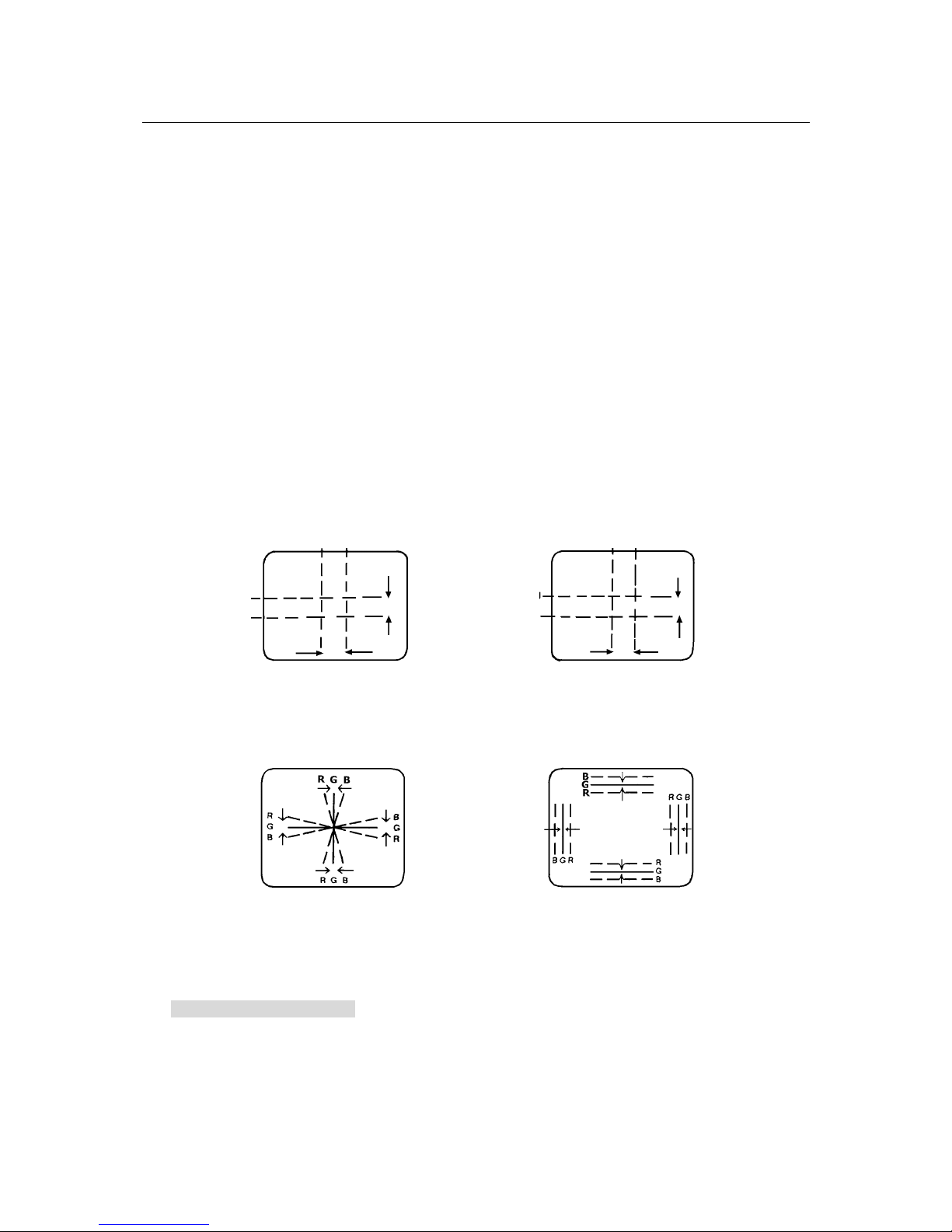

Incline the Yoke up (or down) Incline the Yoke Right(or left)
Circumference Convergence by DEF Yoke
Fig. 3
obtained.
2.2 Circumference convergence adjustment
2.2.1 Loosen the clamp screw holding the deflection yoke assembly and allow it tilting.
2.2.2 Temporarily put the first wedge between the picture tube and deflection yoke assembly. Move
front of the deflection yoke up or down to obtain better convergence in circumference. Push the
mounted wedge in to fix the yoke temporarily.
2.2.3 Put the second wedge into bottom.
2.2.4 Move front of the deflection yoke to the left or right to obtain better convergence in
circumference.
2.2.5 Fix the deflection yoke position and put the third wedge in either upper space. Fasten the
deflection yoke assembly on the picture tube.
2.2.6 Detach the temporarily mounted wedge and put it in either upper space. Fasten the deflection
yoke assembly on the picture tube.
2.2.7 After fastening the three wedges, recheck overall convergence and ensure to get optimal
convergence. Tighten the lamp screw holding the deflection yoke assembly.
3. White Balance Adjustment
Generally, white balance adjustment is made with professional equipment. It’s not practical to get
good white balance only through manual adjustment. For TVs with I2C bus control, change the bus
data to adjust white balance.
BLU Red Red/BLU
BLU
Red
4-pole Magnet Movement 6-pole Magne
t
Movement
Red/BL
U

SERVICE MANUAL
8
CIRCUIT ADJUSTMENTS
Preparation:
Circuit adjustments should be made only after completion of set-up adjustments.
Circuit adjustments can be performed using the adjustable components inside the TV set. For TVs with
I2C bus control, first change the bus data.
1. Degaussing
A degaussing coil is built inside he TV set. Each time the TV is powered on, the degaussing coil will
automatically degauss the TV. If the TV is magnetized by external strong magnetic field, causing
color spot on the screen, use a specific degausser to demagnetize the TV in the following ways.
Otherwise, color distortion will be shown on the screen.
1.1 Power on the TV set and operate it for at least 15 minutes.
1.2 Receive red full-field pattern.
1.3 Power on the specific degausser and face it to the TV screen.
1.4 Turn on the degausser. Slowly move it around the screen and slowly take it away from the TV.
1.5 Repeat the above steps until the TV is degaussed completely.
2. Supply Voltage Adjustment
Caution: +B voltage has close relation to high voltage. To prevent X-ray radiation, set +B voltage to
the rated voltage.
2.1 Make sure that the supply voltage is within the range of the rated value.
2.2 Connect a digital voltmeter to the +B voltage output terminal of the TV set. Power on the TV and set
the brightness and sub-brightness to minimum.
2.3 Regulate voltage adjustment components on the power PCB to make the voltmeter read 115±1V.
3. High Voltage Inspection
Caution: No high voltage adjustment components inside the chassis. Please perform high voltage
inspection in the following ways.
3.1 Connect a precise static high voltmeter to the second anode (inside the high voltage cap) of the
picture tube.
3.2 Plug in the supply socket (110-240V, AC, 50/60Hz) and turn on the TV. Set the brightness and
contrast to minimum (0 A).
3.3 The high voltage reading should be less than the EHT limitation.
3.4 Change the brightness from minimum to maximum, and ensure high voltage not beyond the
limitation in any case.
Nominal EHT voltage: 22 1.3KV Limited EHT voltage: 25KV
4. Focus Adjustment
Caution: Dangerously high voltages are present inside the TV. Extreme caution should be
exercised when working on the TV with the back removed.
4.1 After removing the back cover, look for the FBT on the main PCB. There should be a FCB on the

SERVICE MANUAL
9
S
VS 0-3F 25
xxxxxxxx
FBT.
4.2 Power on the TV and preheat it for 15 min.
4.3 Receive a normal TV signal. Rotate knob of the FCB until you get a sharp picture.
5. Safety Inspection
5.1 Inspection for insulation and voltage-resistant
Perform safety test for all naked metal of the TV. Supply high voltage of 3000V AC, 50Hz (limit
current of 10mA) between all naked metal and cold ground. Test every point for 3 min. and ensure
no arcing and sparking.
5.2 Requirements for insulation resistance
Measure resistance between naked metal of the TV and feed end of the power cord to be infinity
with a DC-500 high resistance meter and insulation resistance between the naked metal and
degaussing coil to be over 20M .
6. DESIGN/SERVICE mode
6.1 To enter the USER SERVICE mode
Caution: The user service mode adjustment can be changed only when service personnel adjust
the whole set data during servicing. As the control data have dramatic effects on functions and
performance of the TV, service personnel should not tell user how to
enter the SERVICE mode to avoid improper data settings.
6.1.1 Set the volume to 0. Then press and hold the MUTE button on
the remote control, and press the MENU button on the TV to
enter the SERVICE mode. (In this case, the S mode cannot be
stored in the EEPROM. To exit from the S mode, turn off the TV set. )
6.1.2 After entering the S mode, Red Sis displayed on the upper center of the screen and MENU1
is default. Use the POS+/- buttons to highlight an adjustment and the VOL+/- buttons to adjust
it. The adjusted data are immediately output and stored in the EEPROM
6.2 Bus data in the S mode
Table 1 Adjustment and Option Data in S mode
Item Adjustment Description Remarks
CORE 03 Coring (for some CPU only)
0-IF 20 Sound adjustment setting (for some CPU only)
5PAR/6P
AR 1F Parallelogram correction (for large-screen only)
5BOW/6
BOW 1F Curve correction (for large-screen only)
(continued)

SERVICE MANUAL
10
5HSH/6H
SH
Set to the
optimal mode
Horizontal center in the TV mode for 50Hz/60Hz
For 50Hz, 5HSH is displayed for 60Hz, 6HSH
is displayed.
*
5EWW/6
EWW 1F East-West correction (for large-screen only)
5EWP/6
EWP 1F East-West parabola correction (for large-screen
only)
5UCR/6
UCR 1F Upper corner parabola correction (for large-screen
only)
5LCR/6L
CR 1F Lower corner parabola correction (for large-screen
only)
5EWT/6
EWT 1F Trapezoidal correction (for large-screen only)
5VSL/6V
SL 1F Vertical slope (for large-screen only) *
5VAM/6V
AM 1F Vertical amplitude; For 50Hz, 5VAM is
displayed for 60Hz, 6VAM is displayed. *
5SCL/6S
CL
Set to the
optimal mode S correction *
5VSH/6V
SH
Set to the
optimal mode
Vertical center in the TV mode for 50Hz/60Hz. For
50Hz, 5VSH is displayed for 60Hz, 6VSH
is displayed.
*
5VOF/6V
OF
Set to the
optimal mode OSD vertical center *
VX 19 Vertical zoom (for large-screen only)
RED 20 Red gun cutoff voltage *
GRN 20 Green gun cutoff voltage *
WPR 1F Red gun drive voltage *
WPG 1F Green gun drive voltage *
WPB 1F Blue gun drive voltage *
YDFP/Y
DFN 07 PAL brightness delay time/ NTSC brightness delay
time
TOP 10-1F UOC AGC *
VOL 26
TV audio output power can be adjusted by means of
UOC audio output amplitude. Generally, UOC audio
output amplitude is set to 26 for 21” models with
stereo output of 3W+3W; 2C for 21” models with
stereo output of 5W+5W; 24 for 14” models with
mono output of 2WX2; 22 for 14” models with mono
output of 1WX2.
***
(continued)

SERVICE MANUAL
11
IFFS 03 02 PIF (02-38.9MHz, 03-38MHz)
HDOL 00-07 Cathode drive level (typical: 04-07)
AGC 03 IF ACG speed
VG2B 3A
VG2 brightness setting(VG2B): 3A for 21” models;
2E for 14” models;
Contrast Max. setting (MCON): 30 for 21” Malaysia
Matsushita or BMCC CRT with ferrite mask;
MCON: 30; VG2B: 30, HDOL: 04 for 21” Chunghwa
CRT
SBRI 1F Sub brightness
MBRI 30 Brightness Max.
SCON 20 Sub contrast
MCON 39 Contrast Max.
SCOL 32 Sub color
OP1 87 Option set byte 1 ***
OP2 01 Option set byte 2 ***
OP3 FF Option set byte 3 ***
OP4 F6 Option set byte 4 ***
OP5 76 Option set byte 5 ***
OP6 1C Option set byte 6 ***
INIT EEPROM initialization
VG2 Adjusting screen voltage with VG2 *
VSD Vertical output off
STS0/1/2 System status byte
Notes:
The data marked with *have been adjusted in the MANUFACTURE mode. Take care when in
service and adjustment.
To write in logo, use the /buttons to highlight an adjustment and the /buttons to adjust.
The data sheet may differ dependent on different models.
The data sheet may differ dependent on different CRTs for the same model.
6.3 Option set
With remote control system software TDA935X, all options can be set in the SERVICE mode and
stored in EEPROM. Data related to picture, sound and geometric adjustment are also stored in
EEPROM.

SERVICE MANUAL
12
Table 2 Function Option Bit Setting
Bit Item Description Data
0 OP_HOTEL Hotel mode (1: Yes, 0: No) 1
1 OP_236 Channels preset: 1: 236 channels
0: 100 channels 1
2 OP_NTSC NTSC color system options: 1: Yes, 0: No 1
3 OP_AV2 Two sets of AV inputs: 1: Two sets of separate AV inputs
0Two sets of parallel AV inputs or one set of AV inputs
1/0
4 OP-SVSH S-Video terminal: 1: Yes, 0: No 1
5 OP-DVD DVD component input: 1: Yes 1
6 OP-RGB RGB input: 1: Yes, 0: No 1
OP1
7 OP-OSO Switch off in vertical overscan 1
0 OP_AVL AVL: 1: Yes 1
1 OP_RFTOAV
AV RF output: 1: RF output (for models with SCART jack
except EX-1A)
0: Monitor output (for models with RCA jack)
0/1
2 OP_NOT_1 0
3 OP_NOT_2 0
4 OP_NOT_3
Teletext language setting (OP-NOT-3/2/1):
1XX-English/Arabic
011-English/Farsi
010-English/Russian
001-English/Ukrainian
000- English/Paneuro
0
5 OP_USER-LOG
O
User LOGO setting prior to CHANGHONG LOGO: 1:
Display characters can be set by the VOL+/- buttons 0
6 OP_ON-BLACK Power-on auto test back selection:
1: Blue, 0: Black 0
OP2
7 OP_FSL Slicing level for vertical sync 0
0 OP_ENGLISH English 1
1 OP_FARSI Farsi or Czech 1
2 OP_ARABIC Arabic or Slovakian 1
3 OP_RUSSIAN Russian 1
4 OP_FRENCH French 1
5 OP_GERMAN German 1
6 OP_ITALY Italian, Indonesian or Hungarian 1
OP3
7 OP_SPANISH Spanish, Malay or Croatian 1
OP4
0 OP_FMWS Window selection of sound pll: small/large window 0
(continued)

SERVICE MANUAL
13
1
OP_DIRECT_SW
ITCH_ON
Memory power-on (If turned off by the remote control,
then the TV is turned on by the remote control; if turned
off by the MAIN POWER SWITCH, then turned on by the
MAIN POWER SWITCH.) 1: Yes
1
2 OP_HCO EHT tracking mode 1
3 OP_LOGO Changhong logo display 1-Displayed without signal
reception 0-No 0
4 OP_SOUND_DK Sound system-D/K option setting 1
5 OP_SOUND_BG Sound system-B/G option setting 1
6 OP_SOUND_I Sound system-I option setting 1
7 OP_SOUND_M Sound system-M option setting 1
0 OP_TUNER Tuner: 1: Philips-Tuner
0: Panasonic-Tuner 0
1 OP_AUTO_LAN
G0 0
2 OP_AUTO_LAN
G1 0
3 OP_AUTO_LAN
G2
Outgoing language option setting:
(OP-AUTO-LANG2/1/0):
English (000)
Farsi (001)
Arabic (010)
Russian (011)
French (100)
German (101)
Italian or Indonesian (110)
Spanish or Malay (111)
0
4 OP_FORF 1
5 OP_FORS
Field frequency options (OP-FORS/FORF):
00- AUTO 60HZ, 01-KEEP LAST,
10-FORCE 60HZ, 11-AUTO 50HZ 1
6 OP_AVON If AV off, then AV on 1
OP5
7 OP_ONPOSITIO
N With HOTEL mode preset, on position is fixed to POS1. 0
0 OP_AUTOTEST Auto test when power-on (set to 0 typically) 0
1 OP_PSNS Sensitivity 0
2 OP_BSCREEN Black screen when changing channels: 1-Yes 0-No 1
3 OP_SECAM SECAM color system option: 1: Yes 1
4 OP_DFL Disable flash protection 1
OP6
5 OP_SIF External SIF amplifier: 1: Yes, 0: No 1
(continued)

SERVICE MANUAL
14
6 OP_EXT_SIF0 1
7 OP_EXT_SIF1
Sound system options for external circuit
(OP-EXT-SIF1/0):
D/K: 00 B/G: 01 I: 10 M: 11.
1: Sets sound system of external SIF as the appropriate
one and also sets sound system in the course of auto
demo as the appropriate one
0: Changes sound system in the course of auto demo.
0
Notes:
Do not change the data marked with in Data column.
Check if the color/sound systems conform to the specifications of different models after setting.

SERVICE MANUAL
15
STRUCTURE AND CHASSIS FUNCTION DESCRIPTION
1. STRUCTURE BLOCK DIAGRAM
Tuner
A101
IF Pre-
Amplifier
+
SAWF
Video
Amplifier
Formed of
Microcontroller and small signal processor
UOC
CH05T0101
EEPROM
AT24C08
H.Drive V.OUT
TDA8356J
Audio Amp lifier
TDA7056B
H.OUT FBT
T402
Power Supply Circuit
STR-F6654 or
STR-G5653
+3.3V
+5V-1
+16V-S
+115V
CRT
AV IN
Band 1,2
Vt,AGC
From
Antenna
IIC BUS
R
L
Speaker
110-240V~,50/60Hz
Fig.4Structure Block Diagram for EX-1A3Chassis Series
VY01-VY09
G
R
B
Remote
Remote
Sensor
HS0038
Circui for
ButtonsOn
The TV
control
AV OUT
+15V

SERVICE MANUAL
16
2. BLOCK DIAGRAM FOR SUPPLYVOLTAGE SYSTEM
Regulator
V115
N441
N442
Regulator
V871,
VD882
FBT
T400
VD491 +190V
VD451 +45V
VD461 +16V
VD471
To CRT RGB PCB
To A100,N401
To N401
+8V
+5V-2
To A100
VD891
+115V
To N600B
VD881 +15V-H
VD871 +16-S
+5V-1
To H Ou t
EEPROM
R/C Input
+3.3V
To N100
Keyboard
Switch
Transformer
T804
Power Regulat ion
and Control Circuit
STR-G5653/F6654
Bridge Rectifying
Filter
VD803~VD806
C802,C807
Line Filter
L801,C801,
C802
110-240V~,50/60Hz
Feedback Circuit
N801
Error Signal
To A100,
N100,
Fig .5 Block Diagram for EX-1A3Supply Voltage System

SERVICE MANUAL
17
3. CHASSIS DESCRIPTION
1). General Description
EX-1A3 chassis series are applied in 14BM18 respectively which uses mainly Philips’ advanced
UOC-ultimate chip TDA935X/6X/8X and I2C-bus controlled IC. With combination of microcontroller
and small signal processor, the TDA935X/6X/8X series feature high-integration,
high-performance-to-price ratio and high-reliability and advanced functions with fewer external
components, which provide much convenience for manufacturing and technical service.
2). The EX-1A3 chassis series mainly use the following ICs and assemblies.
Table 3 Key ICs and Assemblies
Serial
No.
Position Type Function Description
1 N100 CH05T0102
(TDA935X/6X/8X)
Microcontroller and small signal processor (UOC)
2 N200 AT24C08 EEPROM
4 N401 TDA8356/N6 Vertical scan output stage circuit
3 N600B TDA7056BB Sound power amplifier
4 N861 STR-G5653 Power supply circuit
5 A100 TDQ-5B6M Tuner

SERVICE MANUAL
18
SERVICE DATA
1. KEY ICS TECHNICAL DATA
1.1 Microcontroller and small signal processor TDA935X/6X/8X
The super chips TDA935X/6X/8X are good in pins compatibility. Differences among them are
shown as follows.
TDA9351 48K PAL/NTSC/SECAM+1 PAGE TELETEST
TDA9350 48K PAL/NTSC+1 PAGE TELETEST
TDA9361 64K PAL/NTSC/SECAM+10 PAGE TELETEST
TDA9360 64K PAL/NTSC+10 PAGE TELETEST
TDA9380 32K PAL/NTSC
TDA9387 32K NTSC
TDA935X/6X/8X PS/N2 series TV signal processor-Teletext decoder with embedded -Controller
1) General Description
The various versions of theTDA935X/6X/8X PS/N2 series combine the functions of a TV signal
processor together with a -Controller and US Closed Caption decoder. Most versions have a
Teletext decoder on board. The Teletext decoder has an internal RAM memory for 1or 10 page text.
The ICs are intended to be used in economy television receivers with 90and 110picture
tubes.
The ICs have supply voltages of 8 V and 3.3 V and they are mounted in S-DIP envelope with 64
pins.
The features are given in the following feature list. The differences between the various ICs are
given in the table on page 4.
2) Features
TV-signal processor
Multi-standard vision IF circuit with alignment-free PLL demodulator
Internal (switchable) time-constant for the IF-AGC circuit
A choice can be made between versions with mono intercarrier sound FM demodulator and
versions with QSS IF amplifier.
The mono intercarrier sound versions have a selective FM-PLL demodulator which can be switched
to the different FM sound frequencies (4.5/5.5/6.0/6.5 MHz).
The quality of this system is such that the external band-pass filters can be omitted.
Source selection between ‘internal’ CVBS and external CVBS or Y/C signals
Integrated chrominance trap circuit
Integrated luminance delay line with adjustable delay time
Picture improvement features with peaking (with variable centre frequency and positive/negative
overshoot ratio) and black stretching
Integrated chroma band-pass filter with switchable centre frequency
Only one reference (12 MHz) crystal required for the
-Controller, Teletext- and the colour decoder
PAL/NTSC or multi-standard colour decoder with automatic search system
