DIGITALas D-FORCE600VA User manual

Sliding Gate Operator
User's Manual
D-FORCE600VA

D-FORCE600VA SLIDING GATE OPERATOR
1. Products introduction
Please read the instructions carefully before roceeding.
MCU is su lied to control the gate o erator.
Key ad / single button interface.
Have Infrared safety sensor interface.
Soft start and soft sto function and the soft sto width are adjustable.
Working time is adjustable.
Motor out ut torque is adjustable.
User can select Auto-close function.
Manual key release designed for emergency ur oses.
2. Important safety information
Carefully read and follow all safety precautions and warning before
attempting to install and use this automatic gate operator.
The gate operator should be installed by a qualified technician
otherwise, serious personal injury or property damage may occur.
When opening or closing the gate, do not attempt to walk or drive
through the gate.
If enable the auto-close function, must use the infrared sensor.
Children should not be allowed to play near or operate automatic
2

D-FORCE600VA SLIDING GATE OPERATOR
gates.
The automatic gate operator must be grounded.
Install the gate operator on the inside of the property DO NOT install
it on the outside of the property where the public has access to it.
Be careful when in close proximity to moving parts where hands or
fingers could be pinched.
Do not allow control devices to be placed so that a person can access
them by reaching through the gate.
In the event of power failure, an emergency release key allows you to
operate the gate manually.
The operator should be switched off before repairing it or opening its
cover.
Please erase and reprogram the transmitter code after installing the
operator.
Make sure the Power supply (AC220V or AC110V) of the gate operator is
suitable for the power supply in your area.
3. Main technical arameters
Type D-FORCE600VA D-FORCE600VA U
Power supply 220V, 50Hz 110V, 60Hz
Motor speed 55rpm 66rpm
Rated output power of motor 200W
3

D-FORCE600VA SLIDING GATE OPERATOR
Remote control operating
distance
30m (Frequency:433.92mHz)
Remote control mode Single button
Output shaft height 48.5mm
Max. gate weight 600Kg
Output torque 14N·m
Limit switch Magnetic limit switch
Noise ≤56dB
Duty cycle S2, 15 minutes
extra remote control 20
Environmental temperature -20°C~+50°C
Gate Move speed 12m/min 14m/min
4. Mechanical Installation
The D-FORCE600VA will handle gate weighting up to 600kg and up to
8m/12m if the proper installation procedures have been followed.
The D-FORCE600VA gate operator operates by forcing a drive rack by a
drive gear. The entire configuration is shown in the diagram below. The
gate operator must be installed on the inside of the gate.
4

D-FORCE600VA SLIDING GATE OPERATOR
Sliding gate
Wall
Switch
Gate operator
Input power
Rack
Fig.1
Gate preparation
Be sure the gate is properly installed and slides smoothly before installing
the D-FORCE600VA sliding gate operator. The gate must be plumb, level,
and move freely.
Conduit
In order to protect the cable, use PVC conduit for low voltage power cable
and control wires. Conduit must be preset into the concrete when it is
poured. Wires within the conduit shall be located or protected so that no
damage can result from contact with any rough or sharp part.
Concrete pad
The base unit of the gate operator requires a concrete pad in order to
maintain proper stability. The concrete pad should be approximately
450mm x 300mm x 200mm deep in order to providing for adequate weight
and structure to insure proper stable installation.
Anchors (see Fig.2)
You can use anchor bolts, anchors, washers and nuts. These anchors must
be set into the concrete when it is poured or you can use wedge anchors to
5

D-FORCE600VA SLIDING GATE OPERATOR
fasten the operator.
Gate operator
Gear
Groundsill
Input power
Plain washer
Nut
Spring washer
Nut
Fig.2

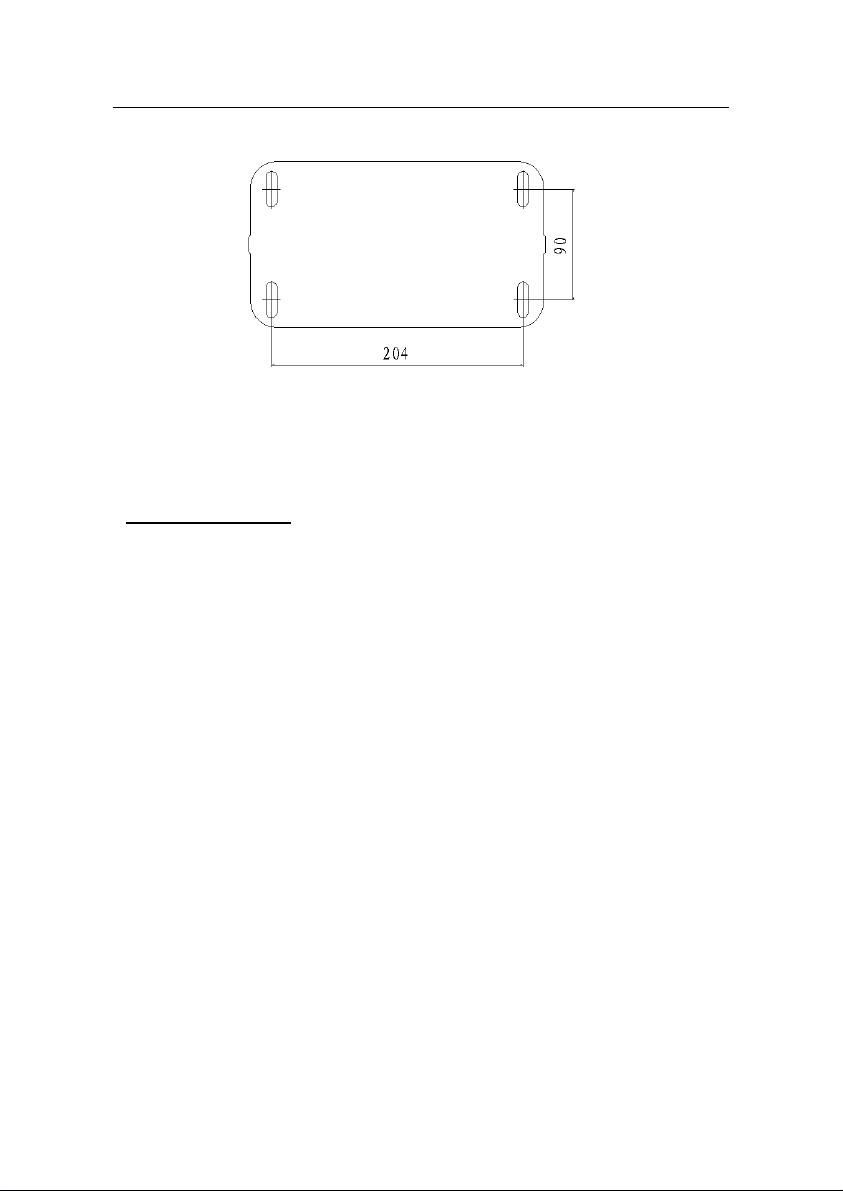

Operator base (see Fig.3)
After the concrete has hardened, mount the gate operator base to the
concrete pad. Verify that the base is properly leveled.
Using bolts and washers mount the gate operator to the base and insert the
cover. Check the operator and make sure it is lined up with the gate.
6
Gate operator
Gear
Groundsill
Input po er
Plain asher
Nut
Spring asher
Nut

D-FORCE600VA SLIDING GATE OPERATOR
Fig.3
Installation of ack
Fix the three nuts (in the same package with rack) on the rack element.
Lay the first piece of rack on the gear and weld the first nut on the
gate.
Move the gate manually, checking if the rack is resting on the gear,
and weld the second and third nut.
Bring another rack element near to the previous one. Move the gate
manually and weld the three nuts as the first rack, thus proceeding
until the gate is fully covered.
When the rack has been installed, to ensure it meshes correctly with
the gear.
The space between rack and gear is about 0.5mm.
7

D-FORCE600VA SLIDING GATE OPERATOR
Fig.4
5. Adjustment
Spring limit switch
To ensure safety, it is recommended to install limit switches at both
ends of the gate to prevent the gate from sliding out of the rails. The
rails must be installed horizontally.

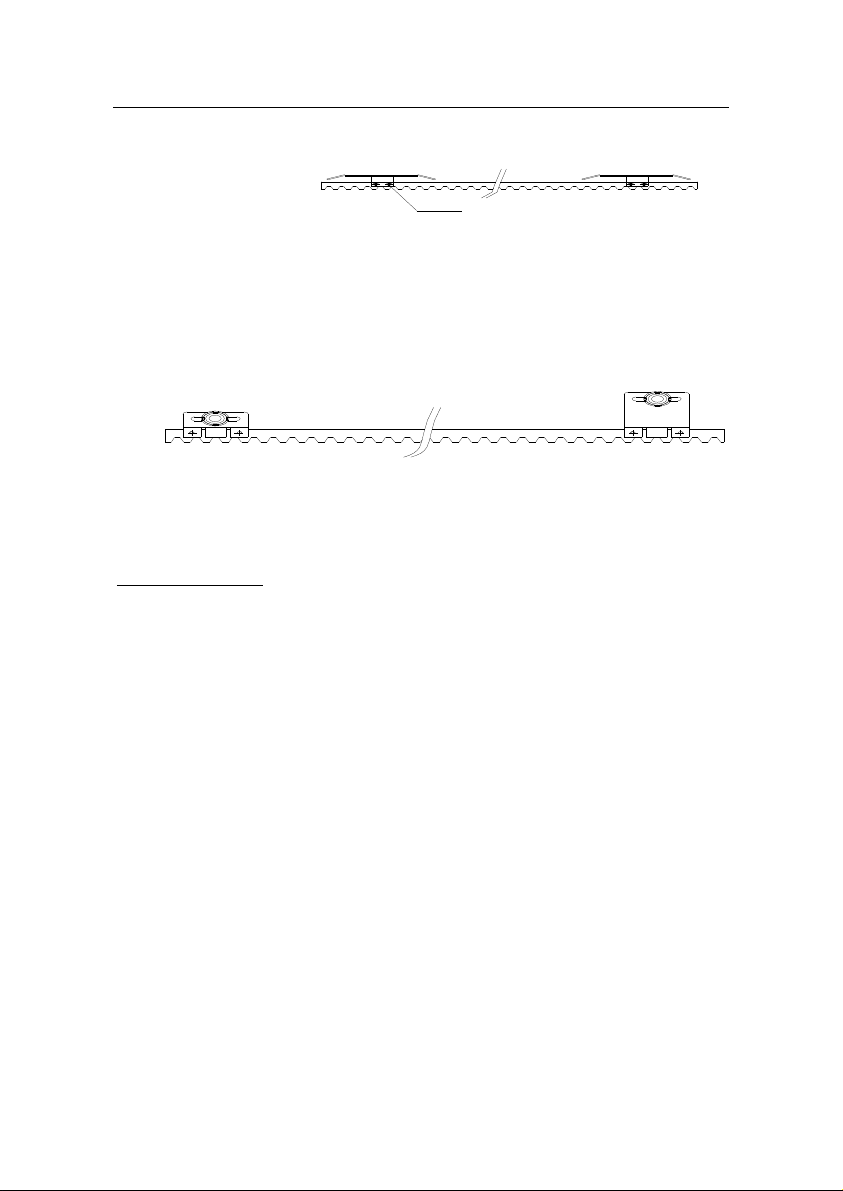

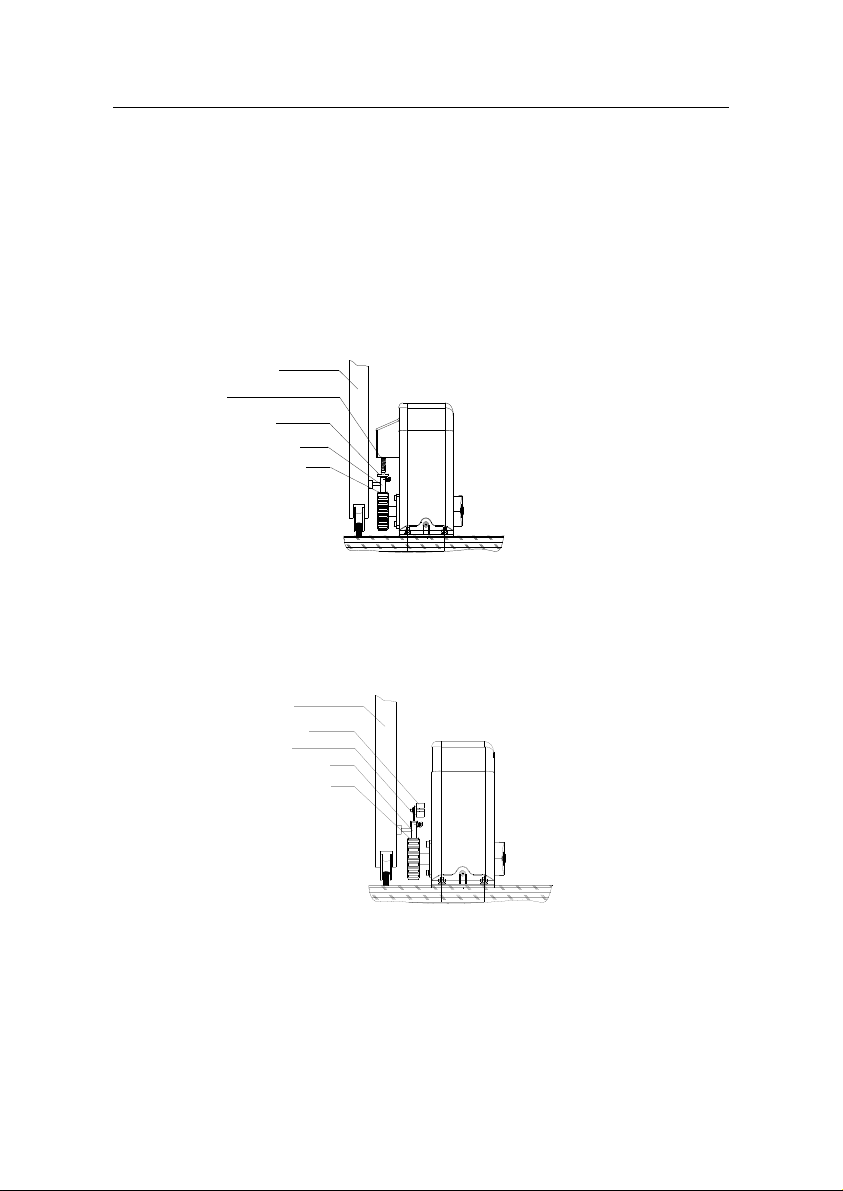

Install the limit block as shown in Fig.5 and Fig.6. The spring limit
switch and blocks are used to control the position of the gate.
Release the gear with the key and push the sliding gate manually to
pre-determine the position, fix the block to the rack and lock the gear
by push up the release bar. Moving the gate electrically, adjust the
block to the proper position until the position of the opening and
closing meet the requirement.
Magnetic limit switch
To ensure safety, it is recommended to install limit switches at both
ends of the gate to prevent the gate from sliding out of the rails. The
rails must be installed horizontally.
Install the limit block as shown in Fig.5 and Fig.6. The magnetic of
limit switch and blocks are used to control the position of the gate.
8

D-FORCE600VA SLIDING GATE OPERATOR
Release the gear with the key and push the sliding gate manually to
pre-determine the position, fix the block to the rack and lock the gear
by push up the release bar. Moving the gate electrically, adjust the
block to the proper position until the position of the opening and
closing meet the requirement.
Spring limit switch
Gear
Sliding gate
Rack
Limit block
Magnetic
Magnetic limit switch
Fig.5
9
Gear
Sliding gate
Rack
limit block
Spring of limit s itch

D-FORCE600VA SLIDING GATE OPERATOR
M6X10
Spring limit switch
Magnetic limit switch
Fig.6
Manual operation

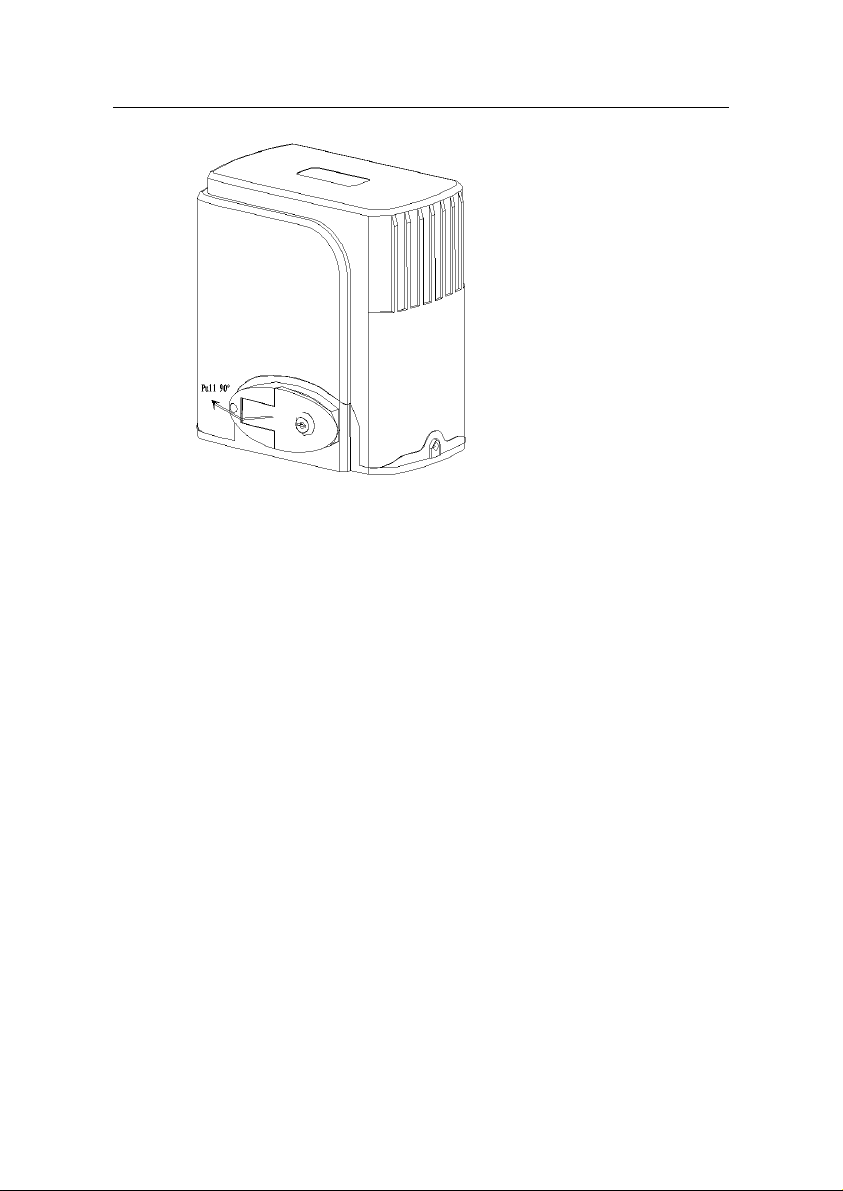

In case of power failure use key unlock the lock and pull down the release
bar about 90 degree to open or close gate manually, use the release key as
follow:
Fit the supplied key in the lock.
Turn the key and pull down the release bar about 90°to release the
gear. (Note: Do not exceed 90°, be careful not to use too much force,
otherwise the release bar will be damaged.)
Open and close the gate manually.
Note: If the gate bumps the mounting post and cannot be electric opened,
move the gate a few inches by hand, thus you can release the gate with the
key, open and close the gate manually.
10

D-FORCE600VA SLIDING GATE OPERATOR
Fig. 7
6. Wire Connecting
Make sure that the power is OFF before making any electrical connections.

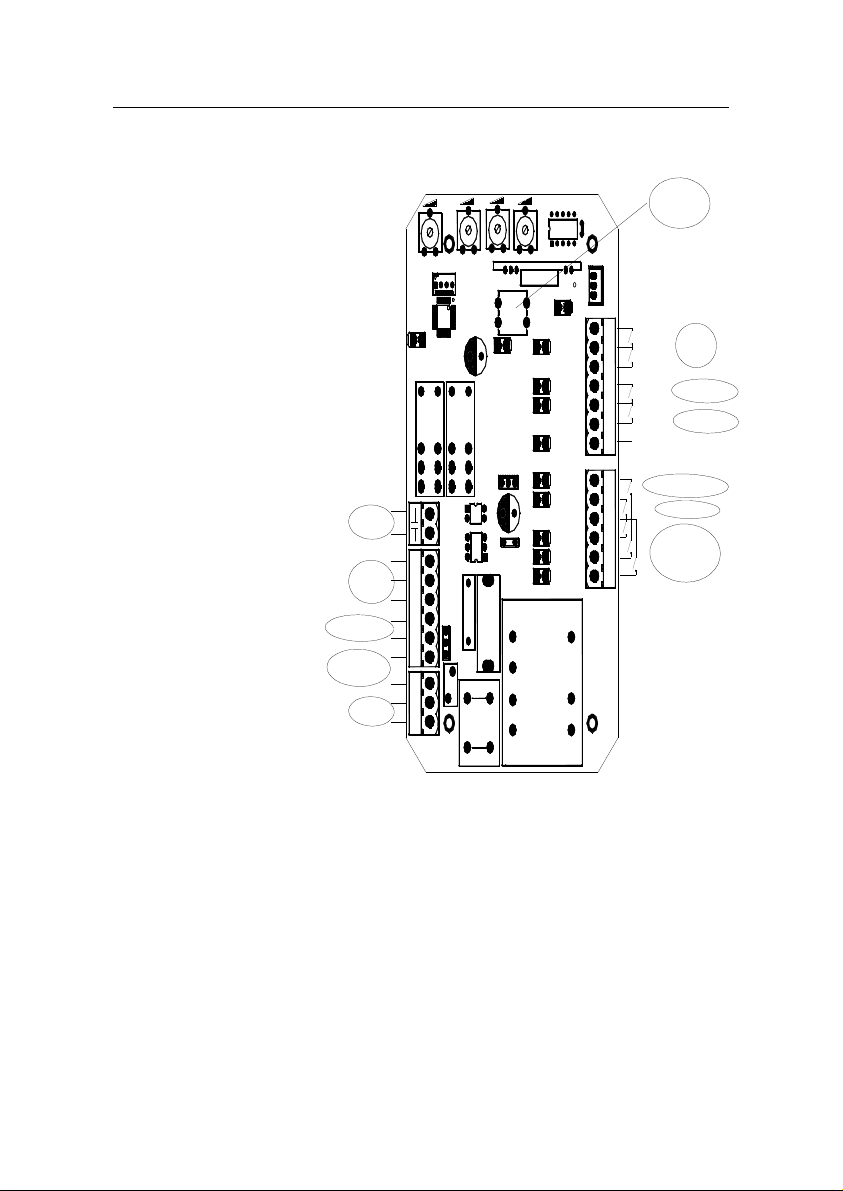

Remove the cover, perform the wiring (See Fig.8 and wiring notes for
control board) and replace the cover again.
11

D-FORCE600VA SLIDING GATE OPERATOR
ON
OFF
N L
N
SPEED GND VCC
CAP
MOT2
MOT1
COM
MOT
MOT
812
1110
9
7
6
5
4
12 3
PE
LAMP
13
PE L
SW1
T2
9
7
RL2
RL1
VR2
VR1
65 10
1312
2
OC2
OC 1
F3
F2
F1
C20
C19
C22
J3
J6
J1
POWER
LEARN
VR4
VR3
S1
U3
U2
VDR1
Q3
J2
HALL
U1
J5
X1
J4
POWER
MOTOR
Caution light
Protect Earth
Capacitor
Extral button
switch
O/S/C switch
Pedestrian switch
Infared sensor
Loop detector
Limit
swtich
+12VDC
GND/COM
COM
COM
Learn button
Open limit
Close limit
Fig.8
Wiring notes of control board
a. Power Input (terminal J3): PE (Earth),L (Live),N (Neutral).
D-FORCE600VA: AC220V
D-FORCE600VA U:AC110V
b. Caution light: connect caution light wire to L and N of
LAMP(terminal J4)
12

D-FORCE600VA SLIDING GATE OPERATOR
D-FORCE600VA: AC220V
D-FORCE600VA U: AC110V
c. Output power supply: 12VDC(7 of J5), COM (9 of J5), I.R. (8
of J5 is N.C Infrared)
If the infrared beam is interrupted during closing, the gate will reverse and
open immediately. The product is not factory equipped with an infrared
device the infrared output signal must be N.C.
From four-terminal
to the receiver
COM
OUT
RX Receiver connecting
JUMP
NC OR NO
NC
NO
Form t o-terminal to the emitter
12--24V AC/ DC
TX Emitter connecting
po er supply
7
9
8
Control board
Terminal J5
Fig.9 infrared Schematic diagram
d. Three-button switch / single-button switch (keypad): The D-
FORCE600VA is equipped with interfaces for three-button switch and
single-button switch (keypad).
To install the keypad attach one lead of your keypad to ‘5’ of terminal
J2 and the other to the ‘4(COM)’. The keypad will function in single
channel mode.
For three-button switch installation, use the terminals for multi-
channel mode. Connect open wire of external button switch to ‘1
(CLOSE)’ of terminal J2, connect close wire of switch to ‘2 (OPEN)’,
connect stop wire of switch to ‘3(STOP)’, connect common wire of
13

D-FORCE600VA SLIDING GATE OPERATOR
switch to ‘4(COM)’.
Com
Stop
Close
Open
Three-button
s itch
terminal J2
Keypad
4
5
Control board
terminal block
Control board
terminal block
Single-button
s itch
or keypad
6
1
2
3
terminal J2
4
5
6
1
2
3
Fig.10A
e. Pedestrian switch
Connect pedestrian switch wire to 4 and 6 terminal of J2. press the
switch the door will open 1 meter when the door is closed.
terminal J2 S itch
4
5
Control board
terminal block
Pedestrian
s itch
6
1
2
3
Fig.10B
Motor and capacitor (Terminal J2, J4): MOT COM (com), MOT1 (Positive
direction), MOT2 (Opposite direction), PE (Protect Earth), C and C
(capacitor)
14

D-FORCE600VA SLIDING GATE OPERATOR
Motor
Mot1
Mot2
Mot
COM
PE
W
UV
Control
board
Terminal J6
Capacitor
Control board
terminal block
terminal J4
Fig.11
f. Loop detector interface
Connect wire see the Fig.11A
terminal J2
LOOP
10
11
Control board
terminal block
Loop
detector
12
7
8
9
detector
output
Fig.11A
The car through the loop the door will close itself when the door opened.
The car arrived the loop the door will reverse when the door closing, and
the door will auto closed after the car through the loop.
If the car stops on the loop the door can’t close.
15

D-FORCE600VA SLIDING GATE OPERATOR
7. Tuning and o eration
a. Adjust the Adjustable resistance (see Fig.8)
VR1: For motor working total time adjustment.
Clockwise rotation to increase, counter-clockwise rotation to reduce. The to
tal time can be set to 10 seconds as minimum and 90 seconds as maximum.
VR2: For brake force adjustment in limit position.
Clockwise rotation to increase, counter-clockwise rotation to reduce. Rotate
to minimum to cancel brake function in place.
VR3: For slow stop width adjustment.
Clockwise rotation to increase, counter-clockwise rotation to reduce.
VR4: For motor output force adjustment to keep safe usage.
Clockwise rotation to increase, counter-clockwise rotation to reduce.
Warning: Motor force can not be set too large, just drive the door is ok.
Remote control
The remote control works in a single channel mode. It has four
buttons. See Fig.12 Remote transmitter. The function of button 1,
button 2 、 button3 are the same and button 4 is pedestrian mode.
With each press of the remote control button (1, 2 and 3) which has
been programmed, the gate will close, stop, open or stop cycle.
Remote Pedestrian button: After you learn the button 4, you press the
remote button 4 the door will open 1 meter when the door is closed.
You can program/learn button 1, button 2, button 3 and button 4
individually. You also can program/learn two buttons or three buttons
16

D-FORCE600VA SLIDING GATE OPERATOR
together, but you need repeat the program/learn process if you want to
use more than one button.
Button 1
Button 2
Button 3
Button 4
Fig.12 Remote transmitter

Adding extra remote controls (Learn): Remove the cover, press and
hold the learn button ‘S1’ (Fig.8) more than 2 seconds, then the ‘LED
of LEARN’ (Fig.8) will be on, then press the remote control button
which you want to use, the ‘LED’ will turn on about 2 seconds and
then turn off again. The learning process is finished.
Up to 25 remote controls may be used.

Erase remote controls: To erase all existing remote controls, press
and hold learn button ‘S1’, the LED of ‘LEARN’ will turns on,
release the button until the LED turns off. This indicates that all the
remote controls have been erased completely.

Verify open direction: If the gate does not move in the desired
direction, then you will need to reverse the motor operating direction,
open the black plastic cover, you can do this by exchanging wires
‘MOT1’ and ‘MOT2’, ‘Open limit(13 of J5)’ and ‘Close limit(11 of
J5)’.
8. Programming Process
17

D-FORCE600VA SLIDING GATE OPERATOR
Adjust the DIP switch（see Fig13B and table 1 ）
1 2 3 4 1 2 3 4
1 2 3 4 1 2 3 4
Fig. 13A Fig.13B
18

D-FORCE600VA SLIDING GATE OPERATOR
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
Fig. 13C Fig. 13D
Table 1: DIP switch adjust
DIP DIP-switch Function SET
1 ON
(see Fig.13A)
No soft start mode
OFF
(see Fig.13A)
Soft start mode(need to power on reset).
2 ON
(see Fig.13B)
N.C. limit switch(spring limit)
19

D-FORCE600VA SLIDING GATE OPERATOR
OFF N.O. limit switch(magnetic limit)
3 ON When the 3 and 4 all OFF, the Auto-
close function is disable. When the 3
OFF and the 4 is ON, auto-close time is
near 12 Sec. when the 3 ON and the 4 is
OFF auto-close time is near 24 sec. when
the 3 and the 4 is all in ON position, the
auto-close time is near 36 sec.
OFF
(see Fig.13C)
4 ON
OFF
(see Fig.13D)
NOTE:
(1) You must follow the o erating instruction as above, any
wrong o eration is not allowed during setting. If your device
res onds to your requested function correctly, you have set the
function successfully, otherwise re eat the above setu
instruction until your device res onds to your ex ected
function.
(2) If the gate can not be moved, lease check whether the
gate is obstructed or the gate is too weight.
Activities Covered in this section
Remote transmitter: With each press of the button, the gate will
close, stop, open or stop cycle. (Single-button mode)
Three-button mode external button switch (not su ly): press
‘OPEN’ button, the gate opens. Press ‘STOP’ button, the gate stops.
Press ‘CLOSE’ button, the gate closes.
Single-button mode external button switch / key ad (not su ly):
With each press of the button, the gate will close, stop, open or stop
cycle.
Auto-close function: This feature can be selected to make the gate
stay open for some seconds before it automatically closes. The auto-
20
