Direct Wicker G3R521E User manual

1
OWNER’S MANUAL
OUTDOOR GAS FIRE PIT
(BATTERY NOT INCLUDED)
G3R521E
IMPORTANT，RETAIN FOR FUTURE REFERENCE:READ CAREFULLY
FOR OUTDOOR USE ONLY.NOT FOR COMMERICAL USE

2
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the
product. This appliance has been tested to and complies with the ANSI Z21.97-2017, Outdoor
Decorative Gas Appliances. When connecting to a fixed piping system, the installation must conform
to local codes or in the absence of local codes, to the National Fuel Gas Code. ANSI Z223.1.NFPA 54;
National Fuel Gas Code; National Gas and Propane Installation Code, CSA B149.1; or Propane
storage and Handing Code, CSA B149.2, as applicable. This manual contains important information
about the assembly, operation and maintenance of this fire pit. Keep this manual for future reference
and to educate new users of this product. This manual should be read in conjunction with the labeling
on the product. Safety precautions are essential when any mechanical or propane fueled equipment is
involved. These precautions are necessary when using, storing, and servicing. Using this equipment
with the respect and caution demanded will reduce the possibilities of personal injury or property
damage. The following symbols shown below are used extensively throughout this manual. Always
heed these precautions, as they are essential when using any mechanical or fueled equipment.
Do not store or use gasoline, or
other flammable vapours and
liquids in the vicinity of this or
any other appliance. An
LP-cylinder not connected for use
shall not be stored in the vicinity
of this or any other appliance.
For Outdoor Use Only.
Improper installation, adjustment,
alteration, service or maintenance can
cause property damage, injury or
death. Read the installation, operation
and maintenance instructions
thoroughly before installing or
servicing this equipment.
DANGER
DANGER
WARNING
If you smell gas:
●Shut off gas to the appliance.
●Extinguish any open flame.
●If odour continues ,keep away
from the appliance and
immediately call your gas supplier
or fire department.
●
WARNING
DANGER
CARBON MONOXIDE
HAZARD
This appliance can
produce carbon monoxide
which has no odour. Using
it in an enclosed space
can kill you.Never use this
appliance in an enclosed
space such as a camper,
tent or home.
DANGER
WARNING

3
SAFETY INFORMATION
DANGER
DANGER
DANGER indicates an imminently
hazardous situation which, if not
avoided, will result in death or
serious injury.
Failure to comply with the
precautions and instructions
provided with this fire pit can result
in death, serious bodily injury and
property loss or damage from
hazards of fire, explosion, burn,
asphyxiation, and/or carbon
monoxide poisoning. Only persons
who can understand and follow the
instructions should use or service
this fire pit.
DANGER
Certain materials or items, when stored under the
fire pit, will be subjected to radiant heat and could
be seriously damaged.
Alert children and adults to the hazards of high
surface temperatures. Stay away from these
surfaces to avoid burning skin or igniting clothing.
Carefully supervise young children when in the
vicinity of the fire pit.
Do not hang clothing or any other flammable
materials from the fire pit, or place on or near the
fire pit.
Replace any guard or protective device removed
for servicing the appliance prior to placing back in
service. Installation and repair should be done by a
qualified service person. The fire pit should be
inspected before use and annually by a qualified
service person. More frequent cleaning may be
required as necessary. It is imperative that the
control compartment, burners, and circulating air
passageway of the appliance be kept clean.
•EXPLOSION - FIRE HAZARD
• Keep solid combustibles, such as
building materials, paper or
cardboard, a safe distance away
from the fire pit as recommended by
the instructions.
•Provide adequate clearances
around air openings into the
combustion chamber.
• Never use the fire pit in spaces
which do or may contain volatile or
airborne combustibles, or products
such as gasoline, solvents, paint
thinner, dust particles or unknown
chemicals
• During operation, this product can
be a source of ignition. Keep fire pit
area clear and free from
combustible materials, gasoline,
paint thinner, cleaning solvents and
other flammable vapours and
liquids. Do not use fire pit in areas
with high dust content. Minimum
fire pit clearances from combustible
materials: 90 cm (3 ft) from the sides
and 90 cm (3 ft) from the rear, 1.8 m
(6 ft) feet from ceiling.
• This product is fueled by propane gas. Propane
gas is invisible, odourless, and flammable. An
odourant is normally added to help detect leaks
and can be described as a “rotten egg” smell. The
odourant can fade over time so leaking gas is not
always detectable by smell alone.
• Propane gas is heavier than air and leaking
propane will sink to the lowest level possible. It
can ignite by ignition sources including matches,
lighters, sparks or open flames of any kind many
feet away from the original leak. Use only propane
gas set up for vapor withdrawal.
• Store or use propane gas in compliance with
local ordinances and codes or with ANSI/NFPA 58.
Turn off propane when not in use.
WARNING
WARNING

4
SAFETY INFORMATION
WARNING
We cannot foresee every use which may be made of
our fire pit.
Check with your local fire safety authority if you
have questions about fire pit use.
Other standards govern the use of fuel gases and
heat producing products for specific uses.Your
local authorities can advise you about these.
If no local codes exist, follow National Fuel Gas
Code, ANSI Z223.1. In Canada, installation must
conform to local codes. If no local codes exist,
follow the current National standards of CANADA
CAN/CGA-B 149.2.
Improper installation, adjustment,
alteration, service or maintenance
can cause property damage, injury
or death. Read the installation,
operation and maintenance
instructions thoroughly before
installing or servicing this
equipment.
WARNING
CARBON MONOXIDE HAZARD
This fire pit is a combustion
appliance.
All combustion appliances produce
carbon monoxide (CO) during the
combustion process. This product
is designed to produce extremely
minute, non-hazardous amounts of
CO if used and maintained in
accordance with all warnings and
instructions. Do not block air flow
into or out of the fire pit. Carbon
Monoxide (CO) poisoning produces
flu-like symptoms, watery eyes,
headaches, dizziness, fatigue and
possibly death. You can't see it and
you can't smell it. It's an invisible
killer. If these symptoms are
present during operation of this
product get fresh air immediately!
For outdoor use only.
Never use inside house, or other
unventilated or enclosed areas.
This fire pit consumes air (oxygen).
Do not use in unventilated or
enclosed
DANGER
Do not store or use gasoline or other flammable
vapours and liquids in the vicinity of this or any
other appliance. An LP-cylinder not connected for
use shall not be stored in the vicinity of this or any
other appliance.
Never leave fire pit unattended when hot or in use.
Keep out of reach of children.
DANGER
Don’t burn solid fuels in
this appliance
WARNING

5
OPERATION CHECKLIST
Operation Checklist
For a safe and pleasurable heating experience, perform this check before each use.
Before Operating:
1. I am familiar with the entire owner’s manual and understand all precautions noted.
2. All components are properly assembled, intact and operable.
3. No alterations have been made.
4. All gas connections are secure and do not leak.
5. Wind velocity is below 16 km/h (10 mph).
6. Unit will operate at reduced efficiency below 4.44°C /40°F
7. Fire pit is outdoors (outside any enclosure).
8. There is adequate fresh air ventilation.
9. Fire pit is away from gasoline or other flammable liquids or vapours.
10. Fire pit is away from windows, air intake openings, sprinklers and other water sources.
11. Fire pit is at least 90 cm (36 in) on rear and at least 90 cm (36 in) on sides from combustible
materials.
12. Fire pit is on a hard and level surface.
13. There are no signs of spider or insect nests.
14. All burner passages are clear.
15. All air circulation passages are clear.
16. Children and adults should be alerted to the hazards of high surface temperatures and should
keep away to avoid burns or clothing ignition.
17. Young children should be carefully supervised when they are in the area of the fire pit.
18. Clothing or other protective material should not be hung from the fire pit, or placed on or near fire pit.
19. Any guard or other protective device removed for servicing the fire pit must be replaced prior to
operating the fire pit.
20. Installation and repair should be done by a qualified service person. The fire pit should be
inspected before use and at least annually by a qualified service person.
21. More frequent cleaning may be required as necessary. It is imperative that control burner and
circulating air passageways of the fire pit be kept clean.
22. Do not use this appliance if any part has been under water. Immediately call a qualified service
technician to inspect the appliance and to replace any part of the control system and any gas
control that has been under water.
After Operation
1. Gas control is in OFF position.
2. Gas tank valve is OFF.
3. LP/NG is disconnected.
4. After each use, cap on tank is replaced.

6
EXPLODED VIEW

7
PART LIST
PART NO.
DESCRIPTION
QTY
A
Lid
1
B
Table top
1
C
Table base left side panel
1
D
Table base back panel
1
E
Table base right side panel
1
F
Tank shelf
1
G
Door support
2
H
Door
1
I
Glass beads
8KGS
SCREW PACKAGE
PART NO.
Description
QTY
①
Washer
20
②
Screw M6*15mm
2
③
Screw M6*20mm
16
④
Screw M6*45mm
2
⑤
Allen Key
1

8
ASSEMBLY INSTRUCTIONS
Step 1
③
①
③x2
Step 2
①
③
③x2

9
Step 3
③x4
①
③
Step 4
④x2
①
④

10
Step 5
①
③
②
③x2
②x2
Step 6
③
①
③x6

11
ASSEMBLY INSTRUCTIONS FOR LP
Step 1
Hang the top cover on the side of the fire table.
Step 2
√×
Put the glass beads onto the burner.
DO NOT COVER THE WINDGUARD WITH THE GLASS
BEADS.

12
Step 3
Step 4
Open the fire table and install the gas tank (20 LBS) into the fire table.
WARNING: Regulator and hose must go through the black
ring when install the gas tank.

13
Step 5
Secure the gas tank to the fire table at the bottom using the bolts.
Connect the gas to the fire table using LPG regulator.
Step 6
Close the fire table.
Step 7

14

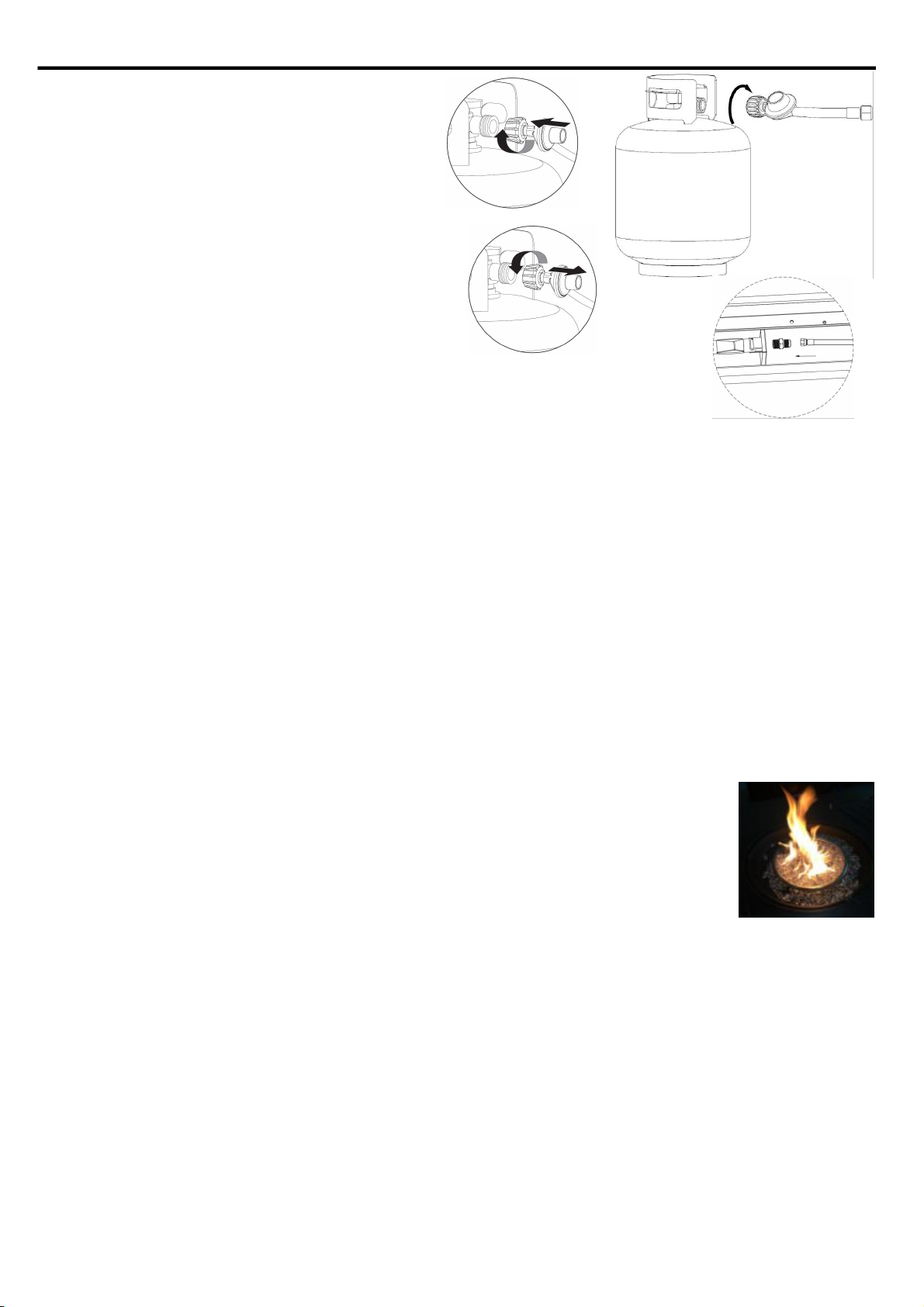

INSTALLING LP GAS TANK
Connect LP Gas Tank
Before connecting, be sure that there is no debris
caught in the head of the LP gas tank, head of the
regulator valve or in the head of the burner and
burner ports.
Connect regulator/hose assembly to tank by
turning knob clockwise stops.
Disconnecting LP Gas Tank
Before disconnecting make sure the LP gas tank
valve is "CLOSED".
Disconnect regulator/hose assembly from LP gas
tank by turning knob counterclockwise until it is loose.
Caution: LP gas tank must be properly disconnected
and removed prior to moving this pit.
Connecting NG
1. A professionally-installed shut-off valve between the supply
piping and the socket is recommended, but not required, by the
National Fuel Gas Code. Socket connection must be made outdoors.
2. Coat the gas supply pipe nipple with gas-resistant pipe dope or approved teflon tape. Screw socket onto gas
supply pipe (house gas source), and wrench-tighten.
3. Pull back the sleeve on the quick disconnect socket and insert the unattached end of the gas hose into the
socket. Release the sleeve and continue pushing the hose into the socket until the sleeve snaps into the locked
position.
4. When the quick disconnect socket and the gas hose are connected, a valve in the socket opens automatically
to permit full gas flow. When the gas hose is disconnected, the valve in the socket instantly and positively shuts
off the flow of gas, the grill can be disconnected from the gas source by disconnecting the gas hose from the
quick disconnect socket. The socket should be left attached to the gas source (hose piping).
Disconnecting NG
With proper assembly, the gas hose cannot be removed without pushing the quick disconnect sleeve back. To
disconnect, push sleeve back and pull plug out of sleeve (this automatically shuts off gas).
The appliance and its individual shut off valve must be disconnected from the gas supply piping system during
any pressure testing on that system at test pressures in excess of 1/2 psi(3.5kPa).
The appliance must be isolated from the gas supply piping system by closing its individual manual shut off valve
during any pressure testing of the gas supply piping system at test pressures equal to or less than1/2psi(3.5kPa).
This appliance can use two fuel gas: LPG-Propane OR Natural Gas
Suitable LP gas tank size for this appliance is 20IB(9.1KG)
Do not fill the LP gas tank with more than 80% liquid gas
The inlet gas supply pressure for the purpose of input adjustment pressure:
LPG-Propane 28cm（11 in）w.c.(2.74kPa)
Natural Gas 18cm（7 in）w.c.(1.74kPa)
The appliance must be isolated from the gas supply piping system by closing its individual
manual shut off valve during any pressure testing of the gas supply piping system at test
pressures equal to or less than 1/2psi (3.5kPa)
The LP-gas supply cylinder to be used must be:
·Constructed and marked in accordance with the U.S. Department of Transportation (D.O.T.)
Specifications for LP-Gas Cylinders.
·Provided with a listed overfilling prevention device, and provided with a cylinder connection
device compatible with the connection for the appliance.
WARNING: Make sure LP gas tank valve is closed. Close by turning valve clockwise.
Place the LP gas tank upright into the tank tray and secure the tank by screw.
LP GAS
NG

15
LEAK TESTING
WARNING: Before using this outdoor fire pit, make sure you have read, understand and
are following all information provided in the Dangers and Warnings. Failure to follow
those instructions can cause death ,serious injury or property damage.
WARNING Never use your fire pit without leak testing all gas connections, hoses and propane tank.
DANGER To prevent fire or explosion hazard:
♦ DO NOT smoke or permit ignition sources in the area while conducting a leak test.
♦ Perform test OUTDOORS in a well-ventilated area that is protected from the wind.
♦ Never perform a leak test with a match or open flame.
♦ Never perform a leak test while the fire pit is in use or while the fire pit is still hot.
WHEN TO PERFORM A LEAK TEST:
● After assembling your fire pit and before lighting for the first time, even if purchased fully-assembled.
● Every time the LP gas cylinder is refilled, exchanged or if any of the gas components are disconnected or
replaced.
● Any time your fire pit has been moved.
● At least once per year or if your fire pit has not been used for more than 60 days.
CAUTION Strong odours, colds, sinus congestion, etc. May prevent the detection of
propane by smell. Use caution and common sense when testing for leaks.
Note: The leak test must be performed in an area that has adequate lighting in order to see if bubbles are
developing and not in a windy or noisy area so larger leaks can be detected by smell or sound.
1.Create a mixture of 50% water and 50% liquid dishwashing soap.
2.Ensure all control knobs are set to the ‘OFF’position.
3.Turn on the gas at the cylinder valve. Turn the cylinder valve knob counter-clockwise until fully
opened. If you hear a rushing sound or smell gas, turn the gas off. Tighten any leaking
connections. If the leak is detected at connection nut and tightening does not stop leak, re-inspect
propane tank rubber seal.
4.Apply the soapy water mixture to the following:
A Supply tank(cylinder) welds. B Connection nut to tank valve.
C Back side of connection nut to brass nipple. D Brass nipple connection into regulator.
E Regulator connections to gas supply hoses. F Hose connection to gas manifold.
G The full length of gas supply hose. H Tank valve to cylinder.
5.Check each place listed(A-H) for growing bubbles, which indicates a leak. Large leaks may not be
detected by bubbles but should produce a rushing sound or gas smell.
6.Turn off gas supply at cylinder valve.
7.Turn on control knobs to release gas pressure in hose.
8.Turn control knobs to ‘OFF’position.
9.Tighten any leaking connections. If leak is detected at connection nut and tightening does not
stop leak, re-inspect propane tank rubber seal.
10.Repeat soapy water test until no leaks are detected.
11.Turn off gas supply at cylinder valve until you are ready to use your fire pit.
12.Wash off soapy residue with cold water and towel dry.
CAUTION: Natural Gas leak testing is similar to LP Gas leak testing.The difference is you need to
apply the soapy water mixture to the gas supply pipe nipple.

16
BATTERY INSTALLATION
STORAGE FOR TABLE COVER
Step 1
1xAAA Battery (Battery not included)

17
Step2
Step3

18
LIGHTING INSTRUCTIONS
Caution: Keep outdoor gas cooking appliance area clear and free from combustible materials,
gasoline and other flammable vapors and liquids.
Caution: Do not obstruct the flow of combustion and ventilation air.
Caution: Check and clean burner/venturi tubes for insects and insect nests. A clogged tube can lead to
a fire beneath the grill.
Caution: Attempting to light the burner with the lid closed may cause an explosion.
Lighting
1. Read instructions before lighting.
2. Control knob must be in the "OFF" position.
3. Connect propane cylinder/open the gas supply line.
4. Push and turn control knob couter clockwise to "LOW". Hold the knob, until just before the flames go
out.
5. Press the IGNITION button and hold for up to 5 seconds to light burner.
6. Release control knob after 45 seconds.
7. If ignition does not occur in 45 seconds, push and turn burner control knob to "OFF" ,wait 5 minutes,
and repeat lighting procedure.
8. If igniter does not light burner, use a long match or long butane lighter.
9. Adjust flame to desired flame with the control knob.
90cm/36in/36po
90cm/36in/36po
Minimum clearance:Top: 1.8m（6Ft / 72 in)sides: 90cm（3ft / 36 in)
Minimum clearance from sides and back of unit to adjacent combustible construction below top
of unit,90cm（36 in）from sides, 90cm（36 in）from back.
CAUTION:9 kg（20lb）LP cylinder only.

19
TROUBLESHOOTING
PROBLEM
POSSIBLE CAUSE
CORRECTIVE ACTION
Propane cylinder is empty
Replace propane cylinder
Burner won’t light
Blockage in orifice
Clear blockage
Control knob is not in ON position
Turn control knob to ON
Gas pressure is low
Turn cylinder valve OFF and fill the
cylinder
Burner flame is low
Outdoor temperature is less than 4.4ºC/40ºF
and tank is less than 1/4 full
Use a full cylinder
Control knob fully ON
Check burner and orifices for
blockage
Carbon build-up
Dirt or film on reflector and burner screen
Clean reflector and burner screen
Thick black smoke
Blockage in burner
Remove blockage and clean burner
inside and outside

20
CARE AND MAINTENANCE
CAUTION: All cleaning and maintenance should be done when fire pit is cool and with the fuel
supply disconnected.
1. DO NOT clean any outdoor fire pit part in a self cleaning oven. The extreme heat will damage the finish.
2. Do not enlarge valve orifices or burner ports when cleaning the valves or burners.
Notices
1. This outdoor fire pit should be thoroughly cleaned and inspected on a regular basis.
2. Abrasive cleaners will damage this product.
3. Never use oven cleaner to clean any part of outdoor fireplace.
Before Each Use
1. Keep the outdoor fire pit area clean and free from any combustible materials, gasoline, and other flammable
vapors and liquids.
2. Do not obstruct the flow of the combustion of LP and the ventilation air.
3. Keep the ventilation opening of the LP gas tank area free and clear from debris.
4. Visually check the burner flames to make sure your outdoor fire pit is working properly.
5. See sections below for proper cleaning instructions.
6. Check all gas connections for leaks.
7. Check components for any signs of damage or rust.
8. Check and clean the burner/venturi tubes for insects and insect nests. A clogged tube can lead to a fire
beneath the outdoor fire pit.
9. If damage to any component is detected, do NOT operate until repairs are executed.
Cleaning Surfaces
1. Wipe surfaces clean with mild dishwashing detergent or baking soda mixed with water.
2. For stubborn surfaces use a citrus based degreaser and a nylon scrubbing brush.
3. Rinse clean with water.
4. Allow to air dry.
Storage
Between uses:
Turn Control Knob OFF.
Disconnect LP source.
Store fire pit upright in an area sheltered from direct contact with inclement weather (such as
rain, sleet, hail, snow, dust and debris).
If desired, cover fire pit to protect exterior surfaces and to help prevent build-up in air passages.
Note: Wait until fire pit is cool before covering.
During periods of extended inactivity or when transporting:
Turn Control Knob OFF.
Disconnect LP source and move to a secure, well-ventilated location outdoors.
Store fire pit upright in an area sheltered from direct contact with inclement weather (such as rain, sleet,
hail, snow, dust and debris).
If desired, cover fire pit to protect exterior surfaces and to help prevent build-up in air passages. Never
leave LP cylinder exposed to direct sunlight or excessive heat.
Note: Wait until fire pit is cool before covering.
Before each use of appliance, inspect the hose and make sure to properly locate the gas. Always inspect the
hose for evidence of excessive abrasion, cuts or wear prior to use, and make sure to leak test. The hose
assembly must be replaced prior to the appliance being put into operation if there is evidence of excessive
abrasion or wear or if the hose is damaged. The replacement hose assembly shall be that specified by the
manufacturer.
