DISCOVER 950-0016-SLRK User manual

1. Safety 2
1.1 Warnings, Cautions and Notes 2
1.2 General Warnings 2
2. Documentation 3
3. Overview 4
3.1 System Overview 4
3.2 Minimum Battery Capacity 4
PN: 950-0016-SLRK
LYNK Edge Card Sol-Ark
User Manual
#4 -13511 Crestwood Place, Richmond, BC, V6V 2E9, Canada + 1.778.776.3288 [e-mail] discoverbattery.com
805-0029 REV A
4. Installing and Connecting LYNK to the Sol-Ark Network 5
4.1 Installing the LYNK Edge Card 5
4.2 Connecting LYNK to the Sol-Ark Network 6
6. System Set Up 7

2discoverbattery.com
1. Safety
1.1 Warnings, Cautions and Notes
▲WARNING
Death or Injury
▲CAUTION
Equipment Damage
▲NOTE
Additional Information
1.2 General Warnings
▲WARNING
HAZARD OF ELECTRICAL SHOCK AND FIRE
• Connect LYNK to only Safety Extra Low Voltage (SELV)
circuits and power sources.
• All wiring must be completed by qualified personnel to
ensure compliance with applicable installation codes
and regulations.
Failure to follow these instructions can result in death or
serious injury.
▲CAUTION
HAZARD OF EQUIPMENT DAMAGE
• Do not install LYNK outdoors.
• Do not connect any port of the LYNK to a network
with power over Ethernet (PoE) or to a public
telecommunication network.
• Do not run CAT5 cables or other cables connected
to LYNK through conduit that could be exposed to
lightning strikes.
Failure to follow these instructions can damage equipment.

3discoverbattery.com
2. Documentation
This User Manual provides information about the integration of Discover AES Lithium batteries with Sol-Ark devices in a
closed-loop configuration using the AES LYNK Communication Gateway with installed AES LYNK Edge Card for Sol-Ark.
AES battery can be use in Energy Storage System (ESS) for self consumption, grid backup and off-grid applications.These
instructions apply to an off-grid application.
Note that in a Sol-Ark networked system the charging variables will be managed automatically by the AES Battery
Management System (BMS) and the Sol-Ark device. Discharging variables are managed by the set up of the Sol-Ark
inverter.
Sol-Ark Reference Documents:
• Sol-Ark 12K Install Guide & Owner’s Manual
• Sol-Ark 8K Install Guide & Owner’s Manual
Discover Reference Documents:
• Discover Energy 808-0004 42-48-6650 data sheet
• Discover Energy 808-0005 44-24-2800 data sheet
• Discover Energy 808-0027 44-48-3000 data sheet
• Discover Energy 805-0015 AES LiFePO4battery 44-24-2800 42-48-6650 manual
• Discover Energy 805-0025 AES LiFePO4battery 44-24-3000 manual
• Discover Energy 805-0017 AES LYNK Communication Gateway manual
Visit discoverbattery.com for the most recent version of published documents.
Certain configuration, installations, service, and operating tasks should only be performed by qualified personnel in
consultation with local utilities and/or authorized dealers. Qualified personnel should have training, knowledge, and
experience in:
• Installing electrical equipment
• Applying applicable installation codes
• Analyzing and reducing hazards involved in performing electrical work
• Installing and configuring batteries
No responsibility is assumed by Discover for any consequences arising out of the use of this material.
Read AES battery manual and safety instructions before installing the battery.
Read Sol-Ark manuals for guidance on product features, functions,
parameters and how to use the product safely.

4discoverbattery.com
3. Overview
3.1 System Overview
The AES LYNK Communication Gateway unlocks the full potential of a Discover AES LiFePO4battery by enabling the internal
Battery Management System (BMS) to optimize the charge and discharge configurations of the world’s best inverter/
chargers and solar charge controller systems in a closed loop configuration.
AES LiFePO4 batteries must be set up to work with power conversion and monitoring devices in either an open-loop or
closed loop configuration. AES LiFePO4battery charge and discharge settings in a open-loop configuration are set up
manually through the controller for the power conversion device at the time of installation.This is commonly refered to as
a ‘lead acid drop-in replacement’ configuration. In a closed-loop configuration the battery charge and discharge rates and
settings are dynamically controlled by the BMS of the AES LiFePO4 battery over a connection with the power conversion
devices in the network.
To connect with the communication network of a specific brand of inverter charger or solar charge controller, the LYNK
Communication Gateway requires an AES LYNK Edge Card with the appropriate communication port.
3.2 Minimum Battery Capacity
Battery charge and discharge rates are managed automatically by the AES LiFePO4battery and Sol-Ark device. Using very
large solar arrays with battery banks that are too small can exceed the operating limits of the battery to charge and possibly
lead to the BMS triggering over-current protection. Battery capacity must be sized to accept the maximum charge current
of the system, or the charging devices must be curtailed to charge below the operating limit of the installed batteries.This
value is derived by adding together the charge capacities of all inverter/chargers and solar charge controllers in the system.
Additionally, battery peak capacity must be sized to support the surge requirements demanded by the load attached to the
inverter. Match the sum of all inverter peak power values with the sum of all battery peak battery current values.
Model Inverter Peak*
(92% Eciency at 48V) Charger* Solar Charger*
Single Phase
Minimum
42-48-6650
Single Phase
Minimum
44-48-3000
Sol-Ark 8K (120 V) 417 Adc 190 Adc 250 Adc 2 5
Sol-Ark 12K (120V) 417 Adc 190 Adc 250 Adc 2 5
Model Inverter Peak*
(92% Eciency at 48V) Charger* Solar Charger*
Single Phase
Minimum
42-48-6650
Single Phase
Minimum
44-48-3000
Sol-Ark 8K (240 V) 208 Adc 190 Adc 250 Adc 2 5
Sol-Ark 12K (240V) 208 Adc 190 Adc 250 Adc 2 5
* As published in the Sol-Ark User Manual

5discoverbattery.com
4. Installing and Connecting LYNK to the Sol-Ark Network

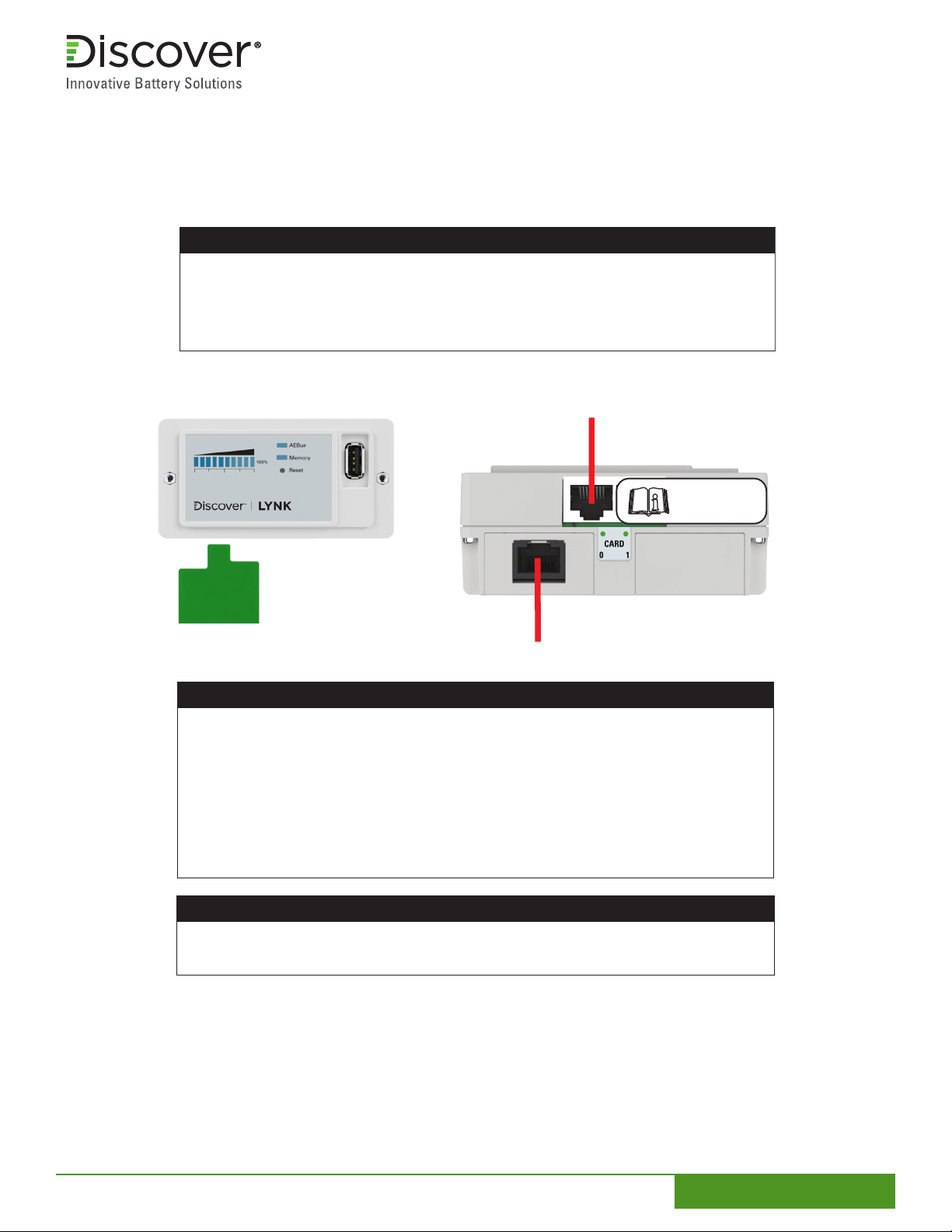

4.1 Installing the LYNK Edge Card
The LYNK Edge Card for Sol-Ark is a Slot 0 Type which only inserts into the left side slot on the bottom of the LYNK
Communication Gateway.
▲NOTE
• The LYNK Edge Card type to be used is determine by the brand of power
conversion equipment.
• If LYNK Edge Card is in the wrong slot, it will not function.
• If LYNK Edge Card is not firmly seated, it will not function.
M8” bolt (supplied with battery)
Copper compression lug
Shrink-wrap to
color-code the cable
Terminal surface
Lock washer (supplied with battery)
Flat washer (supplied with battery)
Battery cable lug
Ensure nothing is between
the terminal surface and the
battery cable lug
Sol-Ark Edge Card is a
Slot 0 Type Card
▲ CAUTION
HAZARD OF EQUIPMENT DAMAGE
• Do not plug the AEBus RJ-45 cable terminator into the 10/100 Ethernet port
of the LYNK.
• Do not connect a CAT5 cable from the 10/100 Ethernet port of the LYNK to
the WAN or MODEM port of a network router.
• Turn OFF all devices before connecting cables or inserting an Edge Card.
Failure to follow these instructions can damage equipment.
▲ NOTE
• Power electronics are not AEBus devices and should not be connected
to AEBus.
AEBus
Sol-Ark CAN
ETHERNET
ONLY

6discoverbattery.com

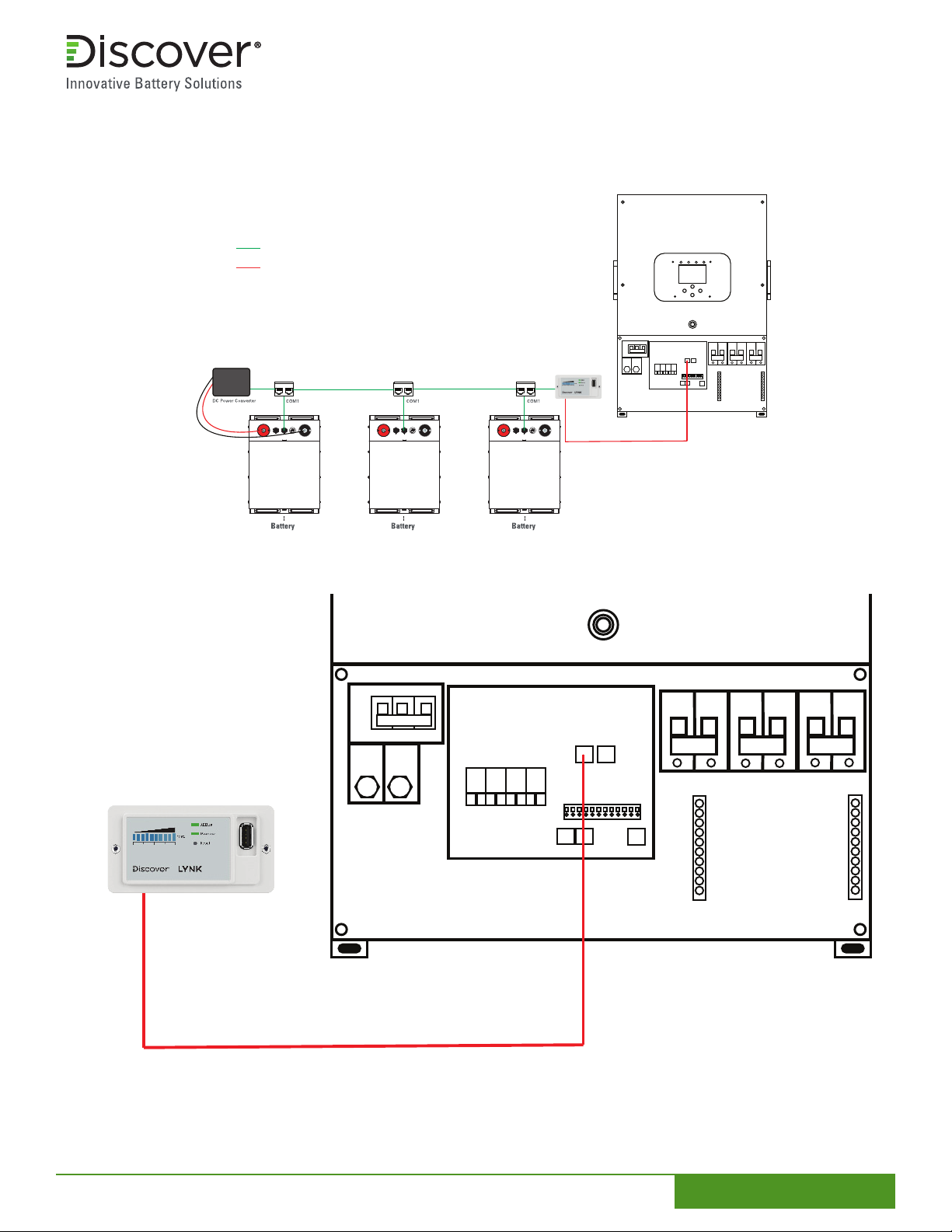

4.2 Connecting LYNK to the Sol-Ark Network
Before connecting LYNK to the Sol-Ark Network ensure that the firmware for all Sol-Ark devices is up to date.
Insert one end of a CAT5 communication cable into the Sol-Ark Edge Card port and the other end into the Sol-Ark inverter CAN
port.
L1L2
PV1+ PV1- PV2+ PV2-
Load Out AC In/Out Gen In
50A 50A 50A
PV Input
DC Input
Batt Disconnect
Neutral
Ground
L1L2 L1L2
CAN RS485
Sol-Ark Bus
L1L2
PV1+ PV1- PV2+ PV2-
Load Out AC In/Out Gen In
50A 50A 50A
PV Input
DC Input
Batt Disconnect
Neutral
Ground
L1L2 L1L2
CAN RS485
AEBus
Sol-Ark Bus
DC/DC AEBus is
internally terminated
LYNK AEBus is
internally terminated

7discoverbattery.com

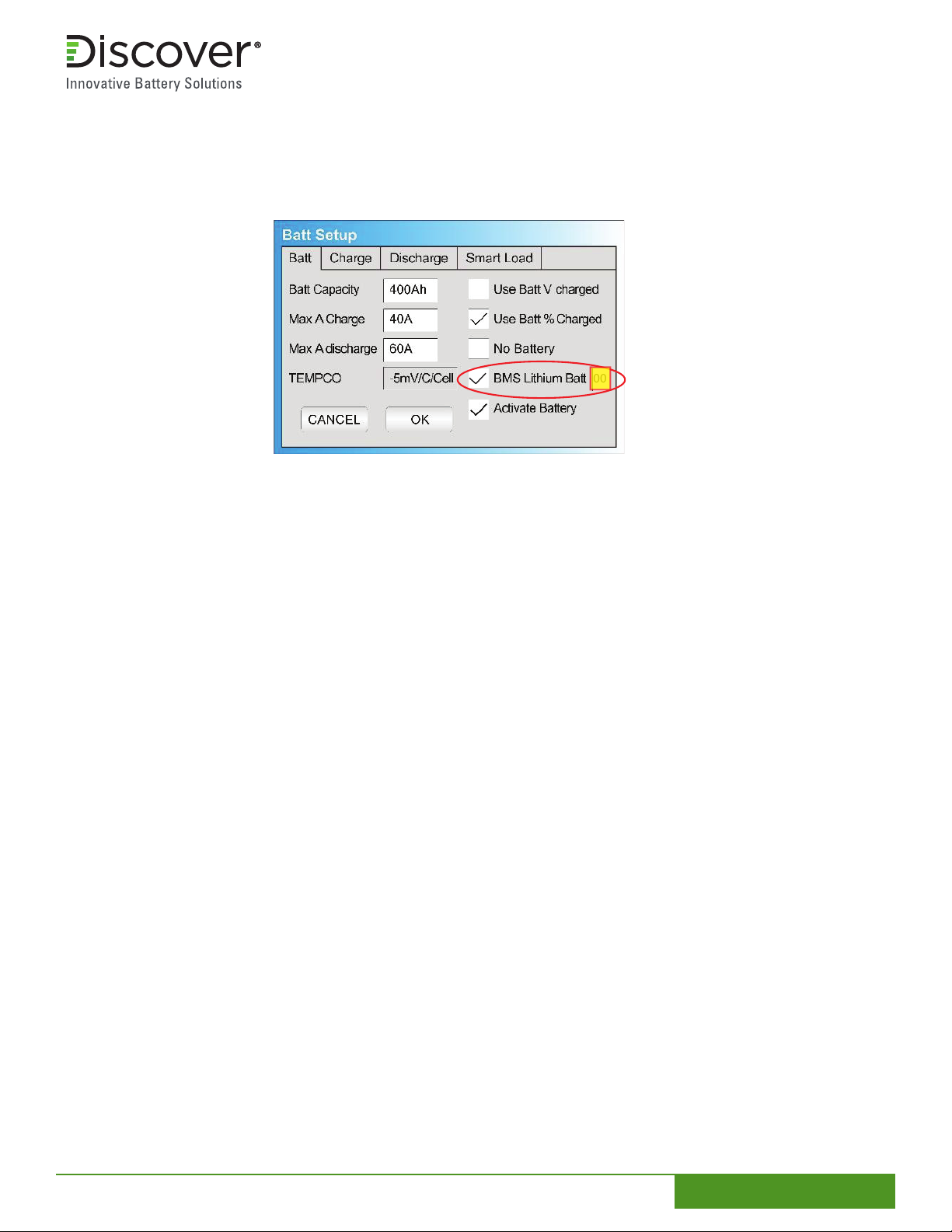

5. System Setup
Turn on the inverter and navigate to the “BATT” tab in the Basic Setup Menu and ensure that BMS Lithium Battery is enabled
with a check mark and displays 00**.
00
00
**Refer to the most recently published Sol-Ark manual to verify BMS Lithium Battery number remains 00.
