INSTALLATION INSTRUCTIONS
44"/50" RAM BLOWER
P/N 44" 539 130360 / 50" 539 130372
Remove mower deck from chassis. Refer to Opera-1. tor's Manual if necessary. Pull out deflector pin and
remove deflector chute. Remove existing chute
hinge support, retaining hardware for reuse.
Attach blower mount bracket to deck with existing2. hardware and tighten to 70-80 ft./lbs.
Remove right pulley guard.3.
From under the mower deck, remove shaft from4. right blade spindle.
WARNING!
Blades are sharp. Protect your hands
with gloves and/or wrap blades with a
heavy cloth when handling.
Install new shaft. Use existing deck pulley. Install5. spacer and key from kit, as shown in illustration.
Install pulley and secure with original flat washer
and 1½ bolt from kit. Orient the raised portion of
pulley hub to the bottom.
Install idler pulley using 1¾ bolt, placing spacer6. under pulley. Secure with nyloc nut.
Individual preference for either HiLift or LoLift7. blades may vary, depending on mowing conditions
and type and heaviness of grass to be bagged.
Tighten blade, attaching hardware to 60-70 ft./lbs.
Shaft
1½ Bolt Pulley
(hub down)
Spacer
Key
Idler Pulley
1¾ Bolt
8059-020
Spacer
50" Inch Blower System
Deflector Chute
Chute Hinge
Support - remove and replace
Shaft
Deflector Pin
8059-019
50" Deck
Pulley Guard
Blower Mount
Bracket

INSTALLATION INSTRUCTIONS
Attach blower housing assembly to mower deck8. with blower housing butted snugly against dis-
charge opening and horizontal tip guard under
deck stiffener strap.Attach blower assembly to
blower mount bracket using deflector pin removed
in Step 1. The outside wall of blower should be as
vertical as possible. If blower is tilted excessively
it could come off. If necessary, loosen hardware
in slots and reposition blower assembly. Tighten
mounting hardware securely.
Loosen tip guard hardware and position to contact9. under side of deck stiffener. Tighten hardware.
Install mower deck and blower assembly to10. mower chassis. Ensure that the blades are level
with the deck and the deck is pitched correctly.
Make any adjustments before proceeding.
8059-021
8059-022
Blower Pulley
Drive Pulley
"V" Pulley
Flat Idler
Belt Guard
Tip Guard
Deck Stiffener
8059-020
Deflector Pin
Install blower drive belt so blower rotation is clock-11. wise when viewed from the operator's position.
To assist with belt installation, tighten the nut on12. the threaded spring rod a few turns. This will pull
the flat idler forward and allow more clearance
with the V-idler. Once belt is in place, loosen the
nut on the threaded spring idler for proper belt
tension.
Install belt guard to blower assembly using ¼"13. washers and ¼" wing nuts.

INSTALLATION INSTRUCTIONS

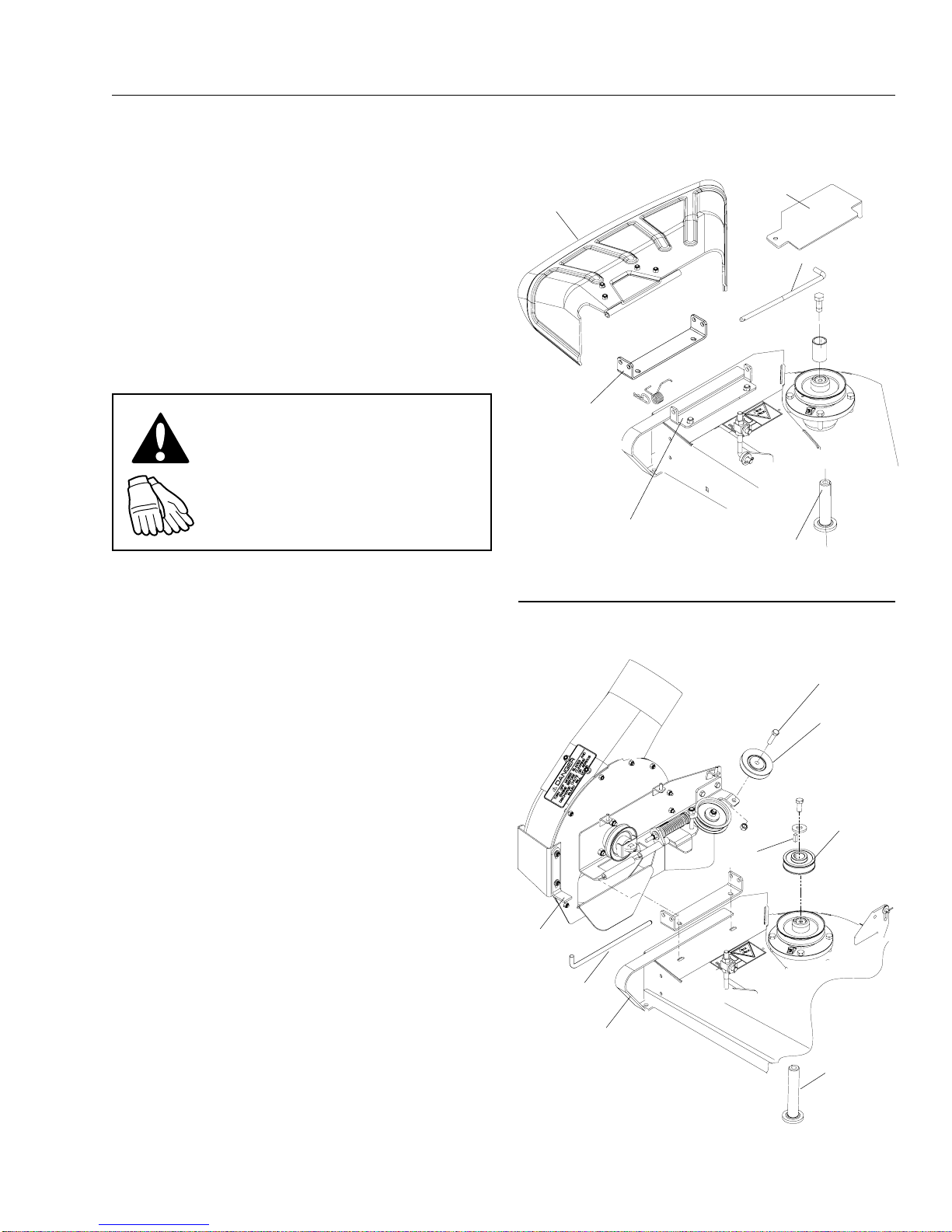

Remove mower deck from chassis. Refer to1. Operator's Manual if necessary. Pull out deflector
pin and remove deflector chute. Remove existing
chute hinge support, retaining hardware for reuse.
Attach blower mount bracket to deck with existing2. hardware and tighten to 70-80 ft./lbs.
Remove right pulley guard.3.
From under the mower deck, remove shaft from4. right blade spindle.
44" Inch Blower System
Deflector Chute
Chute Hinge
Support - remove and replace Shaft
Deflector Pin
8059-025
50" Deck
Pulley Guard
New Chute
Hinge Support
WARNING!
Blades are sharp. Protect your hands
with gloves and/or wrap blades with a
heavy cloth when handling.
Install new shaft. Use existing deck pulley.5.
Install pulley and key from kit, as shown in illus-6. tration. Secure with original flat washer and bolt.
Orient the raised portion of pulley hub facing up.
Install idler pulley using 1½ bolt from the kit. Se-7. cure with nyloc nut.
Individual preference for either HiLift or LoLift8. blades may vary, depending on mowing conditions
and the type and heaviness of grass to be bagged.
Tighten blade, attaching hardware to 60-70 ft./lbs.
Attach blower housing assembly to mower deck9. with blower housing butted snugly against dis-
charge opening and horizontal tip guard under
deck stiffener strap.Attach blower assembly to
blower mount bracket using deflector pin removed
in Step 1. The outside wall of blower should be as
vertical as possible. If blower is tilted excessively
it could come off. If necessary, loosen hardware
in slots and reposition blower assembly. Tighten
mounting hardware securely.
Loosen tip guard hardware and position to contact10. under side of deck stiffener. Tighten hardware.
Shaft
Pulley
(hub up)
Key
Idler Pulley
1½ Bolt
Tip Guard
Deck Stiffener
Deflector Pin
8059-023

INSTALLATION INSTRUCTIONS
Install blower and deck assembly to the mower11. chassis. Ensure that blades are level with the deck
and the deck is pitched correctly. Make any adjust-
ments before proceeding.
Install blower drive belt so blower rotation is clock-12. wise when viewed from the operator's position.
To assist with belt installation, tighten the nut on13. the threaded spring rod a few turns. This will pull
the flat idler forward and allow more clearance
with the V-idler. Once belt is in place, loosen the
nut on the threaded spring idler for proper belt
tension.
8059-026
8059-022
Blower Pulley
Drive Pulley
"V" Pulley
Flat Idler
Install belt guard to blower assembly using ¼"14. washers and ¼" wing nuts.
Belt Guard

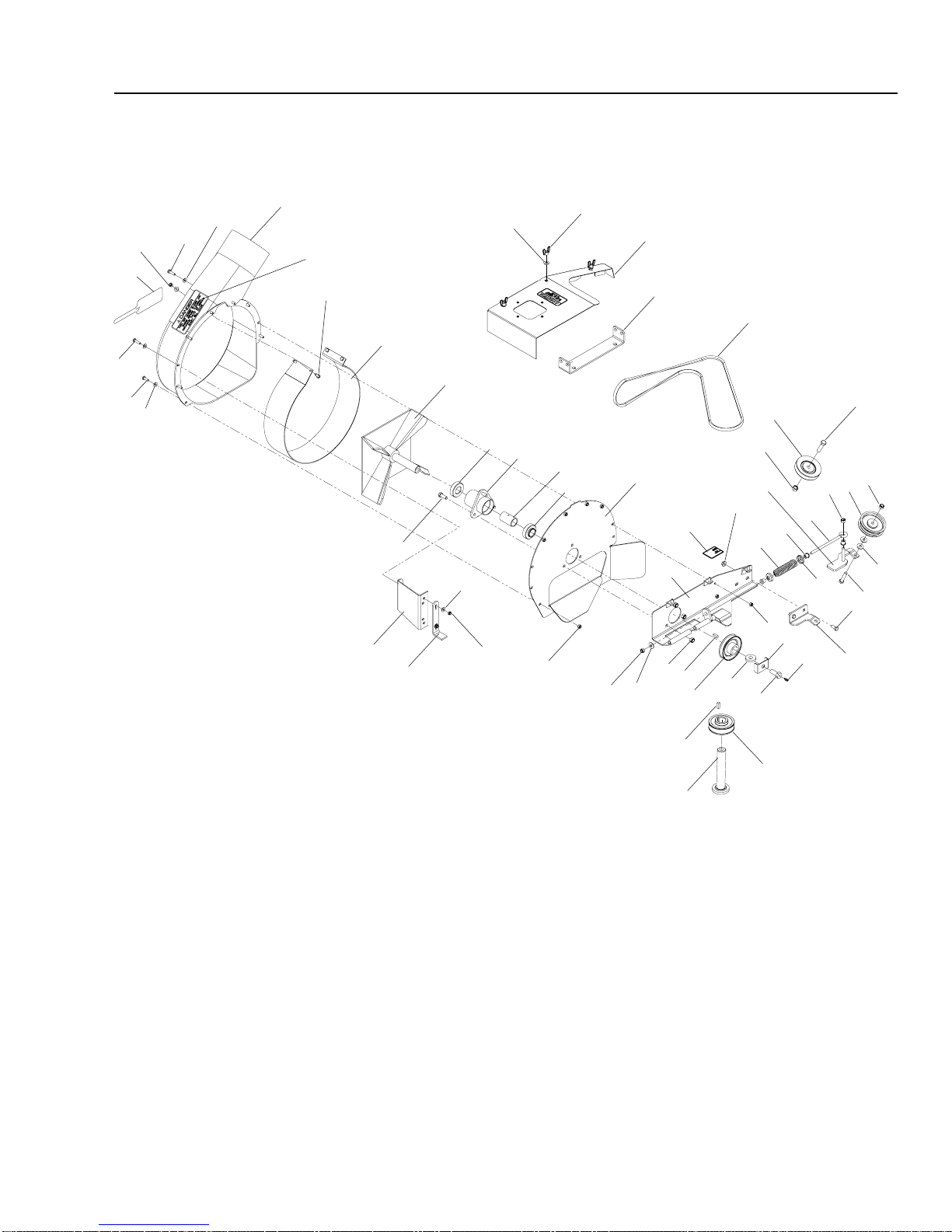

PARTS
50" Inch Blower System
1
2
3
4
56
7
8
9
13
14
15
16
17
18
19 20
21
25
26
27
28
29
42
31
32
33
35
36
37
38
39
10
11
12
22
23
24
34
25
28
27
25
31
31
3
25
30 31
50
48
31
43
41
22
47
40
44
45
46
49
25

PARTS
539 1307091.. ....1 ....BLOWER HSING W/DECAL
539 1175442.. ....1 ....FAN/SHAFT WELDMENT
539 1152793.. ....2 ....BEARING, ECC LOCK
539 1158764.. ....1 ....SPACER, 1¼ OD x 2.083
539 1158755.. ....1 ....HUB WELDMENT
539 1172636.. ....1 ....HOUSING PLATE
539 1159117.. ....1 ....HOUSING GUARD
539 1172868.. ....1 ....TIP GUARD
539 1158889.. ....1 ....PULLEY, 3½
539 11574010.. ....1 ....DECAL, BELT ROUTING
539 11750211.. ....1 ....TARGET
539 11750012.. ....1 ....IDLER 3"
539 11540113.. ....1 ....DECAL, WARNING
539 11990214.. ....1 ....DECAL, LOGO
539 11557515.. ....1 ....EYEBOLT,
5/16 x 6
539 11572016.. ....2 ....SPRING RETAINER
539 11554217.. ....3 ....BUSHING, FLIP-LOK
539 11587018.. ....1 ....SPRING
539 11563719.. ....1 ....HUB BOLT, DRILLED
539 11563820.. ....1 ....ZERK
3/16" DRIVE
539 11563621.. ....1 ....WASHER, .525 x 1.375 x .25
539 11619622.. ....1 ....OUTER SHAFT KEY
539 11754823.. ....1 ....SAND LINER
539 99051724.. ....1 ....WASHER, 3/8FLAT STD
539 11556225.. ..18 ....¼" SAE FLAT WASHER
50" Inch Blower System
539 99056326.. ....3 ....HCS 3/8-16 x 1 GR 5
539 99058027.. ....9 ....HCS ¼-20 x ¾ GR5
539 97776128.. ....4 ....HCS ¼-20 x 1 GR 5
539 97693429.. ....2 ....HCS 5/16-18 x ¾ GR 5
539 11567430.. ....2 ....L-NUT
5/16-18 FLANGED
539 97697931.. ....6 ....NUT 3/8-16 HEX NYLOC
539 97697832.. ..11 ....NUT ¼-20 HEX NYLOC
539 10812033.. ....2 ....NUT ¼-20 HEX THIN NYLOC
539 99071734.. ....1 ....NUT 5/16-18 HEX NYLOC
539 11616235.. ....1 ....IDLER BASE WELDMENT
539 11616736.. ....1 ....SLIDE ARM WELDMENT
539 11616537.. ....1 ....BRACKET, IDLER MOUNT
539 99069238.. ....1 ....WASHER, 5/16 STD FLT
539 99012239.. ....1 ....WASHER, 3/8SAE FLT
539 11575340.. ....1 ....SPACER
539 99073041.. ....1 ....HCS 3/8-16 x 1¾
539 11750142.. ....1 ....IDLER 3" METAL
539 11535943.. ....1 ....BLADE ADAPTOR
539 11593344.. ....1 ...."V" BELT, BLOWER
539 11750445.. ....1 ....GUARD 50"
539 99099746.. ....3 ....WINGNUT ¼-20 NYLOC
539 11981047.. ....1 ....SHAFT, LONG
539 11868748.. ....1 ....PULLEY, 3½
539 13037349.. ....1 ....BRACKET, BLOWER MOUNT
539 11554950.. ....1 ....HCS ½-20 x 1½
NOT SHOWN
539 130371...1 .... BLOWER ASSEMBLY 55"
ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION

PARTS
44" Inch Blower System
1
2
34
5
6
7823
30
17
11
18
21
19
20
16
29
30
31
27
35
34
36
37
27
35
3614
9
12 15
38 24
28
31
26
3
28 32
22
28
10
25
13
33
36
35
43
42
46
41
35
32
28
40
45
44
25

PARTS
P/N 539 130381 R1 02/14/08
ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION
44" Inch Blower System
539 1307091.. ....1 ....BLOWER HSING W/DECAL
539 1175442.. ....1 ....FAN/SHAFT WELDMENT
539 1152793.. ....2 ....BEARING, ECC LOCK
539 1158764.. ....1 ....SPACER, 1¼ OD x 2.083
539 1158755.. ....1 ....HUB WELDMENT
539 1172636.. ....1 ....HOUSING PLATE
539 1159117.. ....1 ....HOUSING GUARD
539 1172868.. ....1 ....TIP GUARD
539 1214439.. ....1 ....IDLER BASE WELDMENT
539 11588810.. ....1 ....PULLEY, 3½
539 12144811.. ....1 ....BRACKET, PULLEY
539 12144712.. ....1 ....PULLEY SLIDE WELDMENT
539 11574013.. ....1 ....DECAL, BELT ROUTING
539 11750214.. ....1 ....TARGET
539 11750015.. ....1 ....IDLER 3"
539 11540116.. ....1 ....DECAL, WARNING
539 11990217.. ....1 ....DECAL, LOGO
539 11557518.. ....1 ....EYEBOLT,
5/16 x 6
539 11572019.. ....2 ....SPRING RETAINER
539 11554220.. ....3 ....BUSHING, FLIP-LOK
539 11587021.. ....1 ....SPRING
539 11563722.. ....1 ....HUB BOLT, DRILLED
539 11563823.. ....1 ....ZERK
3/16" DRIVE
539 11563624.. ....1 ....WASHER, .525 x 1.375 x .25
539 11619625.. ....1 ....OUTER SHAFT KEY
539 11754826.. ....1 ....SAND LINER
539 99069227.. ....3 ....WASHER, 5/16 STD FLT
539 11556228.. ..18 ....¼" SAE FLAT WASHER
539 99056329.. ....3 ....HCS 3/8-16 x 1 GR 5
539 99058030.. ....9 ....HCS ¼-20 x ¾ GR5
539 97776131.. ....4 ....HCS ¼-20 x 1 GR 5
539 99065532.. ....1 ....HCS 3/8-16 x 1½ GR 5
539 97693433.. ....2 ....HCS 5/16-18 x ¾ GR 5
539 11567434.. ....2 ....L-NUT
5/16-18 FLANGED
539 97697935.. ....6 ....NUT 3/8-16 HEX NYLOC
539 97697836.. ..11 ....NUT ¼-20 HEX NYLOC
539 10812037.. ....2 ....NUT ¼-20 HEX THIN NYLOC
539 99071738.. ....1 ....NUT 5/16-18 HEX NYLOC
539 99073039.. ....1 ....HCS 3/8-16 x 1¾
539 11750140.. ....1 ....IDLER 3" METAL
539 12432841.. ....1 ...."V" BELT, BLOWER
539 11750542.. ....1 ....GUARD 44"
539 99099743.. ....3 ....WINGNUT ¼-20 NYLOC
539 11981044.. ....1 ....SHAFT, LONG
539 12110345.. ....1 ....PULLEY
539 12145446.. ....1 ....BRACKET, BLOWER MOUNT
NOT SHOWN
539 130206...1 .... BLOWERASSEMBLY 44"
