DK2 Power BIG DUMP Guide

OPD811 BIG DUMP
CART CARRY-ALL COMBO
SAFETY AND OPERATION INSTRUCTIONS
CALL 702-331-5353 FOR PARTS AND SERVICE
IMPORTANT: Read safety rules and instructions carefully before operating equipment.

Table of Contents
1
Table of Contents
PART I: General Safety Rules....................................................................................2
PART II: Familiar with the BIG DUMP....................................................................6
PART III: Operating the BIG DUMP........................................................................7
PART IV: Maintaining the BIG DUMP.....................................................................9
PART V: Parts List.....................................................................................................10
Conventions used in this manual
WARNING
This indicates a hazardous situation, which, if not avoided, could result in death
or serious injury.
CAUTION
This indicates a hazardous situation, which, if not avoided, could result in minor
or moderate injury.
NOTICE
This information is important in proper using of your machine. Failure to follow
this instruction could result in damage to your machine or property.
Additional Information and Potential Changes
We reserve the right to discontinue, change, and improve its products at any
time without notice or obligation to the purchaser. The descriptions and
specifications contained in this manual were in effect at printing. Equipment
described within this manual may be optional. Some illustrations may not be
applicable to your machine.

Part I: General Safety Rules
2
PART I: General Safety Rules
Improper installation and operation could cause personal injury, and/or
equipment and property damage. Read and understand labels and the USER
Manual before installing, operating, or adjusting.
Safety Labels Found on Your Unit
WARNING
Read this Safety & Operating Instructions manual before using the BIG DUMP.
Become familiar with the operation and service recommendations to ensure the
best performance of your machine.
Propose
CAUTION
This machine is designed solely to transport goods and must not be used for any
other purpose. It should only be used by trained operators who are familiar with
the content of this manual. It is potentially hazardous to fit or use any parts
other than OEM DK2 parts. The company disclaims all liability for the
consequences of such use, which in addition voids the machine warranty.

Part I: General Safety Rules
3
Before using the BIG DUMP
NOTICE
A．Operators must be fully trained before using this machine.
B．User Manual is read and understood.
C．Machine is positioned on level ground; all guards are fitted and in good
condition.
D．Bucket and Carry-All is in good condition and secure.
E．All fasteners are checked for tightness.
F．DO NOT use other types of battery charger or batteries.
G. DO NOT Carry “passengers” on your BIG DUMP.
H. Exercise common sense at all times.
When using the BIG DUMP
NOTICE
A. It is safe to have a second trained operator within easy reach of the machine.
B. Always maintain strict discipline and service machine at specified periods.
C. DO NOT operate the machine while under the influence of alcohol or drugs.
D. Check all nuts, bolts, and wheel studs weekly.
E. Keep the BIG DUMP free of any accumulation of dirt, grease, oil or other
flammable material.
Protecting Yourself and Those Around You
WARNING
This is a high-powered machine, with moving parts operating with high energy.
You must operate the machine safely. Unsafe operation can create several
hazards for you, as well as anyone else in the nearby area. Always take the
following precautions when using this machine:
A. Keep in mind that the operator or user is responsible for accidents or
hazards occurring to other people, their property, and themselves.
B. Avoid wearing loose clothing or jewelry, which can catch on moving parts.
C. We recommend wearing gloves while using the BIG DUMP. Be sure your
gloves fit properly and do not have loose cuffs or drawstrings.
D. Wear shoes with non-slip treads when using your machine. If you have
safety shoes, we recommend wearing them.

Part I: General Safety Rules
4
Safety for Children and Pets
WARNING
Tragic accidents can occur if the operator is not alert to the presence of children
and pets. Children are often attracted to the machine and the activity. Never
assume that children will remain where you last saw them. Always follow these
precautions:
A. Keep children and pets at least 50 feet from the working area and ensure
they are under the watchful care of a responsible adult.
B. Be alert and turn the machine off if children or pets enter the work area.
C. Never allow children to operate the machine.
General Safety
WARNING
Operating this machine safely is necessary to prevent or minimize the risk of
injury. Unsafe operation can create several hazards for you. Always take the
following precautions when operating:
A. Your machine is a powerful tool, not a plaything. Exercise extreme caution
always. The machine is designed to haul and dump. Do not use it for any
other purpose.
B. Know how to stop the machine quickly.
C. See manufacturer’s instructions for proper operation and installation of
accessories.
D. Never, under any conditions, remove, bend, cut, fit, weld, or otherwise alter
standard parts on the machine. This includes all shields and guards.
Modifications to your machine could cause personal injuries and property
damage and will invalid your warranty.
E. If the machine starts to make an unusual noise or vibrate, turn off the
machine, then inspect for damage. Vibration is generally a warning of
trouble. Check damaged parts and clean, repair and/or replace as necessary.
F. Never tamper with safety devices. Check their proper operation regularly.
G. Never allow people who are unfamiliar with these instructions to use the
machine. Allow only responsible individuals who are familiar with these
rules of safe operation to use your machine.
H. While using, don't hurry or take things for granted. When in doubt about
the equipment or your surroundings stop the machine and take time to look
things over.
I. Never operate the machine when under the influence of alcohol, drugs, or
medication.
J. Use the machine only in daylight.

Part I: General Safety Rules
5
K. Stay alert for hidden hazards or traffic.
L. Keep all nuts and bolts tight and keep the equipment in good operating
condition.
M. Be safety conscious and dress appropriately when operating. Always wear
substantial footwear and a hard hat in relevant areas.
N. Exercise extreme caution with the controls when working on steep or
slippery surfaces. Especially, when people are near to the working area.
A Note to All Users
List of warnings and cautions cannot be all-inclusive. If situations occur that are
not covered by this manual, the operator must apply common sense and operate
this machine in a safe manner. Contact DK2POWER for assistance at
702-331-5353 8-4 PST.

Part II: Familiar with the BIG DUMP
5
PART II: Familiar with the BIG DUMP
It may be helpful to familiarize yourself with the controls and features of the
BIG DUMP. If you have any question, please contact DK2POWER.
TECHNICAL SPECIFICATIONS
Power
48V/20AH/1000W Electric
Load capacity
1100 LBS
Total Working time
4-7 Hours
Charging time
5-6hours
Power Capacity showing
Yes
Speed
0-3 MPH
Reverse Gear
YES
Front wheel
16*6.5-8
Rear wheel
11*4-4
Overall Height
37 IN
Overall Length
50 IN
Width
31 IN
Weight
480/518 LBS

Part III: Operating the BIG DUMP
6
PART III: Operating the BIG DUMP
It may be helpful to better familiarize yourself with the features of your machine
before beginning the steps outlined in this chapter.
WARNING
A. Read and understand all instructions, safety precautions, and/or warnings
listed in “PART I: General Safety Rules” before operating the machine. If
any doubt or question arises about the correct or safe method of performing
anything found in this manual, please contact DK2POWER.
B. Knowing the correct and incorrect methods of using the machine. Never
using an incorrect or unsafe method.
Before Using:
1. Using the battery charger supplied to charge the batteries until the green
light on the charger comes on.
2. Check the control cables, condition of wiring, tire pressure and all nuts/bolts.
Moving Forward：
1. Turn the MAIN SWITCH to “ON”position on the front panel.
2. Select “Forward”position on the toggle switch on the left handle.
3. Press the toggle switch forward.
4. Release the parking brake.
5. The speed of the dumper is controlled by the amount of throttle, which is on
the right handlebar. The throttle can be regulated to increase or decrease the
speed.
Moving Backward：
1. Release the right handle to stop the Dumper.
2. Move the switch toggle switch to “Backward”.
3. Press the throttle to move the Dumper backward.
STOP:
Release the throttle. Use the hand brake on the left handle. The Dumper will
slow down and stop. Set the parking brake when not in use.

Part III: Operating the BIG DUMP
8
Dumping:
1. Stop the machine.
2. Set the parking brake
3. On the left handlebar press the switch up or down to raise and lower the
bucket or the carry-all.

Part IV: Maintaining the BIG DUMP
9
PART IV: Maintaining the BIG DUMP
Regular maintenance is the way to ensure the best performance and long life of
your machine. Please refer to this manual for maintenance procedures.
WARNING
1. Before performing any maintenance procedure or inspection, stop the motor.
2. To prevent accidental movement of the machine, always turn the ON/OFF
switch to OFF and disconnect the battery plug whenever the BIG DUMP is
not in use. The control indicator light will turn off.
3. Disconnect the battery before removing or replacing any electrical
components.
Lubrication
NOTICE
All Bearings of your machine are sealed units and should have enough lubricant
to last the life of your machine with normal use.
Maintenance
Most problems are easy to fix. If you experience problems, contact DK2POWER
WARNING
Before performing any maintenance procedure or inspection, stop the motor.

Part V: Parts List
10

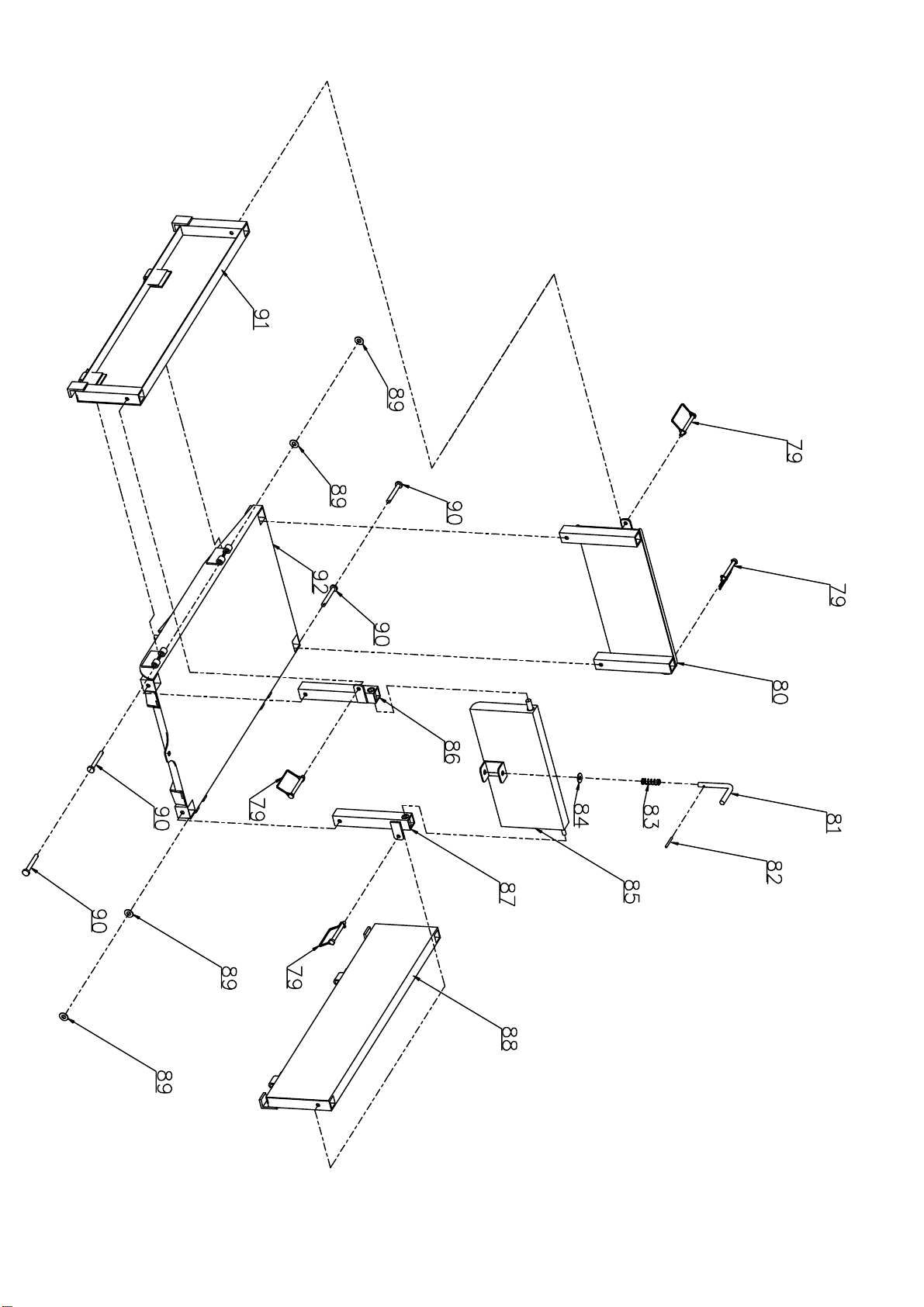

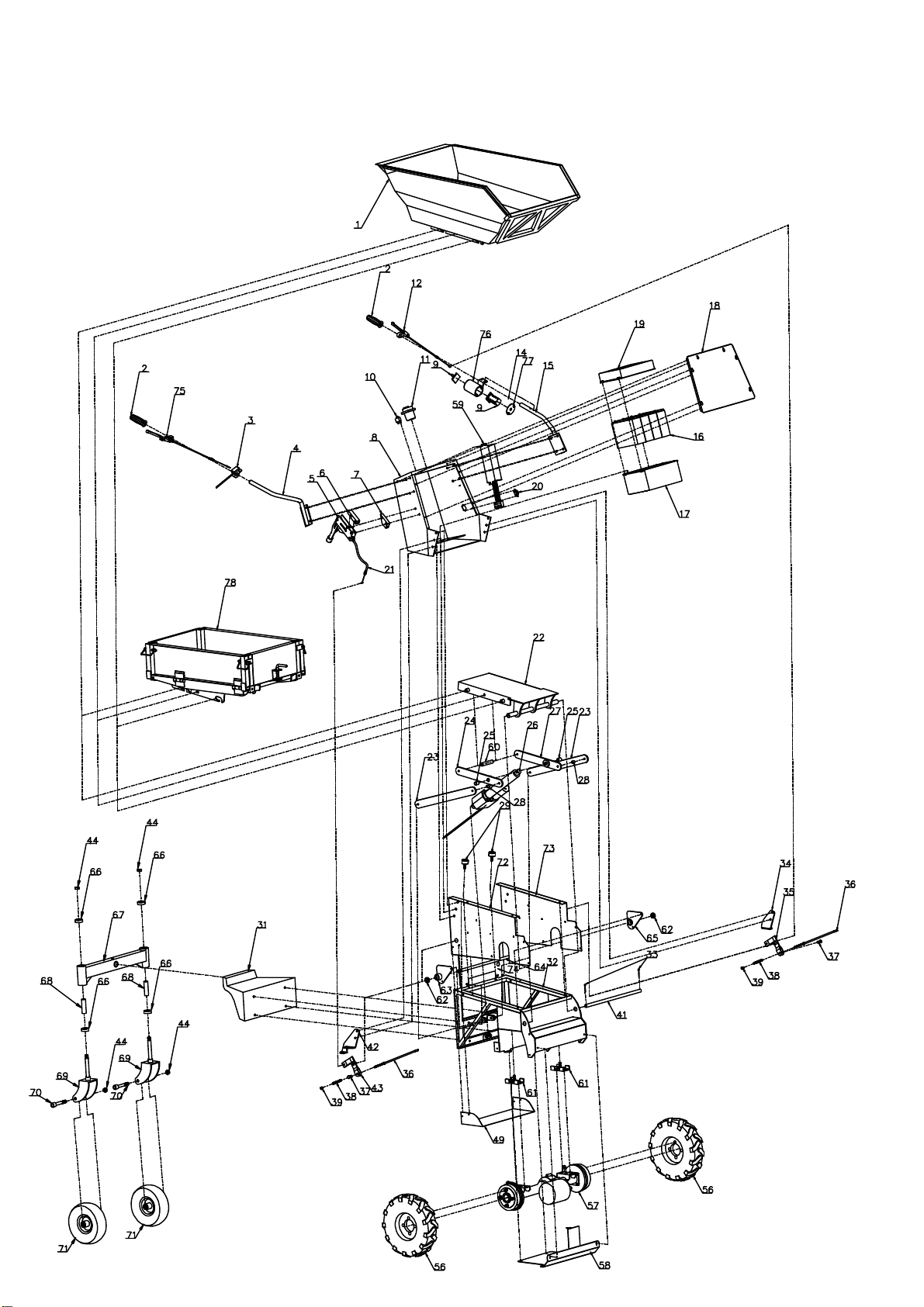

Part V: Parts List
