DK2 OPC514 User manual
OPC514
4 INCH CHIPPER
D.O.T. TOWABLE • KOHLER® COMMAND PRO ENGINE • DISK CHIPPER
ASSEMBLY GUIDE
PARTS AND SERVICE 702-331-5353 | WWW.DK2POWER.COM
DK2 USA WEST
4301 S VALLEY VIEW BLVD.
SUITE 10-11 LAS VEGAS, NEVADA
89103 USA
DK2 USA EAST
3750 SOUTH AVENUE,
NORTH UNIT TOLEDO, OHIO
43615 USA
DK2 CORPORATE HEAD OFFICE
5330 MAINWAY
BURLINGTON, ONTARIO
L7L6A4 CANADA
2 | OPC514 man. v.210412
ENGLISH
TABLE OF CONTENTS
SPECIFICATIONS ....................................................................................... 3
SECTION I: SAFETY
GENERAL RULES ....................................................................................... 6
CALIFORNIA PROP 65 .................................................................................. 7
WARNING LABELS...................................................................................... 7
TRAINING ............................................................................................. 8
PREPARATION ......................................................................................... 8
OPERATION ........................................................................................... 9
TOWING............................................................................................... 11
MAINTENANCE & STORAGE ............................................................................. 11
OPERATOR ZONE ...................................................................................... 13
YOUR RESPONSIBILITY ................................................................................. 13
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE .................................................... 13
SECTION II: ASSEMBLY
PACKAGE CONTENTS................................................................................... 16
TOOLS REQUIRED FOR ASSEMBLY ....................................................................... 16
UNPACKING AND CHECKING THE CONTENTS............................................................. 16
WOOD CHIPPER ASSEMBLY ............................................................................. 18
SECTION III: OPERATION
PROPER USE GUIDELINES............................................................................... 28
OIL AND FUEL ......................................................................................... 29
STARTING AND STOPPING .............................................................................. 30
OPERATION NOTES .................................................................................... 31
SECTION IV: CHIPPING
PROCESSING 4” OR SMALLER TREES..................................................................... 34
CHIPPING NOTES ...................................................................................... 34
TROUBLESHOOTING ................................................................................... 35
SECTION V: MAINTENANCE & STORAGE
HOW TO MAINTAIN YOUR MACHINE ..................................................................... 38
REMOVAL, SHARPENING & REINSTALLATION OF CHIPPER BLADE........................................... 40
ADJUSTING OR REPLACING BELT ........................................................................ 41
CENTRIFUGAL CLUTCH TECH TIPS....................................................................... 42
TROUBLESHOOTING ................................................................................... 44
PARTS LIST ............................................................................................ 45
PARTS DIAGRAM ....................................................................................... 46
WARRANTY ....................................................................................... 48
OPC514 man. v.210412 | 3
ENGLISH
SPECIFICATIONS
Item Number OPC514
Engine Kohler CH440
Displacement 429 cc, 14 HP
New Power 14 HP (10.5 kW)
Chipping Capacity 4.73” (120 mm)
Weight 573.2 lb (260 kg)
Length 89.4” (2270 mm)
Width 39.4” (1000 mm)
Height 65.2” (1655 mm)
Operating RPM 3600 RPM
Type of Fuel Gasoline
Starting Method Recoil or E-Start
Wheel Tire 4.8-8 Pneumatic Tire
Cutting Method Disc
Diameter 22.1” (560 mm)
Blade Nos. 2 x blade x anvil
Packaging Wooden Crate
Package Size 41.4” x 30.4” x 49.3” (105 cm x 77 cm x 125 cm)
Gross Weight 595.3 lb (270 kg)
Cutter Disk Dual Belt Drive 17 x 900 Li Centrifugal Clutch
SECTION I
SAFETY
6 | OPC514 man. v.210412
ENGLISH
SAFETY
GENERAL RULES
This symbol points out important safety instructions which, if not followed, could
endanger the personal safety and/or property of yourself and others.
Read and follow all instructions in this manual before attempting to operate your
chipper. Failure to comply with these instructions may result in personal injury.
When you see this symbol - heed its warning.
DANGER: Rotating cutting blade.
Keep your hands and feet out of inlet and discharge opening while machine is
running.
DANGER: This machine can CRUSH, GRIND, CUT, and SEVER parts of your body if
they enter the inlet or discharge area of your chipper.
DANGER: Your chipper was built to be operated according to the rules for safe
operation in this manual. As with any type of power equipment, carelessness or error
on the part of the operator can result in serious injury. If you violate any of these rules,
you may cause serious injury to yourself or others.
THIS MACHINE IS CAPABLE OF INFLICTING SERIOUS INJURY IF OPERATED
IMPROPERLY READ WARNINGS AND CAUTION LABELS.
INTENDED USE
Never use your chipper for any other purpose than chipping wood. It is designed for this use
and any other use may cause serious injury and void the warranty.
OPC514 man. v.210412 | 7
ENGLISH
SAFETY

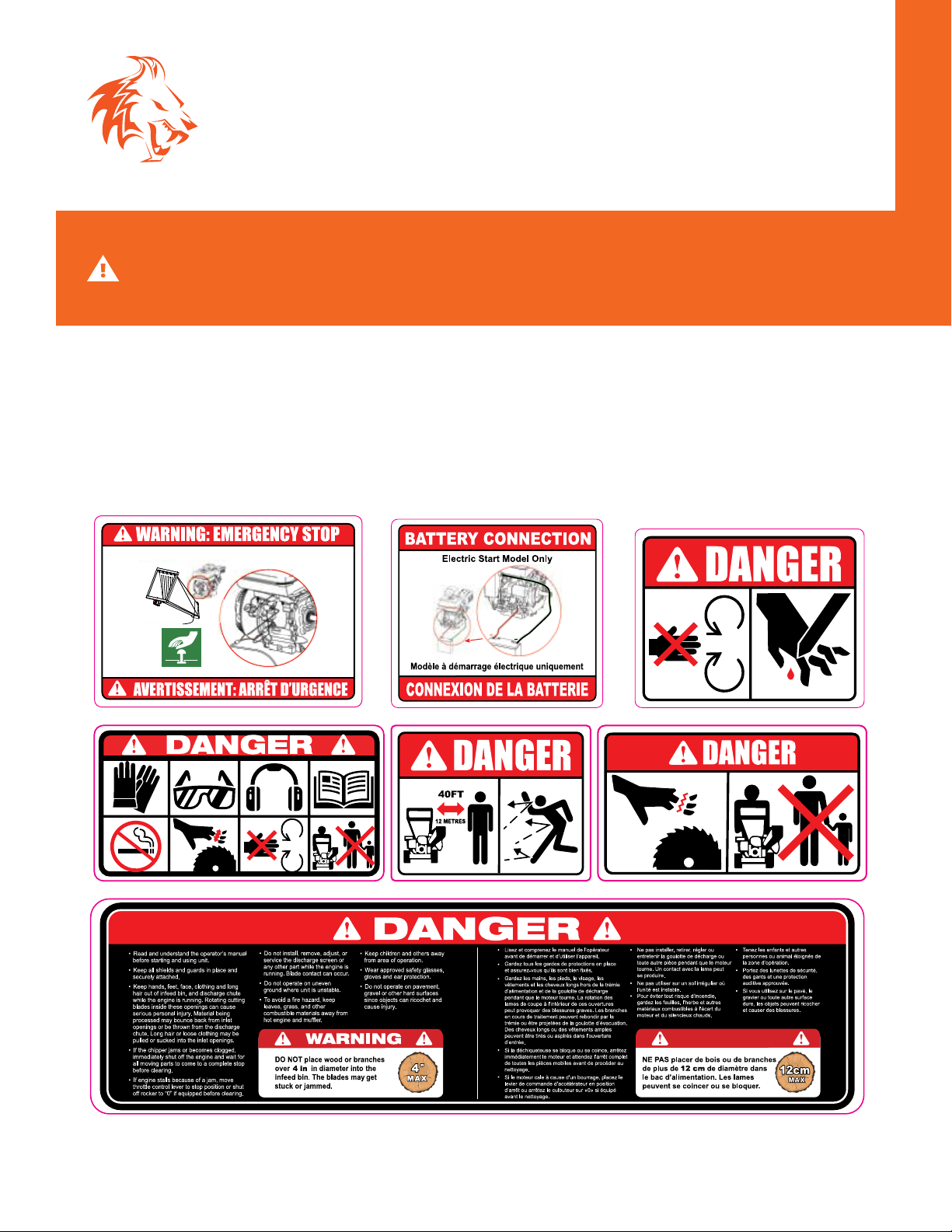

CALIFORNIA PROP 65 & WARNING LABELS
CALIFORNIA PROP 65: The Engine Exhaust from this product contains chemicals
known to the state of california to cause cancer, birth defects or other reproductive
harm.
MAKE CERTAIN THAT ALL SAFETY LABELS ON THIS EQUIPMENT ARE KEPT
CLEAN AND IN GOOD CONDITION. IF YOU NEED REPLACEMENT LABELS,
CALL DK2 POWER AT 7023315353.
ATTENTION
8 | OPC514 man. v.210412
ENGLISH
SAFETY
SAFE OPERATION PRACTICES
TRAINING
• Read this owner’s manual carefully in its entirety before attempting to assemble this
machine. Read, understand and follow all instructions on the machine before operation. Be
completely familiar with the controls and the proper use of the machine before operating
it. Keep this manual in a safe place for future and regular reference and for ordering
replacement parts.
• Never allow children to operate the unit. Never operate the equipment without proper
instruction. Only responsible individuals who are familiar with these rules of safe operation
should be allowed to use this unit.
• Keep the area of operation clear of all persons, particularily small children and pets. Stop the
engine when they are in the vicinity of the unit. Keep work area clean and clear of branches
and obstacles, which could cause you to stumble or fall.
• Keep in mind that the operator or user is responsible for accidents or hazards occurring to
other people, their property, and themselves.
• Your chipper is a powerful tool, not a plaything. Exercise extreme caution at all times. Your
unit has been designed to chip wood. Do not use it for any other purpose.
• If situations occur which are not covered in this manual, use care and good judgment.
PREPARATION
• Thoroughly inspect the area where the equipment is to be used and remove all foreign
objects.
• Do not operate the machine without wearing adequate protection and safety goggles.
Always wear safety glasses or goggles during operation and while performing any
adjustment or repair, to protect eyes from foreign objects that may be thrown from the
machine. Be sure your glasses or goggles fit properly.
• Avoid loose-fitting clothes and use protective footwear that will improve footing on
slippery surfaces. Shirt and slacks that cover the arms and legs and steel-toed boots are
recommended. Secure hair above shoulders. Do not wear loose clothes or jewelry that can
be caught in moving parts. Never operate the unit in bare feet, sandals, or sneakers. Wear
gloves when feeding the material into the chipper chute. Be sure your gloves fit properly.
WARNING: Fuel is highly flammable and the vapors are explosive. Take the following
precautions.
• Store fuel and oil in approved containers.
• Keep away from heat and open flame, and out of reach from children.
• Refuel outdoors only and do not smoke while refueling.
OPC514 man. v.210412 | 9
ENGLISH
SAFETY
SAFE OPERATION PRACTICES
• Check and add fuel before starting the engine. Never remove gas cap or add fuel while the
engine is running or when the engine is hot. Allow engine to cool before refueling.
• If fuel is spilled, do not attempt to start the engine but move the machine away from the area
of spillage and avoid creating any source of ignition until fuel vapors have disappeared.
• Replace all fuel tank and container caps securely.
• Never store the machine or fuel container inside where there is an open flame or spark, such
as a gas hot water heater, space heater, clothes dryer or furnace.
• To reduce fire hazard, keep engine and muer free of debris build-up. Clean up fuel and oil
spillage. Allow unit to cool at least five minutes before storing.
• Never attempt to make any adjustments while the engine is running.
OPERATION
• Never place your hands, feet, or any part of your body in the chipper chute, discharge
opening, or near or under any moving part while the engine is running. Keep clear of the
discharge opening at all times. If it becomes necessary to push material into the chipper
chute, use a small diameter stick, NOT YOUR HANDS.
• Keep your face and body back from chipper chute to avoid accidental bounce back of any
material.
• The machine should only be operated on a level surface. Never operate your unit on a
slippery, wet, muddy, or icy surface.
• Stay alert for hidden hazards or trac. Do not carry passengers.
• If the cutting mechanism strikes a foreign object or if your machine should start making an
unusual noise or vibration, immediately stop the engine, After the machine has come to a
complete stop proceed as follows:
• Remove the spark plug wire(s) and wait for all moving parts to come to a complete stop.
• Inspect for any damage
• Repair or replace any damaged parts before restarting and operating the machine.
• Exercise caution to avoid slipping or falling
• If the machine should start to vibrate abnormally, immediately stop the engine, and wait for
all moving parts to come to a complete stop and inspect for the cause. Vibration is generally
a warning sign of trouble.
• Stop the engine when leaving the operating position, and when making any repairs,
adjustments and inspections. STAY CLEAR OF THE CHIP CHUTE AT ALL TIMES.
• Take all possible precautions as recommended by the manufacturer when leaving the
machine unattended. Push the E-STOP.
• Before cleaning, repairing, or inspecting, shut o the engine and make certain the flywheel
and all moving parts have come to a complete stop. Disconnect the spark plug wire and
keep the wire away from spark plug to prevent accidental starting.
• Never run this machine in an enclosed area as the exhaust from the engine contains carbon
monoxide, which is an odorless, tasteless, and deadly poisonous gas.
10 | OPC514 man. v.210412
ENGLISH
SAFETY
SAFE OPERATION PRACTICES
• Keep all guards and safety devices in place and operating properly. Do not operate the
machine if all safety guards are not in place.
• Do not use the unit with the chipper hopper removed.
• The muer and engine become hot and can cause a severe burn. Do not touch.
• Keep children and pets away.
• Tragic accidents can occur if the operator is not alert to the presence of small children.
• Keep children out of the work area and under the watchful eye of a responsible adult
other than the operator.
• Be alert and turn the unit o if a child enters the area.
• Never allow children to operate the chipper.
• Do not overload or attempt to chip material beyond 4 inches.
Personal injury or damage to the machine could result.
• Never operate the machine at high transport speeds or on hard or slippery surfaces.
• Never allow bystanders near the unit while running.
• Only use accessories approved for this machine by the manufacturer. Read, understand, and
follow all the instructions provided with the approved accessory.
• Only operate unit in good daylight. Do not operate unit at night or in dark areas where your
vision may be impaired.
• Use extreme caution when reversing or pulling the machine towards you. NEVER move the
machine while it is running.
• Do not tamper with the engine’s governor setting. The governor controls the maximum safe
operation speed and protects the engine. Over-speeding the engine is dangerous and will
cause damage to the engine and to the other moving parts of the machine.
• Start the engine according to the manufacturers instructions. Keep hands and feet away from
inlet and discharge areas.
• Never pick up or carry the machine while the engine is running.
• Do not operate while under the use of alcohol, drugs, or medication. A clear mind is
essential for safety.
• Do not allow anyone who is not alert to operate this machine.
• When feeding material into this equipment, be extremely careful that pieces of metal, rocks,
or other foreign objects are not included. Personal injury or damage to the machine could
result.
• Keep area of discharge clear of people, animals, buildings, glass or anything else that will
obstruct clear discharge, cause injury or damage. Wind can also change discharge direction,
so be aware.
• Do not allow an accumulation of processed material to build up in the discharge area as this
will prevent proper discharge and can result in kick-back from the chipper chute.
• Do not allow any part of the engine, especially around the cooling fins and muer, to
become clogged with processed material, leaves, oil, grease or any other combustible
material.
• Do not operate engine if air cleaner or cover over carburetor air-intake is removed, except
for adjustment. Non-Removal of such parts could create a fire hazard.
OPC514 man. v.210412 | 11
ENGLISH
SAFETY
SAFE OPERATION PRACTICES
TOWING
• Obey all state and local regulations when towing on public roads. THIS MACHINE IS NOT
HIGHWAY TOWABLE.
• Before towing, be certain the chipper is correctly and securely attached to the towing
vehicle and the safety chains are in place. Leave slack in the chains to allow for turning.
• Do not allow anyone to sit or ride on the chipper. This can cause serious injury.
• Stay alert for hidden hazards or trac. Do not carry passengers.
• Never carry any cargo or wood on your chipper. It may fall o and endanger following
vehicles.
• Allow for added length when turning, parking, crossing intersections and in all driving
situations.
• Be careful when backing up. You can easily jackknife your chipper.
• Adjust towing speed for terrain and conditions. Do not exceed 45 MPH when towing.
• Because there is no suspension on the chipper, it will tend to bounce more on rough roads.
Be extra cautious when towing over bumpy or rough terrain including railroad crossings.
MAINTENANCE & STORAGE
• Keep machine, attachments and accessories in safe working condition.
• Check engine mounting bolts and other hardware before each use for proper tightness.
Never operate your chipper in poor mechanical condition or when in need of repair. Be
sure all safety guards and shields are in proper position. These safety devices are for your
protection.
• Never store machine with fuel in the fuel tank inside a building where ignition sources are
present, such as hot water and space heaters, clothes dryers and the like. Allow the engine
to cool before storing in any enclosure.
• Always refer to the operator’s manual for important details if the machine is to be stored for
an extended period.
• If the fuel tank is to be drained, do this outdoors.
• If it is necessary for any reason to unclog the feed intake or discharge openings or to inspect
or repair the machine where a moving part can come in contact with your body or clothing,
shut the machine o, allow all moving parts to come to a complete stop, disconnect the
spark plug wire(s) and allow the engine to cool before attempting to unclog, inspect or
repair.
• Check the blade mounting screws before each use for proper tightness. Also visually inspect
the blade for wear or damage. Replace the blade with parts that meet original equipment
specifications.
12 | OPC514 man. v.210412
ENGLISH
SAFETY
SAFE OPERATION PRACTICES
• Blades should be checked for sharpness and the bolts attaching them to the flywheel for
tightness before each operation.
• Replace the nylock nuts securing the blade every time you replace the blade.
• Check the gap between the blade and wear plate every time you sharpen or replace the
blade.
• Never tamper with safety devices. Check their proper operation regularly.
• Inspect the belt each time you use the unit. Look for damage, worn areas or tears. Do not
use the unit if this condition exists.
• Do not tamper with the engine’s governor setting. The governor controls the maximum safe
operation speed and protects the engine. Over-speeding the engine is dangerous and will
cause damage to the engine and to the other moving parts of the machine.
OPC514 man. v.210412 | 13
ENGLISH
SAFETY
SAFE OPERATION PRACTICES
TOP VIEW
OPERATOR ZONE
• Only operate your chipper from the operator zone.
• Know how to turn your unit o.
• Never move your chipper or leave it unattended with the engine running.
• Follow engine owner’s manual for engine maintenance and repair
HAZARD: This unit is equipped with an internal combustion engine and should not
be used on or near any unimproved forest-covered, brush-covered or grass-covered
land unless the engine’s exhaust system is equipped with a spark arrester applicable
to local or state laws (if any). If a spark is used, the operator should maintain it in
eective meeting arrester working order.
YOUR RESPONSIBILITY
• Restrict the use of this power machine to persons who read, understand and follow the
warnings and instructions in this manual and on the machine.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
In the State of California, the above is required by law (section 4442 of the California Public
Resources Code). Other states may have similar laws. Federal laws apply on federal lands. A
spark arrester for the muer is available through your Kohler servicing dealer.
FOOT PLATE
OPERATOR ZONE
OPERATOR ZONE
INFEED
ENGINE
SECTION II
ASSEMBLY
16 | OPC514 man. v.210412
ENGLISH
ASSEMBLY
PACKAGE CONTENTS
SKID PARTS BOX BOLT BAG
CHIPPER CHIPPER HOPPER 4 EA ⁄18 X ⁄” CARRIAGE BOLTS
HITCH ARMS STAND 4 EA ⁄18 NYLOCK NUT
HITCH ASSEMBLY GLASSES 4 EA ⁄ USS FLATWASHER
PARTS BOX OWNER’S MANUAL 2 EA ⁄13 X 3” HHCS
ENGINE MANUAL 4 EA ⁄ 13 X 1 ⁄” HHCS
BOLT BAG 2 EA ⁄13 GRIPCO NUT
WIRE HARNESS 1 EA ⁄ HAIR COTTER PIN
10 EA 14 ⁄” CABLE TIES 2 EA HITCH ARM MOUNTING PLATES
BLADE GAUGE 2 EA ENGINE KEY
TOOLS REQUIRED FOR ASSEMBLY
• ⁄” Wrench or Socket - 2 required
• ⁄” Wrench or Socket - 2 required
UNPACKING AND CHECKING THE CONTENTS
• Remove all the items from the crate.
• After unpacking the crate, compare the contents with the list above.
• If any parts are missing, please contact DK2 POWER directly.
• Assembly should be done on a clean, level surface.
OPC514 man. v.210412 | 17
ENGLISH
ASSEMBLY

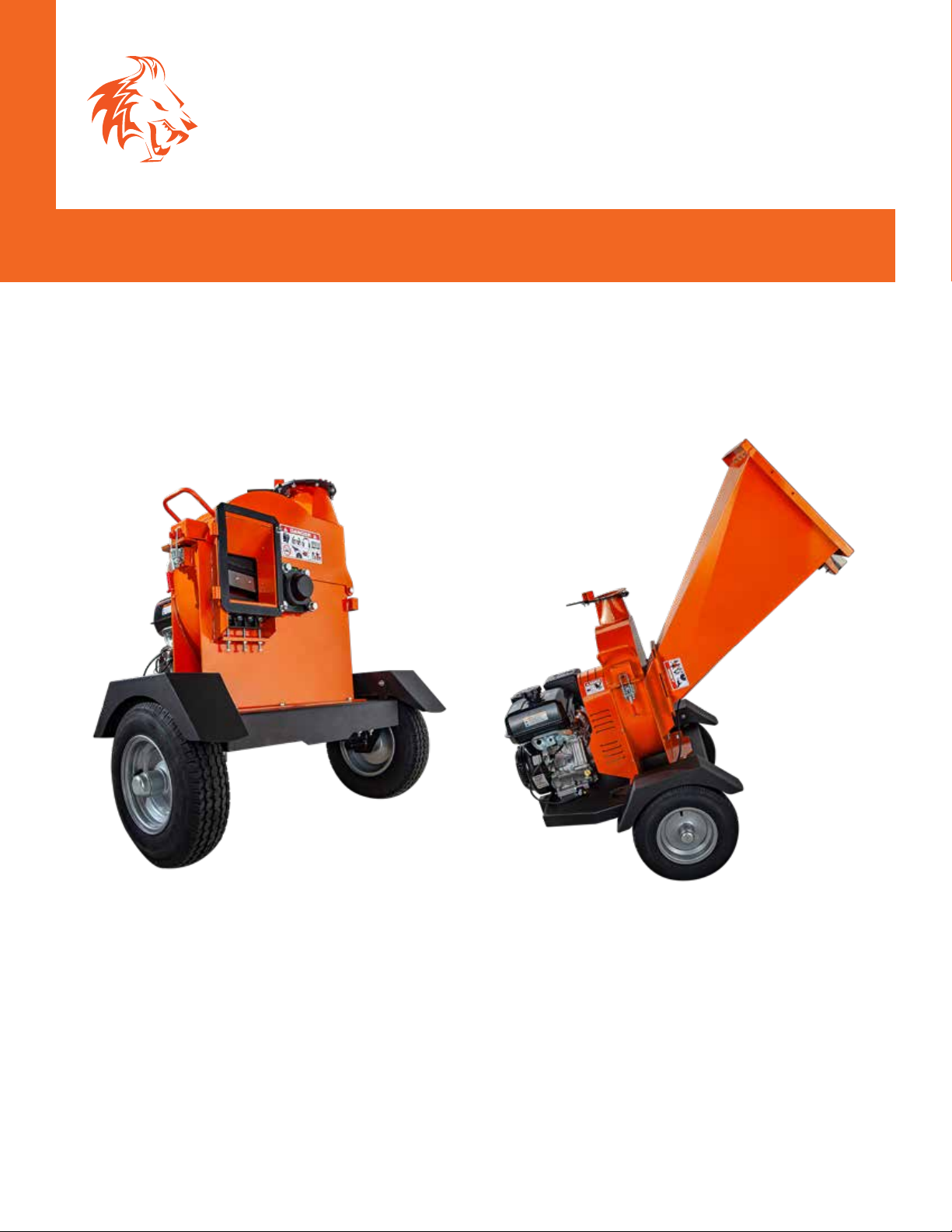

PACKAGE CONTENTS
18 | OPC514 man. v.210412
ENGLISH
ASSEMBLY
STEP BY STEP INSTRUCTIONS

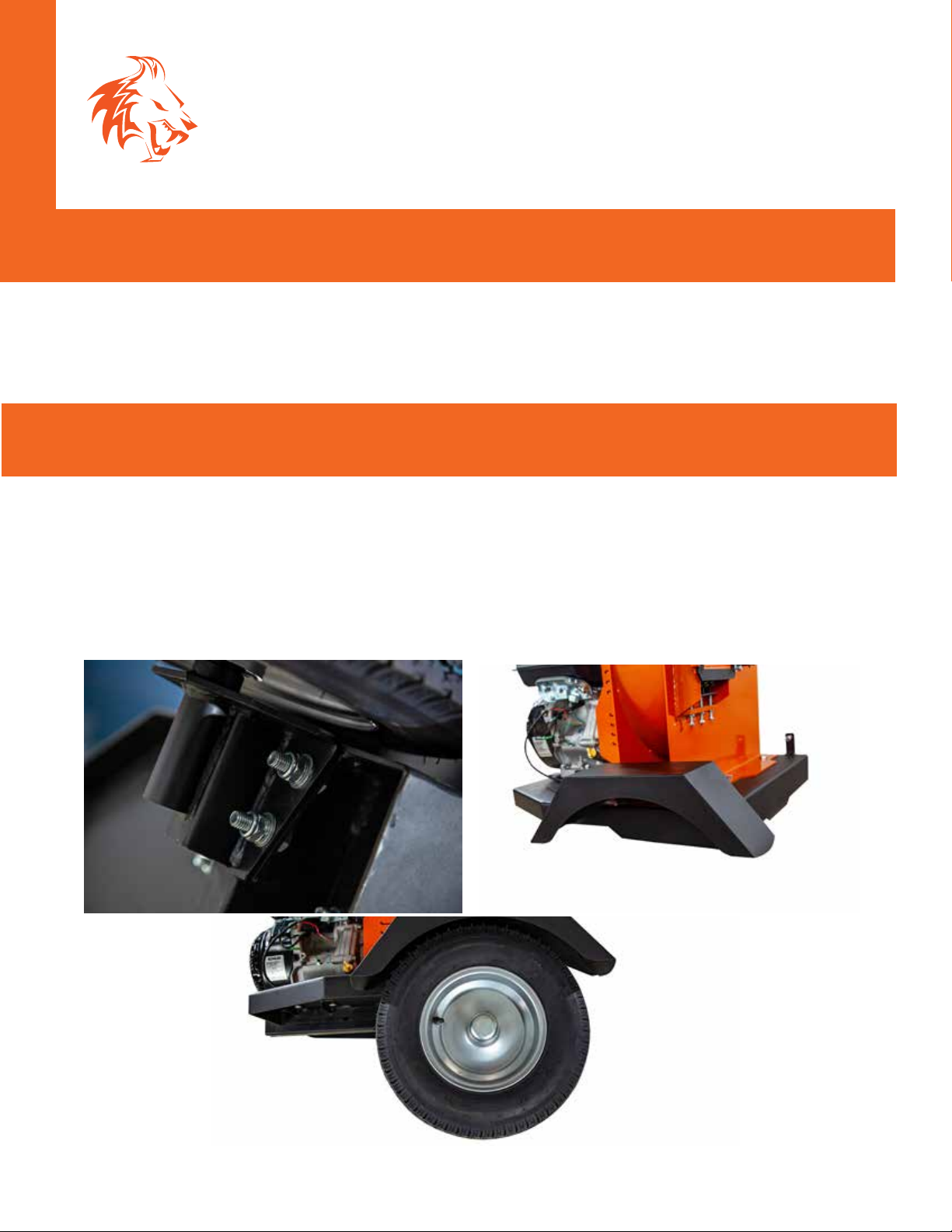

STEP 1: ATTACHING THE TIRES
1. Attach the wheel axis (2) to the chassis (1) using M12x30 hex bolt (60), flat washer 12 (53) and
lock nut M12 (54).
2. Attach the wheel (3) to the wheel axis (2), lock the M24x1.5 hex slotted nut (56) in place using
the 4x45 split pin (55) and install the dust cap (4) on the end using a rubber mallet.
3. Attach the fender (43) to the chassis (1) using M8x20 hex bolt (63), flat washer 8 (64) and M8
lock nut (65).
Set the shipping crate on a solid flat surface and carefully remove the lid. Use two people and
take all parts out of the crate and inspect the components to ensure there are no missing pieces
before starting to assemble the wood chipper.
WOOD CHIPPER ASSEMBLY
OPC514 man. v.210412 | 19
ENGLISH
ASSEMBLY
STEP BY STEP INSTRUCTIONS
65
63
4
56
3
2
53
60
54
1
55
64
20 | OPC514 man. v.210412
ENGLISH
ASSEMBLY
STEP BY STEP INSTRUCTIONS
STEP 2: INSTALLING THE FEED HOPPER
Attach the feeding hopper (14) to the cutter disk base (6) with the rubber frame (15) between the
two pieces, and install using M8x25 hex bolt (72), flat washer 8 (64) and M8 lock nut (65).
Table of contents
Languages:
