DLG Peal Vision Q-EYE Q10 User manual

KEEP THIS USER MANUAL FOR FUTURE NEEDS

2
1. Introduction......................................................................................... 3
2. General Guidelines ............................................................................. 3
3. Safety Instructions.............................................................................. 4
4. Cleaning and Maintenance................................................................. 5
5. Technical Parameters.......................................................................... 6
6. Functions of Buttons.......................................................................... 7
7. Menu Function...................................................................................... 8
8. DMX Channels......................................................................................10

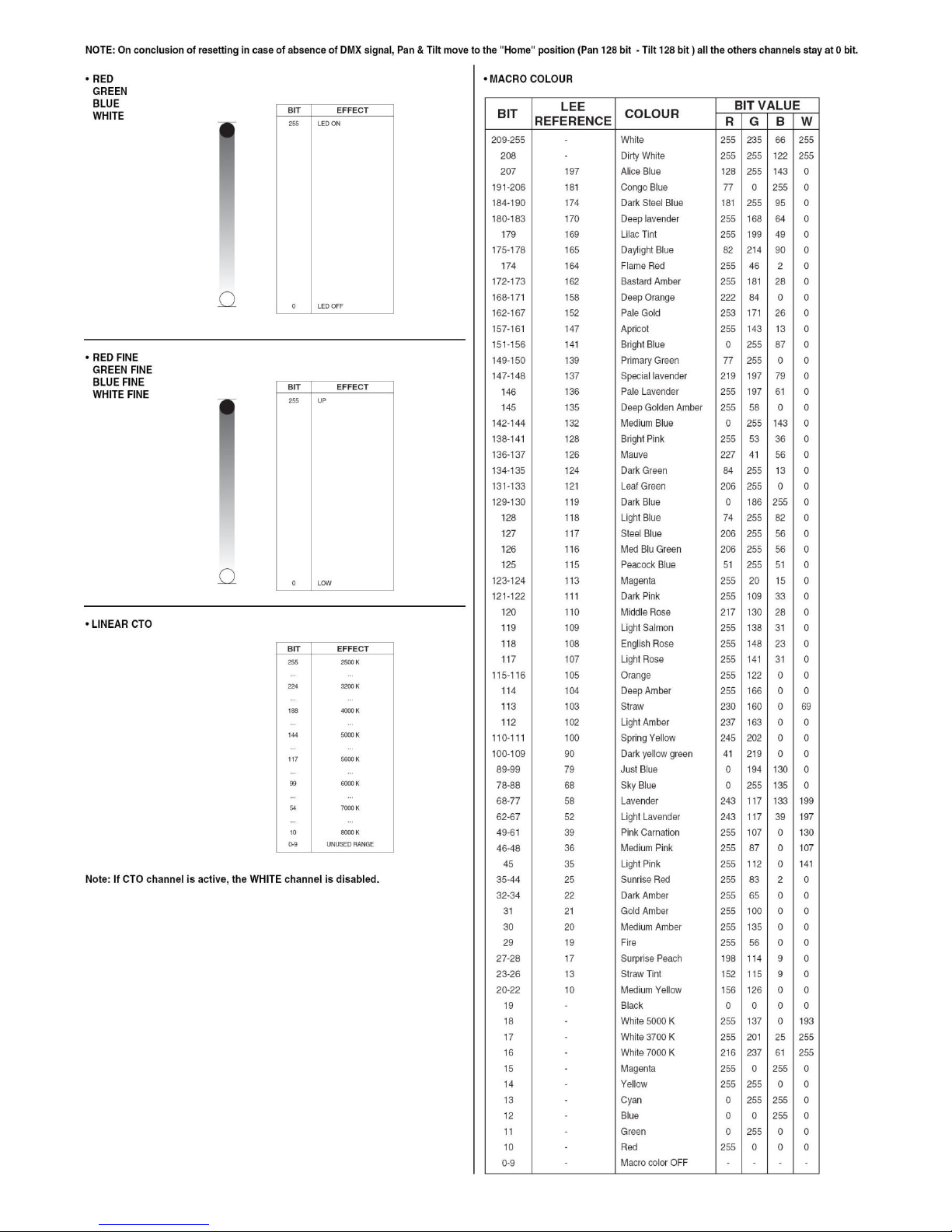

9. Macour Color Details .......................................................................... 12
10. Strobe/Dimmer/Pan/Tilt/Function Details.......................................... 13

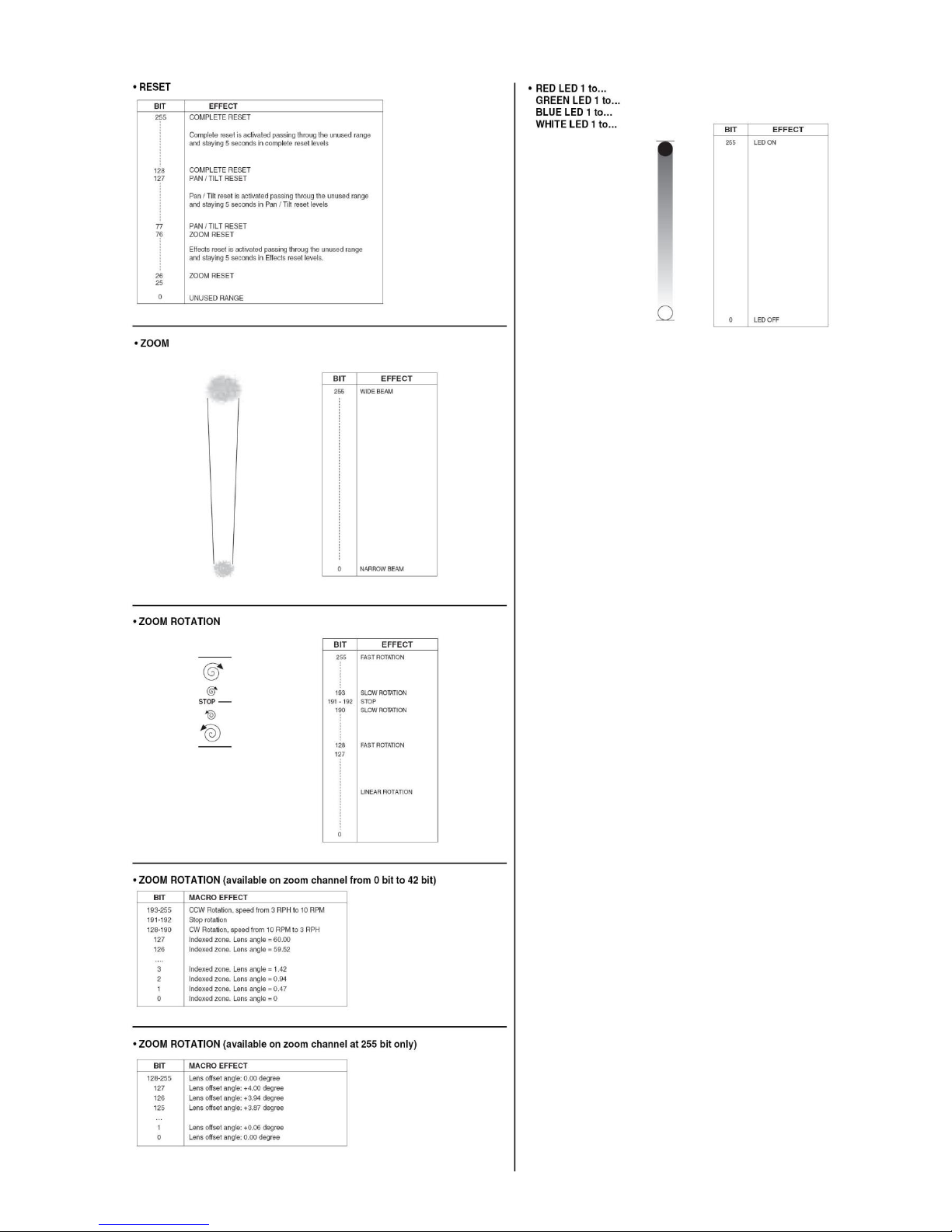

11. Reset/Zoom Details..............................................................................14

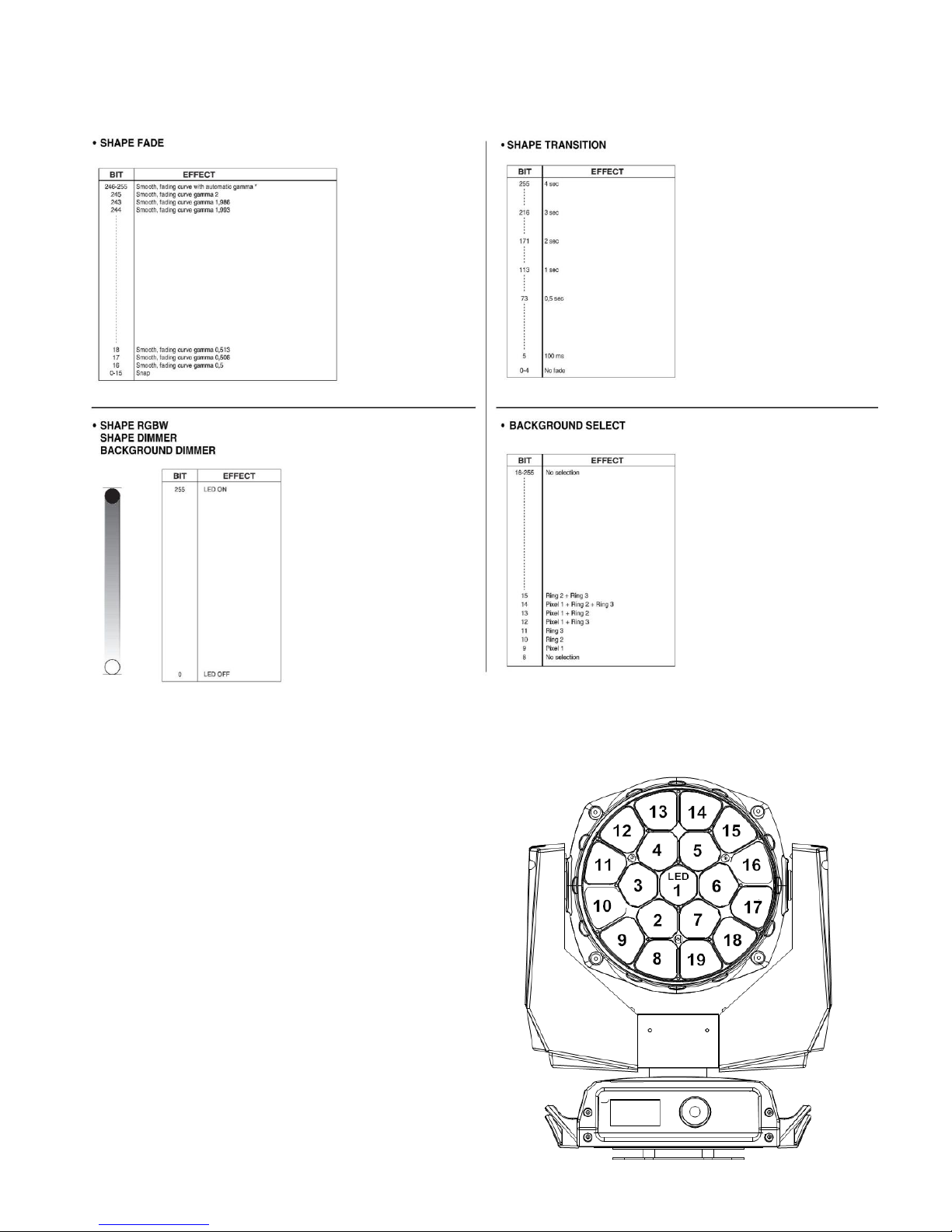

12. Shape Details .......................................................................................15
13. LED Pixel Details................................................................................. 18
14. Remark.................................................................................................. 19

3
Thank you for your patronage!
We are confident that our excellent products and service can satisfy you.
For your own safety, please read this user manual carefully before installing the device.
In order to install, operate, and maintain the lighting safety correctly.
We suggest that the installation and operation should be done by the verified technician and
follow the instruction strictly.
Every person involved with the installation, operation and maintenance of this device has to:
-be qualified
-follow carefully the instructions of this manual
INTRODUCTION:
Thank you for having chosen this professional moving head.
You will see you have acquired a powerful and versatile device.
Unpack the device. Inside the carton box you should find:
1. One power in cable&power out connector
2. One 3Pin DMX cable
3. Two C omega clamps
4. One safetyrope
5. One English user manual
（Flight case, Clamps are optional, please contact your dealer）
Please check carefully that there is no damage caused by transportation. Should there be any
questions, please consult your dealer and don’t install this device.
GENERAL GUIDELINES
This device is a lighting effect for a professional use on stages, TV, in discotheques, theaters, etc.,
The device was designed for indoor use only.
This fixture is only allowed to be operated with the max alternating current which stated in the
technical specifications in 6th page of this manual.
Lighting effects are not designed for permanent operation. Consistent operation breaks may
ensure that the device will serve you for a long time without defects.
Do not shake the device. Avoid brute force when installing or operating the device.
While choosing the installation-spot, please make sure that the device is not exposed to extreme
heat, moisture or dust. Please don’t project the beam onto combustible substances. The
minimum distance between light-output from the projector and the illuminated surface must be
more than 0,5meter.
If you use the quick lock cam in hanging up the fixture, please make sure the quick lock fasteners
CAUTION!
Keep this device away from rain and moisture!
CAUTION!
Unplug mains lead before opening the housing!

4
turned in the quick lock holes correctly.
Operate the device only after having familiarized with its functions. Do not permit operation by
persons not qualified for operating the device. Most damages are the result of unprofessional
operation.
Please use the original packaging if the device is to be transported.
For safety reasons, please be aware that all modifications on the device are forbidden. If this
device will be operated in any way different to the one described in this manual, the product may
suffer damages and the guarantee becomes void. Furthermore, any other operation may lead to
short-circuit, burns, electric shock, crash, etc.
SAFETY INSTRUCTIONS
This device has left the factory in perfect condition. In order to maintain this condition and to
ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions
and warning notes written in this usermanual.
1. In order to guarantee the product’s life, please don’t put it in the damp places or even the
environment over 60degress.
2. Always mount this unit in safe and stablematter.
The qualified professionals are allowed to carry out the lamp installation, operation and
maintenance, but they must guarantee to operate in strict accordance with the instructions
referred to.
▲ Important:
Damages caused by the disregard of this user manual are not subject to warranty.
The dealer will not accept liability for any resulting defects or problems.
If the device has been exposed to temperature changes due to environmental changes, do not
switch it on immediately. The arising condensation could damage the device. Leave the device
switched off until it has reached room temperatures.
This device falls under protection-classⅠ. Therefore it is essential that the device be earthed.
The electric connection must carry out by qualified person.
Make sure the power cord is never crimped or damaged by sharp edges. If this would be the case,
replacement of the cable must be done by an authorizeddealer.
Always disconnect from the mains, when the device is not in use or before cleaning it. Only
handle the power cord by the plug. Never pull out the plug by tugging the power cord.
During initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective, it should decrease gradually.
Please don’t project the beam onto combustible substances.
If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced
by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
CAUTION!
Be careful with your operations. With a dangerous voltage you can suffer a
dangerous electric shock when touching wires!

5
CAUTION!
Disconnect from mains before starting maintenance operation!
Please be aware that damages caused by manual modifications to be the device are not
subject to warranty. Keep away from children and non-professionals.
CLEANING AND MAINTENANCE
1. Toreduce the risk of electrical shock or fire, do not expose this unit to rain ormoisture.
2. Do not spill water or other liquids into or on to your unit.
3. During long periods of non-use, disconnect the unit’s main power.
4. It should be installed in a well-ventilated place, at a distance of 50 centimeters or more with the
walls. At the same time, please check if the fan and ventilation holes are unobstructed.
The following points have to be considered during the inspection
1) All screws for installing the devices or parts of the device have to be tightly connected and
must not be corroded.
2) There must not be any deformations on the housing. Fixations and installations spots(ceiling,
suspension, trussing).
3) Mechanically moved parts must not show any traces of wearing and must not rotate with
unbalances.
4) The electric power supply cables must not show any damage, material fatigue or sediments.
Further instructions depending on the installation spot and usage have to be adhered by a
skilled installer and any safety problems have to beremoved.
In order to make the lights in good condition and extend the life time, we suggest a regular
cleaning to the lights.
1) Clean the inside and outside lens each week to avoid the weakness of the lights due to
accumulation of dust.
2) Clean the fan each week.
3) A detailed electric check by approved electrical engineer each three month, make sure that
the circuit contacts are in good condition, prevent the poor contact of circuit from overheating.
We recommend a frequent cleaning of the device. Please use a moist, lint-free cloth. Never use
alcohol or solvents.
CAUTION!
Never touch the device during operation!
The housing may heat up!
CAUTION!
Never look directly into the light source,
As sensitive persons may suffer an epileptic shock.

6
TECHNICAL PARAMETERS
POWER SUPPLY
Voltage:110-240V 50/60 Hz
LIGHT SOURCE
19x15w RGBW 4in1 Osram Ostar Leds
Dedicated channel for color temperature setting: 2500K-8000K adjustable
Average life: 50,000 h
OPTICS
Special Pods: 5cm x19pcs, convey the light output of each led to the quadrangle lens, internal
light dissipation is decreased, color mixing and the light output are enhanced.
19pcs in total with 4 different shapes:
1 sexangle,6 pentagons 6 quadrangles and 6 opposite quadrangles.
Zoom angle:4-60°
0-100% linear electronic dimmer
Adjustable speed stop/strobe effect, with instantaneous blackout
Dedicated channel for color temperature setting.
EFFECTS SECTION
Uniform wash: no dark spot in the middle benefit from its perfect optic and Invisible front grid.
Mid-air parallel beam, when the beam is zoomed down to 4°,the wash light turns into a “beam”
fixture.
Spectacular graphic effects, Rotation version brings a new never-seen bore feature, the front lens
may be rotated with “vortex”and “kaleidoscope” effects.
Variable Built-in Dynamic effects: Each leds can be controlled individually, shape speed,shape
offset, shape fade and background select are available.
CONTROL AND PROGRAMMING
5 channel models
Display: LCD display with 5 operating buttons
Pan/Tilt Resolution: 16 bit
DMX signal connection: 3pin and 5pin in&out
Power connection: Powercon in&out
Cooling:High efficiency die-cast aluminium, forced ventilation
MOVING BODY
6 stepper motors,1 for rotation, 3 for zooming, and 2 for XY,
operating with microsteps, totally microprocessorcontrolle
Movement by means of 3 phase stepper motors, controlled by microprocessor.
Automatic re-position of pan and tilt after accidental movement not controlled by control unit.
Travel: PAN = 540° ,TILT = 210°
WEIGHT
15KG

7
FUNCTIONS OF BUTTONS
Reversal of the display
To activate this function, press UP and DOWN keys simultaneously while the display is in the rest
mode.This status will be memorised and maintained even for the next time it will be switched on.
To return to the initial state, repeat the operation all over again.
Confirms the displayed value, or activates the displayed function,
or enters the successive menu.
Decreases the value displayed (with auto-repetitions) or passes to
the next item in the menu.
Increases the value displayed (with auto-repetitions) or passes to
the previous item in a menu.
Return to the top level.
Commute from units, tens, hundreds, in the "Address", "Fixture ID"
and "Calibration" menu.
USING THE MENU:
1 ) Press “OK” once –“Main Menu” appears on the display.
2) Use the UP and DOWN keys to select the menu to beused:
• Setup (Setup Menu): Toset the setting options.
• Option (Option Menu): Toset the operating options
• Informations (Informations Menu): Toread the counters, software version and other information.
• Manual Control (Manual control Menu): Totrigger the test and manual controlfunctions.
• Test (Test Menu): Tocheck the proper functionning of effects
• Advanced (Advanced Menu): Access to the "Advanced menu" is recommended for a trained
technical personnel.
"Advanced" password:988
3) Press “OK” to display the first item in the selected menu.
4) Use the UP and DOWN keys to select the MENUitems.

8
MENU FUNCTION

9

10
DLG Q-EYE Q10 EASY CHANNEL LIST
STANDARD
SHAPE
EXTENDED
EXTENDED RGBW
FULL
CH
Channel Mode
Ch
Channel Mode
Ch
Channel Mode
Ch
Channel Mode
Ch
Channel Mode
1
Red
1
Red
1
Red
1
Red
1
Red
2
Red fine
2
Red fine
2
Red fine
2
Red fine
2
Red fine
3
Green
3
Green
3
Green
3
Green
3
Green
4
Green fine
4
Green fine
4
Green fine
4
Green fine
4
Green fine
5
Blue
5
Blue
5
Blue
5
Blue
5
Blue
6
Blue fine
6
Blue fine
6
Blue fine
6
Blue fine
6
Blue fine
7
White
7
White
7
White
7
White
7
White
8
White fine
8
White fine
8
White fine
8
White fine
8
White fine
9
Linear CTO
9
Linear CTO
9
Linear CTO
9
Linear CTO
9
Linear CTO
10
Macro color
10
Macro color
10
Macro color
10
Macro color
10
Macro color
11
Strobe
11
Strobe
11
Strobe
11
Strobe
11
Strobe
12
Dimmer
12
Dimmer
12
Dimmer
12
Dimmer
12
Dimmer
13
Dimmer fine
13
Dimmer fine
13
Dimmer fine
13
Dimmer fine
13
Dimmer fine
14
Pan
14
Pan
14
Pan
14
Pan
14
Pan
15
Pan fine
15
Pan fine
15
Pan fine
15
Pan fine
15
Pan fine
16
Tilt
16
Tilt
16
Tilt
16
Tilt
16
Tilt
17
Tilt fine
17
Tilt fine
17
Tilt fine
17
Tilt fine
17
Tilt fine
18
Function
18
Function
18
Function
18
Function
18
Function
19
Reset
19
Reset
19
Reset
19
Reset
19
Reset
20
Zoom
20
Zoom
20
Zoom
20
Zoom
20
Zoom
21
Shape selection
21
Red Led 1
21
Red Led 1
21
Shape selection
22
Shape speed
22
Green Led 1
22
Green Led 1
22
Shape speed
23
Shape fade
23
Blue Led 1
23
Blue Led 1
23
Shape fade
24
Shape R
......
Red Led...
24
White Led 1
24
Shape R
25
Shape G
75
Red Led 19
25
Red Led 2
25
Shape G
26
Shape B
76
Green Led 19
26
Green Led 2
26
Shape B
27
Shape W
77
Blue Led 19
27
Blue Led 2
27
Shape W
28
Shape Dimmer
28
White Led 2
28
Shape Dimmer
29
Background Dimmer
…
Red Led…
29
Background Dimmer
30
Shape transition
…
Green Led….
30
Shape transition
31
Shape offset
….
Blue Led….
31
Shape offset
32
Foreground strobe
….
White Led….
32
Foreground strobe
33
Background strobe
93
Red Led 19
33
Background strobe
34
Background select
94
Green Led 19
34
Background select
95
Blue Led 19
…
Red Led 1
96
White Led 19
…
Green Led 1
….
Blue Led 1
89
Red Led 19
90
Green Led 19
91
Blue Led 19

11
DLG Q-EYE Q10 CHANNEL LIST
STANDARD
SHAPE
EXTENDED
EXTENDED RGBW
FULL
Ch
Channel Mode
Ch
Channel Mode
Ch
Channel Mode
Ch
Channel Mode
Ch
Channel Mode
1
Red
1
Red
1
Red
1
Red
1
Red
2
Red fine
2
Red fine
2
Red fine
2
Red fine
2
Red fine
3
Green
3
Green
3
Green
3
Green
3
Green
4
Green fine
4
Green fine
4
Green fine
4
Green fine
4
Green fine
5
Blue
5
Blue
5
Blue
5
Blue
5
Blue
6
Blue fine
6
Blue fine
6
Blue fine
6
Blue fine
6
Blue fine
7
White
7
White
7
White
7
White
7
White
8
White fine
8
White fine
8
White fine
8
White fine
8
White fine
9
Linear CTO
9
Linear CTO
9
Linear CTO
9
Linear CTO
9
Linear CTO
10
Macro color
10
Macro color
10
Macro color
10
Macro color
10
Macro color
11
Strobe
11
Strobe
11
Strobe
11
Strobe
11
Strobe
12
Dimmer
12
Dimmer
12
Dimmer
12
Dimmer
12
Dimmer
13
Dimmer fine
13
Dimmer fine
13
Dimmer fine
13
Dimmer fine
13
Dimmer fine
14
Pan
14
Pan
14
Pan
14
Pan
14
Pan
15
Pan fine
15
Pan fine
15
Pan fine
15
Pan fine
15
Pan fine
16
Tilt
16
Tilt
16
Tilt
16
Tilt
16
Tilt
17
Tilt fine
17
Tilt fine
17
Tilt fine
17
Tilt fine
17
Tilt fine
18
Function
18
Function
18
Function
18
Function
18
Function
19
Reset
19
Reset
19
Reset
19
Reset
19
Reset
20
Zoom
20
Zoom
20
Zoom
20
Zoom
20
Zoom
21
Zoom Rotation
21
Zoom Rotation
21
Zoom Rotation
21
Zoom Rotation
21
Zoom Rotation
22
Shape selection
22
Red Led 1
22
Red Led 1
22
Shape selection
23
Shape speed
23
Green Led 1
23
Green Led 1
23
Shape speed
24
Shape fade
24
Blue Led 1
24
Blue Led 1
24
Shape fade
25
Shape R
......
Red Led...
25
White Led 1
25
Shape R
26
Shape G
76
Red Led 19
....
Red Led...
26
Shape G
27
Shape B
77
Green Led 19
....
Green Led....
27
Shape B
28
Shape W
78
Blue Led 19
....
Blue Led....
28
Shape W
29
Shape Dimmer
....
White Led....
29
Shape Dimmer
30
Background Dimmer
90
Red Led 18
30
Background Dimmer
31
Shape transition
91
Green Led 18
31
Shape transition
32
Shape offset
92
Blue Led 18
32
Shape offset
33
Foreground strobe
93
White Led 18
33
Foreground strobe
34
Background strobe
94
Red Led 19
34
Background strobe
35
Background select
95
Green Led 19
35
Background select
96
Blue Led 19
....
Red Led 1
97
White Led 19
….
Green Led 1
....
Blue Led 1
90
Red Led 1
91
Green Led 19
92
Blue Led 19

12

13

14

15
SHAPE MODE DESCRIPTION
CONCEPTS: FOREGROUND AND BACKGROUND
The powerful shapes engine embedded in the DLG Q-EYE Q10 and Q10 EASY allows the user to set all the
possible parameters relating to the pixels of the light in an organic way, with a distinction between the pixels affected
by a selected "image" and the ones that are not affected by that specific image (more properly called SHAPE from
now on).
The macro called "ring 2" will, as an example, involve all the pixels that compose the ring of the unit, while the
middle pixel and the 1 smaller ring will not be affected by the shape. The involved pixels will belong to the"Foreground"
layer, while all the remaining pixels will belong to the "Background" layer.
Pixels on the foreground take the colour the user will select specifically for them using the dedicated channels, while the
remaining pixels will all maintain the colours related to thewashlight.
SHAPE PARAMETERS DESCRIPTION
SHAPE
SELECTION
Allows to choose the kind of shape to be visualized amongst the 63 available ones. Each shape
can be composed of a multitude of frames or be a single, static image.
SHAPE SPEED
Allows to set the speed at which the different frames of the selected shape are played by the unit.
SHAPE FADE
In case of shapes with multiple frames, it allows to select a snap or faded variation from frame to
frame of the same shape.
SHAPE RGBW
Allows to select the colour of the pixels composing the selected shape, if all are left at 000 no
shape will be visualized (unless the background dimmer and normal RGBW attributes of the unit
are given a value, in which case a "negative" of the macro will be shown)
SHAPE
DIMMER
Allows to select the overall brightness of the pixels involved in the selected shape.
BACKGROUND
DIMMER
Allows to select the overall brightness of the pixels NOT involved by the selected shape.
The relevant colour is set using the normal RGBW channels of the washlight.
SHAPE
TRANSITION
Internal fade time between a shape and another one set via DMX. Using this "channel" when you
change from a shape to a different one as if it was the console fade time will avoid the scrolling
effect normally visible when having fades between eg. gobo changes is traditional lights. Fade
time on the console should be set to0.
SHAPE OFFSET
Depending on the selected shape the channel sets the "density" of the involved pixels (few
random pixel, many random pixels) or enables an internal algorithm that will distribute the macro
between a multitude of lights on a specific DMX line basing on their DMX starting address.
FOREGROUND
STROBE
Allows to set a strobe rate for the pixels involved in a macro.
BACKGROUND
STROBE
Allows to set a strobe rate for the pixels NOT involved in a macro.
BACKGROUND
SELECT
Allows to reduce, if needed, the background to a lower amount of "rings". With selected macros
this allows to mirror the image between the two halves of the fixture's head (in this case the
RGBW channels of the washlight will set the colour of the mirrored half and the background will
remain black.
Note:
Foreground Shape Effect:
Shapes will be available while (Dimmer CH12),(Strobe CH11), (Shape dimmer CH29), (Foreground strobe CH33),
(Shape color CH25/26/27/28) turned on then selecting the Shapes on (Shape Selection CH22) with different speed
on (Shape Speed CH23).
Background Effect: Meanwhile the (BG dimmer CH30), (BG strobe CH34), (Color RGBW CH1/3/5/7) turned on.
(CH value mentioned above is based on SHAPE MODE L10Rotation)
Vortex effect: With Shape slot 3(Ring 2 on Shape Selection Value 10) and Zoom rotation turned on.

16
SHAPE SELECTION*SHAPE SPEED*SHAPE OFFSET*SHAPE FADE*BACKGROUND SELECT
Shape
Selection
Shape
Slot
Shape Name
Random
Colors
*1
Shape Speed
Shape Offset
Shape Fade
Background
Select(*3)(*4)
0-7
Macro OFF
No
No
No
No
No
8
1
Pixel 1
No
No
No
0=snap
effect
1-255=Fade
effect
0-7=Wash
8-15=Bgrings
16-255 wash
9
2
Ring 1
10
3
Ring 2
11
4
Reserved
12
5
Pixel 1+ring1
13
6
Pixel 1+ring2
14
7
Reserved
15
8
Single ring
(Ramp -/+)
Yes
0-63 = Radius size, static
64-158 = max to min
speed,Closing effect
159-160 = STOP
161-255 = min tomax
speed,Openingeffect
0-9 →
continuous
10-255→
random
Distribution
of flash
From 2 to20
fixtures
0=snap
effect
1-255=Fade
effect
0-7=Wash
8-15=Bgrings
16-255 wash
16
9
Filled ring
(Ramp -/+)
Yes
17
10
Open/Close 1
Yes
18
11
Open/Close 2
Yes
19
12
Random pixels
1
Yes
0-63 = STOP
64-158 = max to min speed,
Instant-on + fadeout.
159-160 = STOP.
161-255 = min to max
speed,FadeIn+ FadeOut.
0-255→ select
random
distribution
from 2 up to
20 fixtures
0=snap
effect
1-255=Fade
effect
0-7=Wash
8-15=Bgrings
16-255 wash
All fixtures:
255=Mirroreffect
20
13
Random pixels
2
Yes
0-255 Select
pixel density
21
14
Rainbow 1
(Variable
speed)
N0
0-63 = Angle 0-360°, static.
64-158 = max tomin speed,
c.cwrotation
159-160=STOP
161-255 =min to max speed,
Cw rotation
0-255 angle
offest from 0
to 360°
0=snap
effect
1-255=Fade
effect
0-7=Wash
8-15=Bgrings
16-255 wash
22
15
Rainbow 2
(Fixed speed
withvariable
coloroffset)
N0
0-63 = STOP
64-158 = c.cw rotation
159-160 = STOP
161-255 = cw rotation
The value 64-158 or 161-255
change the rainbow angle
offset
(the orange starting angle).
N0
0=snap
effect
1-255=Fade
effect
0-7=Wash
8-15=Bgrings
16-255=wash
23
16
Fan
N0
0-63 = Angle 0-360°, static.
64-158 = max tomin speed,
c.cwrotation
159-160=STOP
161-255 =min to max speed,
Cw rotation
0-255 → angle
offset from 0
to 360°
0=snap
effect
1-255=Fade
effect
0-7=Wash
8-15=Bgrings
16-255 wash
For all fixtures:
Marco 25 26
255=Mirror Effect
with bkgndcolor
Macro 27 28 29
255= Show
AlternativeColor
24
17
Bar 1
25
18
Half moon
26
19
Triangle
27
20
Segment 1
28
21
Arc 1
29
22
Arc 2

17
Shape
Selection
Shape
Slot
Shape Name
Random
Colors *1
Shape Speed
Shape Offset
Shape Fade
Background
Select
(*3)(*4)
30
23
Bar 2 (Variable
size)
N0
0-63 = STOP, indexed
speed
64-158 = max to min
speed,
c.cw rotation.
159-160 =STOP.
161-255 = min to max
speed cc
rotation.
0-255 → select
shape width
0 = Snap
effect
1-255 =
Fade effect
0-7 = wash
8-15 = Bkgnd
rings
selection
16-254 =
wash
255 =Mirror
effet with
bkgndcolor
Note: Mirror
effect
unavailable
for macro31.
Macro
67,68,69:the
mirroreffect
is available
only for
options1,3,9
31
24
Rando explosion
Yes
0-255 → select
Random distribution
0=Snap effect
1-255=select
the wake of
the faded
macro
32
25
Segment 2
N0
0-255 → select
shape width
33
26
Reserved
0-255 → select
macro offset
0=Snap effect
34
27
Reserved
35
28
Bumping Selection
36
29
Ramp by 6
0-255 → select
shape width
0=Snap effect
1-255=select
the wake of
the faded
macro
37
30
Ramp by 4
38
31
Left/Right
scrolling bar
39
32
Up/Down
scrolling bar
40
33
Bar 3
0-255 → select
macro offset
0 = Snap
effect
1-255 = Fade
effect
41
34
Reserved
42
35
Vertical arc 2
43
36
Reserved
44
37
Horizontal arc 2
45
38
Mirrored pixel
0-255 → select
shape width
0=Snap effect
1-255=select
the wake of
the faded
macro
46
39
Pixel animation 1
47
40
Pixel animation 2
48
41
Pixel animation 3
49
42
Pixel animation 4
50
43
Pixel animation 5
51
44
Semi arc (Ramp -
/+)
52
45
Bumping arc
section
0-255 → select
shape offset
0 = Snap
effect
1-255 = Fade
effect
53
46
Pixel animation 6
54
47
Vertical ramp by 2
0-255 → select
shape width
0=Snap effect
1-255=select
the wake of
the faded
macro
55
48
Following pixel by2
56
49
Syncopation
0-255 → select
macro offset
0 = Snap
effect
1-255 = Fade
effect
57
50
Bumping 1
58
51
Bumping 2
59
52
Bumping 3
60
53
Vertical pixel
scrolling
0-255 → select
macro width
0=Snap effect
1-255=select
the wake of
the faded
macro
61
54
Vertical pixel
scrolling
0-255 → select
random distribution
0 = Snap
effect
1-255 = Fade
effect
62
55
Random centra
section
Yes
63
56
Random ring 2
64
57
Reserved
65
58
Random ring 1+2
66
59
Random ring 2
67
60
Single pixel ring 1
NO
0-255→select the
NO.of led:1,2,3,6,9
this NO. depends on
the ring size
0=Snap effect
1-255=select
the wake of
the faded
macro
68
61
Single pixel ring 2
69
62
Reserved
70
63
Spiral
0-255 → select
macro width

18
DLG Q-EYE Q10 & EASY
LED reference number for pixelmapping
TILT: channel 16 @ 200 bit

19
PACKING CONTENTS
CAUTION!
Before packing, please get the zoom lens back inside.(Please match the ARROWS with the DOT)
Without this operation, there will be damage of the fixture!
REMARK
The product has perfect performance and intergrity packing. All users should be strictly comply with the warning
and operating instructions as stated. Or we aren’t in charge of any result by misusing.
Any damage resulting by misuse is not within the Company’s warranty.
Any fault or problem caused by neglecting the manual is also not in the charge of dealers.
Errors and omissions for every information given in this manual excepted.
All information is subject to change without prior notice.
