DLG E-BOX-48100R LFP Battery User Manual
DLG (SHANGHAI) Electronic Technology CO., LTD.
DLG E-BOX-48100R LFP Battery User Manual
Dear customer,
This is your DLG E-BOX-48100R LFP battery for home energy storage
system. We provide safe, well-designed and high-performance standard LFP
battery pack for you. The battery pack is compact, easy to install, free of
maintenance and used as the building block of energy storage system by
assembling in parallel. It is widely applied in home applications, small
commercial and industrial energy storage system as well as Telecom stations.
This manual contains all the information necessary to install, use and
maintain the LFP battery. We kindly ask you to read this manual carefully before
using the product.
This manual is meant for the installer and the user of the LFP battery. Only
trained and qualified staff may install and perform maintenance on the LFP
battery.
The boundaries of its use, as described in this manual should be kept in
mind. The LFP battery may not be used in medical or in aviation related
applications. The LFP battery may not be used for any purposes other than
described in this manual. Using the LFP battery for any other purpose will be
considered improper use and will void the warranty of the product. DLG cannot
be held responsible for any damage caused by improper, incorrect or unwise
use of the product. Read and understand this manual completely before using
the product. During the use of the product, user safety should always be
ensured, so installers, users, service personnel and third parties can safely use
the LFP battery.
This is the original manual, keep it in a safe location! Please consult
http://www.dlg-battery.com for the latest version of all manuals.
DLG (SHANGHAI) Electronic Technology CO., LTD.
Add: No.3492 Jinqian Road, Qingcun Town, Fengxian District, Shanghai, China.
Website: http://www.dlg-battery.com
Tel: [phone]
Email: [e-mail]

DLG E-BOX-48100R LFP Battery User Manual
DLG (SHANGHAI) Electronic Technology CO., LTD.
Used Symbols
The following icons will be used throughout the manual:
Before the start
“Danger” indicates a high risk of danger. If you do not follow the
instructions, it may cause serious personal injury or even death.
“Warning” indicates a possible hazard which, if not observed, could
result in severe personal injury or equipment damage.
“Caution” indicates a possible hazard which, if not observed, can
result in serious equipment damage.
Warning
Caution
Danger

DLG E-BOX-48100R LFP Battery User Manual
DLG (SHANGHAI) Electronic Technology CO., LTD.
Before Using
Read and understand the following instructions:
This equipment may only be installed, operated and maintained by
trained and qualified staff.
The local safety regulations and relevant operating procedures must
be observed during the installation, operation and maintenance of the
equipment, otherwise the equipment may be damaged. The safety
precautions mentioned in the manual are only intended to the
supplement of local safety regulations.
1. Never install or use a damaged Li-ion battery. If the Li-ion battery
is damaged, contact DLG or your reseller.
2. Do not mix batteries of different manufacture, capacity, size or
type within a device.
3. After extended periods of storage, it may be necessary to charge
and discharge the Li-ion battery several times to obtain maximum
performance.
Warning
Caution

DLG E-BOX-48100R LFP Battery User Manual
DLG (SHANGHAI) Electronic Technology CO., LTD.
4. Keep the Li-ion battery away from water, dust and contamination,
otherwise it may cause explosion or other dangers and may even lead
to personal injury.
5. Do not short-circuit the Li-ion battery.
6. Observe the plus (+) and minus (-) marks on the Li-ion battery and
equipment and ensure correct use. Do not reverse connect the Li-ion
battery.
7. Do not dismantle, crush, puncture, open or shred the Li-ion
battery.
8. Before moving or reconnecting the running system, the power
must be off and the system should be shut down, otherwise there will
be risk of electric shock.
9. Do not expose Li-ion battery to heat or fire. In case of fire, please
use dry powder fire extinguisher.
10. Do not dismantle any part of the system without contacting DLG
or DLG authorized technical engineers. System failure caused by such
will not be covered by the warranty.
Danger

DLG E-BOX-48100R LFP Battery User Manual
1
Catalogue
1 Product introduction..............................................................................1
2 Specifications ........................................................................................2
2.1 Product standard configuration ...............................................3
3 E-BOX-48100R interface and protection functions.........................3
3.1 Battery front panel .....................................................................3
3.2 Battery front panel schematic..................................................4
3.3 Components ...............................................................................4
3.4 Battery Management System (BMS)......................................5
3.4.1 BMS Protection Functions:...........................................6
4 Operating Environment........................................................................6
5 Packaging, transportation, storage requirements ...........................7
5.1 Transportation ............................................................................7
5.2 Storage........................................................................................7
6 Installation and configuration ..............................................................8
6.1 Installation preparation .............................................................8
6.1.1 Safety Requirements.....................................................8
6.1.2 Checking the operating environment..........................9
6.1.3 Tools .................................................................................9
6.1.4 Technical preparation ..................................................10
6.2 Unpacking.................................................................................10
6.3 The preparatory work..............................................................11
6.4 Installation.................................................................................11
6.4.1 Install the battery..........................................................11

DLG E-BOX-48100R LFP Battery User Manual
2
6.4.2 Connect Ground cable ................................................12
6.4.3 Connecting the power cable.......................................12
6.4.4 Connecting communication cables ...........................14
6.4.5Activation ........................................................................15
6.4.6 Power-on test................................................................16
7 Communication ...................................................................................18
7.1 RS232 port................................................................................18
7.2 RS485 port and CAN port......................................................19
8 Troubleshooting...................................................................................20
8.1 Unable to start..........................................................................20
8.2 Unable to charge .....................................................................21
8.3 Unable to discharge ................................................................21
8.4 ALM indicator is always on.....................................................22

DLG E-BOX-48100R LFP Battery User Manual
1
1 Product introduction
E-BOX-48100R is working as a building block for home energy storage
system with reliable and accurate battery management system.
Together with storage inverter, the system can realize the functions
below:
Electricity Bills Reduction: charge the battery during off-peak period
and discharge the battery during peak period
Self-Consumption: store excess energy generated by solar panels and
use it whenever needed
Back-up Power Supply: provide the power during grid blackouts.
Smart Energy Management: Real-time monitoring and managing.
You can know how much energy generated and consumed in real-time.

DLG E-BOX-48100R LFP Battery User Manual
2
2 Specifications
Table 2-1 Battery Pack Specifications
Battery Model
E-BOX-48100R
Chemistry
LFP
Nominal Voltage
51.2V
Voltage Range
44.8V-57.6V
Nominal Capacity
100Ah
Nominal Energy
5.12kWh
Unit Dimension
L481mm* W620mm * H117mm（2.6U）
Unit Weight
46kg
Standard Charge Current
50A
Maximum Charge Current
50A
Standard Discharge
50A
Maximum Discharge Rate
70A
Round-Trip Efficiency
≥95%
Communication Protocol
RS232, RS485, CAN
Cycle Life
≥[email protected]/0.5C
@90%DOD, ret@80%, 25℃
Calendar Life
≥10years
Operating Temperature
Charge: 0℃~ 45℃, Discharge: -20℃~ 55℃
Certificates
IEC62619 / UN38.3
Storage Temperature
Within 1month: -20~55°C
1-3months: 0~35°C
3-12months: 20~25°C

DLG E-BOX-48100R LFP Battery User Manual
3
2.1 Product standard configuration
Items
Quantity
Specifications
Pictures
E-BOX-
48100R
1
51.2V/100Ah LFP pack;
including BMS, three
interfaces (CAN/RS-
485/RS232), 2 Link ports,
LED power indicator and
insulated coating metal
case.
Input/output
terminals
1 Set
terminal block
3 E-BOX-48100R interface and protection
functions

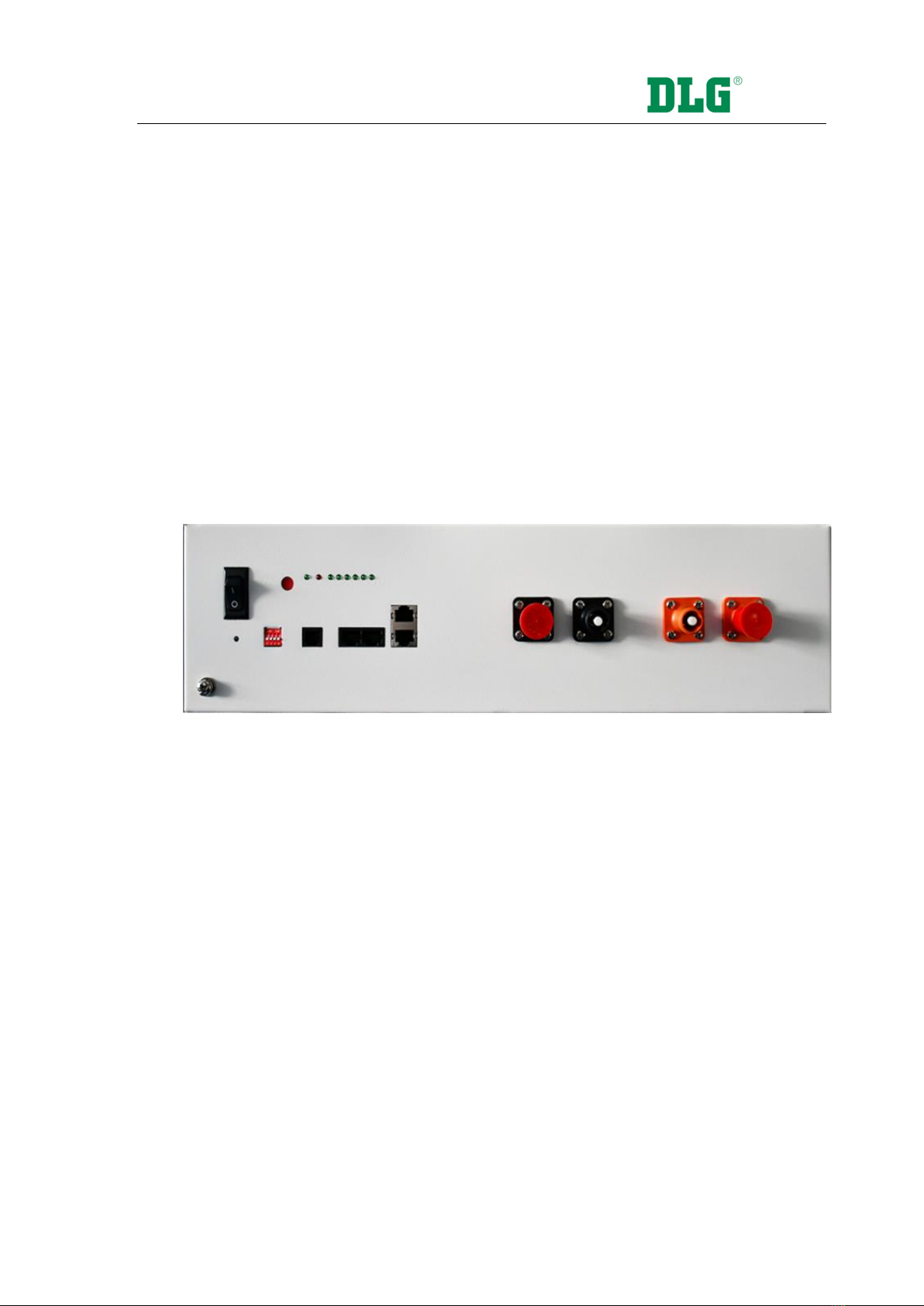

3.1 Battery front panel

DLG E-BOX-48100R LFP Battery User Manual
4
3.2 Battery front panel schematic
3.3 Components
No.
Name
Label
Functions description
1
Power button
POWER
Power button. When switched to "ON",
the system can be activated by the
"SW" key or external power supply;
when switched to "OFF", the system is
off.
2
Power Indicator
When the switch is turned "ON", the
power indicator is on.
3
DIP switch
ADD
(reserved)
4
Soft start switch
SW
Press and hold this button for 1
second while the switch key is "ON"
to enter Start or Sleep mode
5
Running lights
RUN
Green lights. The lights flash when
Standby. The lights are constantly on
when charging. The lights flash when
discharging.
Alarm indicator
ALM
Red light. The lights flash when
Alarm. The lights are constantly on
when Protected.
6
RS-232C
communication port
RS232
Communication with the upper
computer

DLG E-BOX-48100R LFP Battery User Manual
5
7
Capacity indicator
CHARGE
A total of 6 green lights showing
battery capacity, each representing
16.7% of SOC.
8
External CAN
communication port
CAN
Communication with external devices
9
External RS-485
communication port
RS485
Communication with external devices
1011
Cascade terminal
Link Port
Used for master-slave cascade
communication. Connected with a
standard direct-connected network
cable, the master is connected to
PORT1, and the slave is connected
to PORT0.
11
Positive Pole and
Negative Pole
+ -
3.4 Battery Management System (BMS)
DLG BMS is widely applied in home energy storage applications in
America, China, Europe and Australia etc. The BMS manages and
protects the battery system stably and accurately by measuring &
collecting battery data, thermal management, balancing, communication,
giving out alarms & protection etc. The high performance of BMS is
guaranteed by adopting Automotive-level chips and self-developed
sophisticated DLGOS BMS software.

DLG E-BOX-48100R LFP Battery User Manual
6
3.4.1 BMS Protection Functions:
1) Over-voltage warning, alarms, protection and recovery
2) Under-Voltage warning, alarms, protection and recovery
3) Too large difference in SOC between batteries warning
4) Reverse polarity protection
5) Over-voltage warning, alarms, protection and recovery of single
string of cell
6) Under-Voltage warning, alarms, protection and recovery of single
string of cell
7) Short-circuit protection
8) Over-current protection during charging
9) Over-current protection during discharging
10) Over-temperature warning, alarms, protection and recovery of cells
11) Low-temperature warning, alarms, protection and recovery of cells
12)Environmental Temperature warning
13) Key components failure warning
14)Too low State of Charge of batteries warning, protection and recovery
4 Operating Environment
Battery operating environment requirements:
Operating Temperature: 0℃~55℃

DLG E-BOX-48100R LFP Battery User Manual
7
Relative Humidity: 20%-80%, no condensation
Altitude: ＜4000m
Site environment requirements: Keep away from heat source, avoid
direct sunlight, no corrosive gas, no explosive gas, no insulating gas, no
insulating conductive dust.
5 Packaging, transportation, storage
requirements
5.1 Transportation
Always check all applicable local, national, and international
regulations before transporting an LFP battery.
During the transportation, protected the battery from severe
vibration, shock or squeezing during transportation, as well as to prevent
sun and rain.
During the loading and unloading process, the battery should be
handled lightly and protected against falling, rolling and heavy pressure.
5.2 Storage
Follow the storage instructions in this manual to optimize the
lifespan of the LFP battery during storage. If these instructions are not

DLG E-BOX-48100R LFP Battery User Manual
8
followed and the LFP battery has no charge remaining when it is checked,
consider it to be damaged. Do not attempt to recharge or use it. Replace
it with a new LFP battery.
See previous storage temperature conditions.
The self-discharge of the LFP battery is 1-2% per month. Keep the
battery SOC to 40%-60% during storage.
1. Disconnect the LFP battery from all loads and, if present, the
charging device.
2. Store the battery in a cool and dry place without direct sunshine.
3. Keep the battery away from corrosive substances, inflammable and
explosive material as well as hazardous gases.
4. For long-term storage (＞6months), charge the LFP battery to more
than 80% of its rated capacity before storage. The battery needs to be
recharged every 6months to more than 80%of the rated capacity.
6 Installation and configuration
6.1 Installation preparation
6.1.1 Safety Requirements
Only those who have been trained in the power system and have a
good knowledge of the power system are allowed to install the device.

DLG E-BOX-48100R LFP Battery User Manual
9
Always observe local safety regulations and the safety requirements
listed below during installation process.
Before installing or removing the device, make sure that the power
system is not powered and that the battery device is turned off.
Distribution cabling should be reasonable and with protective measures
to avoid being touched during operation.
6.1.2 Checking the operating environment
The operating environment should meet the requirements
described in Chapter 4, “Operating Environment”. Otherwise, it needs to
be adjusted and re-examined.
6.1.3 Tools
The tools that may be used are shown in Table 6-1.
Table 6-1 Tools
Tools
Screwdriver (Slotted, Phillips)
Multimeter
Wrench
clip-on ammeter
Diagonal pliers
Insulating tape
Thermometer
Pliers
Anti-static wrist ring
Clip Pliers

DLG E-BOX-48100R LFP Battery User Manual
10
Tapes
Strippers
6.1.4 Technical preparation
Electrical interface settings:
If the battery is connected to the user device directly, please check:
●Whether the DC charging interface of the energy storage inverter
meets the charging voltage and current requirements in Table 2-1
Battery Pack Specifications.
●Whether the power of the electrical equipment matches the
parameters listed in “Table 2-1 Battery Pack Specifications”;
Security check:
Fire-fighting equipment such as portable dry powder fire
extinguishers should be available near the equipment. Do not place
dangerous materials such as flammable or explosive ones near the
battery.
6.2 Unpacking
●When the battery arrives at the installation site, it must be loaded and
unloaded properly and prevented from the direct sunshine and rain.
Before installation, check if there is any component missing according

DLG E-BOX-48100R LFP Battery User Manual
11
to packing list attached in the packing box and check whether the box
appearance is intact;
●Carefully handling during the unpacking. Protect the insulated coating
on the case surface;
●Check the LFP battery for damage after unpacking. If there is any
damage, contact DLG or your reseller.
6.3 The preparatory work
1. Make sure the POWER buttons of all batteries are OFF
2. Ensure the charging voltage of power supply equipment is DC57.5±
0.1V;
3. All power supply should be off
6.4 Installation
6.4.1 Install the battery
The E-BOX-48100R can be installed either vertically or horizontally.
In this chapter, it’s mainly instructions for horizontal installation such as:

DLG E-BOX-48100R LFP Battery User Manual
12
installation in a 19-inch cabinet. Vertical installation is similar. All
equipment must be steady during installation.
6.4.2 Connect Ground cable
Unscrew the screw at the grounding hole on the front panel of the
battery, wrap the ground cable around the screw, and tighten with a
screwdriver. Connect the other end of the ground cable to a reliable
ground point.
Note: The grounding resistance should be less than 1Ω.
6.4.3 Connecting the power cable
Before connecting the power cable, connect and disconnect the
cable to identify the positive and negative terminal, then make a mark
respectively. After the cable is connected, measure whether there is a
short line or reverse connection.
Connecting the power cables:
(1) Power cable connection instructions of Single-Rack:
●Single battery: Connect the positive pole of the battery to the positive
terminal of the DC port of the energy storage inverter (or the junction
box) with a red cable, and connect the negative pole of the battery to
the negative terminal of the DC port of the energy storage inverter (or

DLG E-BOX-48100R LFP Battery User Manual
13
the junction box) with a black cable.
●Multiple batteries: the connection between batteries, as well as the
connection between the battery and ESS inverter is in parallel. First,
connect the two positive terminals of adjacent batteries with the red
cable; connect the two negative terminals of adjacent batteries with
the black cable; connect the positive pole of the battery with the
positive terminal of the DC port of the energy storage inverter (or the
junction box) with a red cable; connect the negative pole of the battery
with the negative terminal of the DC port of the energy storage
inverter (or the junction box) with a black cable.
(2) Power cable connection instructions of Multi-Rack:
Collect the positive and negative power cables respectively by the
bus bar or junction box, then connect two racks in parallel.
The length, thickness, material, and resistance of the cables
connected in parallel should be the same.
Note: When the cable is inserted into the positive and negative
terminals of the battery and “Click”, the cable is firmly connected. Before
pulling out the cable, press the small button next to the terminal. When
multiple batteries are connected in parallel, in order to reduce the
influence of the circular current, the overall positive and negative output

DLG E-BOX-48100R LFP Battery User Manual
14
cables can be connected from different batteries.
Figure 6-1 Schematic diagram of battery connection
6.4.4 Connecting communication cables
Single battery: Choose which port to be inserted according to the
communication protocol (RS485/CAN/RS232) between the battery
and ESS inverter, then insert the communication cables to the port;
Multiple batteries: The host and the slave communicate in
cascade mode: one is the host and the rest are the slaves. Please
