DOBE TP5-0556 User manual

Production Introduction:
1
Product Picture:
2
User Manual
Product No.: TP5-0556 Version Number: A0
This product is a Bluetooth keyboard designed for P-5
original controller, which is equipped with a controller
clip. The controller clip combines the Bluetooth keyboard
with the P-5 controller, by which you can easily attach
the Bluetooth keyboard to the original P-5 controller.
Bluetooth keyboard is compatible with P-5 console
system. After connecting to the P-5 console via Bluetooth
pairing, you can master the keyboard while playing with
the game controller. You can directly enter characters
and commonly used punctuation marks on the
keyboard. After installing the product on the controller,
the headphone jack on the controller won’t be blocked,
so that you can use the headset on the controller at will.

Function Introduction:
3
Keyboard
interface
Charging interface Reset hole
Screws for
the clip
Switch key
Controller
clip
Indicator light
1. Controller clip: The controller clip can combine
Bluetooth keyboard with P-5 original controller;
2. Bluetooth keyboard: After connecting to the P-5 console
via Bluetooth pairing, you can directly enter characters and
commonly used punctuation marks on the keyboard;
3. Screws for the clip: Two screws for the clip are used to
hold the Bluetooth keyboard to the controller clip;
4. Switch key: Long press the key to turn on/off the
keyboard;
5. Indicator hole: The charging indicator and Bluetooth
indicator share the same hole, and the red light is the
charging work instruction, and the blue light is the
Bluetooth work instruction;
6. Charging interface: The charging interface adopts the
Type-C port, and you can charge the Bluetooth keyboard
by connecting it to a Type-C charging cable and DC 5V
power supply;

Description of Keyboard interface:
123456789
10
4
1. Introduction of Interface key:
7. Reset hole: There is a reset switch inside the reset hole,
which can be triggered by inserting a sharp object along
the vertical direction of the reset hole;
8. Keyboard interface: Press the characters or symbols
printed on the keyboard interface to enter the correspond-
ing characters.

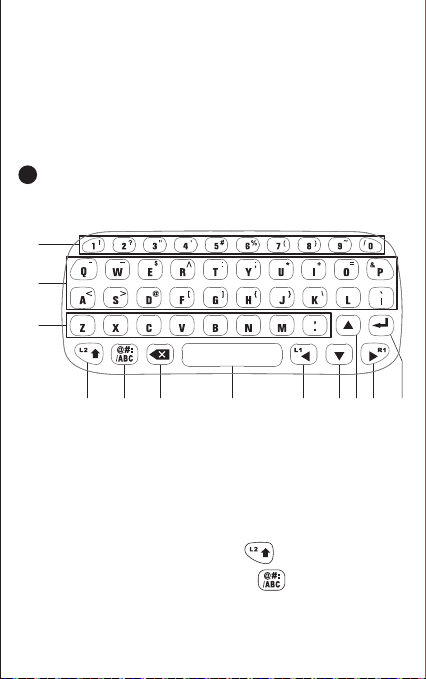

1: ENTER key 2: Right key 3: Up key 4: Down key
5: Left key 6: SPACE key 7: Backspace key 8: Symbol
input combination key 9: Upper/Lower case switch key
10/11: Letter/symbol input area 12: Number/symbol
input area.
2. Interface operation instructions:
2.1. Upper/Lower case switch key : Press this key to
switch to upper/lower case;
2.2. Symbol input combination key : Hold down the
key and press the symbol key printed (letter/symbol input
area) to enter the corresponding symbol.
11
12

Operating Instructions:
5
1. Hold down the Switch key on the Bluetooth keyboard
for two seconds to start the device. After the startup, the
Bluetooth will automatically enter status of searching the
device by default, and the Bluetooth indicator will keep
blinking.
2. When both of P-5 console and P-5 controller are in
normal startup connection state, enter the "Setting"
menu of P-5 console interface through controller
operation: gradually select "Peripheral"-"General"
---“Bluetooth Accessories "-"Find Accessories "and select
the device" Bluetooth Keyboard 3.0 "to register this
accessory for Bluetooth connection.
3. After the Bluetooth connection succeeds, the P-5
interface will display "Connected", and the Bluetooth
indicator on the Bluetooth keyboard will blink slowly.
After successful Bluetooth connection, you can normally
control the Bluetooth keyboard, and Bluetooth will
automatically connect back when you turn it on again.
4. Forced search: Press the Symbol input combination
key and C key at the same time to enter the
forced search mode.
5. Low-power alarm: When the power of the Bluetooth
keyboard is low, the Bluetooth indicator light will blink
for three times every two seconds in the current working
mode, indicating that the Bluetooth keyboard needs to
be charged in time
6. Charging function: Connect the Type-C charging cable
of this product to the charging interface of Bluetooth
keyboard, and connect DC5V power supply for charging.
During the charging process, the charging indicator (red)
is on, and the charging indicator will be off after fully
charged.

Technical Parameters:
6
1. Working voltage: DC 3.3-4.2V
2. Working current: ≤20mA
3. Charging voltage: DC5V
4. Charging current: ≤300mA
5. Bluetooth version: 5.0
6. Bluetooth distance: The effective distance is
8-10m
7. Package includes: 1 x Type-C charging cable;
1 x Bluetooth keyboard; 1 x Controller clip;
2 x Screws for the clip.
7. Automatic shutdown: After starting up, if the Bluetooth
keyboard is not connected to the device for a long time
or disconnected from the device, the Bluetooth keyboard
will automatically shut down after three minutes to avoid
power consumption; When the battery power is too low,
the product will automatically shut down to protect the
battery from excessive discharge.
8. Abnormal reset: When the Bluetooth keyboard is
abnormal and cannot be shut down or work, you can
insert a sharp object along the vertical direction of the
reset hole to power off and reset the keyboard. After
about 3 seconds, the keyboard can be charged again,
and the product can continue to use after the normal
power is restored.

Notes:
7
In order to use this Bluetooth product correctly and
ensure its good performance, please read it carefully and
follow the following instructions:
1. DO NOT seriously impact this product.
2. DO NOT contact benzene, thinner or other chemicals.
3. Please keep away from strong magnetic fields and
electric fields.
4. Avoid direct light or heaters.
5. Do not disassemble, repair or transform it by yourself
6. Please classify and properly dispose of discarded
packaging, batteries and old electronic products.
