Dongguan Wanma Electronic AX/16X User manual

Safety Reminder AX/16X
User
Manual
Welcome words.
Thank you for purchasing Safety Reminder Model
AX/16X, all our wishes is driving your life with safety
and enjoying your travel!
In order to use this device correctly and more efficient,
please kindly follow up the following instruction rules
for the installment and setting. Most of the problems can
be solved by the explanations and the troubleshooting
tips.
Once you finish reading it, keep it handy for necessary
reference. Please note that specification and information
are subject to changes without prior notice in this
manual.

Summary
1.1. Features
1. Voice Alert
2. Urban/highway mode switch to eliminate false alert
3. 3 levels of Volume adjustable
4. A full coverage of X, K, Ku, Ka & Laser operating bands
5. Easy to install and supply power to device(input 5V/100m
A(max))
1.2. Notice
1. Please install the detector properly following this booklet. The
first rule for safe is it mustn’t impair the motorist’s view or increase
the risk of an accident.
2. Depending on your car, the power supply of the cigarette lighter
sock would be continuous or can be switched on/off by your ignition
switch. So before you leaving the car, please make sure that you
have take off the detector.
3. Do not leave the detector alone to be longtime running. This may
lead to complete consumption of the car battery or shorten the life of
the detector.
4. Remember to conceal your detector in a safe place before you
leaving your car, which to avoid the possibility of break-in theft or
the distortion of shape due to the heat of the longtime exposure in
the sun.
5. Use the standard 12V DC power supply to the detector. Nothing
should cover or overlie the detector while in use.

1.3. Structure
Item Name Note
1 Indicator It will blink when receive the radar signal
2 Mode switch button Change between city and highway mode
3 Volume-Adjust Button Volume change from high/medium/low/off
4 12V DC power cord 12V Power input to supply working
5 Radar receiver Where the radar receive installed
6 Speaker Where the alert comes from
7 USB Supply power to the Device which need
input5V/100m A(max).

①

② ③
④
⑤
⑥

1.4. Accessories
Items Photo Description
12V DC
power cable
3m long power cable with fuse and
push switch
Bracket
With
tenon
Easy to remove just unlock and pull
the tap.360 degree rotation, hang
with any position you prefer, turn
any angle, bend to different shape.
Easily adjust to your desired viewing
angle for optional viewing
Adapter
To connect radar detector and other
device need power supply
Connection
Cable
To supply power ,output 5V/100m
A(max)

Basic Operation
2.1. Installation

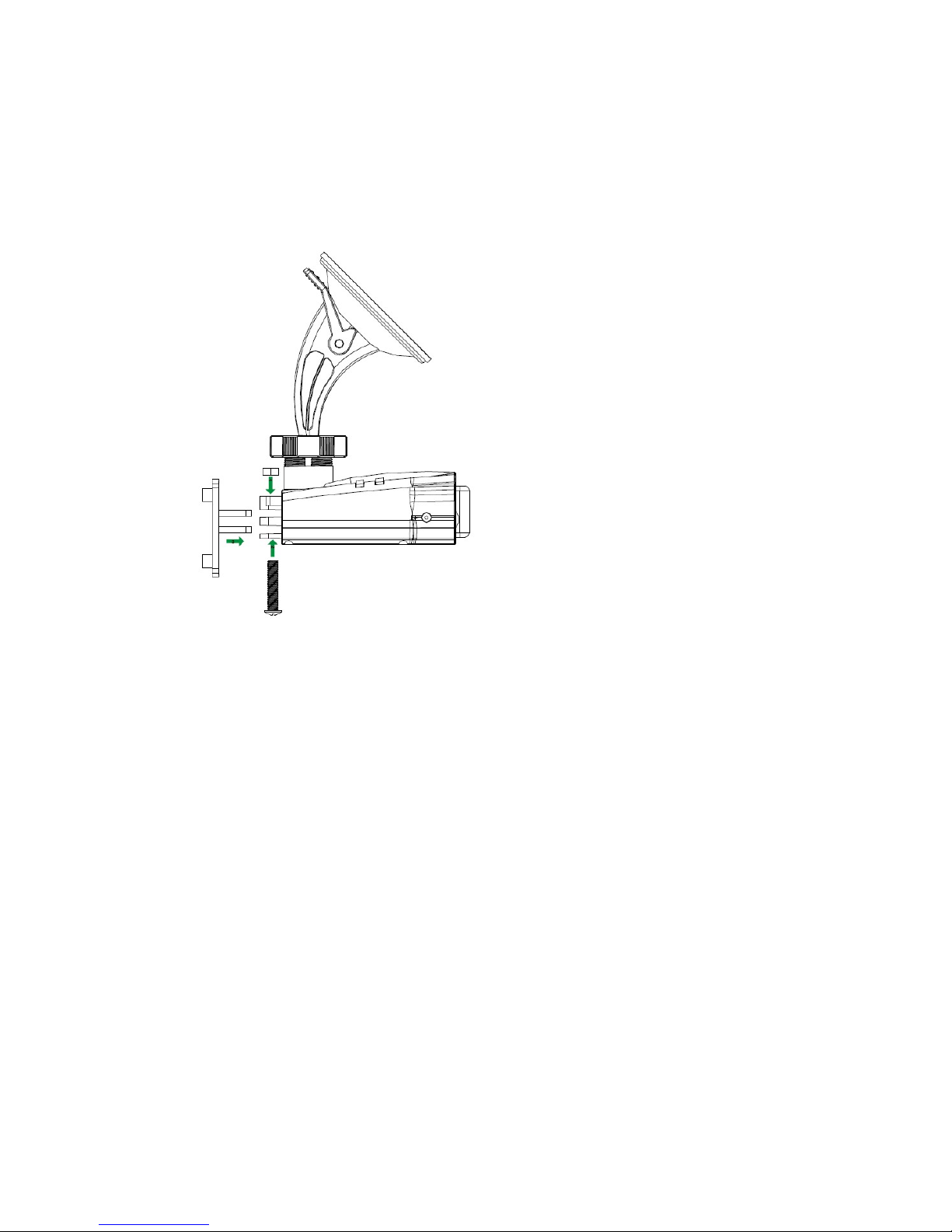

2.1.1 Lock the holder to the adapter by joining and pulling.
Screw the adapter to the bottom of the radar detector.
2.1.2. Screw securely with the tenon into the mortise.
2.1.3. Insert the right angle shaped end of the mini USB cable to the
device need power supply and another end to the output socket of
radar detector. (Black for the supply input and white side for the
power output)

2.2. Getting started
2.2.1. Plug the small end of the power cord into the power socket
and plug the adapter of the other end into the car’s cigarette lighter
socket.
2.2.2. Mount the whole combination to windshield by the suction
cup, select a right position and adjust the suitable viewing angle.
Never install the device to impair the motorist’s clear view or
increase the risk of an accident.
2.2.3. Press down the red button at the adapter to connect power.
After the red indicator lights up, the detector beeps and power on.
2.2.4. After power on, the red LED indicator on radar detector will
on, when it blinks, this means the signal transmission in process,
there is radar around been detected.
Program &Detection
3.1. Volume setting
In working condition, press M2 button for audio volume adjust, there
are 3 levels selectable: high, medium low and quiet, each press will sound
the current voice prompt.
3.2. Mode selection
In working conditions, press M1 to select working mode, totally 2
options, city mode and highway mode, when city mode is selected, This
option is very helpful because while driving in the city, there is much
false alert happened, then you can choose the city mode to avoid it.

3.3. Voice Alert
The radar detector works independently or supply power to device
need power input 5V/100 m A（max）,both cases can send voice alert for
the driver’s safety driving.

3.4. Language setting
On working condition, long press the M2 button until you heard the other
language of “Mode”. Then exit to save your setting.
3.5. Detection &Alert
When radar or laser signal detected, the radar detector will make voice
alerts like “radar x band”, then beeps, stronger the signal the shorter the
beeps are.
Note: No matter in whichever way the detector mounted, for the best
detecting performance, never mount behind wipers, signs, strong metal
films, etc. Because this will affect the receiving of radar and laser signal
and result in the delay of critical warning time. The direction of the radar
antenna should be horizontal forward or slightly down（5°）to the road,
but never face to the sky or toward to the side of the car.
The detecting range varies due to many factors: e.g. the traffic flow, the
weather like fog, moisture and drizzle, they may absorb the radar signal.
Also the geography, etc. if you are experiencing the short warning range,
adjust the detector’s position and angle.

Maintenance & Service
4.1. Technical Specifications
Radar Detecting Frequency:
Bands Frequency Sensitivity
X-BAND 10.42~10.62GHZ±20MHZ
Ku-BAND 13.32~13.54GHZ±20MHZ
K-BAND 23.9~24.3GHZ±20MHZ
Ka-BAND 34.1~35.82 GHZ±20MHZ
Laser beam 800~1100nm
Main unit：
Measurement(mm) Bracket 116L x 145 W x 66 H (Max.)
Volts input DC 12V-15V
Currency input 150～300mA
Operation temp. -25℃～85℃
Storage temp. -30℃～105℃

4.2. Troubleshooting
Problem Solution1 Solution2 Solution3
No display
Check the power
supply
Indicator of the
adapter/or replace
the fuse
The lighter socket
clean or not
Continuous
abnormal alerts
Check if
interference
nearby
Restart Change to another
vehicle to test
No audio
or quiet
Check the volume
setting
Restart Change to another
vehicle to test

4.3. After service &Warranty
This device is warranted for one year.
(Please check the certification for details)
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and radiates radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
zThis device may not cause harmful interference.
zThis device must accept any interference received, including
interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by
the party responsible for compliance could void the user's authority to
operate this equipment.
