Doohan iTank DH01 User manual

DOOHAN Intelligent Electric Motorcycle
DH01 Intelligent Electric Motorcycle
Product use instructions
Executive standard：168/2013/EU Q/ZGDQ·001
Zhejiang Doohan Technology Corp LTD

1
Preface
Thank you for purchasing DH01 intelligent electric motorcycles, and sincerely welcome you
to join the ranks of driving right three-wheel motorcycles and enjoying a safer driving. Before
driving, you must be thoroughly familiar with the contents contained on this manual. Your
personal safety and security, not only depends on your own watchfulness and familiarity with
the operative technology, but also is related to your familiarity with mechanical properties of
the right three-wheel electric motorcycle. Each time before driving, check and regular
maintenance is the most basic conditions. If you need regular maintenance or repair, then you
must know that, only the Special Maintenance Department of the company in various regions,
knows how to handle the problems and ensure the product’s optimum performance. If you
have relevant machinery technical knowledge and maintenance tools, special sales shop can
provide a list of spare parts and a wide variety of authentic spare parts to help you for the
better maintenance and repair.
This operating manual elaborates on the main points of correct operational approaches,
simple maintenance and adjustment method, of DOOHAN DH01 intelligent electric
motorcycle, in order to expect its durable usage. If technical specifications change, parts of
pictures or content in this manual may have little differences with the actual conditions of
motorcycles, please be understanding. The company reserves the right of final interpretation.
Hope you enjoy your driving, once again thank you for purchasing DOOHAN DH01
intelligent electric motorcycles.

2
Important notes
Driver and passenger
This motorcycle is designed for only one driver to operate. Never exceed the load
weight provided on this manual.
Road Conditions
This motorcycle shall only be driven on the normal road. The motorcycle can be
driven in the rain and snow, but cannot wade. When water flooded in to the center
shaft, it may cause the electrical machinery, batteries or other parts filled with water
or failure. Considering of safety factors, please abide by traffic regulations, and
slow down in the rain and snow days and on slippery areas, increase braking length
to ensure safety when braking.
Warnings on safety and environmental protection should be pasted on the middle of
head back cover outside, glove compartment cover upside and back shelf upside
(clearly visible before or during the using).
For the safety of others, please do not lend your motorcycle to those who do not have
a driving license and lack of driving experience, and thus also your motorcycle can
be safe from unnecessary damages.
Please read this operation manual carefully.
Where marked with the warning sentences or paragraphs shall be paid particular
attention.

3
Warning：
It means that if not abiding by the instructions in the manual, your operation may
cause serious casualties.
Attention：
It means that if not abiding by the instructions in the manual, your operation may
make people injured or machine parts damaged.
This manual shall be regarded as a permanent part of the right three-wheel electric
motorcycle. Even though the motorcycle is transferred to others, this manual shall be
transferred too.

4
Contents
I、Safe Driving of intelligent electric motorcycles.
II、Position drawing of every machine part and operation manual
III、Daily inspection and adjustment
IV、Operation guidance
V、Maintenance and repair
VI、Common Fault and elimination methods
VII、Vehicle Storage
VIII、Vehicle Identification
IX、Main technical data
X、Electrical schematic diagram

5
I Safe Driving of Right Three-wheel Electric Motorcycle
Safe Driving Regulations
1. Many traffic accidents of right three-wheel motorcycles are caused because car drivers fail to see
intelligent electric motorcycles drivers, therefore, right three-wheel electric motorcycle drivers should try
to enable car drivers to see them clearly, for example:
※Wearing bright-color clothes. Wear a safety helmet, meanwhile, also should choose suitable
protective glasses.
※Driving must be avoided under the condition of night lights dazzling, blind spots and without
any alert.
2. Many traffic accidents occurred in road crossings, park lot entrance and carriageways. Therefore,
when driving across those places, the drivers should be more cautious.
3. Speeding is a major factor in causing many traffic accidents. The drivers should observe speed
regulations, absolutely must not drive with the excessive speeds.
4. Many accidents were closely related to the driving experience. The drivers who have just learned to
drive should be safely familiar the every performance of the motorcycle, before driving on the highway.
Never lend your motorcycle to others who do not have a driving license and are lack of driving
experience.
5. The drivers should avoid driving through the rugged road, for which may lead to steering failure or
body structures damage.
6. Before driving the motorcycle, the detailed checks must be conducted carefully.

6
7. While driving, both hands must hold the handlebar, and two feet should be put on the pedal.
8. While driving, calling or answering the phone, as the main cause of inattention, is likely to cause
traffic accidents. Please stop your motorcycle first, then call or answer the phone.
9. Change lanes obtrusively is one of the important causes of traffic accidents. If the drivers need change
lanes, please make a turning signal in advance, observe the rear vehicles, and then change lanes after
confirming the safety.
Load
Warning：
Glove compartment, shelves and other storage facilities, can only be placed with lighter objects.
Weight of display objects should not exceed the stipulated value in table 1.
Table 1
Storage projects
Weight
Glove compartment
10kg
※When calculating the motorcycle's load-carrying capacity (maximum 150 kg) and estimating it is
whether or not overloaded, the weight of goods and sundries contained in the motorcycle, the driver
and crew should all add up to be counted.
※If the motorcycle is overloaded, it will affect its stability and operations.
※All objects mounted on the motorcycle should be fastened tightly.

7
II Position drawing of every machine part and operation manual

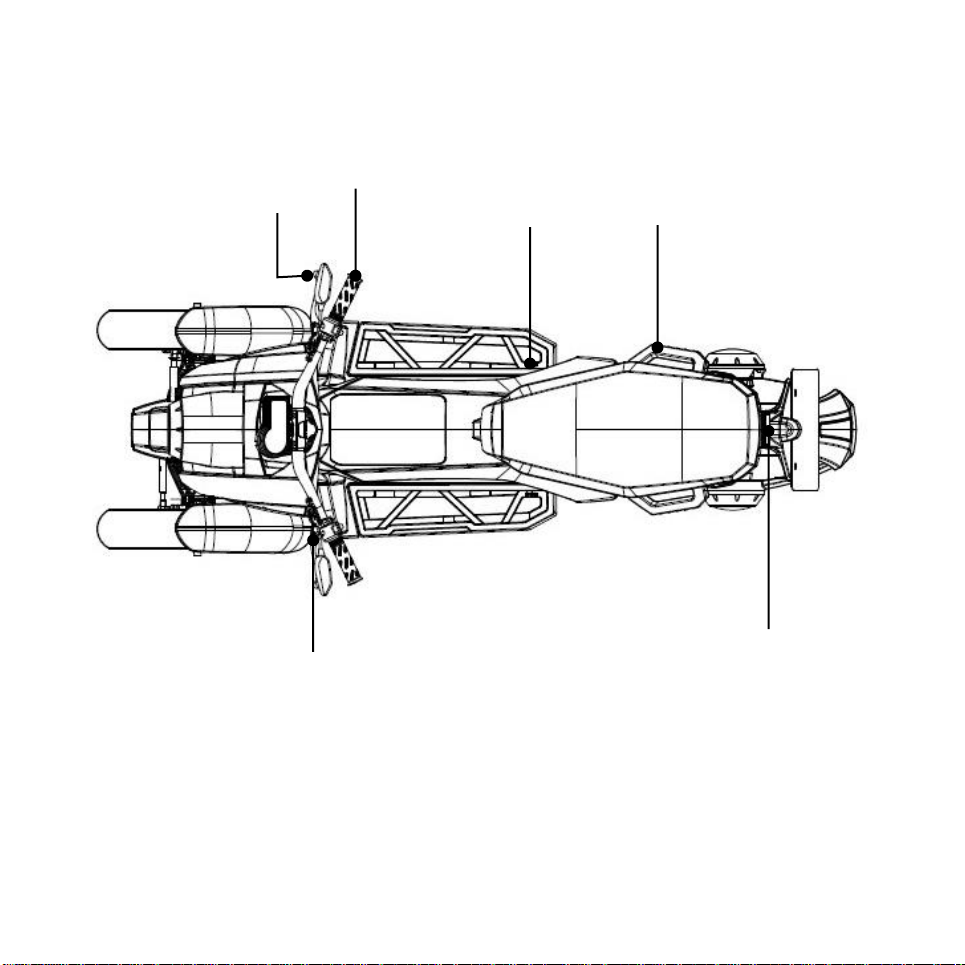

Diagrammatic sketch of components and parts
Back
mirror
Head
Lamp
Steering
lamp
Glove
compartment
Front
battery
cover
Side
stand
Side
battery
cover
License
plate
lamp
Cushion
keyhole
instru
ment
Tail
light

8
Diagrammatic sketch of components and parts
Charging
port
Rear
brake
handle
Handrail
Handle
Front
brake
handle
Reflector

9
Instrument board illustration

10
Icon illustration

11

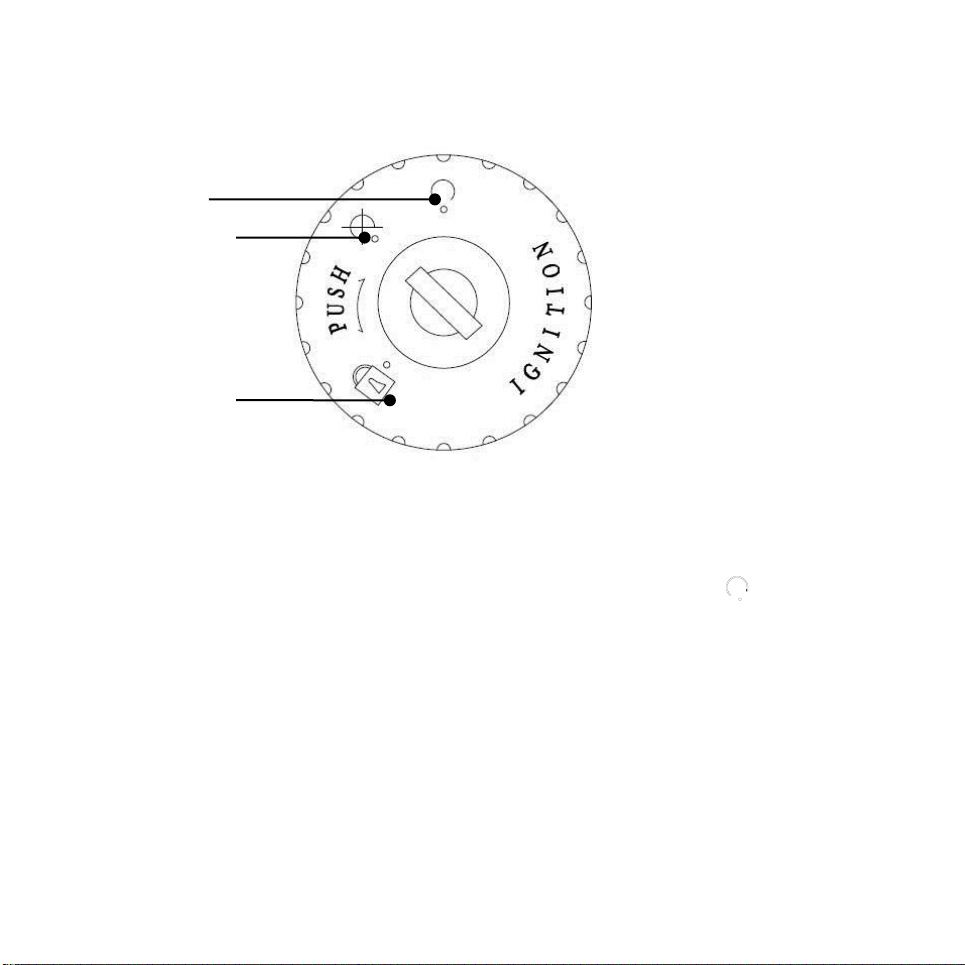

Power switch：
△Starting up operation
①Hit the unlock key of remote control, and unlock successfully.
②After the confirmation of successful unlock, insert the key and turn to“ ”position. After
that, the motorcycle can be started and keys cannot be pulled out.
③When the self-test of system is complete, enter a waiting state.
④Hold the brake handle, lift the kick stand, let go of the brakes when driving.
Locking handlebar
Off state
Starting state

12
Right combination switches:
1. Back-up switch：
Dial up R for backing, dial down D for moving forward
2. Gear switch：
1 is the low gear 25km/h, and 2 is high gear 45km/h.
Gear switches can be used to interchange 25km/h and 45km/h.
3. Horn switch：
Press down this button, the horn will beep.
Horn switch
Gear
switch
Back-up switch

13
Left combination switches：
1. Headlight dimmer switch：
Press down “ ”to light up the distance indicator light;
Press down “ ”to light up the dipped headlight.
2．Overtake indicator light button
Press down this button, the overtake indicator light will
be lit up.
3. Turning indicator lights button：
Turn left if the button is placed in “ ”position, and the
left-turning light will be lit up at the same time. Turn right if
the button is placed on the iron“ , and the right-turning
light will be lit up at the same time. Press down the button
again, turning indicator light will be turned off.
4. Horn switch：
Press down this button, the horn will beep immediately.
△Functional area for placing objects
Remark：USB interface must not be used in any
electrical appliances except phone chargers.
Otherwise, the factory shall not be responsible
for any damage of machine parts.
Turning
indicator lights
Distant Light and
dipped headlight
Horn
Ignition
lock
Area for placing
objects
USB interface
Hook
Overtake
indicator light
Horn

14
Battery Installation
1. Open the front and back battery compartment
①Open glove compartment: insert the key into the keyhole of glove compartment, and reeling
open the glove compartment cover.
②Open battery compartment: rotate the rotary knob to the corresponding position along the
direction of B to open the lock of front battery compartment, and rotate along the
corresponding direction ofA to open the side battery compartment lock.
2. Battery Installation
①Open the front battery compartment, lift the first battery, pull out the battery connecting wire,
rotate the blue ring to connect, it is successfully connected when it gives out the sound of
“click”. Put the battery in the compartment, the close the compartment cover.
②Open the back battery compartment, lift the second battery, just install the battery as above.
Battery installation of side
compartment

15
Attention: When the battery level is lower than 1%, please charge the battery immediately. When
battery is in under voltage, you can’t charge the battery by connecting the charging port in the
scooter, while you need taking the battery out then charge the battery. (When battery is in under
voltage, overcurrent, overheat, the battery is the state of protection. At this time, we need taking
the battery out to charge to remove its protection state.
III、Daily inspection and adjustment
Check before driving:：
Before driving the motorcycle, drivers should take a routine inspection to the intelligent electric
motorcycles to ensure the good performance of the motorcycle and
reach the effects of safe driving.
Brake handle free stroke
Appropriate clearance is necessary for the brake handles,
And whose normal clearance should in the range of 10 to
20 millimeters. Fluid pressure type brake system
Brake fluid inspection:
（1）Straighten the handle, and check brake fluid in the oil storage tank. The brake fluid must be
maintained between the label marks of upper and lower limit.
（2）Check the brake pads wear when brake fluid declines to the label mark of lower limit.

16
（3）If the brake pads are abraded, and the brake fluid does not exceed the limitation, usually it
indicates that oil leak exists. Please seek check and repair service from maintenance station.
（4）Brake oil：DOT3 or DOT4
Notice: Once you need to maintain brakes, drivers should ask for the handy special maintenance
department who is responsible for the maintenance and inspection of motorcycles. All special
maintenance departments have trained technical personnel responsible for maintenance and repair. The
motorcycle parts can only be changed with real original parts of the company.
Tires
The tire pressure should be inspected and adjusted routinely.
•Check the tire pressure only after cooling tires.
•Check often whether there are punctures in tires, especially tires need to be repaired immediately
when tire air leakage occurs.
•Check whether there are shear marks, implant iron nails or other sharp objects in tire surfaces.
Check whether or not the indentation, indenture or distortion of rims exists. If any damage has
been caused, please contact the maintenance departments to check.
•If the tire tread patterns are worn to tread wear indicators, new tires should be required for
changing.

17
Warning:
Substandard tire pressure would make the tire treads suffer a serious abrasion and may cause
accidents because of that. While much lower tire pressure would cause tire slip or pulling away
from rims.
It is extremely dangerous to use seriously worn tires, which would impact the adhesive forces
between tires and the road surface, and make difficulties for driving and even cause accidents.
Tires need to be changed to new tires when the central tread pattern depth of tires reaches the
stipulation in table 1.
Table 1
Minimum tread pattern depth
Tire Pressure
front wheel
1.5 mm
250kpa
back wheel
2.0 mm
250kpa
Left-turning light, right-turning light, and the tail lamp
Left-turning light, right-turning light, and the tail lamp can normally work or not. If not, it should be
replaced in time.
Horn
The horn can normally beep or not, if not, it should be timely adjusted or replaced.
Turning handle
Speed regulation of turning handle is effective and even or not and can automatically return or not.

18
IV、Operation guidance
1. Starting, hold the handlebar with both hands, bestride the motorcycle from the left side and sit on
the saddle with left leg support against ground, turn the power switch to ON and rotate the
handlebar in the direction of the rider gradually instead rotate rapidly it to maximum.
Warning:
After the front and back wheels of the intelligent electric motorcycles is down to the ground,
provided that the rider is not sitting on the saddle for riding, do not turn the power on and rotate
the handlebar lest the motorcycle should rush out suddenly, even lead to accident.
2. Riding, obey the traffic rules, control the speed within 45km/h and operate the parts timely and
accurately according to the riding environment.
Warning:
It is not advised to wear loose or unfit clothes when riding, otherwise the loose sleeves or trouser
legs may hook the braking handles or jackstays parts.
Only when all kinds of equipments installed on the right three-wheel electric motorcycle are in
line with the requirements of traffic laws and regulations issued by local government and carry
the entire necessary certificates according to the requirements and stipulations, then you can
ride out.
