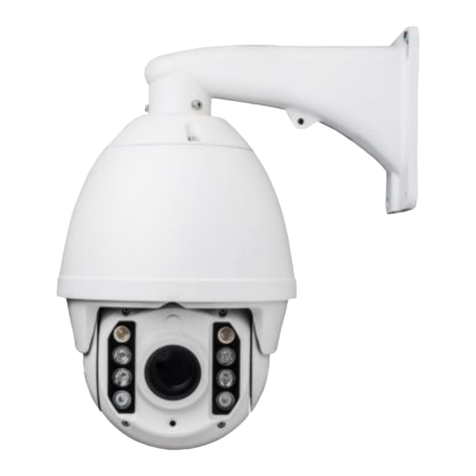

23X 1080P Network IR PTZ Camera
Quick Start Guide
Thank you for purchasing 23X 1080P HD Network IR PTZ Camera . Before
installation, please verify the model of the camera and read this guide carefully.
Warnings
Installation and servicing should be performed only by qualified and experienced
personnel to conform to all related codes and to maintain your warranty.
24V DC models require the use of CCC Certified power
adapters to ensure compliance with electrical safety standards.
Note:
1. Please avoid operating above 60 ℃high temperature environment.
2. Avoid to install where more violent shaking .
3. Connect proper power supply.
4. Non-technician should not try to operate this device unless it is
authorized, open or move the cover of the device may get danger,
any questions please contact the professionals.
Packing list
•PTZ camera (Include bracket)
•Rubber plugs and mounting screws
•CD
•Glove
Installation
1. Put the full function cable through the wall mount bracket and use the
rubber plugs and mounting screws to fixed it.
2. Fixed the dome camera to the bracket tightly with screws.
Bracket
Interface
1. RJ45
2. Red 1: DC24V+ Black 1: DC24V- Yellow 1: Frame GND
3. Alarm output
4 Alarm input
5. Analog video output
6. Reset button
7. Audio input(Red)
8. Audio output(White)
Installation environment requirements
Far away from high-temperature or humid environment, notice ventilation
and avoid installing in shaky place.
Recommend operating environment
-20°C～60°C
Hardware installation steps
Please make sure LAN and WAN are working smoothly before the Network
High Speed Dome installation. After checked all the network system in
good condition, keep your hands clean and dry, following the steps below.
WEEE (Waste Electrical and Electronic Equipment Directive).
Please dispose of the waste properly, handling the waste in
compliance with local labor laws and regulations when it
reaches its lifetime.
Changes or modifications not expressly approved by the
manufacturer could void the user’s authority to operate the
equipment.
CAUTION
RISK OF
ELECTRIC
SHOCK
DO NOT OPEN
This symbol
indicates that inside
the device can lead
to the danger of high
voltage electric
shock
Caution
To reduce the risk of
electric shock,do not
remove the cover .No
user-serviceable parts
inside refer servicing
to qualified service
personnel .
This symbol
indicates important
operating and
maintenance
instructions of the
equipment.
Please use the plastic or metallic sheath to protect
the connection cable for safety
DC24V power supply
Wall mount bracket
Ceiling mount (Optional)
PTZ Camera
1
2
3
5
6
7
8
4
All manuals and user guides at all-guides.com

2
Open the box to check the goods
Take out all goods which needed for installation
Connect the wires by your need(power supply,cable,audio,etc)
Connect the power supply
Note:
When open the box, please check all of parts carefully, confirm
the parts as same as packing list.
Please read the user manual carefully before the installation.
Make sure to turn off all the power when install the camera
Please confirm the power transformer, avoid the device damage
with unmatched power source
Specification: (varies depending on the model)
Pick-up device
1/2.8" CMOS
Optical zoom
23X
Effective Pixels
2MP
S/N Ratio
≥55dB
Min. Illumination
Color: 0.1Lux@F1.6（ACG-ON)
B/W : 0.01Lux@F1.6（ACG-ON)
Focal Length
f=4.7~108.1mm
FOV
55.8°~3.2° (Near-Far)
Zoom speed
About 3s
AF Control Mode
Auto/ Semi-Auto/ Manual
WB Mode
Auto/Auto Low Color Temperature/ White low lamp/
4000K/ 5000K/ Sunshine/ Dark clouds/ Flash light/
Fluorescent lamp/ High fluorescent lamp/ Water bottom/
Customized
Iris control
Auto/ Manual
Shutter
1/5～1/5000
Gain
100 、150 、200 、300 、400 、600 、800 、1600 、
3200、6400、12800、25600、51200、102400
BLC
Close/ Open
WDR
Close/1~5
Day&Night
Color/ B/W /Auto
Image Flip
Vertical /Horizontal
3DNR
Close/1~5
IR Beam Distance
150m IR distance
Angle Field of IR
Change with focus
IR Control
Brightness and angle changed with scene
Operation
Horizontal rotate
360 ° continuous rotation
Vertically rotation
0-90°
Manual control
speed
0.1°-180°/s
Preset
255
Preset Accuracy
0.1°
Preset speed
200°/s
Area Scan
1
Pattern
4
Cruise
4
Proportion zoom
Auto
PTZ Watch
Close/preset/Cruise/Pattern /Area scan
Auto reverse
Machinery reverse
Power Memory
Support
PTZ 3D
Support
Speed Dome
Cameras upgrade
Support online remote upgrade
Network
Video encoding
video compression
H.264/ MJPEG
Main-
stream
resolution
1920×1080(1080p) ,
1280×960(960p) ,1280x720(720p)
frame rate
1～50(60)fps
Bit rate
800Kbps～10000Kbps
Sub-
stream
resolution
720×480(D2), 640×480(VGA),
352×240, 352×288(CIF),
320×240(QVGA)
frame rate
1～50(60)fps
Bit rate
100Kbps～1000Kbps
Audio encoding
AAC
Privacy Mask
8 zones
OSD
support date time、bit stream information overlay,
camera title overlay, font size and color、overlay
location adjustable
Brightness, Contrast, Saturability, Sharpness, Hue
adjustable through explorer
Port protocol
Onvif,GB/T28181
Network protocol
IPv4, TCP, UDP, HTTP, SMTP, FTP, NTP, DNS,
DDNS, DHCP, RTSP, RTP, RTCP
TF card
Max 64G
Poe
Support
Alarm input
2ch input
Alarm output
1ch output, support alarm linkage
Alarm action
TF card video recording/ FTP transmission/ Email
inform/ snapshot / Preset / alarm output
Audio
1ch input 1 output, listening and bi-directional talk
General
IP Grade
IP66
Operating
temperature
-20℃～60℃
Humidity
10%~90% comparatively Humidity(Non-condensation)
Size
377 (H) x 216 (D) mm
Weight
About 8.5Kg
Power supply
DC24V/1.5A (±10%)
Power
Consumption
30W MAX
