Dot Hill AssuredSAN 4004 Series Parts list manual

AssuredSAN 4004 Series
FRU Installation and Replacement Guide
For firmware release GL210 or later
P/N 83-00006700-12-01
Revision A
June 2015
Abstract
This document describes removal and installation of field-replaceable units for Dot Hill AssuredSAN 4004 Series controller
enclosures, and is intended for use by storage system administrators familiar with servers and computer networks, network
administration, storage system installation and configuration, storage area network management, and relevant protocols.

Copyright © 2015 Dot Hill Systems Corp. All rights reserved. Dot Hill Systems Corp., Dot Hill, the Dot Hill logo, AssuredSAN, AssuredSnap,
AssuredCopy, AssuredRemote, R/Evolution, and the R/Evolution logo are trademarks of Dot Hill Systems Corp. All other trademarks and registered
trademarks are proprietary to their respective owners.
The material in this document is for information only and is subject to change without notice. While reasonable efforts have been made in the
preparation of this document to assure its accuracy, changes in the product design can be made without reservation and without notification to its
users.

AssuredSAN 4004 Series FRU Installation and Replacement Guide 3
About this guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
AssuredSAN 4004 Series enclosure user interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Intended audience . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Prerequisites. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Related documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Document conventions and symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
1 FRUs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Available FRUs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Storage enclosure overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
FRUs addressing 24-drive enclosures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Enclosure bezel for 24-drive model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Supported drive enclosures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
FRUs addressing 12-drive enclosures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Enclosure bezel for 12-drive model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
2 Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Electrostatic discharge. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Preventing electrostatic discharge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Grounding methods to prevent electrostatic discharge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Replacing chassis FRU components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Attaching and removing the enclosure bezel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Attaching the enclosure bezel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Removing the enclosure bezel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Replacing a controller module or expansion module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Before you begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Configuring partner firmware update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Using the SMC or RAIDar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Using the CLI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Verifying component failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Stopping I/O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Shutting down a controller module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Using the SMC or RAIDar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Using the CLI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Removing a controller module or expansion module. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Transporting CompactFlash. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Installing a controller module or expansion module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Verifying component operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Using the SMC or RAIDar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Using the CLI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Updating firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Replacing a disk drive module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
FDE considerations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Air management modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Before you begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Verifying component failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Removing a disk drive module. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Installing a disk drive module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Determine if a disk is missing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Using the SMC or RAIDar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Using the CLI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Verifying component operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Replacing a power supply module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Contents

4Contents
Before you begin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Verifying component failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Power supply units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
AC PSU. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
DC and AC PSUs with power switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Removing a power supply unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Installing a power supply unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Connecting a power cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Verifying component operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Replacing ear components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Before you begin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
2U24 chassis ears . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
2U12 chassis ears . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Removing ear components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Installing ear kit components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Verifying component operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Transceivers used in CNC ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Replacing a Fibre Channel transceiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Before you begin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Verifying component failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Removing an SFP module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Installing an SFP module. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Verifying component operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Replacing a 10GbE SFP+ transceiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Replacing a 1Gb RJ-45 SFP transceiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Replacing a storage enclosure chassis. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Before you begin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Verifying component failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Preparing to remove a damaged storage enclosure chassis. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Removing a damaged storage enclosure chassis from the rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Installing the replacement storage enclosure in the rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Completing the process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Verifying component operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Using LEDs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Using management interfaces. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

AssuredSAN 4004 Series FRU Installation and Replacement Guide 5
Figures

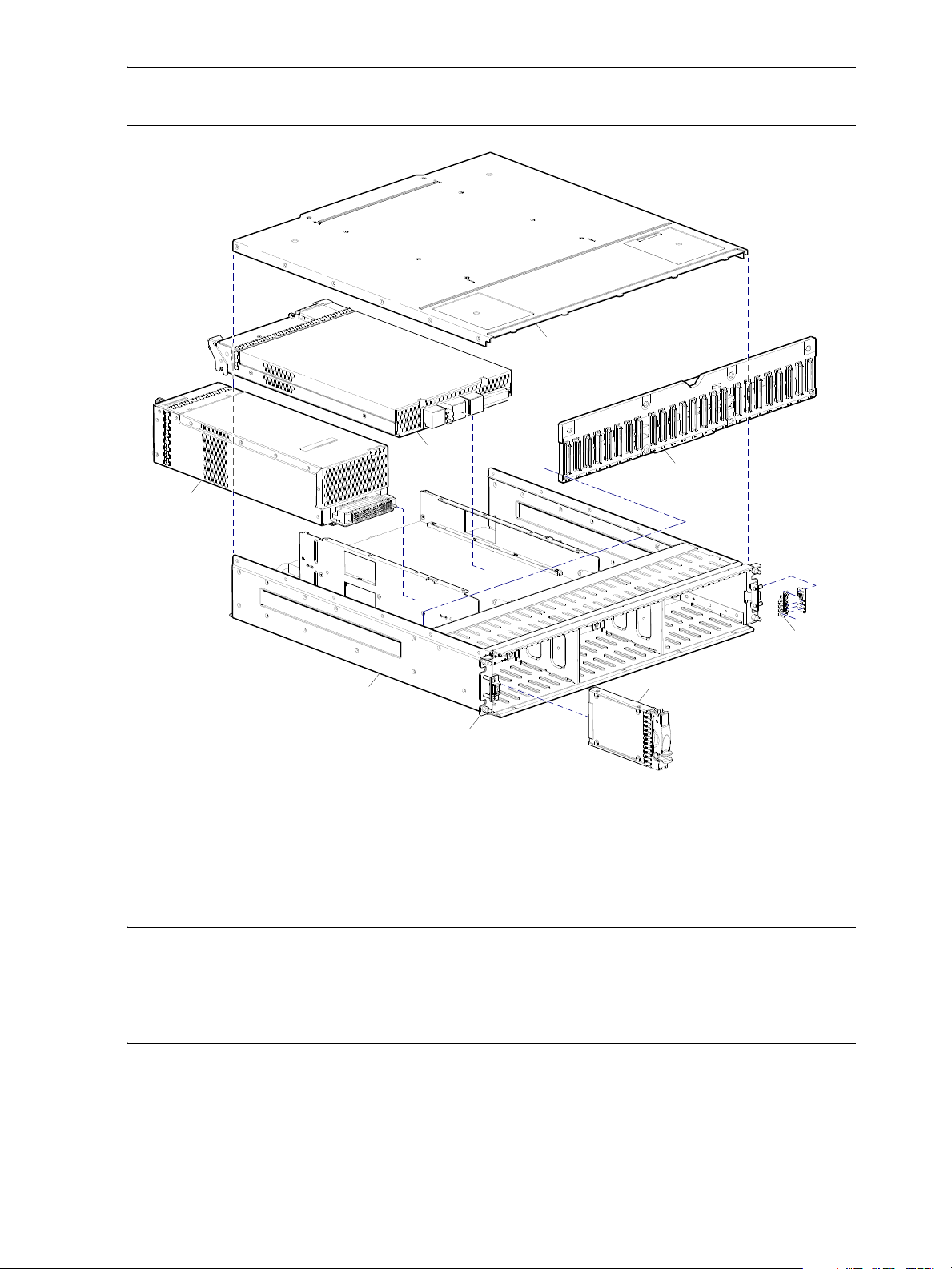

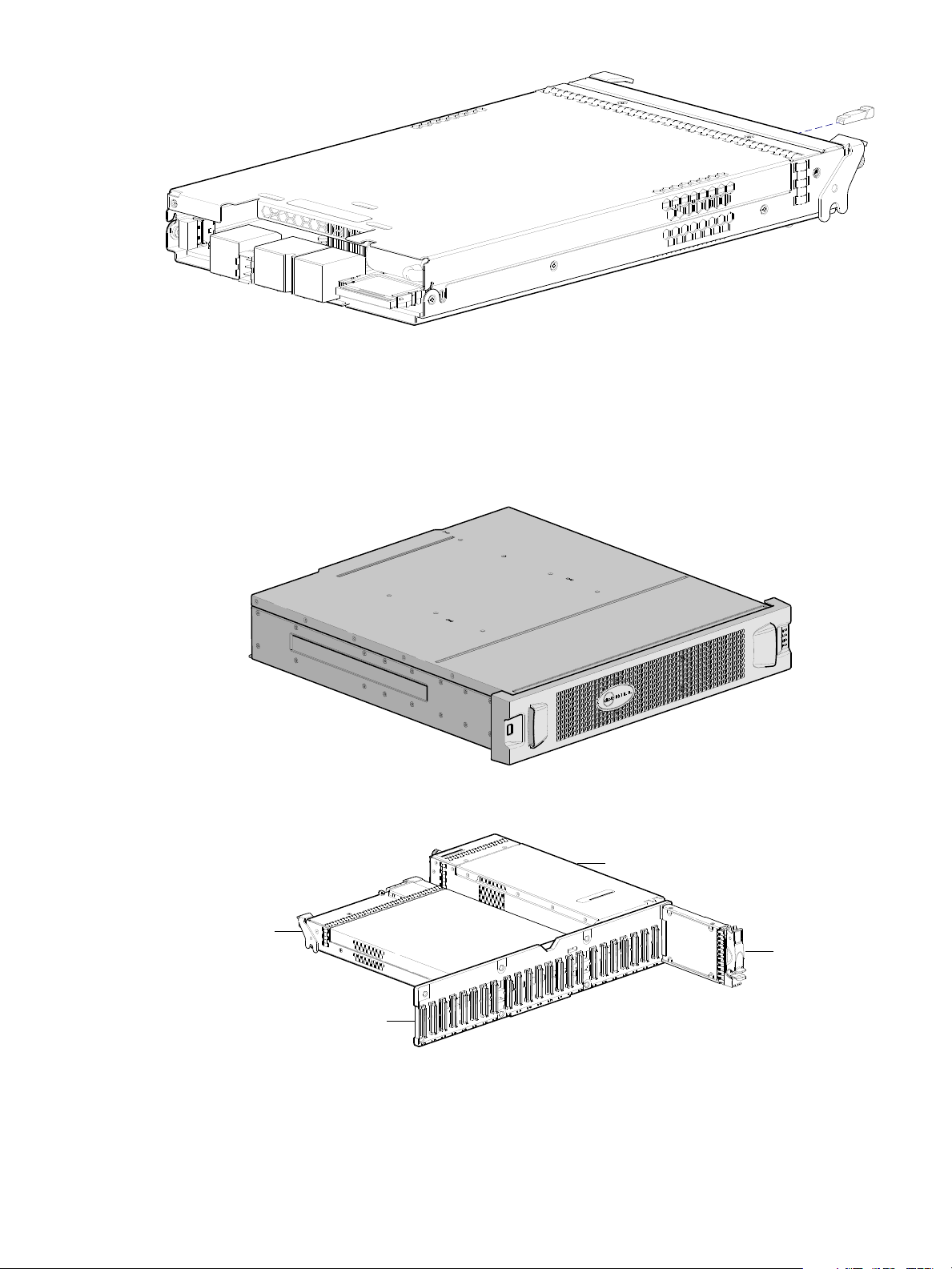

1 Exploded view — controller or expansion enclosure (2U24) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2 4004 Series CNC controller module with SFP transceiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

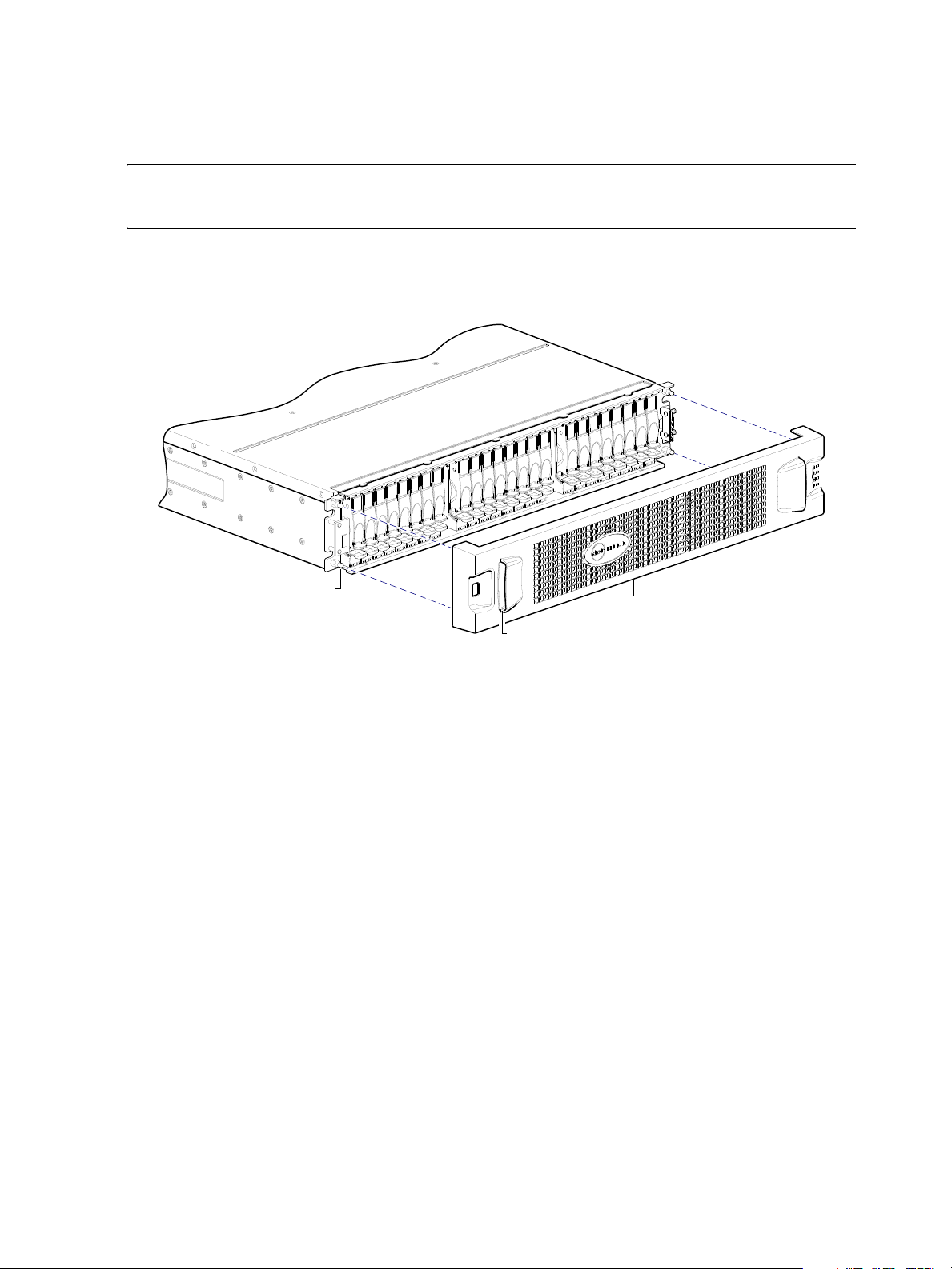

3 Controller enclosure assembly with bezel installed (2U24) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4 Controller enclosure architecture — internal components sub-assembly (2U24) . . . . . . . . . . . . . . . . . 13
5 Partial assembly showing bezel alignment (2U24) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

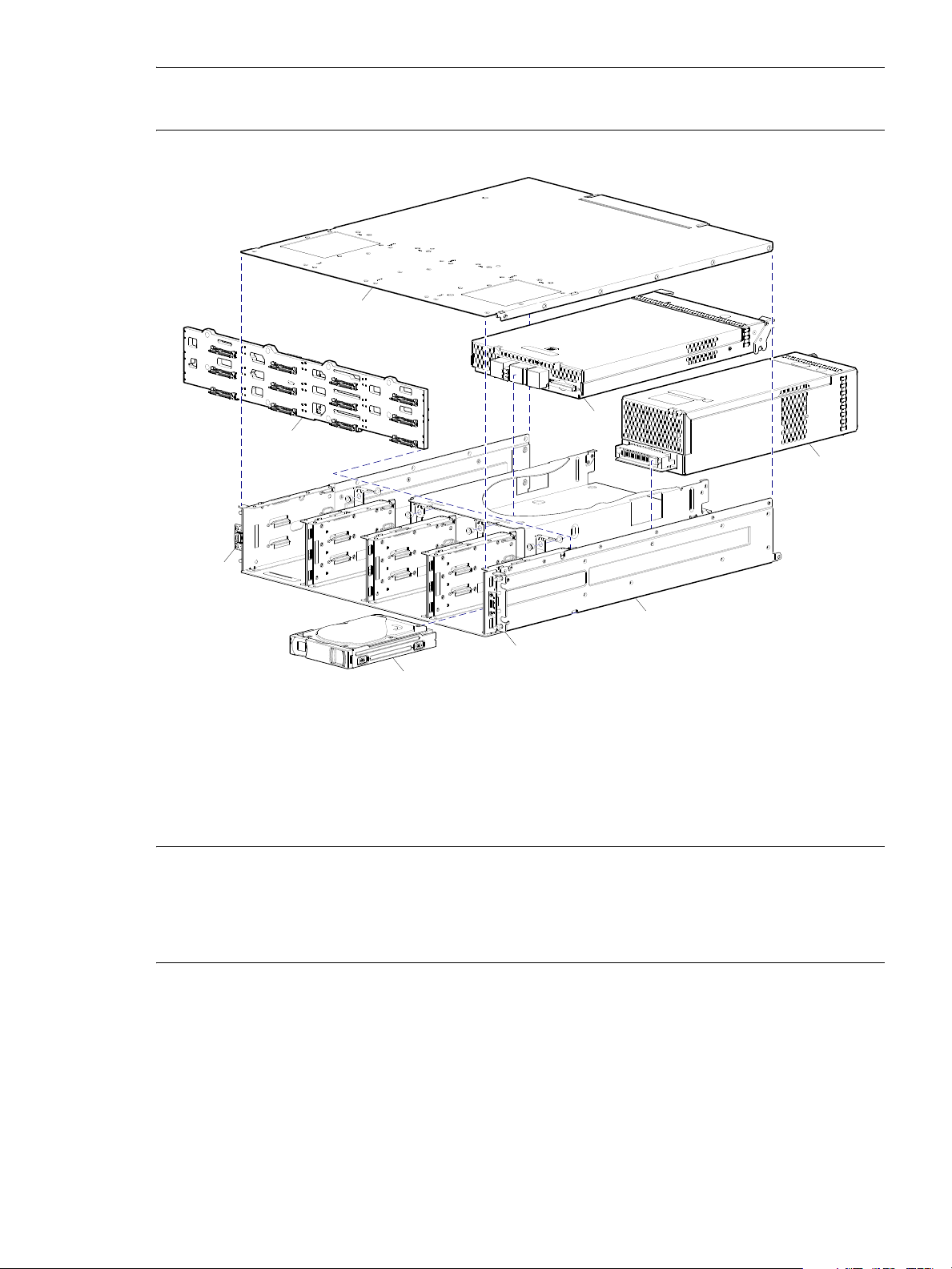

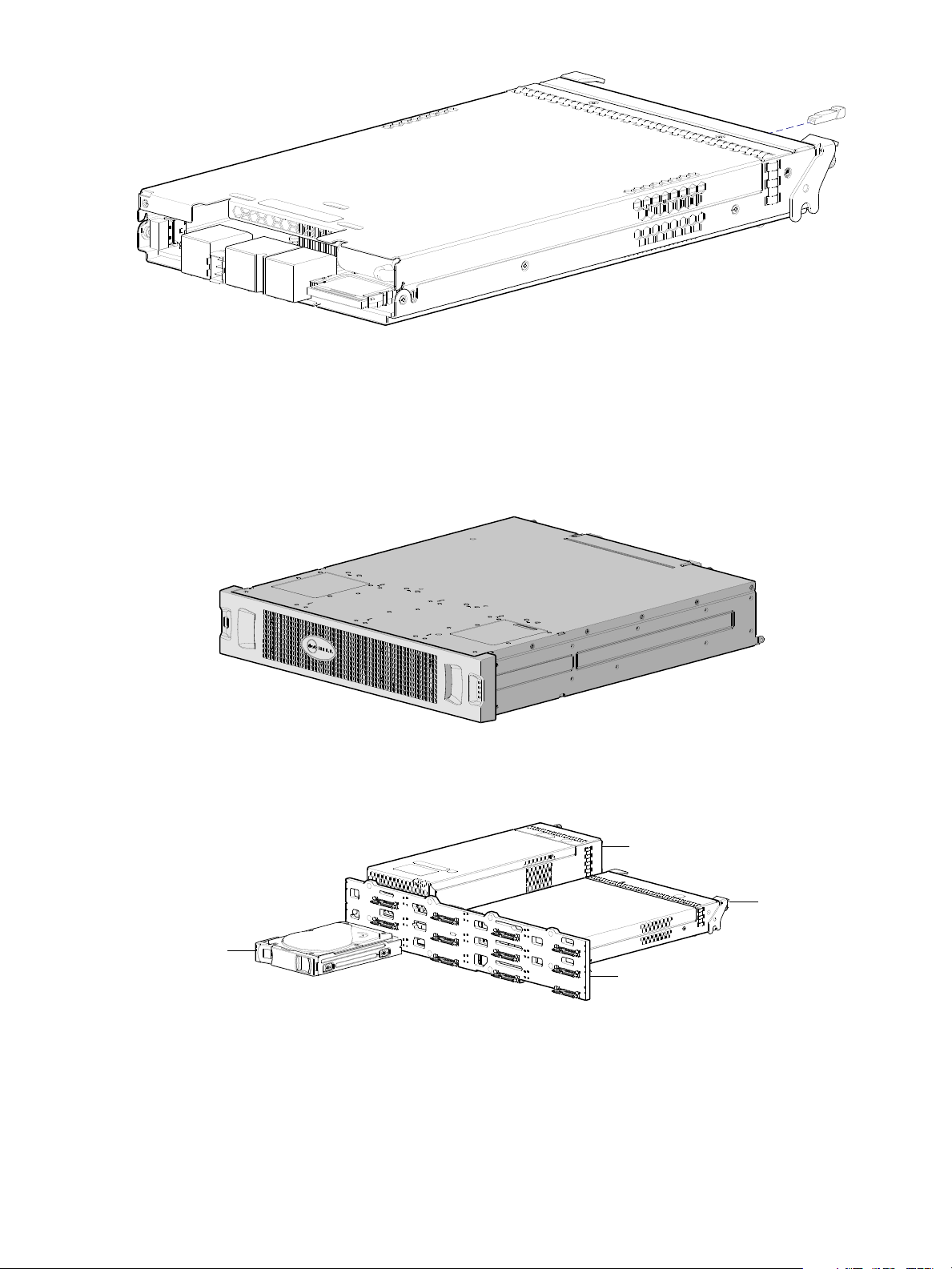

6 Exploded view — controller or expansion enclosure (2U12) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
7 4004 Series CNC controller module with SFP transceiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
8 Enclosure assembly with bezel installed (2U12) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
9 Enclosure architecture — internal components sub-assembly (2U12). . . . . . . . . . . . . . . . . . . . . . . . . 18
10 Partial assembly showing bezel alignment (2U12) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
11 Partial assembly showing bezel alignment (2U24) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
12 Partial assembly showing bezel alignment (2U12) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
13 Disengaging a controller module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
14 Extracting a controller module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
15 Removing a controller module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
16 CompactFlash memory card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
17 Inserting a controller module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
18 Disengaging a disk drive module. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
19 Removing a disk drive module. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
20 Installing a disk drive module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
21 AC PSU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
22 DC and AC PSUs with power switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
23 Removing a power supply unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
24 Orienting a power supply unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
25 DC power cable featuring D-shell and lug connectors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
26 Replacing left ear components — 2U24 models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
27 Replacing right ear components — 2U24 models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
28 Replacing left ear components — 2U12 models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
29 Replacing right ear components — 2U12 models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
30 Sample SFP connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
31 Disconnect fibre-optic interface cable from SFP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
32 Flip SFP actuator upwards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
33 Install the SFP into the CNC port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

6Tables
Tables
1 Related documents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2 Document conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3 Individual enclosure models comprising 4004 Series storage systems. . . . . . . . . . . . . . . . . . . . . . . . . 10
4 4004 Series product components for 24-drive enclosures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
5 Compatible drive enclosure options for adding storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
6 4004 Series product components for 12-drive enclosures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
7 Power supply faults and recommended actions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
8 Power supply unit LED descriptions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
9 Removing and replacing a 10GbE SFP+ transceiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
10 Removing and replacing a 1 Gb SFP transceiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
11 Removing and replacing a storage enclosure chassis and its FRUs . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

AssuredSAN 4004 Series FRU Installation and Replacement Guide 7
About this guide
Overview
This guide identifies 4004 Series FRUs (field-replaceable units) used in 2U12 and 2U24 chassis form
factors, and describes how to remove or install them within the AssuredSAN™ 4004 Series storage
enclosure products listed below:
•CNC (Converged Network Controller) Controller enclosure (4824/4834 models):
• Qualified Fibre Channel SFP option supporting (4/8/16 Gb)
• Qualified Internet SCSI (10GbE) SFP option
• Qualified Internet SCSI (1 Gb) Copper RJ-45 SFP option
•HD mini-SAS (12 Gb) Controller enclosure: 4524/4534
For a complete description of product models, see the “Components” chapter within the Setup Guide.
AssuredSAN 4004 Series enclosures support both traditional linear storage and new virtual storage, which
uses paged-storage technology. For linear storage, a group of disks with an assigned RAID level is called
a vdisk or linear disk group. For virtual storage, a group of disks with an assigned RAID level is called a
virtual disk group. This guide uses the term vdisk when specifically referring to linear storage, and uses the
term disk group otherwise.
AssuredSAN controller enclosures support compatible Dot Hill drive enclosures for adding storage.
Supported enclosure form factors include traditional 2U models (2U12 and 2U24) and high-capacity
models in 2U (2U48) and 4U (4U56) format. A summary overview of drive enclosures supported by
controller enclosures is provided in the “Connecting the controller enclosure and drive enclosures” topic
within the AssuredSAN 4004 Series Setup Guide.
AssuredSAN 4004 Series enclosure user interfaces
The 4004 Series enclosures support two versions of the web-based application for configuring, monitoring,
and managing the storage system. Both web-based application GUI versions (v3 and v2), and the
command-line interface are briefly described:
•Storage Management Console (SMC) is the new primary web interface (v3) for the enclosures,
providing access to all common management functions for both linear and virtual storage.
•RAIDar is a secondary web interface (v2) for the enclosures, providing access to traditional linear
storage functions. This legacy interface provides certain functionality that is not available in the primary
interface.
•The command-line interface (CLI) enables you to interact with the storage system using command syntax
entered via the keyboard or scripting. You can set a CLI preference to use v3 or v2 terminology in
command output and system messages.
NOTE: For more information about enclosure user interfaces, see the following:
•AssuredSAN 4004 Series Storage Management Guide or online help
The guide describes SMC (v3) and RAIDar (v2) GUIs
•AssuredSAN 4004 Series CLI Reference Guide
Intended audience
This guide is intended for storage system administrators.
Prerequisites
Prerequisites for installing and using this product include knowledge of:
•Servers and computer networks

8 About this guide
•Network administration
•Storage system installation and configuration
•Storage area network (SAN) management and direct attach storage (DAS)
•Fibre Channel (FC), Internet SCSI (iSCSI), Serial Attached SCSI (SAS), and Ethernet protocols
Related documentation
* Printed document included in product shipkit.
For additional information, see Dot Hill’s Customer Resource Center web site: https://crc.dothill.com.
Document conventions and symbols
Table 1 Related documents
For information about See
Enhancements, known issues, and late-breaking
information not included in product documentation
Release Notes
Overview of product shipkit contents and setup tasks Getting Started*
Regulatory compliance and safety and disposal
information
AssuredSAN Product Regulatory Compliance and Safety*
Using a rackmount bracket kit to install an enclosure
into a rack
AssuredSAN Rackmount Bracket Kit Installation*or
AssuredSAN 2-Post Rackmount Bracket Kit Installation*
Product hardware setup and related troubleshooting AssuredSAN 4004 Series Setup Guide
Obtaining and installing a license to use licensed
features
AssuredSAN 4004 Series Obtaining and Installing a
License
Using the v3 and v2 web interfaces to configure and
manage the product
AssuredSAN 4004 Series Storage Management Guide
Using the command-line interface (CLI) to configure
and manage the product
AssuredSAN 4004 Series CLI Reference Guide
Event codes and recommended actions AssuredSAN Event Descriptions Reference Guide
Table 2 Document conventions
Convention Element
Blue text Cross-reference links and e-mail addresses
Blue, underlined text Web site addresses
Bold text •Key names
•Text typed into a GUI element, such as into a box
•GUI elements that are clicked or selected, such as menu and list
items, buttons, and check boxes
Italic text Text emphasis
Monospace text •File and directory names
•System output
•Code
•Text typed at the command-line
Monospace, italic text •Code variables
•Command-line variables
Monospace, bold text Emphasis of file and directory names, system output, code, and text
typed at the command-line

AssuredSAN 4004 Series FRU Installation and Replacement Guide 9
CAUTION: Indicates that failure to follow directions could result in damage to equipment or data.
IMPORTANT: Provides clarifying information or specific instructions.
NOTE: Provides additional information.
TIP: Provides helpful hints and shortcuts.

10 FRUs
1FRUs
Available FRUs
You can determine which FRUs pertain to your storage enclosure using the Command-line Interface (CLI).
Access the controller via a Telnet client; log into the controller over the network (default user name manage
and password !manage). If the default user or password—or both—have been changed for security
reasons, enter the secure login credentials instead of the defaults shown above.
Enter a show frus query.
Execution of the show frus CLI command displays controller metadata, followed by the FRU
information pertaining to chassis (with midplane), I/O modules (IOMs), and power supplies.
NOTE: See AssuredSAN 4004 Series CLI Reference Guide for more information.
You can also determine which FRUs pertain to your storage enclosure by visual inspection of the
component, noting serial number and part number. This method applies to disk drives. FRUs and FRU
make-up are subject to change independent of documentation versions. Information about FRUs and other
components can also be viewed via the SMC or RAIDar.
See Dot Hill’s products: http://www.dothill.com/products page for the latest product information. See the
customer resource center (CRC) site for interoperability information: https://crc.dothill.com.
Storage enclosure overview
NOTE: Tables and companion illustrations show field-replaceable units for 4004 Series (2U24 and 2U12)
products. FRUs used in 2U48 and 4U56 chassis are addressed in Ultra48 and Ultra56 documentation.
Table 3 provides summary descriptions of the individual controller enclosure models used by supported
4004 Series configurations.
1This model uses a qualified FC SFP option within the CNC ports (used for host connection or replication). When in FC mode, the
SFPs must be a qualified 8 Gb or 16 Gb fibre optic option. A 16 Gbit/s SFP can run at 16 Gbit/s, 8 Gbit/s, 4 Gbit/s, or
auto-negotiate its link speed. An 8 Gbit/s SFP can run at 8 Gbit/s, 4 Gbit/s, or auto-negotiate its link speed.
2This model uses a qualified 10GbE iSCSI option within the controller module CNC ports (used for host connection or replication).
3This model uses a qualified 1 Gb iSCSI SFP option within the controller module CNC ports (used for host connection or replication).
4CNC ports support same-type or mixed-type SFPs in combination as described in Transceivers used in CNC ports on page 49.
5This model uses SFF-8644 connectors and qualified cable options for host connection.
Table 4 shows components for 2.5" 24-drive enclosure models (2U24). Table 6 on page 16 shows
components for 3.5" 12-drive enclosure models (2U12). Tables and supporting illustrations (following
tables) show components for the 4004 Series product line that can be ordered for replacement in the field.
Contact your account manager for packaged FRU numbers and ordering information. Data addressing
4004 Series 24-drive and 12-drive enclosure products is provided to supplement the illustrated replacement
Table 3 Individual enclosure models comprising 4004 Series storage systems
AssuredSAN 4004 Series controller enclosure matrix
2.5" 24-drive Controller enclosures (SFF) 3.5" 12-drive Controller enclosures (LFF)
Model Description Form Model Description Form
4824
Fibre Channel (8/16 Gb) SFP
1,4
2U24 4834 Fibre Channel (8/16 Gb) SFP
1,4
2U12
4824 Internet SCSI (10GbE) SFP2,4 2U24 4834 Internet SCSI (10GbE) SFP2,4 2U12
4824 Internet SCSI (1 Gb) SFP3,4 2U24 4834 Internet SCSI (1 Gb) SFP3,4 2U12
4524 HD mini-SAS (12 Gb)52U24 4534 HD mini-SAS (12 Gb)52U12

AssuredSAN 4004 Series FRU Installation and Replacement Guide 11
procedures described in Chapter 2 — Procedures. The illustrations following herein show 2U24 and 2U12
chassis used in 24-drive and 12-drive enclosures, respectively.
FRUs addressing 24-drive enclosures
The 2U24 chassis—configured with 24 2.5" disks—is used for 4004 Series controller enclosures and
optional expansion enclosures.
Table 4 4004 Series product components for 24-drive enclosures
Item Enclosure component descriptions
1Diskdrive(SFF)
a) 2.5" disk drive module (disks of differing type/speed and storage capacity: SAS, SSD)
b) Air management module (blank to maintain optimum air flow within enclosure)
2Earkit
a) Left ear assembly
b) Right ear assembly
Also see Enclosure bezel for 24-drive model on page 14
3 Chassis (sheet metal flanges on internal IOM bay assembly are omitted from Figure 1 for visual clarity)
4 Midplane (included with chassis)
5 Power supplies (one shown)
a) AC power supply for enclosure (newer power supplies do not have a power switch)
b) DC power supply for enclosure
6 I/O module for enclosure (one shown, two allowed per enclosure)
J6G24, 1JM, mini-SAS (SFF-8088), 2-port [6 Gbit/s]
7 Enclosure cover (included with chassis)
Controller module for enclosure [ two allowed per controller enclosure ] (see Figure 2 on page 13)
a) 4824, 1RM, 4-port CNC, FC [8/16 Gbit/s] SFP option
b) 4824, 1RM, 4-port CNC, iSCSI [10GbE] SFP option
c) 4824, 1RM, 4-port CNC, iSCSI [1 Gbit/s] RJ-45 SFP option
d) 4524, 1RM, HD mini-SAS, 4-port [12 Gbit/s] SFF-8644 external connector
Small form-pluggable (SFP) connectors (see Figure 2 on page 13)
a) SFP transceiver (applies to CNC models only: FC, 10GbE iSCSI, 1 Gb iSCSI)
Not
shown
Rail kits (variable options)
a) Rack mount kit, shelf, short, All HW 22.5" - 31"
b) Rack mount kit, shelf, long, All HW 25" - 36"
c) Rack mount bracket kit, 2-Post adjustable, All HW
Not
shown
Cable kit [Cable package: mini-SAS (SFF-8088) to mini-SAS (SFF-8088)]
Cable kit [Cable package: HD mini-SAS (SFF-8644) to HD mini-SAS (SFF-8644)]
Cable kit [Cable package: HD mini-SAS (SFF-8644) to mini-SAS (SFF-8088)]
Not
shown
Cable kit [Cable package: USB Type B; CLI (USB)]
Not
shown
AC power cord compatible with AC power supply unit; or
DC power cable compatible with DC power supply unit

12 FRUs
NOTE: Numbered items from Table 4 are shown in Figure 1. Tinted items from Table 4 are shown in
Figure 2 on page 13.
Figure 1 Exploded view — controller or expansion enclosure (2U24)
Figure 1 through Figure 5 illustrate 24-drive enclosure models. Item No.6 (above) is a supported expansion
module. Figure 2 shows a newer 4004 Series controller module also supported by the enclosure. Although
not shown in Figure 1, newer product models use an enclosure bezel instead of ear caps (no longer used).
The enclosure bezel is shown in Figure 5 on page 14 (removed) and in Figure 3 on page 13 (installed),
respectively.
NOTE: The following illustrations further describe Table 4 components for the 24-drive chassis:
•Controller module pictorial — Figure 2
•Assembly — Figure 3 on page 13 and Figure 5 on page 14
•Internal components sub-assembly — Figure 4 on page 13
1
2b
3
4
5
6
7
2a

AssuredSAN 4004 Series FRU Installation and Replacement Guide 13
Figure 2 4004 Series CNC controller module with SFP transceiver
The controller module shown in Figure 2 is used instead of the expansion module (item No.6 in Figure 1)
when the chassis is configured as a controller enclosure, rather than an expansion enclosure. The
transceiver is shown exploded from the IOM in the CNC example. Controller modules equipped with CNC
ports support qualified FC (8 Gbit/s, 16 Gbit/s), 10GbE iSCSI, and 1 Gb RJ-45 SFP options. Controller
modules equipped with HD mini-SAS ports use qualified SFF-8644 external connectors.
Figure 3 Controller enclosure assembly with bezel installed (2U24)
Figure 4 Controller enclosure architecture — internal components sub-assembly (2U24)
CNC controller module
(enlarged relative to Figure 1)
AssuredSAN 4004
Disk drive
Power supply unit
I/O module
Midplane
module

14 FRUs
Enclosure bezel for 24-drive model
The SFF 24-drive enclosure supports a bezel sub-assembly that attaches to the front of the chassis (see
Figure 5). The bezel—comprised of a vented cover featuring integrated ear caps—is pre-assembled and
packed with foam into a box included in the master shipping container.
NOTE: The enclosure bezel geometry shown in illustrations within this document may be slightly different
than the bezel shipped with your product, but the ball stud attachment points are the same.
Bezel attachment and removal instructions are provided beneath Attaching and removing the enclosure
bezel on page 22.
Figure 5 Partial assembly showing bezel alignment (2U24)
Ball stud on chassis ear
(typical 4 places) Enclosure bezel sub-assembly
Pocket opening (typical 2 places)

AssuredSAN 4004 Series FRU Installation and Replacement Guide 15
Supported drive enclosures
1These 4004 Series-compatible expansion enclosure models feature 6 Gbit/s internal disk and SAS expander link speeds.
2See the AssuredSAN Ultra48 Series Setup and FRU I&R Guides for information about the high-capacity 2U48 chassis form factor.
3See the AssuredSAN Ultra56 Series Setup and FRU I&R Guides for information about the high-capacity 4U56 chassis form factor.
4See the 4004 Series Setup Guide for maximum enclosure limits and associated cabling configurations.
5The 4004 Series and Ultra56 Series—which includes the J6G56—are designed for NEBS compliance, but the 3004 Series and
Ultra48 Series—which includes the J6G48—are not.
6Reference documents for the J6G48 (2U48) and J6G56 (4U56) are listed below.
7See http://www.dothill.com for most current information concerning support of drive enclosures for storage expansion.
Within the AssuredSAN 4004 Series product line, the 2U12 and 2U24 chassis can be configured as
either a controller enclosure or a drive enclosure for adding storage. These enclosures look very similar to
one another. For a given from factor (2U12 or 2U24) only the IOM geometry differs: either it is a controller
module or an expansion module. The remaining FRUs for a given chassis are common.
Within the AssuredSAN 4004 Series product line, the high-capacity 2U48 chassis is supported as an
expansion enclosure (J6G48) for adding storage to 2U12 or 2U24 controller enclosures.
IMPORTANT: For illustrations and information about the 2U48 chassis—which is supported as a drive
enclosure option for 4004 Series controller enclosures—refer to the following related documents:
•AssuredSAN Ultra48 Series Setup Guide
•AssuredSAN Ultra48 Series FRU Installation and Replacement Guide
•AssuredSAN Ultra48 Rackmount Bracket Kit Installation
Within the AssuredSAN 4004 Series product line, the high-capacity 4U56 chassis is supported as an
expansion enclosure (J6G56) for adding storage to 2U12 or 2U24 controller enclosures.
IMPORTANT: For illustrations and information about the 4U56 chassis—which is supported as a drive
enclosure option for 4004 Series controller enclosures—refer to the following related documents:
•AssuredSAN Ultra56 Series Setup Guide
•AssuredSAN Ultra56 Series FRU Installation and Replacement Guide
•AssuredSAN Ultra56 Rackmount Bracket Kit Installation
•AssuredSAN Ultra56 Enclosure Bezel Kit Installation
Table 5 Compatible drive enclosure options for adding storage
Model Form Enclosure description Disk drives Rear panel connection NEBS
J6G24 2U24 24-drive 6 Gbit/s chassis with FRUs 2.5" (SFF) mini-SAS to mini-SAS Note 5
J6G12 2U12 12-drive 6 Gbit/s chassis with FRUs 3.5" (LFF) mini-SAS to mini-SAS Note 5
J6G48 2U48 48-drive 6 Gbit/s chassis with FRUs 2.5" (SFF) mini-SAS to mini-SAS Note 5
J6G56 4U56 56-drive 6 Gbit/s chassis with FRUs 3.5" (LFF) mini-SAS to mini-SAS Note 5

16 FRUs
FRUs addressing 12-drive enclosures
The 2U12 chassis—configured with 12 3.5" disks—is used for 4004 Series controller enclosures and
optional expansion enclosures.
Table 6 4004 Series product components for 12-drive enclosures
Item Enclosure component descriptions
1Diskdrive(LFF)
a) 3.5" disk drive module (disks of differing type/speed and storage capacity: SAS, SSD)
b) Air management module (blank to maintain optimum air flow within enclosure)
2Earkit
a) Left ear assembly
b) Right ear assembly
Also see Enclosure bezel for 12-drive model on page 19
3Chassis
4 Midplane (included with chassis)
5 Power supplies (one shown)
a) AC power supply for enclosure (newer power supplies do not have a power switch)
b) DC power supply for enclosure
6 Expansion module ( one shown )
J6G12, 1JM, mini-SAS (SFF-8088), 2-port [6 Gbit/s]
7 Enclosure cover (included with chassis)
Controller module for enclosure [ two allowed per controller enclosure ] (see Figure 7 on page 18)
a) 4834, 1RM, 4-port CNC, FC [8/16 Gbit/s] SFP option
b) 4834, 1RM, 4-port CNC, iSCSI [10GbE] SFP option
c) 4834, 1RM, 4-port CNC, iSCSI [1 Gbit/s] RJ-45 SFP option
d) 4534, 1RM, HD mini-SAS, 4-port [12 Gbit/s] SFF-8644 external connector
Small form-pluggable (SFP) connectors (see Figure 7 on page 18)
a) SFP transceiver (applies to CNC models only: FC, 10GbE iSCSI, 1 Gb iSCSI)
Not
shown
Rail kits (variable options)
a) Rack mount kit, shelf, short, All HW 22.5" - 31"
b) Rack mount kit, shelf, long, All HW 25" - 36"
c) Rack mount bracket kit, 2-Post adjustable, All HW
Not
shown
Cable kit [Cable package: mini-SAS (SFF-8088) to mini-SAS (SFF-8088)]
Cable kit [Cable package: HD mini-SAS (SFF-8644) to HD mini-SAS (SFF-8644)]
Cable kit [Cable package: HD mini-SAS (SFF-8644) to mini-SAS (SFF-8088)]
Not
shown
Cable kit [Cable package: USB Type B; CLI (USB)]
Not
shown
AC power cord compatible with AC power supply unit; or
DC power cable compatible with DC power supply unit

AssuredSAN 4004 Series FRU Installation and Replacement Guide 17
NOTE: Numbered items from Table 6 are shown in Figure 6. Tinted items from Table 6 are shown in
Figure 7 on page 18.
Figure 6 Exploded view — controller or expansion enclosure (2U12)
Figure 6 through Figure 10 illustrate 12-drive enclosure models. Figure 8 on page 18 provides an assembly
of the exploded view shown in Figure 6, and Figure 9 on page 18 shows an assembly of component FRUs
within the enclosure. Although not shown in Figure 6, newer product models use an enclosure bezel
instead of ear caps (no longer used). The enclosure bezel is shown in Figure 10 on page 19 (removed) and
Figure 8 on page 18 (installed), respectively.
NOTE: The following illustrations further describe components for the 12-drive chassis:
•Controller module pictorial — Figure 7 on page 18
•Assembly — Figure 8 on page 18 and Figure 10 on page 19
•Internal components sub-assembly — Figure 9 on page 18
1
3
4
5
6
7
2a
2b

18 FRUs
Figure 7 4004 Series CNC controller module with SFP transceiver
The controller module shown in Figure 7 is used instead of the expansion module (item No.6 in Figure 6)
when the chassis is configured as a controller enclosure, rather than an expansion enclosure. The
transceiver is shown exploded from the IOM in the CNC example. Controller modules equipped with CNC
ports support qualified FC (8 Gbit/s, 16 Gbit/s), 10GbE iSCSI, and 1 Gb RJ-45 SFP options. Controller
modules equipped with HD mini-SAS ports use qualified SFF-8644 external connectors.
Figure 8 Enclosure assembly with bezel installed (2U12)
Figure 9 Enclosure architecture — internal components sub-assembly (2U12)
CNC controller module
(enlarged relative to Figure 6)
module
Disk drive
Power supply unit
I/O module
Midplane

AssuredSAN 4004 Series FRU Installation and Replacement Guide 19
Enclosure bezel for 12-drive model
The LFF 12-drive enclosure supports a bezel sub-assembly that attaches to the front of the chassis (see
Figure 10). The bezel—comprised of a vented cover attached to an EMI (Electromagnetic Interference)
shield—is pre-assembled and packed with foam into a box included in the master shipping container. The
bezel might optionally include a removable air filter that can be serviced or replaced. Hard copy
instructions for attaching/removing the bezel, and for servicing or replacing the air filter, are provided in
the shipping container of a new enclosure.
Alternatively, you can access the document online. See Dot Hill’s customer resource center (CRC) web site
for additional information: https://crc.dothill.com.
NOTE: The enclosure bezel geometry shown in illustrations within this document may be slightly different
than the bezel shipped with your product, but the ball stud attachment points are the same.
Basic bezel attachment and removal instructions are provided beneath Attaching and removing the
enclosure bezel on page 22.
Figure 10 Partial assembly showing bezel alignment (2U12)
NOTE: For more information about servicing or replacing the removable air filter option for this particular
bezel, refer to the AssuredSAN 12-drive Enclosure Bezel Kit Installation instructions included in your product
ship kit.
IMPORTANT: For information about compatible drive enclosures supported by 4004 Series 12-drive
controller enclosures using the 2U12 chassis, see Supported drive enclosures on page 15.
Ball stud on chassis ear
(typical 4 places)
Enclosure bezel sub-assembly
(EMI shield and removable air filter) Pocket opening (typical 2 places)

20 Procedures
2 Procedures
This chapter provides procedures for replacing FRUs (field-replaceable units), including precautions,
removal instructions, installation instructions, and verification of successful installation. Each procedure
addresses a specific task. Certain procedures refer to related documentation. See Related documentation
on page 8 for a list of these documents and where to find them online.
IMPORTANT: Procedures pertain to FRUs used in 4004 Series (2U24 and 2U12) products. Procedures
pertaining to FRUs used in 2U48 and 4U56 chassis are addressed in Ultra48 and Ultra56 documentation.
Electrostatic discharge
Before you begin any of the procedures, consider the following precautions and preventive measures.
Preventing electrostatic discharge
To prevent electrostatic discharge (ESD) from damaging the system, be aware of the precautions to
consider when setting up the system or handling parts. A discharge of static electricity from a finger or
other conductor may damage system boards or other static-sensitive devices. This type of damage may
reduce the life expectancy of the device.
CAUTION: Parts can be damaged by electrostatic discharge. Follow these precautions:
•Avoid hand contact by transporting and storing products in static-safe containers.
•Keep electrostatic-sensitive parts in their containers until they arrive at static-protected workstations.
•Place parts in a static-protected area before removing them from their containers.
•Avoid touching pins, leads, or circuitry.
•Always be properly grounded when touching a static-sensitive component or assembly.
•Remove clutter (plastic, vinyl, foam) from the static-protected workstation.
Grounding methods to prevent electrostatic discharge
Several methods are used for grounding. Adhere to the following precautions when handling or installing
electrostatic-sensitive parts.
CAUTION: Parts can be damaged by electrostatic discharge. Use proper anti-static protection:
•Keep the replacement FRU in the ESD bag until needed; and when removing a FRU from the enclosure,
immediately place it in the ESD bag and anti-static packaging.
•Wear an ESD wrist strap connected by a ground cord to a grounded workstation or unpainted surface
of the computer chassis. Wrist straps are flexible straps with a minimum of 1 megohm (± 10 percent)
resistance in the ground cords. To provide proper ground, wear the strap snug against the skin.
•If an ESD wrist strap is unavailable, touch an unpainted surface of the chassis before handling the
component.
•Use heel straps, toe straps, or boot straps at standing workstations. Wear the straps on both feet when
standing on conductive floors or dissipating floor mats.
•Use conductive field service tools.
•Use a portable field service kit with a folding static-dissipating work mat.
