Douglas Dynamics Blizzard 7600HD User manual

Straight Blade Snowplows
7600HD, 8000HD, 8600HD & 9000HD
Owner's Manual
May 1, 2021
Lit. No. 40694, Rev. 04
This manual supersedes all editions with an earlier date.
CAUTION
Read this manual before operating or
servicing snowplow.
A DIVISION OF DOUGLAS DYNAMICS, LLC

Lit. No. 40694, Rev. 04 3 May 1, 2021
SNOWPLOW OWNER DATA SHEET
Register your snowplow online at www.blizzardplows.com
Owner Name: ______________________________________________________________________________
Date Purchased: ____________________________________________________________________________
Outlet Name: _______________________________________________ Phone: _________________________
Outlet Address: _____________________________________________________________________________
Vehicle Model/Year: _________________________________________________________________________
Snowplow Model/Year: _______________________________________________________________________
Snowplow Type/Size: ______________________________________________ Weight: ______________ lb/kg
Ballast: No ___ Yes ___ Amount: ___________lb/kg
Hydraulic Unit Serial Number: __________________________________________________________________
Blade Serial Number: ________________________________________________________________________

Lit. No. 40694, Rev. 04 5 May 1, 2021
TABLE OF CONTENTS
SNOWPLOW OWNER DATA SHEET ..................... 3
PREFACE................................................................... 7
SAFETY ..................................................................... 8
VEHICLE APPLICATION INFORMATION ........... 11
Ballast Requirements.......................................... 11
GETTING TO KNOW YOUR SNOWPLOW .......... 12
Snowplow Headlamps ........................................ 12
Vehicle Mount ..................................................... 12
Hydraulic System ................................................ 13
System Capacity .......................................... 13
Pump Motor Specifications .......................... 13
Cab Controls ....................................................... 13
ACCESSORIES & OPTIONS ................................. 14
MOUNTING SNOWPLOW TO VEHICLE.............. 16
OPERATING YOUR SNOWPLOW........................ 17
Joystick Control................................................... 17
POWER GRIP™ Hand-Held Control.................. 19
Snowplow Headlamp Check............................... 21
Disc Shoe Adjustment......................................... 21
Hydraulic System ................................................ 23
Blade Drop Speed Adjustment ........................... 24
Transporting Snowplow ...................................... 25
Driving and Plowing on Snow and Ice ................ 25
Plowing Snow ..................................................... 26
General Instructions ..................................... 26
Hard-Packed Snow ...................................... 26
Deep Snow................................................... 26
Clearing Driveways....................................... 27
Clearing Parking Lots ................................... 27
Parking with Snowplow Attached ....................... 27
Towing a Disabled or Stuck Vehicle.................... 27
REMOVING SNOWPLOW FROM VEHICLE
& STORAGE ......................................................... 28
MAINTENANCE ......................................................30
Aiming Headlamp Beams ................................... 30
Preseason Check................................................ 31
Postseason Maintenance.................................... 31
Maintenance and Adjustment ............................. 32
Hydraulic System ................................................ 33
Fluid Level .................................................... 33
Annual Fluid Change....................................33
Air Removal............................................34
Hose or Fitting Replacement........................ 35
Procedure for Installing Hydraulic
Fittings and Hoses ....................................35
Fuse Replacement.............................................. 36
Vehicle ................................................................ 36
Recycle ...............................................................36
Blade Finish ........................................................36
Emergency Parts/Tools ...................................... 36
Troubleshooting ..................................................36
TECHNICAL SPECIFICATIONS............................ 37
HARNESS DIAGRAMS.......................................... 38
Wiring 3-Port, 2-Plug System ............................. 38

Lit. No. 40694, Rev. 04 7 May 1, 2021
PREFACE
PREFACE
Congratulations on purchasing the finest straight
blade snowplow available! BLIZZARD®straight
blades are clearing new trails for innovative design,
rugged durability, quality craftsmanship, and superior
performance. Our innovative products are tested all
over the snowbelt.
This manual provides safety, operation and
maintenance information for your new BLIZZARD
snowplow. To keep your snowplow in good condition,
read and understand this manual and follow its
recommendations. Failure to do so may affect your
warranty coverage.
When service is necessary, your local BLIZZARD
distributor knows your snowplow best. Contact your
BLIZZARD outlet for maintenance, service, or any
other assistance you may require.
If you have not already done so, please visit
www.blizzardplows.com to register your new
BLIZZARD snowplow!
AUTHENTIC PARTS AND ACCESSORIES
Your BLIZZARD snowplow is a valuable investment.
The best way to assure original equipment reliability
and efficiency is to purchase only Authentic
Parts and Accessories. "Will-fit" parts and
accessories can alter your plow's performance
characteristics and may affect your product warranty.
Protect your investment by staying with the best—
original BLIZZARD parts and accessories from your
local BLIZZARD outlet.

Lit. No. 40694, Rev. 04 8 May 1, 2021
WARNING/CAUTION AND INSTRUCTION
LABELS
Become familiar with and inform users about the
warning/caution and instruction labels on the back of
the blade.
NOTE: If labels are missing or cannot be read, see
your sales outlet.
SAFETY
SAFETY DEFINITIONS
NOTE: Indicates a situation or action that can lead
to damage to your snowplow and vehicle or other
property. Other useful information can also be
described.
WARNING
Indicates a potentially hazardous situation
that, if not avoided, could result in death or
serious personal injury.
CAUTION
Indicates a potentially hazardous situation
that, if not avoided, may result in minor or
moderate injury. It may also be used to alert
against unsafe practices.

Lit. No. 40694, Rev. 04 9 May 1, 2021
SAFETY
SAFETY PRECAUTIONS
Improper installation and operation could cause
personal injury, and/or equipment and property
damage. Read and understand labels and the
Owner's Manual before installing, operating, or making
adjustments.
WARNING
Lower blade when vehicle is parked.
Temperature changes could change
hydraulic pressure, causing the blade to
drop unexpectedly or damaging hydraulic
components. Failure to do this could result in
serious personal injury.
WARNING
Remove blade assembly before placing
vehicle on hoist.
CAUTION
Read Owner's Manual before operating or
servicing snowplow.
WARNING
Do not exceed GVWR or GAWR including the
blade and ballast. The rating label is found on
the driver-side vehicle door cornerpost.
CAUTION
Plowing speed should not exceed 10 mph
(16 km/h).
CAUTION
See your BLIZZARD®outlet for application
recommendations.
CAUTION
Transport speed should not exceed 45 mph
(72 km/h). Further reduce speed under
adverse travel conditions.
HYDRAULIC SAFETY
• Always inspect hydraulic components and hoses
before using. Replace any damaged or worn parts
immediately.
• If you suspect a hose leak, DO NOT use your
hand to locate it. Use a piece of cardboard or
wood.
FUSES
The BLIZZARD electrical and hydraulic systems
contain several automotive-style fuses. If a problem
should occur and fuse replacement is necessary,
the replacement fuse must be of the same type and
amperage rating as the original. Installing a fuse with
a higher rating can damage the system and could start
a fire. Fuse Replacement, including fuse ratings and
locations, is located in the Maintenance section of this
Owner's Manual.
PERSONAL SAFETY
• Remove ignition key and put the vehicle in PARK
or in gear to prevent others from starting the
vehicle during installation or service.
• Wear only snug-fitting clothing while working on
your vehicle or snowplow.
• Do not wear jewelry or a necktie, and secure long
hair.
• Wear safety goggles to protect your eyes from
battery acid, gasoline, dirt, and dust.
• Avoid touching hot surfaces such as the engine,
radiator, hoses, and exhaust pipes.
• Always have a fire extinguisher handy, rated BC
for flammable liquids and electrical fires.
WARNING
Hydraulic fluid under pressure can cause skin
injection injury. If you are injured by hydraulic
fluid, get medical attention immediately.
WARNING
To prevent accidental movement of the blade,
always turn the control OFF whenever the
snowplow is not in use. The power indicator
light will turn OFF.

Lit. No. 40694, Rev. 04 10 May 1, 2021
SAFETY
FIRE AND EXPLOSION
Be careful when using gasoline. Do not use gasoline
to clean parts. Store only in approved containers away
from sources of heat or flame.
CELL PHONES
A driver's first responsibility is the safe operation of
the vehicle. The most important thing you can do
to prevent a crash is to avoid distractions and pay
attention to the road. Wait until it is safe to operate
mobile communication equipment such as cell
phones, text messaging devices, pagers, or two-way
radios.
VENTILATION
WARNING
Gasoline is highly flammable and gasoline
vapor is explosive. Never smoke while
working on vehicle. Keep all open flames
away from gasoline tank and lines. Wipe up
any spilled gasoline immediately.
WARNING
Vehicle exhaust contains lethal fumes.
Breathing these fumes, even in low
concentrations, can cause death. Never
operate a vehicle in an enclosed area without
venting exhaust to the outside.
BATTERY SAFETY
NOISE
Airborne noise emission during use is below 70 dB(A)
for the snowplow operator.
CAUTION
Batteries normally produce explosive gases,
which can cause personal injury. Therefore,
do not allow flames, sparks, or lit tobacco
to come near the battery. When charging or
working near a battery, always cover your
face and protect your eyes, and also provide
ventilation.
• Batteries contain sulfuric acid, which burns
skin, eyes, and clothing.
• Disconnect the battery before removing or
replacing any electrical components.

Lit. No. 40694, Rev. 04 11 May 1, 2021
Vehicle application recommendations are based on
the following:
• The vehicle with the snowplow installed must
comply with applicable Federal Motor Vehicle
Safety Standards (FMVSS).
• The vehicle with the snowplow installed must
comply with the vehicle manufacturer's stated
gross vehicle and axle weight ratings (found on
the driver-side door cornerpost of the vehicle) and

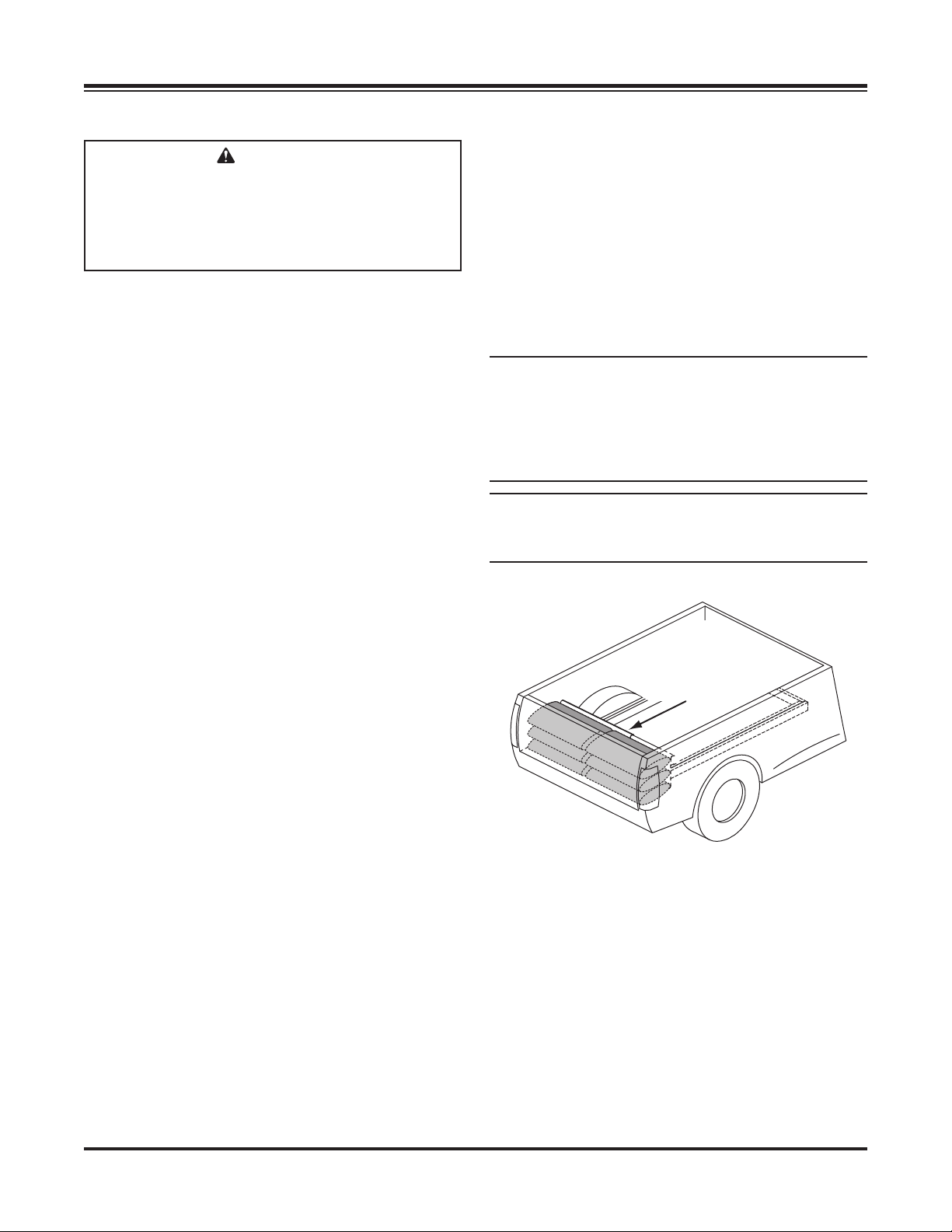

the front and rear weight distribution ratio. In some
cases, rear ballast may be required to comply with
these requirements. See Ballast Requirements
section.
• BLIZZARD Power Match selection system is
based on available vehicle capacity for snowplow
equipment on a representative vehicle equipped
with options commonly used for plowing and with
300 lb of front seat occupant weight.
• Weights of front seat occupants can be adjusted
above 300 lb, but vehicle with snowplow must not
exceed vehicle GVWR or GAWR.
• In some cases there may be additional limitations
and requirements.
• Installation, modification, and addition of
accessories must comply with published
BLIZZARD recommendations and instructions.
Available capacity decreases as the vehicle is
loaded with cargo or other truck equipment, or
snowplow accessories are installed.
• If there is uncertainty as to whether available
capacity exists, the actual vehicle as configured
must be weighed.
VEHICLE APPLICATION INFORMATION
CAUTION
See your BLIZZARD®outlet for specific
vehicle application recommendations before
installation. The Power Match selection
system has specific vehicle and snowplow
requirements.
BALLAST REQUIREMENTS
Ballast (additional weight) is an important part of
qualifying vehicles for snowplow eligibility. Rear
ballast must be used when necessary to remain in
compliance with axle ratings and ratios as specified by
the vehicle manufacturer.
If ballast is required, it is important that it be secured
properly behind the rear axle. A ballast retainer kit is
available from your BLIZZARD outlet, PN 62849.
NOTE: The ballast retainer kit is for snowplow
vehicles requiring ballast. See your BLIZZARD
outlet for the correct amount of ballast required.
Include the weight of the retainer as part of the
ballast requirement. Sand bags are recommended
for use as ballast.
NOTE: Ballast recommended and its weight
calculations assume the entire width of the bed is
filled as close to tailgate as possible.
Position
and secure ballast
as close to the tailgate
as possible.

Lit. No. 40694, Rev. 04 12 May 1, 2021
GETTING TO KNOW YOUR SNOWPLOW
SNOWPLOW HEADLAMPS
The snowplow headlamps feature state-of-the-art
optics with long-life (H13) halogen bulbs, combination
park/turn signals, and dual mounting studs. A prewired
harness with a plug-in module requires no headlamp
wire splicing. The headlamps conform to Federal
Motor Vehicle Safety Standards (FMVSS).
When the electrical plugs are connected, the vehicle
headlamps will automatically switch to the snowplow
headlamps when they are turned ON. When the
electrical plugs are disconnected, the headlamps will
automatically switch to vehicle headlamps when they
are turned ON.
Replacement parts are available through your local
BLIZZARD®outlet.

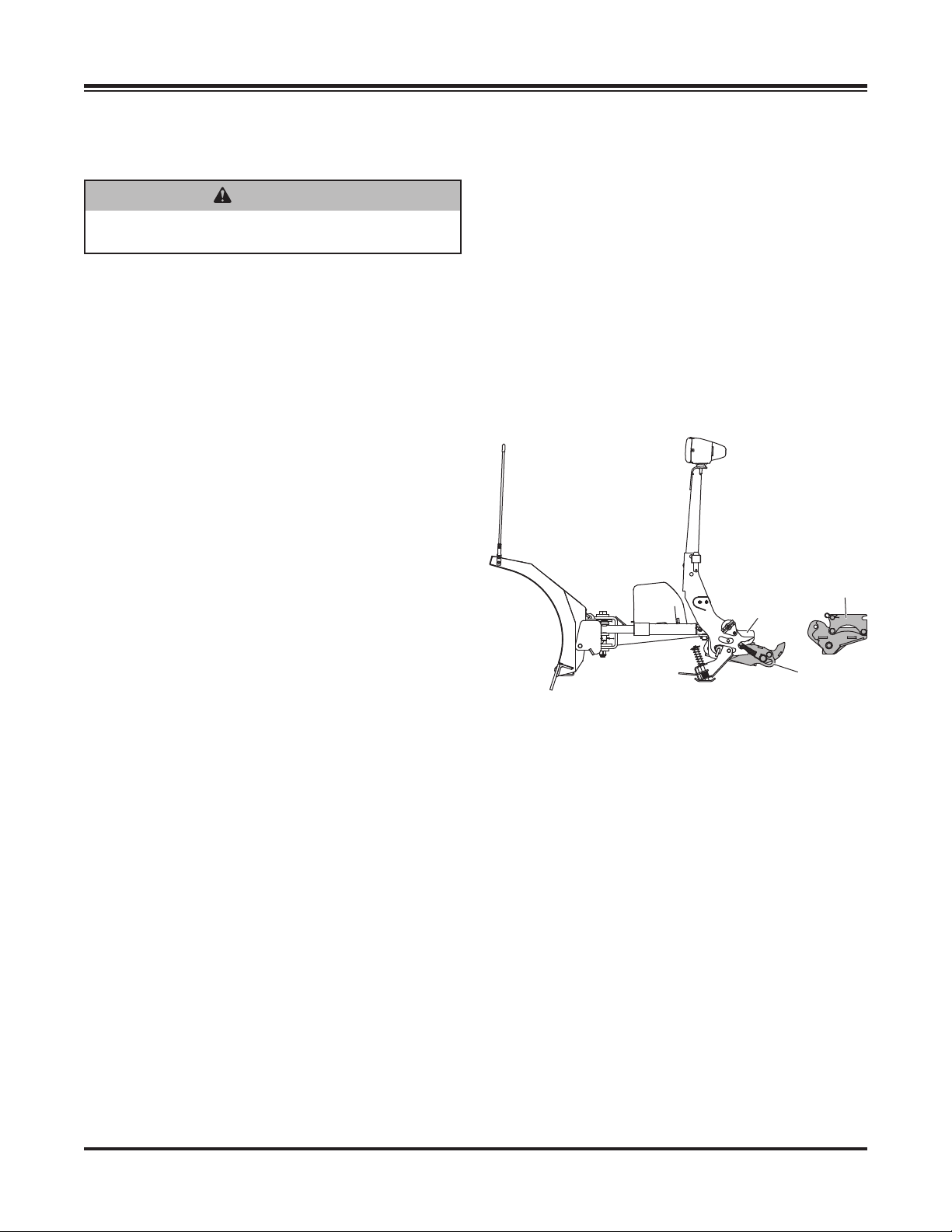

VEHICLE MOUNT
Blizzard has designed custom mounts for most
vehicles. Due to differences among vehicle models,
mounts are generally not interchangeable.
The mount is fastened to the underside of the vehicle
frame and provides the primary connecting point
between the snowplow and the vehicle.
Attached to the mount is a removable mount adapter.
The mount adapter is attached to the mount with clevis
pins and hairpin cotters. The mount adapter is easily
removed to provide even more road clearance during
the nonplowing months of the year.
A-Frame
Arm
Mount
Adapter
WARNING
Your vehicle must be equipped with snowplow
headlamps and directional lights.

Lit. No. 40694, Rev. 04 13 May 1, 2021
HYDRAULIC SYSTEM
The hydraulic unit delivers fast and uniform speed
for lifting and angling. Straight blades are raised in
approximately 3 seconds and angled side to side in
approximately 3 seconds.
For hydraulic fluid type and filling instructions, see
Hydraulic System, Annual Fluid Change, in the
Maintenance section of this Owner's Manual.
System Capacity
• Unit Reservoir ............................1-3/4 quarts
• System Total ....................... 3 to 3-1/4 quarts
Pump Motor Specifications
12V DC with +/– connection
1600–1700 psi pump relief valve
3000 psi angling relief valve
4.5" dia 1.5 kW motor
0.000652 gal/rev Pump
Hydraulic Hose SAE 100R1
Drain Plug Reservoir
Valve
Manifold
Breather
Blade Drop
Speed Adjustment
Motor
GETTING TO KNOW YOUR SNOWPLOW
CAB CONTROLS
BLIZZARD®snowplows come equipped with one of
two special controls: the POWER GRIP™ hand-held
control or a joystick-style control.
Each control has its own ON/OFF switch with an
indicator light to show when the control is powered
up. Your vehicle ignition (key) switch controls a fused
circuit that powers your cab control directly from the
battery.
The ON/OFF switch on the cab control allows you to
turn OFF the control and prevent blade movement
even when the ignition switch is ON.
The control ON/OFF switch serves as an
emergency stop, if required.
All controls are protected by a replaceable fuse
located in the under hood snowplow electrical system.
See Fuse Replacement in the Maintenance section of
this Owner's Manual.
WARNING
To prevent accidental movement of the blade,
always turn the control OFF whenever the
snowplow is not in use. The power indicator
light will turn OFF.
Power Indicator
Light (red)
ON/OFF Button
(emergency stop)
ON/OFF Switch
(emergency stop)
POWER GRIP
Hand-Held Control
Joystick Control

Lit. No. 40694, Rev. 04 14 May 1, 2021
BLIZZARD®hydraulic fluid is specially formulated for
use in BLIZZARD snowplows and can significantly
enhance the operation and performance of the
hydraulic system. BLIZZARD zinc-free hydraulic fluid
maintains its viscosity to temperatures as low as
–40°F (–40°C). BLIZZARD hydraulic fluid is available
by the quart, gallon, case, or 55-gallon drum.
ACCESSORIES & OPTIONS
The emergency parts kit (PN 40589) includes the
most common replacement parts: angle ram hose,
lift ram hoses, hitch pin w/hairpin cotter, one of each
type of hose fitting, POWER HITCH™ toggle switches,
0.25 oz dielectric grease, and 1 qt BLIZZARD
hydraulic fluid. The compact and durable plastic
case (13.5" x 9" x 3.3") allows for easy storage behind
or under your seat.
Rugged and durable, the 3/8" thick, 2-ply rubber snow
deflector keeps snow offyour windshield and in its
place—on the ground! One-piece design provides
optimum snow deflection. The deflector is shipped
complete with mounting hardware.

Lit. No. 40694, Rev. 04 15 May 1, 2021

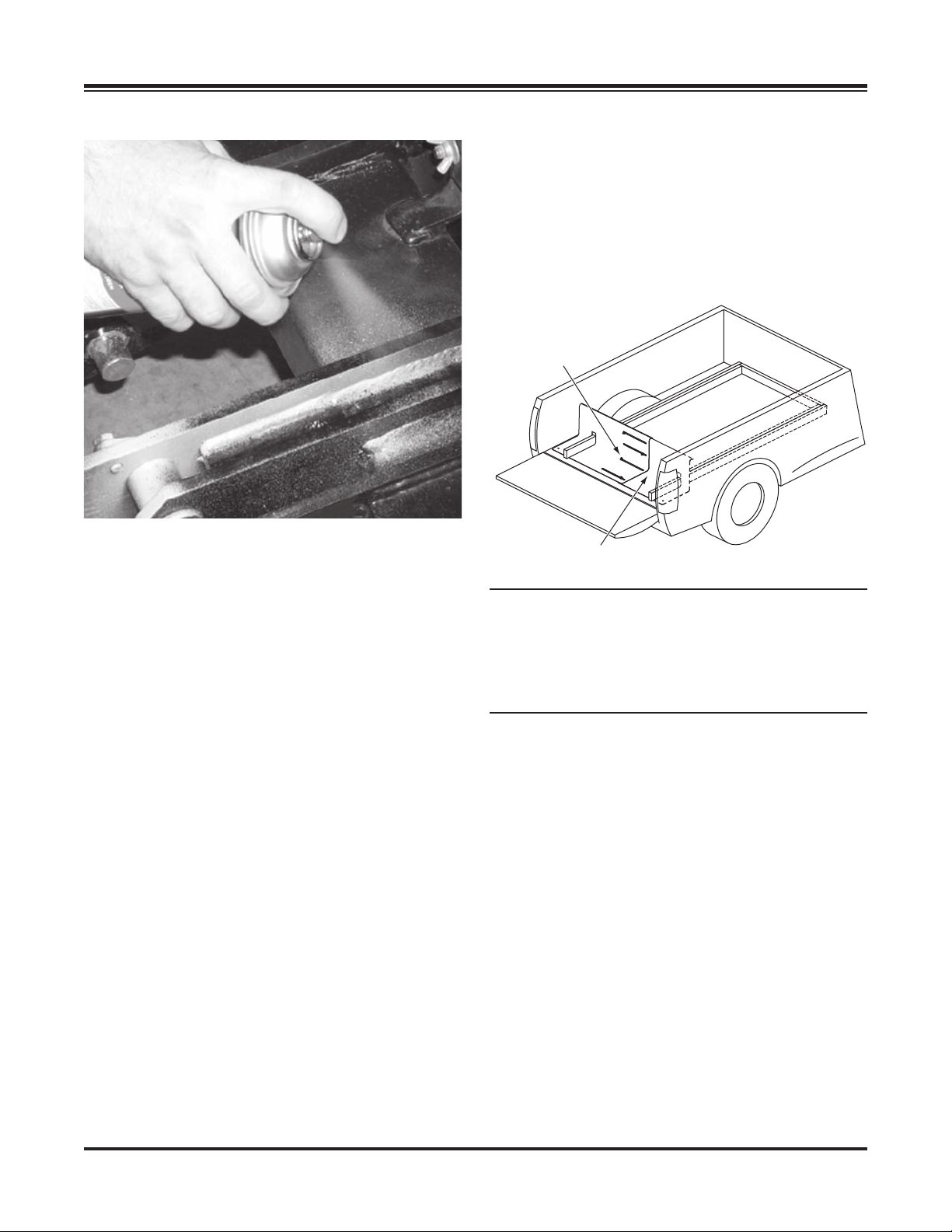

Putting your snowplow away for the winter? Have
a deep scratch to cover? Clean up your blade
and snowplow parts with our gloss spray paints.
BLIZZARD®touch-up paint provides an excellent
finish to help keep your snowplow looking its best.
Paint provided in 12-oz spray cans.
ACCESSORIES & OPTIONS
Ballast (additional weight) is an important part of
qualifying vehicles for snowplow eligibility. Rear
ballast must be used when necessary to remain in
compliance with axle ratings and ratios as specified
by the vehicle manufacturer. If ballast is required, it
is important that it be secured properly behind the
rear axle. A ballast retainer kit is available from your
BLIZZARD outlet, PN 62849.
NOTE: The ballast retainer kit is for snowplow
vehicles requiring ballast. See your BLIZZARD
outlet for the correct amount of ballast required.
Include the weight of the retainer as part of the
ballast requirement. Sand bags are recommended
for use as ballast.
Passenger-Side
Ballast Retainer
Driver-Side
Ballast Retainer

Lit. No. 40694, Rev. 04 16 May 1, 2021

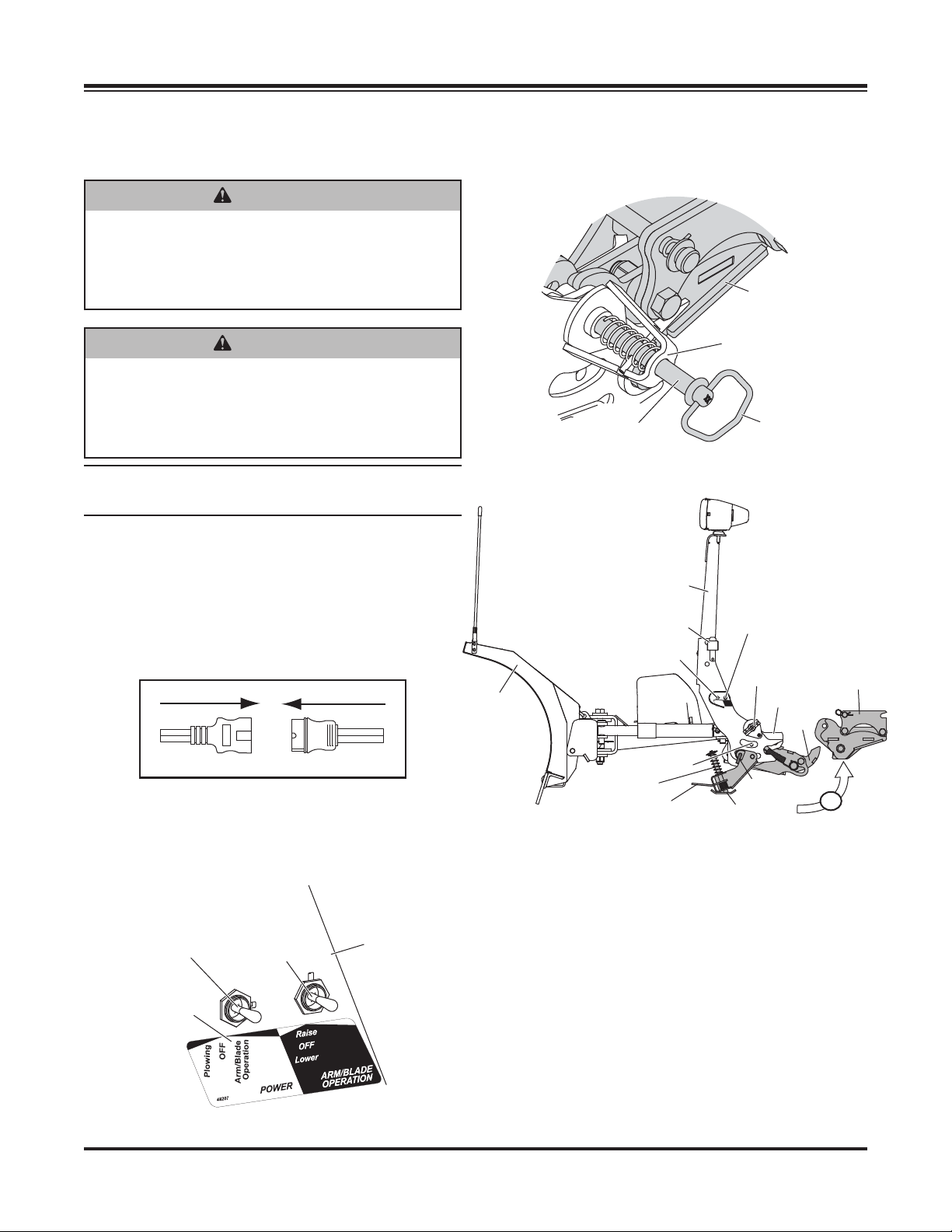

MOUNTING SNOWPLOW (ON)
NOTE: Use dielectric grease to prevent corrosion
on all connections.
1. Slowly drive vehicle forward to engage mount
adapter into A-frame.
2. Move power switch to center or "OFF" position.
3. Plug in electrical harnesses.
4. Push and hold power switch RIGHT and push UP
and hold Arm/Blade Operation switch. Arm will
engage mount adapter and pull snowplow toward
vehicle.
MOUNTING SNOWPLOW TO VEHICLE
WARNING
Keep 8' clear of the blade when blade is being
raised, lowered, or angled. Do not stand
between the vehicle and blade or directly in
front of blade. If the blade hits or drops on
you, you could be seriously injured.
WARNING
Inspect snowplow components and fasteners
for wear or damage whenever mounting or
removing the snowplow. Worn or damaged
components could allow the snowplow to
drop unexpectedly.
5. Rotate and release the hitch pin. The hitch pin is
fully engaged when the pin handle is against the
pin guide plate.
6. Repeat Step 5 on the passenger's side. Rotate
and release the hitch pin.
7. While holding the power switch RIGHT, push
DOWN and hold Arm/Blade Operation switch. Arm
will disengage mount adapter to relieve tension on
the stand.
8. Pull the stand handle up. The stand will lift offthe
ground. Pull the stand pin out. Rotate the stand up
until the stand pin seats into the upper hole on the
A-frame. The pin must lock into the upper A-frame
hole.
9. Repeat Step 8 on the passenger's side.
10. Move the power switch to the left or "PLOWING"
position.
Light
Tower
Power
Switch
Arm / Blade
Operation
Switch
Switch
Label
ARM/BLADE
OPERATION
POWER
OFF
Raise
Lower
Plowing
Arm/Blade
Operation
OFF
48207
Power Switch
Arm/Blade
Operation Switch
Hitch Pin
Mount
Adapte
r
Arm
A-Frame
Stand
Upper Hole
Stand Pin
Stand Handle
Light Tower
Boot
Blade
Shoe ON
Hitch
Pin
Pin
Handle
Mount
Adapter
Pin
Guide Plate

Lit. No. 40694, Rev. 04 17 May 1, 2021
Automatic Shutdown
The control will automatically turn OFF after being idle
for 20 minutes. To reactivate the control after a shut
down, move the ON/OFF switch to OFF, then back to
ON.
Smooth Stop
The control automatically allows the blade to coast to
a stop when the lever returns to center position. This
results in smoother operation, reduces the shock to the
hydraulic system, and increases hose and valve life.
STRAIGHT BLADE
JOYSTICK SOLENOID CONTROL
1. Turn the vehicle ignition switch to the "ON" or
"ACCESSORY" position.
2. Move control ON/OFF switch to the "ON" position.
The power indicator light glows red, indicating
the control is ON. The power indicator light glows
red whenever the control and the vehicle ignition
switch are both ON, the electrical connections to
the snowplow are completed and the power switch
on the light tower is in the "PLOWING" position.
If the power switch is in the "OFF" position, the
power indicator light will flash.
The ON/OFF switch operates as an emergency
stop if required.
Function Time-Outs
All control functions, except LOWER/FLOAT, time out
(stop) automatically after a period of time. This is to
limit the amount of electrical energy required from the
vehicle.
NOTE: If control function times out before desired
blade movement is complete, release the lever
to the center position, then move back into the
desired function.
OPERATING YOUR SNOWPLOW
WARNING
To prevent accidental movement of the blade,
always move the ON/OFF switch to OFF
whenever the snowplow is not in use. The
power indicator light will turn OFF.
CAUTION
DO NOT hold control lever in RAISE, ANGLE
LEFT, or ANGLE RIGHT position after blade
has reached desired position. To do so will
use excess current and overheat components.
LR
RAISE
LOWER
ON / OFF FLOAT
Float Light
(green)
ON/OFF
Switch
(emergency
stop)
Power Indicator
Light (red)

Lit. No. 40694, Rev. 04 18 May 1, 2021

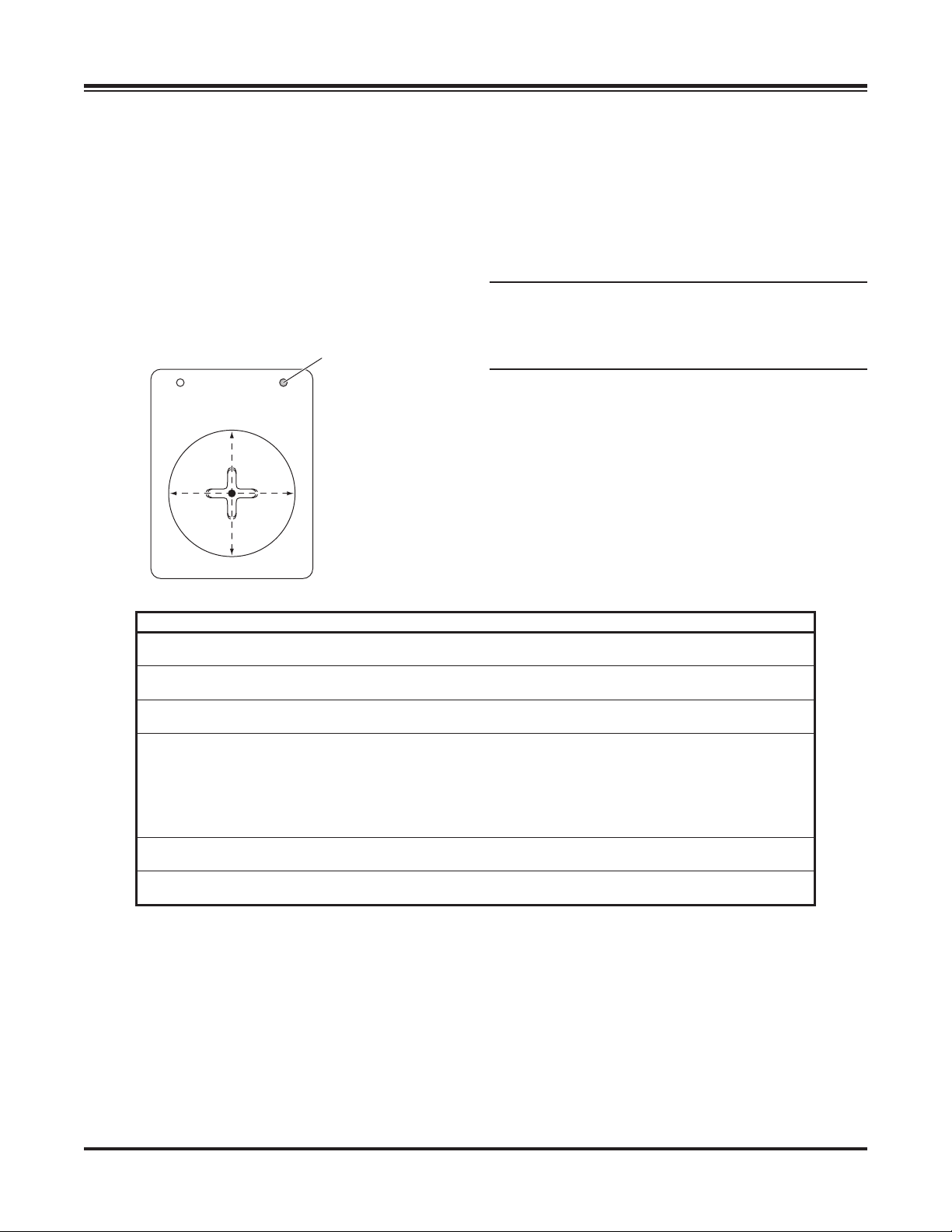

Control Lever Movement
From the center position, the control lever can be
moved in one of four directions to control various
movements of the snowplow blade. To change from
one movement of the blade to another, the control
lever must be moved back to the center position
before selecting the desired function. Whenever the
lever is released, it should spring back into the center
position to stop any blade movement.
Function Description of Operation
ON/OFF Move the control power switch ON to activate the hydraulic system. Turn the control OFF to
lock the blade in place. This prevents accidental movement of the blade.
RAISE Move control lever toward top of control body to raise snowplow and cancel FLOAT mode.
Function times out after 3.5 seconds.
LOWER Move control lever toward bottom of control body to lower snowplow. Release lever to stop
blade at desired height.
FLOAT
Move control lever to LOWER position and hold for 3/4 second to activate this mode.
FLOAT light in upper right corner of control face will illuminate. Blade will lower to ground
surface and follow contour of surface as it dips or raises. Function does not time out;
however, control will shut down after 20 minutes of nonuse.
Move lever to RAISE position momentarily to cancel FLOAT. FLOAT will continue during
Angle Left and Angle Right functions if not interrupted by Raise function.
L
(Angle Left)
Move the control lever left to angle the blade left. Function times out after 3.5 seconds.
R
(Angle Right)
Move the control lever right to angle the blade right. Function times out after 3.5 seconds.
LR
RAISE
LOWER
ON / OFF FLOAT
Float Light
(green)
Control Functions
Raise, Lower, Float, Angle
Moving the control lever in straight lines up and down
or from side to side on the control body will result in
the blade movements described in the following table.
NOTE: If control function times out before desired
blade movement is complete, release the lever
to the center position, then move back into the
desired function.
OPERATING YOUR SNOWPLOW

Lit. No. 40694, Rev. 04 19 May 1, 2021
STRAIGHT BLADE POWER GRIP™
HAND-HELD CONTROL
1. Turn the vehicle ignition switch to the "ON" or
"ACCESSORY" position.
2. Press the ON/OFF button on the control. The
power indicator light glows red, indicating the
control is ON. The power indicator light glows
red whenever the control ON/OFF switch and the
vehicle ignition switch are both ON, the electrical
connections to the snowplow are completed
and the power switch on the light tower is in the
"PLOWING" position. If the power switch is in the
"OFF" position, the power indicator light will flash.
The ON/OFF button operates as an emergency
stop, if required.
Function Time-Outs
All control functions, except LOWER/FLOAT,
automatically time out (stop) after a period of time.
This helps prevent unnecessary battery drain.
NOTE: If control function times out before desired
blade movement is complete, release button and
press again.
WARNING
To prevent accidental movement of the blade,
always push the ON/OFF button to switch the
control OFF whenever the snowplow is not in
use. The power indicator light will turn OFF.
Automatic Shutdown
The control automatically turns OFF after being idle
for 20 minutes.
Smooth Stop
The control automatically allows the blade to coast to
a stop. This results in smoother operation, reduces
the shock to the hydraulic system, and increases hose
and valve life.
Control Functions
Raise, Lower, Float, Angle
The four diamond-shaped buttons in the center of the
control face, when pressed, will result in the blade
movements described in the table.
RAISE
LOWER
R
L
ON/OFFFLOAT
Power Indicator
Light (red)
ON/OFF
Button
(emergency
stop)
Float Light
(green)
OPERATING YOUR SNOWPLOW
Function Description of Operation
ON/OFF Press this button to turn the control ON and OFF. Turn the control OFF (power indicator
light OFF) to lock the blade in place. This prevents accidental movement of the blade.
RAISE Press this button to raise snowplow and cancel FLOAT mode. Function times out after
3.5 seconds.
LOWER Press this button to lower snowplow. Release button to stop blade at desired height.
FLOAT
Press LOWER button and hold for 3/4 second to activate this mode. FLOAT light in upper
left corner of control face will illuminate. Blade will lower to ground surface and follow
contour of surface as it dips or raises. Function does not time out; however, control will shut
down after 20 minutes of nonuse.
Press RAISE button momentarily to cancel FLOAT. FLOAT will continue during Angle Left
and Angle Right functions if not interrupted by Raise function.
L
(Angle Left)
Press this button to angle left position. Function times out after 3.5 seconds.
R
(Angle Right)
Press this button to angle right position. Function times out after 3.5 seconds.

Lit. No. 40694, Rev. 04 20 May 1, 2021
Your snowplow is the most advanced and versatile
straight blade on the market. The easy-to-use controls
allow you to automatically adjust the snowplow blade
into an infinite number of plowing positions. Review
the illustrations below for instruction on maneuvering
your snowplow.
A. Lowered or Floating
Pulling the joystick back, toward LOWER, or
pushing the LOWER button on the hand-held
control, will lower your blade to the ground.
Pushing and holding the control in this position for
3/4 second will activate the FLOAT mode, causing
the blade to lower to ground surface and follow
contour of surface as it dips or raises.
B. Raised
Pushing the joystick forward, toward RAISE,
or pushing the RAISE button on the hand-held
control, will lift your blade offthe ground. To stop
raising the snowplow, simply return the joystick to
the center position or release the control button.
The snowplow has reached its maximum raised
position when the blade stops lifting.
C. Angled Right
To angle your blade to the right, move the control
lever toward "R" or push the "R" button on the
hand-held control. To stop angling the snowplow,
simply return the joystick to the center position
or release the control button. The snowplow has
reached its maximum angled position when the
blade stops moving to the right side.
D. Angled Left
To angle your blade to the left, move the control
lever toward "L" or push the "L" button on the
hand-held control. To stop angling the snowplow,
simply return the joystick to the center position
or release the control button. The snowplow has
reached its maximum angled position when the
blade stops moving to the left side.
NOTE: To prevent premature failure of the power
contactor (solenoid), return the joystick to its
neutral (center) position, or release the hand-held
control button, immediately after the blade
reaches the limit of any position. Continuing to
hold the control after the blade has reached the
limit of movement in any position will reduce the
life of the solenoid.
A.
B.
C.
D.
OPERATING YOUR SNOWPLOW
