RED23609
Owner’s Manual
9 foot, 3-Point Mounted Snow Blower
270 West Park Avenue
Huron, SD 57350
866-526-5682
Serial Number: _________________________ Date of Purchase: ___________________

1/17/2020 www.reddevilsnowblowers.com | Red Devil Snow BlowersPage | 2 Red Devil Snow Blowers is a registered trademark of Lankota Group.
Red Devil Snow Blower
See Figure 1
1. The Red Devil Snow Blower will arrive on a pallet as shown.
2. In the accompanying box you will nd the following:
Part Numbers Descripon Qty
RED89SH-0004 8 & 9  Blower Chute Gear Clamp 2
RED89SH-0005 8 & 9  Blower Chute Gear 2
RED89SH1011 8 & 9  Blower Chute Clamp Shim 4
Bag of Hardware 1
Figure 1

1/17/2020 www.reddevilsnowblowers.com | Red Devil Snow BlowersPage | 3 Red Devil Snow Blowers is a registered trademark of Lankota Group.

1/17/2020 www.reddevilsnowblowers.com | Red Devil Snow BlowersPage | 4 Red Devil Snow Blowers is a registered trademark of Lankota Group.
Chute Installaon
Figure 3
1. Place and center the chute on the impeller housing ange as shown in Figure 2.
2. Slide one of the chute gears (RED89SH-0005) underneath the chute so that it engages with the hydraulic rotaon motor as shown in Figure 3
3. Place one chute gear clamp (RED89H-0004) and two chute clamp shims (RED89SH1011) under the chute gear, align all holes and aach using the 3/8”
carriage bolts and 3/8” lock nuts (See Figure 4). Verify that the chute gear is clamped directly to the chute and not the impeller housing ange.
4. Repeat steps 2 & 3 on the other side of the chute.
5. Grease the ange with the zerk installed on the boom side of chimney ange. Rotate chute as you grease to ensure even grease distribuon.
6. Tighten or loosen nuts aer greasing to maintain a rm grip that will rotate easily.
7. Slide motor and gear assembly forward to make a ght t with the chute gear and ghten bolts aaching the motor to the housing as shown in gure 5.
Figure 2
Figure 5
Figure 4

1/17/2020 www.reddevilsnowblowers.com | Red Devil Snow BlowersPage | 5 Red Devil Snow Blowers is a registered trademark of Lankota Group.
Red Devil Serial Number
• A stainless steel serial number tag is located on the bracket that
holds the Chute Rotaon Motor.
• This serial number is required for product registraon and is
needed for all warranty issues. (As shown in Figure 6)
Figure 6

1/17/2020 www.reddevilsnowblowers.com | Red Devil Snow BlowersPage | 6 Red Devil Snow Blowers is a registered trademark of Lankota Group.
Preliminary Check
MAKE SURE PTO IS DISENGAGED, ENGINE IS SHUT OFF AND KEYS ARE REMOVED
• Visually check the shipping pallet and packaging for any shipping damage.
• Unpack the snow blower from the shipping pallet.
• Grease all of the grease zerks on your snow blower. (See below drawing)
 One on each end of the auger outer bearing holder.
 One on the cross drive outer bearing holder.
 One on the shear ange sprocket.
 Two on chute rotaon.
 Four on the driveline
• Check the chain tension. Adjust idler sprocket if needed.
• Check the gear box oil level by removing the ll plug and checking for 9 ounces of oil.
• Make sure the chute rotaon mechanism is working freely.
• Make sure the deector mechanism is working freely.
• Make sure the impeller and auger are free of foreign objects.
• Make sure all decals and safety signs are clean and readable.
• Make sure all safety shields are in place and in good condion.
• Make sure driveline shield spins freely.
• Make sure the drive line is the proper length for your 3-Point setup.
• Make sure all nuts, bolts, and pins are ghtened and secure in place.
• Make sure the hydraulics are in good working condion by tesng each funcon and checking for leaks.
Use Synthetic 80/90 Gear Oil In Gear Box

1/17/2020 www.reddevilsnowblowers.com | Red Devil Snow BlowersPage | 7 Red Devil Snow Blowers is a registered trademark of Lankota Group.
OPERATING THE SNOW BLOWER
• Make sure the impeller and auger are free of any loose objects.
• Check to see that all the shields and guards are in place and in good condion.
• Lubricate the snow blower before and aer every use.
• Aer starng the engine, engage the PTO.
• Ease the blower slowly into the snow.
• When clearing deep snow you may have to take more than one cut, starng at the top of the dri. Remember to disengage the PTO when raising the snow blower.
• Stop the blower’s moon and allow all snow to pass through the snow blower before turning o.
• Shallow snow can normally be cleared in one pass, depending on the density of the snow and the available horsepower.
DO NOT BULLDOZE – THE BLOWER WAS NOT DESIGNED FOR BULLDOZING
DESIGNED FOR 540 RPM ONLY
• The most eecve method of dispensing snow is to blow the snow as high as possible downwind, if room permits.
• The chute deector will allow you to adjust the height that the snow is thrown.
• Reducing the PTO RPM will reduce the distance the snow is thrown.
• You can change the direcon of the snow being thrown by using the hydraulic chute rotaon controls. Always be aware of where you are throwing the snow.
• Your snow blower has Manual deector control.
• DO NOT throw the snow toward buildings, livestock, the tractor or any other object that may be damaged.
• DO NOT change the chute direcon or adjust the deector while snow is being discharged. This may cause damage to both the chute and deector.
• DO NOT use hydraulic controls unl you insure that the chute moves freely. Damage to chute and controls may occur.
OPERATION SAFETY
• Disengage PTO, stop engine, and remove the engine key whenever you leave the equipment seat.
• Disengage PTO, stop engine, and remove the engine key aer striking a foreign object. Thoroughly inspect the blower before restarng unit.
• Disengage PTO, stop engine, and remove the engine key before aempng to service your snow blower or unplugging the impeller and chute.
• Do not rotate the chute so that discharge material will be directed toward people, your tractor, or any other object that could be damaged.
• Rotang components can catch feet, hands, and loose clothing. Stand clear of all moving parts.
• Do not climb or step on or over the snow blower for any reason.
• Never operate the snow blower in bad light or poor visibility.
• Disengage the PTO while raising, lowering, and transporng the snow blower.
• Make sure to read and understand every safety sign on your machine.
• Stay clear of the blower at all mes while the PTO is engaged.

1/17/2020 www.reddevilsnowblowers.com | Red Devil Snow BlowersPage | 8 Red Devil Snow Blowers is a registered trademark of Lankota Group.
• Do not bulldoze. Let the machine throw the snow.
• Be aware of your surroundings and know the area you are removing the snow from.
• Do not allow anyone to ride on the snow blower at any me.
• Keep all shields in place and safety equipment intact.
DRIVELINE INSTALLATION INSTRUCTIONS
FOLLOW INSTRUCTIONS CAREFULLY TO DETERMINE THE PROPER FIT OF THE
DRIVELINE
1. Hook up snow blower to lower arms of the 3-point.
2. Measure the distance from the end of the PTO sha to the end of the gear box sha
3. Lay driveline on at surface and measure the distance from one yoke to the other in the most retracted posion. If the driveline length is greater than
length of sha, move the mounngs to correct the length, shorten driveline or use a CAT II quick hitch.
4. If distance from sha to sha is greater than 9” more than the overall length of driveline, it may be too short. Most drivelines require a minimum of 5”
overlap.
5. Once the driveline is installed, slowly li the snow blower through the complete arc of 3-point mount. Make sure driveline does not boom out
anywhere throughout the arc. Make sure the shields do not separate.

1/17/2020 www.reddevilsnowblowers.com | Red Devil Snow BlowersPage | 9 Red Devil Snow Blowers is a registered trademark of Lankota Group.
Driveline Safety & Maintenance
• Keep driveline shield in place – do not remove. Never operate your snow blower when driveline shields are damaged or missing. These shields have
been installed for your safety. Personal injury or even death can result from entanglement in rotang components.
• Do not operate your snow blower with a driveline that is too long or with a dented shield. This will not allow the sha to telescope freely. Operang
under these condions can cause damage to the snow blower, gear box, driveline knuckles, or your tractor.
• Keep the driveline well greased or oiled. (Oil should be used in severe cold)
• Make sure the third arm on the tractor 3-point will have the snow blower sing level and resng on the skid shoes. This will keep the knuckles on the
driveline running as straight as possible.
• Raising and lowering the snow blower while the PTO is engaged can cause severe damage to the driveline and the tractor.
• This driveline is designed to operate at 540 rpm only.
• Operang the driveline at an excessive angle will shorten the life of the driveline.
• Personal injury or even death can result from entanglement with drivelines. Stay clear of driveline at all mes while PTO is engaged.
• If your driveline is making a chaering noise you may be running at too steep of an angle. You may need to move the mounng out to lessen the angle.
• Drivelines must always have at least 5” of overlap.
• Grease before operang your snow blower.

1/17/2020 www.reddevilsnowblowers.com | Red Devil Snow BlowersPage | 10 Red Devil Snow Blowers is a registered trademark of Lankota Group.
Red Devil Statement of Limited Warranty
Red Devil warranties its new products to be free from defects in material and workmanship for a period of one (1) year following the date of purchase by the retail purchaser.
Red Devil warrants genuine Red Devil replacement parts and components to be free from defects in material and workmanship for a period of ninety (90) days following the date
of purchase or the remainder of the original equipment warranty period, whichever is longer. Red Devil's obligation under these warranties shall be limited to repairing or
replacing, free of charge to the original purchaser, any part that, in Red Devil's judgment, shows evidence of such defect
Limitations to Warranty
This warranty does not cover:
1) Warranty claims directly resulting from improper installation of the product.
2) Any product damaged by accident, abuse, misuse, or negligence after shipment from Red Devil.
3) Any unauthorized product alteration or modification.
4) Any unauthorized repairs made with parts other than genuine Red Devil parts.
5) Any repairs performed by anyone other than Red Devil or an authorized Red Devil dealer unless specifically authorized by Red Devil.
6) Snow Blower Fan Shafts.
7) Snow Blowers being used on a rental basis.
Warranty Procedure
Warranty registration form must be filled out and returned to Red Devil to validate all future warranty claims.
1) Troubleshooting should be done between end user/dealer and Red Devil through our technical assistance @ 866-526-5682.
2) Labor reimbursement will occur only when pre-arranged through Red Devil's technical assistance. Lankota will reimburse labor based on it’s current shop rate completed
within a reasonable time using Red Devil's judgment.
3) There is no mileage reimbursement.
4) Diagnostic time will not be reimbursed except in pre-arranged circumstances.
5) Warranty claims should be on typical dealer service work order with a number and name to be attached for any future correspondence.
6) All warranty work must be performed and claims submitted within thirty (30) days of the occurrence of the claim and within the warranty period.
7) All parts removed during warranty repair should be held for a period of thirty (30) days after the warranty claim has been submitted to Red Devil.
8) Red Devil reserves the right to either inspect the product at the original retail purchaser's location or require it to be returned to Red Devil for inspection.
Limitation of Liability
Red Devil makes no express warranties other than those, which are specifically described herein. Any description of the goods sold hereunder, including any reference to
buyer's specifications and any descriptions in circulars and other written material published by Red Devil is for the sole purpose of identifying such goods and shall not create an
express warranty that the goods shall conform to such description.
THIS WARRANTY IS EXPRESSLY IN LEU OF ALL OTHER WARRANTIES EXPRESSED OR IMPLIED. There are no warranties of merchantability or fitness of a particular
purpose. This warranty states Red Devil's entire and exclusive liability and buyer's exclusive remedy or any claim for damages in connection with the sale of furnishing of Red
Devil products, their design, suitability for use, installations or operation, or for any claimed defects herein. RED DEVIL WILL IN NO EVENT BE LIABLE FOR ANY INCIDENTAL
OR CONSEQUENTIAL DAMAGES WHATSOEVER, NOT FOR ANY SUM IN EXCESS OF THE PRICE RECEIVED FOR THE GOODS FOR WHICH LIABILITY IS CLAIMED.
No representative of Red Devil nor any dealer associated with Red Devil has the authority to change the items of this warranty in any manner whatsoever, and no assistance to
purchase by Red Devil in the repair of operation of any Red Devil product shall constitute a waiver of the conditions of this warranty, nor shall such assistance extend or revive it.
Lankota reserves the right to make improvements in design or changes in specifications at any time, without incurring any obligation to owners of units previously sold.

1/17/2020 www.reddevilsnowblowers.com | Red Devil Snow BlowersPage | 11 Red Devil Snow Blowers is a registered trademark of Lankota Group.
Parts Book

1/17/2020 www.reddevilsnowblowers.com | Red Devil Snow BlowersPage | 12 Red Devil Snow Blowers is a registered trademark of Lankota Group.
Parts Book

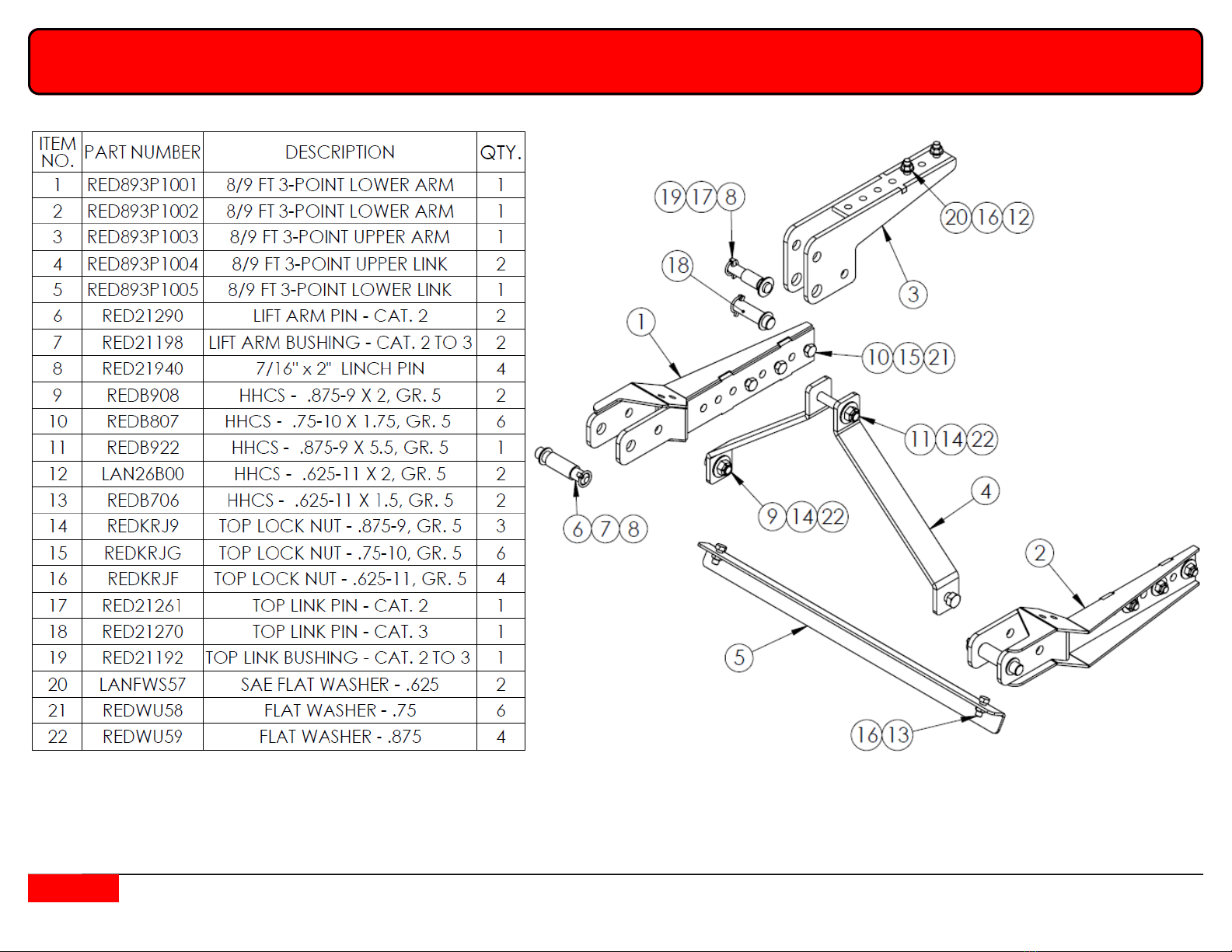

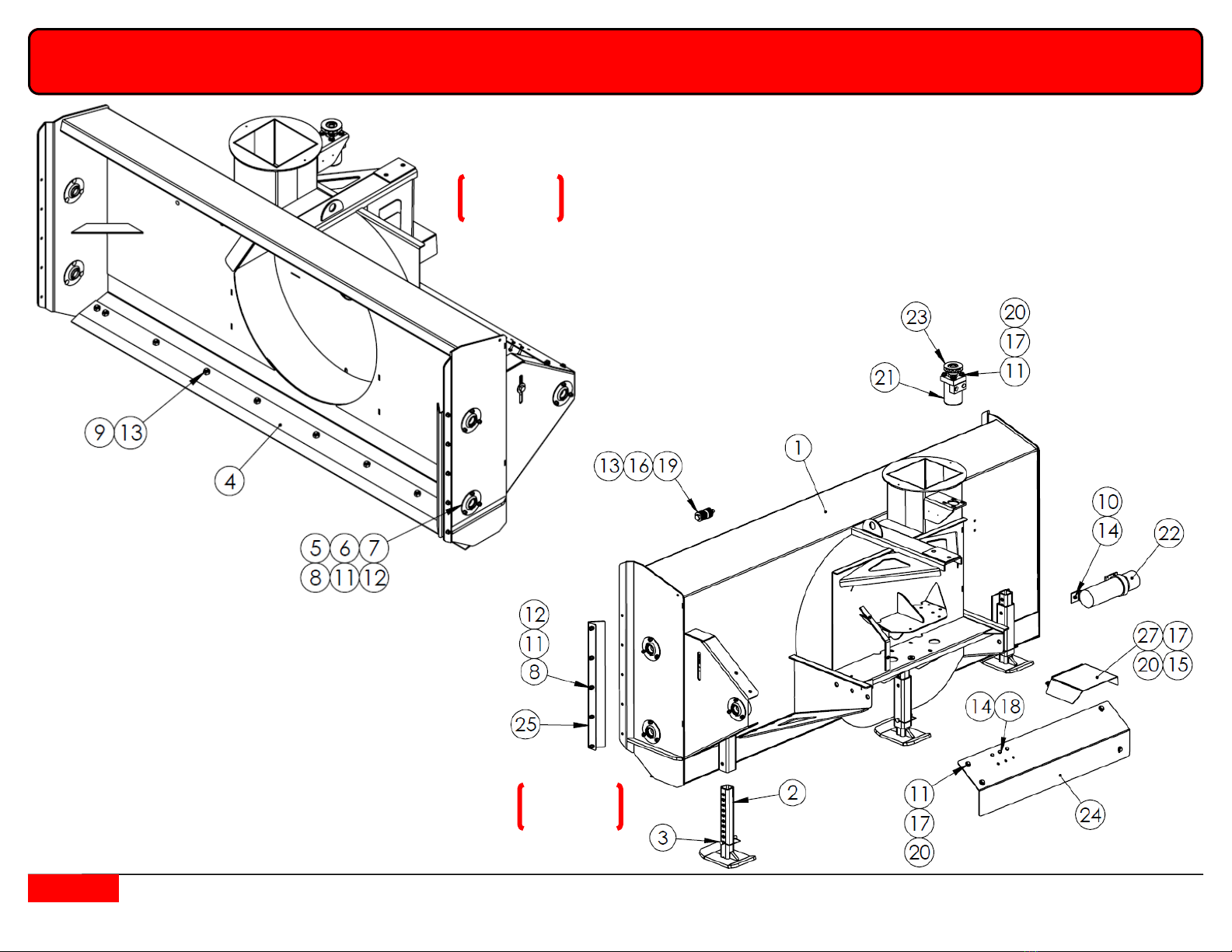

Refer to Figures 7 & 8
