Simplicity 1696302 User manual

Parts Manual
Rev. 01/2009
Intermediate Frame
Snowthrowers
TP 400-4772-01-IS-S
Mf
g
. No. Descri
p
tion
Attachment
1695302 924I, 9TP 24" Snowthrower
1695311 924IE, 9TP 24" Snowthrower (CE/Export)
1695410 924IR, 9TP 24" Snowthrower (CE/Export)
1735510
Part No.:
Not for
Reproduction

Not for
Reproduction

Table Of Content
s
Torque Specification Chart ..................................................................... Inside Back Cover
PRODUCT COMPONENTS PAGES
Engine & Frame Group ........................................................................................................................................ 4
Auger Drive Group ............................................................................................................................................... 6
Traction Drive Group ............................................................................................................................................ 8
Gear Case Assembly ........................................................................................................................................... 10
Handles & Controls Group ................................................................................................................................... 12
Wheel & Tire Group ............................................................................................................................................. 14
Decals Group ....................................................................................................................................................... 16
Auger Housing & Chute Group ............................................................................................................................ 18
Not for
Reproduction

Engine & Frame Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
2987650
The above parts group applies to the following Mfg. Nos.:
4
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
1695302 - 924I
1695311 - 924IE
1695410 - 924IR
TP 400-4772-01-IS-S
Not for
Reproduction

PART NO. DESCRIPTIONREF NO QTY.
Engine & Frame Group
Footnotes
SCREW, Hex Washer Head Taptite, 5/16-18 x 3/41 1664847SM 6
COVER, Belt w/Toolbox2 1732486SM 1
STOP, Belt3 1733014SM 1
V-BELT, 3L 33.134 1733324SM 1
PLATE, Engine Mount5 1733583CSM 1
WELD, Auger Idler6 1734311SM 1
V-BELT, 4L 37.00 Auger7 1734313SM 1
LOCKWASHER, Spring 5/168 1917356SM 3
PIN, Hair9 711682MA 1
WASHER, 5/1610 1919381SM 3
CAPSCREW, Hex Head 5/16-24 x 3/4 G511 1921515SM 1
SCREW, Hex Washer Head Taptite 5/16-18 x 1/212 1924856SM 4
SCREW, Hex Washer Head Taptite 1/4-20 x 5/813 1927429SM 12
NUT, Hex Flange 5/16-18 Whiz Lock14 2831277SM 1
WASHER, 1/215 1960027SM 2
NUT, Hex Centerlock Jaam 3/8-1616 1960251SM 2
CAPSCREW, Hex Head 5/16-24 x 1-1/4 G517 1921982SM 1
NUT, Hex Flange 5/16-18 Esna18 1960686SM 3
CARRIAGE BOLT, 5/16-18 x 1-1/219 002X97MA 4
NUT, Push for 1/4 Diameter Thread20 028X76MA 4
FRAME BOX21 1740572CSM 1
PANEL, Bottom22 1740906ASM 1
BUSHING, Idler Bracket23 1501065MA 1
PULLEY, Engine Snow 2Stage24 1501109MA 1
SPOT WELD, Idler Bracket25 1501112YZMA 1
SPACER,-0.53 ID 1.00 OD 1.61 LG AUG IDLER26 1502041MA 1
IDLER, Plastic Ball Bearing27 1502120MA 2
SPRING, Extension Auger Idler28 165X159MA 1
SCREW, 1/4-AB x 3/4 Hex w/Extension Tooth Washer29 26X306MA 2
SPRING, Extension Idler30 53704MA 1
CAPSCREW, Hex Head 3/8-16 x 1-1/2 G531 1921969SM 1
ARM, Control32 1733451SM 1
PIN, Clevis33 1735135SM 1
BOLT, Hex 5/16-24 x 134 910828MA 1
HEAT SHIELD, 16GA (Used only on Domestic Models)35 1734732SM 1
*ENGINE, 9.0TP B&S Mod. #12D1140118-E136 -- 1
*ENGINE, 9.0TP B&S Mod. #12D1140119-E1 (CE/Export)36 -- 1
*ENGINE, 9.0TP B&S Mod. #12D1160120-E1 (CE/Export)36 -- 1
SCREW, Hex Washer Head Taptite (Used only on Domestic Models)39 1929477SM 3
CORD, Electric Extension 10FT (Used only on Domestic Models)40 1724064SM 1
TIE, Self Locking41 1701011SM 1
WASHER, 3/842 1922755SM 1
WASHER, 3/843 1924940SM 1
Note: * See your local Briggs & Stratton distributor for parts & service.
The above parts group applies to the following Mfg. Nos.:
5
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
1695302 - 924I
1695311 - 924IE
1695410 - 924IR
TP 400-4772-01-IS-S
Not for
Reproduction

Auger Drive Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987652
The above parts group applies to the following Mfg. Nos.:
6
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
1695302 - 924I
1695311 - 924IE
1695410 - 924IR
TP 400-4772-01-IS-S
Not for
Reproduction

PART NO. DESCRIPTIONREF NO QTY.
Auger Drive Group
Footnotes
PIN, Shear1 1668344SM 2
PULLEY, Auger Input2 1715091SM 1
IMPELLER ASSEMBLY3 1715120ASM 1
AUGER ASSEMBLY, L.H., 22" Housing4 1726535ASM 1
AUGER ASSEMBLY, R.H., 22" Housing5 1726536ASM 1
KEY, Woodruff6 2818312SM 2
SCREW, Set Square Head Cup Point 5/16-18 x 1/2 G87 1928721SM 2
SCREW, Set Square head Cup Point 3/8-16 x 1/2 G88 1960474SM 1
COTTER PIN, 1/4" Self Locking9 7023590SM 2
GEAR BOX ASSEMBLY, Auger Drive10 1734573SM 1
TUBE11 1734916SM 2
The above parts group applies to the following Mfg. Nos.:
7
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
1695302 - 924I
1695311 - 924IE
1695410 - 924IR
TP 400-4772-01-IS-S
Not for
Reproduction

Traction Drive Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
2987696
The above parts group applies to the following Mfg. Nos.:
8
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
1695302 - 924I
1695311 - 924IE
1695410 - 924IR
TP 400-4772-01-IS-S
Not for
Reproduction

PART NO. DESCRIPTIONREF NO QTY.
Traction Drive Group
Footnotes
NUT, Hex Lock Esna Light 1/4-201 1920397SM 2
CAPSCREW, Hex Head 1/4-20 x 5/8 G52 1921959SM 3
CAPSCREW, Hex Head 1/4-20 x 1-1/2 G53 1922837SM 1
CAPSCREW, Hex Head 1/4-20 x 3/4 G54 1923341SM 2
NUT, Hex Centerlock 1/4-205 1923358SM 2
SCREW, Hex Washer Head Taptite 5/16-18 x 1/26 1924856SM 8
NUT, Hex Keps 1/4-207 1928372SM 3
WASHER, 1/28 1960027SM 2
BOLT, Hex 1/4-20 x 1-3/4 G89 01X193MA 1
RETAINER, Ring 7/1610 11X30MA 5
PLATE, Swinging12 1501057YZMA 1
BRACKET, Cable Spool13 1501059YZMA 1
WELD, Axle Sprocket14 1501089MA 1
SPROCKET, Set15 1501090MA 1
AXLE, Swing Plate16 1501092YZMA 1
HEX SHAFT & SPROCKET ASSEMBLY17 1501100MA 1
BEARING, Axle D-Hole18 1501114MA 2
FRICTION PULLEY ASSEMBLY19 1501115MA 1
CABLE, Front Drive20 1501122MA 1
SPACER, Friction Pulley21 1501158MA 1
WHEEL, Friction22 1501435MA 1
AXLE23 1501562MA 1
WELD, Spring Link24 1502105YZMA 1
NUT, 38-24 FlangeLock25 15X114MA 1
SPRING, Extension26 165X112MA 3
RETAINER & BUSHING ASSEMBLY27 334163MA 4
HUB, Friction Wheel & Bearing28 337029MA 1
CHAIN, Roller29 579851MA 1
WASHER, Flat30 579858MA 5
SPOOL CABLE, Auger Control31 579860MA 1
CHAIN, Roller32 579868MA 1
BEARING, Flange 1/2 x 7/833 579944MA 1
WELD, Speed Select35 1501085YZMA 1
RING, Retaining Extension36 1733326SM 1
The above parts group applies to the following Mfg. Nos.:
9
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
1695302 - 924I
1695311 - 924IE
1695410 - 924IR
TP 400-4772-01-IS-S
Not for
Reproduction

Gear Case Assembly
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
1734573
The above parts group applies to the following Mfg. Nos.:
10
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
1695302 - 924I
1695311 - 924IE
1695410 - 924IR
TP 400-4772-01-IS-S
Not for
Reproduction

PART NO. DESCRIPTIONREF NO QTY.
Gear Case Assembly
Footnotes
TUBE, Plastic1 1612112SM 1
SHAFT, Impeller2 1734356SM 1
SHAFT, Auger Intermediate3 1734368SM 1
KEY, Woodruff, #61, 5/8 x 3/1612 431787MA 1
GEAR CASE, LH13 10576MA 1
GEAR CASE, RH14 10577MA 1
PIN, Spring15 454565MA 1
WASHER, Thrust16 48275MA 4
BUSHING, Worm17 50221MA 1
BUSHING, Shaft18 5034MA 3
BEARING, Needle Thrust19 50684MA 1
GASKET20 51279MA 1
GEAR, Worm21 51405MA 1
SEAL, Oil22 9566MA 3
COLLAR, Thrust, 3/4 X 1-1/423 580295MA 1
CAPSCREW, 1/4-20 X 3/424 710025MA 7
NUT, Hex-Flange, Center-Lock, 1/4-2025 15X143MA 7
SCREW, 3/8-16 X 1/226 9344MA 1
The above parts group applies to the following Mfg. Nos.:
11
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
1695302 - 924I
1695311 - 924IE
1695410 - 924IR
TP 400-4772-01-IS-S
Not for
Reproduction

Handles & Controls Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
2987709
The above parts group applies to the following Mfg. Nos.:
12
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
1695302 - 924I
1695311 - 924IE
1695410 - 924IR
TP 400-4772-01-IS-S
Not for
Reproduction

PART NO. DESCRIPTIONREF NO QTY.
Handles & Controls Group
Footnotes
CABLE, Auger1 761872MA 1
BOOT, Spring End Cover2 308146MA 2
SPRING, Auger Control3 1673MA 1
NUT, Hex Lock Esna Light 1/4-204 1920397SM 1
PANEL, Dash Upper5 1734250CSM 1
WASHER, 5/166 1919326SM 4
CAPSCREW, Hex Head 5/16-18 x 2 G57 1921978SM 4
HANDLE, Upper9 1740573ASM 1
NUT, Push Pal 1/4 Diameter Stud Capped10 1960126SM 2
LEVER ASSEMBLY, Clutch R.H.11 337816E701MA 1
GRIP, Control Lever12 337380MA 2
GRIP, Handle13 337399MA 2
ROD, 1/4 Diamter 21.81 Large14 1734522SM 1
SPACER15 1734396SM 2
NUT, Hex Flange 1/4-20 Esna16 1960694SM 4
NUT, Hex Flange 5/16-18 Esna18 1960686SM 4
HANDLE, Lower20 1740701ASM 1
SCREW, Hex Washer Head Taptite 1/4-20 x 5/822 1927429SM 2
BRACKET, Gear Select23 1740698ASM 1
LEVER, Spring Shift24 760564MA 1
CAPSCREW, Hex Head 1/4-20 x 3/4 G525 1923341SM 2
CARRIAGE BOLT, 1/4-20 x 1-1/2 G526 1960633SM 4
NUT, Hex Flange 5/16-18 Two-Way Lock27 1935048SM 2
SCREW, Hex Washer Head Taptite 5/16-18 x 3/428 1664847SM 2
CAPSCREW, Hex Head 5/16-18 x 1 G529 1921333SM 2
NUT, Hex Centerlock 1/4-2030 1923358SM 2
ROD, Shift No Thread31 336702E701MA 1
GRIP, Ball End32 331624MA 1
LEVER ASSEMBLY, Clutch L.H.34 337815E701MA 1
HANDLE, Upper L.H.35 1740587ASM 1
CABLE, Front Drive36 1501123MA 1
BRACKET, Cable Adjusting37 313441MA 1
BUMPER38 4049MA 2
BUSHING40 1667588SM 1
The above parts group applies to the following Mfg. Nos.:
13
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
1695302 - 924I
1695311 - 924IE
1695410 - 924IR
TP 400-4772-01-IS-S
Not for
Reproduction

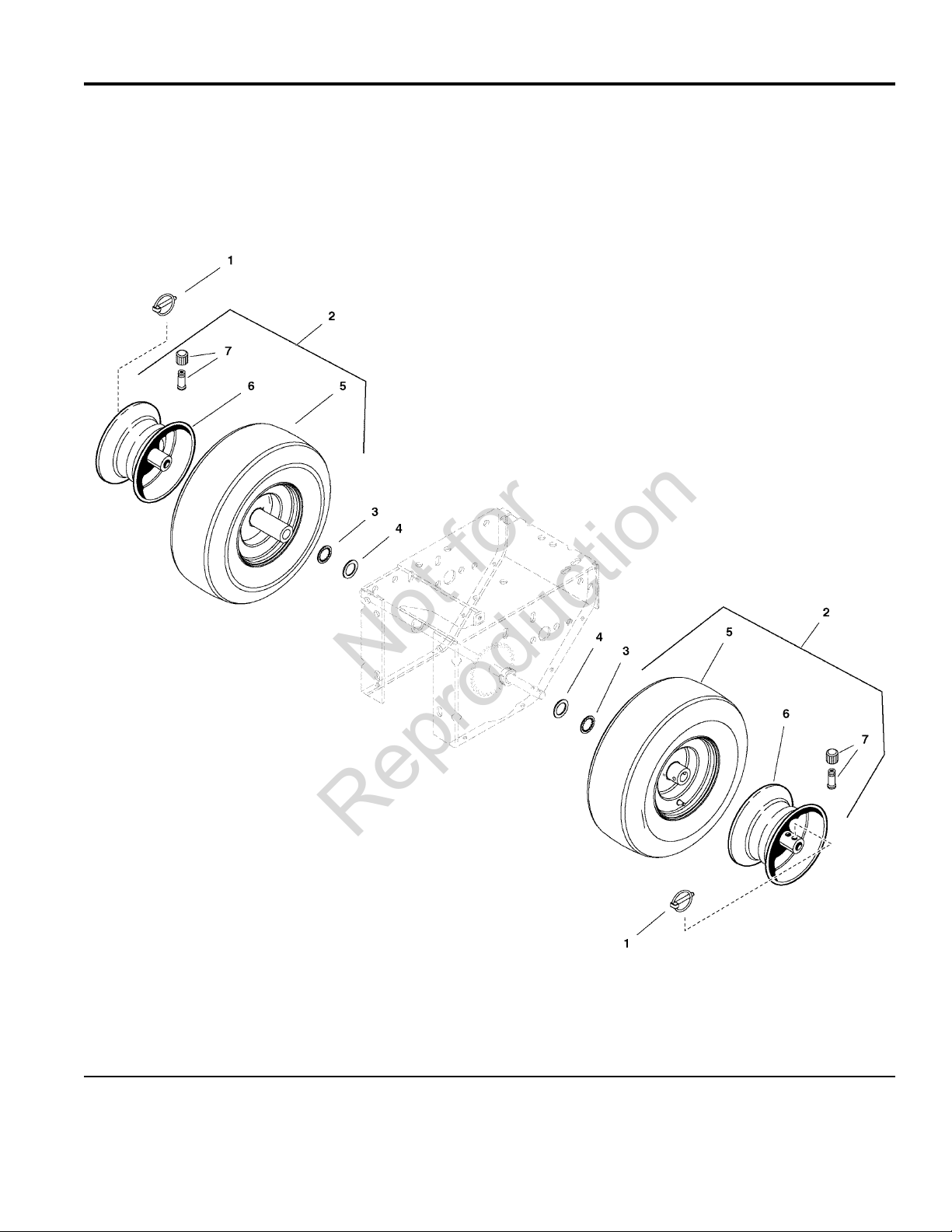

Wheel & Tire Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
2987653
The above parts group applies to the following Mfg. Nos.:
14
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
1695302 - 924I
1695311 - 924IE
1695410 - 924IR
TP 400-4772-01-IS-S
Not for
Reproduction

PART NO. DESCRIPTIONREF NO QTY.
Wheel & Tire Group
Footnotes
PIN, Klik1 1679697SM 2
WHEEL & TIRE ASSEMBLY, 13 x 52 1734045SM 2
RETAINING RING, Extension, #75 3/4 Self Lock3 1657528SM 2
WASHER, Flat4 712120MA 2
WHEEL, 3.25 Wide 6.00 Diameter5 1734997SM 2
TIRE, 13 x 6.00 Snow Hog6 1734998SM 2
VALVE STEM & CAP, Air7 2172353SM 2
The above parts group applies to the following Mfg. Nos.:
15
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
1695302 - 924I
1695311 - 924IE
1695410 - 924IR
TP 400-4772-01-IS-S
Not for
Reproduction

Decals Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
2987712
The above parts group applies to the following Mfg. Nos.:
16
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
1695302 - 924I
1695311 - 924IE
1695410 - 924IR
TP 400-4772-01-IS-S
Not for
Reproduction

PART NO. DESCRIPTIONREF NO QTY.
Decals Group
Footnotes
DECAL, Chute Warning (CE/Export)1 1727207SM 1
DECAL, Danger Amputation Hazard1 1733057SM 1
DECAL, Impeller Warning (CE/Export)2 1727208SM 1
DECAL, Danger Avoid Injury, Auger2 1716532SM 1
*DECAL, OPEI3-- 1
DECAL, Belt Stretch and Adjustment (Domestic Models Only)4 7390MA 1
DECAL, Over Adjust of Friction Disc (Domestic Models Only)5 7859MA 1
*STICKER, Serial w/Bar Code6-- 1
DECAL, SMI Stripe 924IE (CE/Export)7 1735119SM 1
DECAL, SMI Stripe 924IR (CE/Export)7 1735120SM 1
DECAL, SMI Stripe 924I7 1734497SM 1
DECAL, Touch Up Paint8 1720454SM 1
DECAL, Dash (CE/Export)13 1734591SM 1
DECAL, Dash13 1734499SM 1
DECAL, Speed Control14 1735229SM 1
DECAL, SMI Dash Swoosh16 1735113SM 1
Note* Not a serviceable part
The above parts group applies to the following Mfg. Nos.:
17
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
1695302 - 924I
1695311 - 924IE
1695410 - 924IR
TP 400-4772-01-IS-S
Not for
Reproduction

Auger Housing & Chute Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
2987710
The above parts group applies to the following Mfg. Nos.:
18
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
1695302 - 924I
1695311 - 924IE
1695410 - 924IR
TP 400-4772-01-IS-S
Not for
Reproduction

PART NO. DESCRIPTIONREF NO QTY.
Auger Housing & Chute Group
Footnotes
NUT, Hex Flange 5/16-18 Two Way Lock1 1935048SM 1
COVER, Gears2 1734442SM 1
BOLT, Shoulder 5/16-18 G53 1732412SM 1
GEAR & SUPPORT ASSEMBLY, Chute4 1734773SM 1
WASHER, Powdered Metal5 1733026SM 1
CAPSCREW, Hex Head 5/16-18 x 1-3/4 G57 1922127SM 2
NUT, Hex KEPS 5/16-18 Conical Washer8 1960684SM 6
SUPPORT, Worm "U" 10GA9 1734440SM 1
SUPPORT, Gear & Chute 10GA10 1734423ASM 1
PIN, Hair Chute Gear11 1501293MA 1
ROD, Chute Control E-Coat12 1734404SM 1
KNOB, Spinner13 1714084SM 1
NUT, Push Pal 3/8 Diameter Stud Capped14 1960093SM 1
WORM, Chute L.H.15 1734439SM 1
BUSHING16 1667588SM 1
CARRIAGE BOLT, 5/16-18 x 1 G517 1931335SM 1
TUBE19 1734195ASM 1
SUPPORT, Tube 10GA21 1734201ASM 1
CARRIAGE BOLT, 5/16-18 x 1-1/2 G522 1931337SM 2
SCREW, Hex Whiz Lock Flange 5/16-18 x 1/223 1931648SM 3
BEARING, Ball24 2108202SM 1
NUT, Hex Flange 3/8-16 ESNA25 1960687SM 8
BRACKET, Housing 12GA26 1734055CSM 2
ANGLE, Fill Strip27 1734063CSM 2
CARRIAGE BOLT, 1/4-20 x 1/2 G528 1931315SM 17
PLATE, End L.H.29 1726458CSM 1
HOUSING, Auger Bearing30 1726457SM 2
CAP, Bearing31 1668639ASM 2
SCREW, Hex Washer Head Taptite 5/16-18 x 132 1960373SM 6
SKID, Shoe Reversible33 1727854ASM 2
CARRIAGE BOLT, 3/8-16 x 3/4 G535 1960711SM 4
NUT, Hex Flange 1/4-20 Whiz Lock Large37 1930641SM 17
BLADE, Scraper 24"38 7300098ASM 1
RETAINER, Nut, 5/16-1841 1930659SM 3
NUT, Hex Lock 10-24 w/Nylon Insert42 1933896SM 2
BLOCK, Universal Pivot43 578063MA 2
CLIP, Retainer44 1501672MA 2
SCREW, Hex Washer Head Slot #10C x 1-1/4 G245 2860604SM 2
PLATE, End R.H. 14GA46 1726459CSM 1
WRAPPER ASSEMBLY, 24" Auger47 1734475CSM 1
STICK, Cleanout w/Brush48 1733209SM 1
SCREW, Phillips Head Taptite, Torx 5/16C x 1/249 7091542SM 3
CARRIAGE BOLT, 5/16-18 x 3/450 1931333SM 1
The above parts group applies to the following Mfg. Nos.:
19
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
1695302 - 924I
1695311 - 924IE
1695410 - 924IR
TP 400-4772-01-IS-S
Not for
Reproduction

Auger Housing & Chute Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
2987710
The above parts group applies to the following Mfg. Nos.:
20
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
1695302 - 924I
1695311 - 924IE
1695410 - 924IR
TP 400-4772-01-IS-S
Not for
Reproduction
