1.Quick Setup and Verification
1.1 The following steps demonstrate the basic setup of the ME1110 training kit together with an
oscilloscope.
Step 1: Setting Up the Device Connections
Step 2: Selecting the Modulation Format and Verifying the Waveforms on the Oscilloscope
Step 3: Displaying the Modulated IQ Signals in the 89601 VSA software
IMPORTANT
The training kit can be damaged by excessive power levels from the instruments. Please adhere
strictly to the power levels recommended in the instructions.
Turn off the training kit when it is not in use.
Step 1: Setting Up the Device Connections
Note: If only an oscilloscope with
analog channels is used (without
the digital channels), skip step 1.
Connect the Clock (J6A),
Baseband Data (J6B), and
Symbol Clock (J6C) output to
the oscilloscope’s digital
channel 0-2 through the Digital
Probe (Flying Leads).
Connect the I signal output
(TP1) to the oscilloscope’s
channel 1 through the
oscilloscope’s probe.
Connect the Q signal output
(TP2) to the oscilloscope’s
channel 2 through
oscilloscope’s probe.
Connect the RF out signal to
the oscilloscope’s channel 3
by using a BNC-to-SMA
coaxial cable.
Supply a 5 V input voltage to
the receiver module and
power it up.
Make sure all devices are
properly connected before
proceeding to the next step.
1
2
3
5
6
1
2
3
5
4
4

http://dreamcatcher.asia/cw
cw.enquir[email protected]ia
ME1110 Digital Modulation Technique
Quick Start Guide - 7/16
Step 2: Selecting the Modulation Format and Verifying the Waveforms on the Oscilloscope
Refer to the Mode Table
printed on the ME1110
modulation kit and look for
the Mode number of the
QPSK.
Press on the PB1 button
until the 7-segment LED
display shows Mode 4 to
change the modulation
format to QPSK .
Adjust the settings on the
oscilloscope and observe
the waveforms generated
by the ME1110 Digital
Modulation Kit.
Note that the impedance of
the oscilloscope’s channel
3 is changed to 50 Ω.
1
2
1
2
3
3

http://dreamcatcher.asia/cw
cw.enquir[email protected]ia
ME1110 Digital Modulation Technique
Quick Start Guide - 8/16
Step 3: Displaying the Modulated IQ Signals in the 89601 VSA Software
Connect the RF out signal to the
oscilloscope’s channel 1 through the
BNC-to-SMA cable.
Use an USB cable to connect a PC to
the oscilloscope.
Note: The 89601 VSA software should
be preinstalled in the PC.
Set the oscilloscope to interface with
the 89601 VSA software. (Via the USB
port)
Instructions
Keystrokes
Set the
Input/Output
controller
Press [Utility], followed
by {I/O}. The Current
I/O Configuration dialog
box is displayed.
Select the
USBinterface
in the 89600
VSA software
Press {Control} and
turn the Entry Knob
to USB. Press
{Control} again to
select or activate the
USB controller.
*{ }= sofkey, [ ] = hardkey
To verify the oscilloscope connection,
select All Programs > Agilent
Connection Expert.
1
2
1
2
3
3
4
4

http://dreamcatcher.asia/cw
cw.enquir[email protected]ia
ME1110 Digital Modulation Technique
Quick Start Guide - 9/16
Step 3: Displaying the Modulated IQ Signals in the 89601 VSA Software (cont.)
Ensure that the instrument
is detected together with
its VISA address, as
shown in the side figure. If
the oscilloscope is not
detected, click the Change
Properties button to
reinitialize the instrument.
Upon completion, close
the Agilent Connection
Expert window.
Launch the 89600 VSA
software.
The VSA software will
initialize and the detected
hardware will be displayed.
The oscilloscope front
panel is now disabled.
If this is the first time
connecting the sampling
hardware to the computer,
configure the instrument
so that the VSA software
recognizes it. Go to
Utilities > Hardware >
Discovered Instruments
and you should see the
oscilloscope connected on
the USB port in the
Hardware window as
shown in the side figure
Select the oscilloscope by
clicking on it, and then go
to the Configuration tab
in the Hardware window.
Click to add a new
Analyzer based on the
oscilloscope.
4
5
4
5
7
7
8
8

http://dreamcatcher.asia/cw
cw.enquir[email protected]ia
ME1110 Digital Modulation Technique
Quick Start Guide - 10/16
Step 3: Displaying the Modulated IQ Signals in the 89601 VSA Software (cont.)
In the VSA software
window, select Utilities >
Frequency Reference.
Select Internal to use the
internal clock from the
oscilloscope.
Select MeasSetup >
Frequency. Set the
center frequency to 10
MHz and the frequency
span to 3 MHz, as shown
at the side.
Select MeasSetup >
Measurement Type >
Digital Demod to
demodulate the QPSK
signal.
Select MeasSetup >
Digital Demod Properties
to set the demodulation
properties. In the Format
tab, set the following
parameters: Format =
QPSK, Symbol Rate = 1
MHz, Points/Symbol = 4,
and Result Length = 80
Symbols. A warning about
insufficient data for digital
demodulation may appear.
Ignore this and continue
with the setup, then click
the Run button.
9
1
0
9
1
0
1
1
1
1
1
2
1
2

http://dreamcatcher.asia/cw
cw.enquir[email protected]ia
ME1110 Digital Modulation Technique
Quick Start Guide - 11/16
Step 3: Displaying the Modulated IQ Signals in the 89601 VSA software (cont.)
In the Filter tab, set the
following parameters:
Measurement Filter =
Rectangular and
Reference Filter =
Rectangular. Leave the
other settings as default.
Unselect the Pulse
Search option as the
carrier is present
continuously. Otherwise,
the software may limit the
maximum symbols in the
Result Length.
The VSA software may
override the frequency
span selection. Go to the
MeasSetup window to
change it back to the
preferred value.
Change the display to Grid
2x2 to display the
demodulated signal.
1
3
14
0
1
3
14
0
15
0
15
0

http://dreamcatcher.asia/cw
cw.enquir[email protected]ia
ME1110 Digital Modulation Technique
Quick Start Guide - 12/16
Step 3: Displaying the Modulated IQ Signals in the 89601 VSA Software (cont)

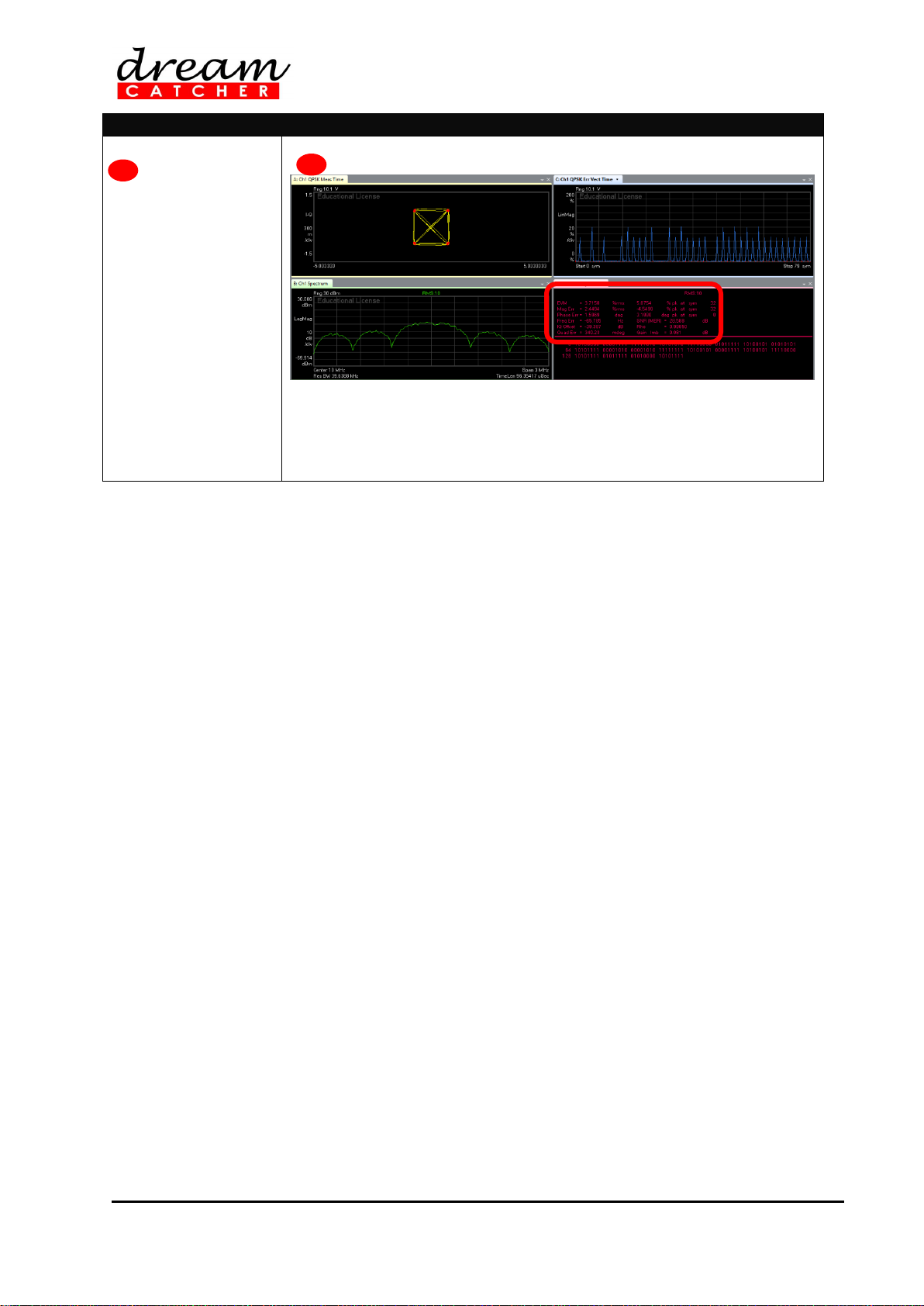

Note that the EVM
is approximately
3.72%, with a
magnitude error of
approximately
2.45% and a
phase error of
approximately 1.60
degree. The IQ
offset is about
39.39 dB. These
are the errors of
the IQ modulator
for the QPSK
modulation.
16
0
16
0

http://dreamcatcher.asia/cw
cw.enquir[email protected]ia
ME1110 Digital Modulation Technique
Quick Start Guide - 13/16
2. Support and Warranty
2.1 Terms and Conditions
This courseware product contains scholarly and technical information and is protected by copyright
laws and international treaties. No part of this publication may be reproduced by any means, be it
transmitted, transcribed, photocopied, stored in a retrieval system, or translated into any language in
any form, without the prior written permission of Acehub Vista Sdn. Bhd.
The use of the courseware product and all other products developed and/or distributed by Acehub
Vista Sdn. Bhd. are subject to the applicable License Agreement.
For further information, see the Courseware Product License Agreement.
To retrieve the password for installation of the provided materials and software as well as the model
answers and solutions for lab sheets, please register yourself at http://dreamcatcher.asia/cw under
the Product Registration menu using the product key provided with the teaching courseware.
2.2 Product Warranty
Acehub Vista Sdn. Bhd. warrants that its products sold will at the time of shipment be free
from defects in material and workmanship and will conform to Acehub Vista Sdn. Bhd.'s
applicable specifications.
If Acehub Vista Sdn. Bhd. receives notice of a defect or non-conformance during the one
year warranty period, Acehub Vista Sdn. Bhd. will, at its option, repair or replace the affected
product. Buyer will pay shipping expenses for return of such product to Acehub Vista Sdn.
Bhd. or its authorized reseller. Acehub Vista Sdn. Bhd. or its authorized reseller will pay
expenses for shipment of the repaired or replacement product.
This warranty shall not apply to any products Acehub Vista Sdn. Bhd. determines have been,
by Buyer or otherwise, subject to operating and/or environmental conditions in excess of the
maximum values established in applicable specifications, or have been subject to
mishandling, misuse, neglect, improper testing, repair, alteration, damage, assembly, or
processing that alters physical or electrical properties.
In no event will Acehub Vista Sdn. Bhd. be liable for any incidental or consequential
damages.
This warranty extends to Buyer only and not to Buyer's customers or users of Buyer's
products and is in lieu of all other warranties whether expressed, implied, or statutory
including implied warranties of merchantability of fitness.
For technical support and warranty, email [e-mail]

http://dreamcatcher.asia/cw
cw.enquir[email protected]ia
ME1110 Digital Modulation Technique
Quick Start Guide - 14/16
Appendix A: Technical Specifications
ME1110 –Digital Modulation Board
Min
Typical
Max
Unit
Input voltage (5 V)
4.8
5.0
5.5
V
Input current (5 V)
-
180
200
mA
External Data Input
2.2
3.0
3.5
V
Carrier Frequency at CW mode
9.995
-
10.005
MHz
Clock Output (For External Data Input)
2.4
2.5
2.6
V
RF Out (Main) into 50Ω load at CW mode
+0.30
-
+0.70
dBm
RF Out (Aux) into 50Ω load at CW mode
+3.00
-
+4.20
dBm

http://dreamcatcher.asia/cw
cw.enquir[email protected]ia
ME1110 Digital Modulation Technique
Quick Start Guide - 15/16
Revision History
Revisions
Notes
1.00
Initial document.
1.01
Added:
DreamCatcher Courseware Customer Login Guide

http://dreamcatcher.asia/cw
cw.enquir[email protected]ia
ME1110 Digital Modulation Technique
Quick Start Guide - 16/16
Contact Us
Contact Us
Acehub Vista Sdn Bhd (785702-P)
A member of the DreamCatcher group
70-03-79, D’Piazza Mall,
Jalan Mahsuri,
11900 Bayan Lepas,
Penang, Malaysia.
All rights reserved. No part of this document
may be reproduced or transmitted in any form
or by any means, electronic, mechanical,
photocopying, recording, or otherwise,
without prior written permission of Acehub
Vista Sdn. Bhd.
Every effort has been made to ensure that
the information in this manual is accurate.
Acehub Vista Sdn. Bhd. is not responsible for
printing or clerical errors.
Trademark Acknowledgements
DreamCatcherTM is the trademark of Dream
Catcher Consulting Sdn. Bhd.
Microsoft and Windows are trademarks of
Microsoft Corporation in the United States
and/or other countries. All other copyrights
and trademarks belong to their respective
owners.
© 2015 Acehub Vista Sdn. Bhd.
