Dreamsat 700 User manual

English

2

3
TABLE OF CONTENTS
WARNING/REMEMBER/CAUTION ---------------------------------------------------------------------- 6
SAFETY MEASURES----------------------------------------------------------------------------------------7
ABOUT THE INSTRUCTION MANUAL --------------------------------------------------------------------8
MARKETING AND SIGNS APPLIED TO THE RECEIVER ------------------------------------------------8
BASIC INFORMATION ABOUT THE RECEIVER ---------------------------------------------------------9
1. MAIN FEATURES
. CONTENTS OF BOX
3. IMPORTANT INSTRUCTIONS CONCERNING HANDLING THE RECEIVER
4. REMOTE CONTROL ------------------------------------------------------------------------10

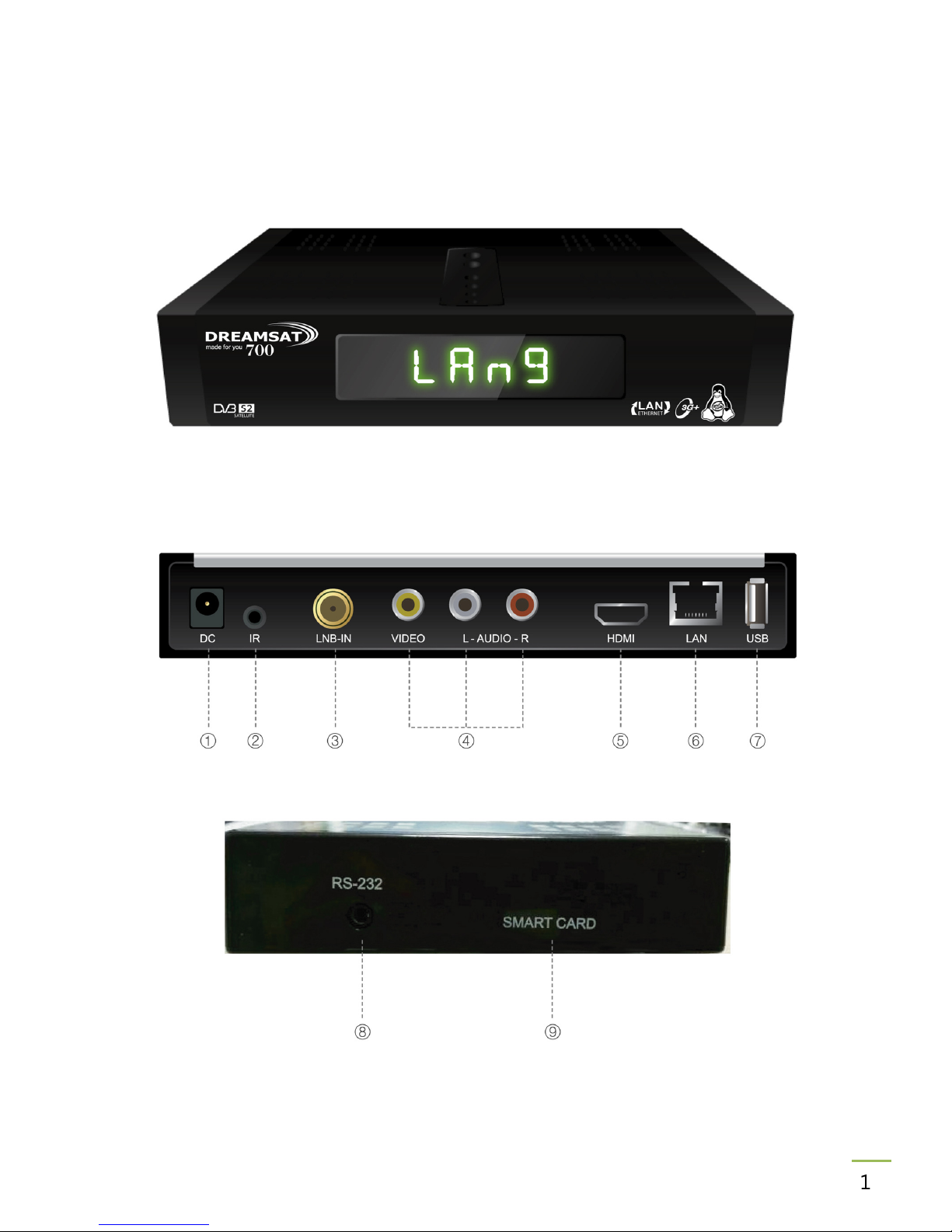

5. MAIN UNIT DESCRIPTION ---------------------------------------------------------------1
1) POWER -----------------------------------------------------------------------------13
) TUNER 1 IF INPUT
3) ETHERNET
4) USB
5) HDMI
6) IR (Infrared Sensor)
7) RS- 3 (Data Interface)
8) CVBS

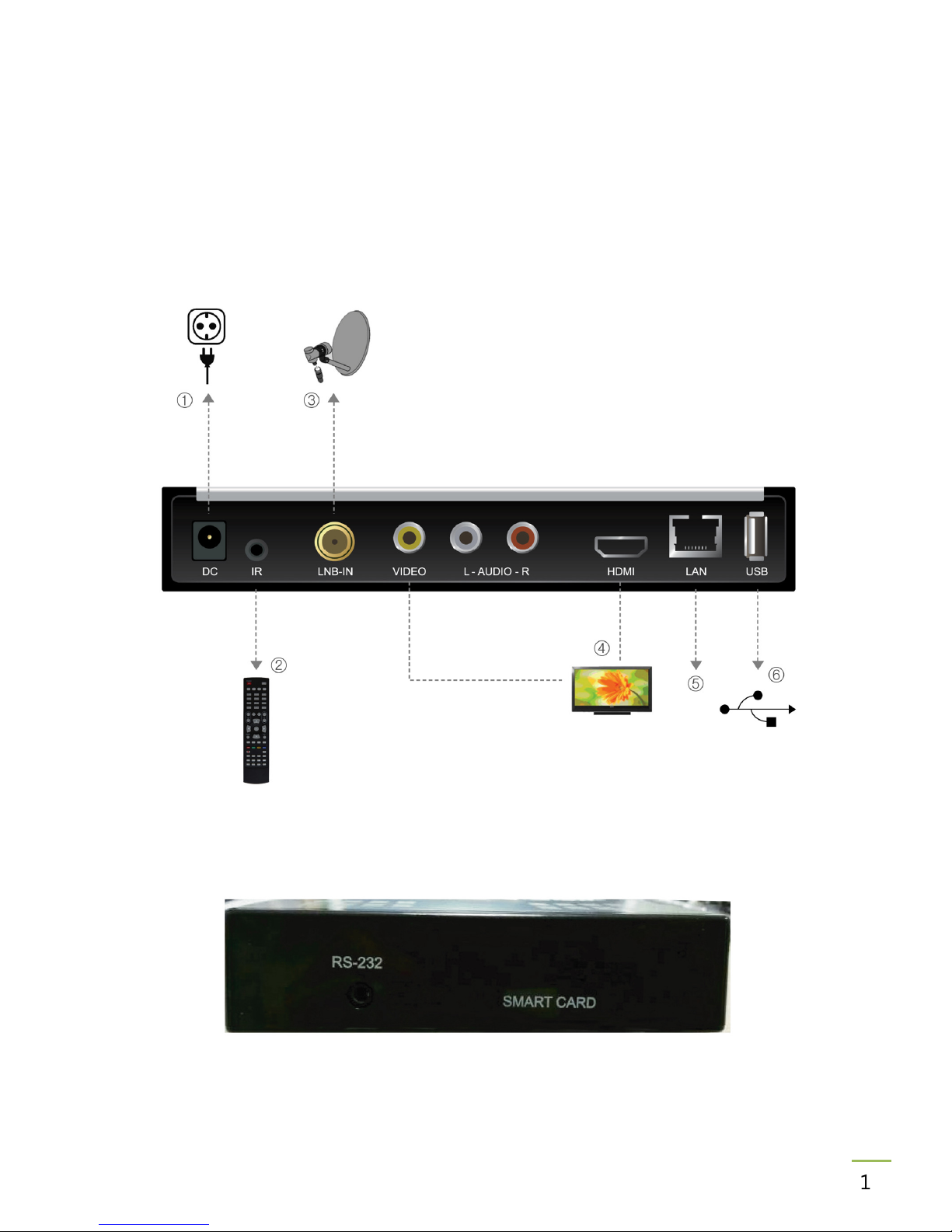

6. CONNECTION OVERVIEW ----------------------------------------------------------------14
6.1 ANTENNA -------------------------------------------------------------------------15
6. POWER SUPPLY
6.3 ETHERNET : INTERNET LINE CONNECTION
6.4 POWER SUPPLY
6.5 HDMI & CVBS
6.6 INFRARED SENSOR
6.7 RS- 3
7. POWERING ON/OFF ----------------------------------------------------------------------------------15
8. FIRST INSTALLATION --------------------------------------------------------------------------------16
8.1 OPERATING THE MENU
8. LANGUAGE SELECTION
8.3 SATELLITE SEARCH
9. DAILY USAGE ------------------------------------------------------------------------------------------17
9.1 VOLUME CONTROL
9. CHANGING CHANNELS
9.3 CHANNEL LIST
9.4 USER LISTS
9.5 ZOOM MODE
9.6 INFORMATION BAR

4
9.7 AUDIO CHANNEL ----------------------------------------------------------------18
9.8 AUDIO LANGUAGE
9.9 FREEZE MODE
9.10 TELETEXT
9.11 EDIT CHANNEL LIST, EVENT LIST
9.1 MEDIA ---------------------------------------------------------------------------19
9.1 .1 RECORDINGS & MOVIES
9.1 . MUSIC
9.1 .3 PHOTOS
9.13 Jump Time ---------------------------------------------------------------------- 0
9.14 MULTI FEED
9.15 SUBTITLE LANGUAGE
9.16 EDIT/SEARCH WINDOW
10. PROGRAM GUIDE ----------------------------------------------------------------------------------- 1
11. RECORDING -----------------------------------------------------------------------------------------
11.1 RECORDING GUIDE
11. INSTANT RECORDING ---------------------------------------------------------
11.3 TIMESHIFT RECORDING ------------------------------------------------------ 3
11.4 TIMER RECORDING
1 . MENU ------------------------------------------------------------------------------------------------- 3
1 . 1 OPERATING THE MENU
13. CREATE & EDIT -------------------------------------------------------------------------------------- 4
13.1 EDIT CHANNEL
13. EDIT FAVORITE LISTS
13.3 DELETE SATELLITE & TRANSPONDER ---------------------------------------- 5
13.4 EXPORT DATA
13.5 IMPORT DATA
14. INSTALLATION ------------------------------------------------------------------------------------- 6
14.1 ANTENNA
14. SATELLITE SEARCH
14.3 DISEQC 1. --------------------------------------------------------------------- 7
14.4 BLIND SCAN -------------------------------------------------------------------- 7
14.5 USB UPDATE ------------------------------------------------------------------- 9
15. SETTINGS -------------------------------------------------------------------------------------------- 30
15.1 NETWORK CONNECTION
15. uPnP
15.3 TV OUT -------------------------------------------------------------------------- 31
15.4 SOFTWARE VERSION ----------------------------------------------------------3
15.5 CARD READER

5
16. USER -------------------------------------------------------------------------------------------------33
16.1 MENU & AUDIO LANGUAGE
16. TIME & DATE
16.3 PARENTAL LOCK ---------------------------------------------------------------34
16.4 MENU & CHANNEL LOCK
16.5 PVR SET-UP
17. MULTIMEDIA ---------------------------------------------------------------------------------------35
17.1 FILE BROWSER
18. WEB----------- --------------------------------------------------------------------------------------35
SPECIFICATION ----------------------------------------------------------------------------------------36

6
WARNING !!!
Supported network features as internet radio, Youtube, etc depend on your
network connection speed and quality and the server settings (limitations,
bandwidth, location) which you are accessing.
Playback of copy protected content, damaged files, etc. may fail or be
incorrect. ideo files with a resolution higher than 1920x1080i, 1280x720p
or with a video bitrate over 30Mbps may not play properly.
This satellite receivers support recording to external hard disk drives (HDDs)
and flash memories (pen drives). The correct operation of the recording
function depends on the type of connected memory! You must read the
following limitations.
REMEMBER:
1. In order to use an external USB memory, the memory must support the USB
2.0 standard. To ensure stable recording and playbac , you must use a
memory with a recording speed of 0.0 MB/s or faster. Slower hard dis
drives and flash memories may not function properly, have problems with
recording (image jitter), or do not function at all!!!
2. Only memory with one basic EXT2, EXT3 or FAT32 partition (we recommend
using the FAT32 format) will function properly. If your hard dis is not formatted in
EXT2, EXT3 or FAT32, format the dis on your computer before connecting it to the
receiver.
3. Highly fragmented or used memories may also not operate smoothly or
correctly.
CAUTION
1. Under no circumstances should you disconnect the USB device from the receiver
during recording or playbac . Disconnecting during operation may cause damage to
the receiver and/or flash memory, and to the recorded data.
2. Do not touch the wor ing receiver (and in particular the USB connector) with
wet hands. Ris of electric shoc and permanent damage to the receiver!

7
SAFETY MEASURES
We request that you read the instruction manual and recommendations set forward therein.
Also remember to correctly position the satellite antenna!
In order to avoid an electric shoc , never open the housing. Damage to the
warranty seal shall void the warranty.
Disconnect the receiver from the mains during thunderstorms or when it is not
to be used for an extended period of time. Please remember that the warranty
does not cover damage to the equipment caused by a lightning stri e.
Do not expose the receiver to direct sunlight. Place it away from sources of
heat and humidity. Do not cover ventilation ducts with items such as
newspapers, table-cloths, curtains, etc in order to ensure the correct
circulation of air.
Place the receiver horizontally on a flat, even and stable surface. Ma e sure
the receiver has more than 10 cm clearance around for sufficient ventilation.
If you move the receiver from a room that is warm to one that is cold (or vice
versa), wait at min. 1 hour before connecting it to the mains. Otherwise,
problems may arise.
The receiver should be placed away from vases, bottles, aquariums and other
Water containers in order to avoid damage. Do not touch the mains plug with
your bare hands.
Do not place any objects on the housing of the receiver. This may cause
overheating and reception problems. No na ed flame sources such a lighted
candles should be placed on the receiver.
Before commencing maintenance or installation wor , disconnect the receiver from the mains.
Do not clean the receiver with alcohol or liquids containing ammonia. If necessary, clean it with
a soft, lint-free cloth wetted with a gentle solution of water and soap.
• Do not connect any cables when the mains plug is in the soc et.
• Chec the condition of your cables. Damaged cables may cause a fire.
• Please disconnect the receiver from the mains before connecting any cables.
• Where the mains plug or an appliance coupler is used as the disconnect device, the
disconnect device shall remain readily operable.

8
ABOUT THE INSTRUCTION MANUAL
We have made every effort to provide the most current information about its products. We do
not grant any guarantee as to the contents of the present instruction manual and disclaims any
implied guarantees concerning mar et value or suitability for specific purposes. The information
contained herein is an instruction intended to enable the correct usage and maintenance of the
receiver.
We reserve itself the right to introduce amendments, changes or translations of the instruction
manual without prior notification thereof. For this reason, we recommend you regularly visit our
website in order to obtain the latest information.
MARKINGS AND SIGNS APPLIED TO THE RECEIVER
Digital signal transmission logo.
This logo informs that the receiver conforms to the Digital Video Broadcasting
standards.
Risk of electric shock -do not open.
This notice warns the user not to open the receiver housing. The housing may
be opened solely by authorized service technicians.
CE logo.
The logo informs that the receiver conforms to the terms and conditions of
Directive 89/336/EEC concerning observance by Member States of provisions
regulating electromagnetic compatibility, and to the terms and conditions of
Directives 73/23/EEC and 93/68/EEC concerning observance by Member States
of provisions regulating low voltage electricity and safety with relation to the
handling and operation of electrical equipment.
Double insulation logo.
This logo informs that the receiver is an electrically safe device, provided that it
is used in accordance with the recommendations set forward in the chapter
concerning safety.
Take an active part in protecting the natural environment!
• Your receiver is made from materials that can be processed or recycled.
• At the end of its service life, ta e this unit to a designated collection point.

9
BASIC INFORMATION ABOUT THE RECEIVER
1. Main features
∨ Reception of high definition channels
∨ Upscaling of PAL signals to 1080 P resolution
∨ 20 programmable timers
∨ Separate favorite, TV and Radio channels list
∨ Quic channel search function (Quic Find)
∨ Teletext and subtitle display
∨ DiSEqC 1.0, 1.1 and DiSEqC 1.2, USALS
∨ MPEG-2, MPEG-4, MPEG-4 AVC/H.264 standards
∨ Compatible with DVB-S and DVB-S2 systems
∨ Card reader for pay-per-view television
∨ WIFI & 3G modem available for internet connection
. Contents of box
Unpac the receiver and chec whether all of the following elements are present
∨ 1 x remote control unit (incl. 2AAA batteries)
∨ 1 x instruction manual
∨ 1 x hybrid satellite receiver
∨ 1 x HDMI cable
∨ 1 x IR sensor cable
3. Important instructions concerning handling of the receiver
The screen menu (OSD) simplifies operation of the receiver and has made it possible to reduce
the number of eys on the remote control. All of the functions are displayed on the screen and
may be controlled by means of a small number of eys. Common functions have been
connected in one "MENU". The selected function is colored. Depending on the selected option,
various "function eys" are displayed: red, yellow, green, blue and white in the form of graphics
and descriptions. The colors represent various functions in individual "Menus". The selected
function is activated by pressing a ey on the remote control unit. The so-called function eys
are active only when in the appropriate field there is information about it. The user interface
ma es it possible to navigate within a menu and between functions in a number of different
ways. Certain eys on the remote control allow direct access to functions. The eys are
multifunctional, i.e. their functions depend on previously activated elements.
NOTE:
Please keep in mind that new software may change the functionality of the receiver.
Photographs and descriptions included in the instruction manual are for informational
purposes only. If you should notice an error, please report it -we shall make every effort
to have it rectified.

10
4. Remote control
STAND BY Switch between operation and
STAND-BY Stand-by/deep
Stand-by mode and to boot.
VOL+/VOL- Adjust the audio volume.
CH UP/DOWN Change channels (next/previous).
PIP To go to Picture in Picture mode
PIP (another program's video
Play bac in a sub screen available
while watching a program)
POSITION To move sub screen's position
POSITION (up, down, left and right)
in POP mode
EDIT & CI Enter/exit the edit menu.
EJECT Eject the USB memory.
MULTI MEDIA
These colored eys have different
functions as displayed in the menus.
TV : Change channels (next/previous ).
UP/DOWN MENU: Navigate in the menus.
TV : Adjust the audio volume.
LEFT/RIGHT MENU: Navigate in the menus and select options.
TV : Enter the list mode.
OK MENU: Select options.
PAGE UP/DOWN Scroll a page or list up and down. To scroll
Continuously hold the ey.

11
MUTE Turn the sound on/off.
TV/RADIO LAST Change between TV and Radio mode.
LAST Return to previous channel.
V. Format Change the screen resolution.
NUMERIC KEYS TV : Enter a channel number directly.
MENU: Enter values.
Enter/exit TELETEXT
Enter/exit the zoom mode.
Pause a live program.
Info Enter/exit information about the program, movie/recording.
EPG Enter/exit the program guide.
MENU Enter/exit the menu and save change in menus.
EXIT Exit all menu modes.
LANG Select audio language and encode the text for movie subtitles.
FEED Select a Multifeed.
SUBT Select subtitle language for program and display the subtitle for movies.
AUDIO Select audio channels.
RECORDING Record a program and select the duration.
PLAY Start playbac .
PAUSE Start the Timeshift recording. Pause playbac .
STOP Stop playbac .
SLOW MOTION Playbac in slow motion. Each time you press this ey the speed
will increase (10%, 30%, 50%).
REWIND Each time you press this ey the rewind/ forward speed will
increase ( , 4, 8).
FORWARD
JUMP Jump bac or forward during playbac .

12
5. Main unit description

13
① MAIN POWER ADAPTOR (DC IN)
Connect the supplied power adaptor to this soc et. The flat side of the plug with the arrow
should point up. Please use only the original power adaptor supplied with the device.
② IR (Infrared Sensor)
Connect the supplied infrared sensor to this soc et. It received commands from the
remote control unit and should be place near the front of you TV.
③ LNB-IN (TUNER 1 IF INPUT)
Satellite broadcasting signal 1 input soc et
④ VIDEO, L-AUDIO-R
For Supporting Audio L/R and video
⑤ HDMI
Audio and Video output soc et for the high definition television set
⑥ ETHERNET
For internet line connection
⑦ USB
For connection to external USB memory stic .
⑧ DATA INTERFACE (RS- 3 C)
Only for advanced users and service personnel: computer interface for software update
and channel data transfer to another receiver.
⑨ SMART CARD
Insert any ind of subscription card.

14
6. Connection overview
The following illustrations show cable connections for a television and other devices connected
to the receiver. If you require any assistance in connecting individual devices, contact your local
technician. Before connecting or altering connections, disconnect the receiver from the mains.

15
6.1 Power Supply
Connect the DC cable of the mains adaptor to the DC IN jac of this receiver. Then insert the
plug of the mains adaptor into a mains soc et.
6. IR (Infrared Sensor)
Connect the cable of the infrared sensor to the IR jac of this receiver. Place the infrared sensor
near the front of the TV set so that it can be reached unimpeded by the infrared signal of the re
mote control from your favorite seating place.
6.3 Antenna
Connect the coaxial cable of your satellite antenna to the LNB IN soc et of this receiver.
6.4 VIDEO & HDMI
Plug this receiver into the HDMI or VIDEO connector of your TV set.
6.5 Ethernet (LAN)
Internet line connection
6.6 USB
Connection for external USB memory stic .
6.7 RS- 3
6.8. SMART CARD
7. Powering On/Off
Power ON/Booting
Connect the power cord of your receiver to a mains soc et.
Turn On the mains switch on the rear panel to start the booting.
Stand-by
Press the STAND-BY ey to switch between Stand-by and operation mode.
Timer recordings will record in this mode.
Deep Stand-by
Hold the STAND-BY ey pressed for 3 seconds to switch to the Deep
Stand-by mode. To switch again to operation mode, press the STAND-BY
ey again.
Timer recordings will not record in this mode.

16
8. First installation
After you turned on your receiver for the first time or after a factory reset, the installation
wizard will start automatically.
8.1 Operating the menu
Select an option with the ▲/▼, ◀/▶ eys.
Enter an option with the OK ey.
8. Language selection
Menu language Select the menu language.
Audio language Select the standard audio language for programs.
Subtitle language Select Subtitle language
Teletext language Select Teletext language
Press MENU ey to save the selection and to continue to the satellite search.
8.3 Satellite search
Satellite Select a satellite.
Transponder Select a transponder.
LNB Select the LNB frequency.
Khz Select On or Off.
DiSEqC Select the DiSEqC (A, B, C, D)/Mini A, B port for the selected satellite.
DiSEqC 1.1 Select the DiSEqC port (1-16) for the selected satellite.
LNB Power Select the LNB power.
Search Press (blue) ey to start the search.
Search options
All/FTA/NIT/FAST SCAN Select an option to start the search.
MULTI Select this Option to search all satellites (DiSEqC switch) at
one time.
NOTE Press EXIT key to install an Unicable/SCD/DiSEqC 1.2/USALS
system.

17
9. DAILY USAGE
9.1 Volume control
Volume Press VOL+/VOL-or ◀ / ▶ eys (while watching a program) to adjust the
volume.
Mute Press MUTE ey to turn the sound On and Off.
9. Changing channels
Change Press CH. UP/DOWN, ▲ / ▼ eys or enter the channel number with the 0-9
numeric eys to change channels.
Back Press LAST ey to return to the previous channel.
9.3 Channel lists
Press OK ey to display all satellite/user lists and sort o tions.
Operation Select columns with the t/u eys and select a sort o tion or channel
with the ▲ / ▼ /OK eys.
Search To search a channel name, enter first the channel list and enter the channel
name with the numeric eys.
Channel You can search for a search term with max. 7 letters.
The search term is displayed in the 1st column at the bottom.
Press (red) ey to delete a letter.
9.4 User lists
Press USER ey to display the 10 user lists.
List Select a column with the ◀ / ▶ eys and select an option or channel with the
▲ / ▼ /OK eys.
Rename Select a list and press (yellow) ey to rename.
Edit Press (red) ey to edit.
9.5 Zoom mode
Press ZOOM ey to enlarge a part of the screen.
Move the Zoom window with the ▲ / ▼ , ◀ / ▶ eys to the part of the screen to enlarge.
9.6 Information bar
Press INFO ey to display the channel number & name, list name, time.
The current and next program information, if available, will be displayed. If detail information
is available, press INFO ey again to display them.

18
is displayed for programs in High Definition.
is displayed, if subtitle languages are available.
is displayed, if Teletext is available.
is displayed, if Multifeeds are available.
is displayed for loc ed channels.
is displayed for pay TV channels.
is displayed for programs in Dolby Digital.
displays the audio channels (mono, stereo).
SIGNAL displays the signal quality and strength.
9.7 Audio channel
Press AUDIO ey to select an audio channel (stereo, mono left/right).
Stereo.
Left/right channel (Mono).
9.8 Audio language
TV Press LANG ey to select an audio language, if available. Select a language
with the ▲ / ▼ /OK eys.
Movies Press LANG ey to select the matching subtitle text code to display all letters
correctly.
Select the text code from the list with the ▲ / ▼ /OK eys.
9.9 Freeze mode
Press FREEZE ey to pause a live program.
9.10 TELETEXT
Press TEXT ey to display TELETEXT, if available. Operate the menu with the 0-9 numeric
and colored ( ) eys.
9.11 Edit channels, event list
Press (green) ey to display detail information about the channel.
Lock Select On to loc the channel.
Descramble If 2 CAMs or a card are inserted, preset the channels to the specific
With CAM or card for a faster decoding.
Save Press MENU ey to save the changes.
Delete Press (red) ey to delete the channel.
Event list Press (blue) ey to display the event list for all recordings and reservations.

19
Select an event with the ▲ / ▼ eys. Press (red) ey to delete an event,
press (green) ey to delete all events.
9.1 Media Press MEDIA ey to view REC, MOVIES, MUSIC and PHOTOS.
9.1 .1 Recordings & movies
Recording format Trp.
Movie formats DivX/Xvid (.avi, .divx), FLV (.flv), PAL (50Hz),
PAL (50Hz) MPEG-2 (.m g, .m2v, .ts, .tr ), MKV.
Playbac
Preview Select a movie or recording and press OK ey.
Full screen Select a movie or recording and press OK ey twice or PLAY ey.
Press STOP ey to stop.
Details Press INFO ey to display the title, present & total playtime.
Edit movies/recordings & folders
Sort Press (green) ey to sort (A-Z/Z-A, Date).
Delete Press (red) ey to delete.
Loc Press (yellow) ey to loc /unloc a folder or a recording.
Edit Press INFO ey to enter the file browser.
NOTE For YouTube videos and some video files rewind/forward, Jum ,
slow motion does not work.
Playback of TRP recordings
To play SD or HD TRP (.trp) files recorded by other devices, select the matching codecs.
Video Codec Select between SD and HD Recordings.
Audio Codec Select between MPEG, AC3 and DDPLUS (Dolby Digital Plus).
NOTE Your set will reboot, if you selected the wrong video codec.
9.1 . Music
Format MP3.
Playback Select a song and press OK ey. Press STOP ey to stop.
Playlist Press PLAY ey to playbac the songs of a folders.
Press JUMP eys to select the previous/next song.
Press STOP ey to stop.
Soundtrack Enter Photo Menu, MP3 songs as soundtrac .
Edit MP3 & folders
Sort Press (green) ey to sort (A-Z/Z-A, Date).
Delete Press (red) ey to delete.
Edit Press INFO ey to enter the file browser.
9.1 .3 Photos
Format JPG
Full screen

20
List Select a photo and press OK ey to preview the photo.
Press OK ey again to view the photo in full screen.
Thumbnails Select a photo and press OK ey to view the photo in full screen.
Select the next/ revious photo with the t/u eys.
Thumbnails/ list Press (yellow) ey to change between thumbnails and list mode.
Slideshow Press PLAY ey to start the slideshow of a folder. Press STOP/EXIT
eys to stop.
Edit Photos & folders
Sort Press (green) ey to sort (A-Z/Z-A, Date).
Delete Press (red) ey to delete.
Edit Press INFO ey to enter the file browser.
9.13 Jump time
Press the Jump eys to jump from a movie position
bac wards or forwards.
Select the jump time (1-10 min.) with the ▲ / ▼ eys.
9.14 Multi-feed
Some programs offer a variety of perspectives i.e. for sport events, these are called Multifeeds.
Press FEED ey to display Multifeeds for a program, if available. Select a feed with the
▲ / ▼ /OK eys.
9.15 Subtitle language
TV Press SUBT ey to select subtitle languages, if available for a current
program or recordings. Select a language with the ▲ / ▼ /OK eys.
Movies Supported formats: SRT, SMI, SUB.
Press SUBT ey to display subtitles. Press this ey again to deactivate subtitles.
If the subtitle and movie are asynchronous, synchronize the subtitle time. Press
the ◀ / ▶ eys and adjust the time from -5 seconds to +5 seconds in
0.1 second steps.
NOTE To display movie subtitles, the subtitle and menu language must be the
same and the movie file and subtitle file must have the same title.
9.16 Edit/search window
Select the edit/search window to rename (user lists, channels, recordings), to insert (address,
password, username) and to enter a search term.
Letter Select a letter with the ▲ / ▼ /OK eys.
Delete Press (red) ey to delete a letter.
A/a/… Press (green) ey to change between capital/lower case letters and to
display special letters for a language.
Save Press (yellow) ey to save.
Channel Press (blue) ey to cancel.
