Manhattan Plaza DS-100 User manual

User Guide
Plaza DS •100
freesat digital TV receiver

2
CONGRATULATIONS
on buying a Manhattan Plaza DS•100 freesat
receiver.
This high-performance unit is designed to
provide you with the best of digital TV and radio
from freesat, with high-quality digital pictures
and sound.
You can only use the Plaza DS•100 with a
suitable satellite dish.
We have tried to make the User Guide, Quick
Start Guide and packaging easy to understand,
and they have gained Plain English Campaign’s
Crystal Mark.
Some of the features of the Plaza DS•100
Over 140 freesat TV and radio channels
Subscription-free channels
On-screen channel list and channel browsing
Eight-day programme guide
Automatic programme reminder
Digital text and interactive services
Audio description
Subtitles
Receives non-freesat channels
SCART connection
Remote control
Automatic set-up
Auto-update for new channels
Auto-standby for saving power

3
When installed and used correctly, this
equipment should provide many years of
trouble-free entertainment in your home.
Please take the time to read this user guide
carefully before installing or using the unit, and
keep it for future reference.
If you experience any difculties connecting
or using the Plaza DS•100, see the
Troubleshooting section at the end of this
guide before contacting us.
FURTHER INFORMATION
FREESAT
You can get more information and help from
the freesat website at
www.freesat.co.uk
MANHATTAN
You can get more information on us from our
website at
www.manhattan-tv.com
or you can phone us on 020 8450 0005
www.manhattan-tv.com

4
Using the programme guide 25
Interactive TV services 27
Recording freesat programmes 28
Advanced Use 29
TV screen size 29
TV/DTV 30
Using the menu 30
The lock code 31
Changing the channel list 31
Using the favourite channels list 33
Settings 35
Changing the receiver’s language 39
Receiver information 40
Non-Freesat Channels 41
Tuning in non-freesat channels 41
Watching non-freesat channels 42
Appendix A - Safety 43
Appendix B - Troubleshooting 46
Appendix C - Specications 48
1
2
3
4
5
CONTENTS
In The Box 5
Your receiver 6
Remote control 8
Preparation
The satellite dish 10
Connecting your receiver 11
Switching on 14
Tuning in 15
Everyday Use
Turning on the receiver 18
Changing channels 18
Information bar 20
Changing the volume 20
Subtitles and audio description 21
Browsing channels 21
Using the channel list 23
Regional channels 24

5
Plaza DS•100 receiver
Remote control
Batteries for the remote control
SCART lead to connect to the TV
Quick-start guide
User guide
Using the programme guide 25
Interactive TV services 27
Recording freesat programmes 28
Advanced Use 29
TV screen size 29
TV/DTV 30
Using the menu 30
The lock code 31
Changing the channel list 31
Using the favourite channels list 33
Settings 35
Changing the receiver’s language 39
Receiver information 40
Non-Freesat Channels 41
Tuning in non-freesat channels 41
Watching non-freesat channels 42
Appendix A - Safety 43
Appendix B - Troubleshooting 46
Appendix C - Speci cations 48
In your Plaza DS•100 freesat receiver
pack you should  nd the following
items.
1
In The Box
User Guide
Plaza DS •100
freesat digital TV receiver

6
CH–CH+VOL–VOL+
YOUR RECEIVER

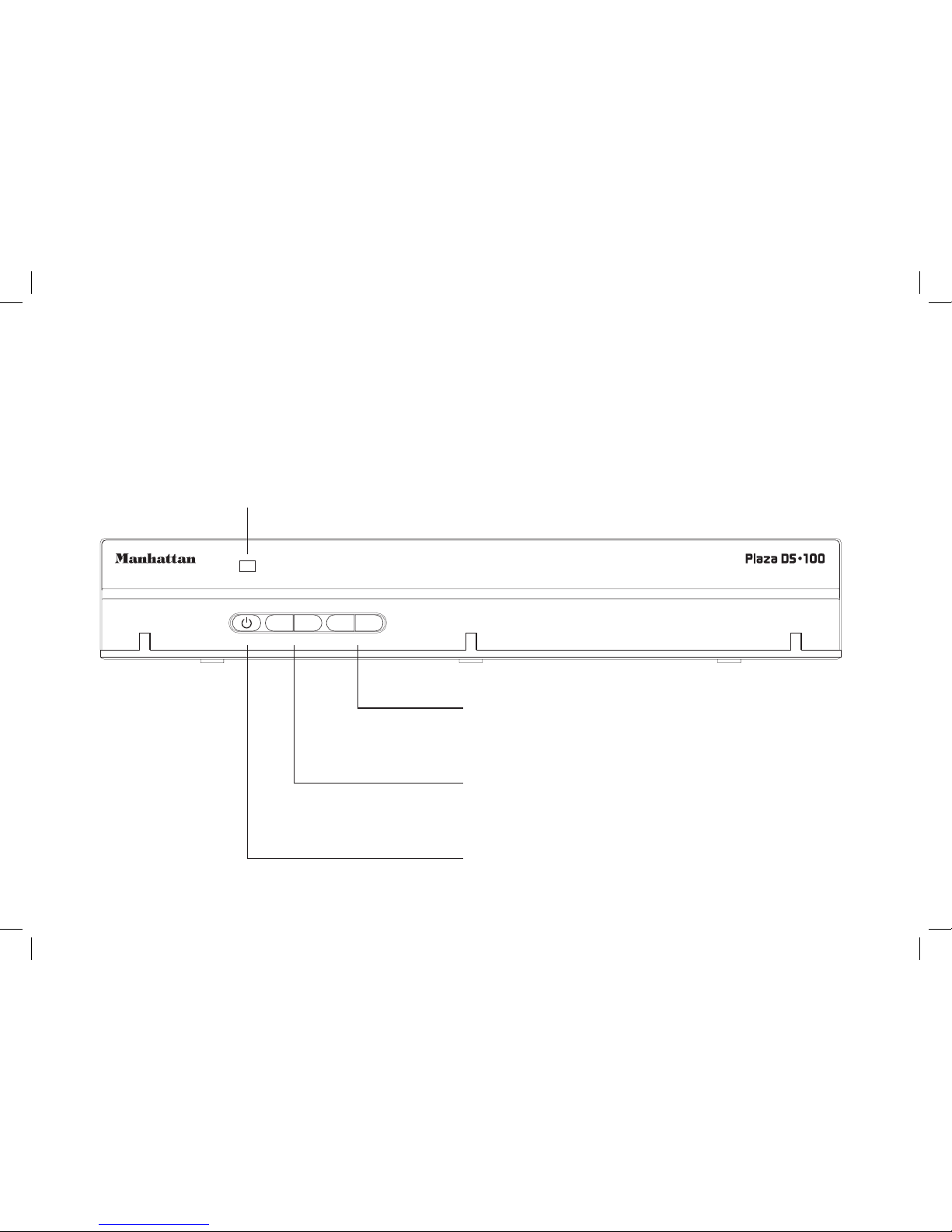

Manhattan Plaza DS•100
Open the receiver’s front cover by gently
pulling forward at the sides.
Power indicator light.
VOL- / VOL+
Turn the volume up and down.
CH- / CH+
Switch to the next or previous channel.
POWER
Switch the receiver on and off.
Front

7
Manhattan Plaza DS•100

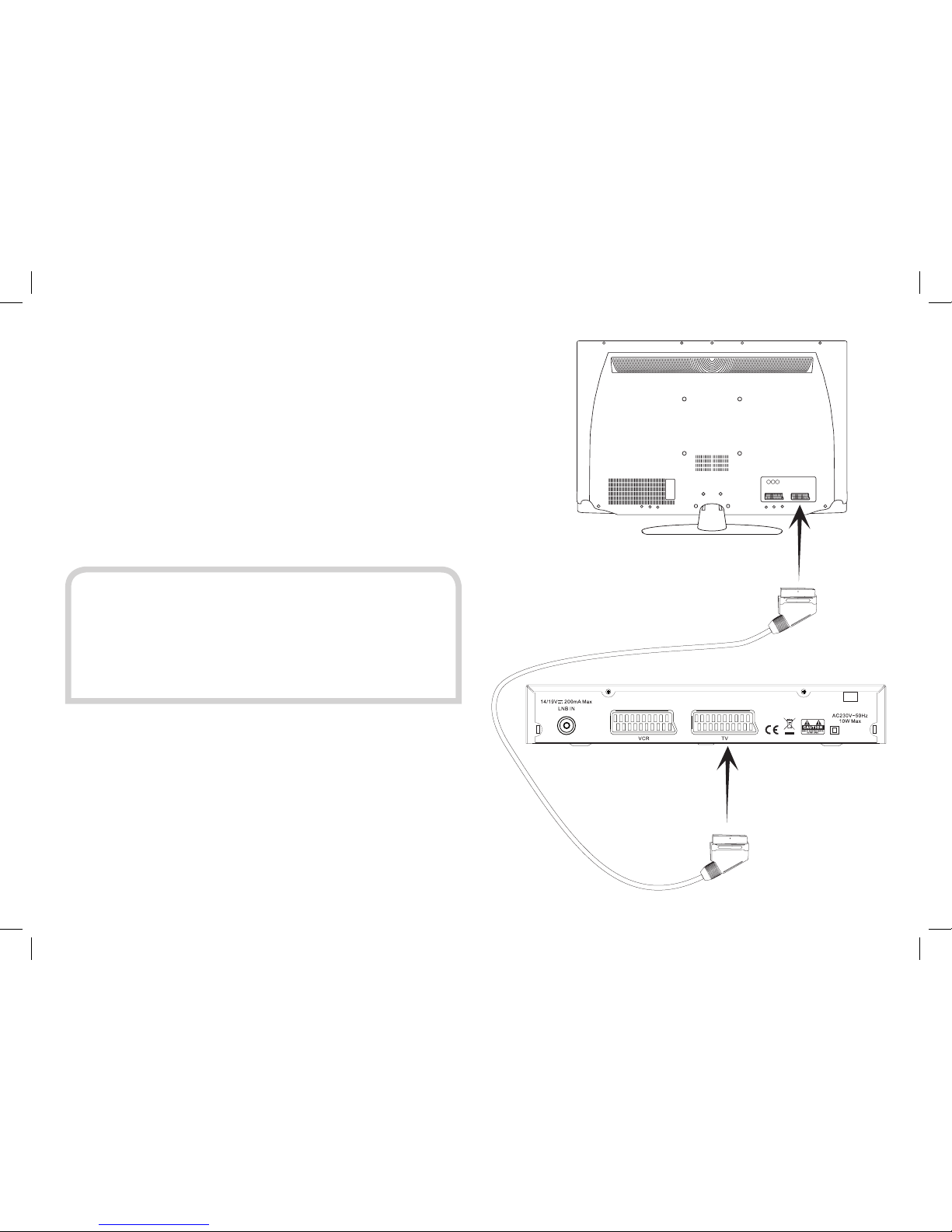

TV SCART
Output for connecting to the TV.
VCR SCART
Output/input for connecting to a video casette
recorder or DVD recorder.
LNB IN
Input for connecting to the satellite dish.
Mains power output for connecting to the
mains supply.
Back

8
Standby -switches the receiver on and
off.
Mute - silences the receiver’s sound.
0, 1 … 9 - buttons to choose channels and
so on, and to enter your postcode.
Switches to the last channel watched,
and switches between freesat and non-freesat
channel lists.
Switches to the next channel in the
favourite channels list.
Displays (and exit) the main menu screen.
Displays channel and programme
information.
REMOTE CONTROL
Manhattan Plaza DS•100

9
Up, down, left, right - moves the
highlight bar in menus and in the EPG.
Allows you to browse the channels and
programmes.
Chooses the option in the menu.
Displays the channel list.
Displays the electronic programme guide
(EPG).
Exits a menu and returns to the main
menu.
Exits a menu and returns to normal TV
viewing.
Switches between freesat and the TV’s
tuner.
Turns the volume up and down.
Switches to the next or previous channel.
Moves one page up or down the channel
list.
Switches audio description on and off.
Switches between widescreen display
formats on a conventional TV.
Switches subtitles on and off.
Displays the interactive and digital text
services (where available).
Red, green, yellow, blue -
chooses options within menus.

10
THE SATELLITE DISH

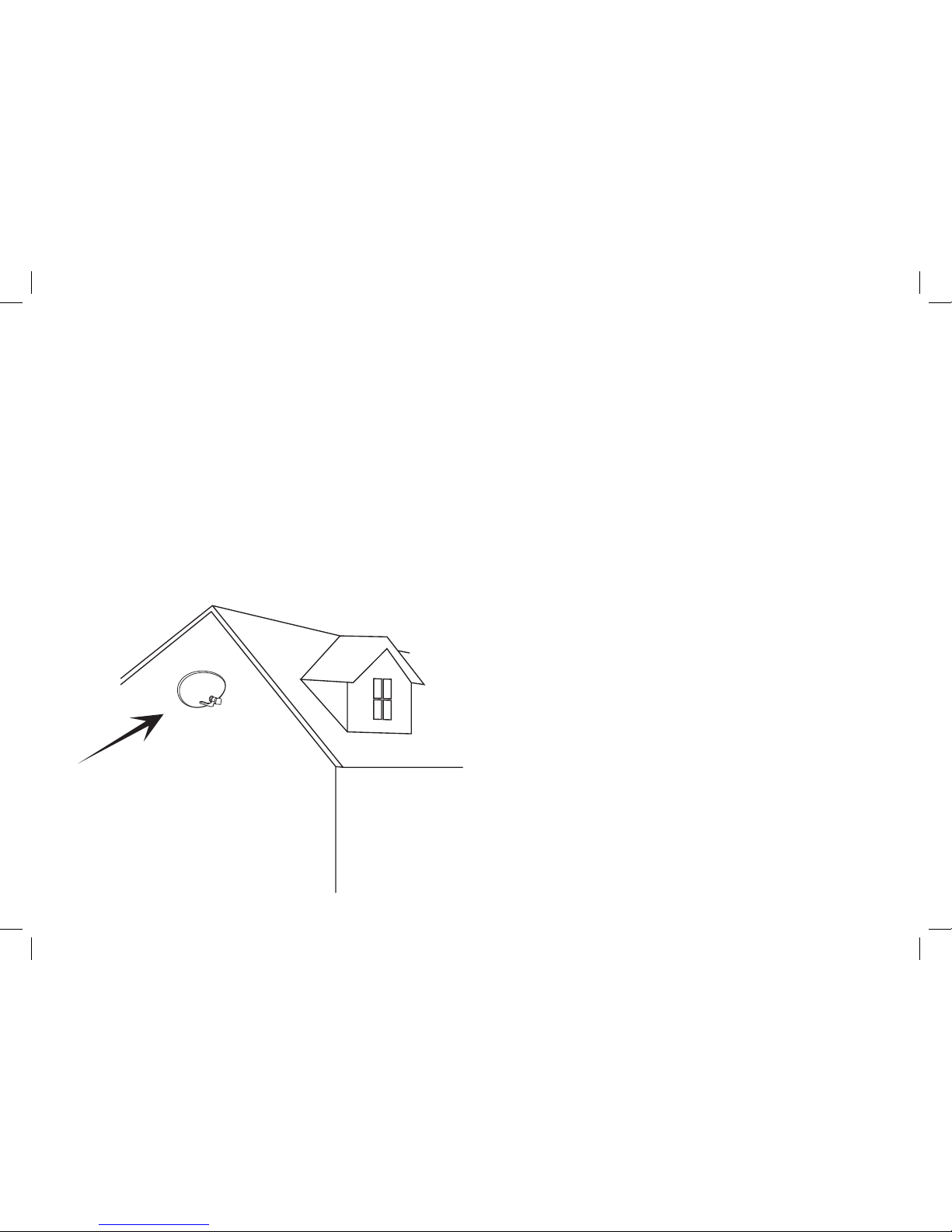

To receive freesat you must connect your Plaza
DS•100 receiver to an appropriate satellite dish,
xed in position and accurately pointed at 28.2°
East.
For safety reasons and to provide reliable
reception, we strongly recommend that you
have your dish installed by a professional. You
may be able to use a satellite dish already
installed at your home. If you have any questions
about the dish, please consult your installer.
2
This section explains how to set up
your Plaza DS•100 to receive freesat.
PREPARATION
