DREVO BladeMaster TE User manual
BladeMaster TE
Configuration
Guide
Using Drevo Power Console
Drevo
MKT
Nov. 6, 18 Edited
BladeMaster TE Configuration By Using DPC
DREVO Mkt
Game with Cool Tech
1
We designed the gaming keyboard to meet the exacting demands of the gamers, with the
design philosophy of “Simplify For Greater Fun”, takes cutting edge technology, coupled
with innovated design and extended durability, the BladeMaster TE features with 1ms
fastest reporting rate, 3 to-go onboard profile and a “Genius-Knob” carefully positioned on
the side. The IDEA rewarded DREVOTM BladeMaster shall empower you to have
unsurpassable reaction time and accuracy to dominate the playing ground.
Nov. 6, 18 Edited
BladeMaster TE Configuration By Using DPC
DREVO Mkt
Game with Cool Tech
2
Content
System requirements .......................................................................................................3
Installation..........................................................................................................................4
Registration........................................................................................................................5
Configuring your DREVOTM Device..................................................................................6
Customization tab.........................................................................................................8
Active Profile...............................................................................................................9
Profile manager .................................................................................................... 10
Macro manager..................................................................................................... 13
Batch Manager...................................................................................................... 16
Game statics recorder ......................................................................................... 17
Genius-knob tab......................................................................................................... 22
Layer selection ........................................................................................................ 23
Radi-RGB tab............................................................................................................... 26
Setting tab ................................................................................................................... 29
Nov. 6, 18 Edited
BladeMaster TE Configuration By Using DPC
DREVO Mkt
Game with Cool Tech
3
System requirements
PC or Mac with a free USB port
Windows 7 or higher / OSX 10.13 or higher
Internet connection
100 MB of free hard disk space
Note: Our software is still under beta testing, the function description in this
document may or may not be accurate, if you found any problems regarding
directly through :
@drevo.net
@drevo.us
Nov. 6, 18 Edited
BladeMaster TE Configuration By Using DPC
DREVO Mkt
Game with Cool Tech
4
Installation
INSTALLING DPC（Drevo Power Console）FOR YOUR DEVICE
⚫Step 1: Connect your device to the USB port of your computer.
⚫Step 2: Install Drevo Power Console when prompted* or download the
software installer from https://www.drevo.net/page/software
⚫Step 3: Create your Drevo Power Console ID or login with an existing
account
Nov. 6, 18 Edited
BladeMaster TE Configuration By Using DPC
DREVO Mkt
Game with Cool Tech
5
Registration
You need to sign in Drevo Power Console to take full advantage of the
DrevoTM device.
If you don’t have an account, you can create an account by click Create
Account under sign in button
If you are already a Drevo Power Console user, just enter your account info
on the welcome page.
Nov. 6, 18 Edited
BladeMaster TE Configuration By Using DPC
DREVO Mkt
Game with Cool Tech
6
Configuring your DREVOTM Device.
Once you sign in the software, ensure the device is connected, you can
choose for which device you want to make changes by selecting the device
from the bottom bar.
Device Selector
Nov. 6, 18 Edited
BladeMaster TE Configuration By Using DPC
DREVO Mkt
Game with Cool Tech
7
Click and select the keyboard from the bottom device selector bar
A window for keyboard configuration will pop out,
all the settings for your keyboard can be altered through the window
Nov. 6, 18 Edited
BladeMaster TE Configuration By Using DPC
DREVO Mkt
Game with Cool Tech
8
Customization tab
Customization tab will be your default tab, this tab allows you to customize
your device’s profiles, such as button assignment, macro Management,
batch management, Game Statistic etc.
Nov. 6, 18 Edited
BladeMaster TE Configuration By Using DPC
DREVO Mkt
Game with Cool Tech
9
Active Profile
A profile is a convenient way of organizing all your custom lighting effect,
macros, key assignment settings. you can have infinite number of profiles
at your disposal. any changes made within each tab; each sub-menu will be
automatically saved to the current active profile and you can choose to
store the profile on board or local computer.
Nov. 6, 18 Edited
BladeMaster TE Configuration By Using DPC
DREVO Mkt
Game with Cool Tech
10
Profile manager
You can edit your profile through profile manager
click to create new profile on local drive
click to delete profile,
click to import profile file from your local drive,
click to export profile file to your local drive
Nov. 6, 18 Edited
BladeMaster TE Configuration By Using DPC
DREVO Mkt
Game with Cool Tech
11
On the right side of the profile manager window, there are three on board
memory slot, you can drag the local profile to on board memory slot to
active the to-go keyboard profile.
When you use this software offline
Press FN+Ctrl+F1 to active G1 profile
Press FN+Ctrl+F2 to active G2 Profile
Press FN+Ctrl+F3 to active G3 profile.
Nov. 6, 18 Edited
BladeMaster TE Configuration By Using DPC
DREVO Mkt
Game with Cool Tech
12
The profile can also be triggered by local program using linked program
option.
Nov. 6, 18 Edited
BladeMaster TE Configuration By Using DPC
DREVO Mkt
Game with Cool Tech
13
Macro manager
You can create, edit and record Macro from Macro manager
There are no limited number and length for macros,
Nov. 6, 18 Edited
BladeMaster TE Configuration By Using DPC
DREVO Mkt
Game with Cool Tech
14
Press add button to have a macro entry, then press record, and all your
keystrokes and button press will automatically register on the macro screen,
when you are done recording your macro commands, click the stop to end
the session.
The macro entry can be renamed by select the entry then press edit or
double click the entry.

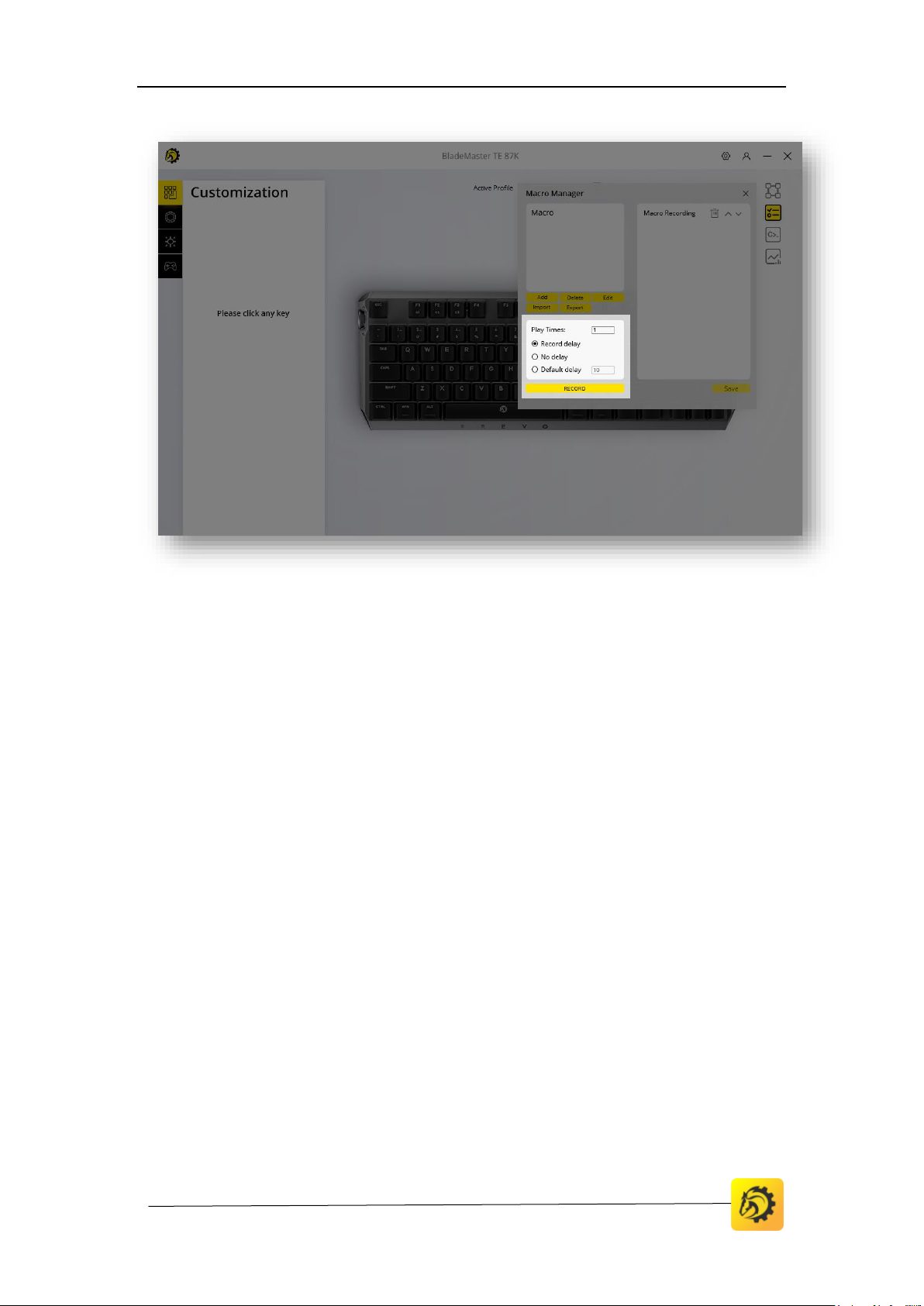

When you active the macro, there may have need for repeat the same
macro for multiple times, you can set up the play times specifications
through the left-down option areas.,
Nov. 6, 18 Edited
BladeMaster TE Configuration By Using DPC
DREVO Mkt
Game with Cool Tech
15
For each keystroke, they will appear on macro recording window, you can
directly edit the delay time for each keystroke entry.
Nov. 6, 18 Edited
BladeMaster TE Configuration By Using DPC
DREVO Mkt
Game with Cool Tech
16
Batch Manager
Batch files is a kind of script files consists of a series of commends to be
executed by the command-line interpreter, stored in a plain text files, it is
convenient for daily working and entertainment.
For the people who think the batch can change the world, we have a batch
manager available to create a batch list. Macro can trigger the batch. Click
Browse to find the Batch file, and then press submit to create an entry for
the batch list.
Nov. 6, 18 Edited
BladeMaster TE Configuration By Using DPC
DREVO Mkt
Game with Cool Tech
17

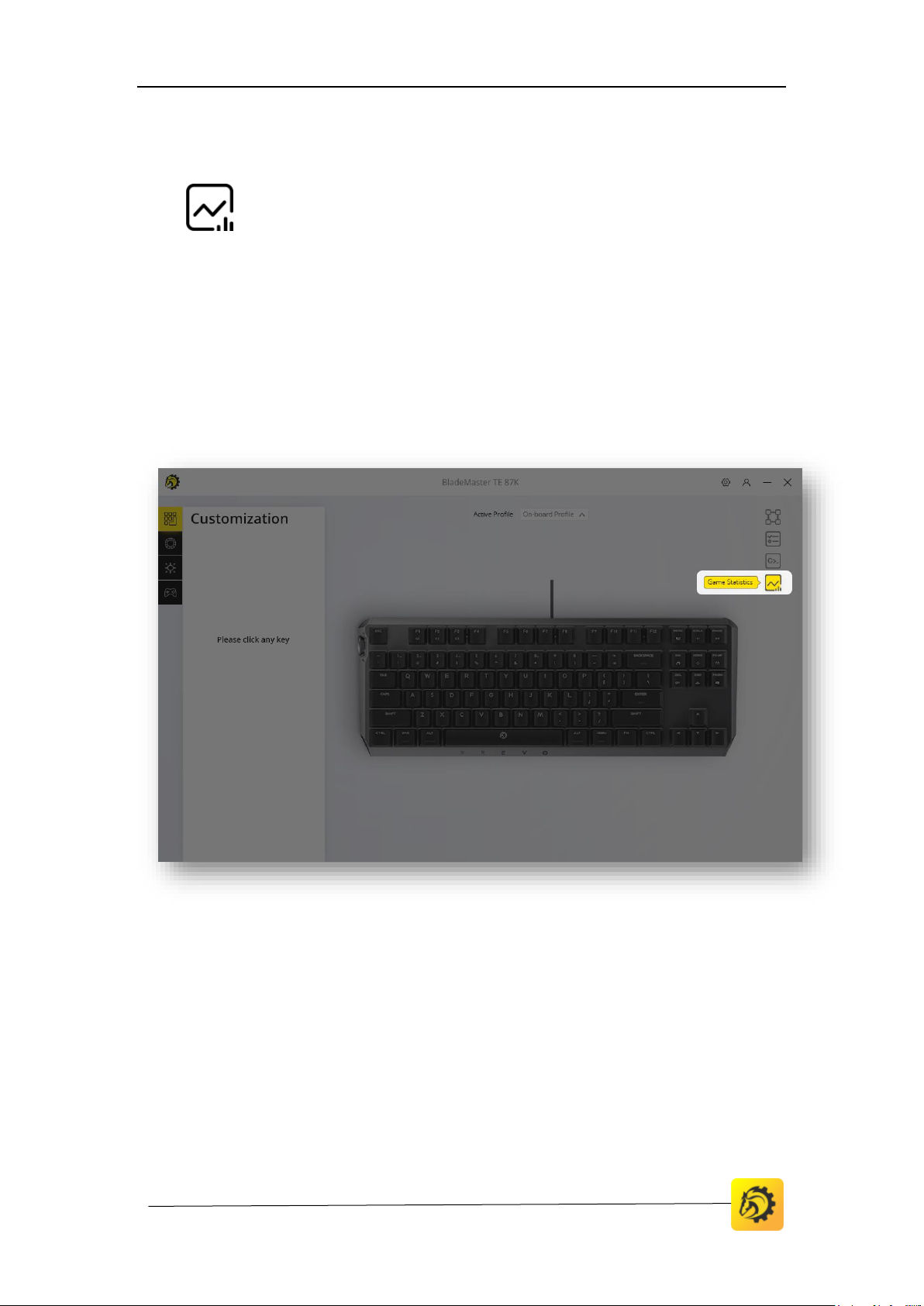

Game statics recorder
You can map down your gaming/software keystrokes hot zone by link this
program to the game statics recorder you can check the data from one day
/week /month or even one year.
Nov. 6, 18 Edited
BladeMaster TE Configuration By Using DPC
DREVO Mkt
Game with Cool Tech
18
Press to link a program for mornitoring,
Press to de-link the monitoring.
Note: This function is still under developing. There may have bugs, if you
encounter any problem please feel free to contact us through
Nov. 6, 18 Edited
BladeMaster TE Configuration By Using DPC
DREVO Mkt
Game with Cool Tech
19
Key assignment menu
Initially，each key is set to DEFAULT, however, you may change the function
of these buttons by clicking the desired button to access the key
assignment menu which will be shown on the left window.
Key assignment manual description:
Default
This option enables you to return the key to its original function, to choose
the default, just select it from the key assignment menu.
