Drew & Cole REDI HEK-1700-4H User manual

Instruction Manual
Read the details before use
Model: HEK-1700-4H
220~240V 50/60HZ 1850~2200W 1.7l

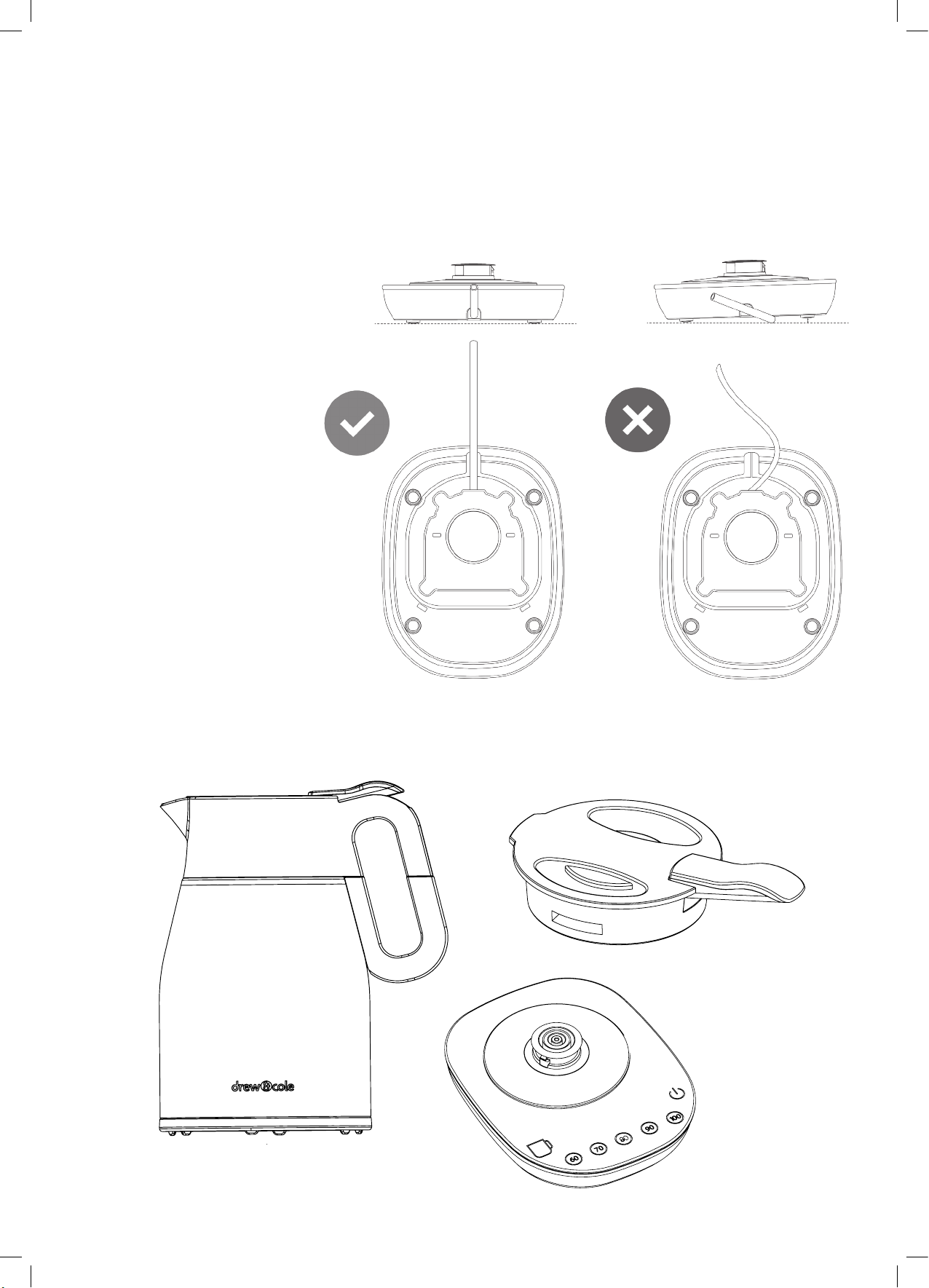

WHAT’S IN THE BOX
BEFORE FIRST USES
• Read the instructions carefully and follow them.
• Position kettle base on flat surface ensuring power cable is positioned in channel.
• Remove the product lid
• Fill the kettle with water up to the maximum water level, replace lid
• Boil and discard water
• Repeat process twice.
• Always ensure cable is in
channel for cup counter to
function. If cable is positioned
out of channel, kettle base
will fail to work and display
error message “0”.
Note: this appliance’s maximum water capacity is 1.7L.

PRODUCT OVERVIEW
OPERATION PANEL
Lid Lock
Pouring Lock
Lid
Pouring Spout
Kettle Body
Cup Display
Kettle Base
Temperature Selection
On / O
Handle

USER GUIDE
1. Place the kettle on a flat level surface.
2. The power cable is stored in the under side of
the kettle base, select the desired length of cable
ensuring it exits the base using the power cable
channel.
3. To fill the kettle, remove it from the base, open the
lid and fill with water. Ensuring the body and power
base remain dry and clean.
Note: DO NOT fill the kettle over the maximum level.
Make sure the lid is closed firmly before connecting
to power supply.
4. Place the kettle on the power base and connect to
power supply.
5. The cup display will inform you how much water is
present within the kettle
Note: Should you accidentally boil the kettle without
water, boil-dry protection will prevent the kettle from
boiling, the display will read E. Should you fill beyond
the max line overfill protection will prevent the kettle
from boiling, the display will read F.
1. Press the “Power” to power on the kettle base.
Set the temperature by selecting the desired
temperature (from 60oC/ 70oC/ 80oC/ 90oC/ 100oC).
2. The kettle will “beep” informing you it has started
to boil. It will “beep” again at the end of the
boiling cycle to inform you it has reached the
selected temperature. As the kettle cycles though
the temperatures a red light indicates current
temperature and blue light indicates selected
temperature. Once the kettle has reached the
desired temperature the boiling cycle will end.
At any time if you would like to top up the water
temperature you just need to press the power
button and select the desired temperature.
3. After boiling, lift the kettle from the power base,
press and hold the pouring lock and pour the water.
4. Note: Do not open the lid when pouring the water,
scald risk from hot water
5. Unplug the appliance while it is not in use, dry and
clean it, and then place it on the base.
CARE & MAINTENANCE
1. Always disconnect the kettle from the power outlet
before cleaning. NEVER immerse the kettle or power
base in water or allow moisture to come into contact
with these parts.
2. Exterior cleaning: wipe over the exterior of the kettle
with a soft damp cloth, and then wipe dry with a dry
cloth.
3. Note: DO NOT use chemical or abrasive cleaners to
clean inside the kettle.
4. Clearance of deposit: minerals in water may deposit
at the bottom of kettle, which will influence the
usability of the kettle. So periodical descaling is
needed. Please use detergents according to its
instruction. Or according to the following methods
with white vinegar.
5. Fill the kettle with 3 cups of white vinegar, and then
add water until it is over the deposit in the kettle and
allow it to stand overnight.
6. Empty the solution from the kettle. Fill the kettle
with clean water to the maximum level, discard after
boiling. Repeat for several times until there is no
remnants of vinegar.
7. When the kettle is in storage or not in use, do not
fold the power cord.

PROBLEM SOLUTIONS
Issue Cause Solution
Steam escaping from lid Lid not applied correcly on kettle Repostion lid on kettle
Cup display displays E or 0 Not enough water in kettle Add water
Cup display displays F Too much water in kettle Remove water
Kettle base has no lights
illumintatated
Kettle base in standby mode Press the on/o button once
Cup display displays 0 when water
in kettle
The base is not on a flat surface Ensure surface is flat and ensure the
power cable is not trapped under
kettle base
Cup display displays F when handle
is being held
Your hand is adding pressure to the
scale
Dont hold handle when kettle is
boiling

IMPORTANT SAFEGUARDS
SAFETY INSTRUCTIONS
Carefully read all instructions before opening the
appliance and save for further reference
• This appliance is for household use only.
• The appliance may be used by persons (including
children from 8 years on) with reduced physical,
sensory or mental capabilities, or lack of experience
or knowledge, if they have bene given supervision
or instruction concerning the use of the appliance.
Children must be supervised to ensure they do not
play with the appliance or any parts of the appliance
or the packaging. Do not leave the appliance
unattended, when it is in reach of young children.
Even cleaning and user maintenance may not be
performed by children without supervision.
• Do not attempt to use this appliance for any other
than the intended use, described in this booklet.
Any other use, especially miss use, can cause severe
injuries or damage by electric shock, heat or fire.
• Do not leave the appliance unattended for any other
than the intended use, described by this booklet.
Any other use, especially misuse, can cause severe
injuries or damage by electric shock, heat or fire.
• Do not leave the appliance unattended, when it is
connected to the power supply.
• Any operation, repair and technical maintenance of
the appliance or any part of it (e.g. exchanging any
permanently mounted parts) other than described
in the instructions may only be performed at an
authorised service centre. Please contact the
Customer Services Team.
• If the kettle is overfilled, boiling water may be
ejected.
• If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
• The appliance is only to be used with the kettle base
provided.
• Keep the appliance and its cord out of reach of
children aged less than 8 years.
• Avoid spillage on the connector.
• Don’t use the kettle for any purpose other than
heating water.
• The heating element surface is subject to residual
heat after use.
• Do not operate the kettle on an inclined plane.
• Do not operate the kettle unless the element is fully
immersed.
• Do not move while the kettle is switched on.
GENERAL SAFETY INSTRUCTIONS
Do not operate or store the appliance in humid
or wet areas or outdoors. This appliance is NOT
intended for use in boats or moving vehicles. Do not
use any accessories, attachments or spare parts not
recommended by the manufacturer. Damaged or
unsuited parts could cause cracks, distortions or leakage
of hot water. Do not operate the appliance when the
appliance or any part of it is likely to be damaged to
avoid risk of fire, overflow, heat, electric shock or any
other damage and/ or injuries to persons.
Only use the kettle in combination with the designated
power base. Neither kettle nor power base may be used
with any other parts of other appliances.
Check the water kettle regularly for any leakage.
However, due to condensation, small amounts for
moisture on the base may occur. This is normal.
Regularly check the power base and power cord for
proper operation. The pins of the plug and connectors
in the middle of the power base and at the bottom
of the kettle must be smooth and clean without any
discolouration. Do not operate the appliance when
any part of it is likely to be damaged or is not working
properly.
Return the appliance to an authorised service centre for
examination and repair, if the appliance is not operating
properly or overheating, or was subject to inadmissible
strain (e.g. overheating, mechanical or electric shock,
moisture in the electrical connectors). Unplug the
appliance immediately, when a severe problem occurs
during operation (e.g. water over flowing, overheating).
Do not attempt to open or repair the appliance on your
own.
Operate the appliance on a well accessible, heat
resistant, water- resistant, stable, level, dry and suitable
large table or counter. Do not place the appliance
on inclined surfaces, where it can tilt, overflow, or fall.
Ensure that the base will stand stable, before placing
the kettle on it and operating the appliance beneath or
below any heat-sensitive or moisture-sensitive materials,
boards, or drop-lights to avoid damage caused by
steam, heat, or condensate. During operation keep the
appliance in an appropriate distance of a least 20 cm on
each side.
Do not place any clothes or tissue or other objects under
on the appliance during the operation, to avoid risk of
fire, electric shock and overheating. Do not place the
appliance near the edge of the table or counter.
Do not place the appliance or any part of it on or near
hot surfaces (e.g. burner, heater, range, or oven). The
appliance is heated by built-in electric heating elements.
Do not place any part of the appliance (e.g. power base,
kettle) on a hot oven or range.
Do not leave the appliance unattended when connected
to the power supply. Always unplug the appliance
FOR HOUSEHOLD USE ONLY

FOR HOUSEHOLD USE ONLY
when it is not in use, and before moving or cleaning the
appliance. Always leave the appliance cool down before
cleaning. Always ensure that the kettle is filled correctly
and the exterior and the electrical connectors of the
kettle and power base are dry and clean, before placing
the kettle onto the power base.
Do not overfill the kettle. Always observe the MAX
filling mark in the interior of the kettle. Otherwise, hot
water could splash and overflow, causing severe scalds.
Always remove the kettle from the power base and
remove the lid filling the kettle. Do not pre-heat the kettle
while it is still empty! Always ensure that there are at
least 0.2 litres of water in the kettle before operation.
Only use the appliance for heating clear water. Do not
add any food or food additives. Do not fill milk or any
other beverages into the kettle. Do not place any foreign
objects into the kettle. There is no warranty claim of the
purchaser, if the damaged or defect of the appliance is
caused by inappropriate treatment.
The lid can be opened easily by pressing both lid lock
buttons simultaneously. Do not force the lid open.
Always close the lid, before starting operation.
Do not use abrasive cleaners or cleaning pads for
cleaning the appliance or any part of it. DO not clean
the appliance with any chemicals (e.g. bleach). Do not
use any hard or sharp-edged objects for operation or
cleaning.
DO NOT place the appliance or power cord in an
automatic dishwasher.
IMPORTANT SAFEGUARDS FOR ELECTRICAL
APPLIANCES
Carefully read all instructions before opening the
appliance and save for further reference
• Place the appliance near a suitable wall power
socket and connect the appliance directly to a
protected mains power supply with protective
conductor (earth/ground) connected properly. For
this, always unwind the power cord completely. Do
not to use any extension cord or multi socket outlet.
Ensure that the voltage rating of your mains power
supply corresponds to the voltage requirements of
the appliance (220-240V, 50/60Hz, AC, rated for at
least 16A).
• The power outlet socket must be installed separately
to avoid interference with other appliances.
• Power cords may never be knotted, twisted, pulled,
strained or squeezed. Do not let the plug or power
cord hang over the edge of the table or counter.
Ensure that no one will pull the appliance by the
power cord, or entangle in the power cord. Always
grasp the plug to disconnect the power cord. Do not
touch the power plug or appliance with wet hands
while the appliance is connected to the mains power
supply.
• Always unplug the appliance and remove the kettle,
before moving or cleaning the power base. Do
not leave the power base unattended when it is
connected to the power supply.
• The power cord may not touch hot surfaces or sharp
edges. Do not place the appliance on a power
cord. If the power cord is obviously damaged and/
or gets hot during operation, replace the power
cord completely. DO NOT attempt to repair any
power cord! To avoid risk of electric shock: Always
immediately wipe dry spilled liquids and condensate.
Do not place or immerse the kettle, power base or
the power cord in water or any other liquid. DO not
spill or drip and liquids on the power cord of exterior
of the appliance.
DO NOT place the appliance or any part of it in an
automatic dishwasher.
HIGH TEMPERATURES – RISK OF BURNS
Do not overfill the kettle (1.7L at the maximum). Press the
pouring button several times before pouring to avoid
scalds due to splashing hot water.
Always keep the lid closed during operation. Hot steam
may escape from the lid and spout. Do not hold your
hands, arms and/or face over the appliance during
operation to avoid scalds.
Hot water could cause severe burns! Do not leave
the appliance unattended, when it is in reach of young
children, especially when the water within the kettle Is
hot!
When heating water to a preselected temperature,
due to residual heat of the heating plate the water
temperature could still rise even after the kettle
automatically switched o. When heating water for
the immediate consumption or for preparing baby
food, always ensure that the water has the desired
temperature.
To avoid the build-up of pressure during heating, the
lid of the kettle is not water-tight. When moving the
filled kettle, ensure to keep the kettle in an upright, level
position to avoid injuries and damage due to spilled hot
water.
Always leave the kettle to cool down before cleaning.

www.highstreettv.com
Distributed by:
High Street TV,
PO Box 724,
Altrincham,
WA15 5BJ
Made in China
Version 1 06/18
